Overview

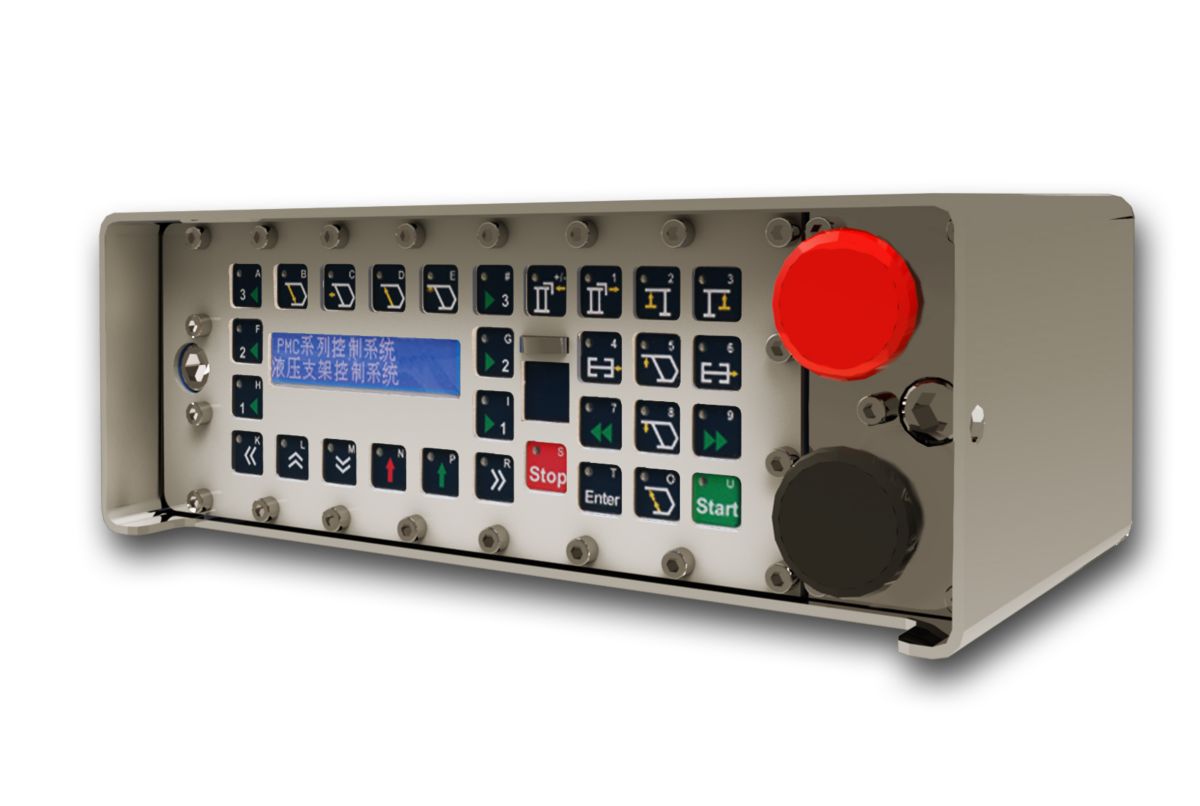

The intrinsically-safe Cat® PMC-R control units are used on shearer or plow faces to provide medium to high level of longwall automation. Each Roof Support needs to be equipped with one PMC-R control unit and a solenoid driver to operate the in-shield hydraulic functions and a set of peripheral components, like sensors for pressures and shield advance. The PMC-R can control and display all functions of a shield and is simultaneously the interface between operator and machine (HMI). The PMC-R system can control all individual shield functions based on a reliable network. As an interactive system, it allows the user to execute single shield functions as well as automatic functions. Important process values are continuously displayed as feedback for the operator.

Components

Operating System
µITRON RTOS
Processor
16Bit Microcontroller TMP91CW12AF, 27MHz, internal RAM 4Kbytes, ROM 125Kbytes
RAM Memory
2Mbytes CMOS Static RAM, 4Mbytes Flash

Dimensions (Approximate) - Rear Side View of the PMC-R

Height
4.57 in
116.00 mm
Length
12.60 in
320.00 mm
Width
7.01 in
178.00 mm

Global Certifications

Types (1)
Europe: ATEX
Types (2)
U.S.: MSHA
Types (3)
More certifications on demand
Types (4)
Australia: IECEx, ANZEx
Types (5)
China: MA
Types (6)
Russia: GOST

Dimensions (Approximate) - Front View of the PMC-R

Height
4.57 in
116.00 mm
Length
12.60 in
320.00 mm
Width
7.01 in
178.00 mm

Dimensions (Approximate) - Solenoid Driver Module

Height
1.46 in
37.00 mm
Length
13.66 in
347.00 mm
Width
2.68 in
68.00 mm

Pin Assignment of Solenoid Driver Module Type SD1

Socket S101 - Pin 1
12.00 V
12.00 V
Socket S101 - Pin 2 (Solenoid 1)
TX
Socket S101 - Pin 3 (Solenoid 2)
RX
Sockets S301-S306 - Pin 1
12.00 V
12.00 V
Sockets S301-S306 - Pin 2 (Solenoid 1)
GND1
Sockets S301-S306 - Pin 3 (Solenoid 2)
GND2
Sockets S301-S306 - Pin 4
GND
Sockets S307-S311 - Pin 1
12.00 V
12.00 V
Sockets S307-S311 - Pin 2 (Solenoid 1)
GND1
Sockets S307-S311 - Pin 3 (Solenoid 2)
GND2
Sockets S307-S311 - Pin 4
0 - 1 mA; 0.5 - 4.5 V

Electrical Data

Supply Current - Maximum Ratings
2.00 A
2.00 A
Supply Current - Typical Value
1.00 A
1.00 A
Supply Voltage - Maximum Ratings
9.5 V - 13.2 V
Supply Voltage - Typical Value
12 V DC

Environmental Data

Temperature - Maximum Ratings
-20° C - +40° C (-4° F - +140° F)
Temperature - Symbol
Tamb
Temperature - Typical Value
68.00 °F
20.00 °C
