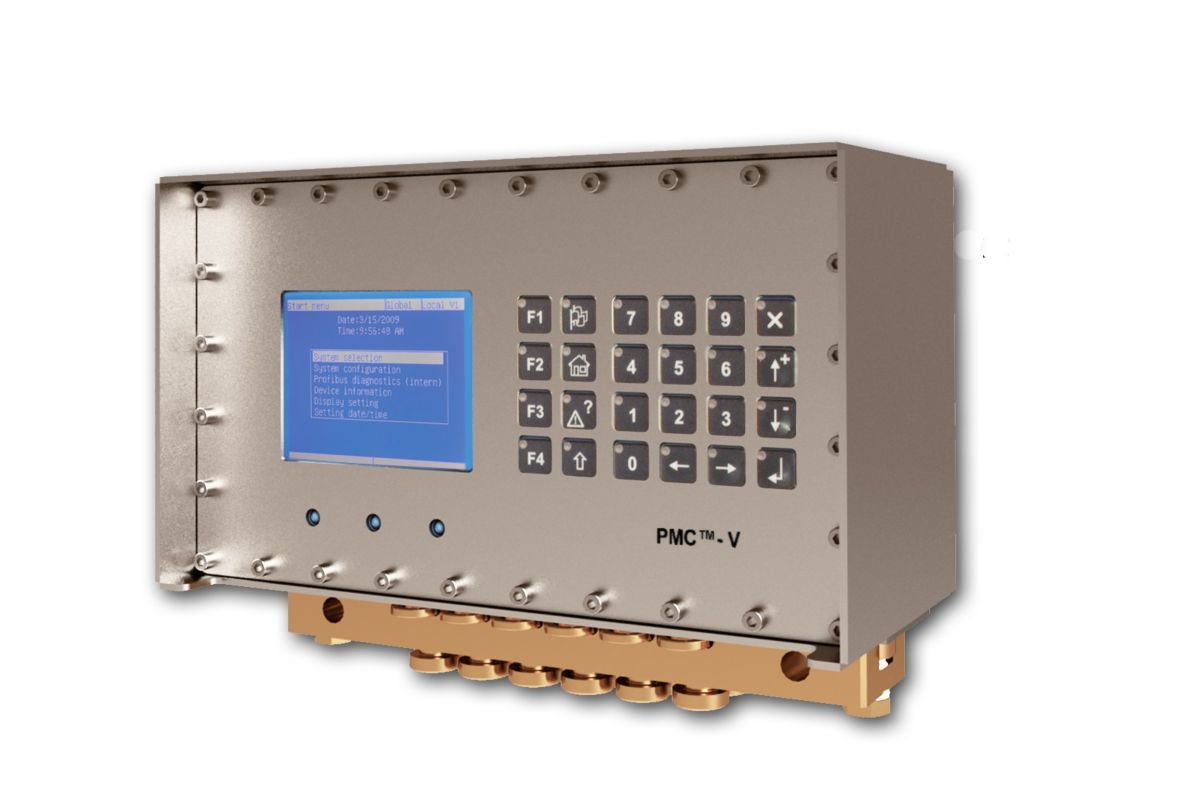

PMC-V Human Machine Interface for PMC-D Drive Control Systems

US
Metric

Overview

In face conveyor or plow automation systems the Cat® PMC-V provides the human machine interface (HMI) to interact with the PMC-D drive controls to operate manual mode, visualize and change parameters and show actual process values. Within a PMC-D system minimum one and typically up to 3 PMC-Vs are in equal operation.

Components

Operating System
µITRON RTOS
Processor
32Bit RISC Microcontroller TX1940CYAF, 32MHz, internal RAM 10Kbytes, ROM 256Kbytes
RAM Memory
4Mbytes CMOS Static RAM, 4Mbytes Flash

Electrical Sockets

Socket 1 - Pin 1
Optocoupler Anode
Socket 1 - Pin 2
Relay Contact NO: a
Socket 1 - Pin 3
Relay Contact NO: b
Socket 1 - Pin 4
Optocoupler Kathode
Socket 10 - Pin 1
+12 V (A)
Socket 10 - Pin 2
Measurement Input 3
Socket 10 - Pin 3
+8.2 V
Socket 10 - Pin 4
GND
Socket 11 - Pin 1
Options
Socket 11 - Pin 2
Options
Socket 11 - Pin 3
Options
Socket 11 - Pin 4
Options
Socket 12 - Pin 2
Profibus: a (internal)
Socket 12 - Pin 3
Profibus: b (internal)
Socket 2 - Pin 1
+12 V (A)
Socket 2 - Pin 2
Serial Interface: RxD
Socket 2 - Pin 3
Serial Interface: TxD
Socket 2 - Pin 4
GND
Socket 3 - Pin 1
+12 V (B)
Socket 3 - Pin 2
Serial Interface: RxD
Socket 3 - Pin 3
Serial Interface: TxD
Socket 3 - Pin 4
GND
Socket 4 - Pin 1
+12 V (C)
Socket 4 - Pin 2
Serial Interface: RxD
Socket 4 - Pin 3
Serial Interface: TxD
Socket 4 - Pin 4
GND
Socket 5 - Pin 1
Options
Socket 5 - Pin 2
Options
Socket 5 - Pin 3
Options
Socket 5 - Pin 4
Options
Socket 6 - Pin 2
Profibus: a (internal)
Socket 6 - Pin 3
Profibus: b (internal)
Socket 7 - Pin 1
+12 V Input
Socket 7 - Pin 2
Serial Interface: TxD
Socket 7 - Pin 3
Serial Interface: RxD
Socket 7 - Pin 4
GND Input
Socket 8 - Pin 1
+12 V (B)
Socket 8 - Pin 2
Measurement Input 1
Socket 8 - Pin 3
+8.2 V
Socket 8 - Pin 4
GND
Socket 9 - Pin 1
+12 V (C)
Socket 9 - Pin 2
Measurement Input 2
Socket 9 - Pin 3
+8.2 V
Socket 9 - Pin 4
GND

Options (Designations of options equal the second and third to last characters of type designation listed on equipment)

Socket 11 - Pin 1 (1)
AB
Socket 11 - Pin 1 (2)
**
Socket 11 - Pin 2 (1)
AB (Profibus: a [external])
Socket 11 - Pin 2 (2)
**
Socket 11 - Pin 3 (1)
AB (Profibus: b [external])
Socket 11 - Pin 3 (2)
**
Socket 11 - Pin 4 (1)
**
Socket 11 - Pin 4 (2)
AB
Socket 5 - Pin 1 (1)
AB
Socket 5 - Pin 1 (2)
**
Socket 5 - Pin 2 (1)
AB (Profibus: a [external])
Socket 5 - Pin 2 (2)
**
Socket 5 - Pin 3 (1)
AB (Profibus: b [external])
Socket 5 - Pin 3 (2)
**
Socket 5 - Pin 4 (1)
AB
Socket 5 - Pin 4 (2)
**

Global Certifications

Types (1)
Europe: ATEX
Types (2)
U.S.: MSHA
Types (3)
More certifications on demand
Types (4)
Australia: IECEx, ANZEx
Types (5)
China: MA
Types (6)
Russia: GOST

Electrical Data

Supply Current - Maximum Ratings
1.50 A
1.50 A
Supply Current - Typical Value
1.00 A
1.00 A
Supply Voltage - Maximum Ratings
9.5 V - 13.2 V
Supply Voltage - Typical Value
12 V DC

Environmental Data

Temperature - Maximum Ratings
-20° C - +40° C (-4° F - +104° F)
Temperature - Symbol
Tamb
Temperature - Typical Value
68.00 °F
20.00 °C

Dimensions (Approximate)

Height
5.83 in
148.00 mm
Length
13.19 in
335.00 mm
Width
9.49 in
241.00 mm

Main Technical Data

Components (1)
320 × 240 pixel b/w graphics display
Components (2)
IP 68
Components (3)
Optional additional Profibus communication channel for communication with third party computer
Components (4)
12 SKK24 sockets for power supply, communication, sensors and actuators
Components (5)
Power: 12 W

Dimensions (Approximate)

Width
9.49 in
241.00 mm
Features

  • Human machine interface for configuration and customization of the PMC-D/V family
  • Diagnostic features for whole system
  • Process visualization
  • Change of parameters
  • Communication link to other systems
  • Additional sensor inputs
