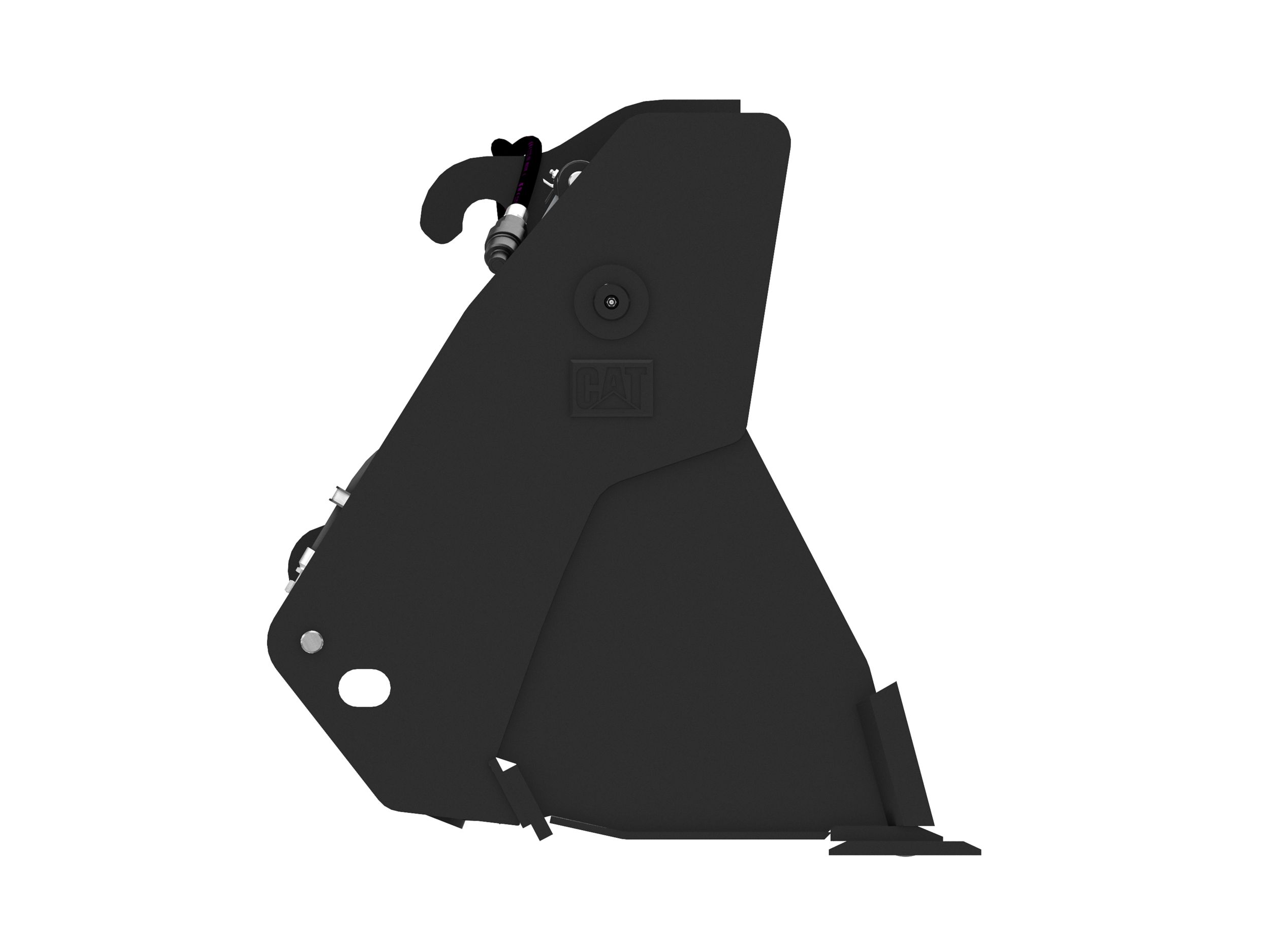

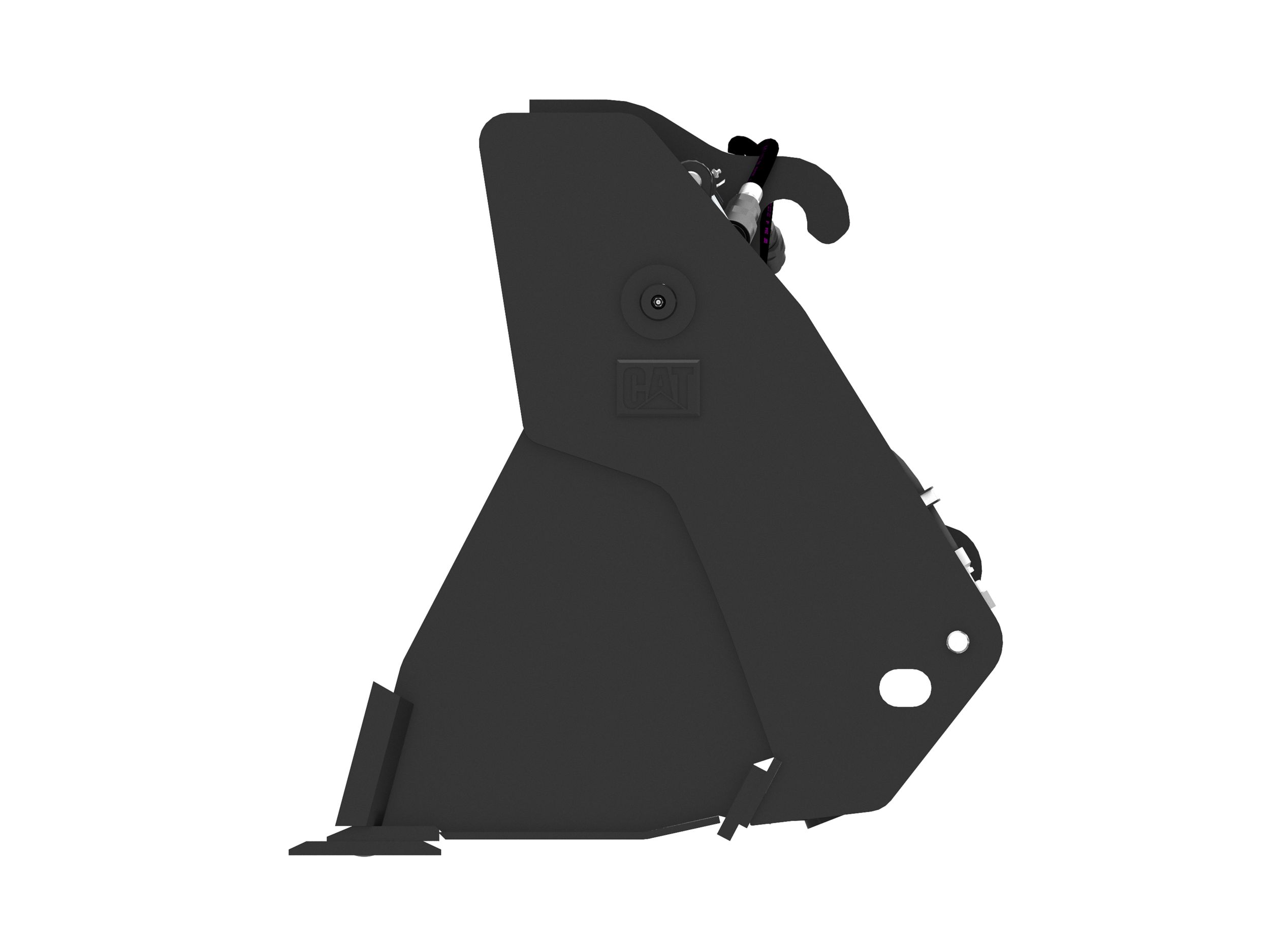

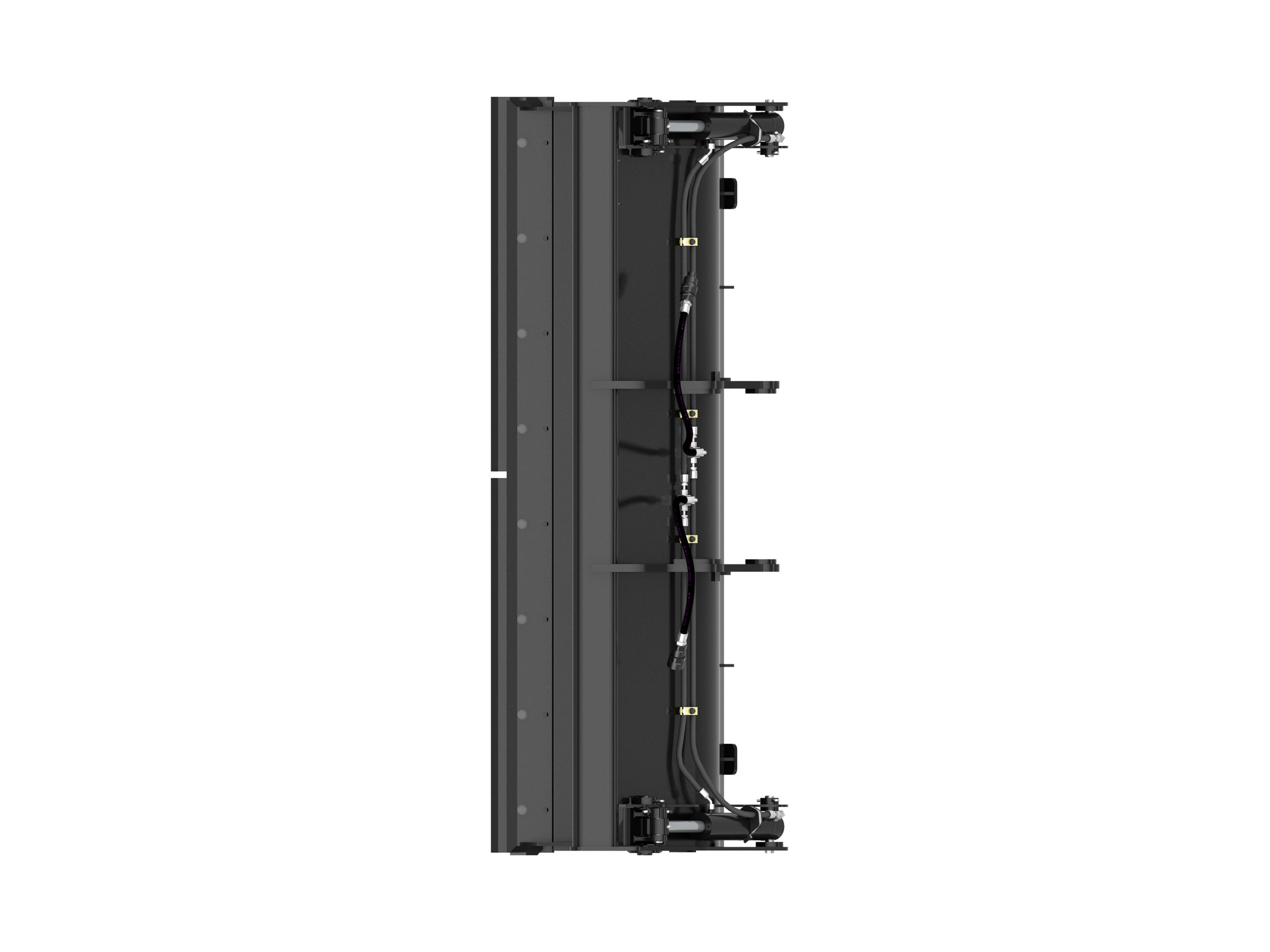

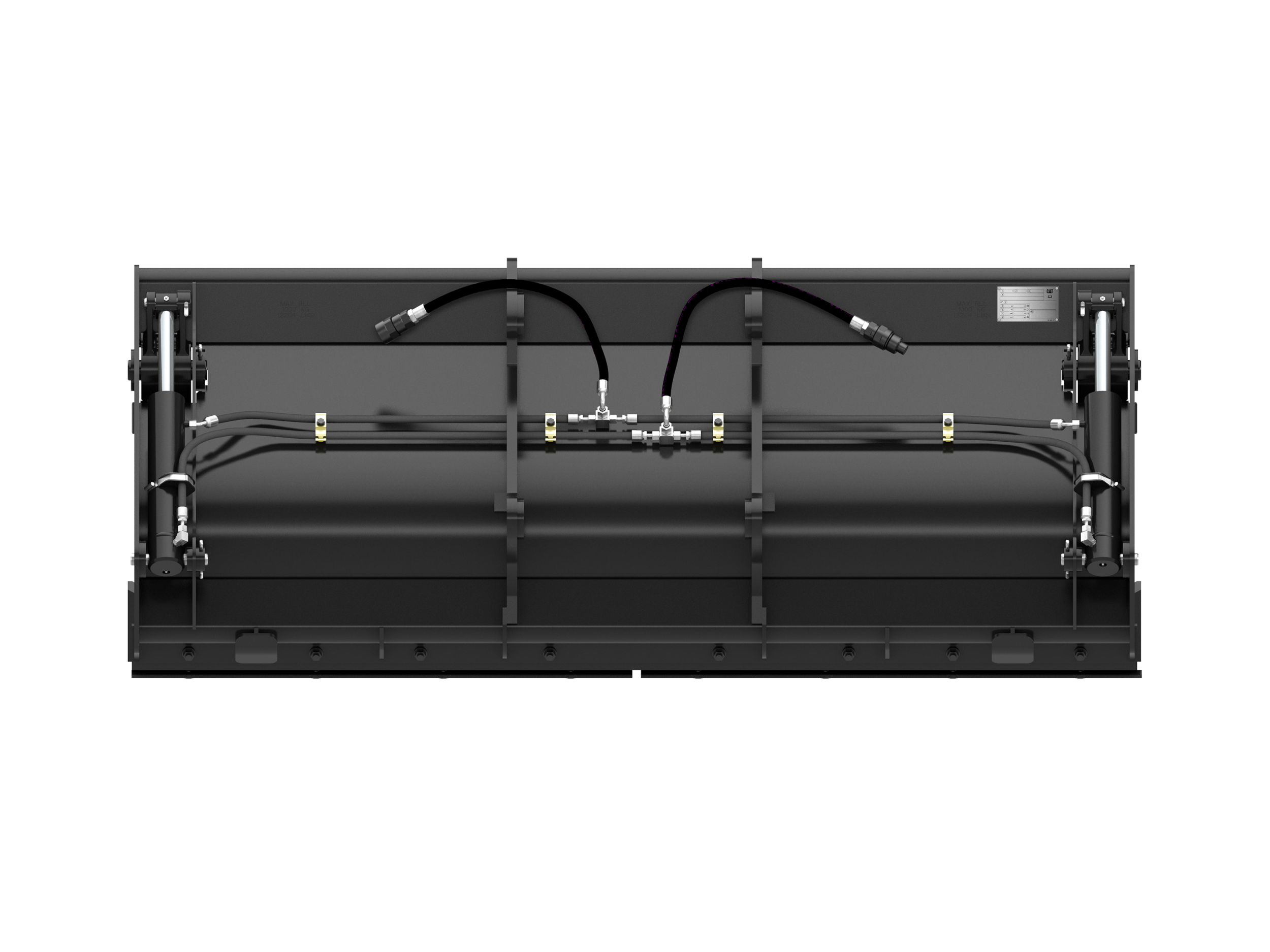

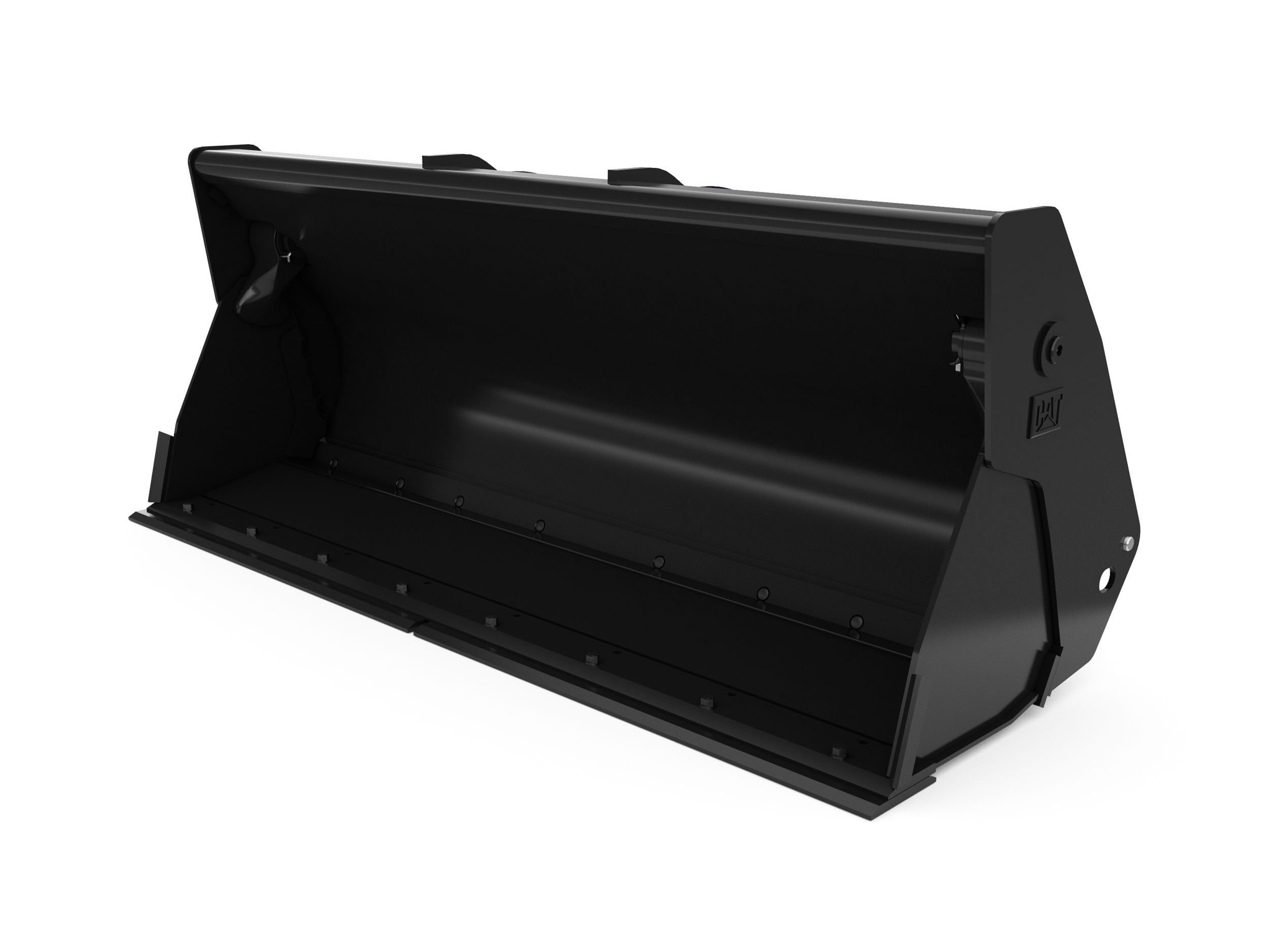

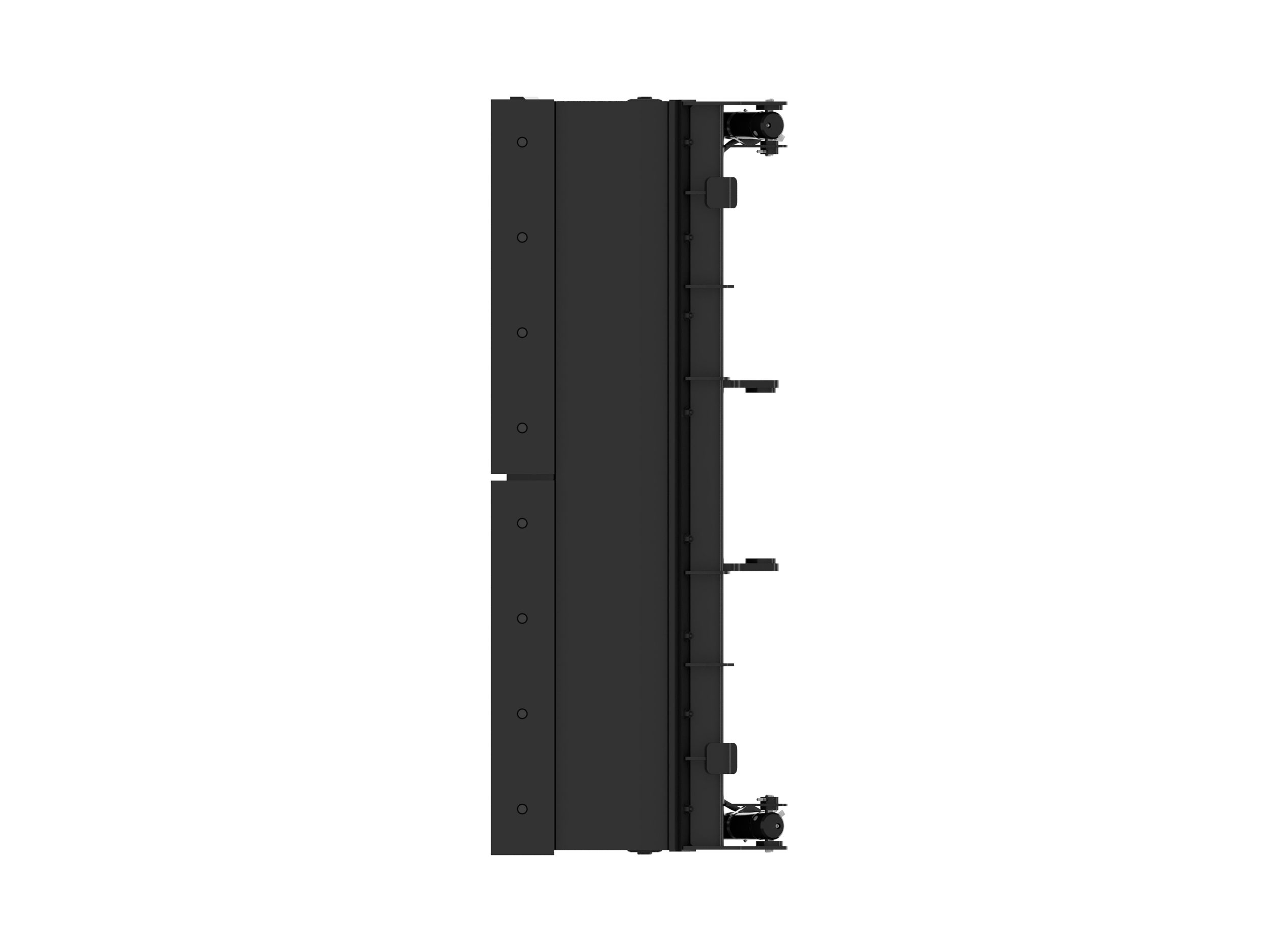

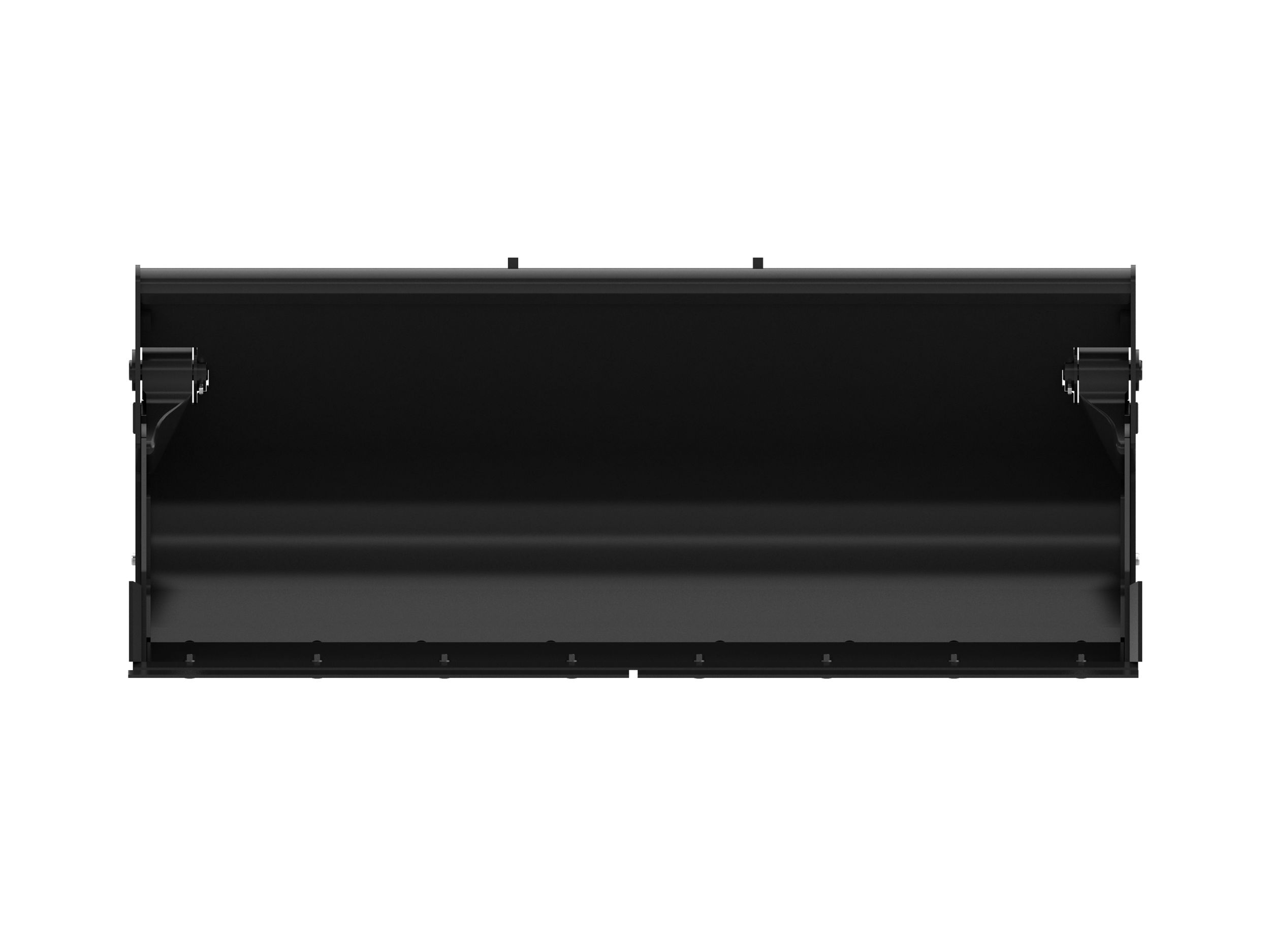

1.1 m3 (1.4 yd3) IT Coupler Multi-Purpose Bucket With Bolt-On Cutting Edge

US
Metric

Overview

Multi-Purpose Buckets for Cat® Backhoe Loaders offer excellent versatility by enabling one work tool to do the job of many. This bucket is ideal for material handling, clamping, grading, leveling and grasping irregularly shaped objects.
Width
95.50 in
2425.00 mm
Height
39.90 in
1014.00 mm
Weight
1748.00 lb
792.90 kg
Length
37.40 in
951.00 mm
Capacity
1.40 yd³
1.10 m³
Base Edge Thickness
0.80 in
20.00 mm
Cutting Edge Thickness
0.70 in
19.00 mm
Jaw Opening
23.70 in
602.00 mm
Clam Angle
76 degrees
Interface Type
IT Coupler
Features

Application

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Bucket Design

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Ground Engaging Tools

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
