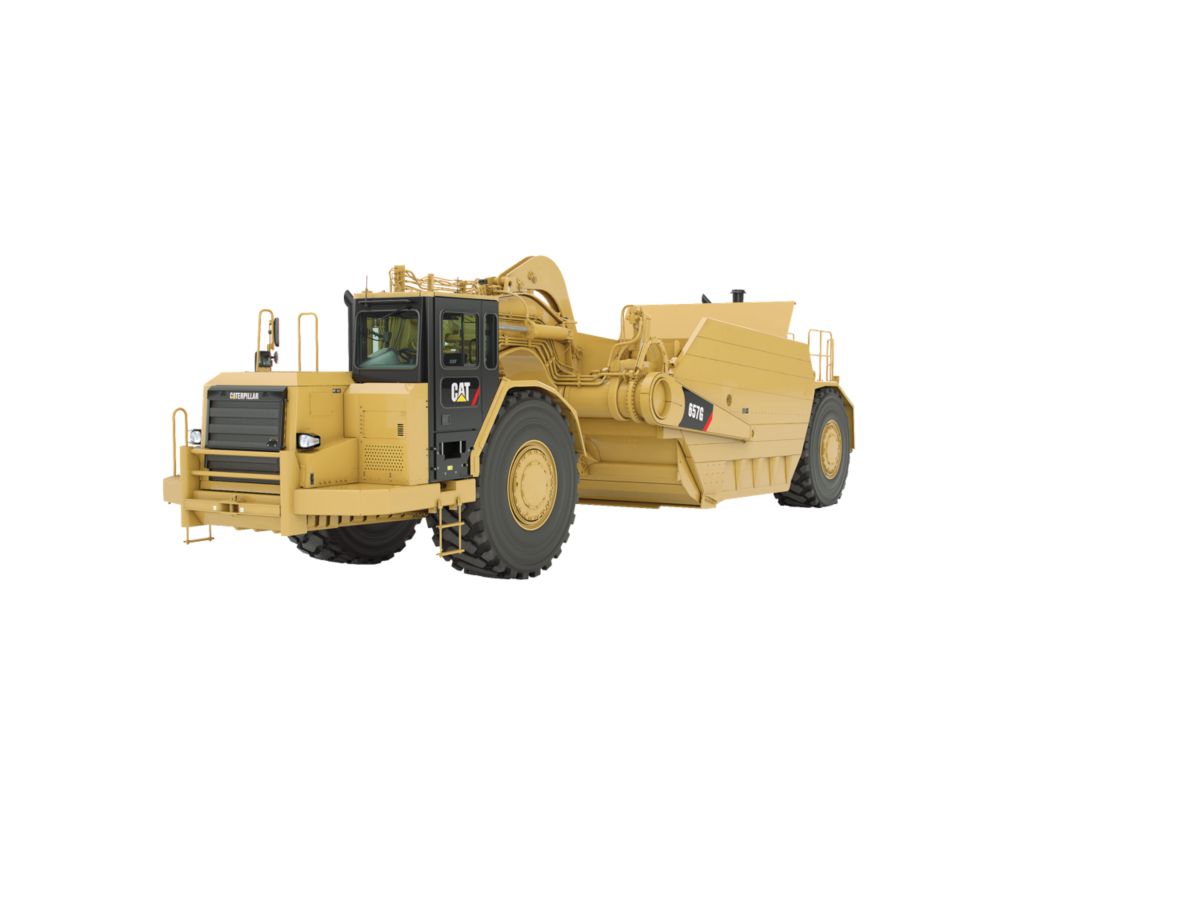

Overview

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat® Wheel Tractor-Scrapers to deliver a high rate of productivity.

Tractor Engine

Flywheel Power: Tractor/Scraper
447 kW (600 hp) / 337 kW (451 hp)
Net Power
421/447 kW 564/600 hp
Gross Power - Gears 1-2
596.00 HP
445.00 kW
Gross Power - Gears 3-8
632.00 HP
471.00 kW
Net Power - Gears 1-2
564.00 HP
421.00 kW
Net Power - Gears 3-8
600.00 HP
447.00 kW
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1105.00 in³
18.10 l

Scraper Bowl

Scraper Capacity: Heaped
44.00 yd3
33.60 m3
Rated Load
104000.00 lb
47174.00 kg
Capacity Struck
32.00 yd3
24.50 m3
Depth of Cut - max.
17.00 in
440.00 mm
Width of Cut, to Router Bits
12.70 in
3846.00 mm
Ground Clearance - max.
23.00 in
580.00 mm
Cutting Edge - thickness
1.80 in.
45.00 mm
Hyd. Penetration Force - 657G
121000.00 lb
542.00 kN
Depth of Spread - max.
26.00 in
660.00 mm
Apron Opening
92.00 in
2337.00 mm
Apron Closure Force
39200.00 lb
176.00 kN

Transmission

Top Speed (Loaded)
33.00 mph
55.70 km/h
1 Forward
3.50 mph
5.60 km/h
2 Forward
6.30 mph
10.20 km/h
3 Forward
7.80 mph
12.50 km/h
4 Forward
10.60 mph
17.00 km/h
5 Forward
14.10 mph
22.70 km/h
6 Forward
19.00 mph
30.60 km/h
7 Forward
25.60 mph
41.20 km/h
8 Forward
34.60 mph
55.70 km/h
Reverse
6.10 mph
9.80 km/h

Engine

Tractor Engine
Cat® C18 ACERT™
Scraper Engine
Cat C15 ACERT

Scraper Engine

Net Power
306/337 kW 410/451 hp
Gross Power - Gears 1-2
437.00 HP
326.00 kW
Gross Power - Gears 3-8
478.00 HP
356.00 kW
Net Power - Gears 1-2
410.00 HP
306.00 kW
Net Power - Gears 3-8
451.00 HP
337.00 kW
Bore
5.50 in
140.00 mm
Stroke
6.50 in
165.00 mm
Displacement
928.00 in³
15.20 l

Weights - Standard, Tandem

Total Shipping
147959.00 lb
67113.00 kg
Tractor Shipping
87717.00 lb
39788.00 kg
Scraper Shipping
60242.00 lb
27325.00 kg
Total Operating - Empty
150761.00 lb
68384.00 kg
Front Axle
87924.00 lb
39881.00 kg
Rear Axle
62837.00 lb
28503.00 kg
Total Operating - Loaded
254761.00 lb
115558.00 kg
Front Axle Weight - Loaded
128246.00 lb
58172.00 kg
Rear Axle - Weight - Loaded
126515.00 lb
57386.00 kg

Weights - Push-Pull

Total Shipping
160505.00 lb
72804.00 kg
Tractor Shipping
93635.00 lb
42472.00 kg
Scraper Shipping
64068.00 lb
29061.00 kg
Total Operating - Empty
160505.00 lb
72804.00 kg
Front Axle
93842.00 lb
42566.00 kg
Rear Axle
66663.00 lb
30238.00 kg
Total Operating - Loaded
264505.00 lb
119978.00 kg
Front Axle - Loaded
134165.00 lb
60856.00 kg
Rear Axle - Loaded
130340.00 lb
59121.00 kg

Dimensions

Width - Overall Machine
171.00 in
4344.00 mm
Width - Tractor
141.77 in
3601.00 mm
Width - rear tire center lines
110.75 in
2813.00 mm
Width - Inside of Bowl
145.00 in
3683.00 mm
Width - Outside Bowl - Shipping Width
154.00 in
3914.00 mm
Height - Overall Shipping
185.40 in
4710.00 mm
Height - Top of Cab
146.14 in
3712.00 mm
Ground Clearance - Tractor
25.39 in
645.00 mm
Front of Tractor to Front Axle
148.40 in
3770.00 mm
Axle to Vertical Hitch Pin
23.94 in
608.00 mm
Height - Scraper Blade Maximum
26.77 in
680.00 mm
Wheelbase
391.97 in
9956.00 mm
Length - overall machine
636.38 in
16164.00 mm
Rear Axle to Rear of Machine
95.98 in
2438.00 mm
Bail Length - Maximum (Push-Pull)
72.28 in
1836.00 mm

Service Refill Capacities - Scraper

Fuel Tank - 657G
421.90 gal (US)
1597.00 l
Crankcase
10.00 gal (US)
38.00 l
Transmission
32.00 gal (US)
121.00 l
Differential
44.00 gal (US)
168.00 l
Final Drive - Each
7.90 gal (US)
30.00 l
Wheel Coolant - Each
34.30 gal (US)
130.00 l
Cooling System
24.00 gal (US)
89.00 l

Steering

Width - 180° Turn - Right
44.62 ft
13.60 m
Width - 180° Turn - Left
47.57 ft
14.50 m
Steering Angle - Right
90°
Steering Angle - Left
85°

Hydraulics

Bowl Cylinder Bore
9.25 in
235.00 mm
Bowl Cylinder Stroke
37.40 in
950.00 mm
Apron Cylinder Bore
9.25 in
235.00 mm
Apron Cylinder Stroke
29.92 in
760.00 mm
Ejector Cylinder Bore
10.24 in
260.00 mm
Ejector Cylinder Stroke
76.61 in
1946.00 mm
Steering Circuit
99.90 gal/min
378.00 L/min
Scraper Circuit
153.00 gal/min
579.00 L/min
Cushion Hitch Circuit
12.70 gal/min
48.00 L/min
Secondary Steering Circuit
64.20 gal/min
243.00 l/min
Relief Valve - Steering Circuit
1959.00 psi
13500.00 kPa
Relief Valve - Implement Circuit
1999.00 psi
13780.00 kPa
Compensator Setting - Cushion Hitch Circuit
3002.00 psi
20700.00 kPa

Service Refill Capacities - Tractor

Crankcase
17.00 gal (US)
64.00 l
Transmission
36.00 gal
136.00 L
Differential
36.00 gal
136.00 L
Final Drive (per side)
6.00 gal
23.00 L
Cooling System
33.00 gal
125.00 L
Hydraulic Reservoir
80.00 gal
303.00 L
Wheel Coolant - Each
34.30 gal (US)
130.00 l
Windshield Washer
0.50 gal (US)
2.00 l

Engine

Tractor Engine
Cat C18
Scraper Engine
Cat C15

Tractor Engine

Flywheel Power - Tractor/Scraper
447 kW (600 hp) / 337 kW (451 hp)

Scraper Bowl

Scraper Capacity - Heaped
44.00 yd³
33.60 m³
Rated Load
104000.00 lb
47174.00 kg
Capacity - Struck
32.00 yd³
24.50 m³
Depth of Cut - Maximum
17.00 in
440.00 mm
Width - Cut - To Router Bits
12.70 in
3846.00 mm
Ground Clearance - Maximum
23.00 in
580.00 mm
Cutting Edge Thickness
1.80 in
45.00 mm
Depth of Spread - Maximum
26.00 in
660.00 mm
Apron Opening
92.00 in
2337.00 mm

Transmission

Top Speed - Loaded
33.00 mile/h
55.70 km/h
1 Forward
3.50 mile/h
5.60 km/h
2 Forward
6.30 mile/h
10.20 km/h
3 Forward
7.80 mile/h
12.50 km/h
4 Forward
10.60 mile/h
17.00 km/h
5 Forward
14.10 mile/h
22.70 km/h
6 Forward
19.00 mile/h
30.60 km/h
7 Forward
25.60 mile/h
41.20 km/h
8 Forward
34.60 mile/h
55.70 km/h
Reverse
6.10 mile/h
9.80 km/h

Hydraulics

Bowl Cylinder Bore
9.25 in
235.00 mm
Bowl Cylinder Stroke
37.40 in
950.00 mm
Apron Cylinder Bore
9.25 in
235.00 mm
Apron Cylinder Stroke
29.92 in
760.00 mm
Ejector Cylinder Bore
10.24 in
260.00 mm
Ejector Cylinder Stroke
76.61 in
1946.00 mm
Steering Circuit
99.90 gal/min
378.00 l/min
Scraper Circuit
153.00 gal/min
579.00 l/min
Cushion Hitch Circuit
12.70 gal/min
48.00 l/min
Relief Valve - Steering Circuit
1959.00 psi
13500.00 kPa
Relief Valve - Implement Circuit
1999.00 psi
13780.00 kPa
Compensator Settings - Cushion Hitch Circuit
3002.00 psi
20700.00 kPa

Steering

Steering Angle - Right
90°
Steering Angle - Left
85°

Service Refill Capacities - Tractor

Transmission
36.00 gal (US)
136.00 l
Differential
36.00 gal (US)
136.00 l
Final Drive - Each
6.00 gal (US)
23.00 l
Cooling System
33.00 gal (US)
125.00 l
Hydraulic Reservoir
80.00 gal (US)
303.00 l

Dimensions

Width - Overall Machine
171.00 in
4344.00 mm
Width - Tractor
141.77 in
3601.00 mm
Width - Rear Tire Center Lines
110.75 in
2813.00 mm
Width - Inside of Bowl
145.00 in
3683.00 mm
Height - Overall Shipping
185.40 in
4710.00 mm
Height - Top of Cab
146.14 in
3712.00 mm
Ground Clearance - Tractor
25.39 in
645.00 mm
Front of Tractor to Front Axle
148.40 in
3770.00 mm
Axle to Vertical Hitch Pin
23.94 in
608.00 mm
Height - Scraper Blade Maximum
26.77 in
680.00 mm
Wheel Base
391.97 in
9956.00 mm
Length - Overall Machine
636.38 in
16164.00 mm
Rear Axle - Rear of Machine
95.98 in
2438.00 mm
Features

MAXIMIZE PERFORMANCE

  • Tandem engine machines improve cycle times on grades and in slippery underfoot conditions. Also improves the machine's loading characteristics in tough materials like clay.
  • Transmission Torque Converter - Increases rim pull and shortens load times, and eliminates engine stall to efficiently deliver power to the ground and move more dirt.
  • An auger mechanism in the bowl improves self-loading capabilities by lifting material off of the cutting edge and carrying it to the top of the load.

BUILT TO PERFORM

  • Proven Cat engines provide the power and torque rise for excellent lugging in tough loading conditions.
  • Variable injection timing and duration improve fuel efficiency and cold starting, decrease smoke and emissions.
  • Throttle back-up provides the operator with a preset engine speed control in the event of a throttle input failure.
  • Throttle lock allows the operator the capability of locking both engines at any operating level.
  • Directional shift management prevents the operator from shifting out of neutral when engine rpm is above a preset level.
  • Controlled throttle shifting increases drive train life by reducing the fuel injection rate just prior to shifting.
  • The aftercooler lowers intake charge air temperature to increase power and reduce thermal stresses that can cause premature wear of pistons, rings, and liners.
  • Engine oil cooler maintains optimum oil temperature for proper cooling and longer lubricant life.
  • Laminated thermal-shield improves tractor protection by reducing the temperature of exposed engine surfaces, cools engine and operating compartments, extends hose and wiring life.
  • Eight-speed power shift transmission provides automatic, on-the-go shifting for simple, reliable operation.
  • Top gear control helps prevent shifting above a programmed gear to better regulate haul road speeds.
  • The hydraulic retarder extends brake life when working on severe, downhill slopes.
  • Scraper driveline guard protects the output case, differential and ejector cylinder to help minimize driveline maintenance costs.

OPERATOR COMFORT AND CONTROL

  • Standard rubber-mounted cab reduces noise and vibration for comfortable, shift-long operation.
  • Hydraulic servo-steering system provides low-effort automotive feel and excellent maneuverability.
  • Tilt steering column adjusts to five different positions for operator comfort and control.
  • A suspension seat delivers a comfortable ride.
  • The Electronic Monitoring System checks important machine systems and provides a three-level warning.
  • Air conditioning to keep the operator comfortable.
  • The electronically controlled cushion hitch design dampens shocks to provide a smoother ride, and locks down for positive control of the cutting edge during loading and dumping.

SAVE ON MAINTENANCE TIME

  • Service points for the engine are grouped on the right side for easy access. Service platforms and numerous handholds improve access and safety. Folded core radiator allows individual cores to be replaced as modules, reducing service time and expense.
  • Diagnostic connector, with the aid of a service tool, allows quick analysis of the starting and charging circuits.
  • Electronic ground level shutoff enables the operator to stop the engine from the ground with the flip of a switch.
  • Centralized lubrication blocks for the hitch and steering reduce lube time.

BUILT-IN SAFETY FEATURES

  • Wide brake shoes and brake drums improve brake performance and reduce brake and drum wear.
  • Separate front and rear circuits. Secondary brakes engage automatically if service pressure drops.
  • Parking Brake features a spring-applied, air-released mechanism that operates the service brakes.
  • Differential Lock improves traction in slippery conditions.
Sales Features

Operator Station

Redesigned for enhanced operator comfort and productivity

Power Train - Engine

Heavy duty diesel technology for performance and efficiency

Power Train - Transmission

Integrated electronics monitor the power train extending component life

Electronic Controls

Optimized machine performance and advanced diagnostic capabilities

Cushion Hitch

Superior design and construction delivers long term durability

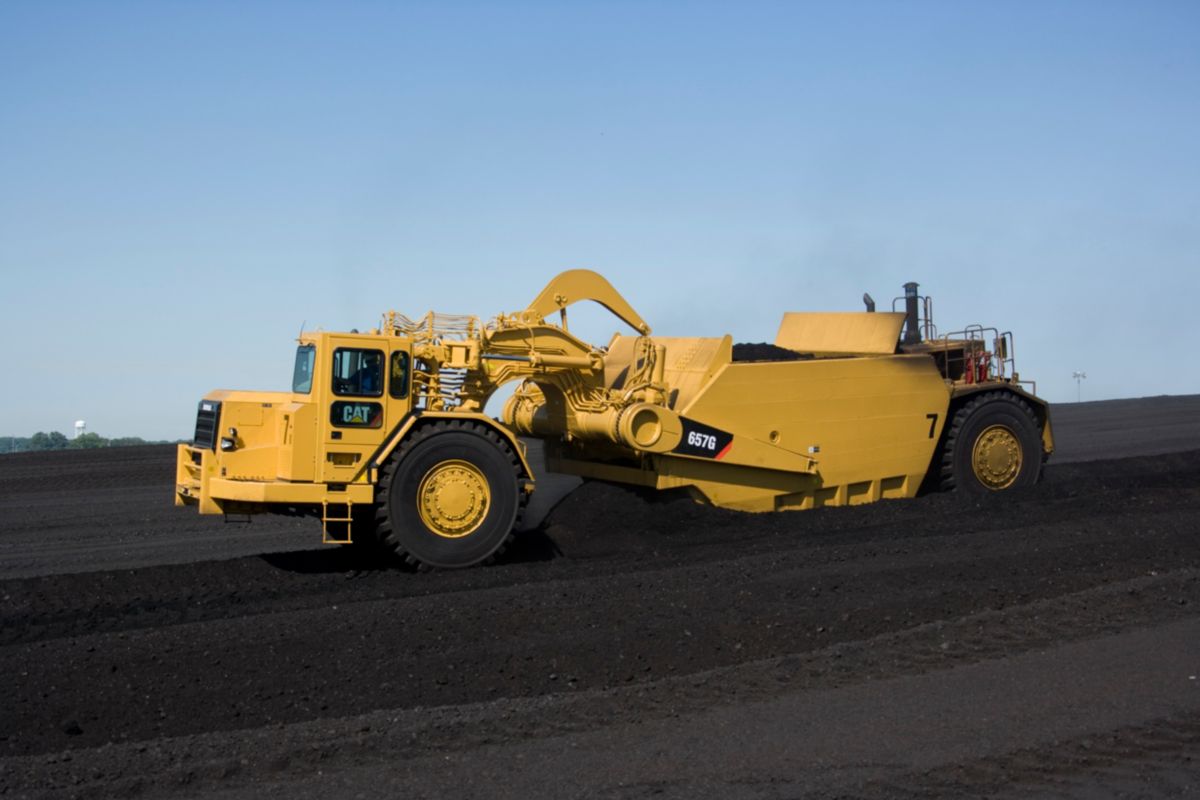

Scraper Bowl

Designed for fast and precise loading and controlled ejection

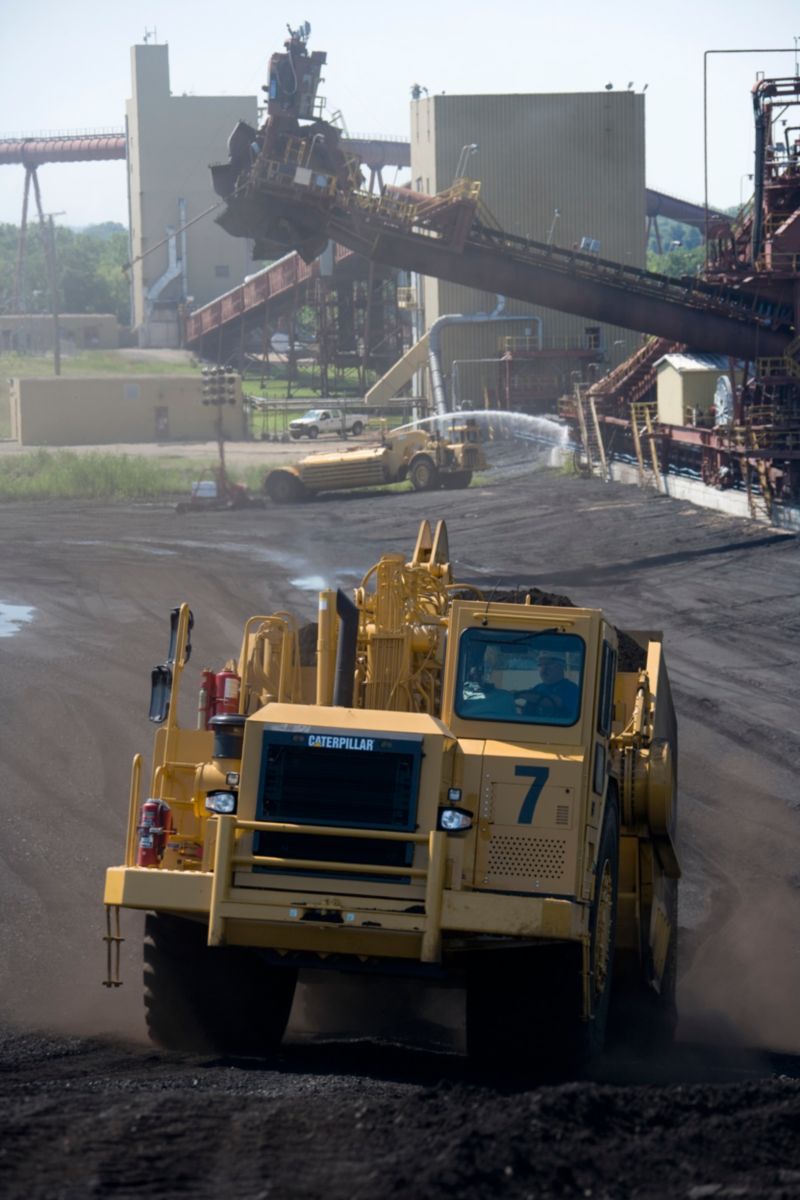

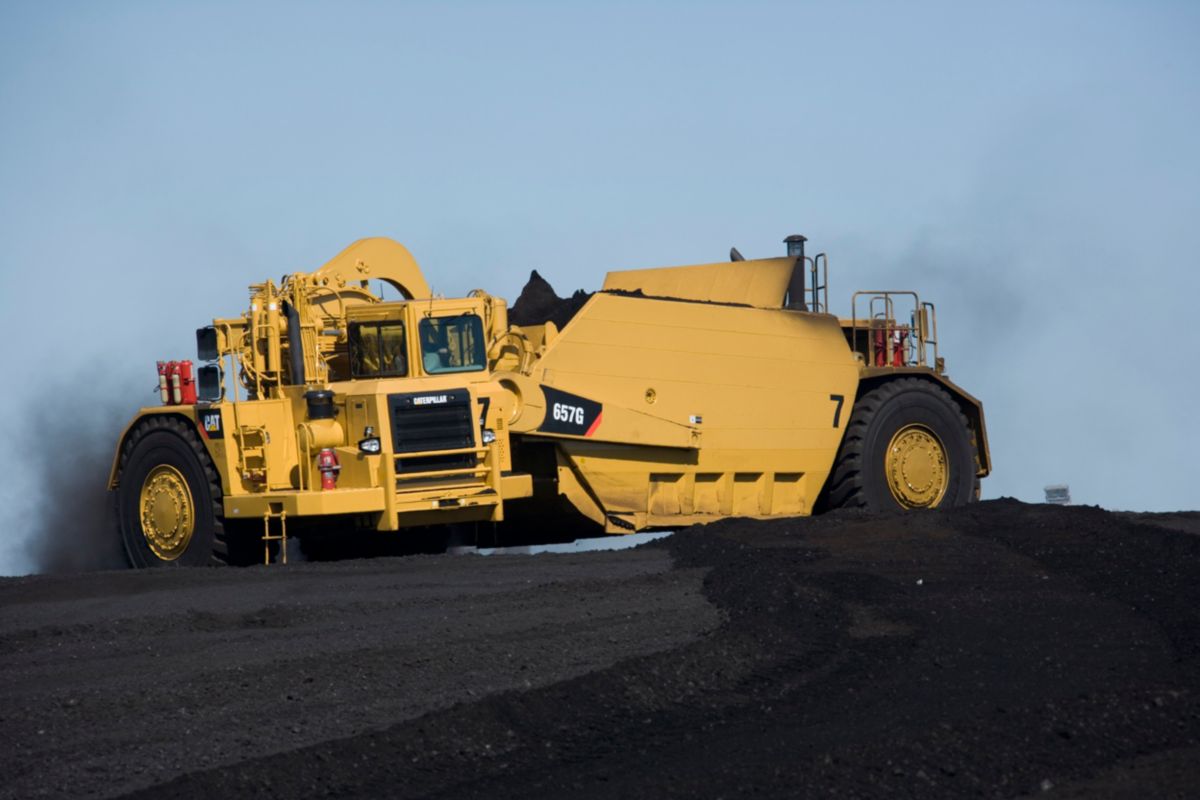

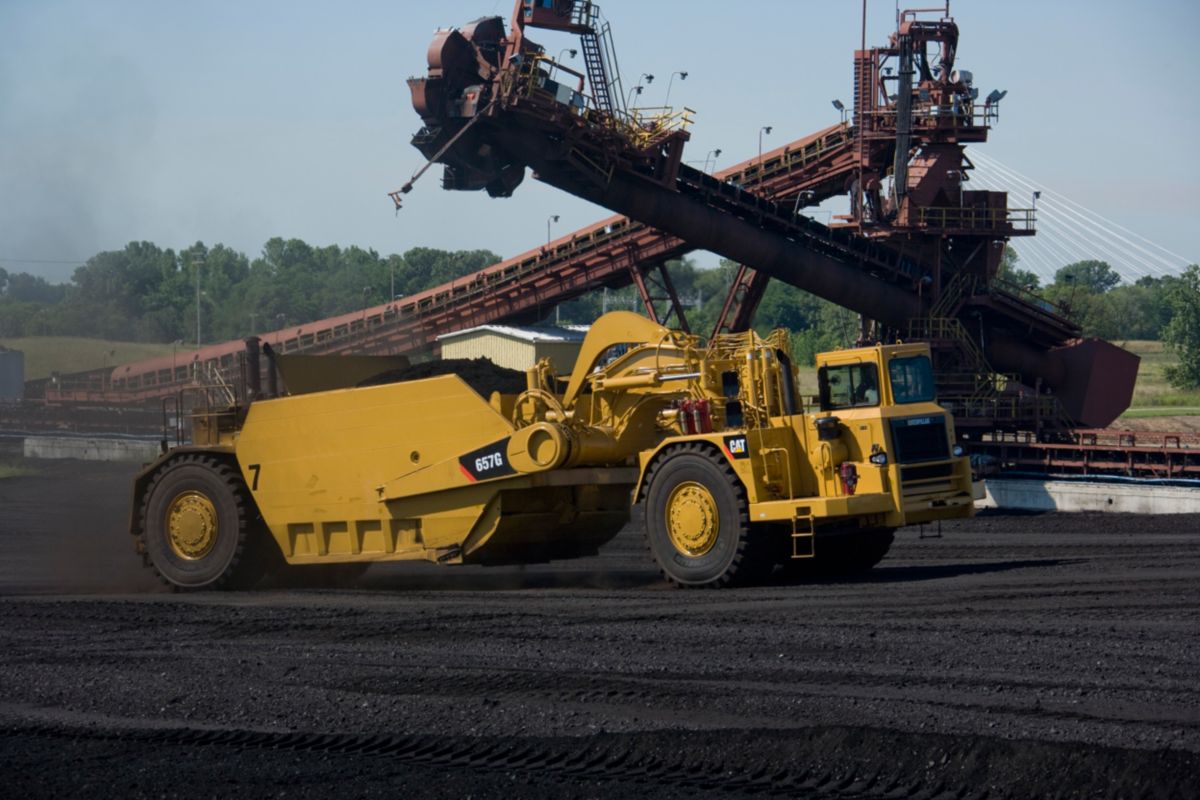

Coal Bowl

Purpose-built to meet application specific needs

Push-Pull

Two machines acting as a single self-loading system

Serviceability

Easy to Maintain - Easy to Service

Support

Cat Dealer services
Standard Equipment
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 80 amp - tractor engine
    • Alternator, 50 amp - scraper engine
    • Batteries Tractor (4), 12V Maintenance Free, High Output
    • Batteries Scraper (4), 12V Maintenance Free, High Output
    • Electrical System, 24V
    • Lighting System - Tractor
    • Lighting System - Scraper
    • Starting Receptacle - tractor and scraper engines
  • OPERATOR ENVIRONMENT
    • Air Conditioner (includes heater and defroster)
    • Automotive style fuse panel with fuse puller
    • Cigarette Lighter and Ashtray
    • Coat Hook
    • Cup holder
    • Diagnostic Connection Port (12V)
    • Dome Courtesy Light
    • Engine speed lock
    • Fan defroster
    • Gauge Group
    • Horn
    • Implement Control Joystick
    • Rearview Mirrors
    • Radio Ready
    • 2 radio openings, speakers, and 5-amp converter
    • ROPS Cab with Sound Suppression and Pressurization
    • Static Seatbelt
    • Scraper Engine Controls
    • Seat, Air Suspension, Caterpillar Comfort, cloth
    • Steering Wheel - tilt and telescoping
    • Storage Compartment
    • Transmission Hold
    • Windows - sliding side, swing out
    • Windshield - laminated glass
    • Windshield Wiper/Washer - front and rear
    • Wrist Rest/Grab Handle
  • POWER TRAIN
    • Tractor
    • Scraper
  • OTHER STANDARD EQUIPMENT
    • Tractor
    • Scraper
Optional Equipment
  • STEERING ARRANGEMENTS
    • Secondary Steering Arrangement
  • INTEGRATED TECHNOLOGIES
    • Product Link
  • OTHER ATTACHMENTS
    • Steering lock – external
  • AMBIENT CAPABILITY ARRANGEMENTS
    • Extended Life Coolant, -50° C (-58° F)
