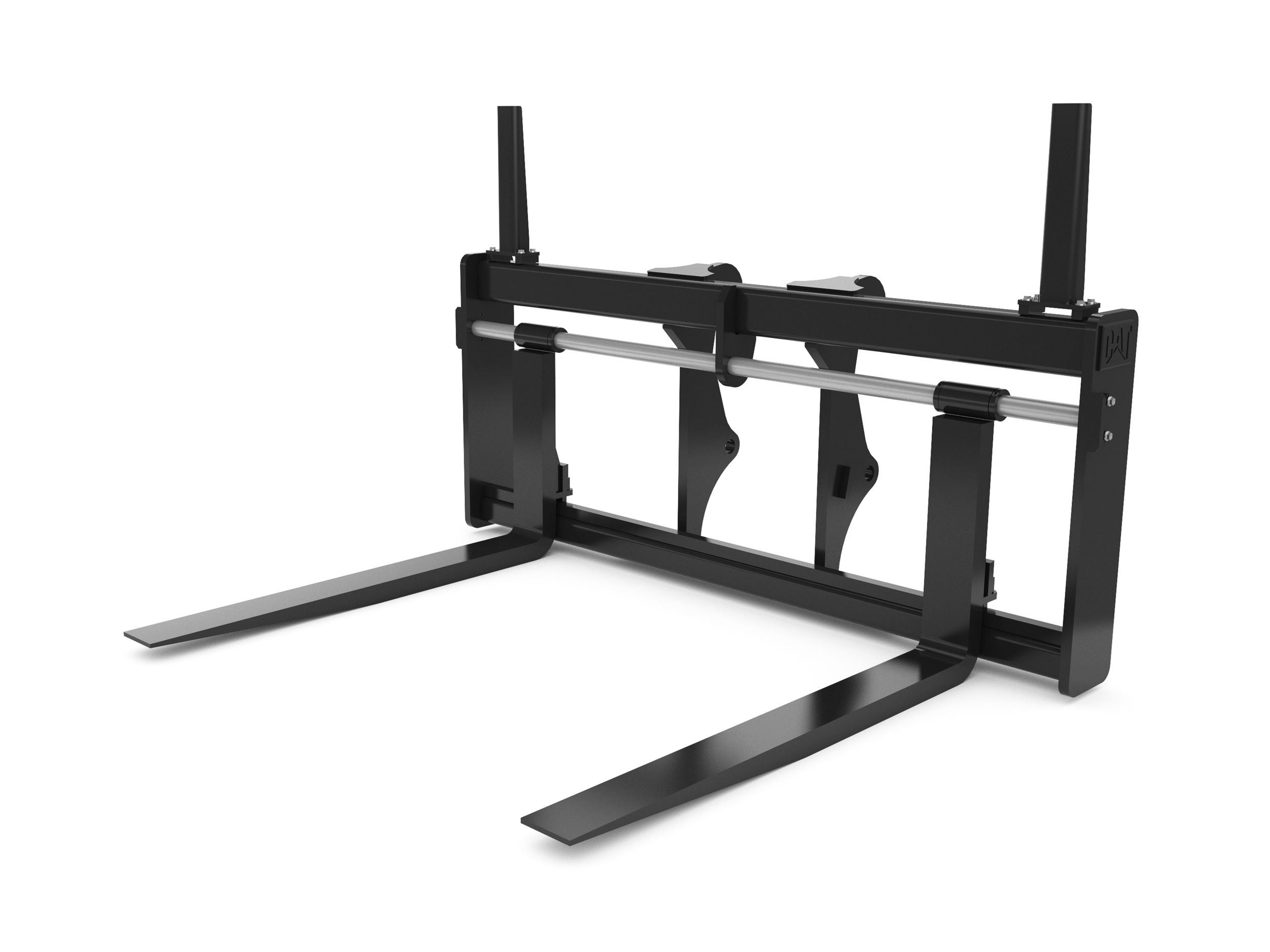

1524 mm (60 in) Pallet Forks

US
Metric

Overview

Cat® Pallet Forks are designed to meet a wide variety of material handling needs. Use pallet forks for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Height
61.00 in
1550.00 mm
Width
98.30 in
2498.00 mm
Weight
1164.70 lb
528.29 kg
Fork Tine Length
60.00 in
1524.00 mm
Tine Width
5.90 in
150.00 mm
Fork Tine Height
28.50 in
723.50 mm
Tine Thickness
2.60 in
65.00 mm
Tine Weight
342.40 lb
155.30 kg
Group Weight
1851.00 lb
838.90 kg
Tine Height
28.50 in
723.50 mm
Operating Weight
1849.50 lb
838.90 kg
Overall Length
77.80 in
1977.00 mm
Interface Type
IT Coupler
Tine Length
60.00 in
1524.00 mm
Tine Thickness
2.60 in
65.00 mm
Features

Application

Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.

Heavy Duty Backrest

Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.

Notched Rail-type Carriage

Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.

One Carriage for All Carrying Capacities

The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.
