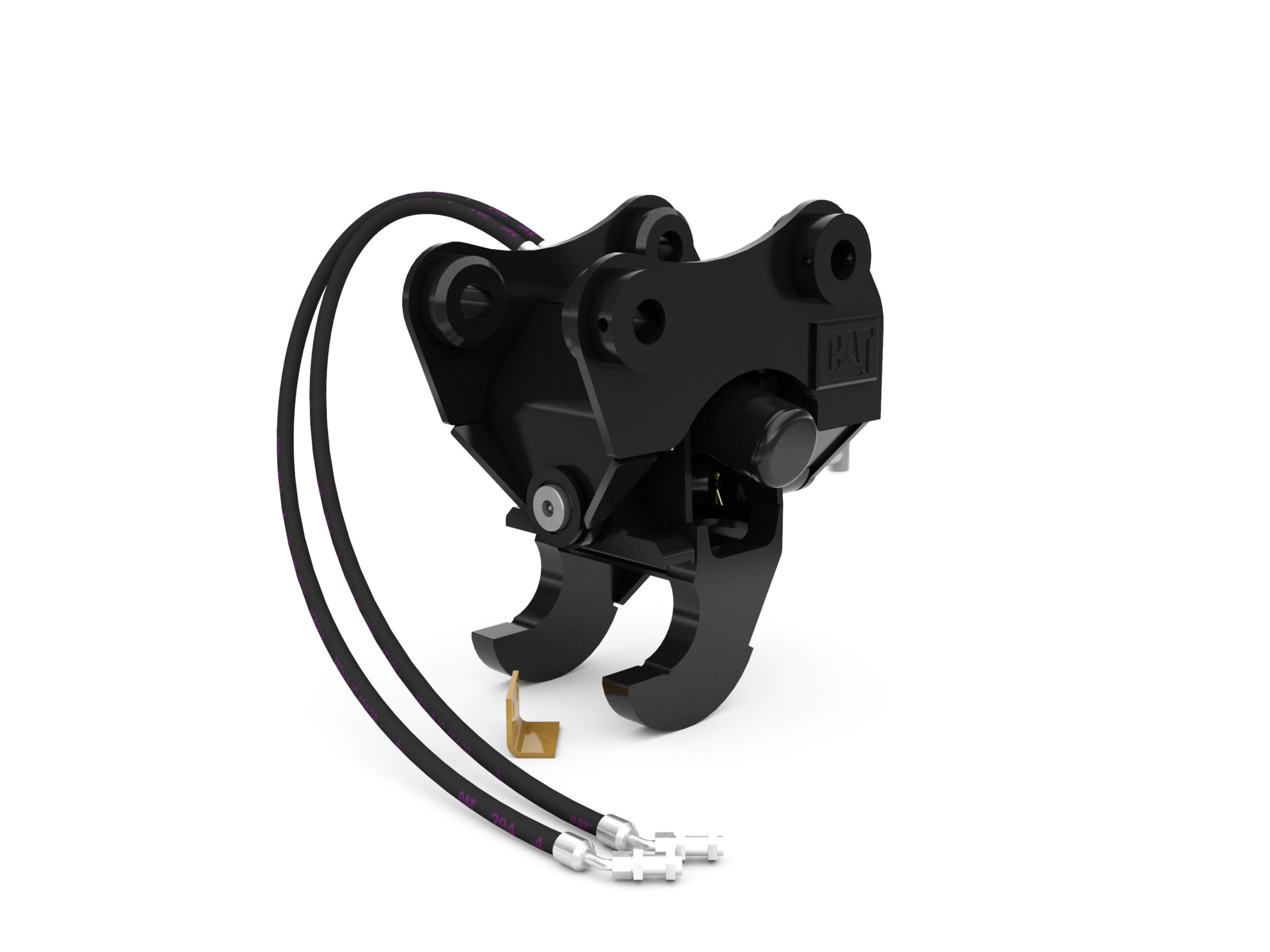

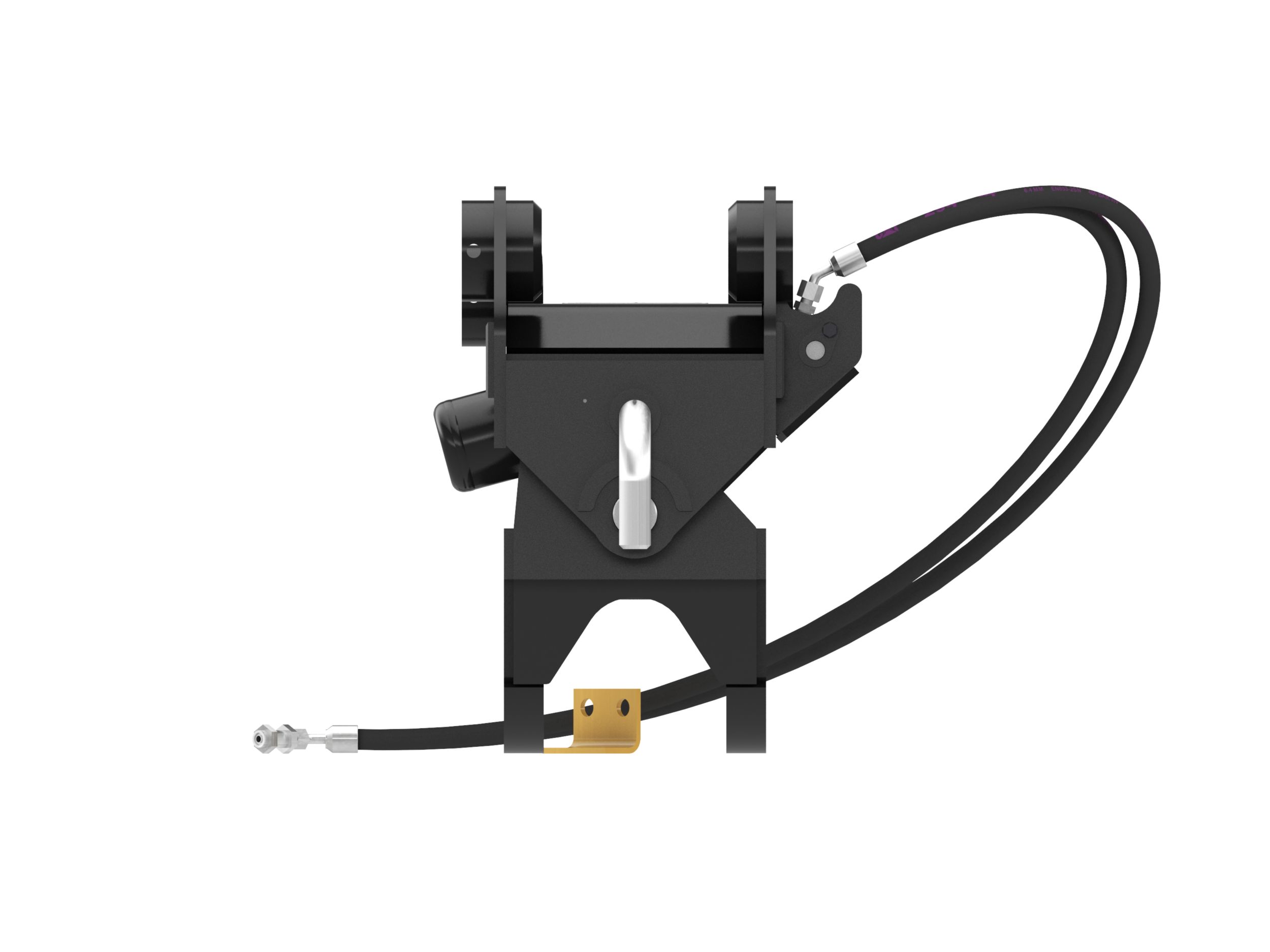

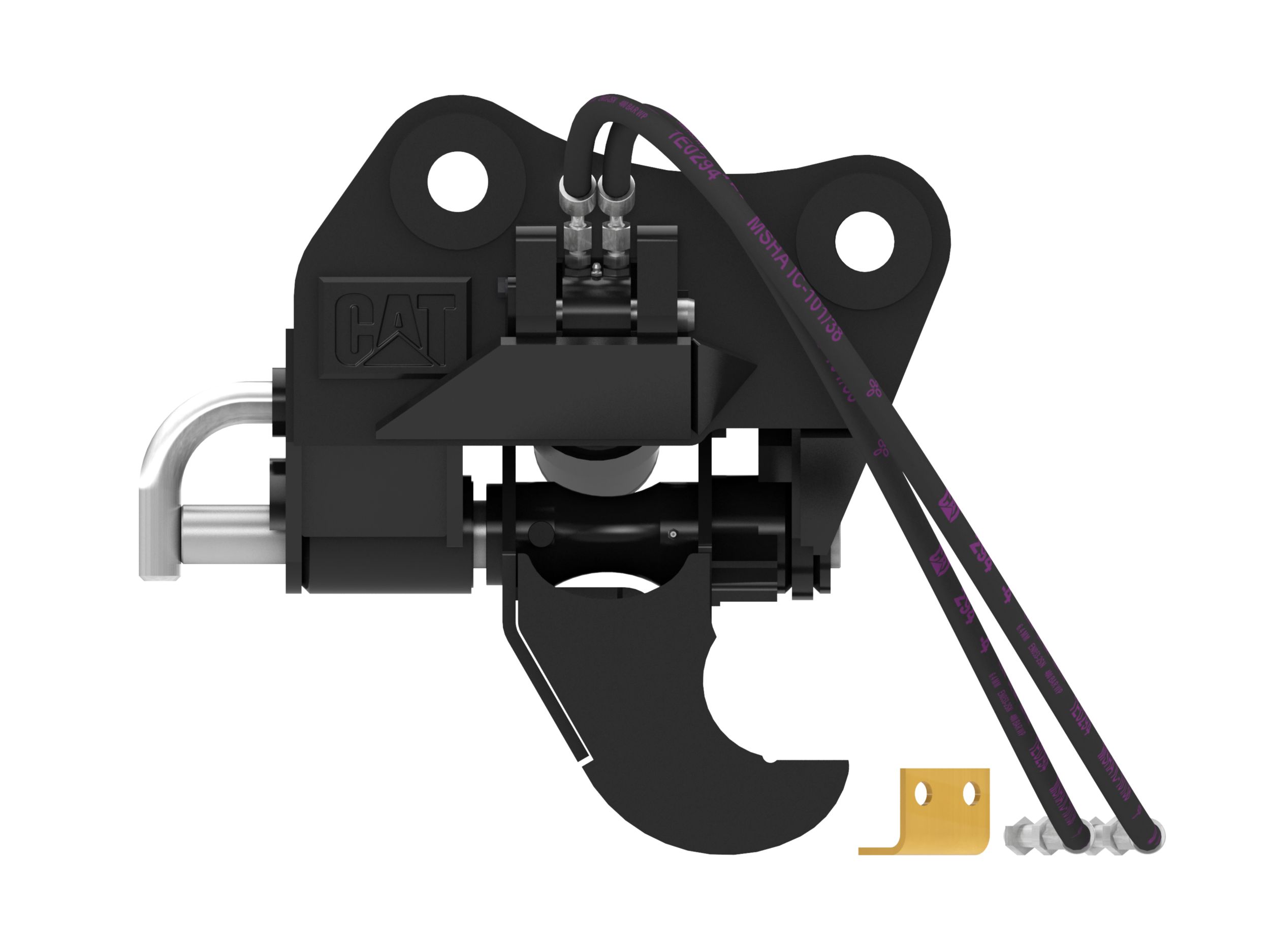

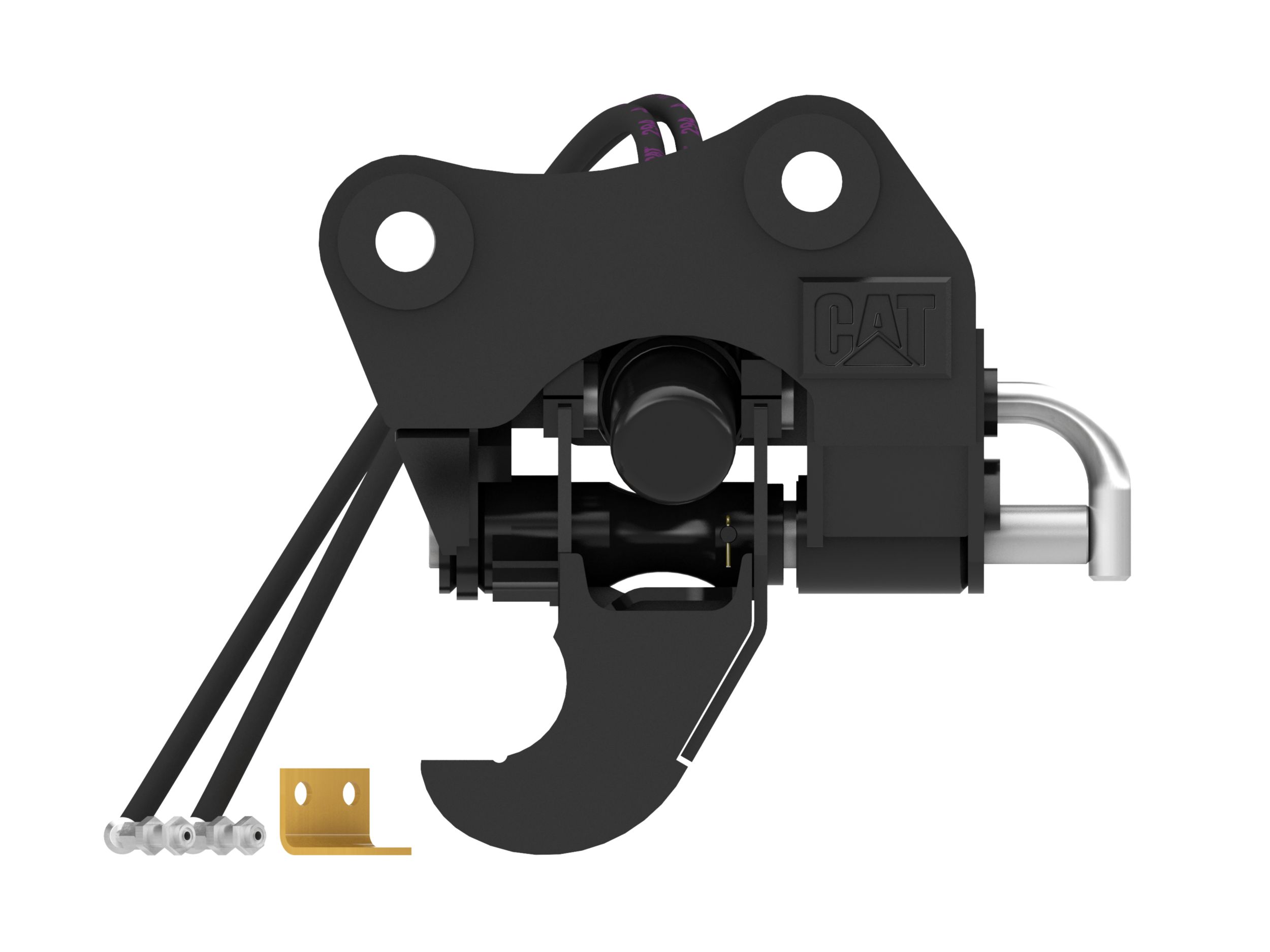

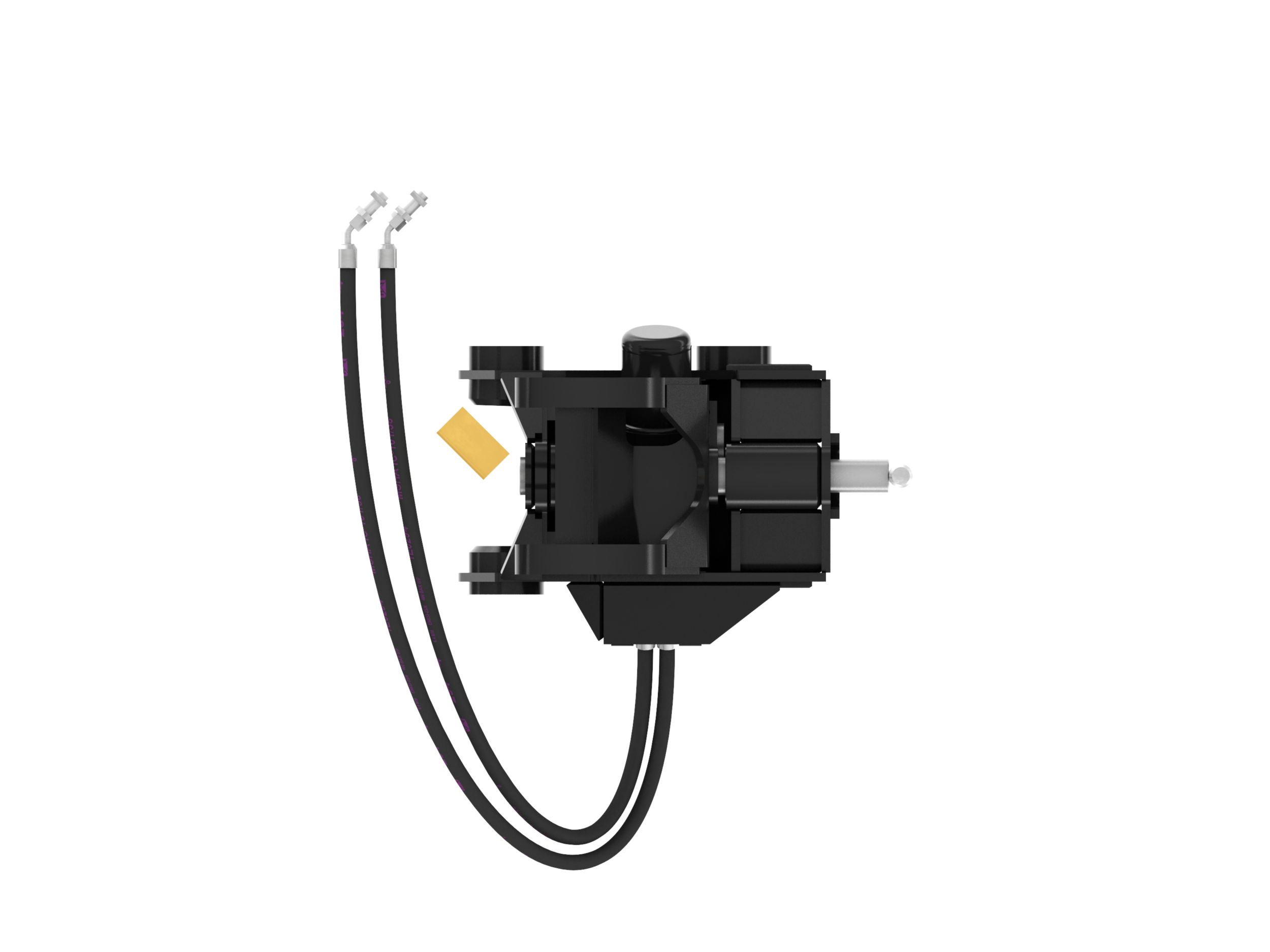

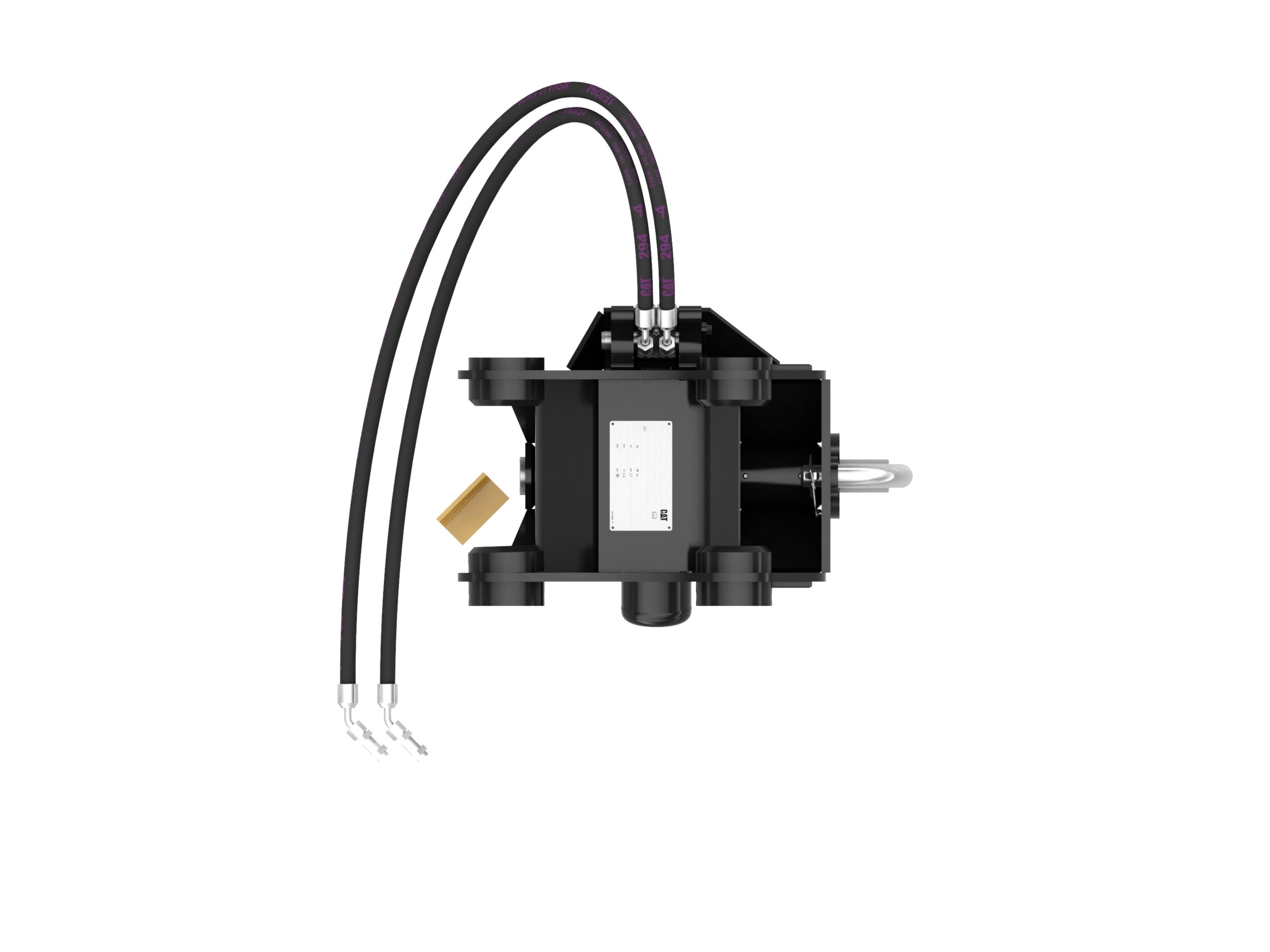

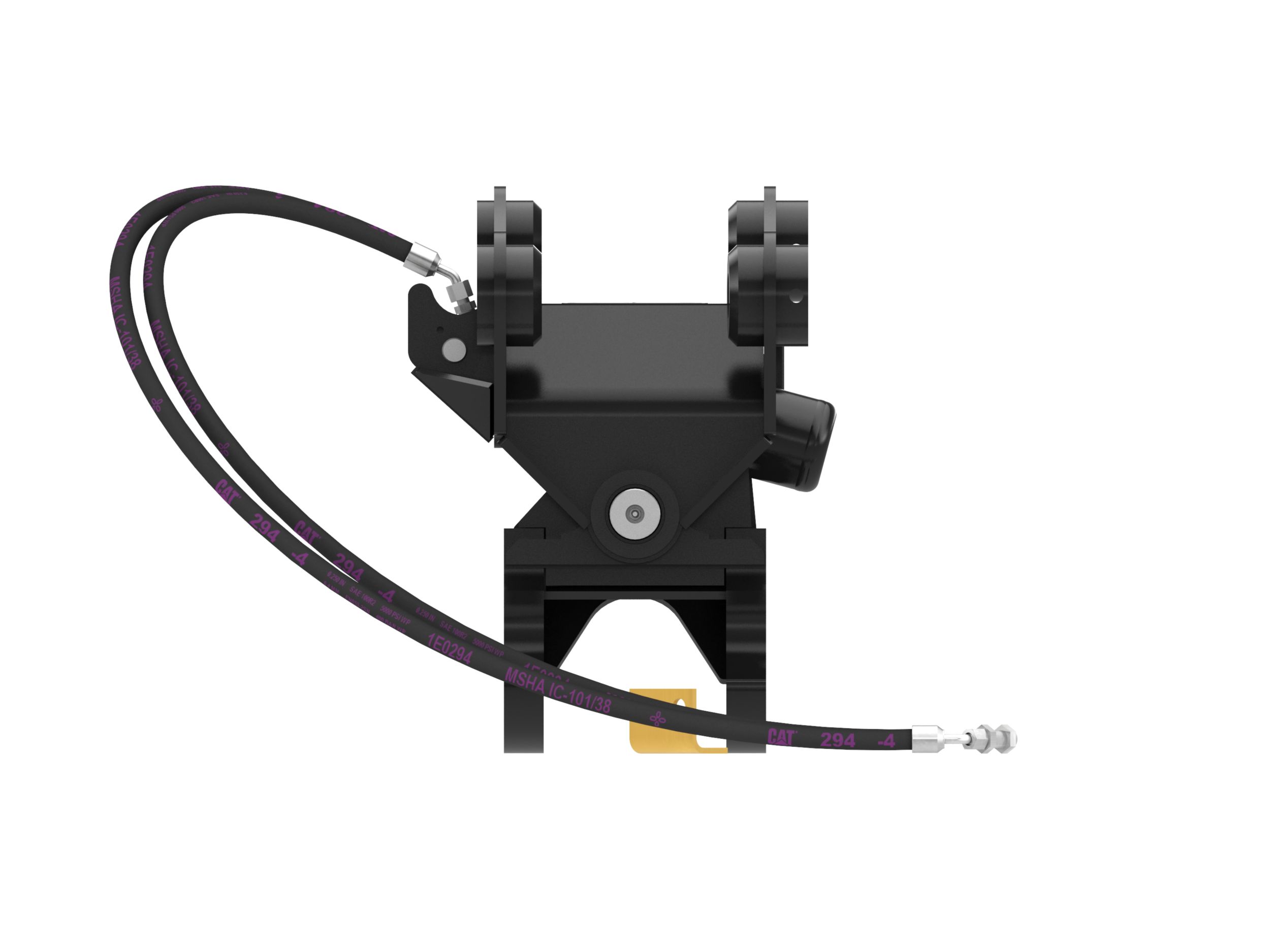

Manual Tilting Pin Lock Coupler For 8 Ton Mini Excavators

US
Metric

Overview

Fully compatible with Wain-Roy and Gannon-style buckets, the Cat® Pin Lock/Tilt Lock Coupler system is the key to new levels of performance on any Cat Mini Excavator. New machines can take advantage of existing bucket inventory. New buckets and work tools can be shared with similarly-sized competitive machines across a fleet. One machine can fill many roles on a job site.
Weight
256.20 lb
116.20 kg
Width
16.90 in
428.10 mm
Length
23.80 in
605.30 mm
Overall Height
22.30 in
566.71 mm
Pin Diameter
1.80 in
45.00 mm
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range +/-
90 degrees
