Overview

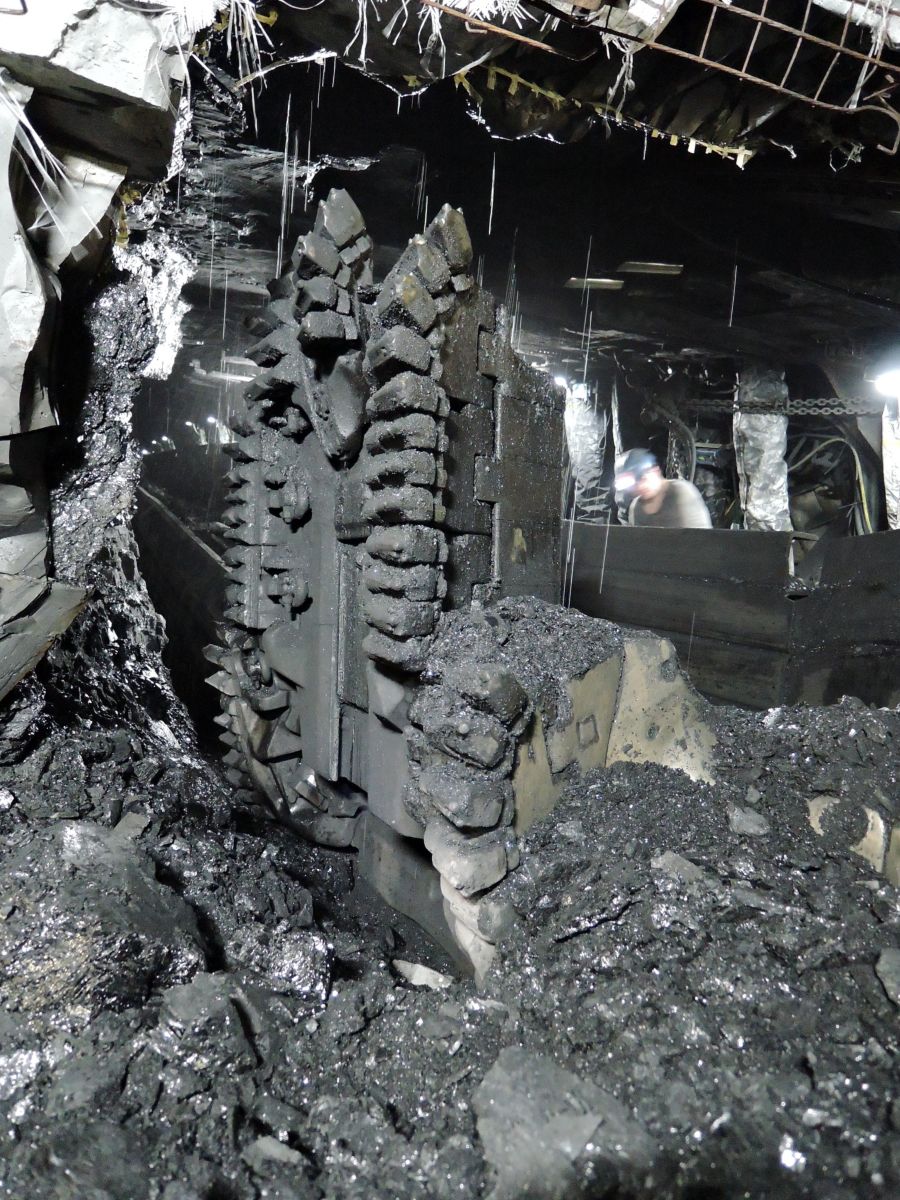

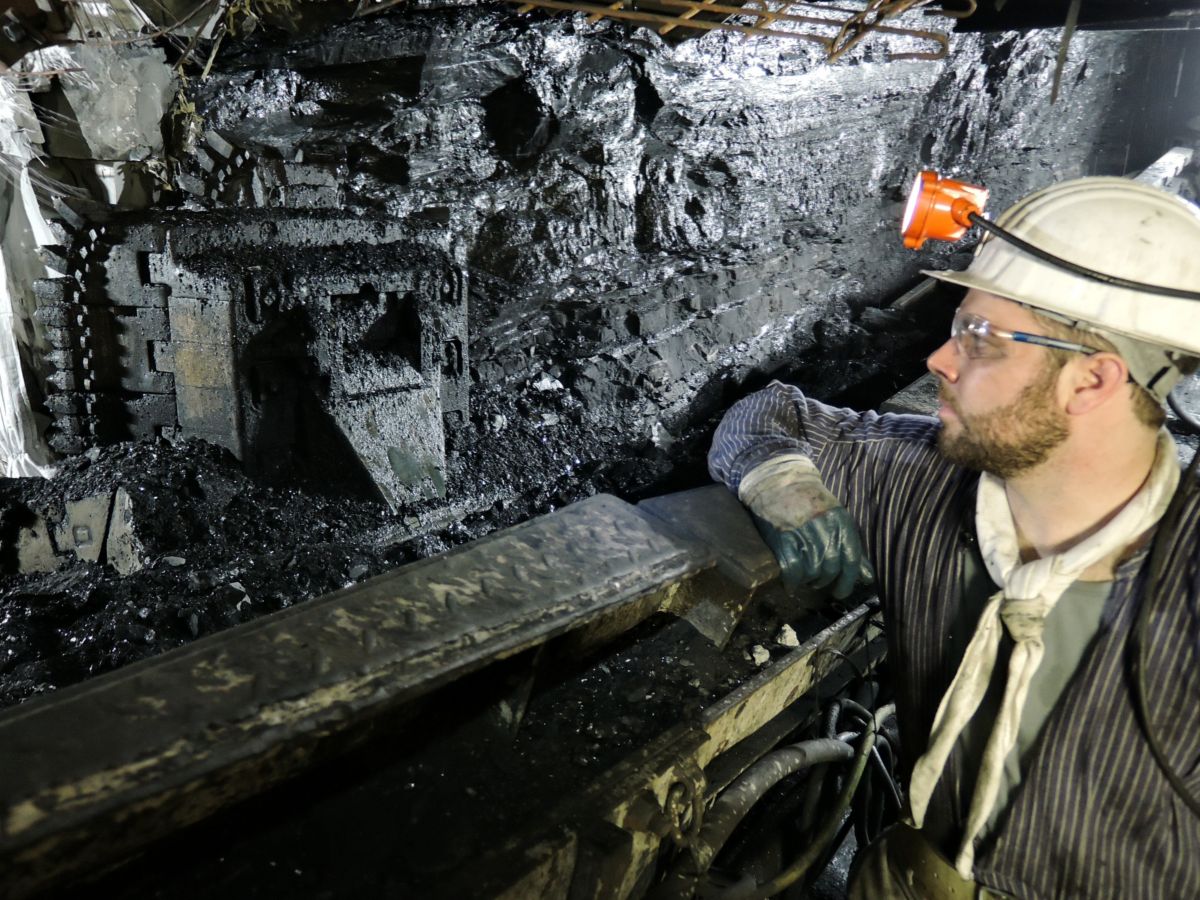

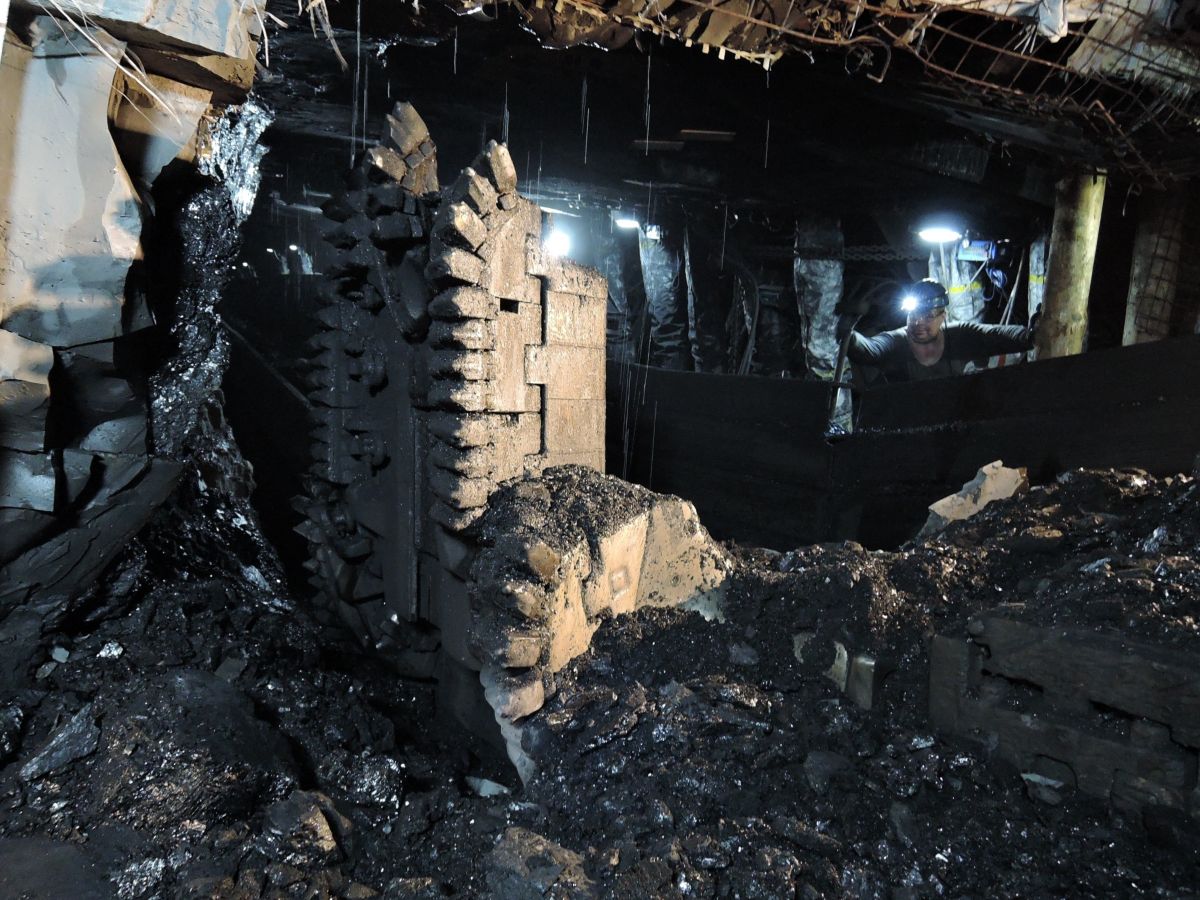

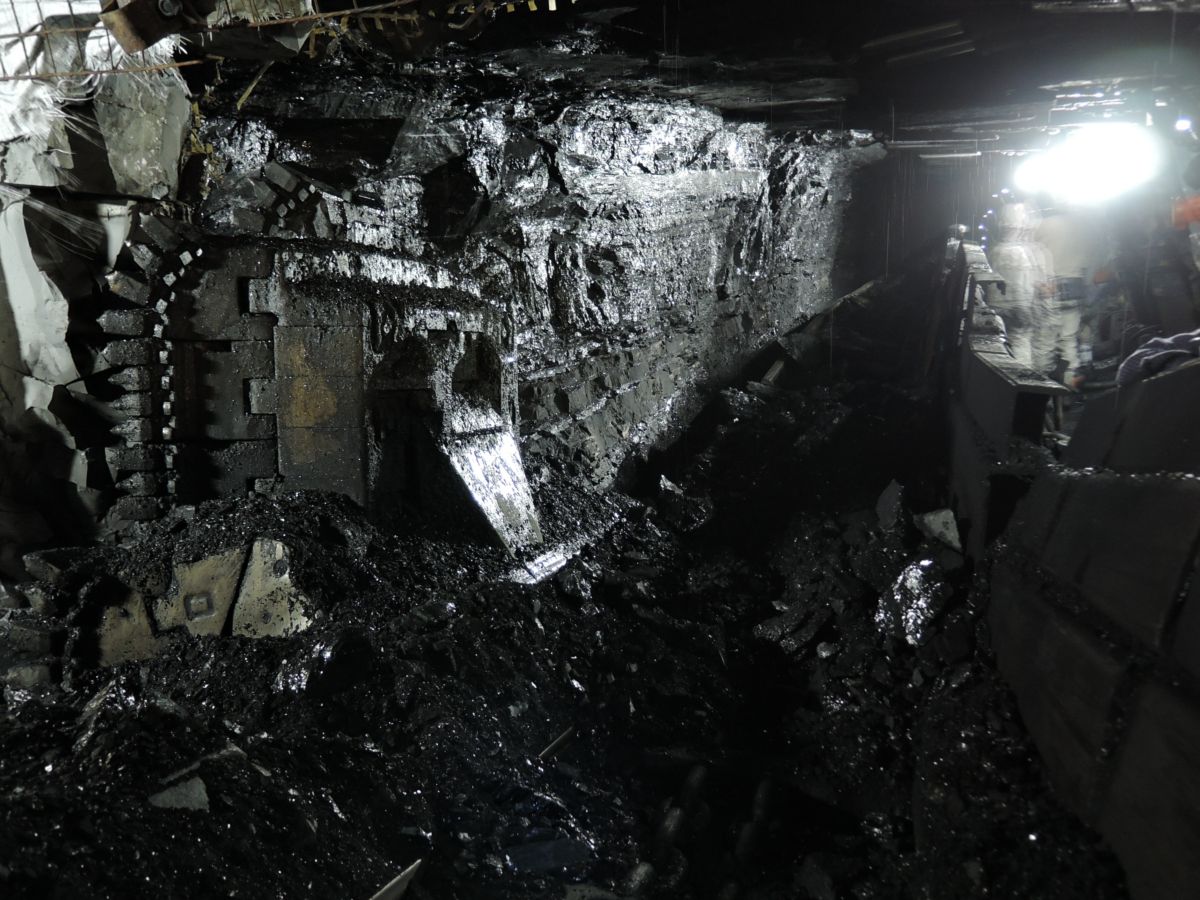

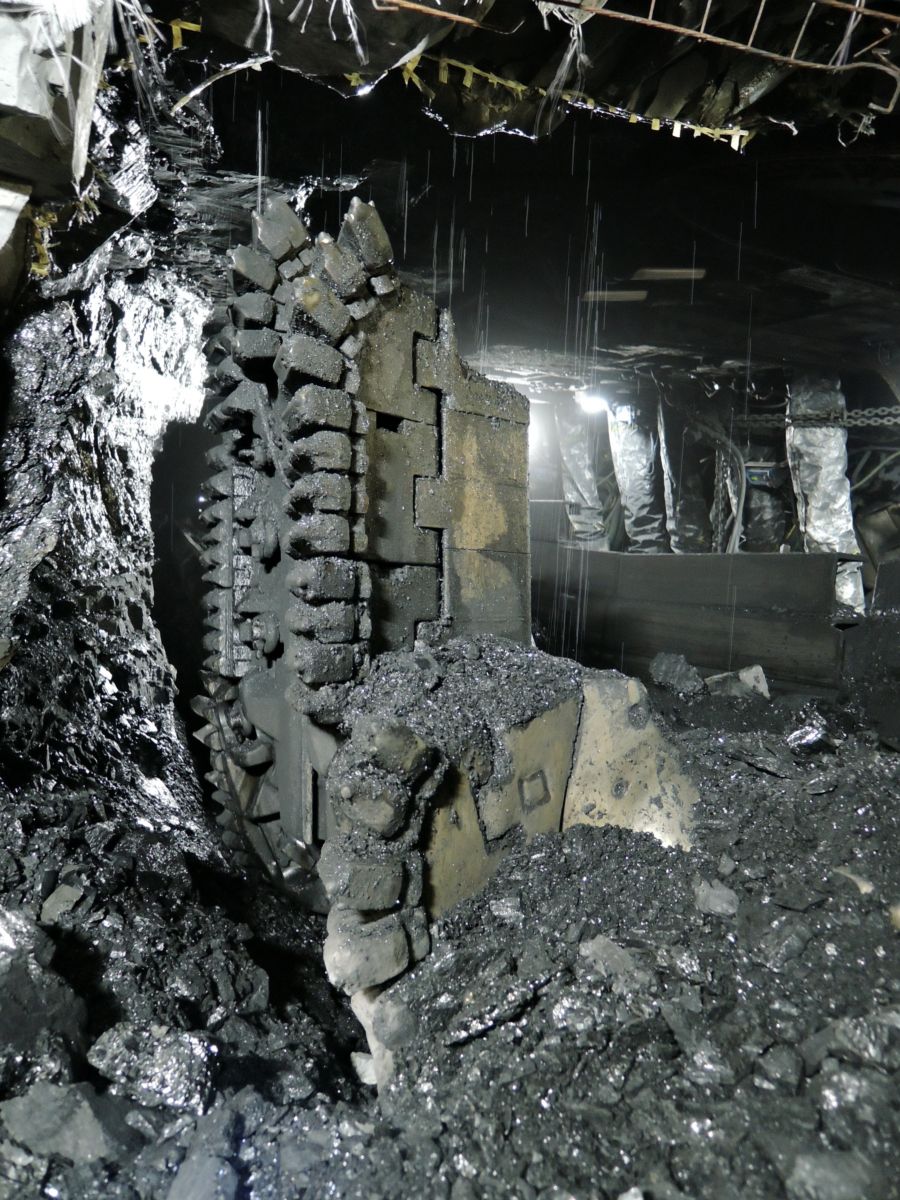

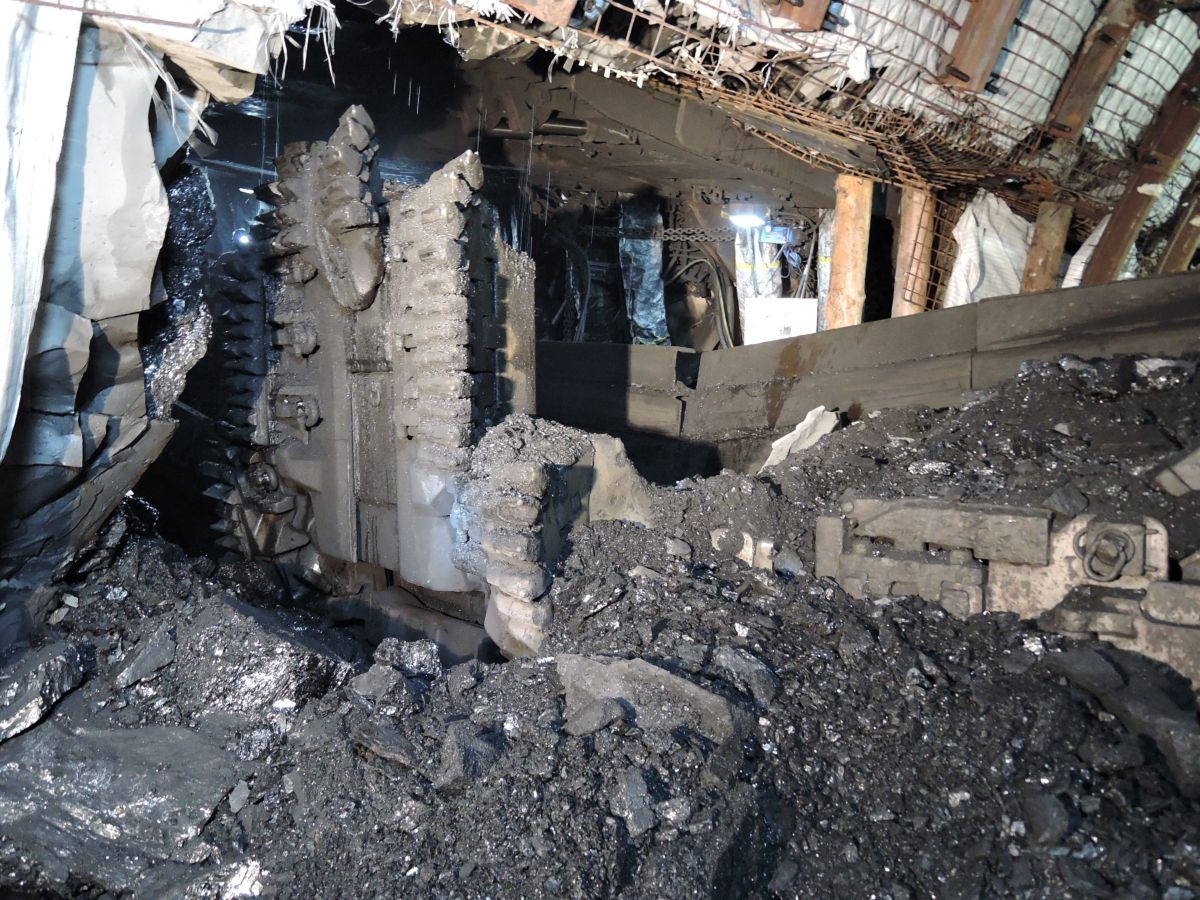

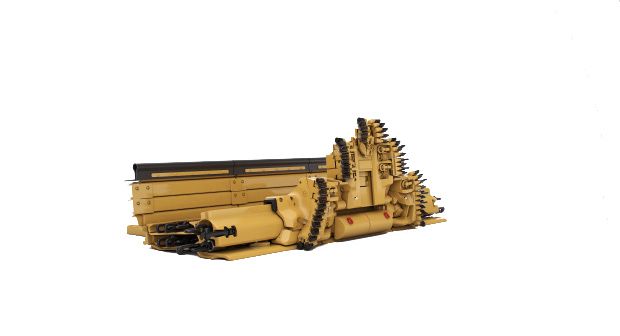

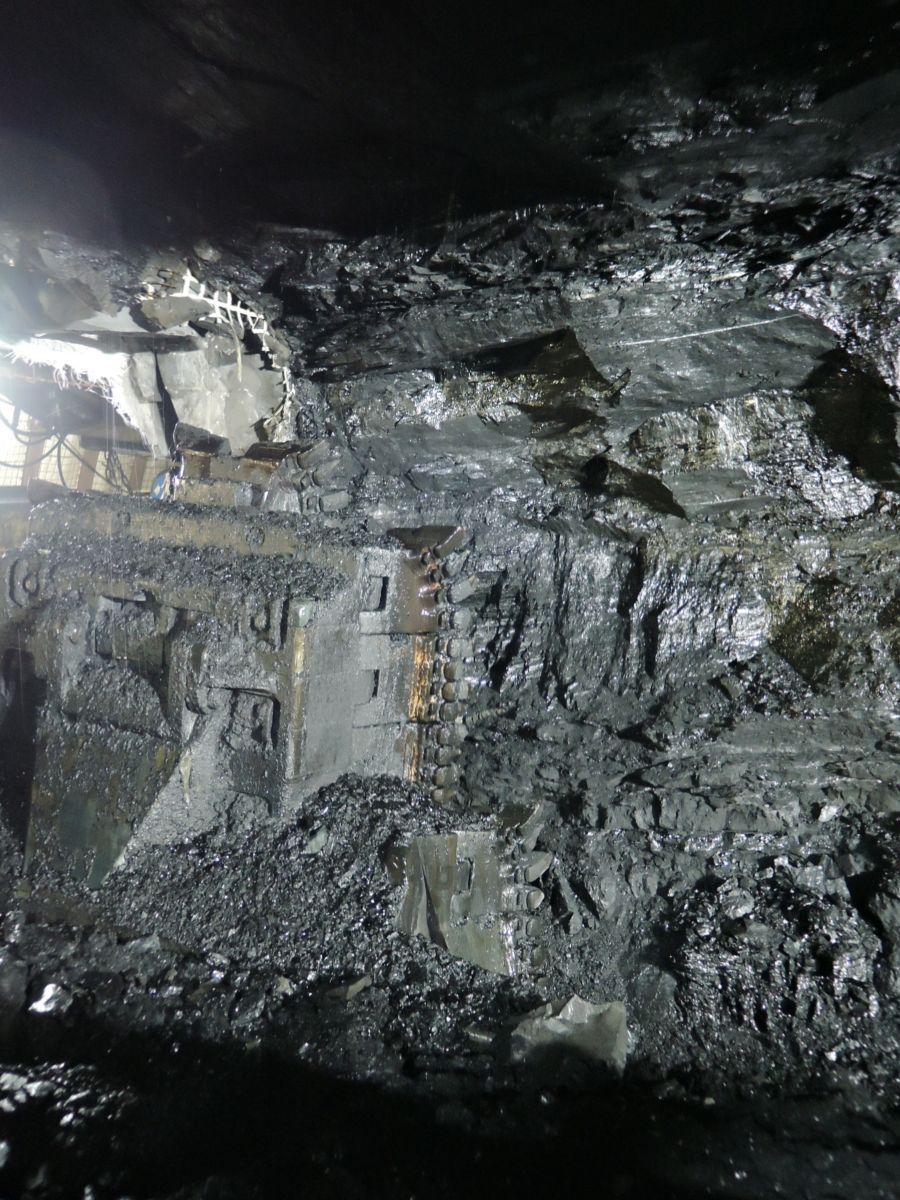

The Gleithobel Plow System GH1600 was specifically developed for very hard coal and high productivity by doubling the installed power of the GH800 to 1600 kW (1,080 hp). It can be used in seams from approximately 1.0 m (39 in) up to 2.53 m (91 in) with a portal arm.

Coal Hardness

Type of Coal
Medium to extremely hard coal

Power

Maximum Installed Power
2 × 800 kW (2 × 1,080 hp)

Specifications

Maximum Cutting Depth
8.27 in
210.00 mm

Cutting

Maximum Cutting Depth
8.27 in
210.00 mm

Power

Maximum Installed Power
2 × 800 kW (2 × 1,080 hp)
Maximum Plow Speed
3.6 m/sec (720 fpm)

Coal Hardness

Type of Coal
Medium to extremely hard coal

Technical Data

Bottom Bit Positions - Position 1
+12 mm (+0.04 ft)
Bottom Bit Positions - Position 2
-10 mm (-0.03 ft)
Bottom Bit Positions - Position 3
-21 mm (-0.07 ft)
Bottom Bit Positions - Position 4
-35 mm (-0.11 ft)
Cutting Depth
0.69 ft
210.00 mm
Maximum Drive Power
2 × 800 kW (2 × 1,080 hp)
Mechanical Height Adjustment
180-300 mm (0.59-0.98 ft)
Plow Heights - With Gobside Support
1860-2160 mm (6.10-7.08 ft)
Plow Heights - Height 1
980-1230 mm (3.22-4.04 ft)
Plow Heights - Height 2
1180-1480 mm (3.87-4.86 ft)
Plow Heights - Height 3
1445-1745 mm (4.73-5.73 ft)
Plow Length
9.74 ft
2969.00 mm
Weight
5600-8600 kg (12,345-18,960 lb)

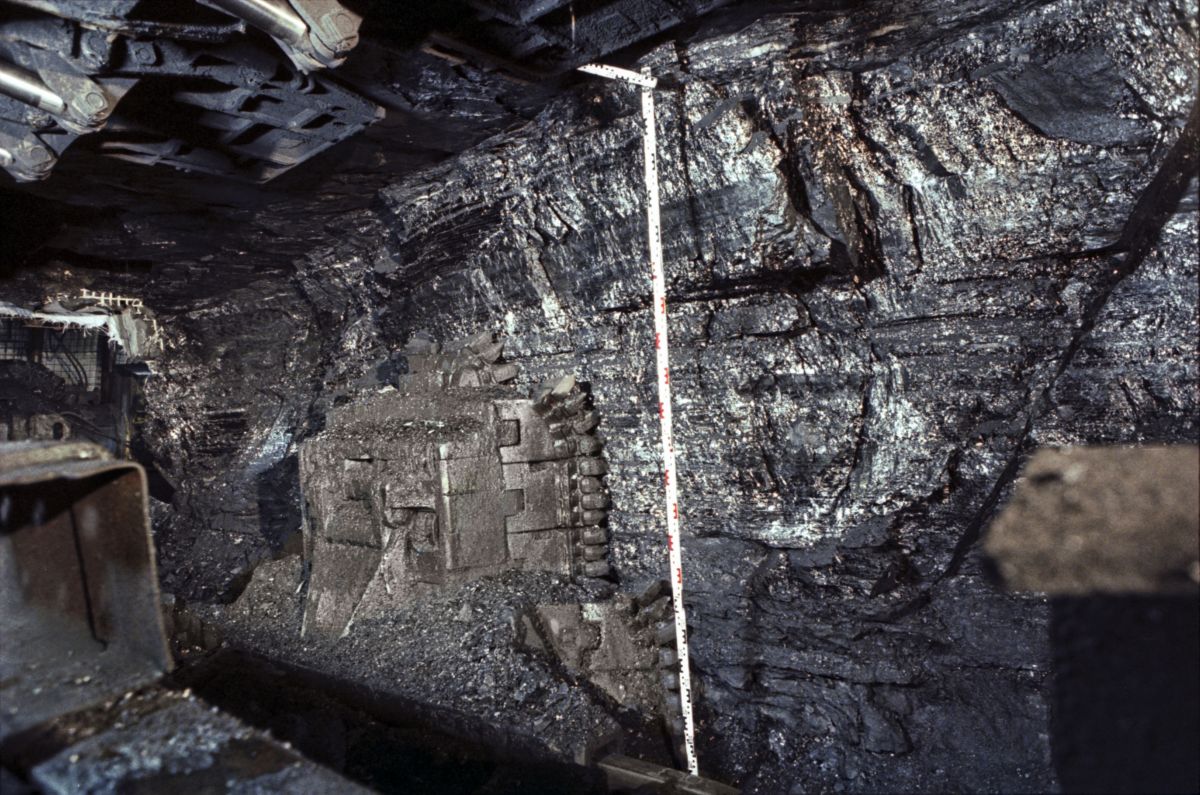

Mining Height

Mining Height
1.1 m-2.3 m (43 in-90 in)

Specifications

Coal Hardness
Medium to extremely hard coal
Maximum Installed Power
2 × 800 kW (2 × 1,080 hp)

Mining Height

Mining Height
1.1 m-2.3 m (43 in-90 in)

Technical Data

Bottom Bit Positions - Position 1
+12 mm (+0.04 ft)
Bottom Bit Positions - Position 2
-10 mm (-0.03 ft)
Bottom Bit Positions - Position 3
-21 mm (-0.07 ft)
Bottom Bit Positions - Position 4
-35 mm (-0.11 ft)
Cutting Depth
0.69 ft
210.00 mm
Maximum Drive Power
2 × 800 kW (2 × 1,080 hp)
Mechanical Height Adjustment
180-300 mm (0.59-0.98 ft)
Plow Heights - Height 1
980-1230 mm (3.22-4.04 ft)
Plow Heights - Height 2
1180-1480 mm (3.87-4.86 ft)
Plow Heights - Height 3
1445-1745 mm (4.73-5.73 ft)
Plow Length
9.74 ft
2969.00 mm
Features

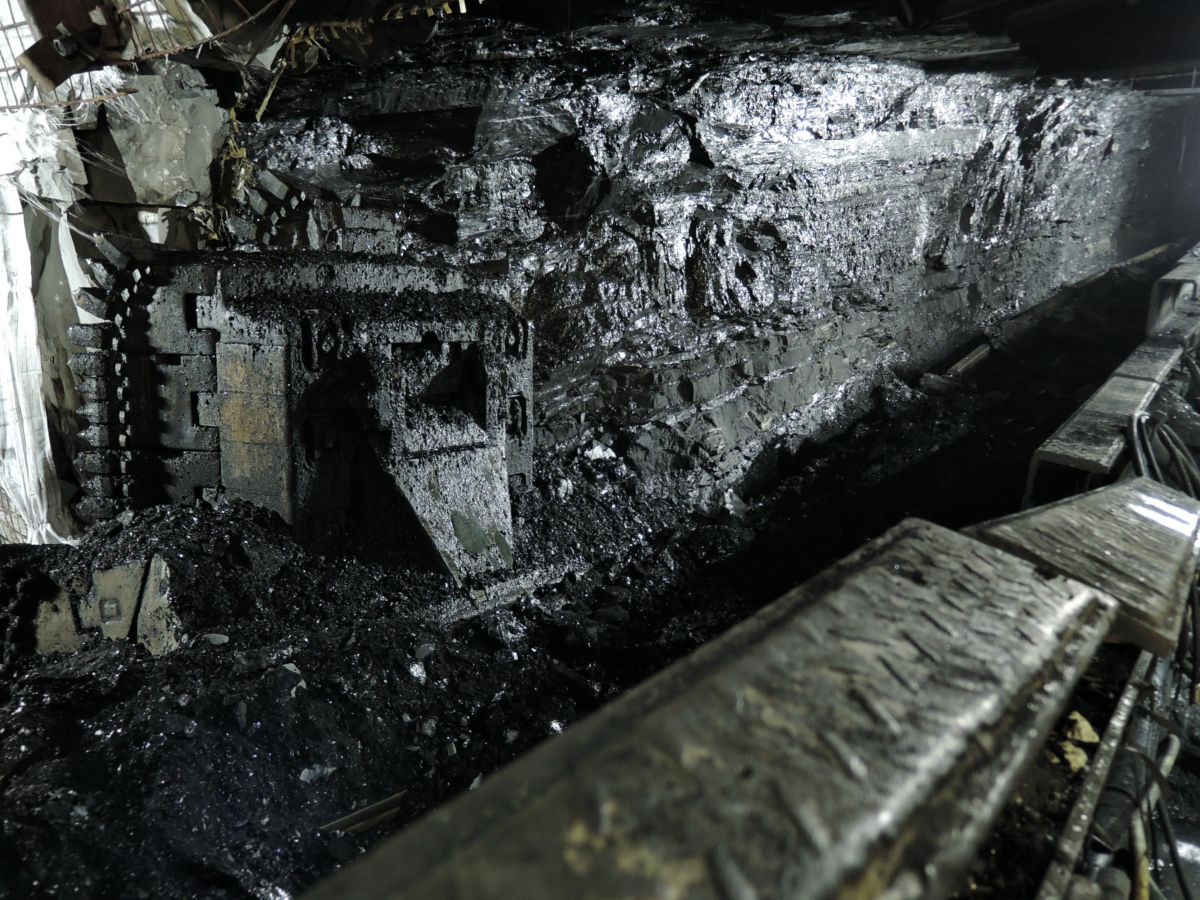

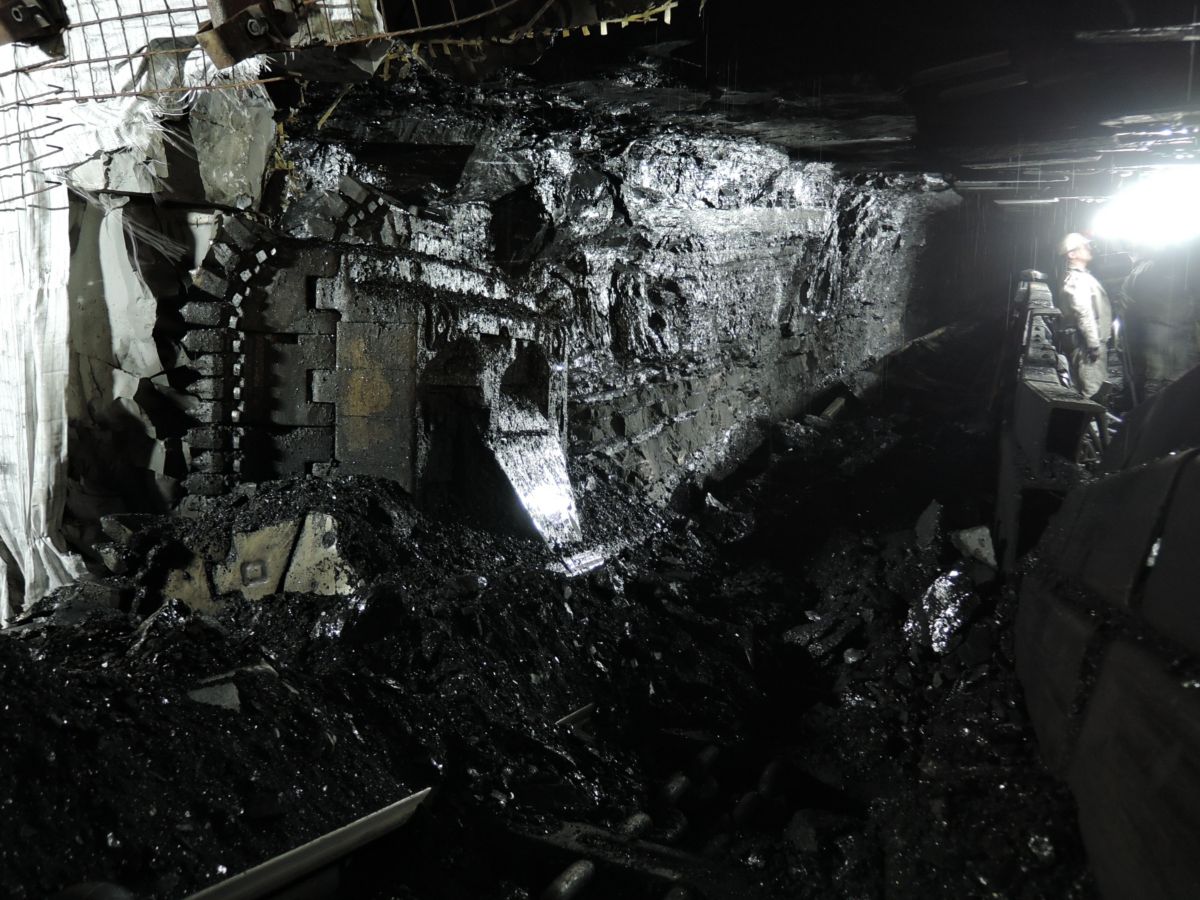

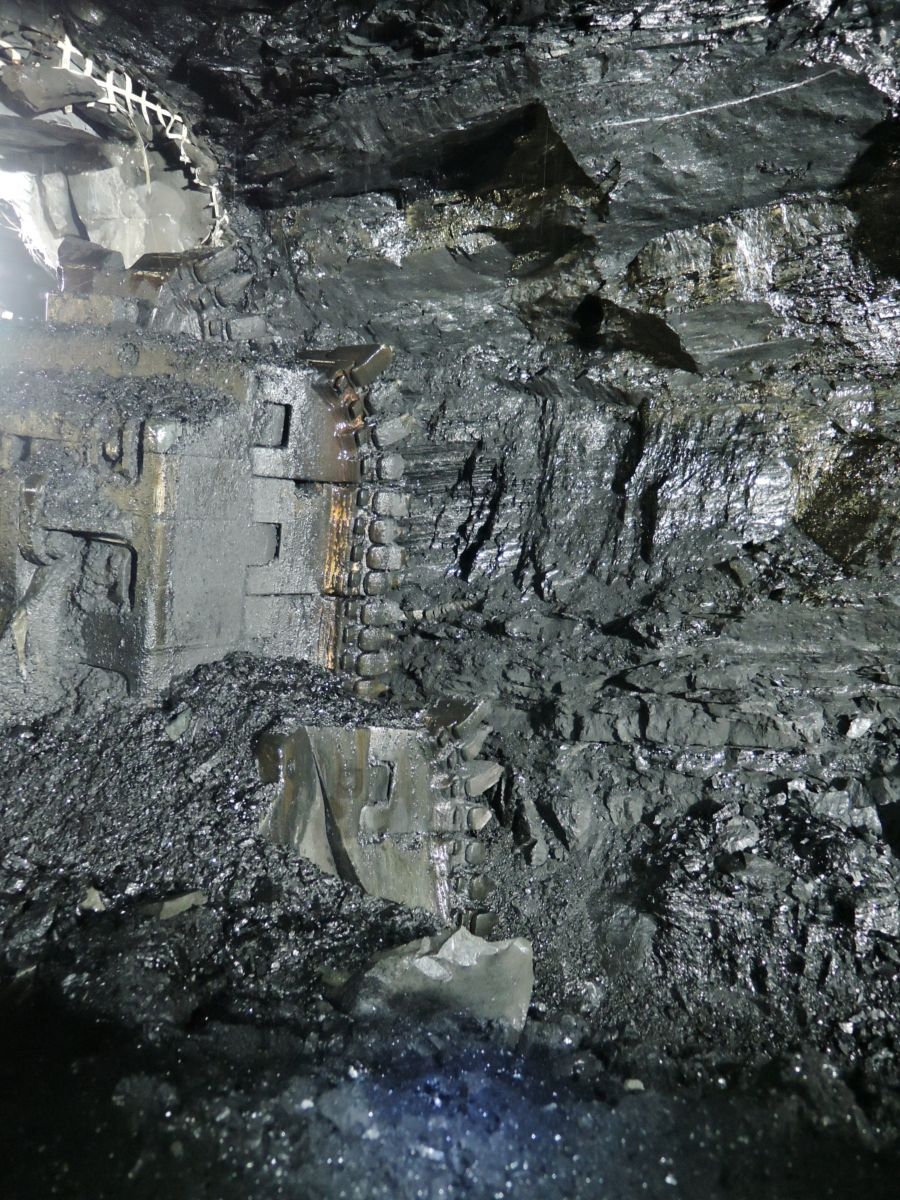

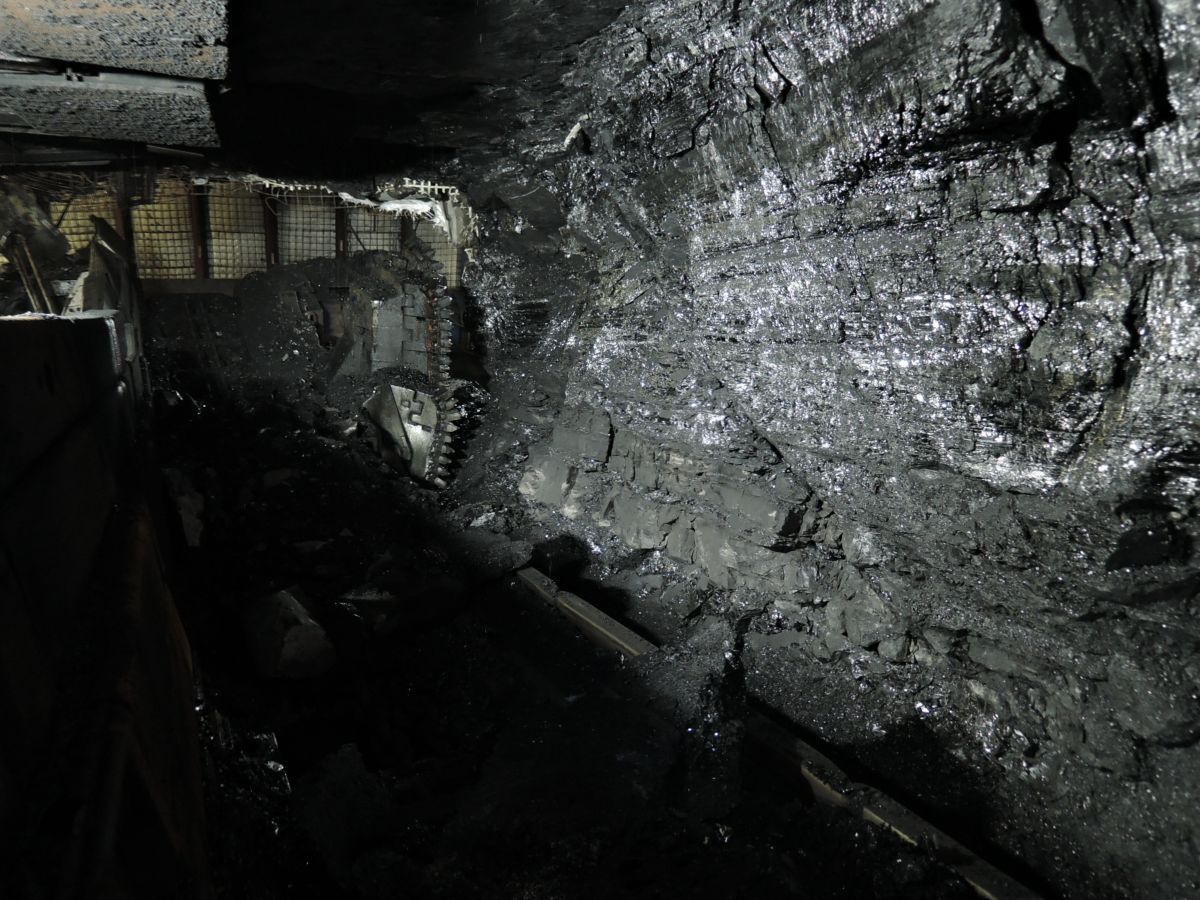

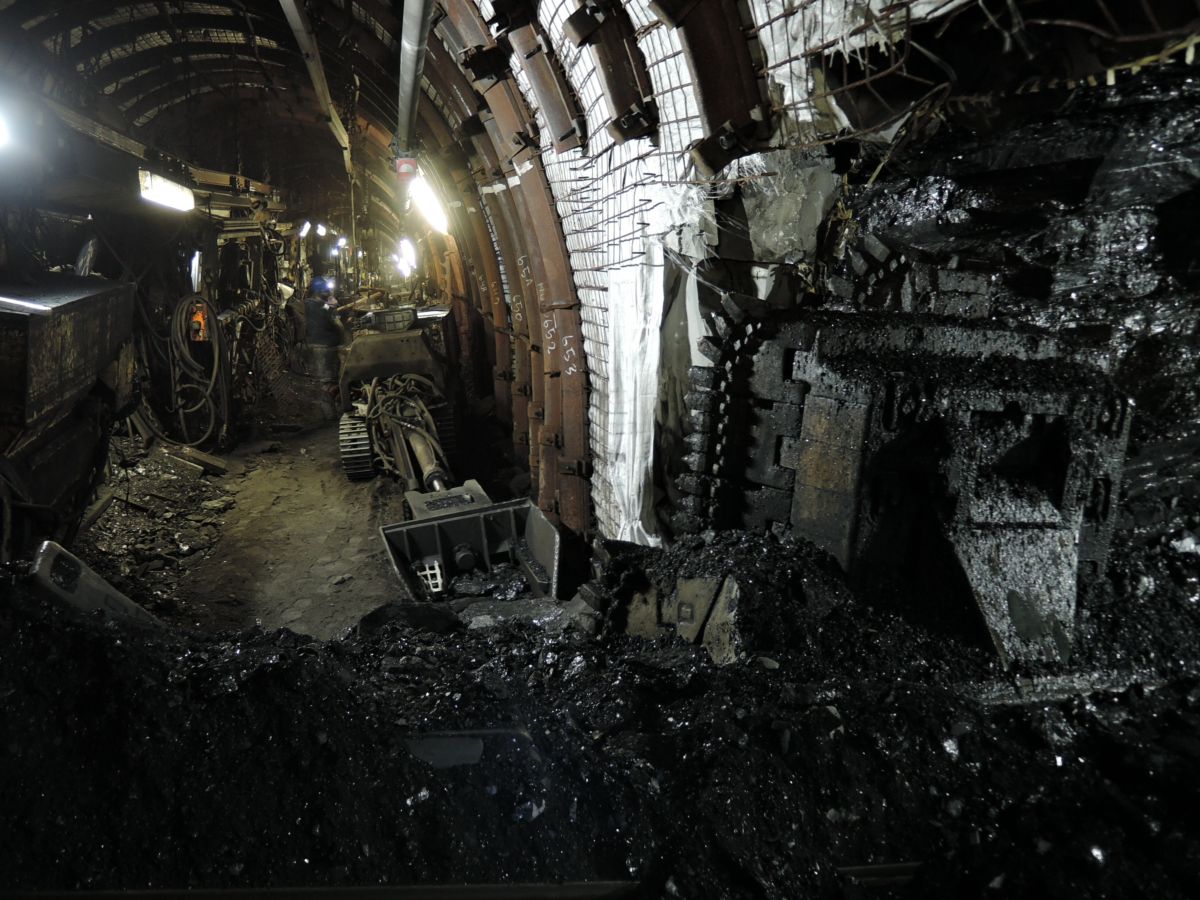

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

Plow Guide

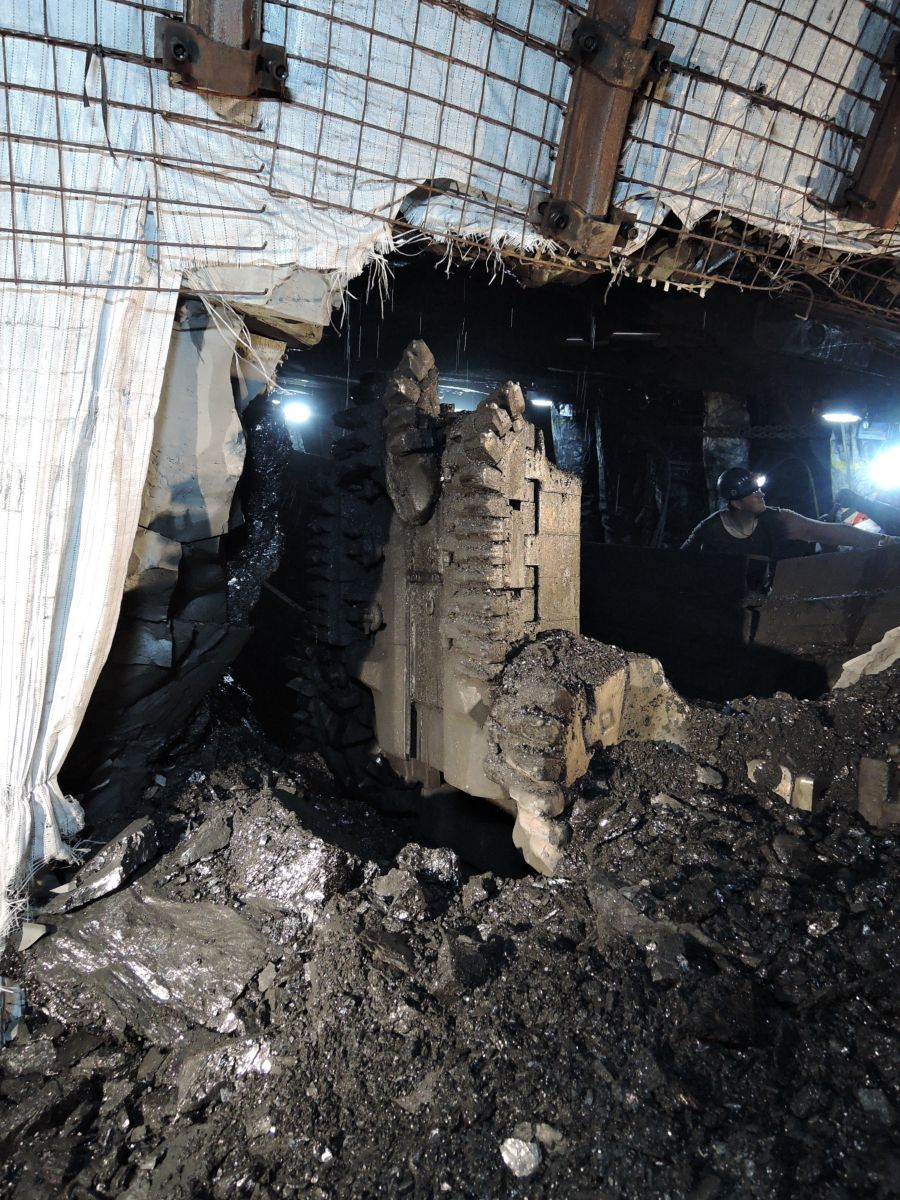

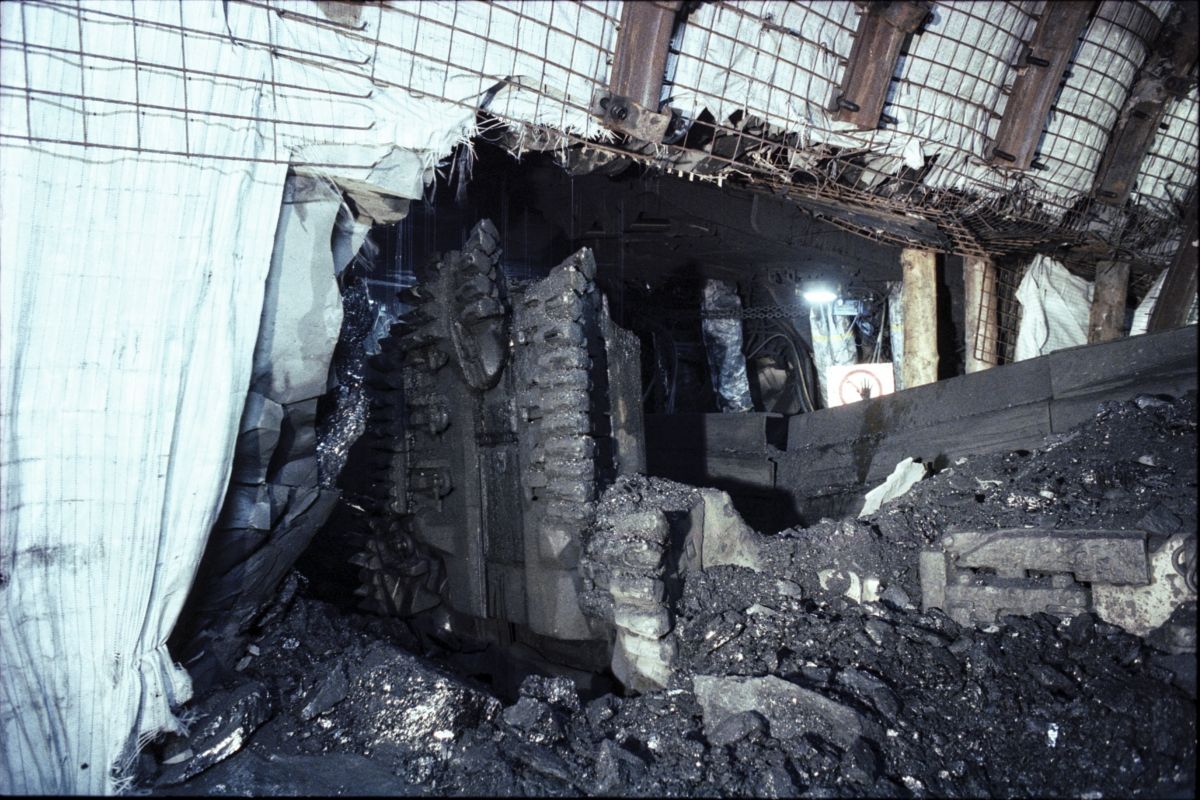

Plow Body

Plow Body

Plow Body

Plow Body

Horizon Control

Horizon Control

Drive System

Drive System

Drive System

Drive System

Control System

Control System

Control System

Incremental Plowing

Incremental Plowing

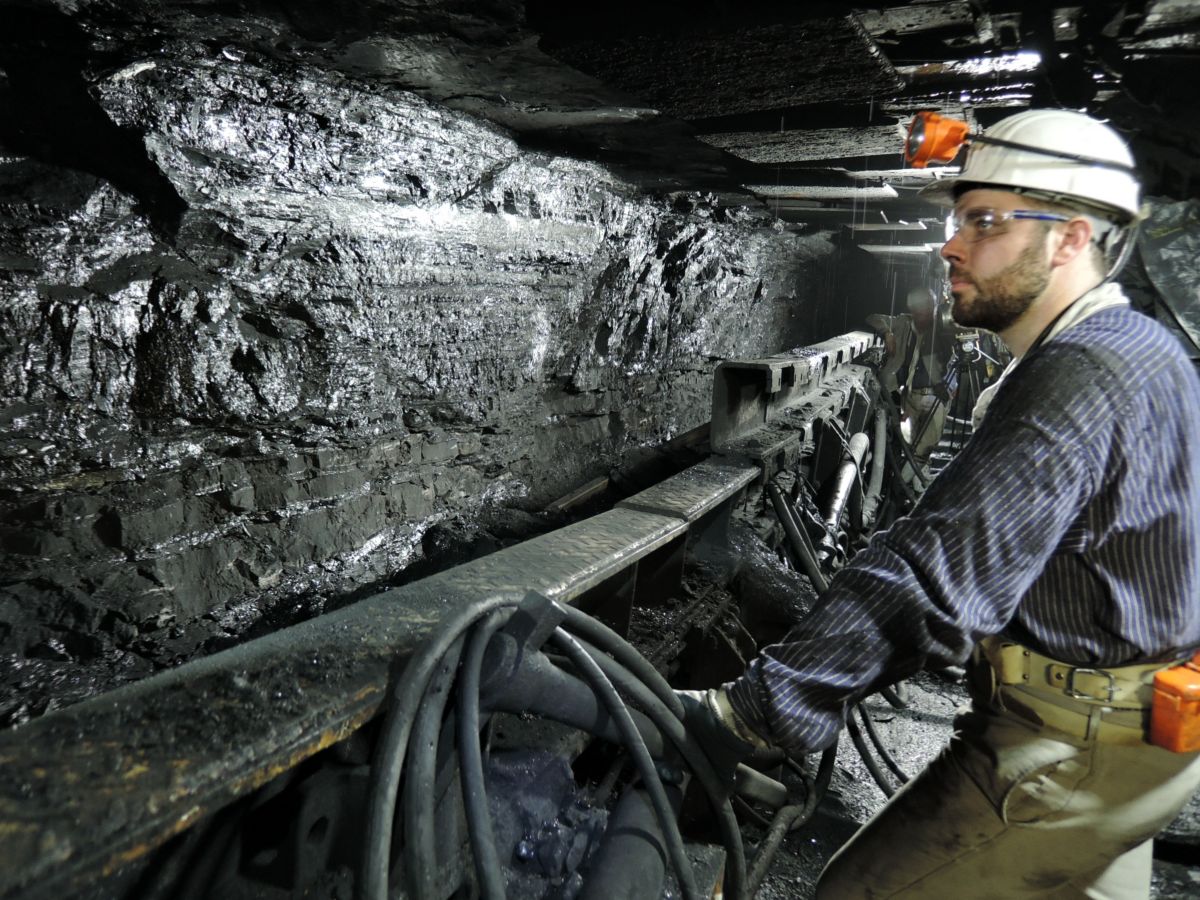

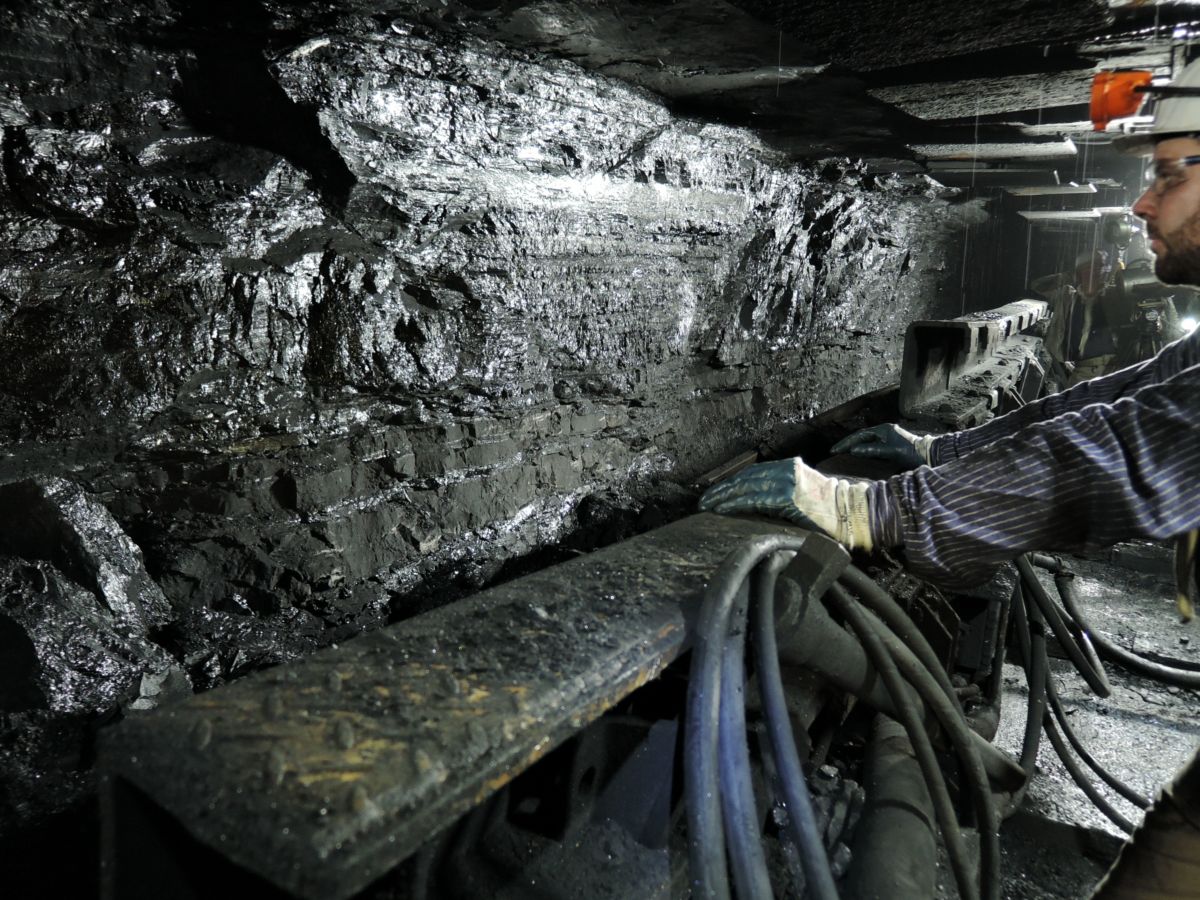

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Roof Supports

Plow Roof Supports

Safety

Serviceability

Serviceability

Sales Features

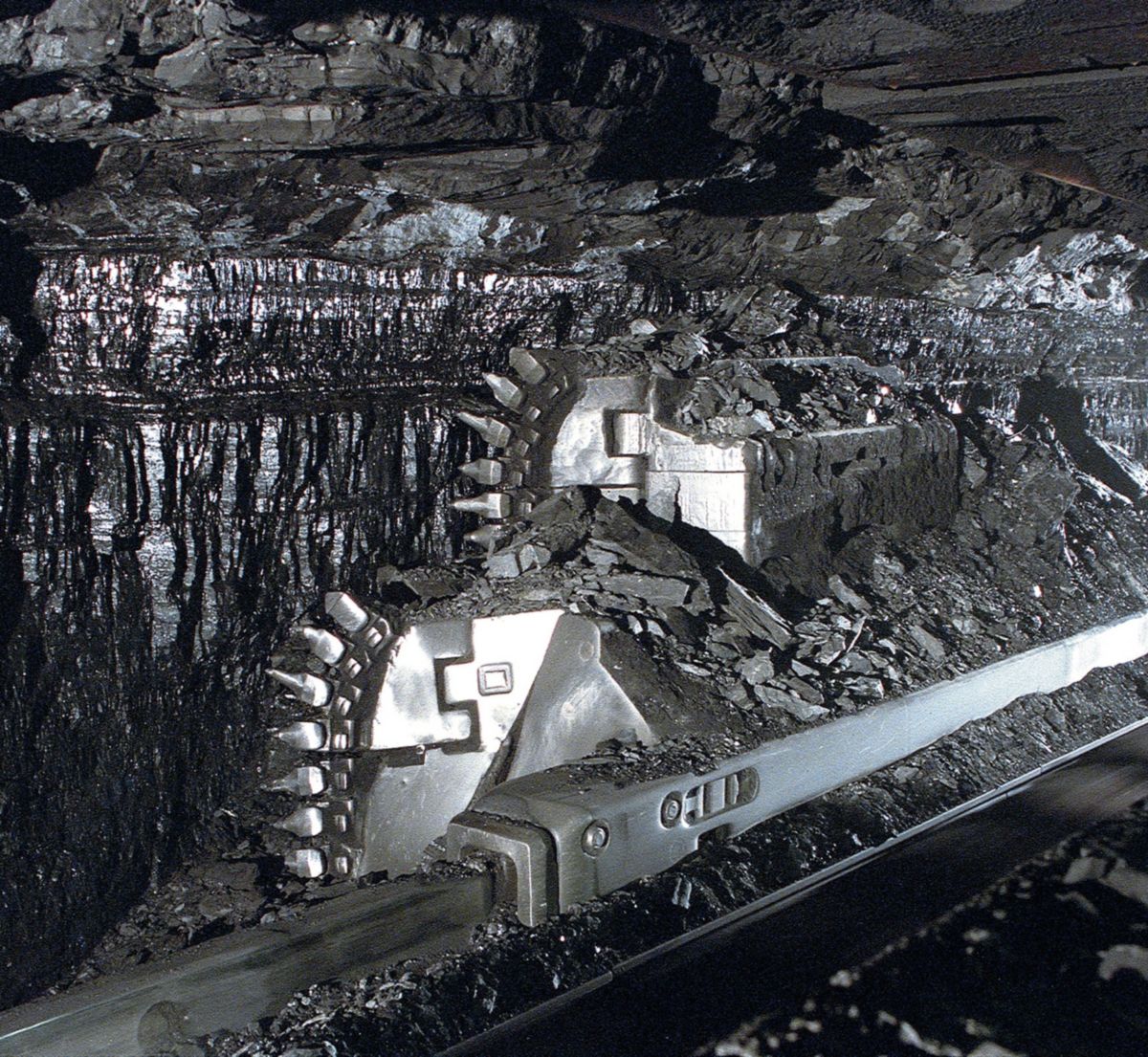

The Principle of Plowing

Highest performance in low coal

Plow Guide

Plow Body

Reduction of wear and tear

Horizon Control

Controlling the coal seam

Drive System

Maximum power with total control

Control System

Intelligent control of plow performance

Incremental Plowing

Highest safety and productivity in low coal

Plow Line Pans

State-of-the-art conveyor technology

Plow Roof Supports

Maximum protection underground

Safety

Maximum protection of men and machine

Serviceability

Easy underground replacement of wear parts
