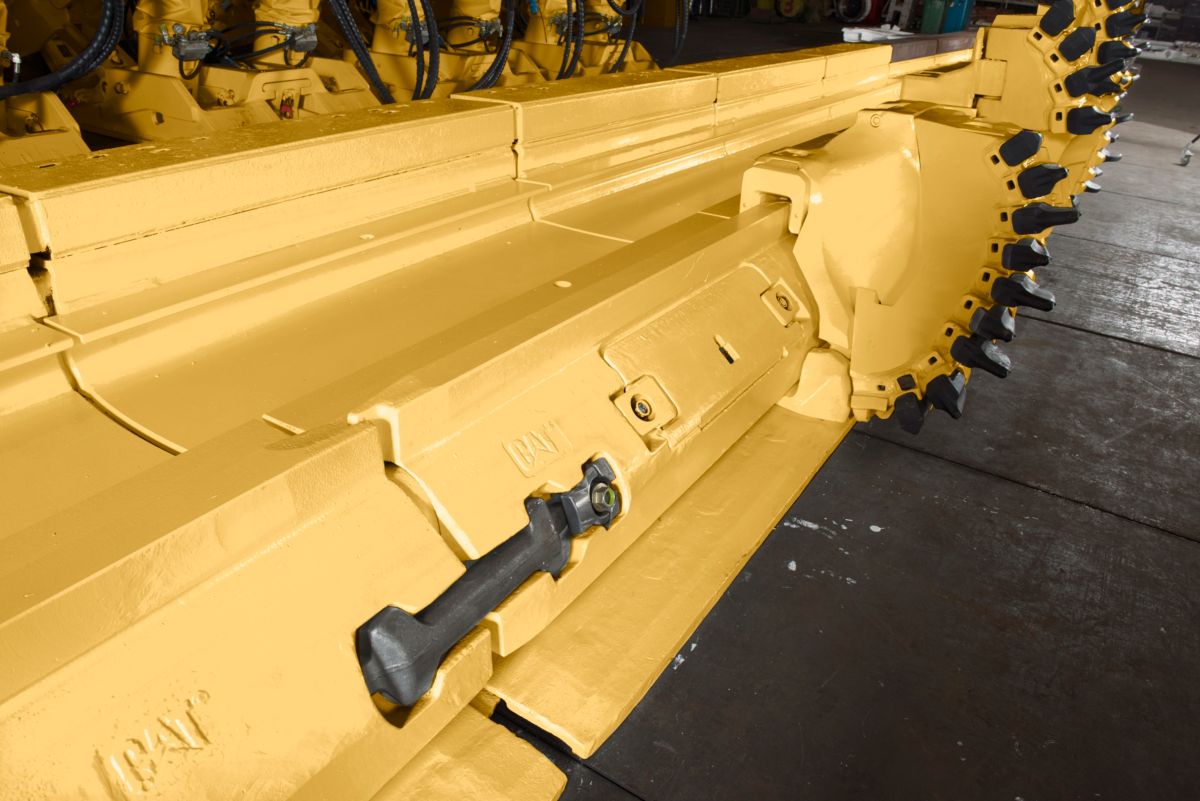

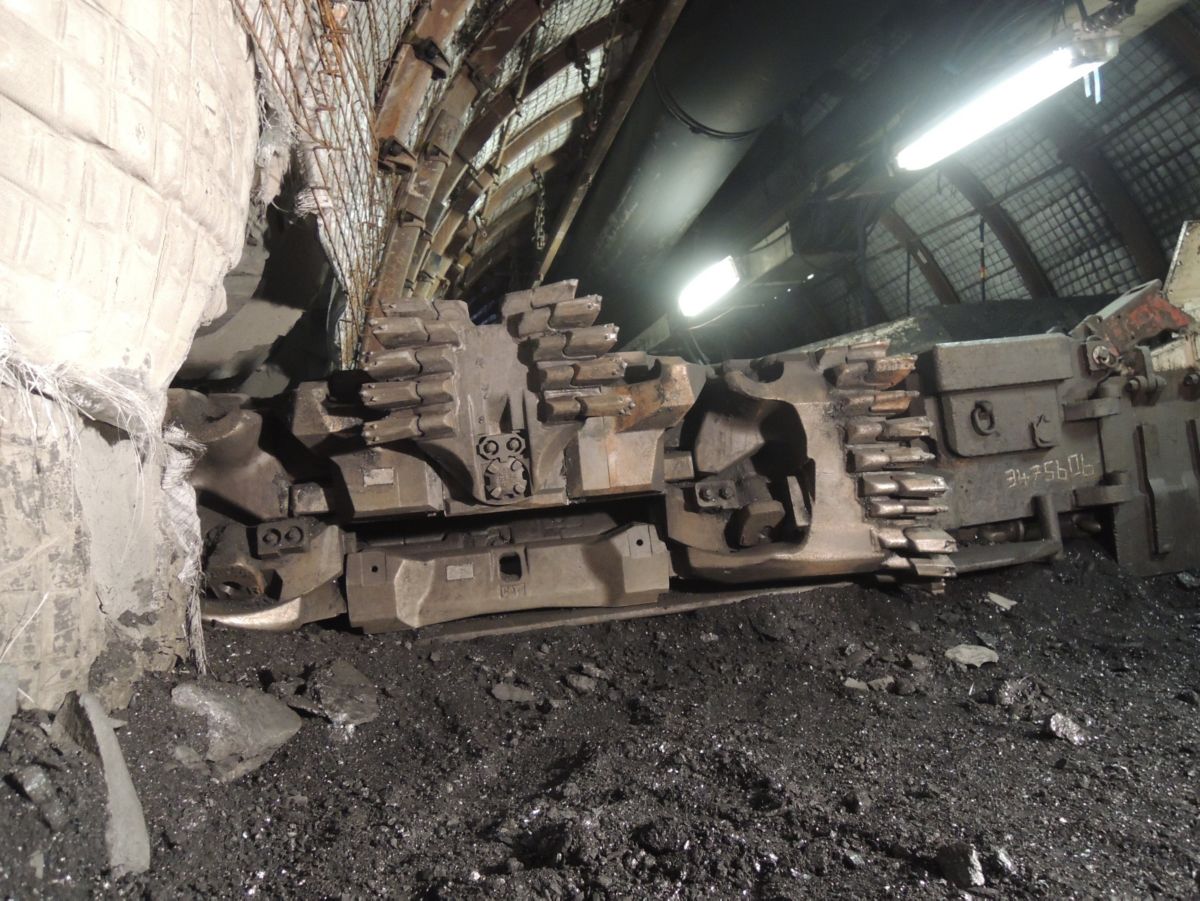

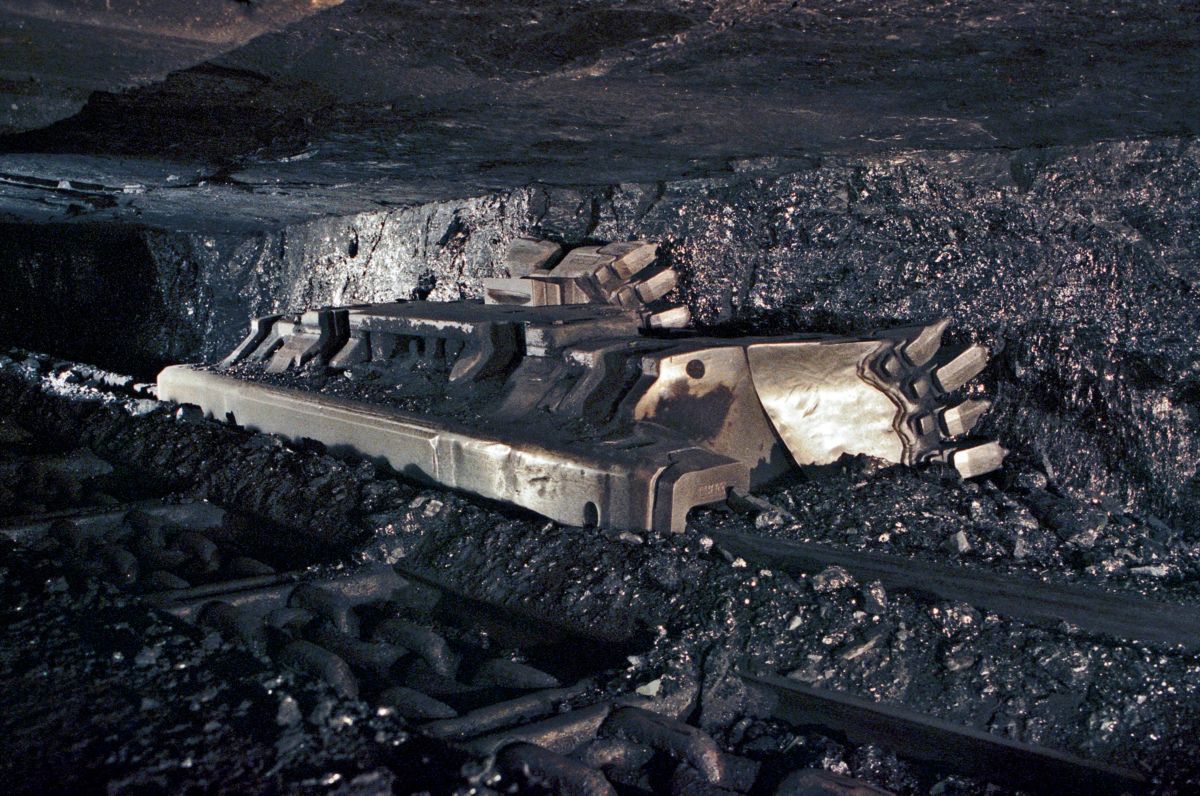

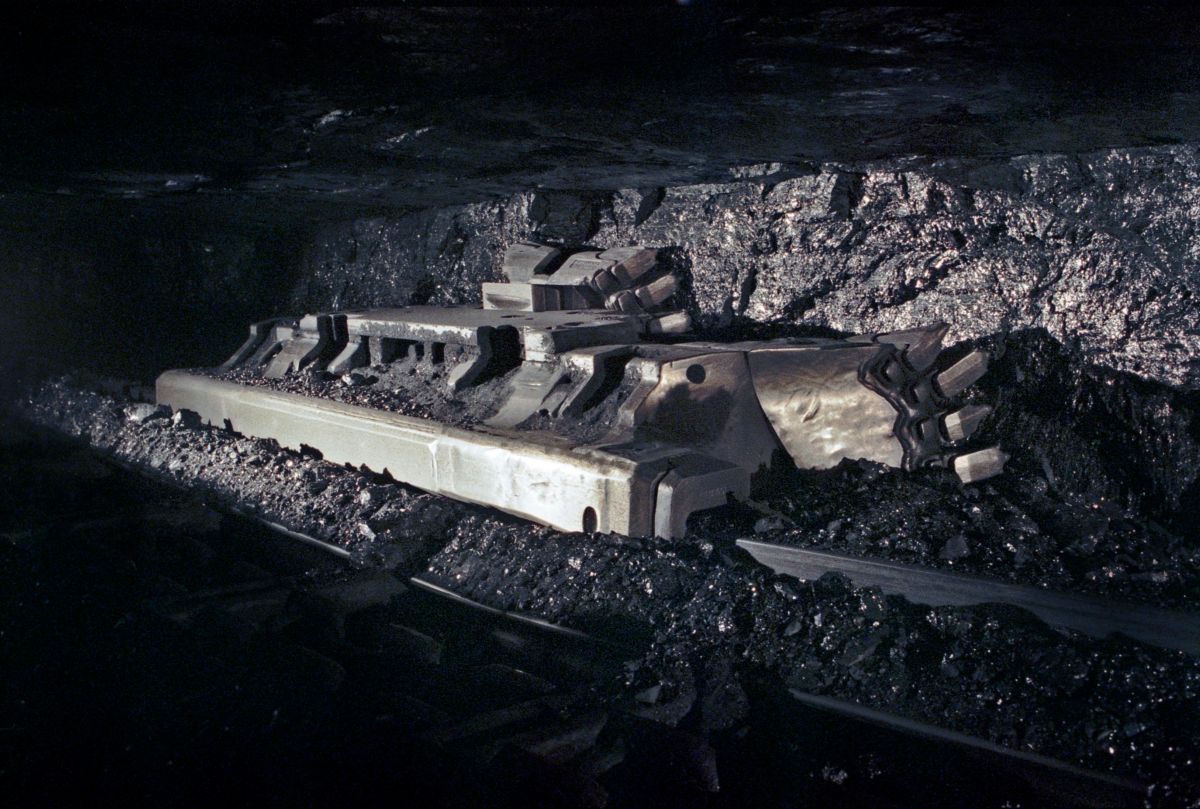

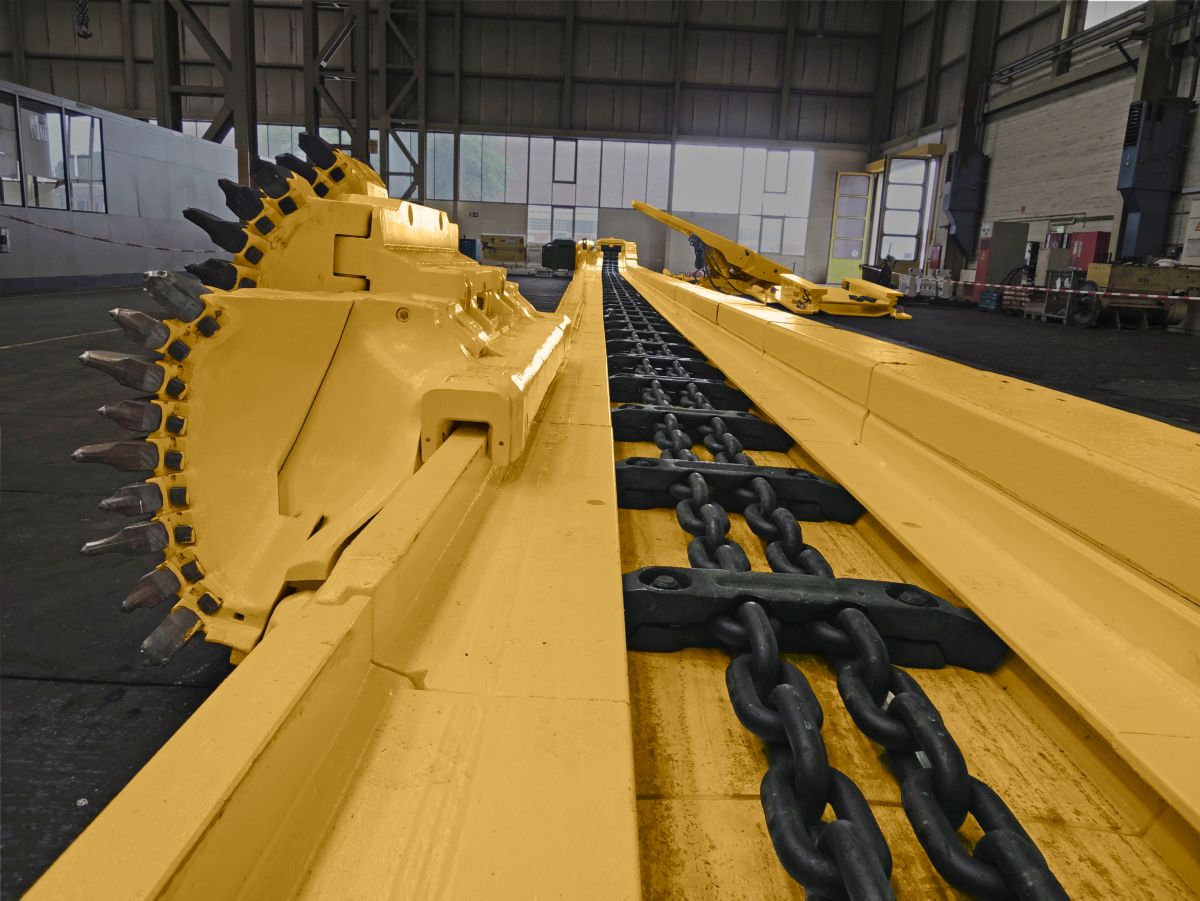

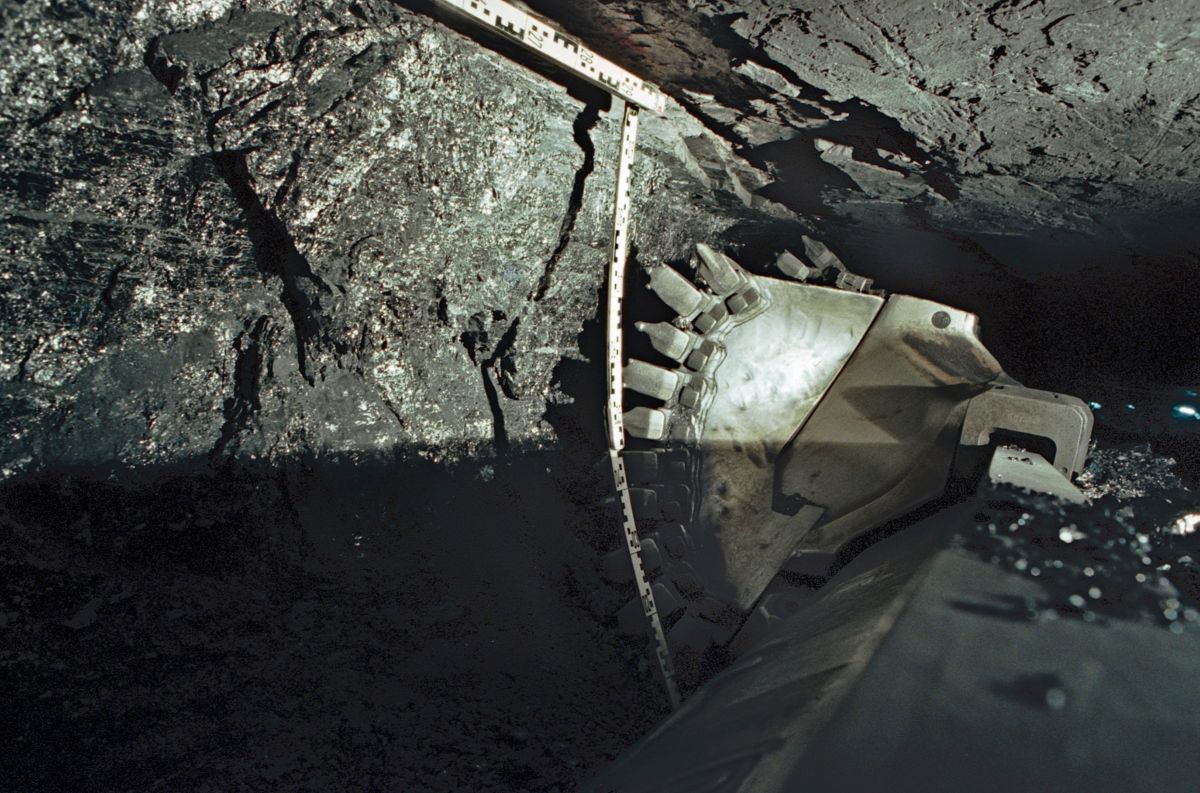

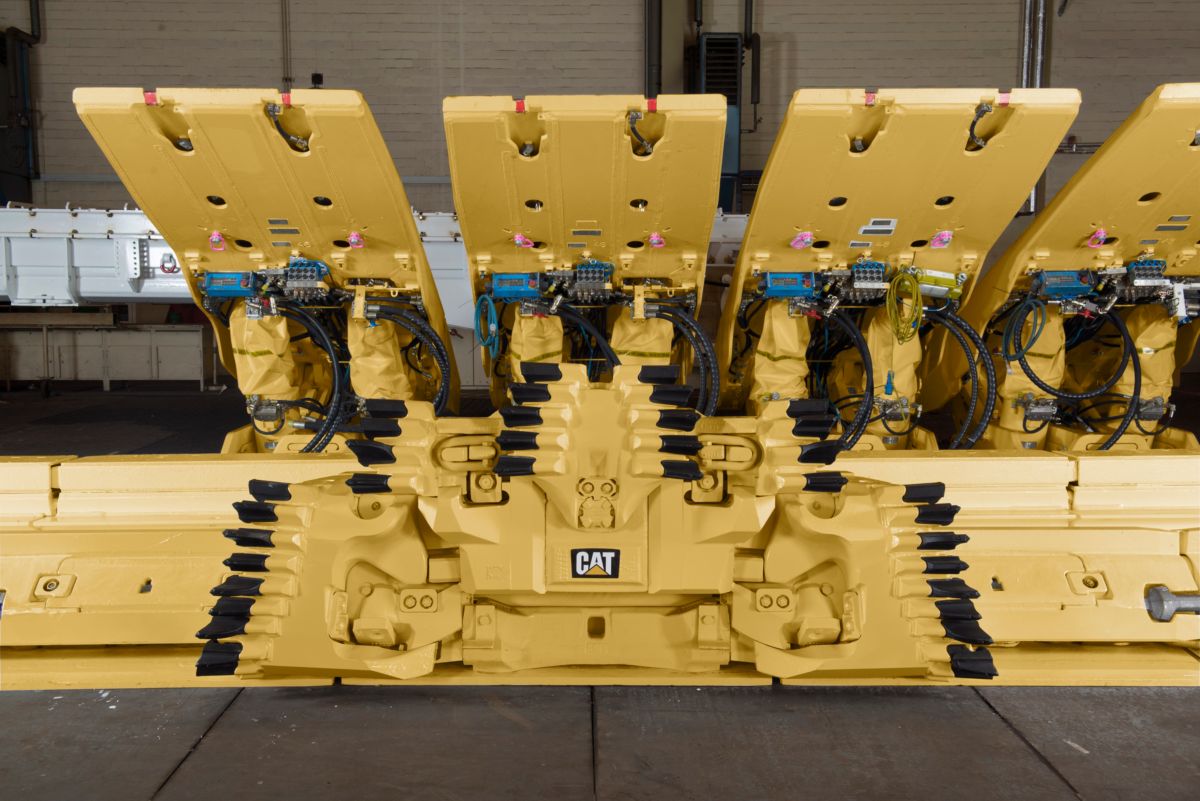

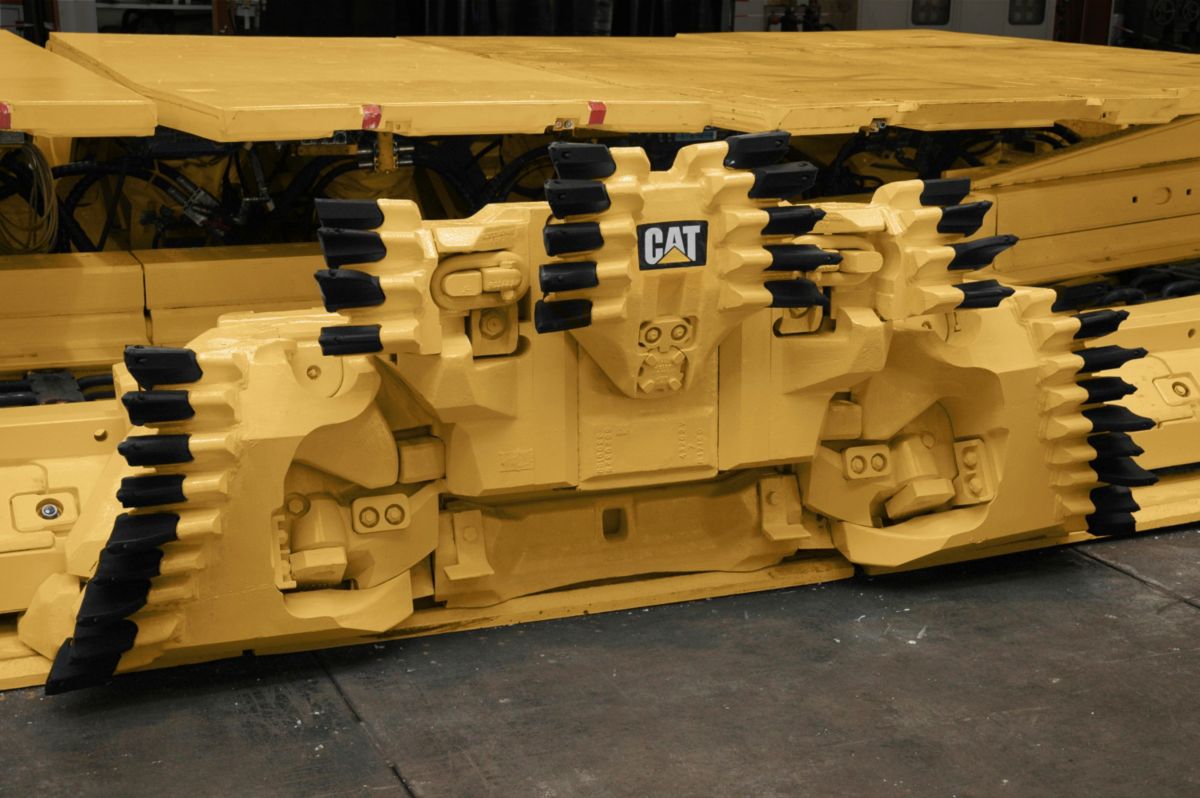

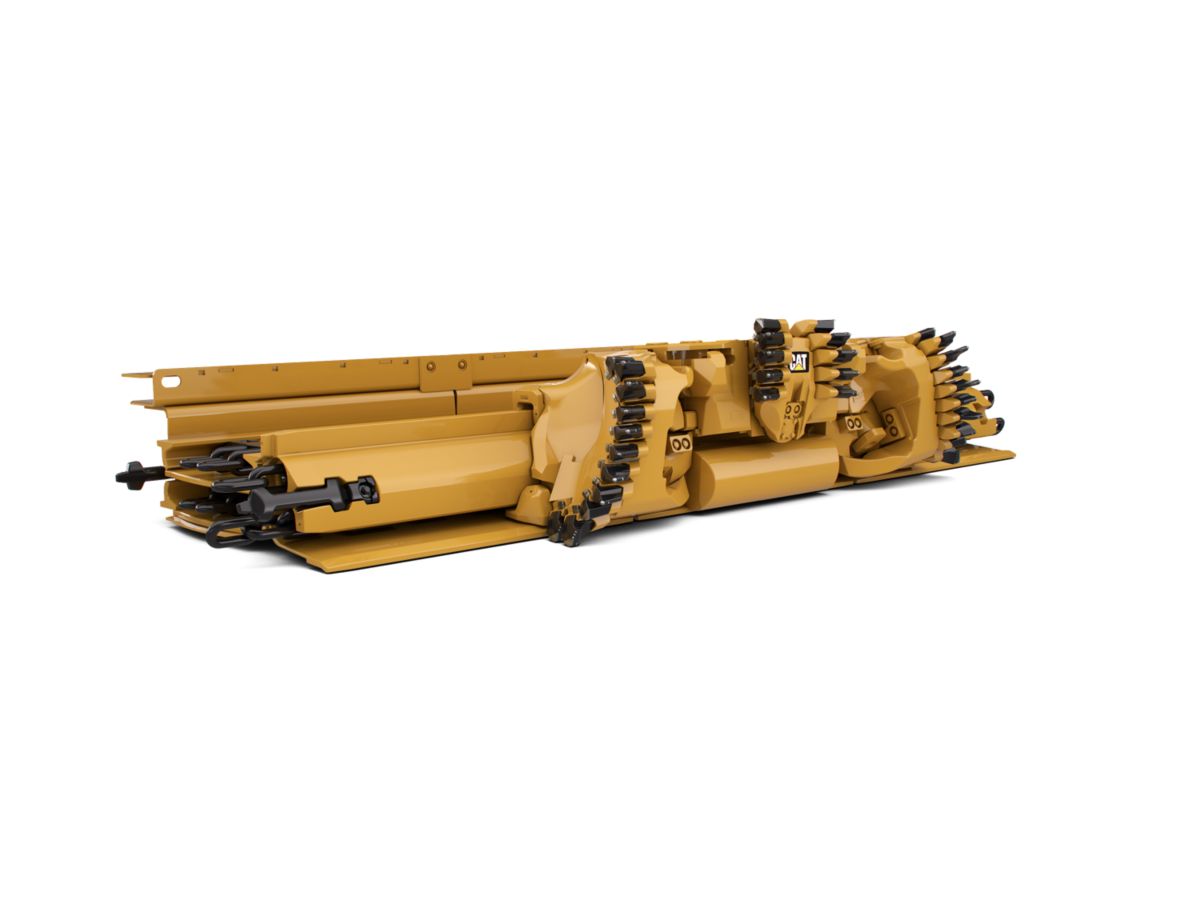

The Cat® GH800 Plow System, previously known as the GH 9-38 ve system, has been the standard plow of choice since the early 1990s and is used in seams from approximately 0.9 m (35 in) up to 2.0 m (79 in), regardless of the inclination of the seam or the hardness of the coal. Caterpillar modified this already-successful plow model to create the new technologically advanced GH800B plow, with improved design features enhancing productivity in minimum seam heights below 1.0 m (39 in). The plow body of this next-generation machine has an optimized design that allows it to load more coal onto the face conveyor and reduces the amount of cutting power wasted in the process. The GH800B plow system with 2 × 400 kW (2 × 536 hp) installed power now covers mining heights from 750 to 1550 mm (30 to 61 in).

Specifications

Coal Hardness
Soft-hard Coal
Maximum Installed Power
2 × 400 kW (2 × 536 hp)
Maximum Cutting Depth
0.67 ft
205.00 mm

Mining Height

Seam Range
0.8 m-2.0 m (31.5 in-79 in)

Coal Hardness

Type of Coal
Soft-hard Coal

Power

Maximum Installed Power
2 × 400 kW (2 × 536 hp)
Maximum Plow Speed
600.00 ft/min
3.00 m/s

Cutting

Maximum Cutting Depth
0.67 ft
205.00 mm

Technical Data

Plow Length
8.65 ft
2636.00 mm
Plow Heights - Height 1
750-1030 mm (2.64-3.38 ft)
Plow Heights - Height 2
1000-1285 mm (3.28-4.22 ft)
Plow Heights - Height 3
1270-1550 mm (4.17-5.09 ft)
Plow Heights - With Gobside Support - Height 1
1535-1700 mm (5.04-5.58 ft)
Plow Heights - With Gobside Support - Height 2
1685-1965 mm (5.53-6.45 ft)
Mechanical Height Adjustment
180-280 mm (0.59-0.92 ft)
Cutting Depth
0.67 ft
205.00 mm
Weight - Single Plow
4385-5625 kg (10,660-12,401 lb)
Bottom Bit Positions - Position 1
+19 mm (+0.06 ft)
Bottom Bit Positions - Position 2
–9 mm (–0.03 ft)
Bottom Bit Positions - Position 3
–22 mm (–0.07 ft)
Bottom Bit Positions - Position 4
–39 mm (–0.13 ft)
Maximum Drive Power
2 × 400 kW (2 × 536 hp)
Coal Hardness
Soft-hard coal
Maximum Seam Inclination
60°
Maximum Plow Speed
600.00 ft/min
3.00 m/s
Features

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

The Principle of Plowing

Plow Body

Plow Body

Plow Body

Plow Body

Plow Guide

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Line Pans

Plow Roof Supports

Drive System

Drive System

Drive System

Drive System

Control System

Control System

Control System

Horizon Control

Horizon Control

Incremental Plowing

Incremental Plowing

Safety

Serviceability

Sales Features

The Principle of Plowing

Maximizing performance in low coal

Plow Body

Loading more coal with a unique shape

Plow Guide

Simplifying maintenance and increasing durability

Plow Line Pans

Achieving longer service life through innovative design

Plow Roof Supports

Reducing size to increase efficiency

Drive System

Protecting your equipment with unique features

Control System

Increasing control for enhanced productivity and safety

Horizon Control

Increasing efficiency in geological faults

Incremental Plowing

Keeping the face line straight for constant production

Safety

Keeping people safe with innovative features

Serviceability

Increasing service life and uptime
