Overview

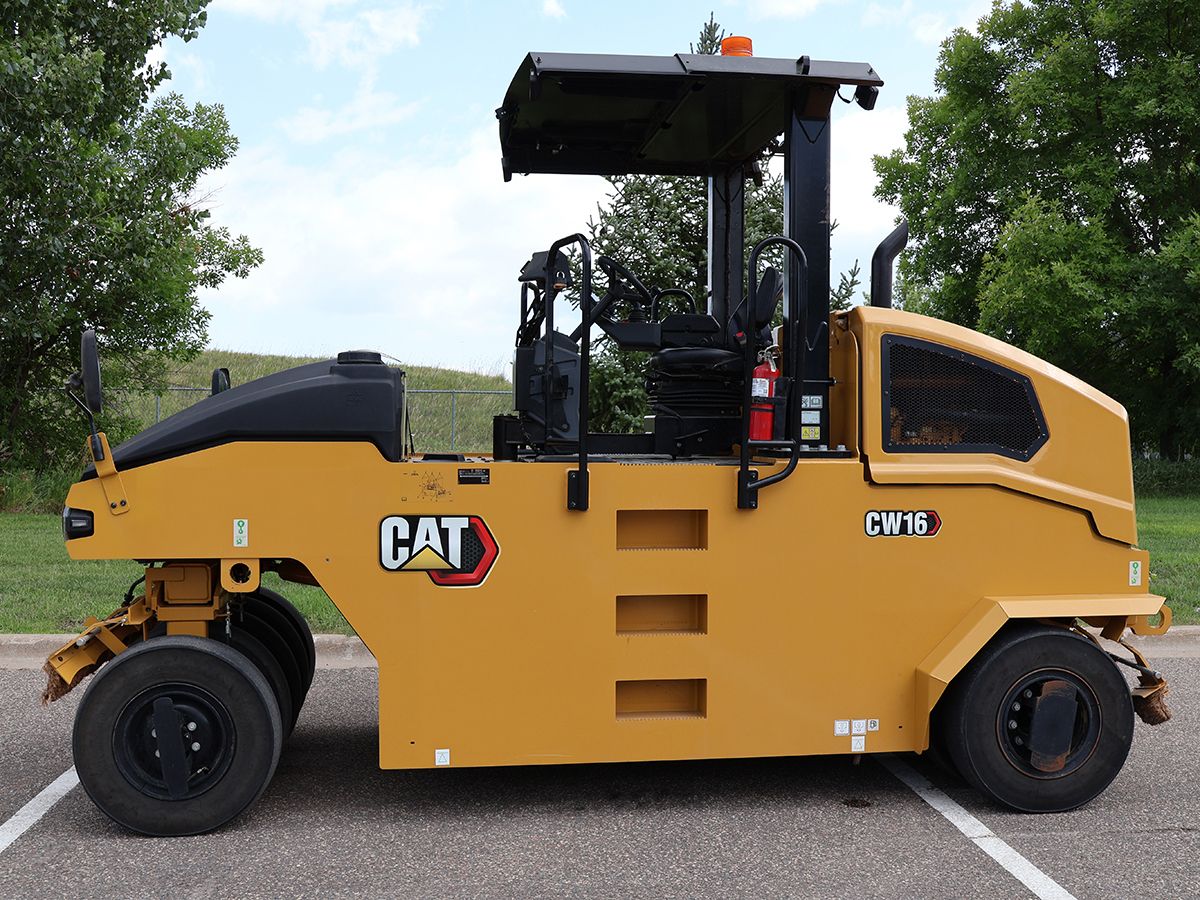

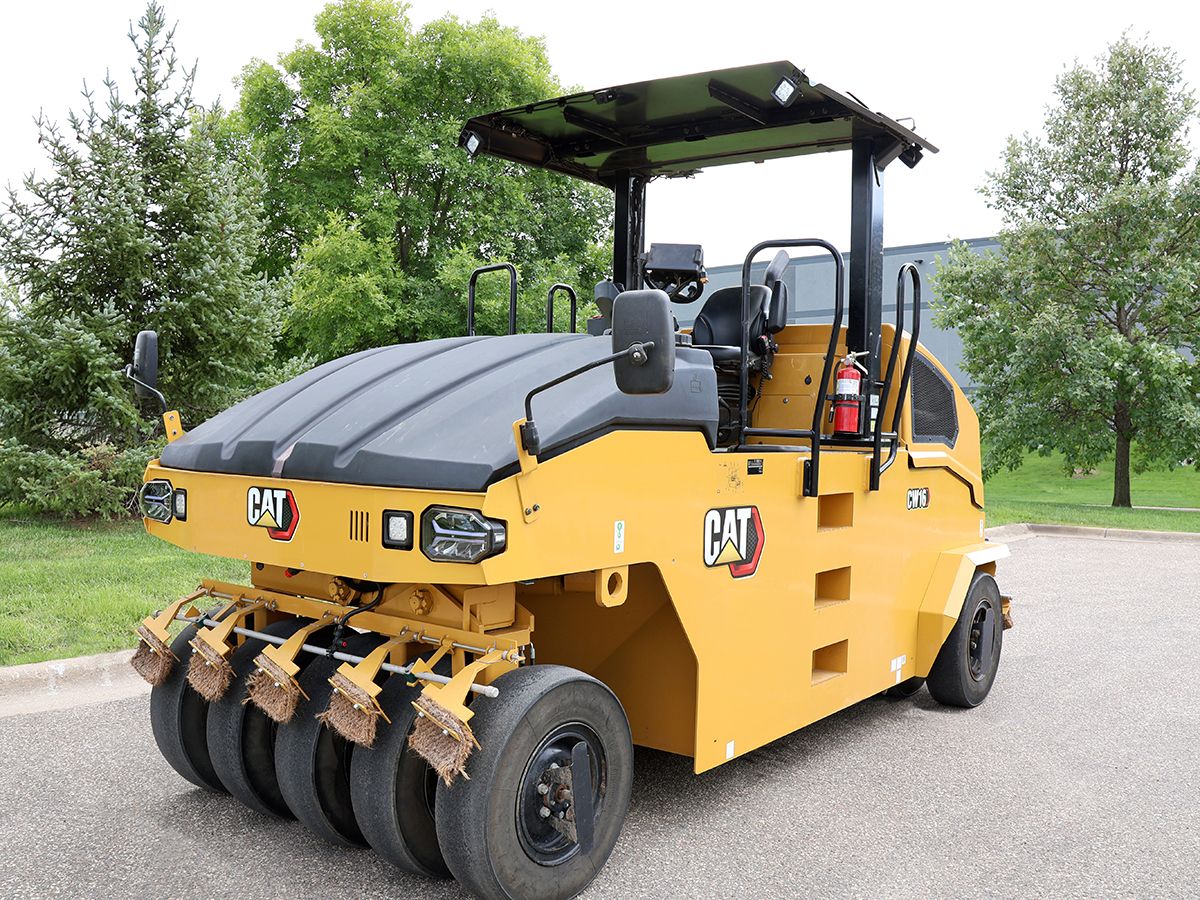

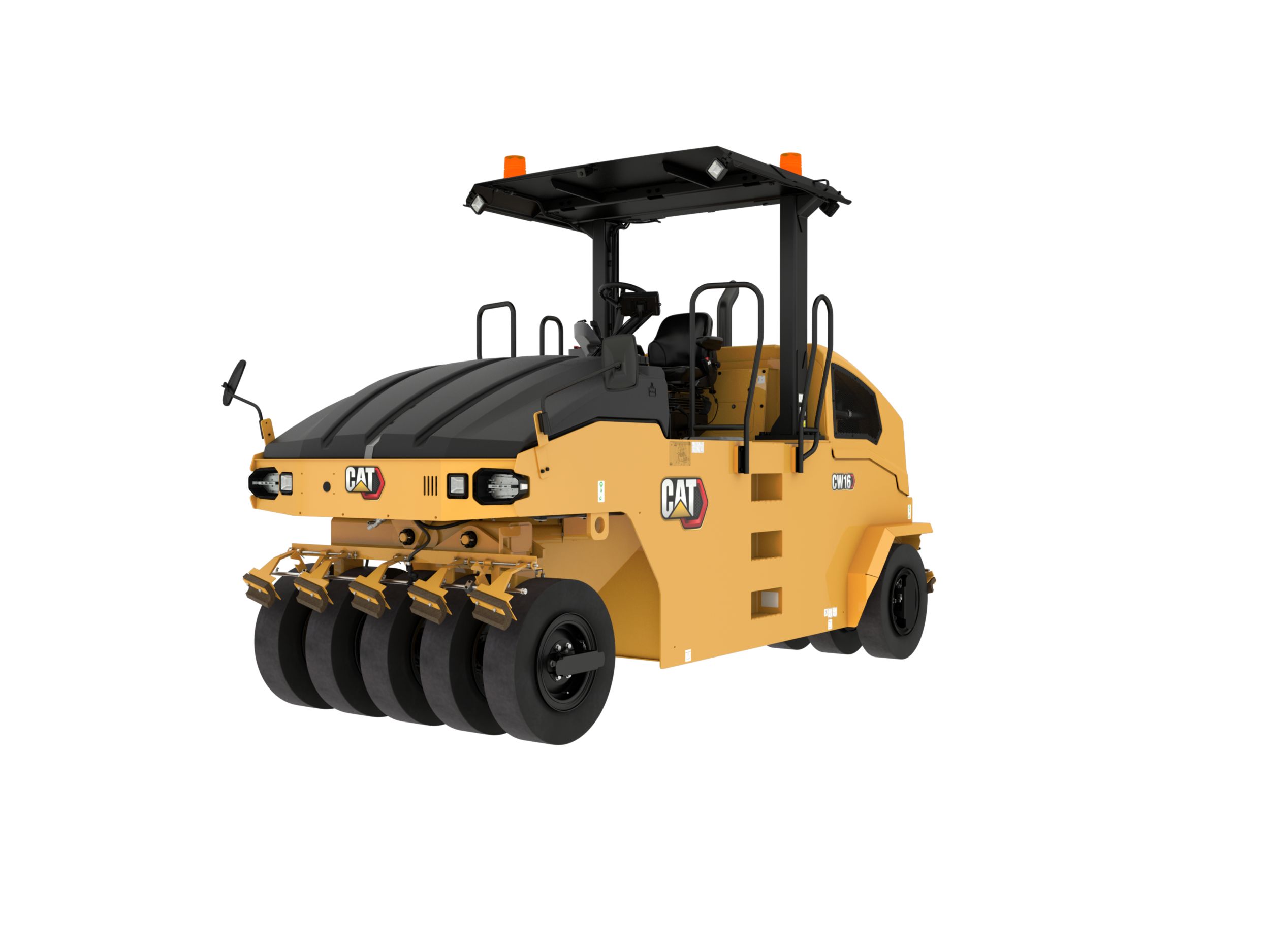

The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.

Weights

Operating Weight - 9 Wheel Base Machine
11466.00 lb
5200.00 kg
Operating Weight - Maximum Ballast
33069.00 lb
15000.00 kg

Operating Specifications

Compaction Width
69.00 in
1754.00 mm
9 Wheel Compaction Width - With Radial Tire
68.00 in
1728.00 mm

Dimensions

Overall Length
14.10 ft
4290.00 mm
Height - ROPS
9.80 ft
3000.00 mm
Height - Steering Wheel
91.00 in
2320.00 mm

Operating Specifications

Travel Speed - Maximum
12.00 mile/h
19.00 km/h
Ground Clearance
9.50 in
241.00 mm
Inside Turn Radius - 9 Wheel
148.00 in
3761.00 mm
Turning Radius - Outside
255.00 in
6455.00 mm

Engine

Engine Model
Cat C3.6
Gross Power
100.60 hp
75.00 kW

Service Refill Capacities

Fuel Tank Capacity
38.00 gal (US)
146.00 l
Water Spray Tank Capacity
92.00 gal (US)
348.00 l
Features

Compaction Performance


  • The standard nine-wheel CW16 delivers a compaction width of 1.75 m (69") and operating weight range of 5200 kg to 15 000 kg (11,464 lb to 33,000 lb).
  •
  • The 11-wheel option offers a 2.13 m (84") compaction width and weight range of 5300 kg to 15 000 kg (11,685 lb to 33,000 lbs).
  •
  • Ballast options include steel, sand, and/or water, making it easy to utilize available resources to adjust operating weights that match job site requirements.
  •
  • Oscillating front wheels help avoid bridging over uneven surfaces for optimal compaction results.
  •
  • The weight per wheel for the standard 9-wheel CW16 can be adjusted from 580 kg to 1670 kg (1,280 lbs to 3,680 lbs).
  •
  • The weight per wheel for the optional 11-wheel version can be adjusted from 480 kg to 1350 kg (1,060 lbs to 2,975 lbs).
  •
  • An easy access single point air-fill balances tire pressures to help meet quality targets and other job site requirements.

Pickup Prevention


  • The standard pressurized water spray system is equipped with triple filtration and adjustable, intermittent spray settings to help manage flow.
  •
  • Each wheel is equipped with a spray nozzle, adjustable high-strength scrapers, and water retention cocoa mats that help keep the wheels clean.
  •
  • Optional thermal aprons help trap heat to prevent asphalt and aggregates from adhering to the tires.

Comfort, Visibility, and Control


  • The touchscreen color display with easy-to-use navigational controls enables operators to customize screens to monitor current operating conditions including travel speed, fuel level, engine speed, and engine oil pressure.
  •
  • The pivoting operating station rotates 42° to the left and 35º to the right to provide visibility options when working near obstacles.
  •
  • Dual-side steps provide ingress and egress access.
  •
  • Touch-pad control provides easy activation of Eco-mode, propelspeed ranges, travel speed adjustment, and the tire spray system.
  •
  • ROPS are standard and can be equipped with an optional sun canopy.

Smooth Operating Powertrain


  • Engines are available to meet regional emission requirements
  •
  • Eco-mode operates at 1900 rpm to reduce fuel consumption and lower sound levels.
  •
  • Exclusive two-speed hydrostatic propel system provides speeds up to 19 km/hr (12 mph).
  •
  • The electronic propel system shifts smoothly between speed ranges while also providing the ability to coast for a fuel saving enhancement.
  •
  • The deceleration pedal enables the operator to gradually reduce speed when retracting the propel lever.

Safer Operation


  • The optional fore and aft camera system mounted on the front and rear of the ROPS provides outstanding visibility when approaching obstacles. The camera view is integrated into a dedicated operating display.
  •
  • Seat belt alert system utilizes a green beacon mounted on top of the ROPS to indicate when the seat belt is in use. In addition, an audible alarm and on-screen indicator help encourage safer operation.
  •
  • The standard 75 mm (3"), high-visibility seat belt allows for easier visual confirmation.
  •
  • Standard LED working lights located in the front and rear bumpers deliver fore and aft illumination.
  •
  • Optional auxiliary LED lighting mounted to the ROPS enhances overall job site illumination.

VisionLink™


  • VisionLink™ is a cloud based software application that provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer.
  •
  • The system provides maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and other machine data to your mobile device, desktop or through an API to other software applications.
Standard Equipment
  • Operating Environment
    • Platform ROPS/FOPS
    • Propel lever with 4-button control
    • Power steering
    • Rotating operating station
    • Seat belt, high visibility, 76 mm (3")
    • Suspension seat
    • Vandalism protection
    • Adjustable armrests
  • Powertrain
    • Cat C3.6, 4-cylinder
    • Variable-speed transmission
  • Electrical System
    • 120 amp alternator
    • 12-volt charging system
    • Automotive-type fuse system
    • Battery - maintenance-free
    • Cat Electronic Technician (Cat ET)
    • Remote start/charge receptacle
  • Wheels and Spray System
    • 9-wheel system
    • Front wheel oscillation
    • Pressurized spray system
  • Service and Maintenance
    • Grouped filters with ground level access
    • Remote access drains
    • Sampling ports for Scheduled Oil Sampling
    • Sight Gauges
  • Safety
    • Horn, warning (front & rear)
    • LED Working Lights
    • Steps, front drum fuel refill
    • Warning, LED safety beacons
Optional Equipment
  • Operating Environment
    • Mirrors
    • Sun canopy
    • Suspension seat - with heat
  • Technology
    • Infrared asphalt temperature sensors
    • GNSS Mapping - Temperature and Passcount
    • VisonLink™
  • Powertrain
    • Hitch - offset
  • Wheels and Spray System
    • 11-wheel system
    • Ballast_factory installed steel blocks
    • Edge management - cutoff, bevel
    • Rear fender_11 wheel
    • Spare tire
    • Thermal aprons
    • Tires_12-ply Radial
    • Tires_14-ply Bias
  • Service and Maintenance
    • Hydraulic oil_bio-degradeable
  • Safety
    • Cameras - front and rear
    • LED Working Lights with turn signals
    • LED Auxiliary Lighting 1000/2000 Lumin
    • Mirror package
    • Steps, rear drum water spray refill
