Overview

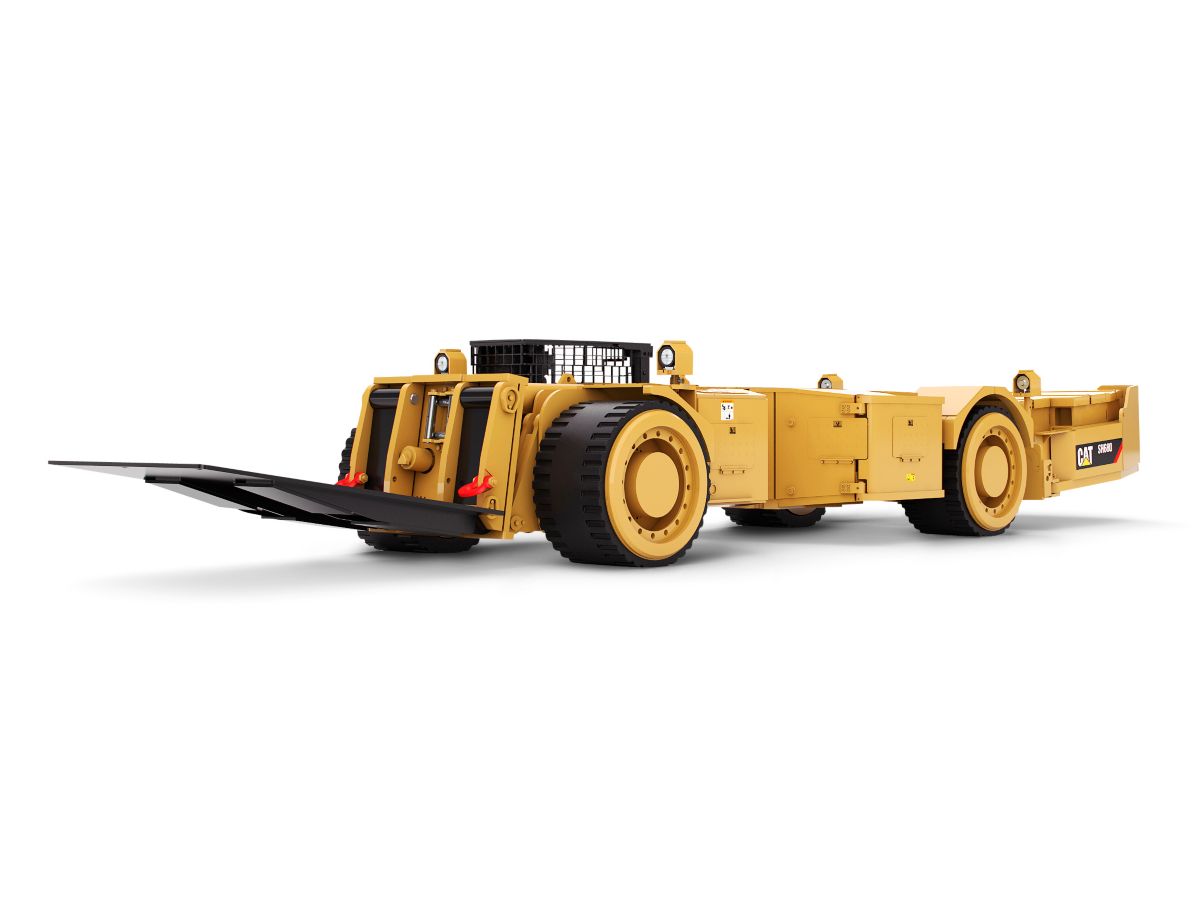

The SH680 is the latest addition to the Cat battery-powered family. With a payload of 88 tonnes (80 tons) it sets the bar in the market of battery-powered roof support carriers. Powered by 373 kW (500 hp) and variable-frequency drives, this is the largest battery-powered vehicle available for underground applications.

Specifications

Carry Capacity
88.00 tons
80.00 tonnes
Vehicle Length
45.28 ft
13.80 m
Vehicle Width
12.96 ft
3.95 m
Frame Oscillation
15.00 Degrees
15.00 Degrees
Gradients Possible (gradient data short-term only)
25°
Ground Clearance
14.00 in
356.00 mm
Maximum Speed
3.80 mph
6.12 km/h
Maximum Speed with Load
2.00 mph
3.22 km/h
Motor/Engine
5x 100 HP AC Motor
Power Rated at
500.00 hp
375.00 kW
Pull Winch Rated at
50.00 tons
45.00 tonnes
Steering
Control stick
Steering Articulation
50.00 Degrees
50.00 Degrees
Torque/Tractive Effort
215030.00 lb
97535.00 kg
Wheel Base
18.01 ft
5.49 m

Speed

Tram Speed (calculated based on 4% rolling resistance) - Level and Empty on 0% Grade
3.60 mph
5.80 km/h
Tram Speed (calculated based on 4% rolling resistance) - Level and Loaded on 0% Grade
3.60 mph
5.80 km/h

Dimensions (Approximate)

Cab Height - Standard Cabs (508 mm [20 in] Cab) - with 1397 mm (55 in) Tires
Adjust from 1778 mm-2032 mm (Adjust from 70 in-80 in)
Chassis Height (Nominal) - with 1397 mm (55 in) Tires
62.48 in
1587.00 mm
Frame Oscillation
20 Degrees Total
Ground Clearance (Nominal) - with 1397 mm (55 in) Tires
14.00 in
355.60 mm
Inside Turn Radius
13.58 ft
4140.00 mm
Length Less Load Lifting and Battery Lift Forks
26.33 ft
8026.00 mm
Length with 2134 mm (84 in) Lifting Fork
42.00 ft
12801.00 mm
Length with Lift Plate Attachment
45.33 ft
13818.00 mm
Outside Turn Radius
23.67 ft
7214.00 mm
Overall Width with Attachments and 1397 mm (55 in) Tires
11.33 ft
3454.00 mm
Steering Articulation
100 Degrees Total
Wheelbase
18.00 ft
5486.00 mm

Weights

Empty Weights - 340 kW Hour Battery Pack
197500.00 lb
89585.00 kg
Empty Weights - Less Battery
122500.00 lb
55565.00 kg
Sales Features

The Clean Air Act

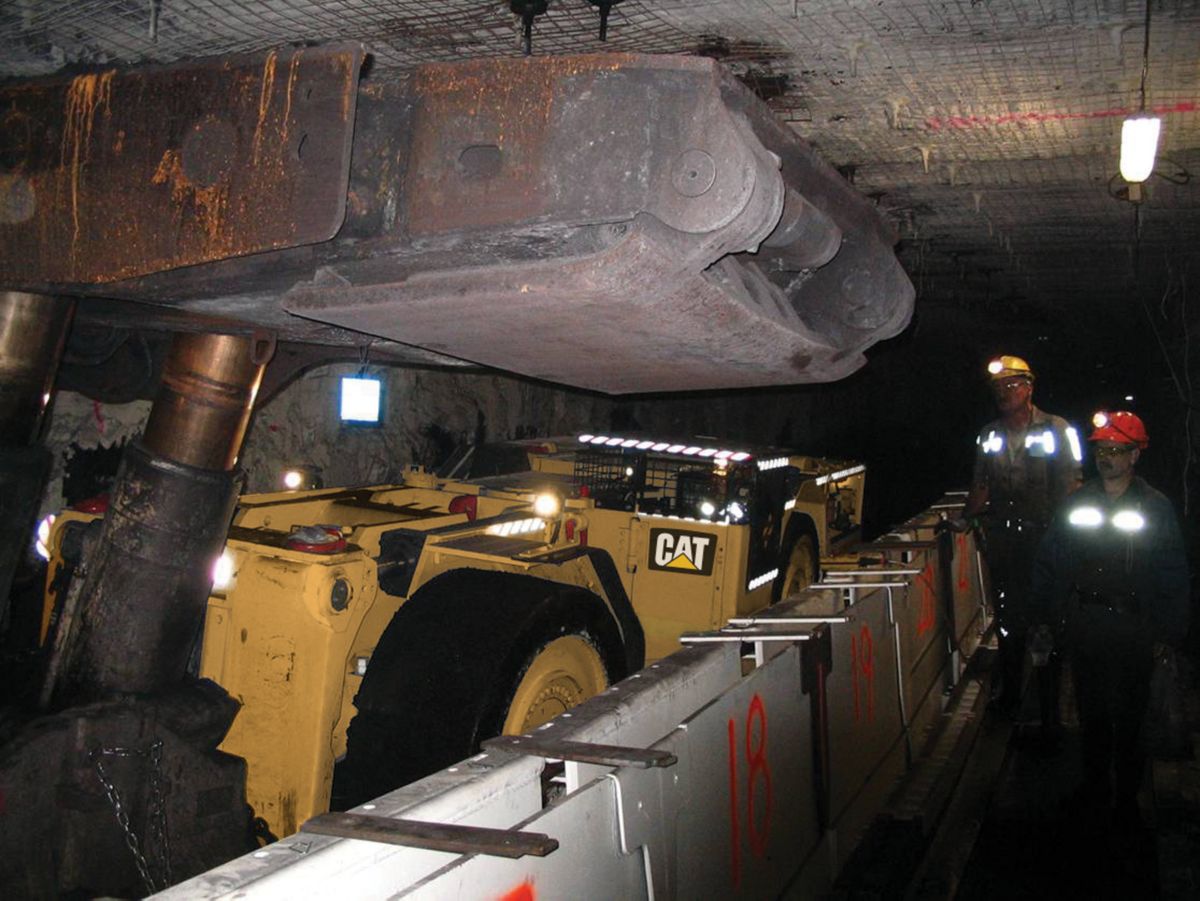

Cat battery-powered roof support carriers do not burden your mine’s ventilation with emissions or heat. Due to infinitely variable power control, they are the ideal vehicle for the installation or removal of longwall roof supports where heat, emissions and noise would impact work and where a flexible vehicle is needed.

The Power You Need

A combination of Cat battery- and diesel-powered vehicles can offer the ideal solution for longwall installations and moves. Battery-powered roof support carriers can position or remove roof supports from old and new faces.

Battery Power for Versatility

Cat battery-powered roof support carriers make longwall face moves simpler and less costly. The specially engineered ultra-heavy-duty vehicle range builds on the knowledge of many years of operational experience.

Stability and Traction

Cat roof support carriers have a tri-sectional chassis with dual motors located near the axles. The rear drive axle and the battery lift are incorporated into a single oscillating entity at the rear.

Battery Competence

Caterpillar has developed unparalleled experience and expertise in the design of batteries and battery changing systems. Current 2000 Ah batteries enable maximum performance at peak loads as well as lasting performance throughout the shift.

Maximum Battery Efficiency

The Cat IGBT control makes the most of battery power.

Optional VFD

The latest Caterpillar innovation is the HiPAC 10 VFD control system, which drives the motive traction and hydraulic systems and provides the operator with machine management information. The HiPAC 10 is a DC-to-AC variable frequency inverter control that drives high-performance AC electric motors, which have superior speed-torque characteristics.

RAS - Rapid Attachment System

The Rapid Attachment System available for the CL10 and CL15 makes an accessory change a one-man operation, allowing a broad range of accessories to be fitted in moments without removing the backing plate. Utilizing the LHD with RAS attachments during longwall relocations can greatly reduce lost production time.

Features

Optional Equipment
  • UVR trip circuit breaker
  • Hydraulically adjustable cab assembly
  • Motor RPM monitoring
  • Quick-attach 5 m3/175 ft3 utility bucket
  • Quick-attach lift plate
  • 1830 mm (72 in) or 2130 mm (84 in) forged fork assembly
  • 20 400 kg (45,000 lb), hydraulic, variable-speed winch
  • Cat control stick
