MD6250 Rotary Blasthole Drill Specifications

Request A Quote MD6250 Attachments New and Used Inventory

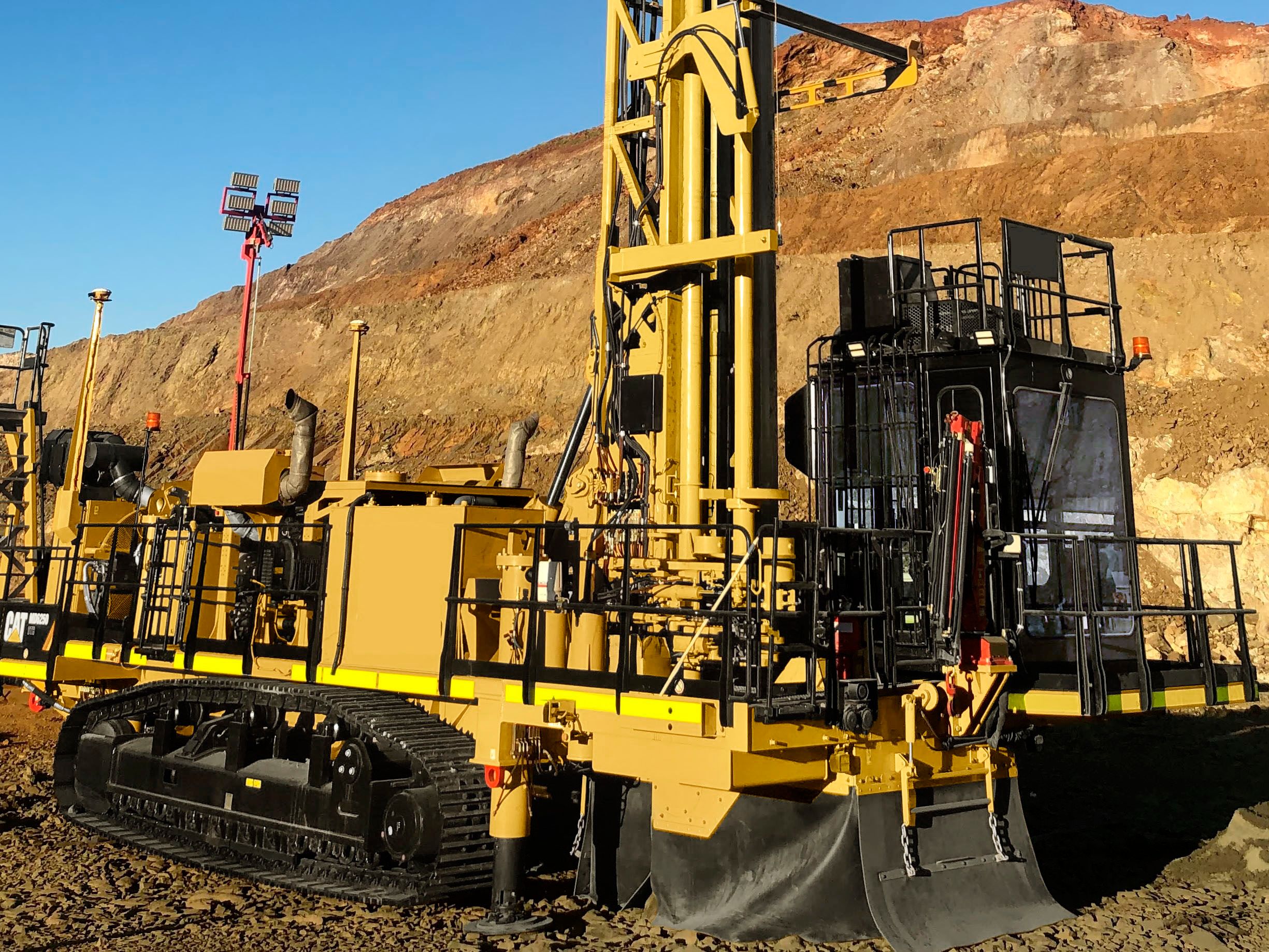

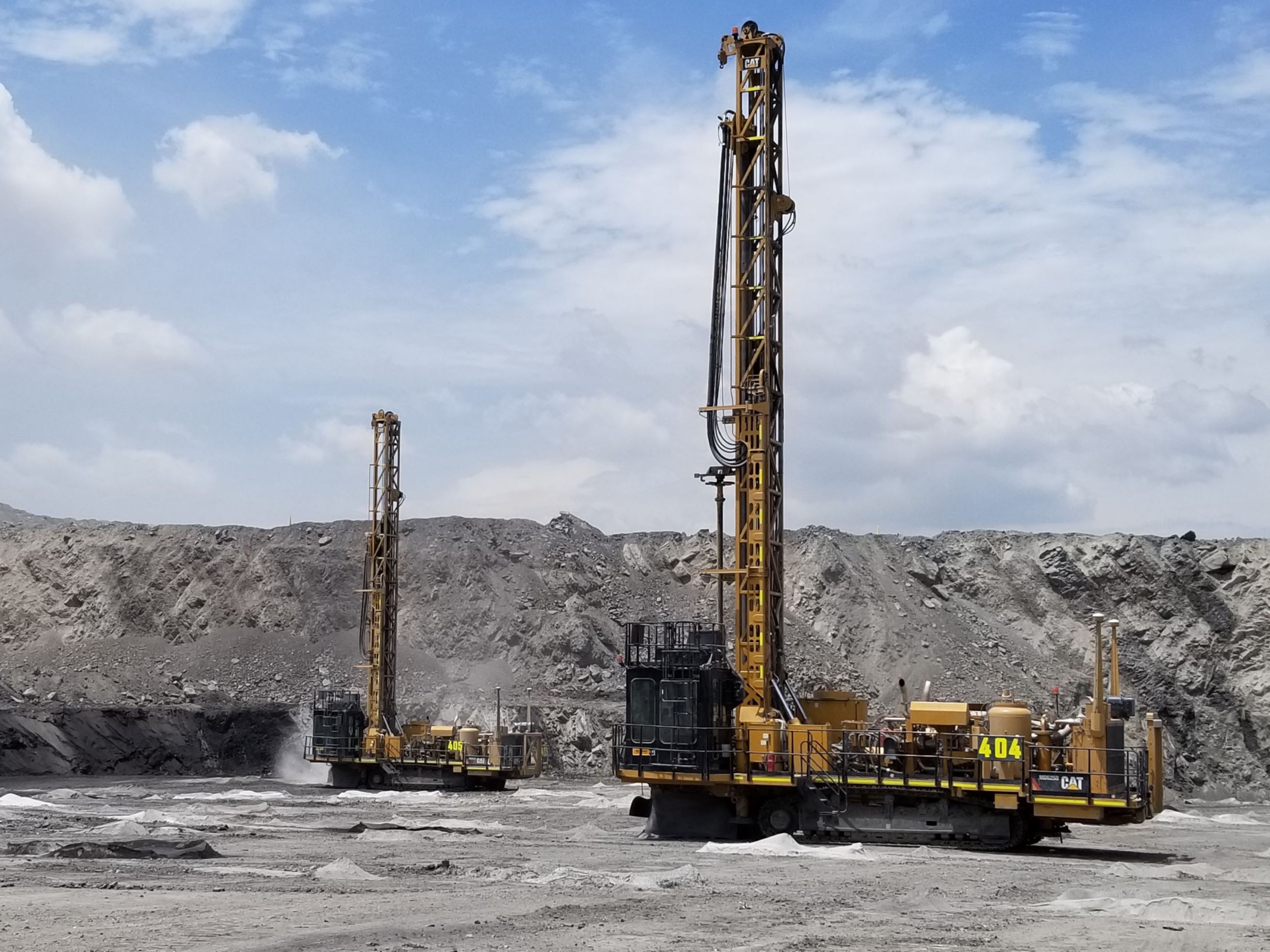

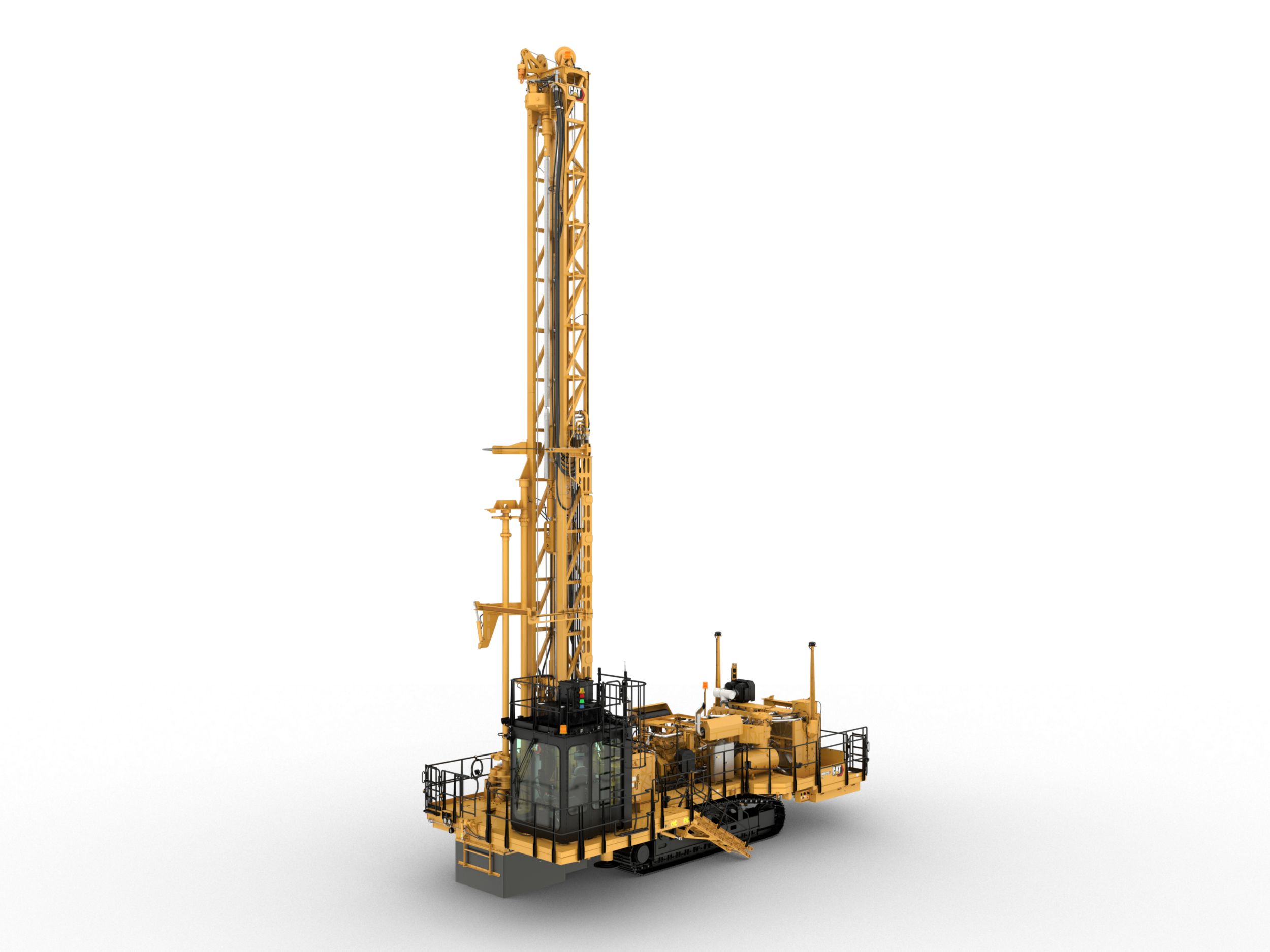

MD6250 Rotary Blasthole Drill
US
Metric

Overview

Specifications

Bit Load
Up to 32 655 kg (Up to 71,993 lb)
Hole Diameter
165-250 mm (6.5-9.875 in)
Engine
Cat® C27

Drill Deck Misc.

Components
Toolbox
Components
Hydraulic viewing hatch on drill deck with spotlight
Components
Drill pipe thread greaser with remote fill tank or disposable grease bucket
Components
Deck mounted jib crane with 750 kg (1,653 lb)

Basic Specs

11.2 m (36.7 ft) mast: Hole diameter range
Up to 152-250 mm (Up to 6-9.8 in)
11.2 m (36.7 ft) mast: Hole depth range – Single pass depth
36.70 ft
11.20 m
11.2 m (36.7 ft) mast: Hole depth range – Multi-pass depth
Down to 53.6 m (Down to 176.7 ft)
11.2 m (36.7 ft) mast: Pull-down capacity
Up to 20 411 kg (Up to 45,000 lb)
11.2 m (36.7 ft) mast: Hoist capacity
Up to 20 411 kg (Up to 45,000 lb)
11.2 m (36.7 ft) mast: Hoist speed
2.67 ft/sec
0.81 m/sec
11.2 m (36.7 ft) mast: Bit load (single pass)
Up to 22 321 kg (Up to 49,210 lb)
13.6 m (44.6 ft mast): Hole diameter range
Up to 152-250 mm (Up to 6-9.8 in)
13.6 m (44.6 ft mast): Hole depth range – Single pass depth
44.60 ft
13.60 m
13.6 m (44.6 ft mast): Hole depth range – Multi-pass depth
Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft mast): Pull-down capacity
Up to 29 483 kg (Up to 65,000 lb)

Cooling

Components (1)
Coolers with easy cleaning access
Components (2)
Separate engine cooling module
Components (3)
All cooler core sections are replaceable

Hydraulics

Components (1)
Two (2) primary pumps – 145 cc (piston, with proportional electronic controls)
Components (2)
One (1) auxiliary circuit pump – 110 cc (piston, load sensing)
Components (3)
Two (2) fan pumps – 74 cc (piston, with proportional electronic controls)

Weights

Working weight range
56 468 kg to 64 154 kg (124,490 lb to 141,436 lb)

Basic Specs

13.6 m (44.6 ft) Mast - Hoist Capacity
Up to 22 113 kg (Up to 48,750 lb)
13.6 m (44.6 ft) Mast - Hoist Speed
2.16 ft/s
0.66 m/s
13.6 m (44.6 ft) Mast - Bit Load - Single Pass
Up to 32 655 kg (Up to 71,993 lb)
U.S. EPA Tier 2 Equivalent - Engine
C27 ACERT @ 1,800 rpm
U.S. EPA Tier 2 Equivalent - Emissions
U.S. EPA Tier 2 equivalent
U.S. EPA Tier 2 Equivalent - Rated Horsepower
875.00 mm H2O
652.00 kg/mm
U.S. EPA Tier 2 Equivalent - Elevation Capability
15000.00 ft
4750.00 m
U.S. EPA Tier 4 Final - Engine
C27 ACERT @ 1,800 rpm
U.S. EPA Tier 4 Final - Emissions
U.S. EPA Tier 4 Final
U.S. EPA Tier 4 Final - Rated Horse Power
879.00 mm H2O
655.00 kg/mm
U.S. EPA Tier 4 Final - Elevation Capability
12000.00 ft
3658.00 m
Compressor - Rotary Drilling
56.6 m3/min (2,000 ft3/min) @ 8.6 bar (125 psi)
Compressor - DTH Drilling (1)
38.2 m3/min (1,350 ft3/min) @ 34.4 bar (500 psi)
Compressor - DTH Drilling (2)
42.2 m3/min (1,500 ft3/min) @ 24.1 bar (350 psi)

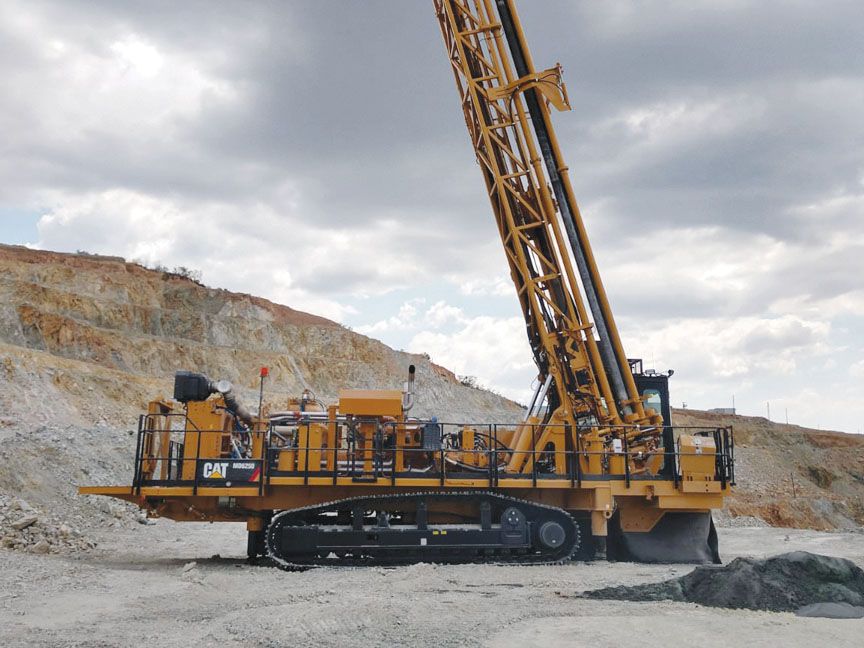

Angle Drilling Available
30° (in 5° increments)

Engine Choices

U.S. EPA Tier 2 Equivalent - Engine
C27 ACERT @ 1,800 rpm
U.S. EPA Tier 2 Equivalent - Emissions
U.S. EPA Tier 2 equivalent
U.S. EPA Tier 2 Equivalent - Rated Horsepower
875.00 mm H2O
652.00 kg/mm
U.S. EPA Tier 4 Final - Engine
C27 ACERT @ 1,800 rpm
U.S. EPA Tier 4 Final - Emissions
U.S. EPA Tier 4 Final
U.S. EPA Tier 4 Final - Rated Horse Power
879.00 mm H2O
655.00 kg/mm
Components (1)
Dual starter motors
Features
Scheduled Oil Sampling (S·O·SSM) ports
Components (2)
Ether starting aid (ether bottle supplied locally)
Components (3)
Ether starting aid

Compressor Choices

DTH Drilling
Includes tool lubrication system and hammer storage
DTH Drilling - 1350 cfm/500 psi
38.2 m3/min (1,350 ft3/min) @ 34.4 bar (500 psi) includes 113 L (30 gal) tool oiler
DTH Drilling - 1500 cfm/350 psi
42.2 m3/min (1,500 ft3/min) @ 24.1 bar (350 psi) includes 113 L (30 gal) tool oiler
Rotary Drilling
Optional tool lubrication system
Rotary Drilling - 2000 cfm/125 psi
56.6 m3/min (2,000 ft3/min) @ 8.6 bar (125 psi)
Note
With the compressors variable volume control, the operator can limit air output and engine speed both resulting in reduced fuel consumption. All of these compressors contain this feature.

Receiver Tank Choices

Choice (1)
Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE
Choice (2)
High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE

Cooling

Features
Functional in ambient temperature of 52° C (125° F)
Components (4)
Automatic variable speed fan control

Regulatory Compliance

Features
CE compliant
Features
EAEU certifiable
Features
CSA certified
Features
Tier 2 and Tier 4 Final configurations
Features
MDG15 and MDG41 aligned

Climate Choices

Climate Level 1 Standard Fluids and Lubricants (1)
Rated down to –1° C (30° F)
Climate Level 1 Standard Fluids and Lubricants (2)
Withstands high heat to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants
Rated down to –18° C (–0.4° F)
Climate Level 4 Arctic Fluids and Lubricants (1)
Rated down to –40° C (–40° F)
Climate Level 4 Arctic Fluids and Lubricants (2)
Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays
Climate Level 4 Arctic Fluids and Lubricants (3)
Full Arctic lubricant package to include engine and hydraulic oil
Climate Level 4 Arctic Fluids and Lubricants (4)
Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank
Climate Level 4 Arctic Fluids and Lubricants (5)
Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271

Frame and Work Deck

Features (1)
Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life
Components (1)
Stationary drill deck; for vertical and angle drilling
Components (2)
Four leveling jacks provide leveling on a 7° bench (any orientation)
Features (2)
Primary fuel tank capacity 1416 L (374 gal)
Features (3)
Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages)
Features (4)
Three (3) egress points on deck areas in addition to main access
Features (5)
Three (3) egress points on deck areas in addition to main access
Components (3)
Heavy duty tow hooks (front end)
Components (4)
Four (4) lift lugs, for use with cables or chains
Components (5)
Fixed access stairs to the cab area
Features (6)
Fire suppression ready (includes platform on non-drill end to mount bottles, and frame around power train to mount nozzles)
Components (6)
Sturdy guardrails with toe guards, self-closing gates
Components (7)
Pipe guide roller assembly mounted on drill deck for loading drill pipe

Frame Access Choices

Choice (1)
Access ladder to the cab area with spring loaded self-closing gate
Choice (2)
Cascading, hydraulic stairs with walkway around the cab to the deck. Includes tram interlock for when the ladder is down.

Undercarriage

Model
Cat® 336E EL Excavator type
Ground clearance
24.00 in
618.00 mm
Carrier Rollers
Three (3)
Track chain guards and guides
Level two
Drawbar Pull
93745.00 lbf
417000.00 N
Travel Speed Display
1.50 mile/h
2.45 km/h
Triple Grousers (1)
600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure
Triple Grousers (2)
750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure

Hydraulics

Components (4)
Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement)
Components (5)
Scheduled Oil Sampling (S·O·S) ports

Mast and Pipe Carousel Features

Features (1)
Pipe carousel, standard:
– 11.2 m (36.7 ft) Mast: Accepts quantity of four (4) 10.6 m (35 ft) pipes
– 13.6 m (44.6 ft) Mast: Accepts quantity of four (4) 6.09 m (20 ft) pipes
Features (2)
Pipe carousel, dual purpose:
– 11.2 m (36.7 ft) Mast: Accepts quantity of two (2) 10.6 m (35 ft) pipes and quantity of two (2) 7.6 m (25 ft) starter pipes (starter pipes are already included with tool group order)
– 13.6 m (44.6 ft) Mast: Accepts qu
Features (3)
Vertical or angle drilling 0-30°; in 5° increments
Features (4)
Hydraulically actuated, self-indexing pipe carousel accepts various pipe diameters
Features (5)
All mast configurations are designed for changing bit above deck
Features (6)
Single cylinder pulldown/hoist system
Features (7)
Auto tensioning of pull down and hoist cables
Features (8)
Deck wrench fits flats of corresponding drill pipe diameters and DTH hammer
Features (9)
Feed system accommodates multiple pipe diameters
Features (10)
Base plate bushing diameters accommodate bits 152-216 mm (6.0-8.5 in)
Features (11)
Hydraulic break out wrenches (HOBO) available with adjustable grip ranges
Features (12)
Configured with roller deck bushing
Features (13)
Pipe positioner with pipe diameter specific inserts
Features (14)
Overhead winch with remote; variable speed drive with ≥ 1818 kg (4,000 lb) rating, length to reach 6 m (20 ft) past drill deck (option)
Features (15)
Tool oiler, 113 L (30 gal) oil injection system

Mast Packages - Standard or Premium Choices

11.2 m (36.7 ft) Mast - Single Pass Depth
36.70 ft
11.20 m
11.2 m (36.7 ft) Mast - Multi Pass Depth
Down to 53.6 m (Down to 176.7 ft)
11.2 m (36.7 ft) Mast - Pulldown - Rated Single Cylinder Pulldown/Hoist System
Up to 20 411 kg (Up to 45,000 lb)
11.2 m (36.7 ft) Mast - Hoist
Up to 20 411 kg (Up to 45,000 lb)
13.6 m (44.6 ft) Mast - Single Pass Depth
44.60 ft
13.60 m
13.6 m (44.6 ft) Mast - Multi Pass Depth
Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft) Mast - Pulldown
Up to 29 483 kg (Up to 65,000 lb)
13.6 m (44.6 ft) Mast - Hoist
Up to 22 113 kg (Up to 48,750 lb)
Angle Drilling
Available with any mast

Drill Pipe - Mast Size Dependent

Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): Rotary/DTH
5.00 in
127.00 mm
Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): Rotary (1)
6.00 in
152.00 mm
Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): Rotary (2)
7.00 in
178.00 mm
Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): Rotary (3)
7.63 in
193.00 mm
Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): DTH (1)
5.50 in
139.00 mm
Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of four (4): DTH (2)
6.50 in
165.00 mm
Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): Rotary/DTH
5.00 in
127.00 mm
Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): Rotary (1)
6.00 in
152.00 mm
Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): Rotary (2)
7.00 in
178.00 mm
Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): Rotary (3)
7.63 in
193.00 mm

Tool Package Rotary

Components (1)
One-piece roller deck bushing
Components (2)
Pipe positioner rollers
Components (3)
Deck wrench
Components (4)
Top sub
Components (5)
Bit sub
Components (6)
Pipe wiper seal

Tool Package DTH

Components (1)
Two-piece roller deck bushing
Components (2)
Pipe positioner rollers
Components (3)
Deck wrench
Components (4)
Shock sub
Components (5)
Top Sub

Overhead Winch System with Remote - Option

Capacity Rating
4000.00 lb
1818.00 null
Cable Diameter
0.50 in
13.00 mm
Reach - Past the Drill Deck
20.00 ft
6.10 m

Rotary Head Top Drive System

Torque - Single Motor
8629.00 lb/ft
11700.00 N·m
Rotation Speed
0-160 rpm

Operator Environment

Cab Design
– Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station
– Cab rubber shock-mounts
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing-out doors and Cat keyed locks
– Literature holder
– Removable floor mat
Cab Packages

– Standard configuration includes a fabric seat, removable floor mat, single pane window glass, and wiper for the driller window
– Premium configuration includes a leather seat with heat and ventilation, dual pane window glass, a second removable g
Seating
– Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in)
Windows
– Large windows front, rear and right cab side; full length drill window with guard
– Windshield wipers with a common washer tank
Lighting
– LED interior lights and map light at operators seat, backlit joysticks and keypads
– Flood lights for the drill perimeter
– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways
– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon
HVAC
– Floor heating vent
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck
– Defogging HVAC vents on main window
Cameras

– Two (2) CC cameras (front and left side) providing 360° vision coverage from operators seat
– Camera on the mast to view pipe carousel/top drive operation
Components
Two swing out doors and Cat keyed locks
Components
Literature holder
Seating:
– Seat cover in fabric, or a leather option with heat and cooling
– Seat swivels, locks and has two point/76 mm (3 in) seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in)
– Fold away trainer’s seat with seat belt (option)
Windows:
– Large windows front, rear and right cab side; full length drill window with guard (option), single or double pane glass
– Window shade (option)
– Windshield wipers with a common washer tank
– Manometer Pressure Gauge (option)
Lighting:
– LED interior lights and map light at operators seat, backlit joysticks and keypads
– Flood lights for the drill perimeter
– Spot lights for power group area; drill deck; mast carousel; access ladder and walkways
– Standard lighting is 1,300 lumens flood light on perimeter, area spot lights have 1,950 lumens
– Premium lighting is 4,200 lumens per flood light on perimeter
– Mast clearance lights, cab mounted strobe, front mounted tram beacon
HVAC:
– HVAC floor vent in the foot rest area
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck, 500 service interval
– Defogging HVAC vents on main window
Cameras:
– Two (2) CC cameras (front and left side) providing 360° vision coverage from operators seat
– Camera on the mast to view pipe carousel/top drive operation

Operating System Controls - Standard

Components (1)
All electric controls for drilling, tramming, leveling plus auxiliary functions
Components (2)
Electronic compressor control
Components (3)
Rotary torque control
Components (4)
Virtual rotary head travel stops and interlocks
Components (5)
Pipe positioner engaged/disengaged indicator
Components (6)
Drill depth meter
Components (7)
Drill performance and drill health display system
Components (8)
Data logging of machine health with warnings and fault code records with export capability
Components (9)
Delayed engine shut down
Components (10)
Rotary head rpm gauge (digital display in screen)
Components (11)
Filter indicators for hydraulic, fuel, compressor and engine
Components (12)
Jack pressure sensors in display
Components (13)
Dust suppression control
Components (14)
Mast lock indicator
Components (15)
ECM proportional fan speed control system
Components (16)
Tram interlock, machine stability limits
Components (17)
Tram interlock, pipe in hole
Components (18)
Tram interlock, mast up and locked or down and parked
Components (19)
Tram interlock, jack retracted
Components (20)
Tram interlock, winch parked
Components (21)
Cab environment controls (AC, filter, heat, fan speeds)

Premium Controls

Components (1)
Package 1 Controls, Drills Assist
Components (2)
Auto level

Automation and Technology

Type (1)
Cat Terrain ready
Components (1)
Drill depth indicator
Components (2)
Product Link™ Elite (hardware from factory, subscription package via dealer)

Dust Control Choices

Water Injection - Tank Mounted Below Front Deck
336.00 gal (US)
1271.00 l
Choices (1)
Water injection – tank mounted below front deck 1271 L (336 gal)
– Water flow meter, volume control, tank fill level indicator
Choices (2)
Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection
– Self-cleaning filters, dust chute with ejector
Water Injection plus Dust Collector (1)
127 m3/min (4,500 ft3/min) dust collector; includes standard water injection
Water Injection plus Dust Collector (2)
Dust collector box with ground level access
Water Injection plus Dust Collector (3)
Self-cleaning filters, dust chute clean-out door
High Volume Water Injection - Maximum - Tanks Total Capacity
736.00 gal (US)
2786.00 l
Tank Below Deck - Capacity - Isolated for Extreme Cold Weather
400.00 gal (US)
1514.00 l
Tank Above Deck - Capacity
336.00 gal (US)
1271.00 l
Choices (3)
High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)
– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
– Tank above deck capacity 1514 L (400 gal)
Choices (4)
Static dust curtains, four sided/boxed enclosed
Choices (5)
Water pump interlock
Choices (6)
Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dust collector)

Safety and Security

Feature (1)
Approach angle of 15 degrees facilitates loading and unloading on a lowboy
Components (1)
Alloy drill deck covers, for servicing when mast is horizontal
Components (2)
Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck
Components (3)
Over forty (40) conditional safety interlocks
Components (4)
Hinged window guard over the full length of the front drill window
Components (5)
Three (3) egress points on deck areas in addition to main access
Components (6)
Self-closing gates secure egress ladder locations
Components (7)
Electric horn activated by push button in the cab
Components (8)
Automatic tram alarm, audible
Components (9)
Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals
Components (10)
Compressor air hoses with safety retention cables
Components (11)
Slip resistant surfaces
Components (12)
Tow hooks on non-drill-end

Service Packages

Package (1)
Fast fill for fuel and water, automated lubrication system
Package (2)
Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option)
Package (3)
Premium – Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blowdown hose

Dimensions (Approximate) - 11.2 m (36.7 ft) Mast

Width - Front
18.45 ft
5.62 m
Width - Rear
15.81 ft
4.82 m
Height - Mast Up
56.30 ft
17.15 m
Body Length
38.41 ft
11.71 m
Length - Mast Down
58.30 ft
17.78 m

Dimensions (Approximate) - 13.6 m (44.6 ft) Mast

Width - Front
18.45 ft
5.62 m
Width - Rear
15.81 ft
4.82 m
Height - Mast Up
61.13 ft
19.55 m
Body Length
38.41 ft
11.71 m
Length - Mast Down
66.17 ft
20.18 m

Premium Controls

Components (3)
Auto mast
Components (4)
Auto drill single pass

Safety and Security

Feature (2)
Fire suppression ready

Compressor Choices

Choice
Compressor control box enclosure with purged air lines

Mast and Pipe Carousel Features

Features (16)
Variable hydraulic break out wrench grip range choices are 114 mm to 152 mm (4.5 in to 6.0 in) or 152 mm to 216 mm (6.0 in to 8.5 in)
Features (17)
Camera on mast is closed circuit and used to view the pipe carousel/top drive operation
Features (18)
Pipe positioner for angle drilling, multi-pass pipe handling
Features (19)
Rotation gear box with single motor, up to 160 rpm, up to 11 600 N∙m (8,555 lbf-ft) torque
Features (20)
Manual pipe catcher – One (1) wire rope hydraulically actuated pipe catcher, pipe positioner, manual bit basket or
Features (21)
Hydraulic – One (1) hydraulic pipe catcher, hydraulically actuated pipe positioner, hydraulic bit basket

Mast Accessories

Accessory (1)
11.2 m (36.7 ft) or 13.6 m (44.6 ft) Manual pipe catcher – One (1) wire rope hydraulically actuated pipe catcher, pipe positioner, manual bit basket
Accessory (2)
11.2 m (36.7 ft) Mast Hydraulic – One (1) hydraulic pipe catcher, hydraulically actuated pipe positioner, hydraulic bit basket
Accessory (3)
13.6 m (44.6 ft) Mast Hydraulic – One (1) hydraulic pipe catcher, plus one (1) wire rope, hydraulically actuated pipe positioner, hydraulic bit basket

Drill Pipe - Mast Size Dependent

Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): DTH (1)
5.50 in
139.00 mm
Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast - Accepts quantity of four (4): DTH (2)
6.50 in
165.00 mm

Overhead Winch System with Remote - Option

Components
Variable speed drive

Rotary Head Top Drive System

Components (1)
Spindle – 140 mm (5.5 in) API regular thread with splined collar
Components (2)
Rotary torque control
Components (3)
Virtual rotary head travel interlocks

Premium Controls

Components (5)
Auto retract

Automation and Technology

Type (2)
Autonomy ready
Components (3)
Product Link Elite – Satellite, Cellular, Dual (options)
Components (4)
Wiring for third party interface

Dust Control Choices

Choices (7)
Tram off spray system (option)

Tool Package DTH

Components (6)
Hammer Sub

Drill Pipe - Mast Size Dependent

Dual purpose carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of two (2)
Quantity of two (2) 3 m (10 ft) starter pipes (included in the drill tool package)
Dual purpose carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of two (2): Rotary and DTH (1)
5.50 in
140.00 mm
Dual purpose carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast - Accepts quantity of two (2): Rotary and DTH (2)
6.63 in
168.00 mm
Dual purpose carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast - Accepts quantity of two (2)
Quantity of two (2) 7.6 m (25 ft) starter pipes (included in the drill tool package)
Dual purpose carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast - Accepts quantity of two (2): Rotary and DTH (1)
5.50 in
140.00 mm
Dual purpose carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast - Accepts quantity of two (2): Rotary and DTH (2)
6.63 in
168.00 mm

Dimensions (Approximate) - 11.2 m (36.7 ft) Mast

Height - Mast Down
16.84 ft
5.13 m
Mast Only Length
36.70 ft
11.20 m

Dimensions (Approximate) - 13.6 m (44.6 ft) Mast

Height - Mast Down
16.84 ft
5.13 m
Mast Only Length
44.60 ft
13.60 m

Basic Specs

11.2 m (36.7 ft) Mast - Bit Load - Single Pass
Up to 22 321 kg (Up to 49,210 lb)
11.2 m (36.7 ft) Mast - Hoist Capacity
Up to 20 411 kg (Up to 45,000 lb)
11.2 m (36.7 ft) Mast - Hoist Speed
2.67 ft/s
0.81 m/s
11.2 m (36.7 ft) Mast - Hole Depth Range - Multi Pass Depth
Down to 53.6 m (Down to 176.7 ft)
11.2 m (36.7 ft) Mast - Hole Depth Range - Single Pass Depth
36.70 ft
11.20 m
11.2 m (36.7 ft) Mast - Hole Diameter Range
Up to 152-250 mm (Up to 6-9.8 in)
11.2 m (36.7 ft) Mast - Pulldown Capacity
Up to 20 411 kg (Up to 45,000 lb)
13.6 m (44.6 ft) Mast - Hole Depth Range - Multi Pass Depth
Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft) Mast - Hole Depth Range - Single Pass Depth
44.60 ft
13.60 m
13.6 m (44.6 ft) Mast - Hole Diameter Range
Up to 152-250 mm (Up to 6-9.8 in)
13.6 m (44.6 ft) Mast - Pulldown Capacity
Up to 29 483 kg (Up to 65,000 lb)

Drill Deck Misc.

Components (1)
Toolbox
Components (2)
Hydraulic viewing hatch on drill deck with spotlight
Components (3)
Drill pipe thread greaser with remote fill tank or disposable grease bucket
Components (4)
Deck mounted jib crane with 750 kg (1,653 lb)

Undercarriage

Ground Clearance
24.00 in
618.00 mm

Weights

Working Weight Range
56 468 kg to 64 154 kg (124,490 lb to 141,436 lb)

Pull-Down/Hoisting Capacity

Pull-Down Capacity
Up to 29 483 kg (65,000 lb)

Dimensions (Approximate) - 13.6 m (44.6 ft) Mast

Width Non-Cab End
15.90 ft
4.85 m
Width Cab End
18.45 ft
5.62 m

Hydraulic Break Out Wrench

Variable Grip Hydraulic Break Out Wrench Grip Ranges (1)
114-152 mm (4.5-6.0 in)
Variable Grip Hydraulic Break Out Wrench Grip Ranges (2)
152-216 mm (6.0-8.5 in)

Tool Package DTH

Components (7)
Pipe wiper seal

Safety and Security

Feature
Approach angle of 15 degrees facilitates loading and unloading on a lowboy

Operator Environment

Cab - Premium
– Additional storage
– Leather seat with heat and ventilation
– Heavy duty seat suspension
– Dual pane window glass
– Removable guard for driller window, plus window facing power train
– Wipers for the driller window plus front and rear windows

Operating System Controls - Standard

Components (22)
Prewired for Terrain and autonomous operation

Dimensions (Approximate) - 11.2 m (36.7 ft) Mast

Width Non-Cab End
15.90 ft
4.85 m

Safety and Security

Components (13)
Lifting lugs

Operating System Controls - Standard

Components (23)
Drill Assist automated functionality:
– Auto level, auto jack retract
– Auto mast raise and lock, auto mast unlock and park

Dimensions (Approximate) - 11.2 m (36.7 ft) Mast

Width Cab End
18.45 ft
5.63 m

Operator Environment

Cab - Standard
– Fabric seat
– Single pane window glass
– Removable guard for driller window
– Wiper for the driller window

Undercarriage

Lower rollers
Twelve (12)

Climate Choices

Climate Level 4 Arctic fluids and lubricants (6)
Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed

Compressor/Receiver Choices

Receiver Tank Choice (1)
Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE

Mast Packages

Angle Drilling
Included with either mast

Undercarriage

Travel Speed
1.50 mile/h
2.45 km/h

Compressor/Receiver Choices

Receiver Tank Choice (2)
High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE

Tool Package DTH

Components (8)
Drill tool lubricator is included with selection of DTH Compressor

Dimensions (Approximate) - 11.2 m (36.7 ft) Mast

Note
Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length
53.50 ft
16.32 m

Dimensions (Approximate) - 13.6 m (44.6 ft) Mast

Note
Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length
61.40 ft
18.72 m

Service Tool Options

Lifting Bails (Available on Request)
– API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)
– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)
– API thread 140 mm (5.5 in) – to lift shock sub adapter
– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)
– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)
– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD)

Compressor/Receiver Choices

Compressor - Rotary Drilling
56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)

Drill Pipe

6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 4
6.50 in
165.00 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 1
5.00 in
127.00 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 6
7.63 in
194.00 mm

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396
872.00 hp
650.00 kW

Carousel (Mast size and pipe diameter dependent)

Pipe rack carousel, standard:
– 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes
– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes

Drill Pipe

10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 1
5.00 in
127.00 mm

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 (DIN)
884 mhp (PS)

Drill Pipe

6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 3
6.00 in
152.00 mm

Compressor/Receiver Choices

Compressor - DTH Drilling (1)
38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi)

Climate Choices

Batteries, Sealed (1)
Quantity: Four (4)

Drill Pipe

10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 6
7.63 in
194.00 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 4
6.50 in
165.00 mm

Mast Packages

Mast Accessories Manual - 11.2 m (36.7 ft) or 13.6 m (44.6 ft) Mast
One (1) wire rope pipe catcher, manual bit basket

Drill Pipe

10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 3
6.00 in
152.00 mm

Mast and Pipe Rack Carousel Features

Features (7)
Sliding deck wrench assembly

Drill Pipe

10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 2
5.50 in
140.00 mm

Mast and Pipe Rack Carousel Features

13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth
44.60 ft
13.60 m

Compressor/Receiver Choices

Compressor - DTH Drilling (2)
42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi)

Mast and Pipe Rack Carousel Features

Features (5)
Auto tensioning of pull down and hoist cables

Compressor/Receiver Choices

Features (1)
With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption

Mast and Pipe Rack Carousel Features

11.2 m (36.7 ft) Mast - Hoist Speed
2.65 ft/s
0.81 m/s
Features (3)
Drill strings configured for bit changes (above the deck)

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 (DIN)
838 mhp (PS)

Drill Pipe

10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 5
7.00 in
178.00 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 2
5.50 in
140.00 mm

Mast and Pipe Rack Carousel Features

Features (1)
Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments)
Features (8)
Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH

Drill Pipe

6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 5
7.00 in
178.00 mm

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396
826.00 hp
616.00 kW

Mast and Pipe Rack Carousel Features

Features (10)
Drill pipe positioner
Features (11)
Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque

Climate Choices

Batteries, Sealed (2)
Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages)

Mast and Pipe Rack Carousel Features

Features (9)
Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes

Mast Packages

Mast Accessories Hydraulic - 11.2 m (36.7 ft) Mast
One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 2 - Engine Power
C27 @ 1,800 rpm

Compressor/Receiver Choices

Features (2)
Electronic compressor control and regulation
Features (3)
DTH selection includes tool oiler

Mast and Pipe Rack Carousel Features

Features (6)
Variable grip hydraulic break out wrench for range of pipe diameters

Engine Choices

Emissions: Equivalent to U.S. EPA Tier 4 Final - Engine Power
C27 @ 1,800 rpm

Mast and Pipe Rack Carousel Features

11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth
Down to 53.9 m (Down to 176.7 ft)
Features (4)
Single Hydraulic Cylinder and cable system for pulldown/hoist

Mast Packages

Mast Accessories Hydraulic - 13.6 m (44.6 ft) Mast
One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket

Mast and Pipe Rack Carousel Features

Features (2)
Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in)
13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth
Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft) Mast - Hoist Speed
2.16 ft/s
0.66 m/s
11.2 m (36.7 ft) Mast - Bit Load (single pass)
Up to 22 321 kg (Up to 49,210 lb)
11.2 m (36.7 ft) Mast - Pull-Down Capacity
Up to 20 411 kg (Up to 45,000 lb)
13.6 m (44.6 ft) Mast - Bit Load (single pass)
Up to 32 655 kg (Up to 71,993 lb)
13.6 m (44.6 ft) Mast - Pull-Down Capacity
Up to 29 483 kg (Up to 65,000 lb)
13.6 m (44.6 ft) Mast - Hoist Capacity
Up to 16 584 kg (Up to 36,563 lb)
11.2 m (36.7 ft) Mast - Hoist Capacity
Up to 15 309 kg (Up to 33,750 lb)
Features

WORLD-CLASS OPERATOR STATION

  • Ergonomic controls to help operators stay alert and avoid fatigue
  • Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
  • Excellent visibility, thanks to multiple cameras and full-length windows
  • Optional heated and ventilated seat for enhanced operator comfort

100% CAT INTEGRATION

  • Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
  • Shared software for autonomous features
  • Backed by the world-class support of the Cat dealer network

CAT ELECTRONICS: BACKBONE OF MACHINE

  • Common electronic architecture across all Cat machines to ensure technician familiarity
  • Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
  • Serve as common platform for integrating future autonomy solutions
  • Product Link™ Elite provides real-time performance tracking

MATCHED POWERTRAIN

  • Volumetric air flow control enables operator to reduce air flow by up to 50% to match a specific drilling tool and application
  • C27 engine matched to largest “standard” compressor in this class for fast cycle times
  • Powertrain optimized to withstand rigorous drilling applications
  • High - and low -pressure configurations offer variable volume air control
  • Optimal feed force, rotary torque and air, helping to reduce fuel consumption

TECHNOLOGY AND AUTOMATION

  • Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
  • Machine health and performance monitoring keep machine running productively
  • Drill depth meter helps reduce over- and under-drilling
  • Ready to connect with the Cat MineStar suite of technologies, including Terrain for drilling and Command for drilling

SAFETY

  • Excellent visibility, thanks to multiple cameras and full-length windows
  • MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
  • Seven engine shut-down buttons and more than 40 conditional safety interlocks
  • Slip-resistant surfaces for safer ingress/egress and service
  • LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress and major service points

SERVICEABILITY

  • Large water and fuel tanks reduce time spent refilling
  • Grouped service-access points, neat hose-runs and wiring reduce maintenance time
  • Cat MineStar Health offerings enable onboard health and performance monitoring
  • Extended service intervals minimize maintenance downtime

SUSTAINABILITY

  • Designed to use less fuel, which reduces engine emissions
  • Tier 4 Final engines reduce NOx and particulate matter
  • Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
  • Longer maintenance intervals that decrease the amount of waste contributed to the environment
Standard Equipment
  • POWER TRAIN CHOICES
    • Emissions: Equivalent to Tier 2, Engine Power C27 @ 1,800 rpm, ISO 14396 616 kW (826 hp), ISO 14396 (DIN) 838 mhp (PS)
    • Emissions: Equivalent to Tier 4 Final, Engine Power C27 @ 1,800 rpm, ISO 14396 650 kW (872 hp), ISO 14396 (DIN) 884 mhp (PS)
    • Compressor (2,000 ft³/min, 125 psi) – Rotary drilling package, 56.6 m³ (2,000 ft³/min) at 8.6 bar (125 psi); with low pressure receiver tank for ASME/CRN/AU or CE
  • CAB CHOICES
    • Standard – Includes a fabric seat, single pane window glass, removable driller window guard, and a windshield wiper for driller window
  • CONTROLS
    • Drill depth indicator and interlocks, auto-level, auto-mast
  • FRAME/DECK
    • Machine access via fixed stairs
  • MAST ACCESSORIES
    • 11.2 m (36.7 ft) or 13.6 m (44.6 ft): Pipe catcher, manual – one wire rope (for 11 m), two wire rope (for 13 m) pipe catcher, bit basket, manual
  • PIPE CAROUSEL 11.2 M (36.7 FT) MAST/10.6 M (35 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
    • 127 mm (5.0 in) pipe; four pods
    • 140 mm (5.5 in) pipe; four pods
    • 152 mm (6.0 in) pipe; four pods
    • 165 mm (6.5 in) pipe; four pods
    • 178 mm (7.0 in) pipe; four pods
    • 194 mm (7.625 in) pipe; four pods
  • PIPE CAROUSEL 13.6 M (44.6 FT) MAST/6.1 M (20 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
    • 127 mm (5.0 in) pipe; four pods
    • 140 mm (5.5 in) pipe; four pods
    • 152 mm (6.0 in) pipe; four pods
    • 165 mm (6.5 in) pipe; four pods
    • 178 mm (7.0 in) pipe; four pods
    • 194 mm (7.625 in) pipe; four pods
  • DRILL TOOL PACKAGES/ROTARY DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
    • 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • DRILL TOOL PACKAGES/DTH DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
    • 140 mm (5.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal
    • 165 mm (6.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal
  • DRILL TOOL PACKAGES/ROTARY FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
    • 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
    • 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • DRILL TOOL PACKAGES/DTH DRILLING FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
    • 127 mm (5.0 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
    • 140 mm (5.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
    • 165 mm (6.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
    • 178 mm (7 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
  • TOP SUBS (ROTARY DRILLING ONLY) (SELECT ONE)
    • 127 mm (5 in)
    • 152 mm (6 in)
    • 165 mm (6.5 in)
    • 178 mm (7 in)
    • 194 mm (7.625 in)
  • CLIMATE/REGIONAL CONSIDERATIONS
    • Batteries, sealed quantity four (4)
    • Level 1 – Standard fluids and lubricants. With a temperature range of –1° C (30° F) to 52° C (125° F)
    • Decals, ANSI
    • Decals, ISO
    • Certifications, EAEU
    • Certifications, CE
  • DUST SUPPRESSION
    • Water injection 1271 L (336 gal)
    • Static dust curtains, four sided/boxed enclosed
  • UNDERCARRIAGE; CAT 336E EL (SELECT ONE)
    • Triple grousers 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground pressure
    • Triple grousers 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground pressure
Optional Equipment
  • POWER TRAIN CHOICES
    • Compressor (1,350 ft³/min, 500 psi) – DTH drilling package, 38.2 m³ (1,350 ft³/min) at 34.4 bar (500 psi), with high pressure receiver tank (500 psi) for ASME/CRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system
    • Compressor (1,500 ft³/min, 350 psi) – DTH drilling package, 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) with high pressure receiver tank for ASME/DRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system
  • FRAME
    • Fuel tank expansion of +1609 L (425 gal) for total of 3218 L (850 gal) (Required for autonomy packages)
    • Platform on non-drill-end to mount fire suppression bottles and/or diesel gen set
    • Jib crane ready (Jib crane not included)
  • CAB CHOICES
    • Premium – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass. Removable driller window guard and guard for window facing power train. Additional storage box and windshield wipers on front and rear windows
    • LED Lighting Package:
      Provides 4,200 lumens flood light on perimeter, area spotlights have 1,950 lumens. Mast clearance lights and cab mounted yellow strobe light and a front mounted tram beacon
    • Viewing hatch for hole spotting with spotlight (hydraulically operated)
    • Foldaway trainer’s seat with retractable seat belt
    • Window shades
    • Cabin pressure manometer gauge
    • Cab roof access system (includes ladders, cage and rails)
  • CONTROLS
    • Drill Assist (single pass auto drill)
  • DRILL DECK MISC.
    • Tool box in deck
    • Hydraulic viewing hatch with spotlight
  • PRODUCT LINK™/TERRAIN
    • Product Link (Cellular)
    • Product Link (Dual: Satellite and Cellular)
    • Terrain for Drilling (guidance system)/with G610 screen
  • OPERATOR ENVIRONMENT
    • Fold up trainer’s seat with seat belt
    • Cabin pressure manometer gauge
    • Window shades
    • Cab roof access system with ladder, cage and rails (only available with cascading stairs and cab walkway)
  • FRAME/DECK
    • Fuel tank expansion adds 1416 L (374 gal) tank for a total capacity of 2832 L (748 gal); required for autonomy packages
    • Machine access via cascading, hydraulic stairs; includes walkway around cab to drill deck
    • Fire suppression ready; platform to mount fire suppression bottles and/or diesel gen set
    • Jib crane ready (mounting kit only)
    • Toolbox
  • TECHNOLOGY PRODUCTS
    • Product Link Elite; cellular or dual (satellite and cellular)
    • Terrain guidance system hardware
  • MAST
    • Overhead winch assembly with cable and hook, plus with remote control; variable speed drive with ≥ 1814 kg (4,000 lb) rating, length to reach 6.1 m (20 ft) past drill deck
    • Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
    • Pipe thread greaser with reloadable tank for disposable grease bucket
    • 11.2 m (36.7 ft) Mast; angle drilling – vertical to 30° (in 5° increments)
    • 13.6 m (44.6 ft) Mast; angle drilling – vertical to 30° (in 5° increments)
    • Drill pipe thread greaser with reloadable tank or disposable grease bucket
    • Tool lubrication system for rotary tricone bits 113.5 L (30 gal)
    • Tool lubrication system for DTH hammer and bit (included in HP compressor package)
    • Overhead winch assembly with remote, cable and hook
  • DRILL BITS, ROTARY TRICONE
    • Recommended for Rotary Applications
    • All bits have standard nozzles
    • Obtain S/M/H codes from the Rock Formation to Bit Conversion table https://catpublications.com search for PEXQ1027
    • Ship out plans for each drill configuration allow for one pallet of bits. Additional pallets may require an additional truck.
      – 171 mm (6.75 in), Option 1, (S2)
      – 171 mm (6.75 in), Option 2, (M1)
      – 171 mm (6.75 in), Option 3, (M3)
      – 200 mm (7.875 in), Option 1, (S2)
      – 200 mm (7.875 in), Option 2, (M1)
      – 200 mm (7.875 in), Option 3, (M3)
      – 229 mm (9.0 in), Option 1, (S3)
      – 229 mm (9.0 in), Option 2, (M2)
      – 229 mm (9.0 in), Option 3, (H1)
      – 251 mm (9.875 in), Option 1, (M1)
      – 251 mm (9.875 in), Option 2, (M3)
      – 251 mm (9.875 in), Option 3, (H1)
  • MAST ACCESSORIES
    • 11.2 m (36.7 ft) Mast: Pipe catcher, hydraulic – one hydraulically actuated pipe catcher, bit basket, hydraulic
    • 13.6 m (44.6 ft) Mast: Pipe catcher, hydraulic – one hydraulically actuated pipe catcher, plus one wire rope pipe catcher, bit basket, hydraulic
  • DRILL PIPE*
    • Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast – Accepts quantity of four (4)
      – 127 mm (5.0 in)
      – 140 mm (5.5 in)
      – 152 mm (6.0 in)
      – 165 mm (6.5 in)
      – 178 mm (7.0 in)
      – 194 mm (7.625 in)
    • Standard carousel pipe: 6.1 m (20 ft) pipes for 13.6 m (44.6 ft) Mast – Accepts quantity of four (4)
      – 127 mm (5.0 in)
      – 140 mm (5.5 in)
      – 152 mm (6.0 in)
      – 165 mm (6.5 in)
      – 178 mm (7.0 in)
      – 194 mm (7.625 in)
    • Standard carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast – Accepts quantity of two (2)
      – Quantity of two (2) 7.62 m (25 ft) pipes with adaptors to connect to DTH hammer or tricone bit (hammer and tricone bit not included)
      – 140 mm (5.5 in)
      – 168 mm (6.625 in)
    • Note: *Contact factory for additional pipe diameters
  • BREAK OUT WRENCH (SELECT ONE)
    • Variable grip hydraulic break out wrench range 114 mm to 152 mm (4.5 in to 6.0 in)
    • Variable grip hydraulic break out wrench range 152 mm to 216 mm (6.0 in to 8.5 in)
  • DRILL TOOL PACKAGES/DUAL PURPOSE DRILLING FOR 11.2 M (36.7 FT) MAST
    • 168 mm (6.625 in); two-piece bushing, pipe positioner rollers, deck wrench, dual purpose carousel, two each 7.62 m (25 ft) pipes plus sub adapters
  • SHOCK ABSORBER WITH CROSSOVER ADAPTER (REQUIRED FOR DTH, OPTIONAL FOR ROTARY DRILLING) (SELECT ONE)
    • 127 mm (5 in)
    • 140 mm (5.5 in)
    • 152 mm (6 in)
    • 165 mm (6.5 in)
    • 178 mm (7 in)
    • 194 mm (7.625 in)
  • SHOCK SUB FOR DUAL PURPOSE DRILLING/11.2 M (36.7 FT) MAST
    • 168 mm (6.625 in) includes long top sub adapter
  • DRILL PIPE – 6.1 M (20 FT) PIPE FOR 13.7 M (44.9 FT) MAST; CAROUSEL HOLDS QTY. OF FOUR
    • 127 mm (5 in) pipe
    • 152 mm (6 in) pipe
    • 178 mm (7 in) pipe
    • 194 mm (7.625 in) pipe
  • DRILL PIPE – 10.6 M (35 FT) PIPE FOR 11.2 M (36.7 FT) MAST; CAROUSEL HOLDS QTY. OF FOUR
    • 127 mm (5 in) pipe
    • 140 mm (5.5 in) pipe
    • 152 mm (6 in) pipe
    • 165 mm (6.5 in) pipe
    • 178 mm (7 in) pipe
    • 194 mm (7.625 in) pipe
  • DRILL PIPE – 10.6 M (35 FT) PIPE FOR 11.2 M (36.7 FT) MAST; DUAL PURPOSE CAROUSEL HOLDS QTY. OF TWO
    • 168 mm (6.625 in)
  • TRICONE DRILLING BITS GROUP – QTY. 9 PER PALLET
    • 171 mm (6.75 in) OPT 2, (M1)
    • 171 mm (6.75 in) OPT 3, (M3)
    • 171 mm (6.75 in) OPT 1, (S2)
    • 200 mm (7.875 in) OPT 2, (M1)
    • 200 mm (7.875 in) OPT 3, (M3)
    • 200 mm (7.875 in) OPT 1, (S3)
    • 229 mm (9 in) OPT 2, (M2)
    • 229 mm (9 in) OPT 3, (H1)
    • 229 mm (9 in) OPT 1, (M1)
    • 251 mm (9.875 in) OPT 2, (M3)
    • 251 mm (9.875 in) OPT 3, (H1)
  • DTH HAMMERS AND BITS
    • DTH Hammer – 152.4 mm (6 in) class with drive sub (all components, less DTH bit assembly)
    • BITS, 2F-FF-S-HD
      171 mm (6.75 in) two flushing holes, flat face with spherical carbides. Heavy duty.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 2F-FF-S
      171 mm (6.75 in) two flushing holes, flat face with spherical carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 2F-CC-S
      171 mm (6.75 in) two flushing holes, concave with spherical carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 2F-CV-S+B
      171 mm (6.75 in) bits, two flushing holes, convex with spherical gauge and ballistic face carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 3F-CV-S+B
      171 mm (6.75 in) three flushing holes, convex with spherical gauge and ballistic face carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 3F-FF-S+B
      171 mm (6.75 in) three flushing holes, flat face with spherical gauge and ballistic face carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
    • BITS, 3F-CC-S+B
      171 mm (6.75 in) three flushing holes, concave with spherical gauge and ballistic face carbides.
      Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • SERVICE PACKAGES/FLUIDS SYSTEM FOR 11.2 M (36.7 FT) OR 13.6 M (44.6 FT) MAST IN ANGLE DRILLING
    • Fast fill for fuel and water and automated lubrication system
    • Central drain/fill service center for lubricants, fast fill for fuel and water, a blow-down hose and automated lubrication system
  • SERVICE TOOLS
    • Bushing retention tool – 102-194 mm (4.0-7.625 in)
    • Work Tools
      – Lifting bails (available on request; required for commissioning)
      • API thread 89 mm (3.5 in)
      • API thread 114 mm (4.5 in)
      • API thread 140 mm (5.5 in)
      • BECO thread 102 mm (4.0 in)
      • BECO thread 114 mm (4.5 in)
      • BECO thread 152 mm (6.0 in)
    • Lifting bails: API thread 89 mm (3.5 in)
    • Lifting bails: API thread 114 mm (4.5 in)
    • Lifting bails: API thread 140 mm (5.5 in)
    • Lifting bails: BECO thread 102 mm (4.0 in)
    • Lifting bails: BECO thread 114 mm (4.5 in)
    • Lifting bails: BECO thread 152 mm (6.0 in)
  • CLIMATE/REGIONAL CONSIDERATIONS
    • Batteries, sealed quantity six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages
    • Level 2 – Arctic – Temperature down to –18° C (0° F) Arctic fluids and lubricants
    • Level 4 – Temperature down to –40° C (–40° F) 50 hz heating components, high pressure compressor. Arctic fluids. Diesel fired heater for engine coolant, primary water tank and batteries. Heated blankets for receiver tank and water suction line. Junction box with provisions for adding customer supplied shore power connector 240V/50A. If needing 60 hz capability, must order 60 hz battery charger through aftermarket
  • DUST SUPPRESSION
    • Dust curtains, four sides boxed in, with hydraulic lifters to raise front and rear dust curtains (recommended with dust collector)
    • Tram off spray system
    • Water injection 1271 L (336 gal) plus dry dust collector 127 m³/min (4,500 ft³/min)
    • Water injection, high volume 2786 L (736 gal)
      – Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
      – Tank above deck capacity 1514 L (400 gal)
    • Dust curtain hydraulic lifters raise front and rear dust curtains (recommended with dust collector)
    • Tram off spray to wet the ground around the cuttings pile
