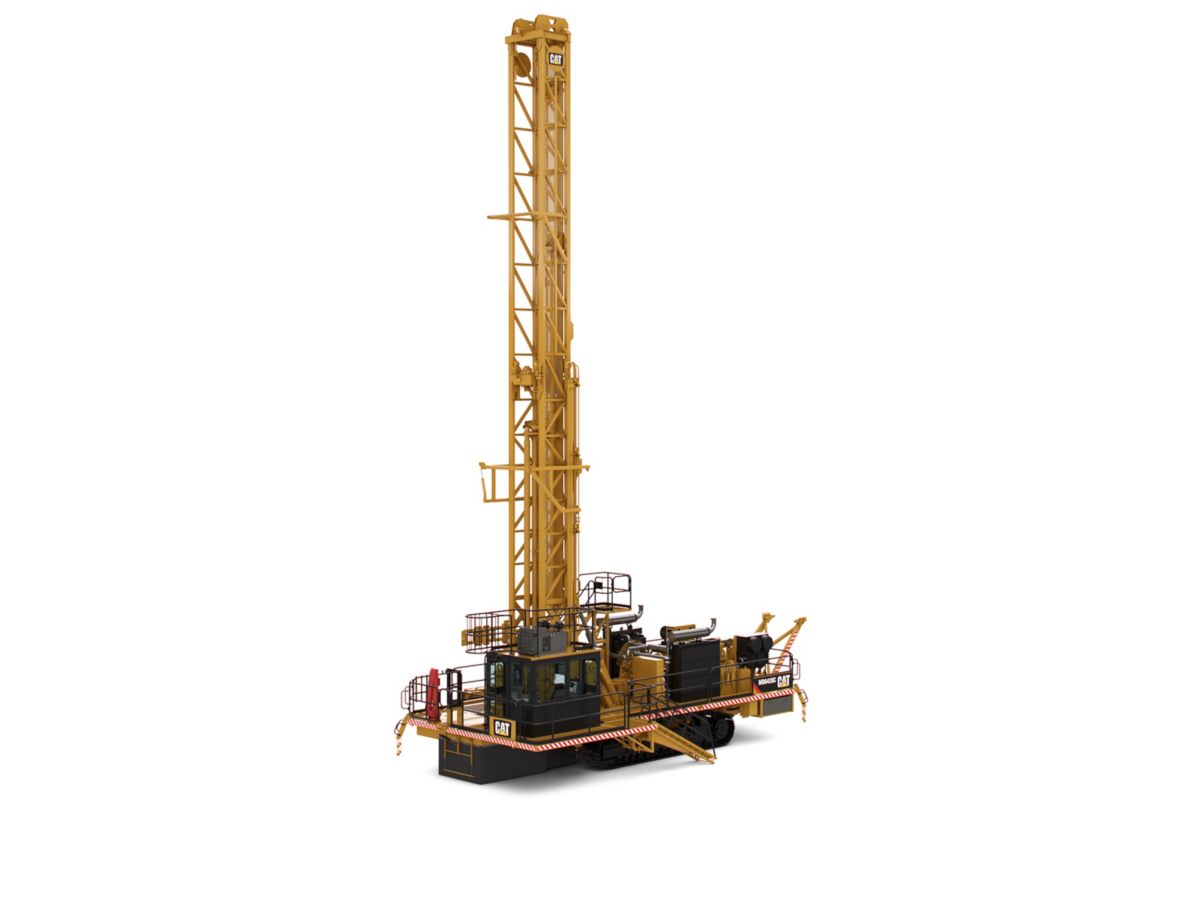

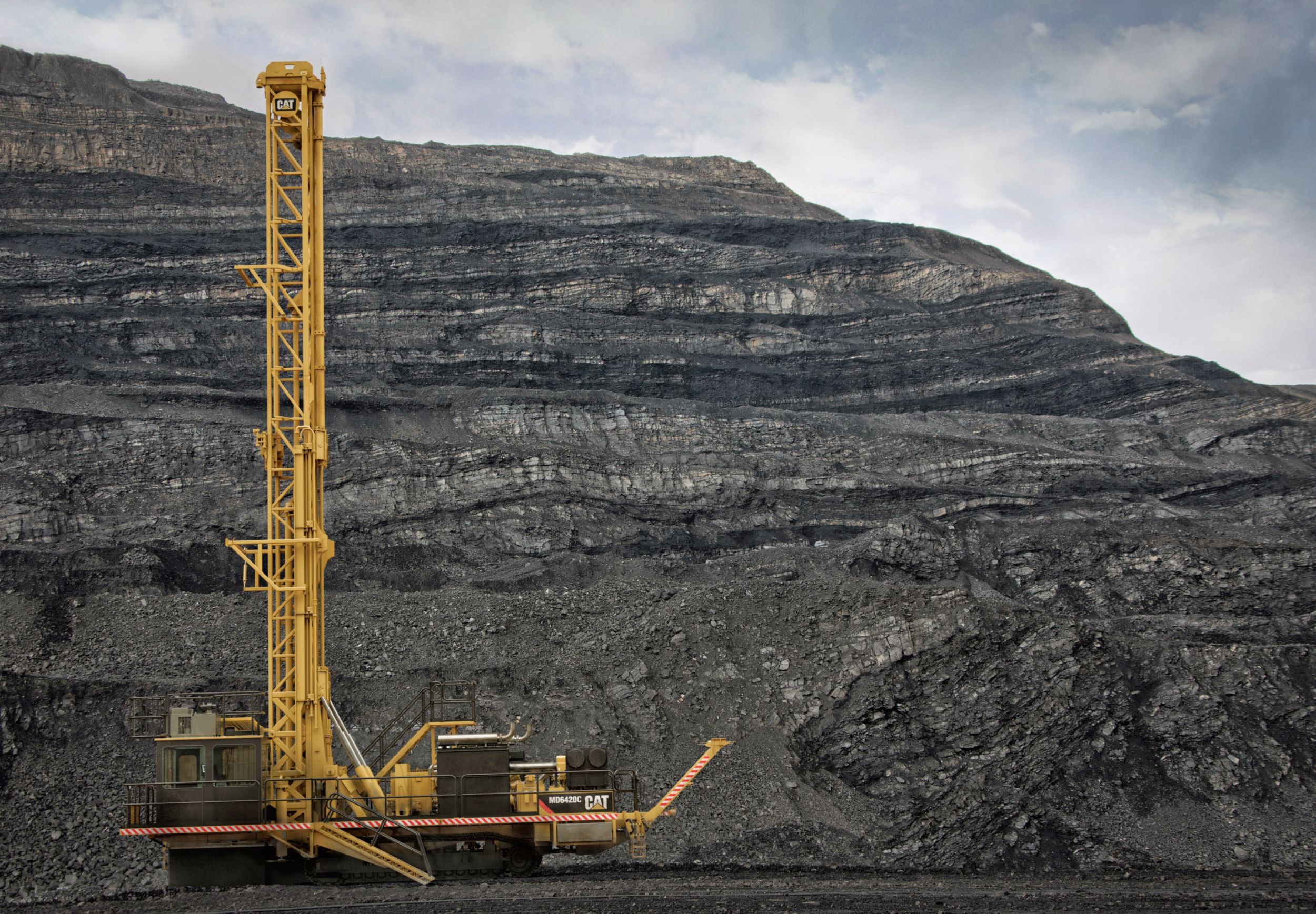

Specifications
Hole Diameter
Up to 311 mm (Up to 12.25 in)
Rotary Drive System
Torque - Dual Motors
0-17 313 N∙m (0-12,769 lbf-ft)
Drill Table and Work Deck
Leveling Jacks
Operating Environment
Altitude
Up to 4572 m (Up to 15,000 ft)
Maximum Ambient Rating - Standard
Minimum Ambient Rating - Standard
Operator's Cab
Climate Control
Roof-mounted, AC/heating/pressurizing unit
Location
To the right from the mast if facing rear deck from the rear end
Number of Doors
Two (2) with windows (included in above)
Other
Window wipers and washers
Type
Shock-mounted; two-man, integrated FOPS certified
Windows - Tinted Safety Glass Laminated in Rubber Mounting
Undercarriage
Brakes
Spring set, hydraulic release
Front
Three-point oscillating type
Maximum Drive Horse Power per Track
290.00 mm H2O
216.00 kg/mm
Number of Rollers - Each Side
Total of 16: (13) lower rollers, (3) upper/carrier rollers
Track Adjustment Means
Hydraulic with grease gun
Compressor - Standard - Poppit Inlet, Fixed Displacement
Discharge Air Flow - Sea Level
2000.00 ft³/min
56.60 m³/min
Maximum Operating Pressure
Pull-Down/Hoisting Capacity
Retract Rate
0-33.5 m/min (0-110 ft/min)
Accessories, Tools and Handling Equipment
Shock Sub (DTH Application)
Thread – API reg. 140 mm (5.5 in)
Top Adapter Sub (1)
Diameter depends on pipe diameter
Top Adapter Sub (2)
Top thread – API reg. 140 mm (5.5 in)
Top Adapter Sub (3)
Bottom thread – depends on pipe diameter
Bit Sub - Rotary Application (1)
Top thread – depends on pipe diameter
Bit Sub - Rotary Application (2)
Bottom thread – API reg. 168 mm (6.625 in)
Compressor - Optional - Type 1 - Butterfly Inlet, Adjustable From Half To Full Displacement
Discharge Air Flow - Sea Level
2600.00 ft³/min
73.56 m³/min
Maximum Operating Pressure
Mast Configuration - 10, 13, or 16 Meters
Hole Diameter
Up to 311 mm (Up to 12.25 in)
16 m (50 ft) Mast - Depth Single Pass
16 m (50 ft) Mast - Multi Pass
Up to 46.9 m (Up to 154 ft)
13 m (40 ft) Mast - Depth Single Pass
13 m (40 ft) Mast - Multi Pass
Up to 74.4 m (Up to 244 ft)
10 m/35 ft Mast - Depth Single Pass
10 m/35 ft Mast - Multi Pass
Up to 63.4 m (Up to 208 ft)
Pull-Down/Hoisting Capacity
Pull-Down Capacity
Up to 383 kN (Up to 86,000 lbf)
Hoist Capacity
Up to 311 kN (Up to 70,000 lbf)
Drilling Feed Rate
0-33.5 m/min (0-110 ft/min)
Head Travel (16 m/50 ft Mast)
Head Travel (13 m/40 ft Mast)
Head Travel (10 m/35 ft Mast)
Cable Type - 29 mm (1.125 in)
Compressor - Optional - Type 2 - Poppit Inlet, Fixed Displacement
Discharge Air Flow - Sea Level
1500.00 ft³/min
42.50 m³/min
Maximum Operating Pressure
10.3/24.1/34.4 bar (150/350/500 psi)
Undercarriage
Rock Guards/Chain Guards
Standard full-length guards
Gradeability Mast Down - CDH - Cab Down Hill
Gradeability Mast Down - CUH - Cab Up Hill
Mainframe, Decks and Walkways
Jacks, Mast Pivot and Deck
Welded integrally to mainframe
Leveling Jacks
Pad Diameter - Non-Drill End
Accessories, Tools and Handling Equipment
Bit Sub - Rotary Application (3)
Table bushing roller-type or two-piece with replaceable liner
Pipe Rack (Inside the Mast)
Carousel with stationary pods and breaker plates
16 m Configuration (1)
7.62 m (25 ft) × 2 as starter and four pieces of 7.62 m (25 ft) in carousel
16 m Configuration (2)
Outside diameter – 194 mm (75⁄8 in) or 219 mm (85⁄8 in)
13 m Configuration (1)
12.19 m (40 ft) starter and five pieces of 12.19 m (40 ft) in carousel
13 m Configuration (2)
Outside diameter – 194 mm (75⁄8 in) or 219 mm (85⁄8 in)
10 m Configuration (1)
10.66 m (35 ft) starter and five pieces of 10.66 m (35 ft) in carousel
10 m Configuration (2)
Outside diameter – 194 mm (75⁄8 in) or 219 mm (85⁄8 in)
10 m Configuration (3)
Length of drill – 10.67 m (35 ft)
Winch System (1)
Rating – 3629 kg (8,000 lb) with 1588 kg (3,500 lb) lift capacity
Winch System (2)
Cable size – 13 mm (0.5 in)
Pipe Handling (2)
Fixed cable pipe catcher or optional hydraulic safety arm/pipe catcher with drill function interlock, when pipe catcher is not closed
Pipe Handling (3)
Manually removable or optional hydraulically operated bit basket
Pipe Handling (4)
Lifting bail-drill pipe/bit sub
Engine - C32 ACERT* - Standard
Rated Horse Power
912.00 mm H2O
680.00 kg/mm
Fuel Tank
1514 L plus, 1703 L (400 gal plus, 450 gal)
Engine - C32 ACERT* - Optional
Rated Horse Power
1039.00 mm H2O
775.00 kg/mm
Fuel Tank
1514 L plus, 1703 L (400 gal plus, 450 gal)
Specifications
Bit Load
Up to 41 346 kg (Up to 91,152 lb)
Mast Configuration - 10, 13, or 16 Meters
Pull-Down/Hoisting Capacity
Bit Load Force
Up to 41 346 kg (Up to 91,152 lb)
Compressor - Optional - Type 2 - Poppit Inlet, Fixed Displacement
Hi/Low Pressure Switch - Bit Oil Injection System
Controls
Manuals
Operations/maintenance manuals and all schematics are stored in drill monitor
Display
English control system display text ex-factory. May be changed to other languages by dealer.
Components (1)
Basic engine shut down timer
Components (2)
Drill performance and monitoring/diagnostics system
Components (3)
Electronic compressor control
Electronic Control
– Monitoring – Diagnostic system
Components (5)
High/low tram speed select (high only when mast is down) interlock
Components (8)
ECM (Electronic Control Module) provides fast and reliable control of all drill functions
Components (9)
Pump drive gearbox temperature sensor
Components (10)
Rotary head RPM gauge – digital
Components (11)
Tram interlock, machine outside stability limits
Components (12)
Tram interlock, pipe in hole
Components (13)
Tram interlock, mast up and locked or down and parked
Components (15)
Cab environment control (AC, filter indicator, heat, fan speeds)
Components (18)
Drill function interlock, mast up and locked
Components (20)
Head clear interlock, rotary drive clear of carousel
Components (23)
Virtual rotary head travel stop
Components (24)
Wiring for terrain interface provided
Base Machine
Components (1)
Fuel tanks isolation valves
Components (2)
Hydraulic tank with isolation valves and interlocks
Components (3)
Slip resistant decks and walkways
Components (4)
3217 L (850 gal) fuel, (two tanks mounted under engine/compressor) with manual and remote fill
Components (5)
Bolt-on hand rails with kick plates
Components (6)
Cat® maintenance free batteries
Components (7)
Stainless battery box, sliding drawer type
Components (8)
Remote jump start terminals
Components (10)
Lift lugs (for base machine minus mast)
Components (11)
Walkways around the drill, 360 degrees
Components (12)
Swing up steps, access/egress
Components (14)
Two stage mast raise cylinders
Components (15)
Fixed dust curtains – four sides
Leveling Jacks
Drill Table and Work Deck
Components (1)
Pipe loading guide roller
Components (3)
Left rear swing gated handrail (dual gate design)
Components (4)
Rear deck bit storage box with aluminum cover
Components (5)
Hydraulically operated viewing hatch with LED hatch viewing spot light
Operating Environment
Note
Optional cold weather packages available
Engine - C32 ACERT* - Standard
Emissions
* The C32 ACERT engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards
Engine - C32 ACERT* - Optional
Emissions
* The C32 ACERT engine meets Tier 2/Stage II equivalent emission standards
