Overview

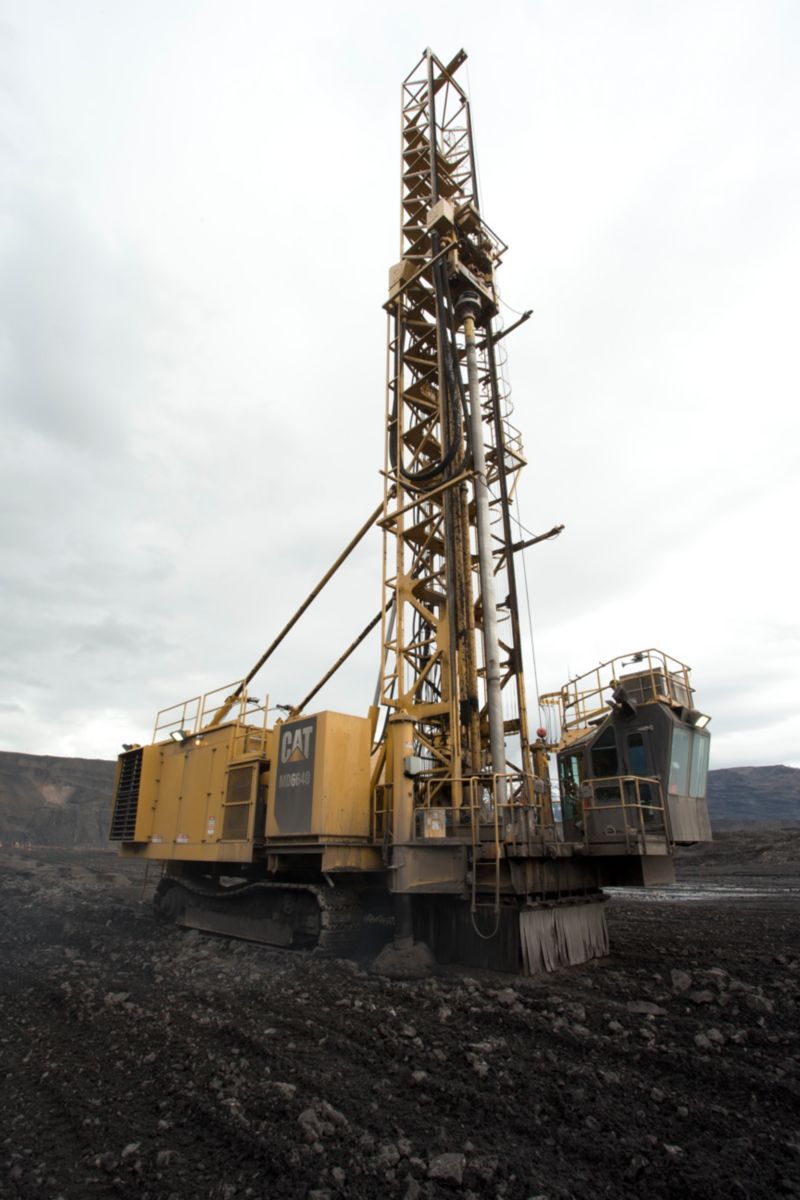

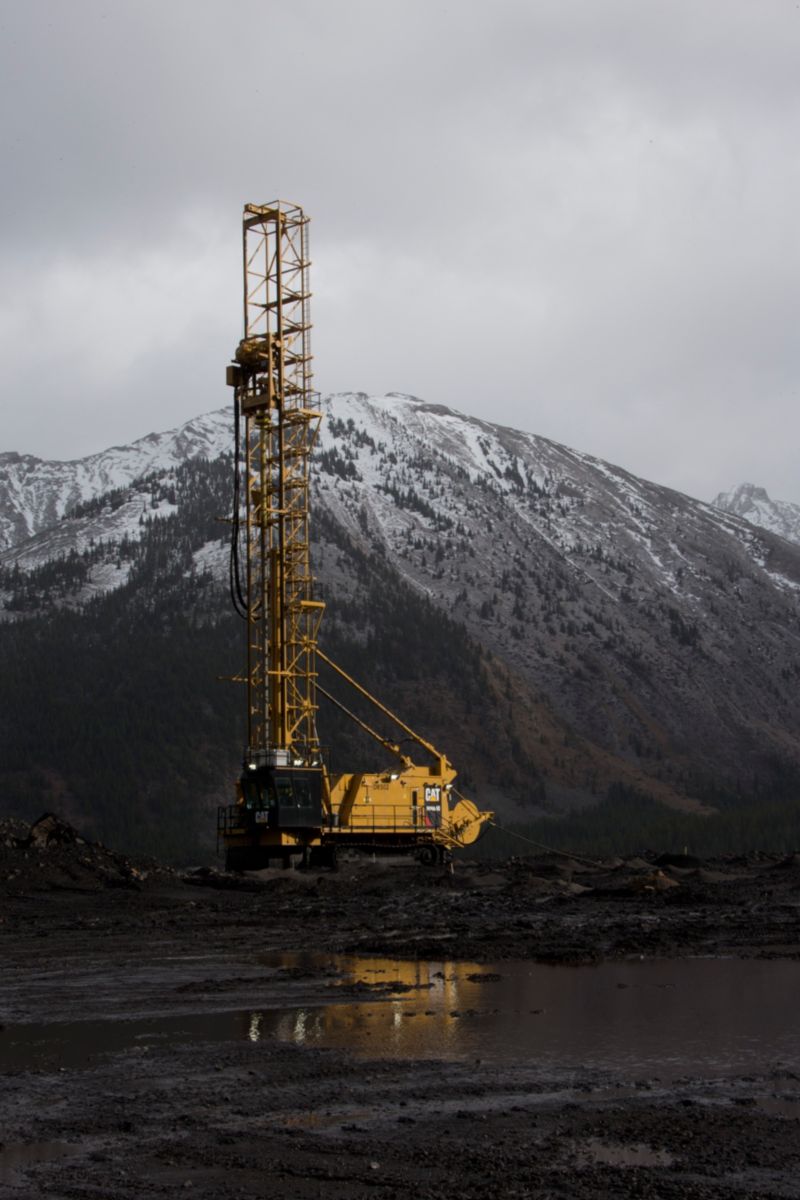

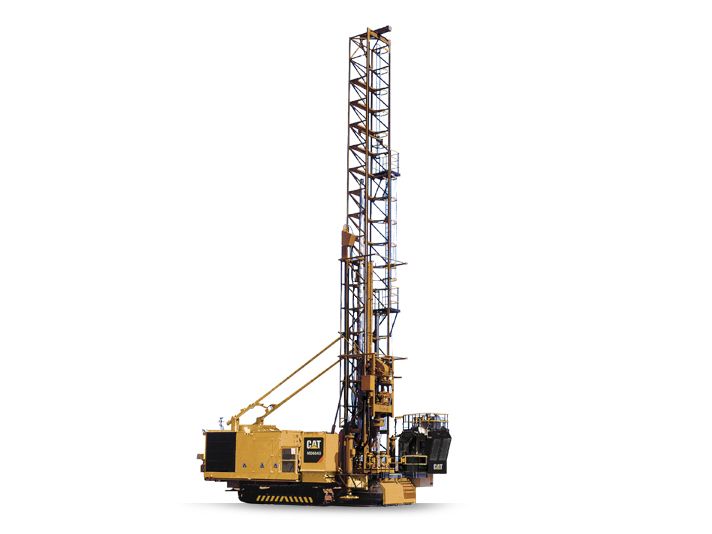

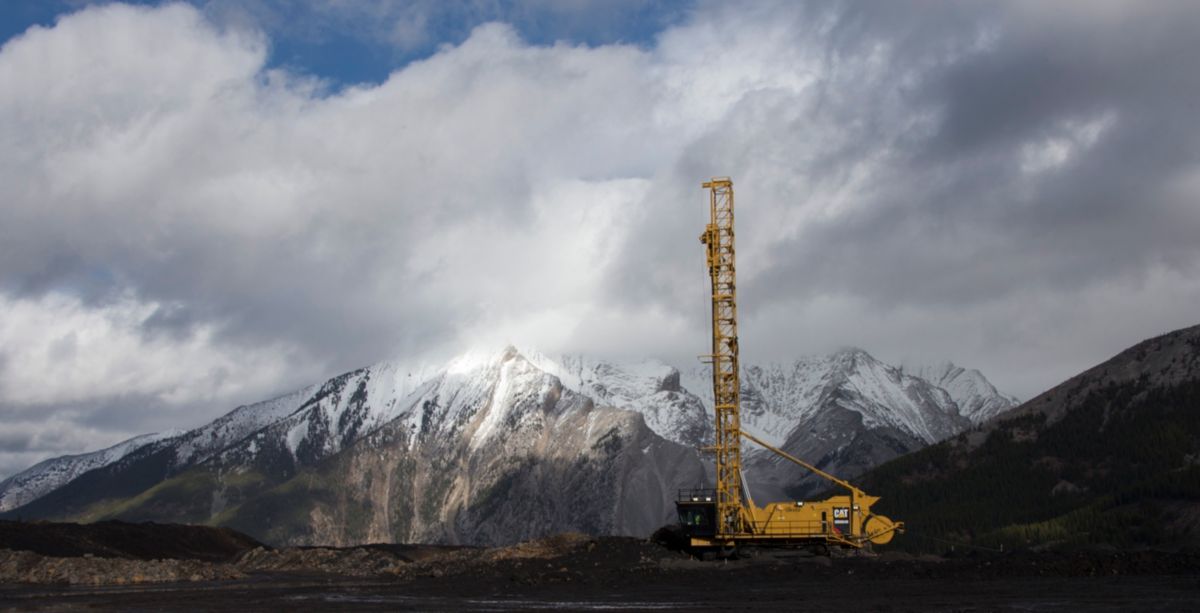

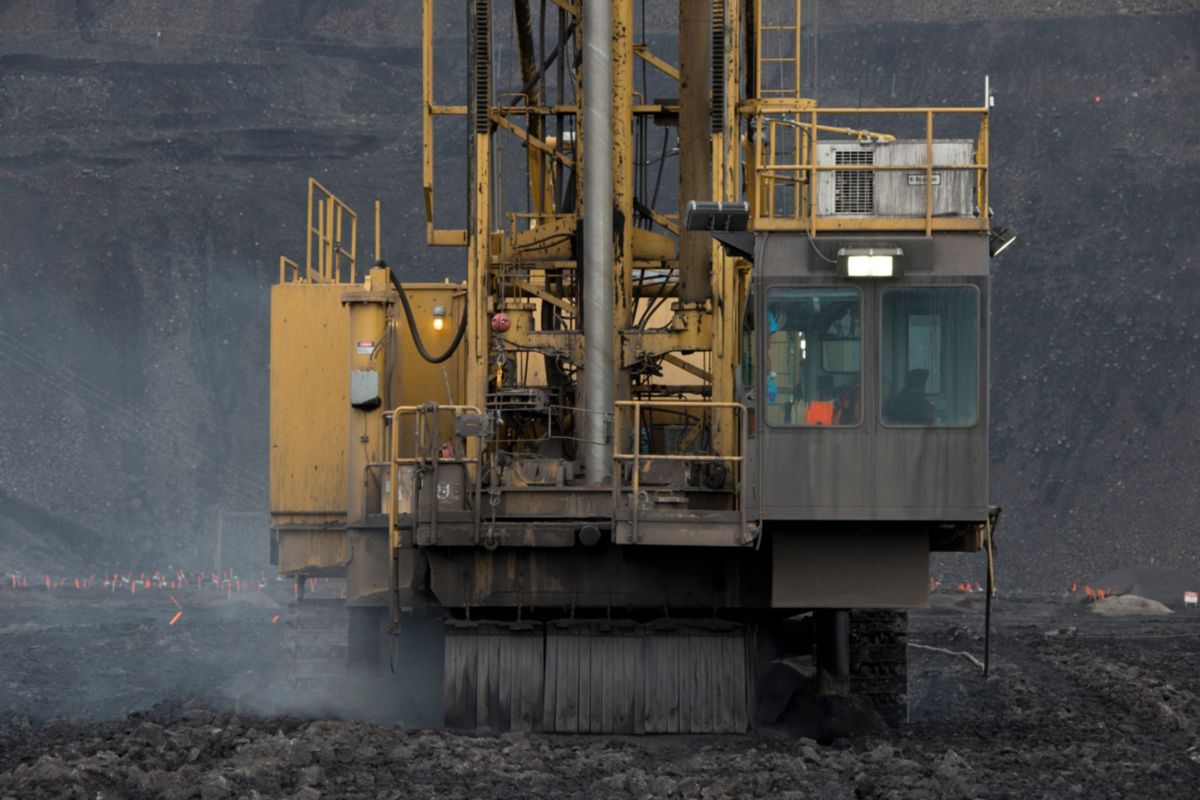

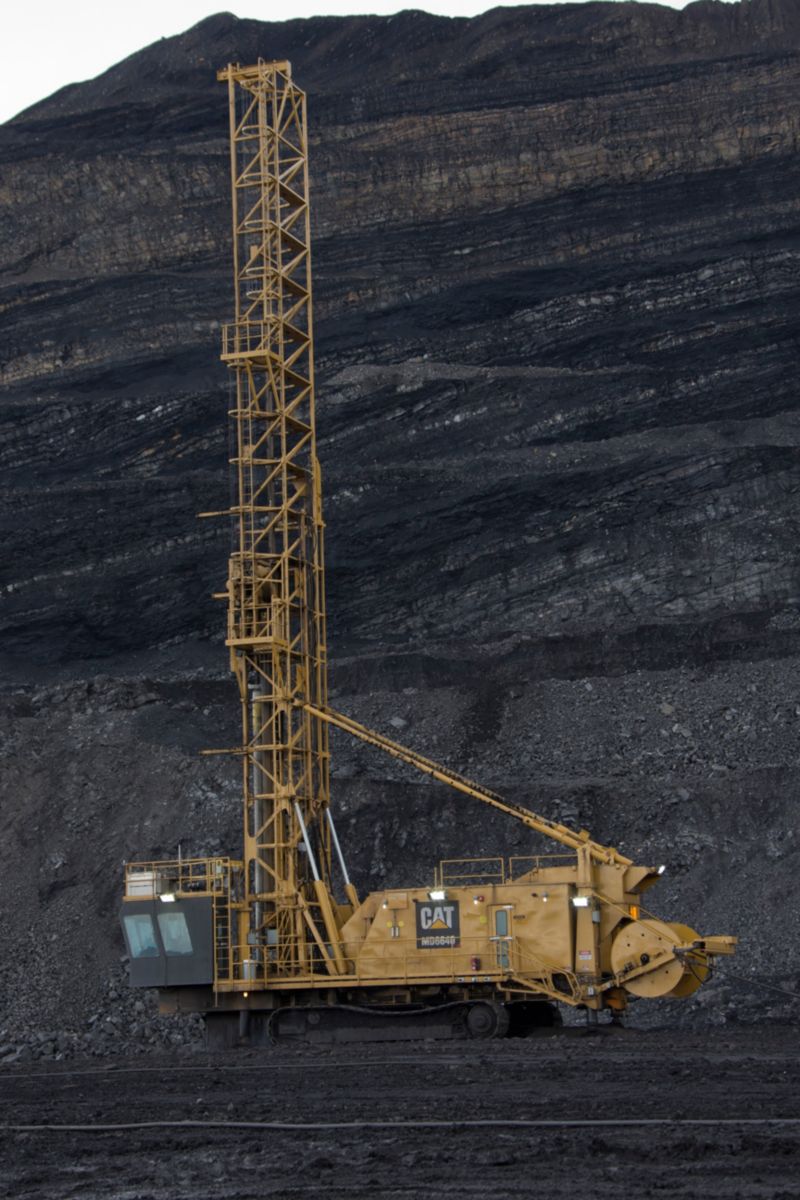

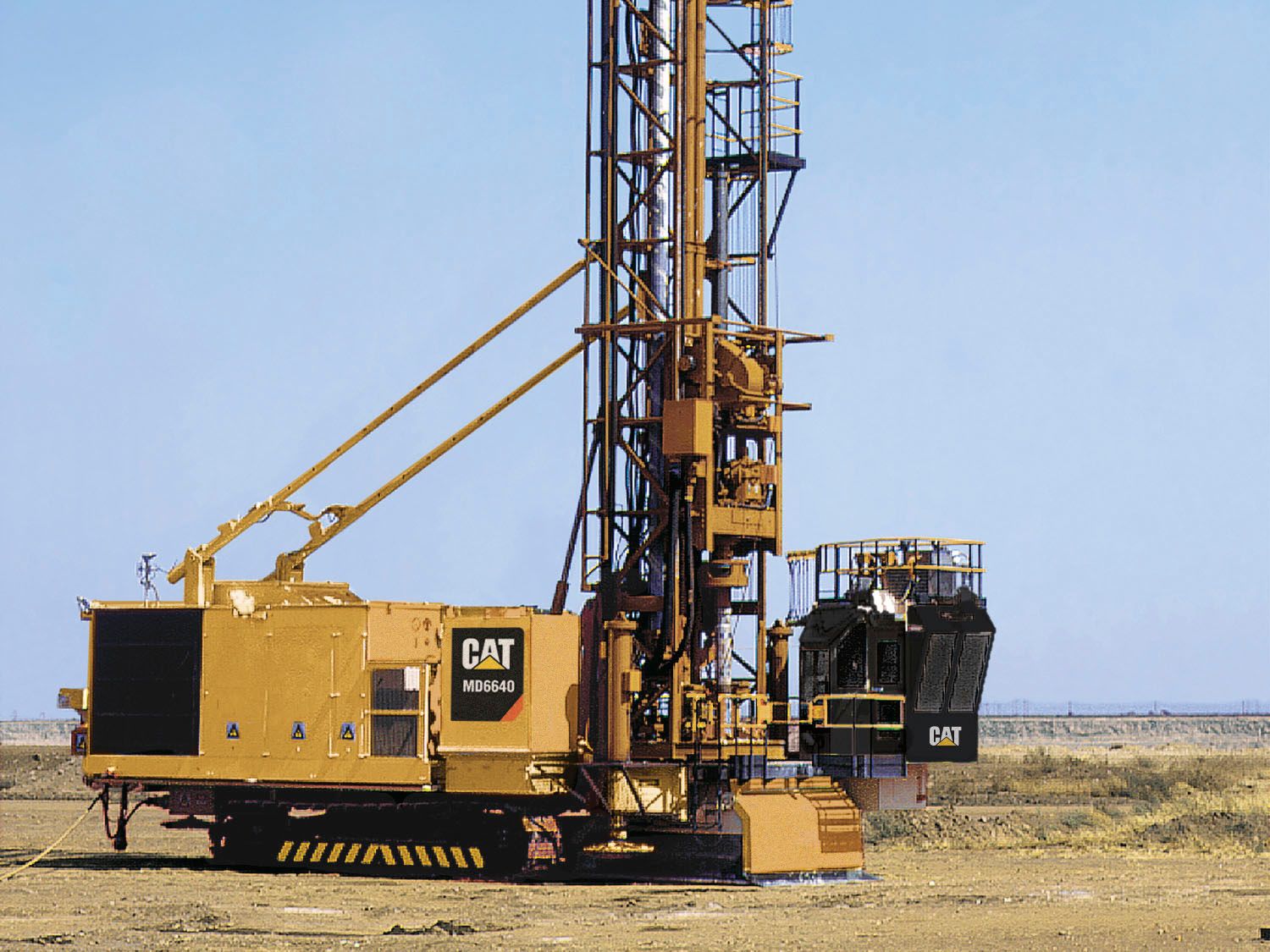

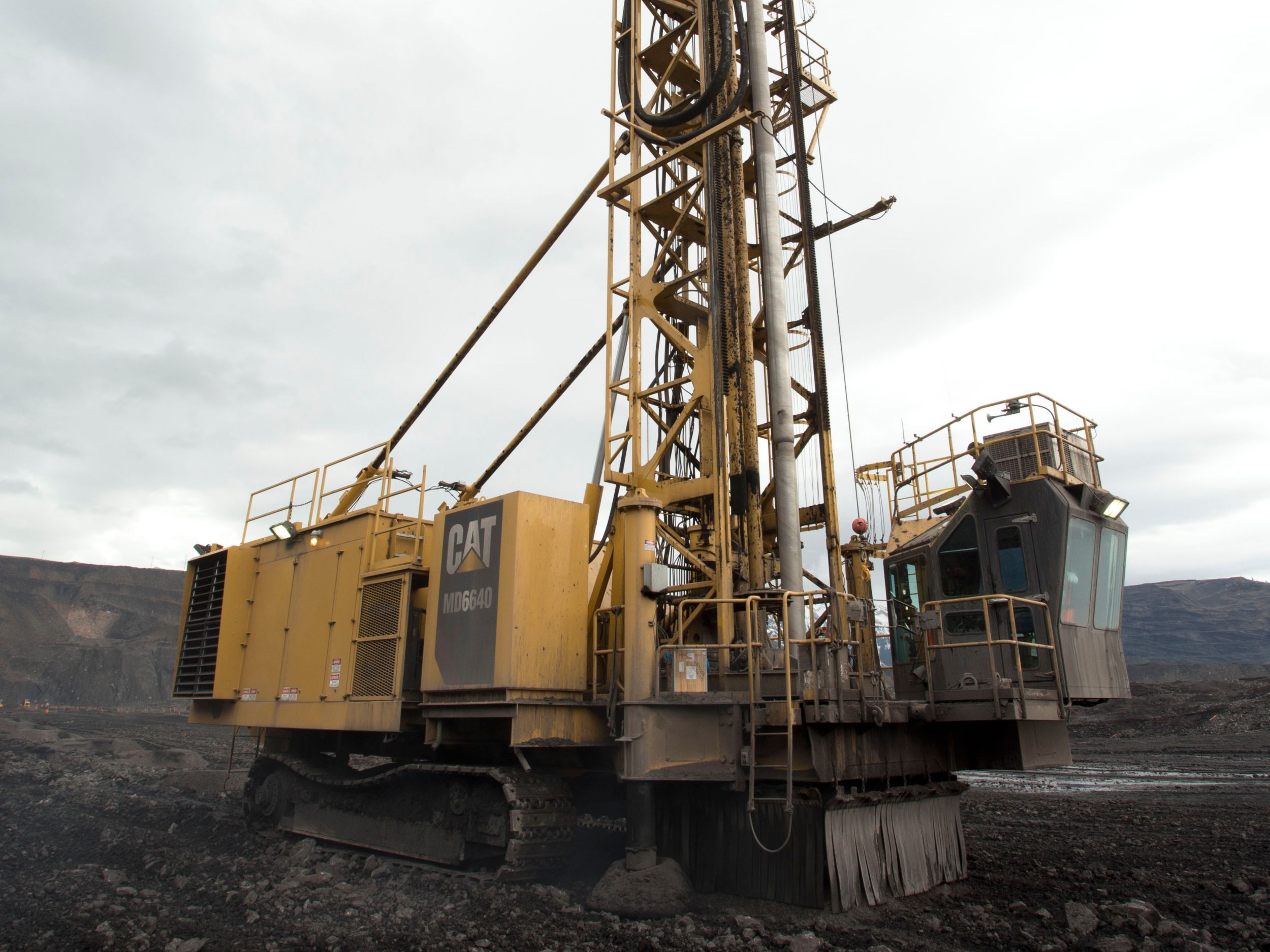

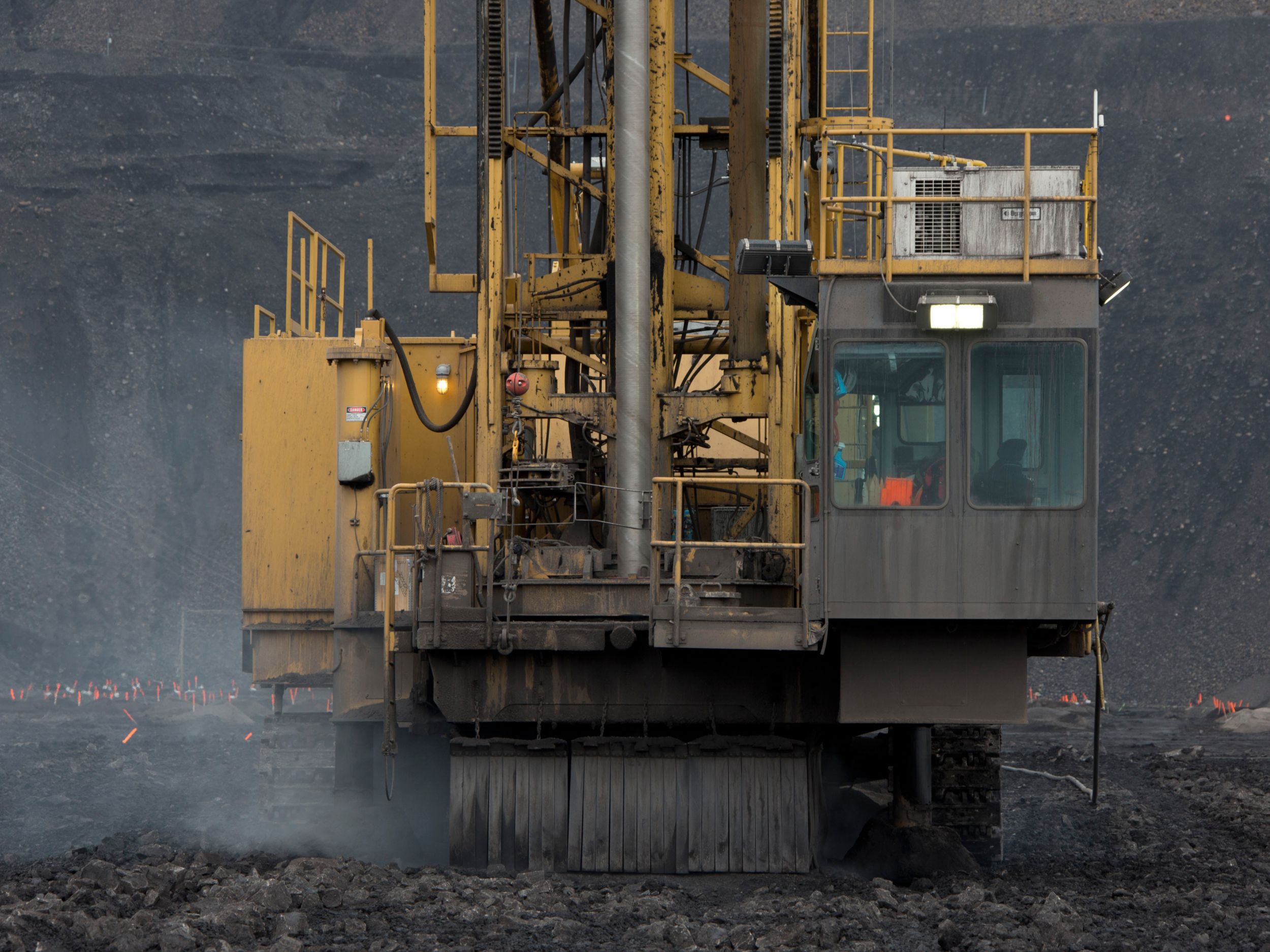

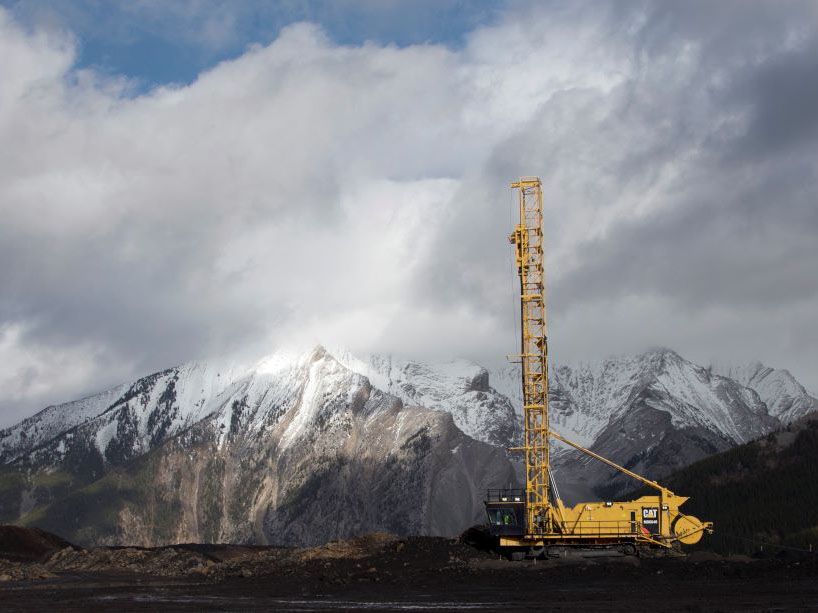

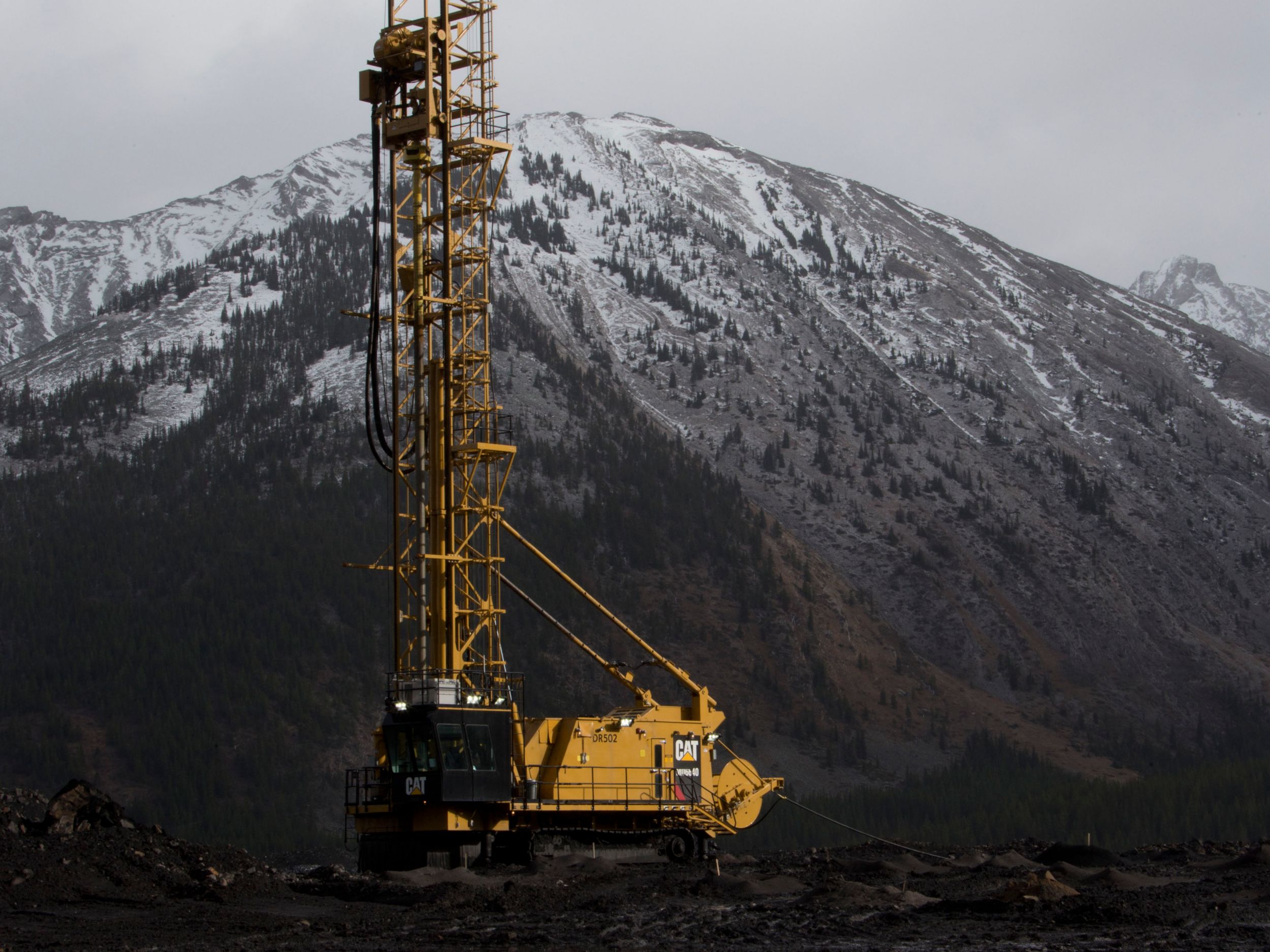

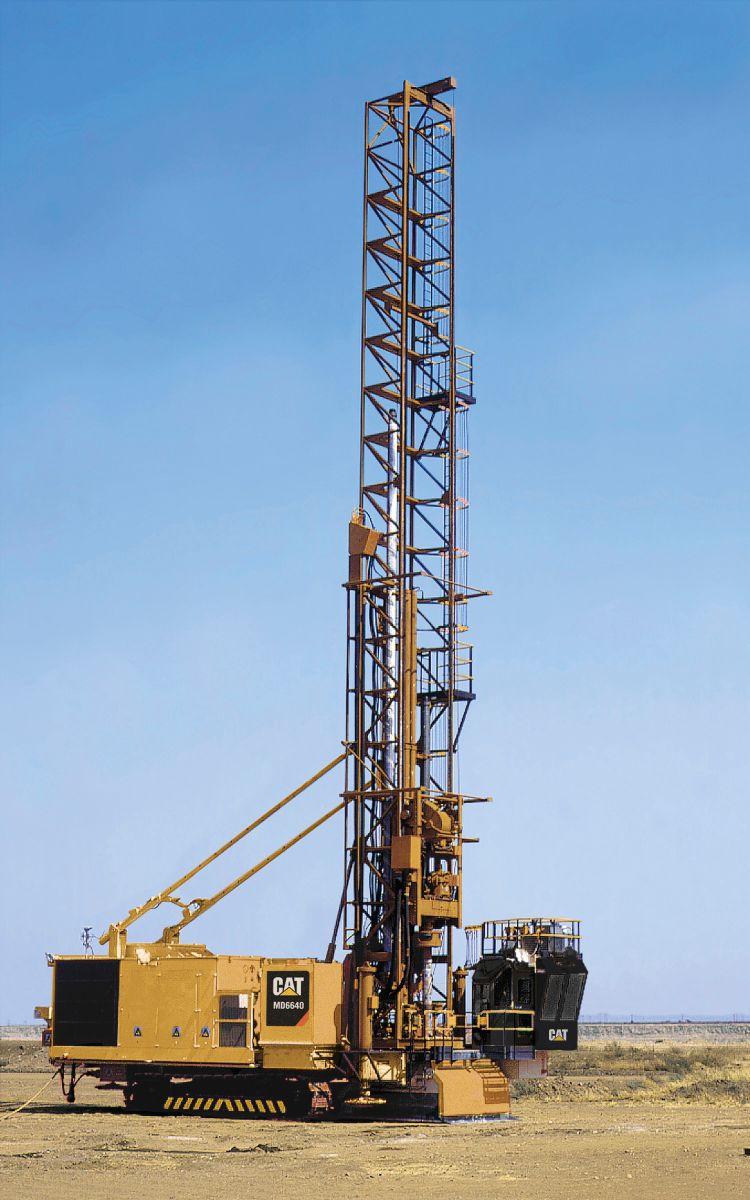

Designed for longevity and easy access to components, the MD6640 is favored by drillers for dependability and serviceability. Adding to its productivity are smart features such as a simple hydraulics system, reliable electrical in all weather conditions, quick pipe changes, and angle hole drilling to 25° in 5° increments. Efficient and comfortable cab is designed for maximum operator productivity. Additionally, vibration and noise are minimized by the use of proven programmed drill control option with the cushioned centralizer and shock sub.

Specifications

Bit Load
up to 64 000 kg (up to 141,096 lb)
Hole Diameter
244 - 406 mm (9.6 - 16 in)
Engine
AC Induction Motor - Dual Shaft 522-746 kW (600 hp)
Multi-Pass Hole Depth
Up to 85.3 m (280 ft)
Single Pass Hole Depth
18.3 - 21.3 m (60 - 70 ft)
Working Weight
339512.00 lb
154000.00 null
Bit Load
up to 64 000 kg (up to 141,096 lb)
Features

Machine Service & Support

Customized Training

Safety

Sales Features

Machine Service & Support

Caterpillar factory-trained service engineers are available throughout the world to provide our customers with the support necessary for meeting their production requirements.

Customized Training

Caterpillar provides customized on-site and/or classroom training for rotary drill operators and mine operation supervisors with the goal of developing internal training competency for the customer. The comprehensive training package is designed in module form to target key production issues specific to a given customer’s operation.

Safety

Our goal is to provide a safe workplace while producing products that exceed the needs of our customers and shareholders. As a responsible corporate citizen, we commit to the safe manufacture, installation and operation of our products.
