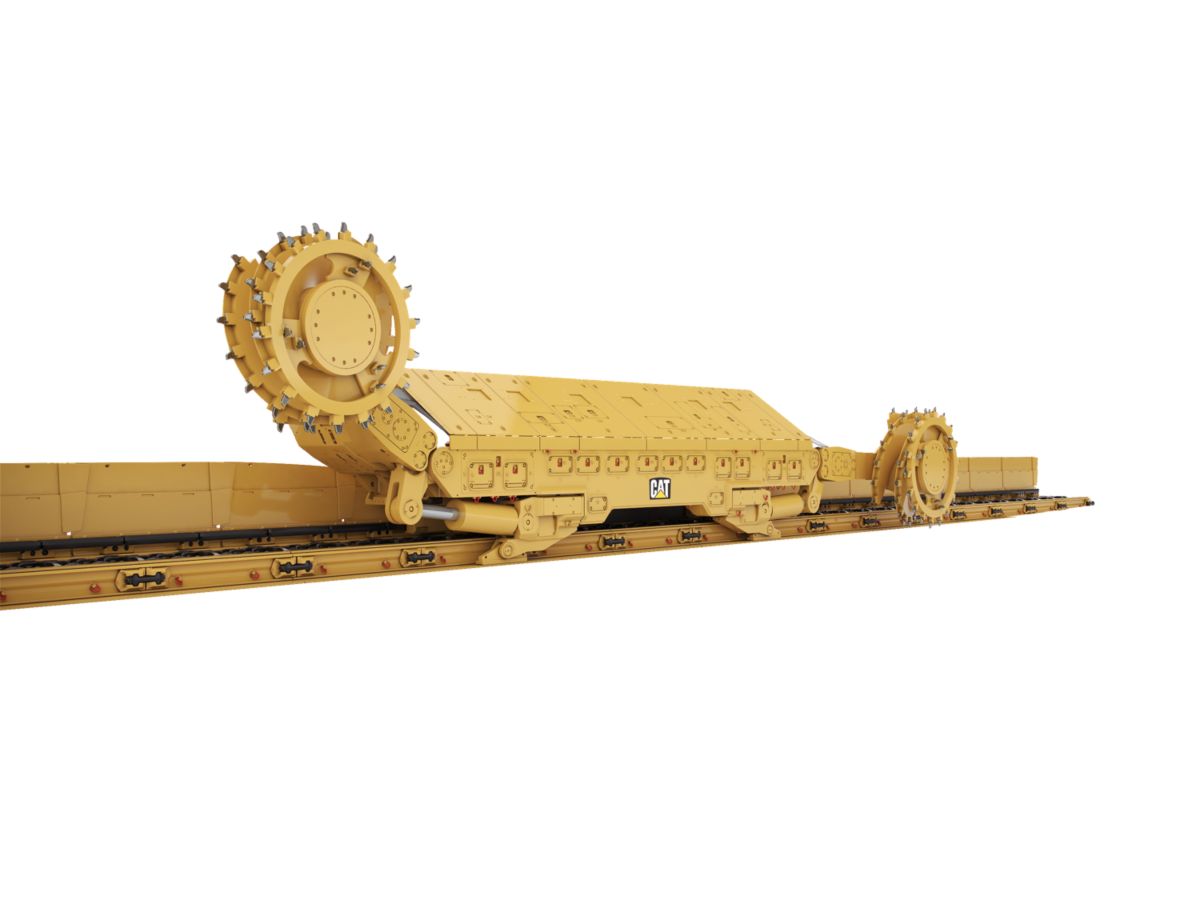

Overview

Specifications

Typical Machine Length
49.90 ft
15.20 m
Installed Power
3078.00 mm H2O
2295.00 kg/mm
Haulage System
AC

Mining Height

Seam Range
2.5-5.5 m (98-217 in)

Power

Haulage Power
2 × 150 kW (2 × 200 hp)
Maximum Cutting Power
2 × 860 kW (2 × 1,380 hp @ 60 Hz)
Maximum Installed Power
2295 kW (3,600 hp @ 60 Hz)

EL3000 Specifications

Machine @ 50 Hz - Available Cutting Power: RA750 Arms (1)
2 × 750 kW
Machine @ 50 Hz - Available Cutting Power: RA750 Arms (2)
2 × 620 kW
Machine @ 50 Hz - Available Cutting Power: RA860 Arms (1)
2 × 860 kW
Machine @ 50 Hz - Available Cutting Power: RA860 Arms (2)
2 × 750 kW
Machine @ 50 Hz - Body Height
685 mm
Machine @ 50 Hz - Coal Sizer
200 kW
Machine @ 50 Hz - Cutting Drum Diameter: RA750
Up to 2500 mm
Machine @ 50 Hz - Cutting Drum Diameter: RA860
Up to 2750 mm
Machine @ 50 Hz - Cutting Drum Speed: RA750
32.8, 37.4 and 45.2 rpm
Machine @ 50 Hz - Cutting Drum Speed: RA860
30.8, 35 and 43 rpm
Machine @ 50 Hz - Haulage Motor
2 × 150 kW
Machine @ 50 Hz - Haulage Pull
Up to 1075 kN
Machine @ 50 Hz - Haulage Speed
Up to 31.1 m/min
Machine @ 50 Hz - Haulage System
AC inverter drive
Machine @ 50 Hz - Installed Power
Up to 2295 kW
Machine @ 50 Hz - Machine Weight (approximate)
105 tonnes
Machine @ 50 Hz - Minimum Pan Width
1132 mm
Machine @ 50 Hz - Operating Voltage
3,300V
Machine @ 50 Hz - Pump Motor
75 kW
Machine @ 50 Hz - Seam Range
2.5-5.5 m
Machine @ 50 Hz - Typical Machine Length (drum centers)
15 200 mm
Machine @ 60 Hz - Available Cutting Power: RA750 Arms (1)
2 × 1,200 hp
Machine @ 60 Hz - Available Cutting Power: RA750 Arms (2)
2 × 1,000 hp
Machine @ 60 Hz - Available Cutting Power: RA860 Arms (1)
2 × 1,380 hp
Machine @ 60 Hz - Available Cutting Power: RA860 Arms (2)
2 × 1,200 hp
Machine @ 60 Hz - Body Height
27 in
Machine @ 60 Hz - Coal Sizer
320 hp
Machine @ 60 Hz - Cutting Drum Diameter: RA750
Up to 98 in
Machine @ 60 Hz - Cutting Drum Diameter: RA860
Up to 108 in
Machine @ 60 Hz - Cutting Drum Speed: RA750
39.4, 44.9 and 54.3 rpm
Machine @ 60 Hz - Cutting Drum Speed: RA860
37, 42 and 51.6 rpm
Machine @ 60 Hz - Haulage Motor
2 × 240 hp
Machine @ 60 Hz - Haulage Pull
Up to 123 tons
Machine @ 60 Hz - Haulage Speed
Up to 98.7 ft/min
Machine @ 60 Hz - Haulage System
AC inverter drive
Machine @ 60 Hz - Installed Power
Up to 3,680 hp
Machine @ 60 Hz - Machine Weight (approximate)
116 tons
Machine @ 60 Hz - Minimum Pan Width
44.6 in
Machine @ 60 Hz - Operating Voltage
4,160V
Machine @ 60 Hz - Pump Motor
120 hp
Machine @ 60 Hz - Seam Range
98-217 in
Machine @ 60 Hz - Typical Machine Length (drum centers)
49.9 ft

Specifications

Height Range
2.50-5.50 m (98-217 in)
Available Cutting Power
2 × 650 kW (2 × 872 hp); 2 × 750 kW (2 ×1,006 hp); 2 × 860 kW (2 × 1,153 hp)
Cutting Drum Diameter
Up to 2.70 m (Up to 106 in)
Available Haulage Motors
2 × 150 kW (2 × 201 hp)
Haulage Speed
Up to 32 m/min (Up to 105 ft/min)
Haulage Pull
Up to 1075 kN/241,670 lbf (Up to 109 tonnes/120 tons)
Coal Sizer
268.00 hp
200.00 kW
Pump Motor
101.00 hp
75.00 kW
Machine Weight – Approximate
116.00 tons
105.00 tonnes
Body Height
27.00 in
685.00 mm
Operating Voltages
3300V, 4160V
Applicable Minimum Pan Width
44.60 in
1132.00 mm

Mining Height

Seam Range
2.5-5.5 m (98-217 in)

Power

Maximum Installed Power
2295 kW (3,600 hp @ 60 Hz)

Specifications

Applicable Minimum Pan Width
44.60 in
1132.00 mm
Available Cutting Power
2 × 650 kW (2 × 872 hp); 2 × 750 kW (2 ×1,006 hp); 2 × 860 kW (2 × 1,153 hp)
Available Haulage Motors
2 × 150 kW (2 × 201 hp)
Body Height
27.00 in
685.00 mm
Coal Sizer
268.00 mm H2O
200.00 kg/mm
Cutting Drum Diameter
Up to 2.70 m (Up to 106 in)
Haulage Pull
Up to 1075 kN/241,670 lbf (Up to 109 tonnes/120 tons)
Haulage Speed
Up to 32 m/min (Up to 105 ft/min)
Height Range
2.50-5.50 m (98-217 in)
Machine Weight - Approximate
116.00 ton (US)
105.00 ton (US)
Operating Voltage
3300V, 4160V
Pump Motor
101.00 mm H2O
75.00 kg/mm
Features

Taking the Shearer to the Next Level

Taking the Shearer to the Next Level

Taking the Shearer to the Next Level

Taking the Shearer to the Next Level

Machine Mainframe

Machine Mainframe

Machine Mainframe

Machine Mainframe

Machine Mainframe

Ranging Arms

Ranging Arms

Ranging Arms

Haulage System

Haulage System

Haulage System

Haulage System

Downdrive System

Tested for Reliability

Tested for Reliability

Tested for Reliability

Tested for Reliability

Tested for Reliability

Shearer Automation

Shearer Automation

Shearer Automation

Shearer Automation

Shearer Automation

Shearer Automation

Shearer Automation

Shearer Automation

Condition Monitoring

Condition Monitoring

Modular Control

Modular Control

Modular Control

Modular Control

Modular Control

Modular Control

Modular Control

The Cat Shearer Product Line

The Cat Shearer Product Line

The Cat Shearer Product Line

Sales Features

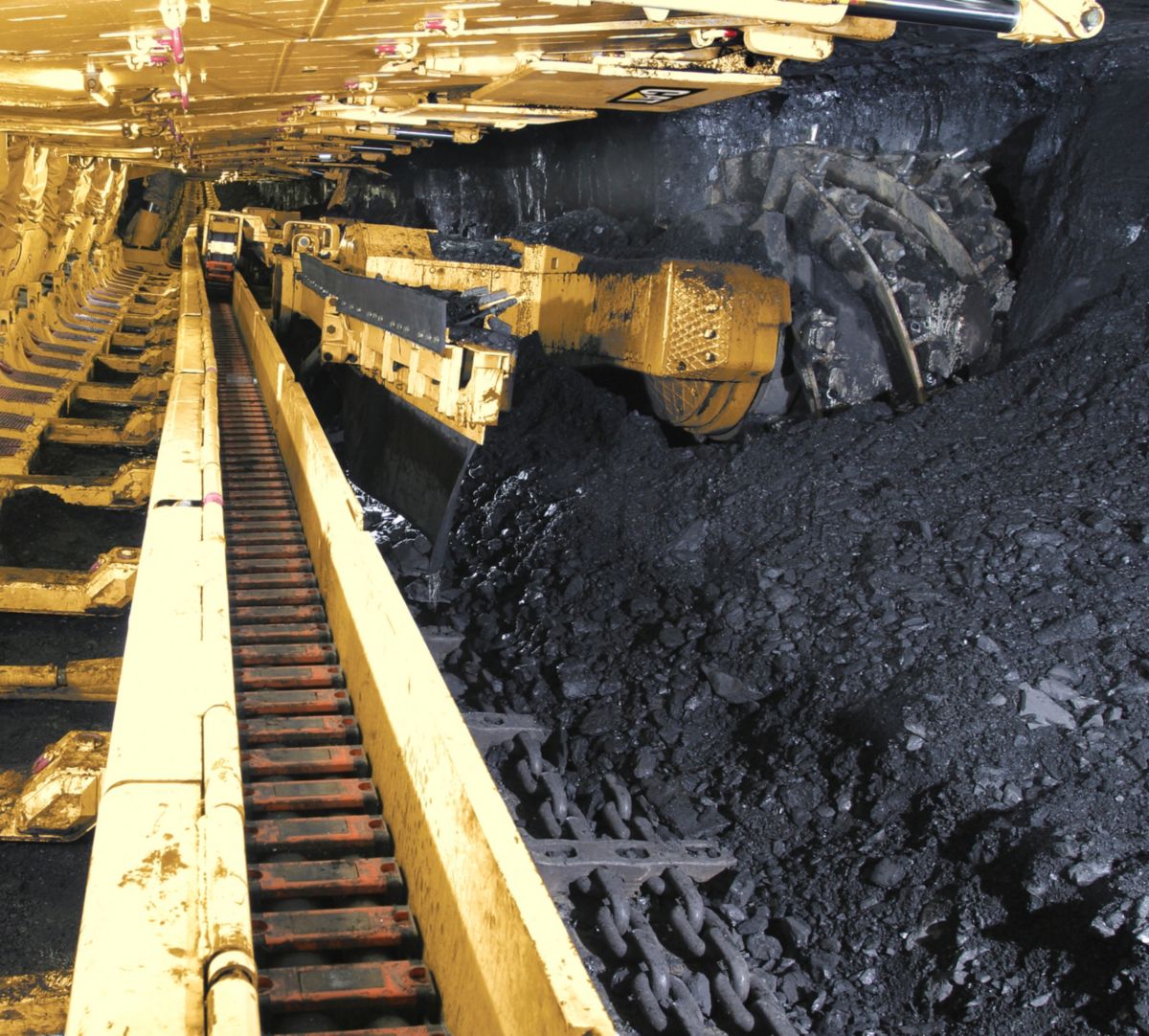

Taking the Shearer to the Next Level

Designed for High-performance Mining

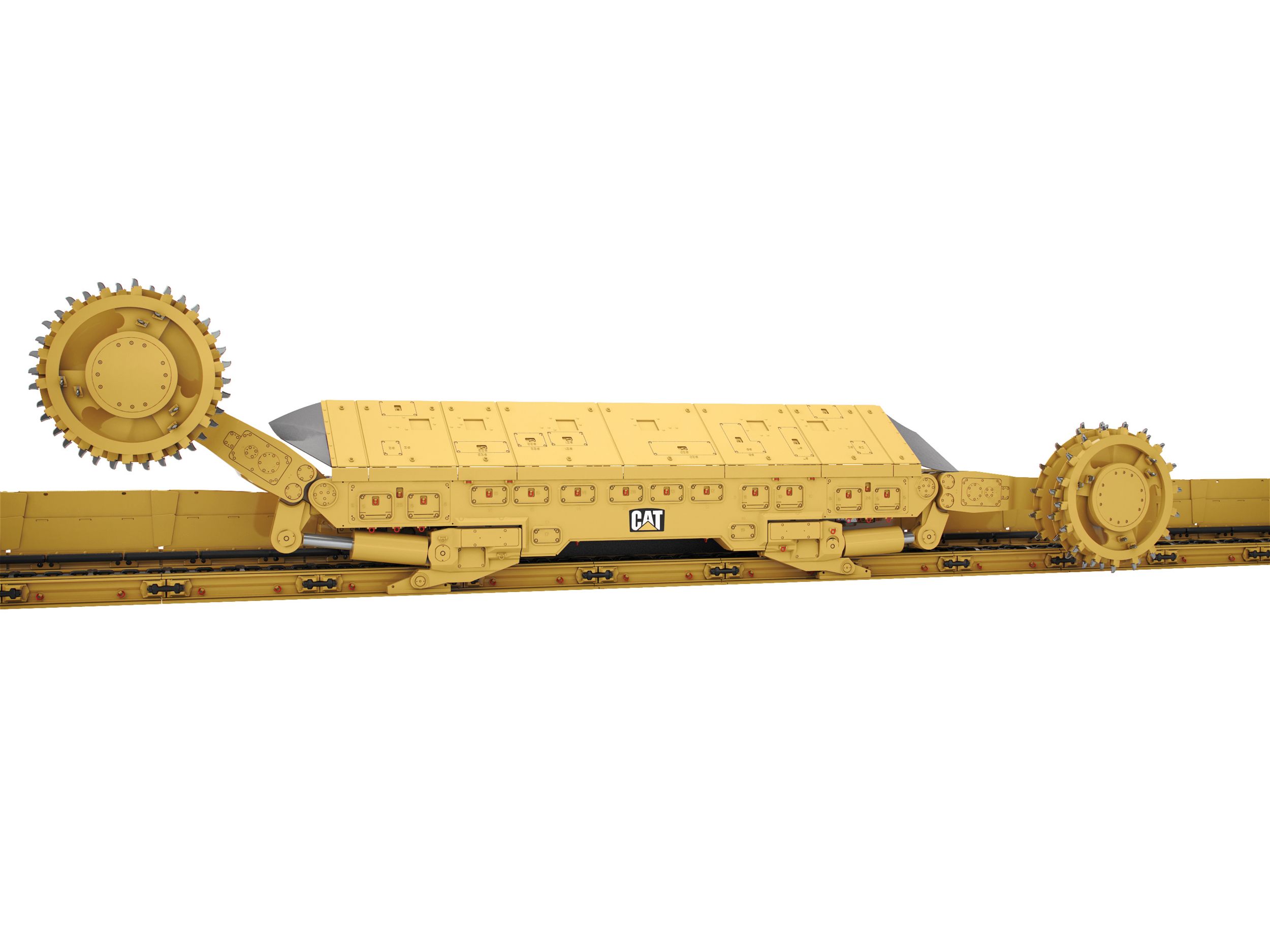

Machine Mainframe

Made for Muscle

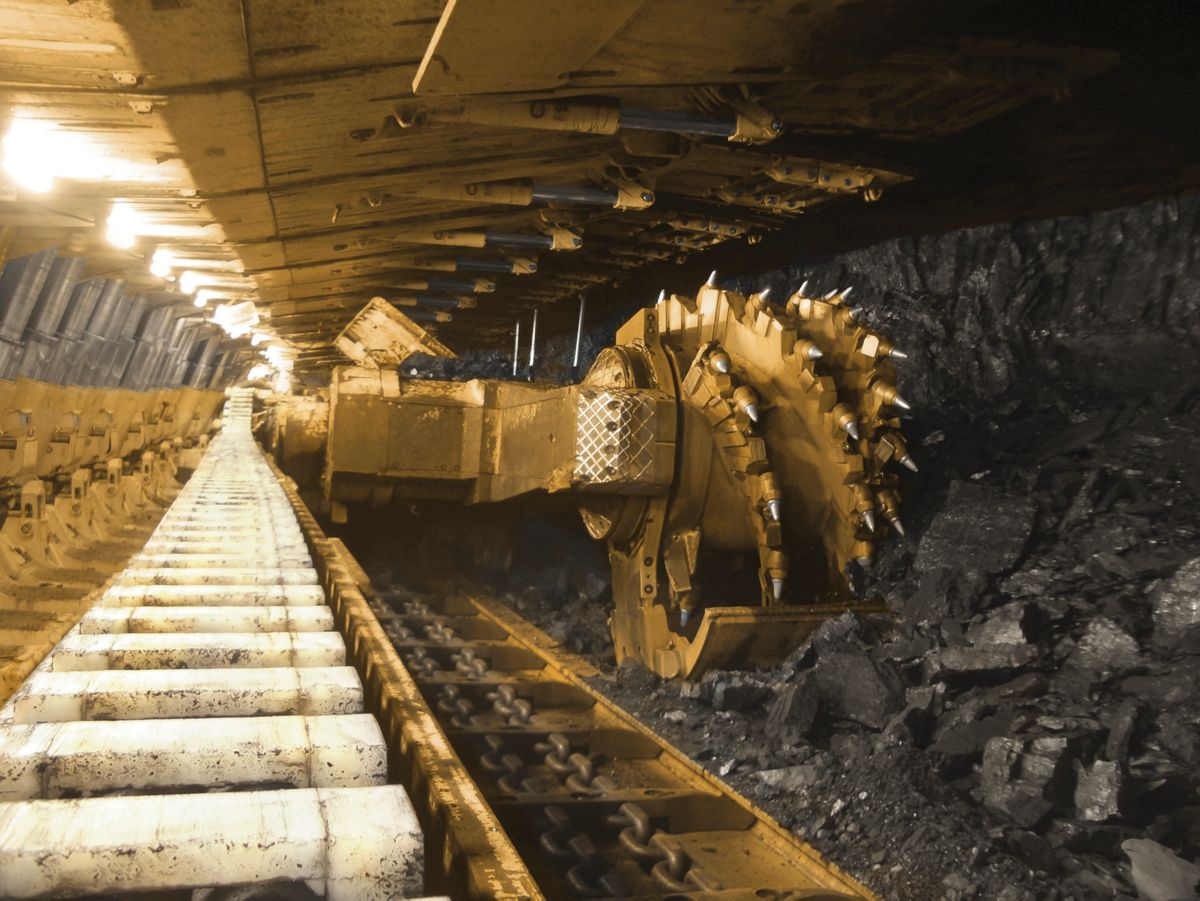

Ranging Arms

Power for the Toughest Conditions

Haulage System

Simple Design for Improved Reliability

Downdrive System

Innovative and Fully Modular

Tested for Reliability

Stringent Testing Assures Highest Quality

Shearer Automation

Unparalleled Control

Condition Monitoring

Maximum Protection for Machine Components

Modular Control

Offering Flexibility and Power

The Cat Shearer Product Line

Covering Various Seam Heights
Standard Equipment
  • Gate End Data Connection
    • Powerline
    • WLAN
Optional Equipment
  • Coal Sizer
    • 100 kW (134 hp)
    • 200 kW (268 hp)
  • Gate End Data Connection
    • Fibre Optics
