Overview

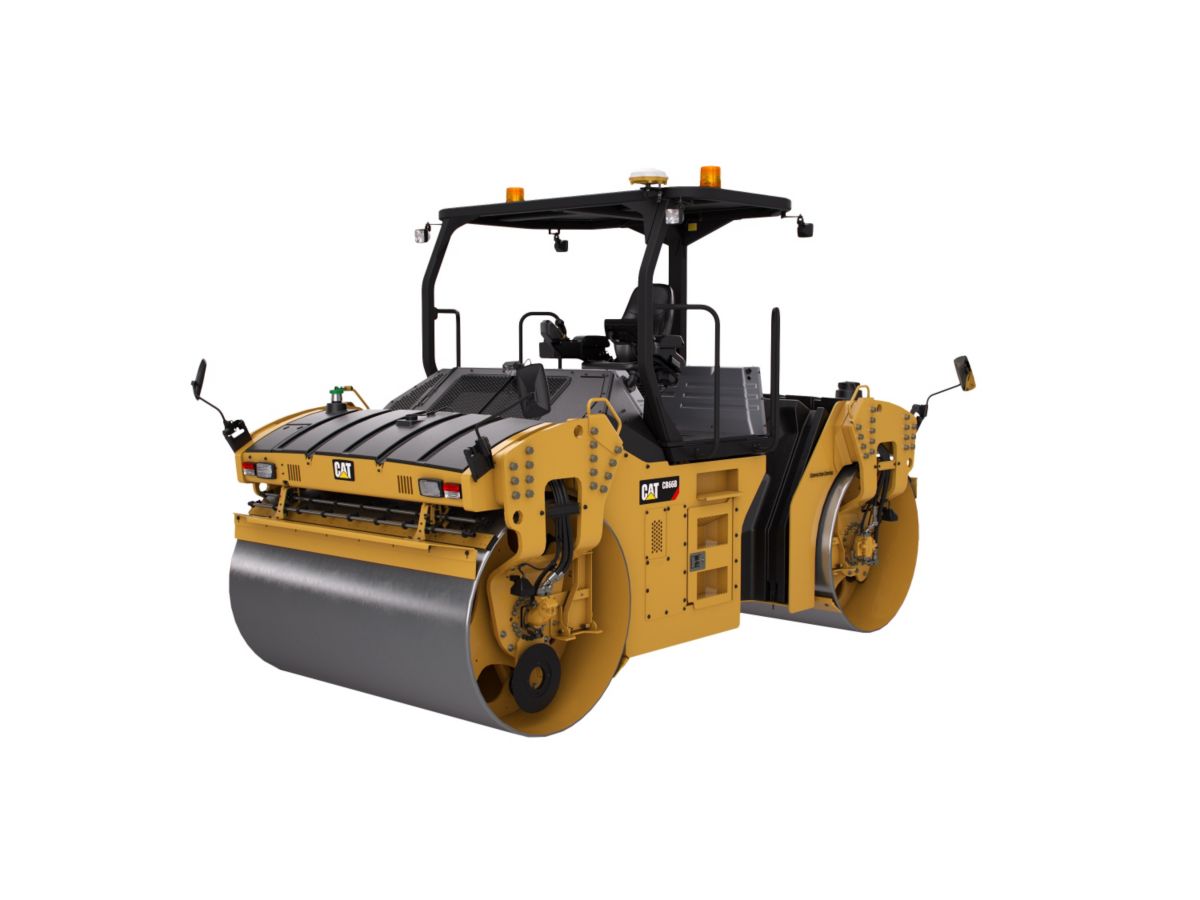

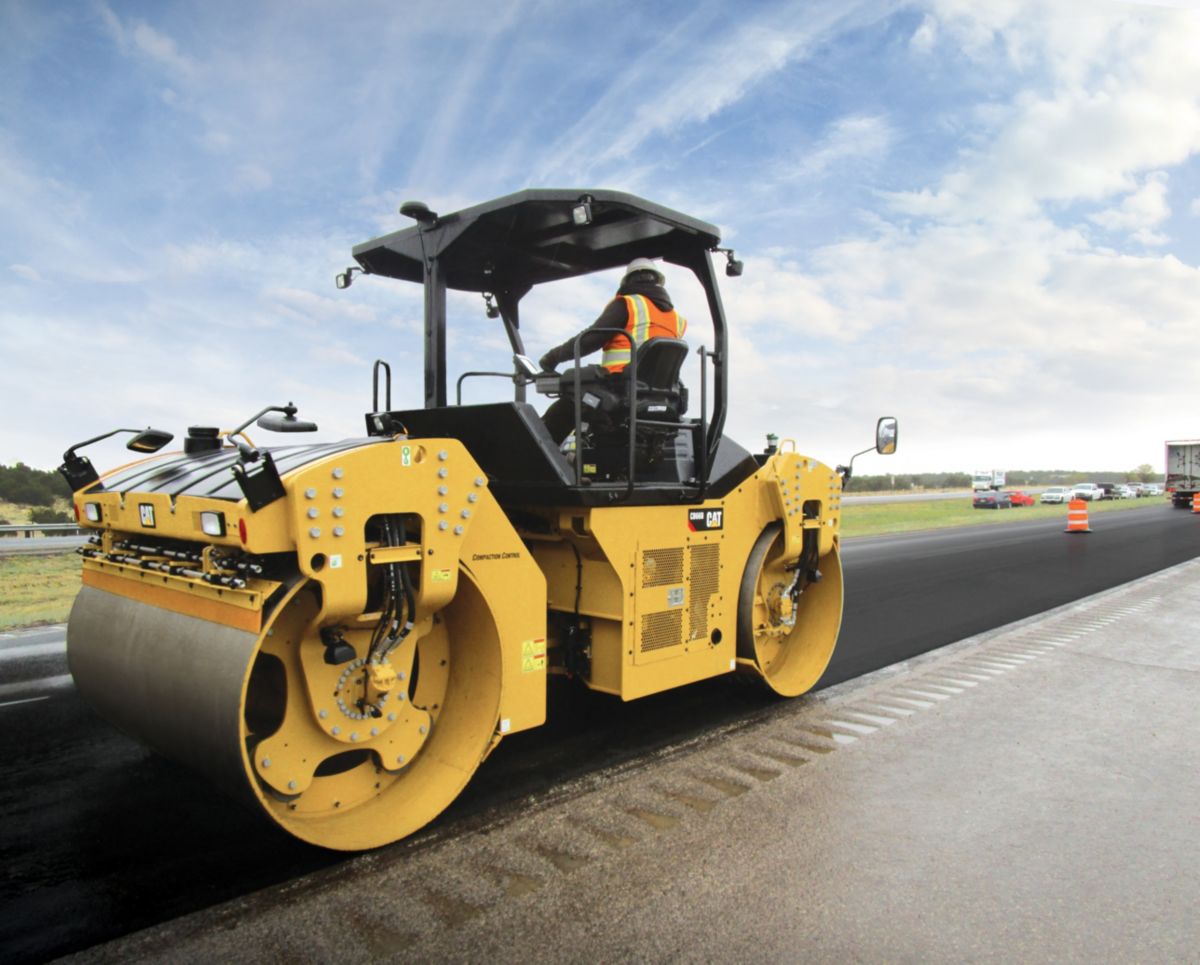

The CB66B is a 13 metric ton vibratory compactor equipped with 2130 mm (84”) drums. This high production model delivers excellent mat density, good visibility and comfort, fuel efficiency with Eco-mode, and an industry leading water spray system. This model can be equipped with Cat Compaction Control that provides temperature mapping and pass-count mapping as well as "Machine to Machine" communication for more efficient performance.

Weights

Standard - Operating Weight
29057.00 lb
13180.00 kg
Maximum Operating Weight
32354.00 lb
14780.00 kg
Static Linear Load
171.00 lb/in
30.50 kg/cm

Operating Specifications

Standard Compaction Width
84.00 in
2130.00 mm
Drum Offset
6.00 in
170.00 mm
Maximum Compaction Width
92.00 in
2337.00 mm
Curb Clearance
28.00 in
723.00 mm
Ground Clearance
10.00 in
268.00 mm

Engine

Engine Model
Cat C4.4 with ACERT Technology
Gross Power
142.00 hp
106.00 kW

Travel Speed

Low
4.50 mph
7.00 km/h

Travel Speeds

Low
4.50 mile/h
7.00 km/h

Service Refill Capacities

Fuel Tank Capacity
66.00 gal
250.00 L
Water Spray Tank Capacity
264.00 gal (US)
1000.00 l

Vibratory System

Maximum Frequency
3800.00 vpm
63.30 Hz
Minimum Frequency
2520.00 vpm
42.00 Hz
Maximum Amplitude
0.04 in
1.03 mm
Minimum Amplitude
0.01 in
0.26 mm
Centrifugal Force per Drum - Maximum
31069.00 lb
138.20 kN
Centrifugal Force per Drum - Minimum
16950.00 lb
75.40 kN

Dimensions

Overall Length
15.50 ft
4742.00 mm
Wheelbase
11.30 ft
3450.00 mm
Height with ROPS/FOPS
10.00 ft
3068.00 mm
Overall Width
92.00 in
2325.00 mm

Operating Specifications

Drum Offset
6.00 in
170.00 mm

Weights

Maximum Operating Weight
32354.00 lb
14780.00 kg

Operating Specifications

Ground Clearance
10.00 in
268.00 mm
Maximum Compaction Width
92.00 in
2337.00 mm

Travel Speeds

High
8.00 mile/h
13.00 km/h

Engine

Gross Power
142.00 HP
106.00 kW
Engine Model
Cat C4.4 with ACERT Technology

Operating Specifications

Standard Compaction Width
84.00 in
2130.00 mm

Dimensions

Overall Length
15.50 ft
4742.00 mm
Wheel Base
11.30 ft
3450.00 mm
Height - With ROPS/FOPS
10.00 ft
3068.00 mm
Overall Width
92.00 in
2325.00 mm
Drum Width
84.00 in
2130.00 mm

Vibratory System

Maximum Frequency
3800.00 V/m
63.30 Hz
Minimum Frequency
2520.00 V/m
42.00 Hz

Service Refill Capacities

Fuel Tank Capacity
66.00 gal (US)
250.00 l
Features

Exceptional Visibility and Control

Vibratory System Choices

Cat Compaction Control

Smooth Operating Powertrain

Sales Features

Exceptional Visibility and Control

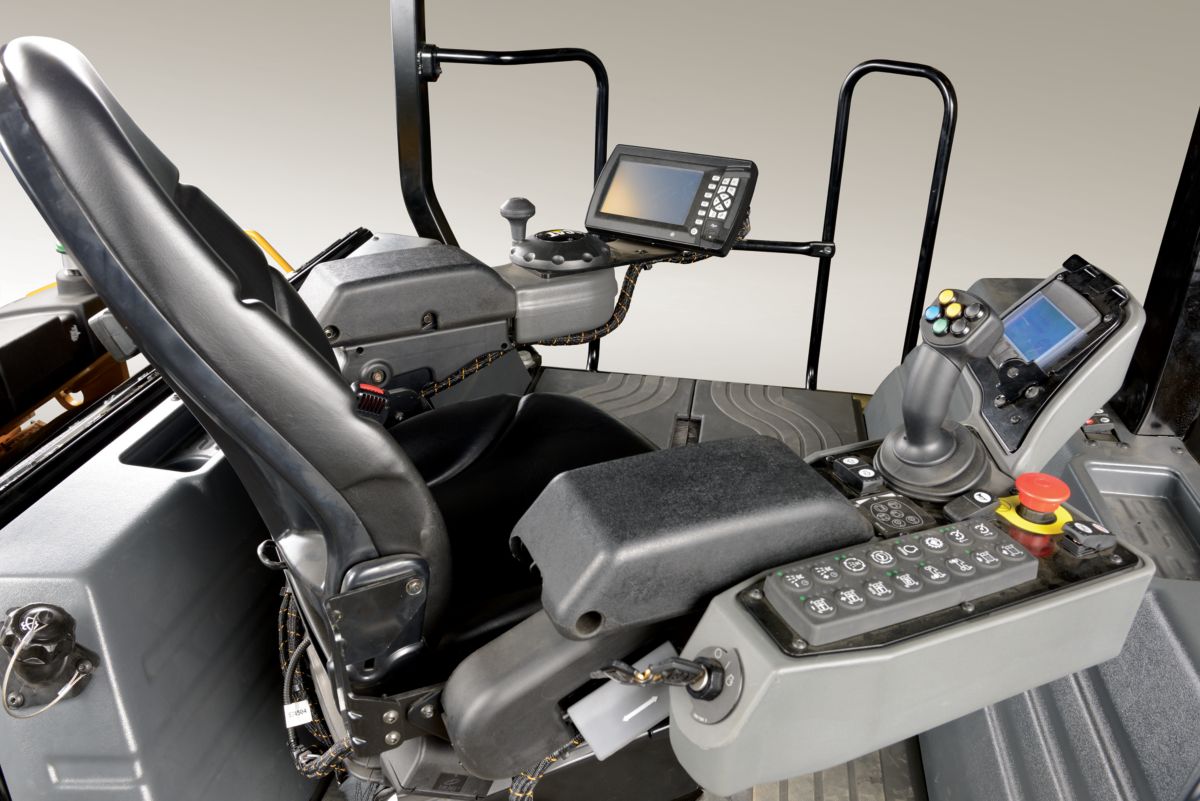

The B-Series Tandem Vibratory Rollers offer unobstructed sight lines with standard 180° seat positioning for excellent all-around visibility. Also, drum edge and drum surface lighting provide better lighting for nighttime operation. The innovative handwheel steering technology eliminates the front console that is commonly found on other machines for precise machine control.

Vibratory System Choices

Cat Tandem Vibratory Rollers quickly reach target densities due to their versatile frequency and amplitude selections. These powerful rollers provide finesse when necessary due to their flexible front or rear drum only vibratory capability. This machine offers vibratory choices to match your amplitude and frequency requirements. It performs particularly well in high-production applications. It provides high amplitudes for breakdown and intermediate work, while its high static linear load delivers excellent results for finishing work.

Cat Compaction Control

The optional Cat Compaction Control helps contractors increase efficiency and productivity while recording data for quality control documentation and future planning.

Smooth Operating Powertrain

The B-Series tandem rollers are powered by Cat engines with ACERT™ Technology. The engine includes a variety of features that help reduce fuel burn, including Eco-mode, yet still deliver the power required on challenging jobsites. Tough components help extend compactor life.
Optional Equipment
  • Air Conditioning
  • Air Suspension Seat w/heat
  • Bio-Degradeable Oil
  • Cat Compaction Control
  • Edge Cutter
  • Freeze Protection Kit
  • High Intensity Discharge Lights
  • Mirrors
  • Offset Hitch
  • Product Link
  • Roading Lights
  • Recording Module - cab only
  • ROPS/FOPS Cab
  • Temperature Indicator
  • Versa Vibe™ Vibratory System
  • Warning Beacon
  • Water Distribution Mats
