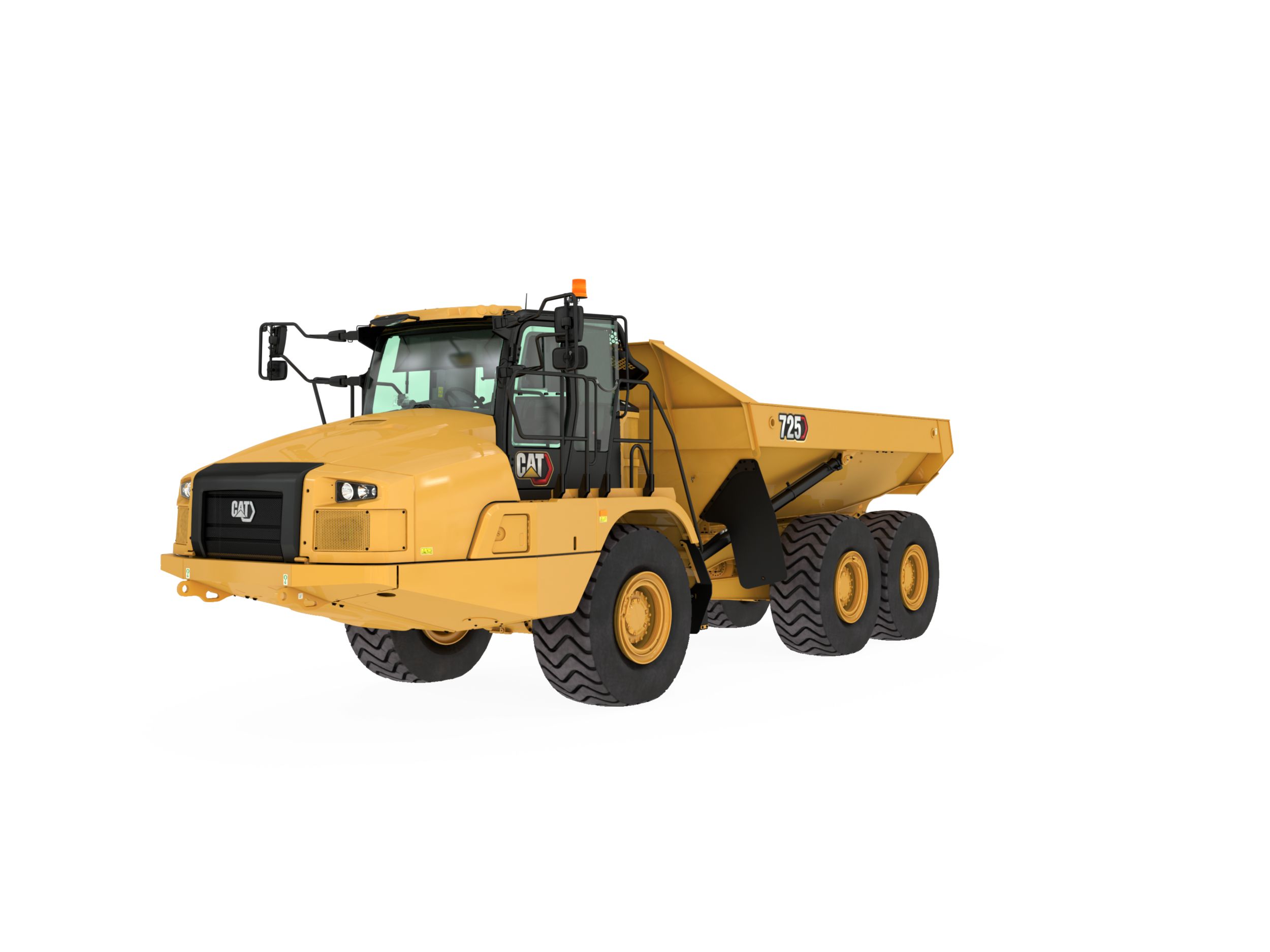

725 Articulated Truck MRG

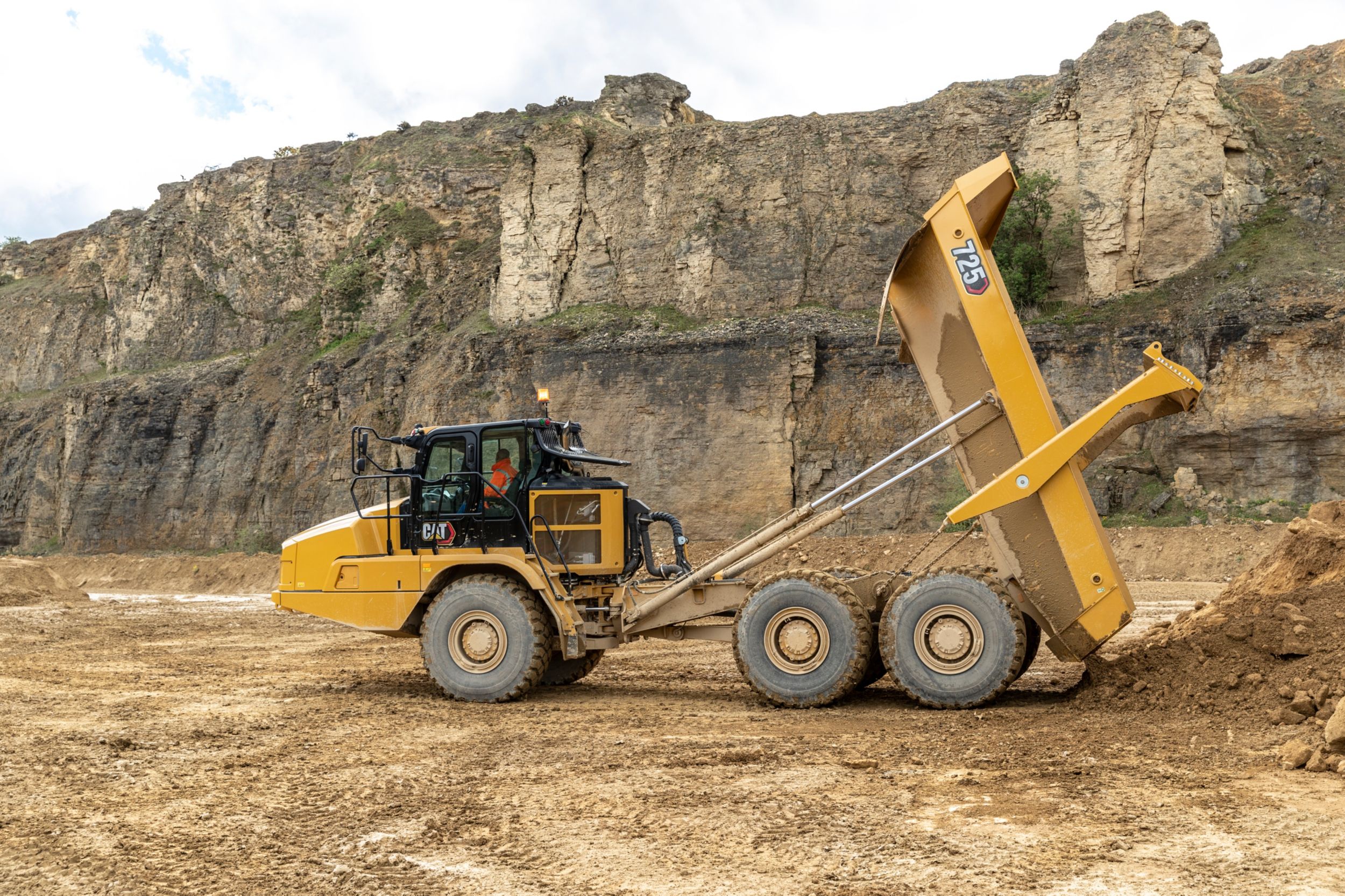

725 Articulated Truck Assisted Hoist

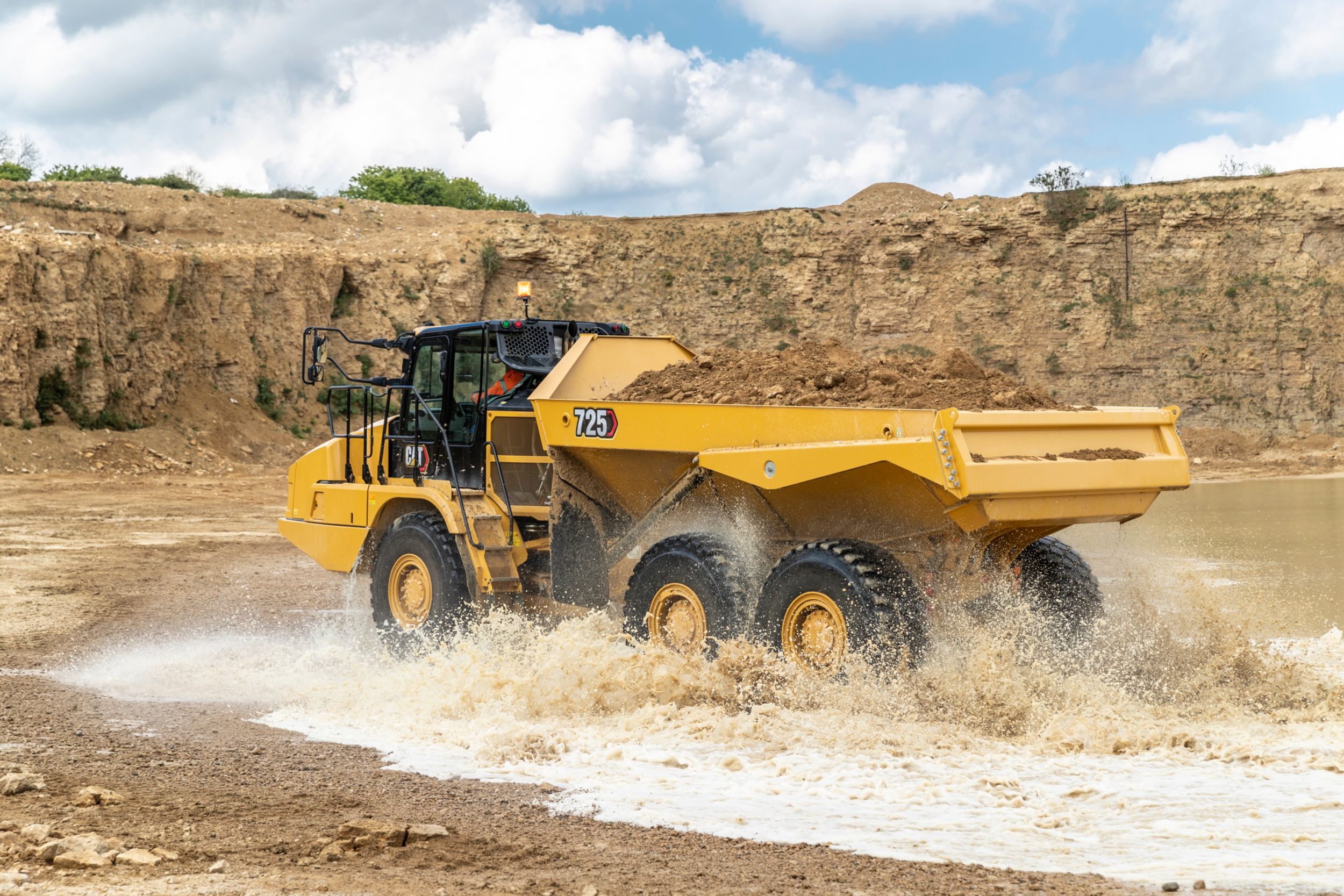

725 Dump Truck Driving through Mud

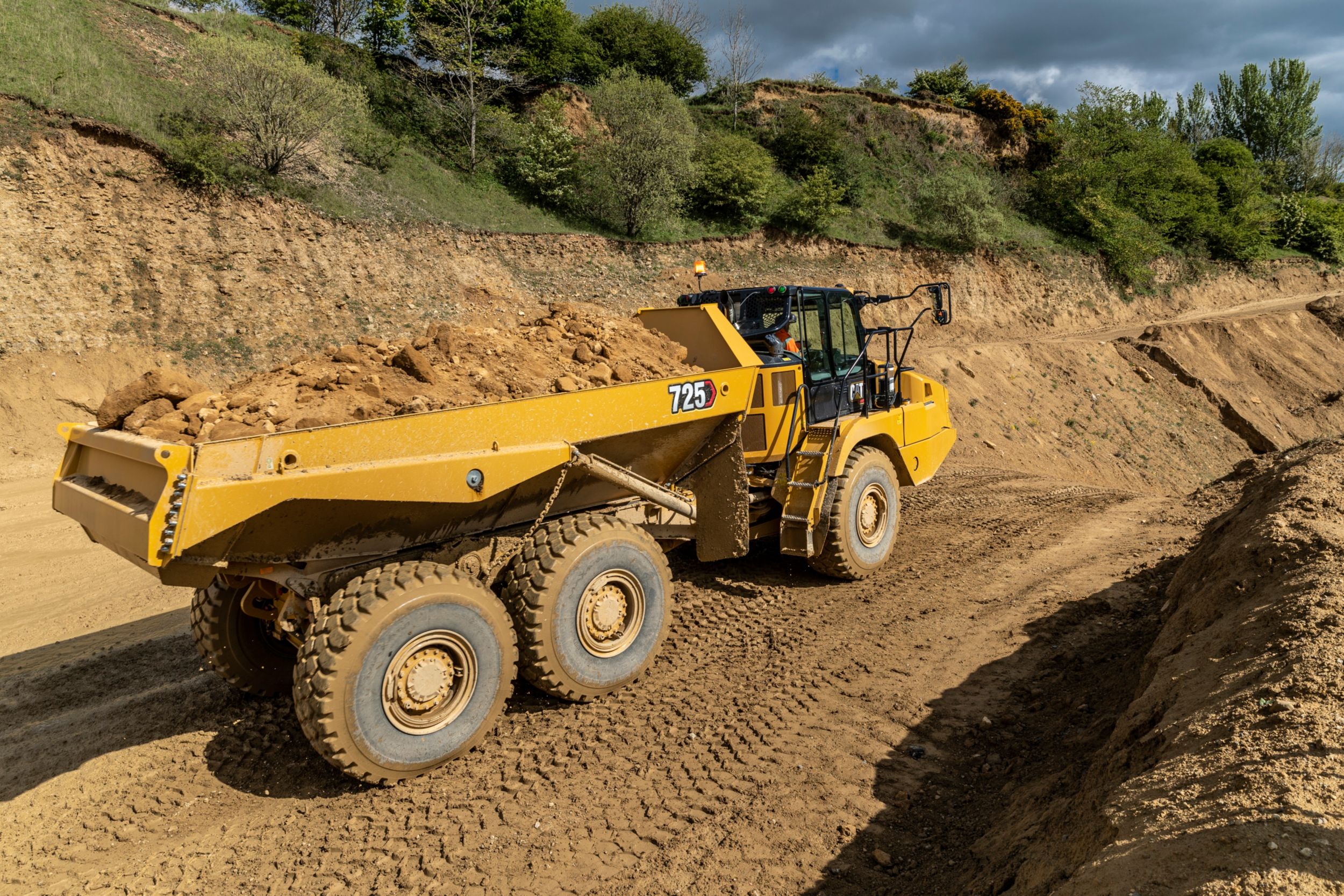

725 Articulated Truck Hauling Dirt

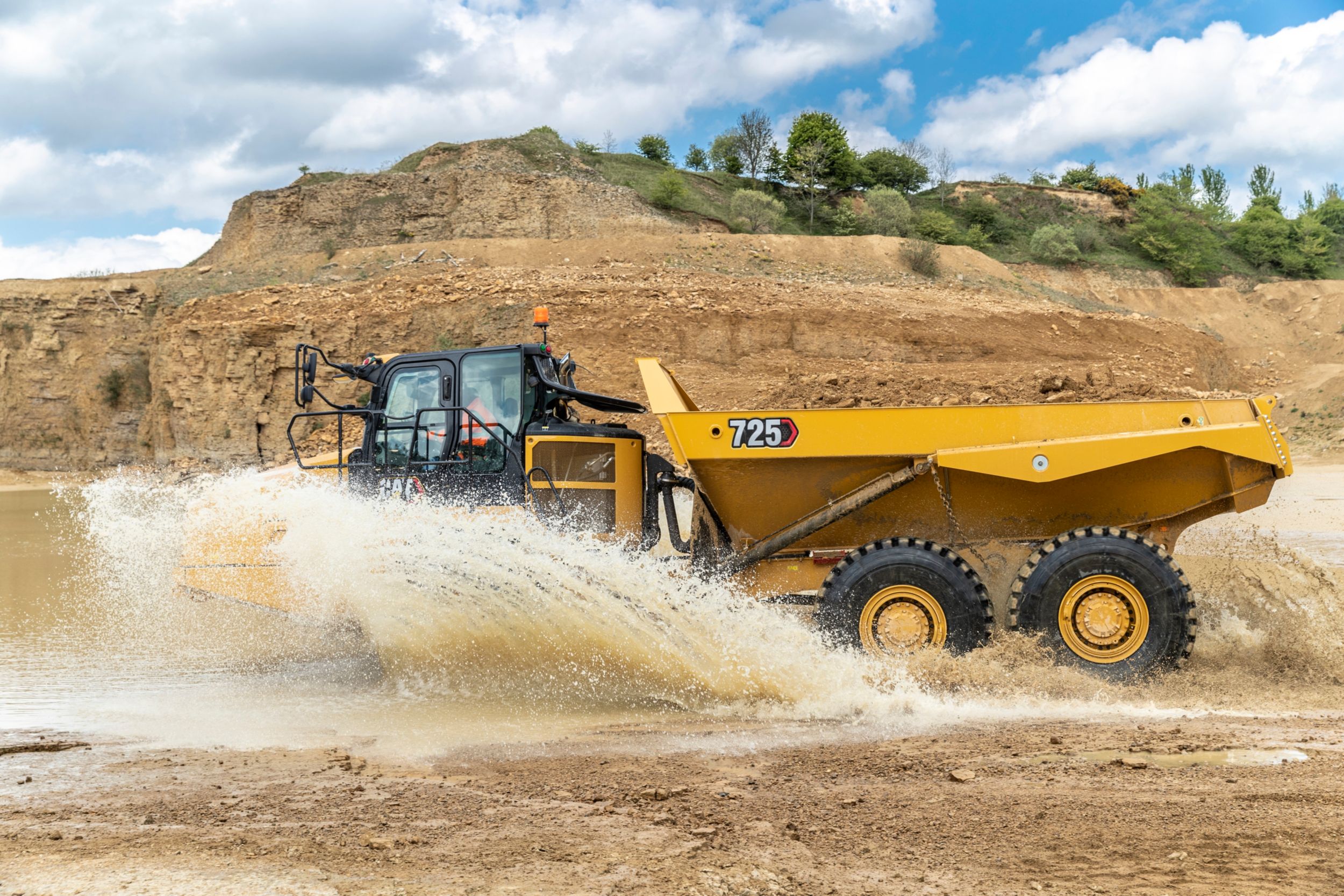

725 Dump Truck Splashing through Water
US
Metric

Overview

The Cat® 725 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, automatic retarder control, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Engine

Engine Model
Cat® C9.3
Bore
4.50 in
115.00 mm
Stroke
45.20 in
1149.00 mm
Displacement
567.50 in³
9.30 l
Peak Engine Torque Gross (SAE J1995)
1275.00 lbf·ft
1729.00 N·m
Gross Power - SAE J1995:2014
342.00 hp
255.00 kW
Net Power - ISO 14396
338.00 hp
252.00 kW
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV
Cat® C9.3
No Engine De-rating Below
3000.00 ft
914.00 m
Peak Engine Torque Net (SAE J1349)
1263.00 lbf·ft
1712.00 N·m
Net Power - SAE J1349:2011
334.00 hp
249.00 kW
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min

Weights

Rated Payload
26.50 ton (US)
24.00 t

Body Capacities

Heaped (SAE 2:1)
19.60 yd³
15.00 m³
Struck
14.40 yd³
11.00 m³
Tailgate Heaped SAE 2:1
20.40 yd³
15.60 m³
Tailgate Struck
14.50 yd³
11.10 m³

Transmission

Forward - 1
5.00 mile/h
8.10 km/h
Forward - 2
9.40 mile/h
15.20 km/h
Forward - 3
14.40 mile/h
23.20 km/h
Forward - 4
22.10 mile/h
35.50 km/h
Forward - 5
30.70 mile/h
49.40 km/h
Forward - 6
36.30 mile/h
58.40 km/h
Reverse - 1
5.50 mile/h
8.90 km/h

Operating Weights

Total - Loaded
103886.00 lb
47122.00 kg
Rear Axle - Rated Load
23699.00 lb
10750.00 kg
Total - Empty
50975.00 lb
23122.00 kg
Total - Rated Load
52910.00 lb
24000.00 kg
Center Axle - Loaded
33944.00 lb
15397.00 kg
Front Axle - Rated Load
5511.00 lb
2500.00 kg
Center Axle - Rated Load
23699.00 lb
10750.00 kg
Center Axle - Empty
10242.00 lb
4646.00 kg
Rear Axle - Loaded
33457.00 lb
15176.00 kg
Front Axle - Loaded
36484.00 lb
16549.00 kg
Rear Axle - Empty
9757.00 lb
4426.00 kg
Front Axle - Empty
30974.00 lb
14050.00 kg

Body Plate Thickness

Side Plates
0.43 in
11.00 mm
Front Plate
0.28 in
7.00 mm

Service Refill Capacities

Fuel Tank
91.00 gal (US)
412.00 l
Cooling System
18.00 gal (US)
83.00 l
Hydraulic System
29.10 gal (US)
110.00 l
Engine Crankcase
8.00 gal (US)
38.00 l
Transmission
10.00 gal (US)
47.00 l
Final Drives/Differential
33.00 gal (US)
125.00 l
Output Transfer Gear Box
5.00 gal (US)
24.00 l
DEF Tank
4.00 gal (US)
20.00 l

Body Hoist

Raise Time
10.00 s
10.00 s
Lower Time
8.00 s
8.00 s

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 - 2005 Level II
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2019

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - Inside Radius
153.00 in
3879.00 mm
Turning Dimensions - Aisle Width
210.00 in
5332.00 mm
Turning Dimensions - SAE Turning Radius
294.00 in
7470.00 mm
Turning Dimensions - Clearance Radius
318.00 in
8075.00 mm
Turning Dimensions - Steer Angle - Left/Right
45°
Note
Dimensions are for machines equipped with 23.5R25 tires.

Optimal Loader/Truck Pass Matching

Wheel Loader: 950M - Passes
5
Wheel Loader: 962M - Passes
4-5
Wheel Loaders: 966M/966M XE - Passes
4
Hydraulic Excavators: 336F/336F XE - Passes
5-6
Wheel Loaders: 972M/972M XE - Passes
3-4
Hydraulic Excavators: 349F/349F XE - Passes
4-5

Engine

Note (1)
Advertised power is tested at 1,700 rpm.
Emissions
The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (2)
Advertised power is tested per the specified standard in effect at the time of manufacture.

Sound Levels

Note (1)
The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Engine

Note (4)
Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions.

Service Refill Capacities

Final Drive - Each
1.60 gal (US)
7.50 l

Sound Levels

Interior Cab
69.00 dB(A)
69.00 dB(A)

Body Plate Thickness

Base Plate
0.51 in
13.00 mm

Service Refill Capacities

Steering/Hoist Hydraulic System
24.00 gal (US)
110.00 l

Engine

Gross Power (SAE J1995)
342.00 hp
255.00 kW
Net Power (SAE J1349)
334.00 hp
249.00 kW
Engine Power (ISO 14396)
338.00 hp
252.00 kW
Note (5)
Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.
Note (6)
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Air Conditioning System

Air Conditioning
If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO 2 equivalent of 1.716 metric tonnes (1.891 tons).

Body Plate Thickness

Scow
0.51 in
13.00 mm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349/352 - Passes
4-5
Hydraulic Excavators: 336 - Passes
5-6
Wheel Loaders: 972/972 XE - Passes
3-4
Wheel Loaders: 966/966 XE - Passes
4
Wheel Loader: 962 - Passes
4-5
Wheel Loader: 950 - Passes
5
Note
An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Features

MAXIMIZE PERFORMANCE

INDUSTRIAL GRADE TRANSMISSION

AUTOMATIC CONTROLS

POWERFUL EFFICIENCY

WORK IN COMFORT

BUILT TO PERFORM

HEAVY DUTY CONSTRUCTION

TECHNOLOGY THAT GETS WORK DONE

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Air conditioning
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
    • Windows opening both sides, tinted
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind operator seat storage
      – Coat hook
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Seats:
      – Operator: fully adjustable, air suspension
      – Trainer: padded with lap belt
    • Tilt and telescopic steering wheel
    • Retractable belt: Operator seat and second seat
    • Adjustable air vents
    • Heater and defroster with four-speed fan
    • Sun visor
    • Touchscreen display incorporating the rearview camera video feed
    • Windshield wiper and washer, two speed, intermittent (front)
    • Combined gear selection and hoist control lever
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure warning
      – Seat belt warning
      – Secondary steering failure warning
      – Diesel Particulate Filter (DPF) regeneration filter
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Secondary steering – electro hydraulic
    • Mirrors: exterior
  • TECHNOLOGY
    • Product Link Cellular PLE643
    • Cat® Detect with Stability Assist
  • ELECTRICAL AND LIGHTING
    • Electrical system: 24-volt, 5A 24- to 12-volt converter
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
    • Main disconnect switch
    • Horn
    • Batteries (two) maintenance free
    • Remote starting receptacle (cables not included)
  • POWERTRAIN
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
    • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
    • Cat C9.3 engine
    • Three axle, six-wheel drive
    • Hydraulic retarder
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Auto shift six-speed forward and single speed reverse transmission
  • SAFETY
    • Reverse alarm
    • Rearview camera
    • Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
  • GUARDS
    • Front dump body spill guard, integral part of fabricated body
    • Crankcase
    • Rear window
    • Radiator
  • OTHER STANDARD EQUIPMENT
    • Vandalism protection: lockable caps
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • Sound suppression (standard in some countries*)
      –*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzertland, Türkiye and UK.
    • S·O·S sampling valves
    • Tires, six 23.5R25
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Infrared glass – high ambient cab
    • Mirrors, heated motorized
    • Radio, Bluetooth® stereo system
    • Heated/cooled seat
    • Four-point seat belt
    • Window blinds
    • Windshield wiper and washer, single-speed (rear)
  • TECHNOLOGY
    • Machine Security System (MSS)
    • Cat® Payload
    • Product Link Dual PLE683
  • ELECTRICAL AND LIGHTING
    • Cold weather start attachment
    • Engine block heater
    • Ether start
    • Flashing LED beacon
    • Roof mounted LED work lights
  • OPTIONAL EQUIPMENT
    • Cold weather coolant –51° C (–60° F)
    • Auto lube installation for automatic greasing of bearings
    • Bare chassis (no body) standard wheel base
    • Exhaust heated body
    • Fuel additive – anti-waxing
    • Body liners
    • Fast fuel fill
    • Wheel chocks
    • Scissor tailgate
