Overview

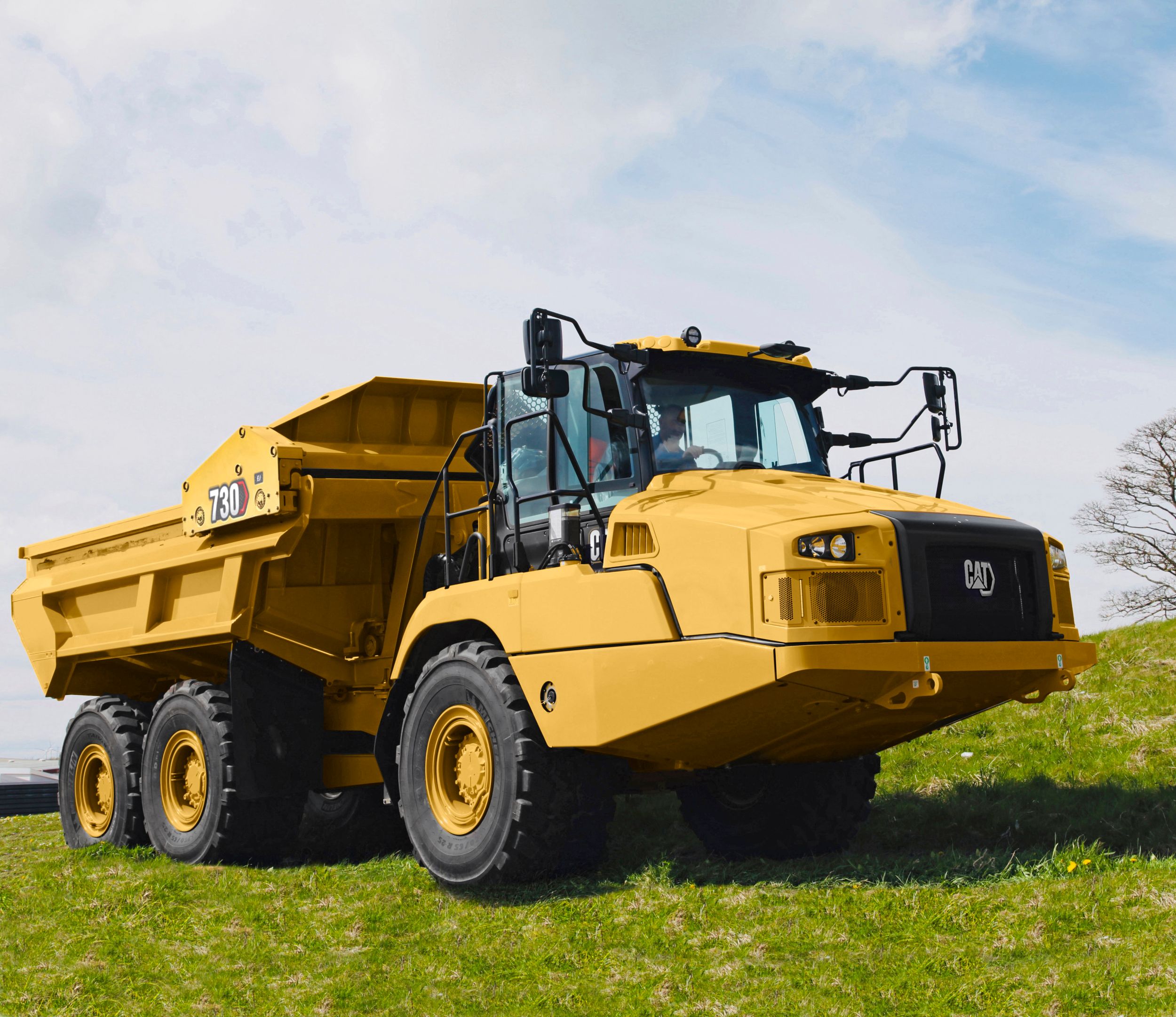

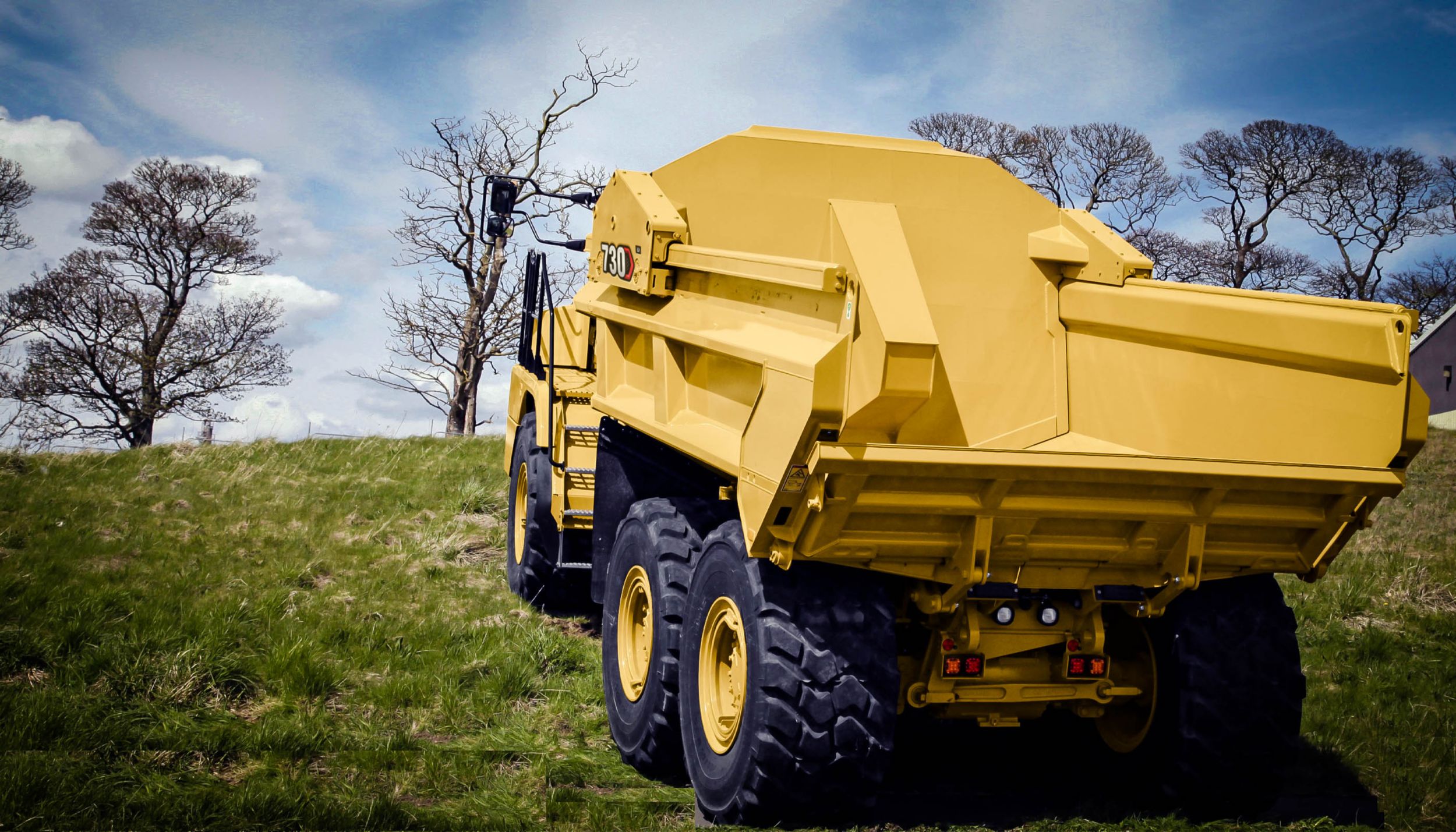

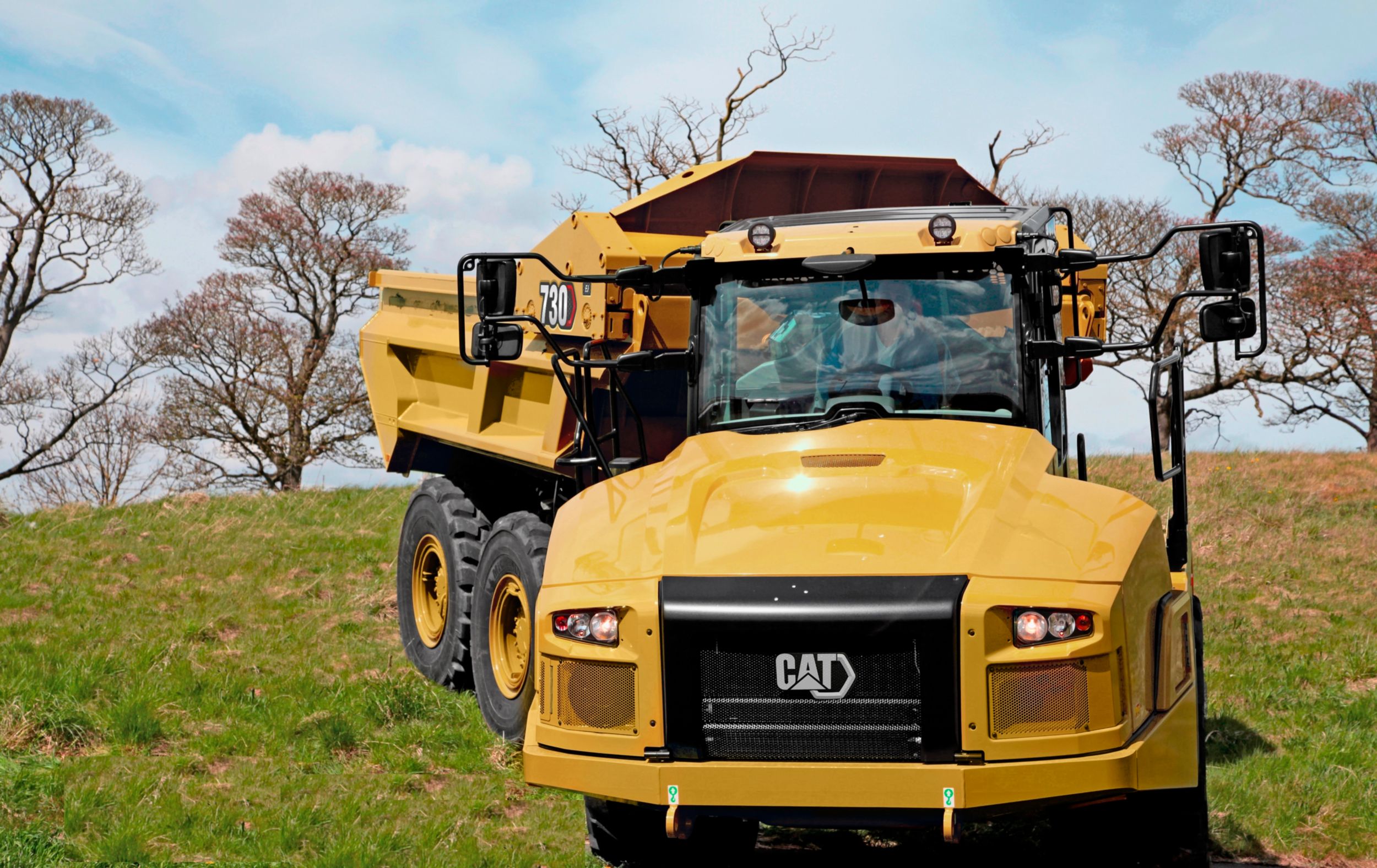

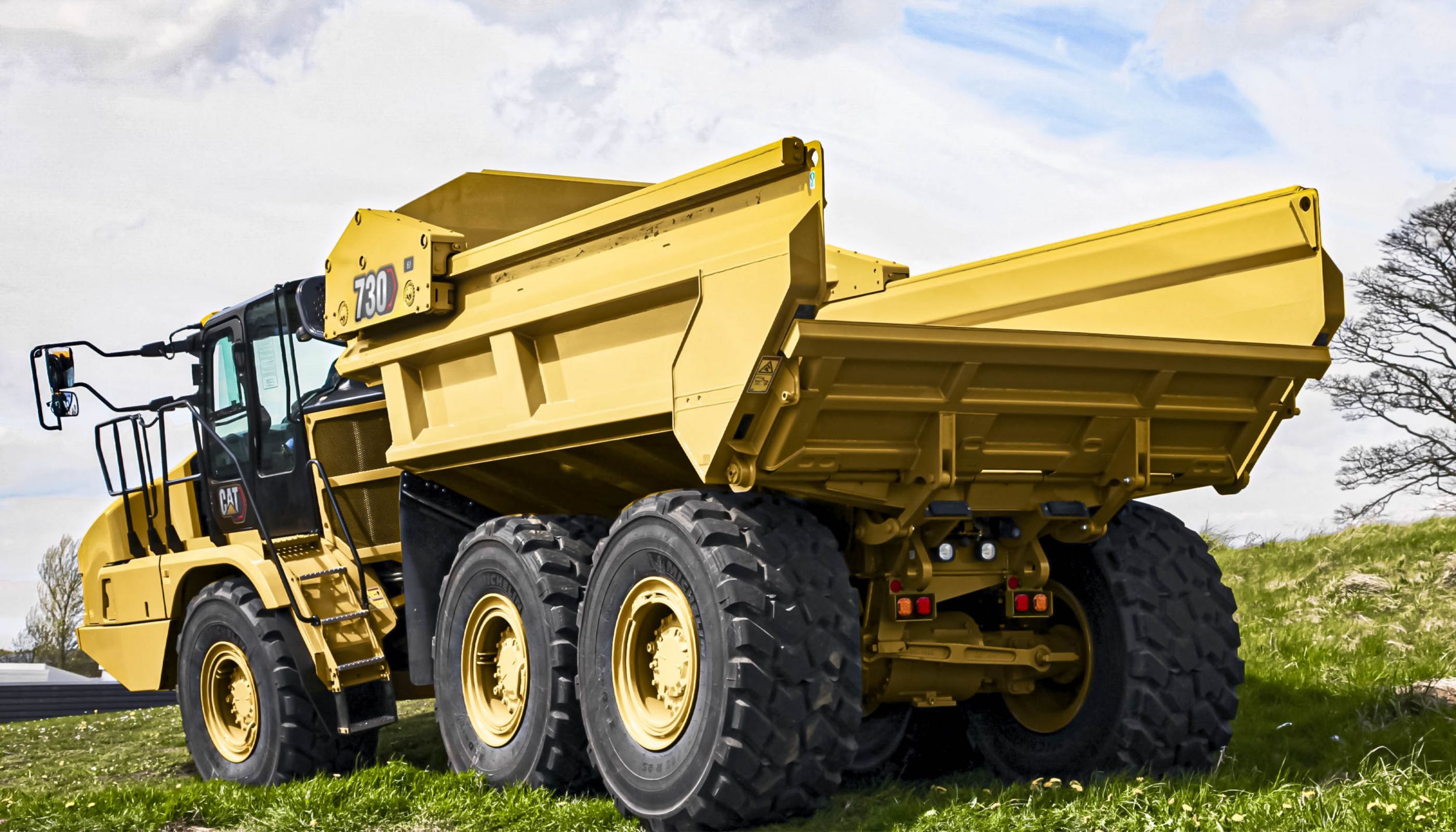

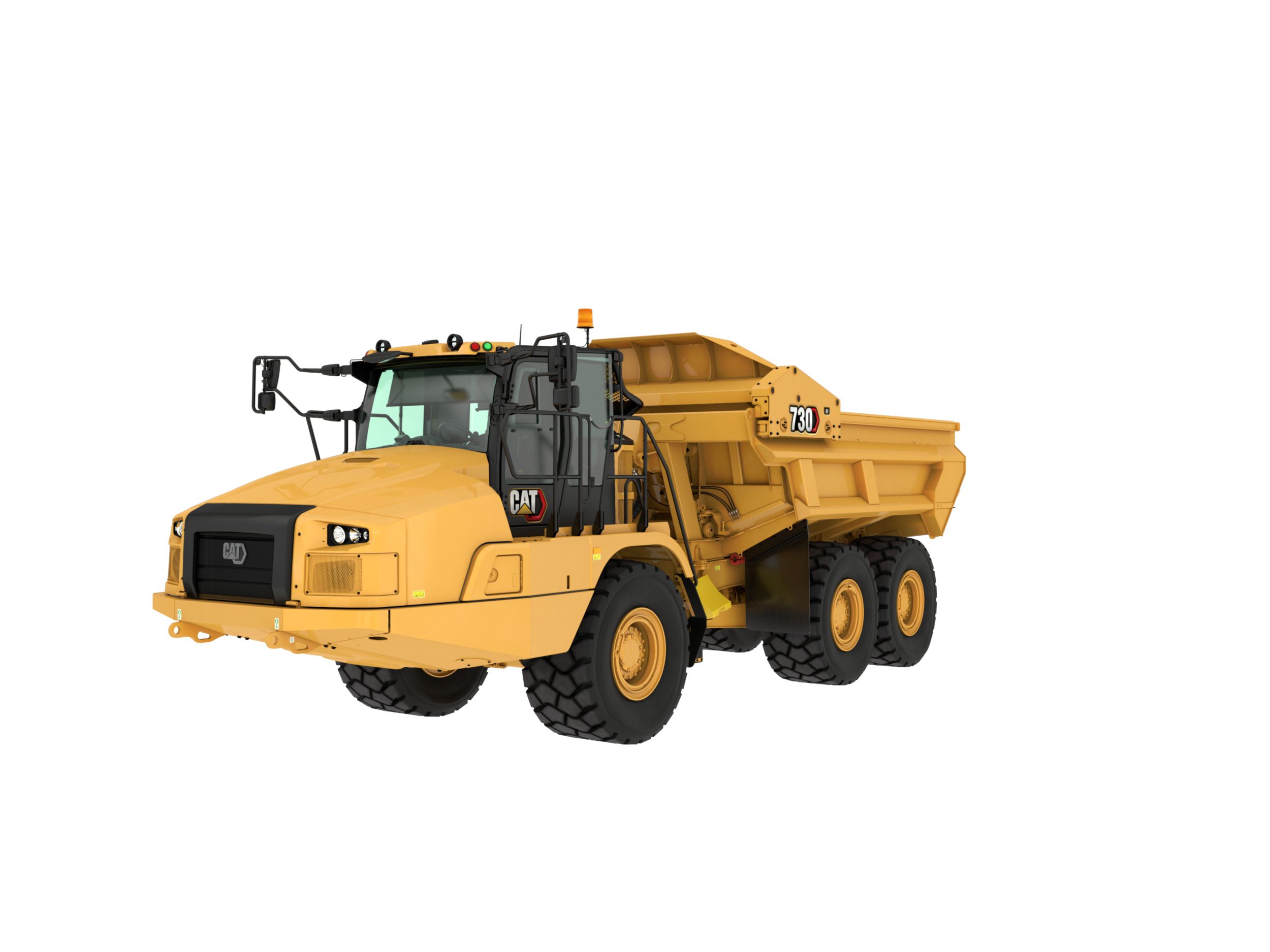

The Cat 730 EJ with a 16.9 m³ (22.1 yd³)/27.1 tonnes (30 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation Updating the successful 730C2 EJ to include the new cab design makes the 730 EJ a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Ejecting Control create operator comfort, making a productive machine all day long. The machines retain all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).

Engine

Engine Model
Cat® C13
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
762.80 in³
12.50 l
No Engine De-rating Below
12500.00 ft
3810.00 m
Engine Model - U.S. EPA Tier 4 Final/EU Stage V
Cat C13
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min
Net Power - SAE J1349:2011
367.00 hp
274.00 kW
Gross Power - SAE J1995:2014
375.00 hp
280.00 kW
Peak Engine Torque Gross (SAE J1995)
1579.00 lbf·ft
2141.00 N·m
Net Power - ISO 14396
370.00 hp
276.00 kW

Weights

Rated Payload
30.00 ton (US)
27.10 t

Body Capacities

Heaped (SAE 2:1)
22.10 yd³
16.90 m³
Struck
17.70 yd³
13.50 m³

Transmission

Forward - 1
5.00 mile/h
8.00 km/h
Forward - 2
9.00 mile/h
15.00 km/h
Forward - 3
14.00 mile/h
22.00 km/h
Forward - 4
21.00 mile/h
34.00 km/h
Forward - 5
29.00 mile/h
47.00 km/h
Forward - 6
34.00 mile/h
55.00 km/h
Reverse - 1
6.00 mile/h
9.00 km/h

Sound Levels

Interior Cab
72.00 dB(A)
72.00 dB(A)

Operating Weights

Front Axle - Rated Load
1433.00 lb
650.00 kg
Total - Loaded
117528.00 lb
53310.00 kg
Center Axle - Loaded
41502.00 lb
18825.00 kg
Rear Axle - Empty
11707.00 lb
5310.00 kg
Rear Axle - Rated Load
29156.00 lb
13225.00 kg
Front Axle - Loaded
35009.00 lb
15880.00 kg
Center Axle - Empty
12214.00 lb
5540.00 kg
Total - Rated Load
59745.00 lb
27100.00 kg
Front Axle - Empty
34723.00 lb
15750.00 kg
Total - Empty
58643.00 lb
26600.00 kg
Rear Axle - Loaded
41017.00 lb
18605.00 kg
Center Axle - Rated Load
29156.00 lb
13225.00 kg

Service Refill Capacities

Fuel Tank
108.80 gal (US)
412.00 l
Cooling System
21.90 gal (US)
83.00 l
Hydraulic System
29.10 gal (US)
110.00 l
Engine Crankcase
10.00 gal (US)
38.00 l
Transmission
12.40 gal (US)
47.00 l
Final Drives/Differential
33.00 gal (US)
125.00 l
Output Transfer Gear Box
6.30 gal (US)
24.00 l
DEF Tank
5.30 gal (US)
20.00 l

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2019

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - Clearance Radius
318.00 in
8075.00 mm
Turning Dimensions - SAE Turning Radius
294.00 in
7470.00 mm
Turning Dimensions - Steer Angle - Left/Right
45°
Turning Dimensions - Inside Radius
152.00 in
3849.00 mm
Turning Dimensions - Aisle Width
214.00 in
5424.00 mm
Note
Dimensions are for machines equipped with 750/65 R25 tires.

Engine

Emissions
The 730 EJ meets Tier 4 Final and Stage V emission standards.
Note (4)
Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment and fan at minimum speed.
Note (2)
Advertised power is tested at 1,800 rpm.

Sound Levels

Note (2)
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments.
Note (1)
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.

Engine

Note (1)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (5)
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 336F/336F XE - Passes
5–6

Engine

Peak Engine Torque Net (ISO 14396)
1564.00 ft·lbf
2120.00 N·m

Eject/Retract Times

Retract Time
15.00 s
15.00 s
Eject Time
12.00 s
12.00 s

Optimal Loader/Truck Pass Matching

Note
An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Hydraulic Excavators: 349F/349F XE - Passes
4–5
Wheel Loaders: 966M/966M XE - Passes
4
Wheel Loaders: 972M/972M XE - Passes
3–4
Wheel Loader: 962M - Passes
4–5
Wheel Loader: 950M - Passes
5

Engine

Gross Power (SAE J1995)
375.00 hp
280.00 kW
Net Power (SAE J1349)
367.00 hp
274.00 kW
Engine Power (ISO 14396)
370.00 hp
276.00 kW
Note (6)
Diesel Exhaust Fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue® or API certifications.
No Engine De-rating Required Below
12500.00 ft
3810.00 m
Peak Engine Torque Net (SAE J1349)
1564.00 lbf·ft
2120.00 N·m

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349/352 - Passes
4-5
Hydraulic Excavators: 336 - Passes
5-6
Wheel Loaders: 972/972 XE - Passes
3-4
Wheel Loaders: 966/966 XE - Passes
4
Wheel Loader: 962 - Passes
4-5
Wheel Loader: 950 - Passes
5
Features

MAXIMIZE PERFORMANCE

AUTOMATIC CONTROLS

HEAVY DUTY CONSTRUCTION

OPERATOR COMFORT AND CONTROL

BUILT TO PERFORM

TECHNOLOGY THAT GETS WORK DONE

BECAUSE UPTIME COUNTS

MORE SUSTAINABLE FUTURE

BUILT-IN SAFETY FEATURES

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Adjustable air vents
    • Combined gear selection and eject control lever
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Air conditioning
    • Heater and defroster with four-speed fan
    • Mirrors: exterior
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Eject control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure warning
      – Seat belt warning
      – Secondary steering failure warning
      – Diesel Particulate Filter (DPF) regeneration filter
      – Machine Security System (MSS) ready
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Seats:
      – Operator: fully adjustable, air suspension
      – Trainer: padded with lap belt
    • Secondary steering – electro hydraulic
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind operator seat storage
      – Coat hook
    • Sun visor
    • Tilt and telescopic steering wheel
    • Touchscreen display incorporating the rearview camera video feed
    • Retractable belt: Operator seat and second seat
    • Windows opening both sides, tinted
    • Windshield wiper and washer, two speed, intermittent (front)
  • TECHNOLOGY
    • Product Link™ Cellular PLE643
    • Cat Detect with Stability Assist
  • ELECTRICAL AND LIGHTING
    • Batteries (two) maintenance free
    • Electrical system: 24-volt, 10A 24- to 12-volt converter
    • Horn
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
    • Main disconnect switch
    • Remote starting receptacle (cables not included)
  • POWERTRAIN
    • Auto shift six-speed forward and one reverse transmission
    • Cat C13 engine
    • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Retarder: engine compression brake
    • Three axle, six-wheel drive
  • SAFETY
    • Reverse alarm
    • Rearview camera
    • Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
  • GUARDS
    • Rear window
    • Radiator
    • Crankcase
    • Front dump body spill guard
  • OTHER STANDARD EQUIPMENT
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • S·O·S sampling valves
    • Tires, six 750/65 R25 radial
    • Vandalism protection: lockable caps
    • Sound suppression (standard in some countries*)
      * Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
    • Hydraulic tailgate
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Mirrors, heated motorized
    • Operator seat belt, four-point
    • Radio, Bluetooth® stereo system
    • Seat, heated/cooled
  • TECHNOLOGY
    • Cat Payload monitoring system
    • Product Link Dual PLE683
  • ELECTRICAL AND LIGHTING
    • Engine block heater
    • Cold weather start attachment
    • Ether start
    • Flashing LED beacon
    • Roof mounted LED work lights
  • OPTIONAL EQUIPMENT
    • Auto lube installation for automatic greasing of bearings
    • Cold weather coolant –51° C (–60° F)
    • Exhaust heated body
    • Machine Security System (MSS)
    • Fast fuel fill
    • Fuel additive – anti-waxing
    • Wheel chocks
