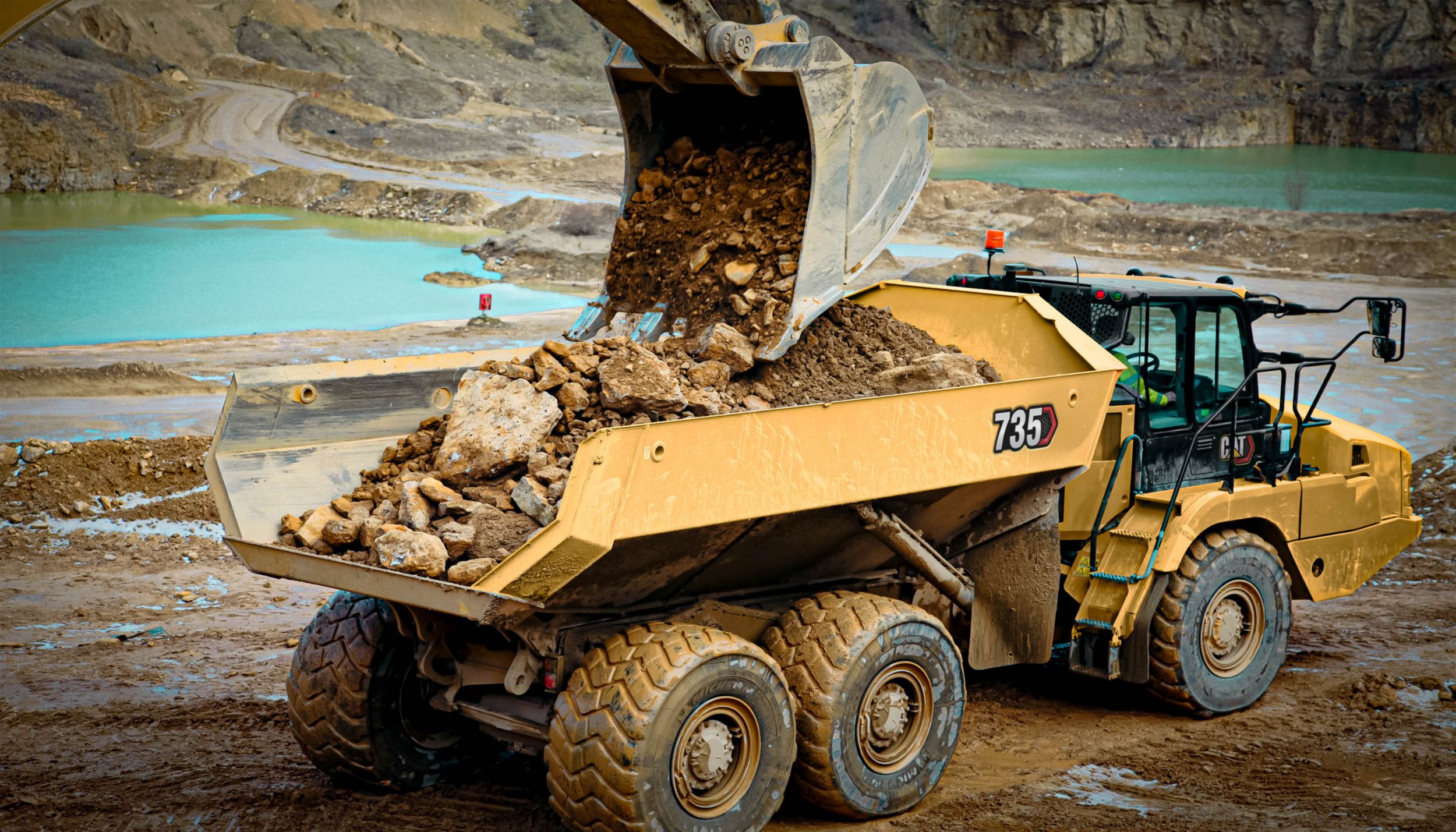

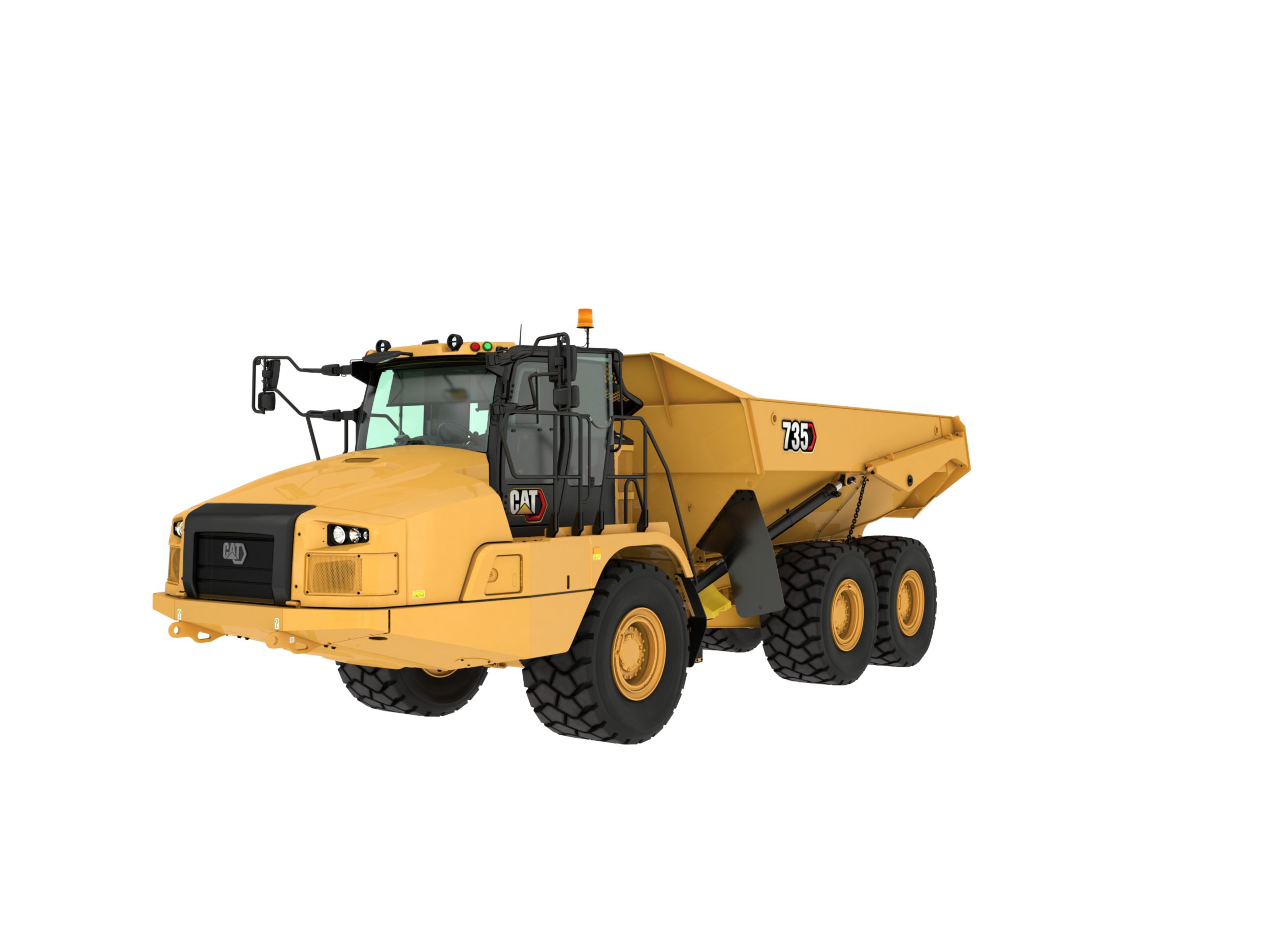

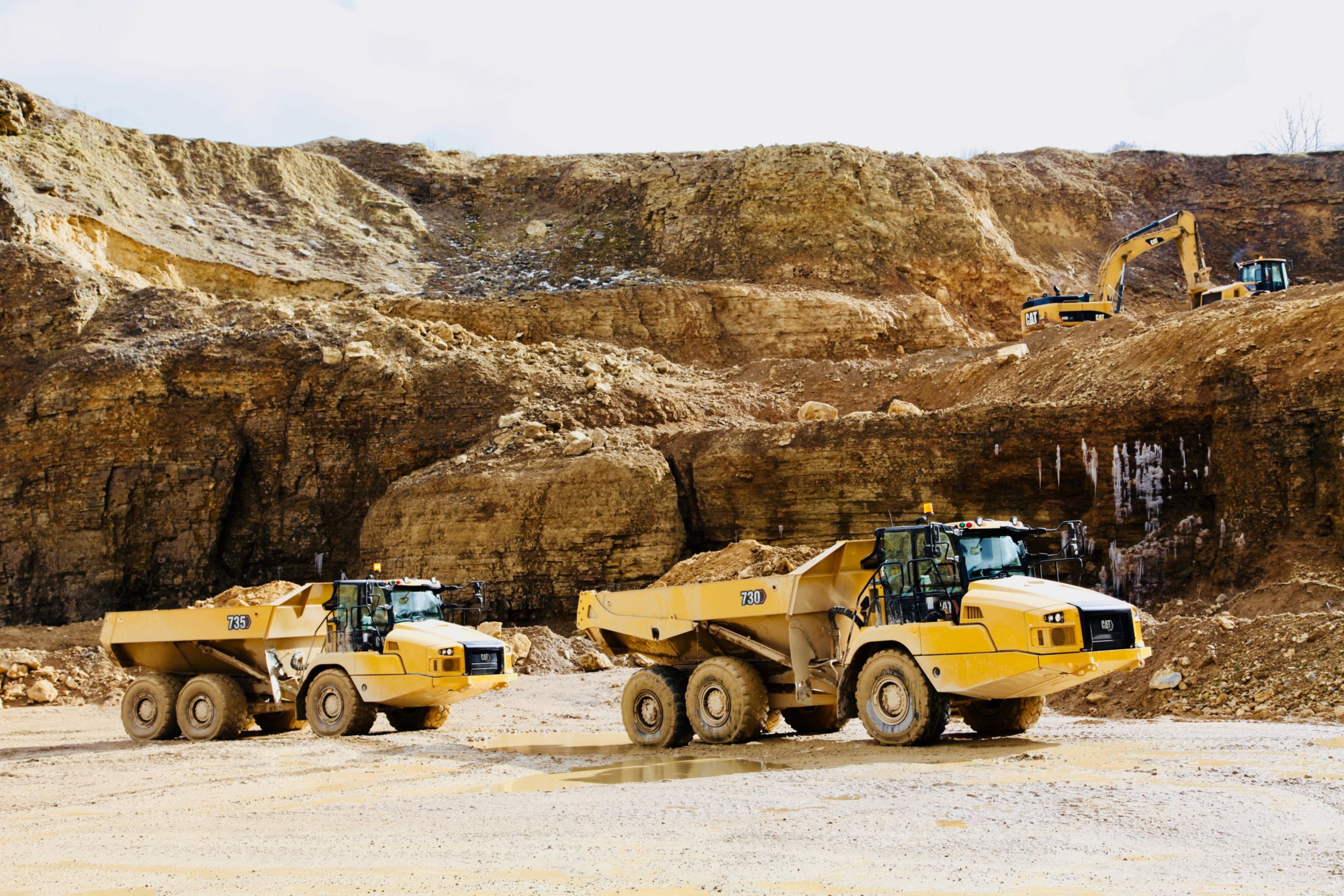

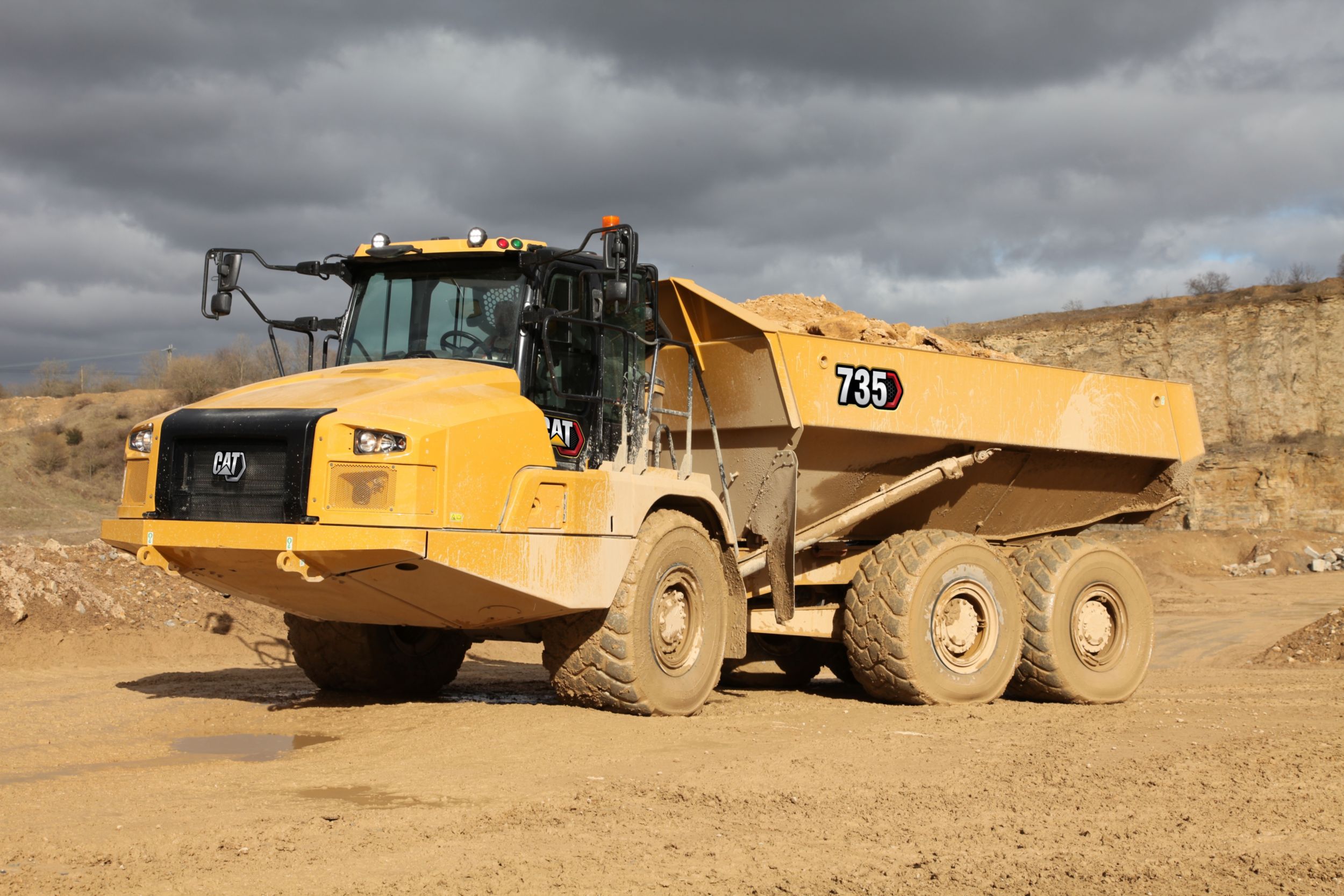

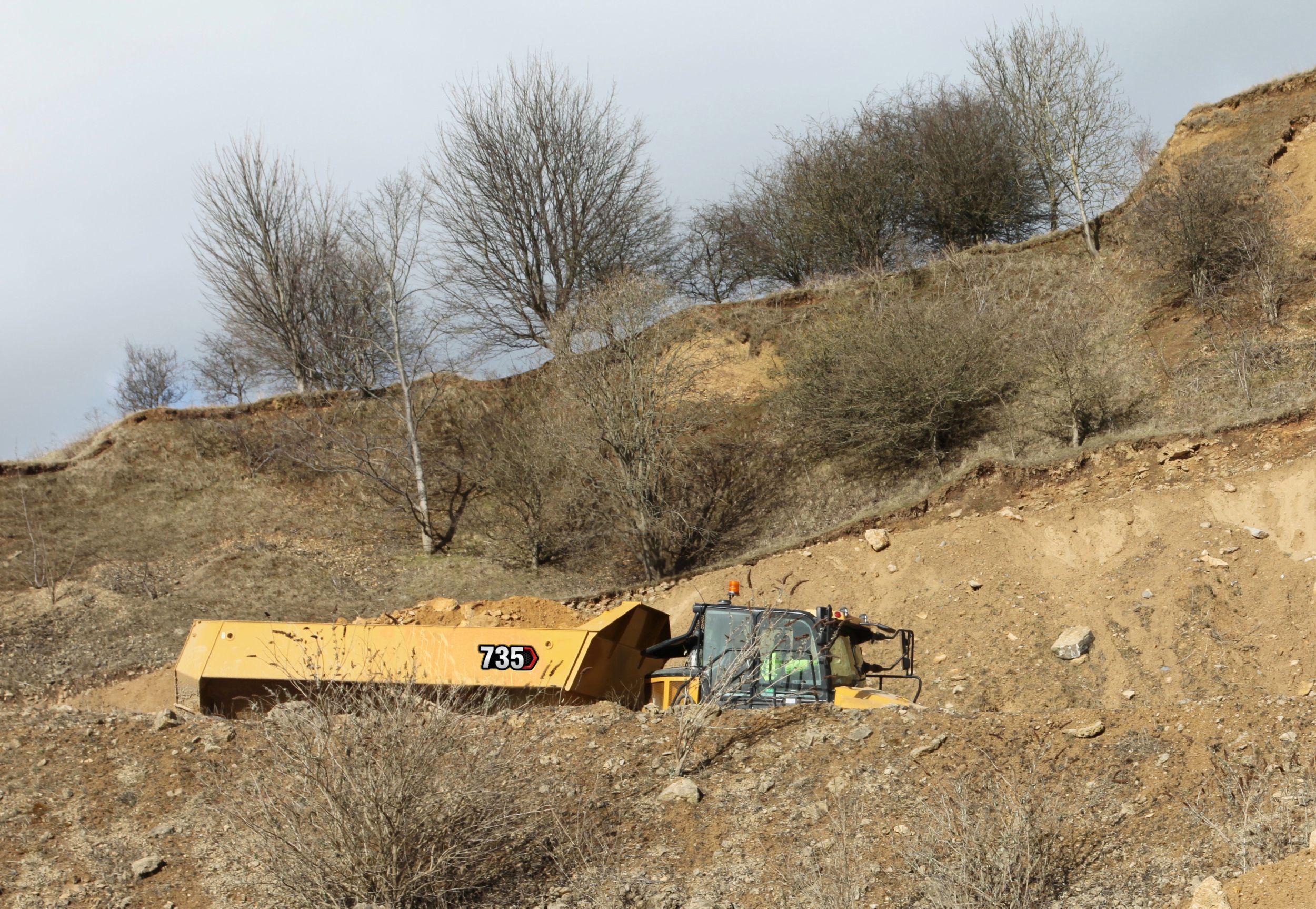

735 Three Axle Articulated Truck
735 Three Axle Articulated Truck
735 Three Axle Articulated Truck
735 Three Axle Articulated Truck
735 Three Axle Articulated Truck
US
Metric

Overview

The Cat 735 with a 20 m³ (26.2 yd³)/32 tonnes (35.3 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation. Updating the successful 735C to include the new cab design makes the 735 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).

Engine

Engine Model
Cat® C13
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
736.00 in³
12.50 l
Peak Engine Torque Net (SAE J1349)
1597.00 lbf·ft
2165.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min
Emissions
The 735 meets Tier 4 Final and Stage V emission standards.
Peak Engine Torque Gross (SAE J1995)
1614.00 lbf·ft
2188.00 N·m
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
No Engine De-rating Below
12500.00 ft
3810.00 m
Note (2)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Net Power - ISO 14396
429.00 hp
320.00 kW
Gross Power - SAE J1995:2014
434.00 hp
324.00 kW
Note (5)
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (4)
Net power when the fan is at maximum speed is 316 kW (424 hp) per the SAE reference conditions.
Note (1)
Advertised power is tested at 1,800 rpm.
Engine Model - U.S. EPA Tier 4 Final/EU Stage V
Cat C13

Weights

Rated Payload
35.30 ton (US)
32.00 t

Body Capacities

Heaped (SAE 2:1)
26.20 yd³
20.00 m³
Struck
20.30 yd³
15.50 m³
Tailgate Heaped SAE 2:1
27.90 yd³
21.30 m³
Tailgate Struck
21.30 yd³
16.30 m³

Transmission

Forward - 1
5.00 mile/h
8.00 km/h
Forward - 2
9.00 mile/h
15.00 km/h
Forward - 3
14.00 mile/h
23.00 km/h
Forward - 4
22.00 mile/h
35.00 km/h
Forward - 5
30.00 mile/h
48.00 km/h
Forward - 6
35.00 mile/h
57.00 km/h
Reverse - 1
6.00 mile/h
9.00 km/h

Sound Levels

Interior Cab
72.00 dB(A)
72.00 dB(A)

Operating Weights

Total - Loaded
126192.00 lb
57240.00 kg
Front Axle - Empty
34128.00 lb
15480.00 kg
Total - Rated Load
70548.00 lb
32000.00 kg
Rear Axle - Loaded
41270.00 lb
18720.00 kg
Rear Axle - Empty
10516.00 lb
4770.00 kg
Center Axle - Empty
11001.00 lb
4990.00 kg
Center Axle - Rated Load
30754.00 lb
13950.00 kg
Front Axle - Loaded
43166.00 lb
19580.00 kg
Total - Empty
55645.00 lb
25240.00 kg
Front Axle - Rated Load
9039.00 lb
4100.00 kg
Rear Axle - Rated Load
30754.00 lb
13950.00 kg
Center Axle - Loaded
41756.00 lb
18940.00 kg

Service Refill Capacities

Fuel Tank
108.80 gal (US)
412.00 l
Cooling System
21.90 gal (US)
83.00 l
Engine Crankcase
10.00 gal (US)
38.00 l
Transmission
12.30 gal (US)
56.00 l
Final Drives/Differential
33.00 gal (US)
125.00 l
Output Transfer Gear Box
5.50 gal (US)
25.00 l
DEF Tank
5.30 gal (US)
20.00 l

Body Hoist

Raise Time
12.00 s
12.00 s
Lower Time
11.00 s
11.00 s

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2019

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - SAE Turning Radius
294.00 in
7470.00 mm
Turning Dimensions - Inside Radius
149.00 in
3793.00 mm
Turning Dimensions - Clearance Radius
318.00 in
8075.00 mm
Note
Dimensions are for machines equipped with 750/65 R25 tires.
Turning Dimensions - Steer Angle - Left/Right
45°
Turning Dimensions - Aisle Width
212.00 in
5393.00 mm

Sound Levels

Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Note (1)
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 336F/336F XE - Passes
5–6
Note
An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

Body Plate Thickness

Base Plate
0.51 in
13.00 mm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349F/349F XE - Passes
4–5
Wheel Loaders: 972M/972M XE - Passes
3–4

Body Plate Thickness

Front Plate
0.28 in
7.00 mm

Optimal Loader/Truck Pass Matching

Wheel Loader: 962M - Passes
4–5
Wheel Loader: 950M - Passes
5

Body Plate Thickness

Side Plates
0.43 in
11.00 mm

Optimal Loader/Truck Pass Matching

Wheel Loaders: 966M/966M XE - Passes
4

Engine

Net Power - SAE J1349:2011
424.00 hp
316.00 kW

Service Refill Capacities

Hydraulic System
29.10 gal (US)
110.00 l

Engine

Gross Power (SAE J1995)
434.00 hp
324.00 kW
Net Power (SAE J1349)
424.00 hp
316.00 kW
Engine Power (ISO 14396)
429.00 hp
320.00 kW
Note (6)
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349/352 - Passes
4-5
Hydraulic Excavators: 336 - Passes
5-6
Wheel Loaders: 972/972 XE - Passes
3-4
Wheel Loaders: 966/966 XE - Passes
4
Wheel Loader: 962 - Passes
4-5
Wheel Loader: 950 - Passes
5
Features

MAXIMIZE PERFORMANCE

AUTOMATIC CONTROLS

HEAVY DUTY CONSTRUCTION

OPERATOR COMFORT AND CONTROL

BUILT TO PERFORM

TECHNOLOGY THAT GETS WORK DONE

BECAUSE UPTIME COUNTS

MORE SUSTAINABLE FUTURE

BUILT-IN SAFETY FEATURES

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Tilt and telescopic steering wheel
    • Adjustable air vents
    • Retractable belt: Operator seat and second seat
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Review Operation and Maintenance Manual (OMM)
      – Primary steering failure warning
      – Seat belt warning
      – Secondary steering failure warning
      – Diesel Particulate Filter (DPF) regeneration filter
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Air conditioning
    • Mirrors: exterior
    • Combined gear selection and hoist control lever
    • Seats:
      – Operator: fully adjustable, air suspension
      – Trainer: padded with lap belt
    • Sun visor
    • Windshield wiper and washer, two speed, intermittent (front)
    • Windows opening side, tinted
    • Storage:
      – Cup holder
      – Flask receptacle
      – Under seat storage
      – Door pocket
      – Behind operator seat storage
      – Coat hook
    • Touchscreen display incorporating the rearview camera video feed
    • Secondary steering – electro hydraulic
    • Heater and defroster with four-speed fan
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Retarder
      – Transmission fault
      – Traction control system
      – Check engine lamp
  • TECHNOLOGY
    • Cat® Detect with Stability Assist
    • Product Link Cellular PLE643
  • ELECTRICAL AND LIGHTING
    • Remote starting receptacle (cables not included)
    • Horn
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
    • Main disconnect switch
    • Electrical system: 24-volt, 5A 24- to 12-volt converter
    • Batteries (two) maintenance free
  • POWERTRAIN
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
    • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
    • Cat C13 engine
    • Three axle, six-wheel drive
    • Retarder: engine compression brake and hydraulic
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Auto shift six-speed forward and single-speed reverse transmission
  • SAFETY
    • Rearview camera
    • Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
    • Reverse alarm
  • GUARDS
    • Radiator
    • Front dump body spill guard, integral part of fabricated body
    • Crankcase
    • Rear window
  • OTHER STANDARD EQUIPMENT
    • Tires, six 750/65 R25
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • S·O·S sampling valves
    • Vandalism protection: lockable caps
    • Sound suppression (standard in some countries*)
      *EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Mirrors, heated motorized
    • Four-point seat belt
    • Windshield wiper and washer, two speed (rear)
    • Heated/cooled seat
    • Radio, Bluetooth® stereo system
    • Window blinds
  • TECHNOLOGY
    • Product Link Dual PLE683
    • Cat Payload
    • Machine Security System (MSS)
  • ELECTRICAL AND LIGHTING
    • Engine block heater
    • Ether start
    • Flashing LED beacon
    • Cold weather start attachment
    • Infrared glass – high ambient cab
    • Roof mounted LED work lights
  • OPTIONAL EQUIPMENT
    • Scissor tailgate
    • Bare chassis (no body) standard wheel base
    • Fuel additive – anti-waxing
    • Body liners
    • Bare chassis (no body) long wheel base
    • Auto lube installation for automatic greasing of bearings
    • Fast fuel fill
    • Exhaust heated body
    • Cold weather coolant –51° C (–60° F)
    • Wheel chocks
