Overview

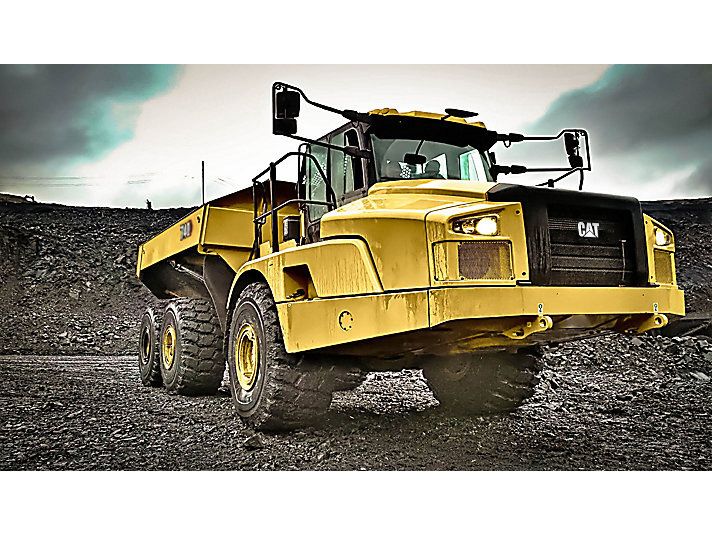

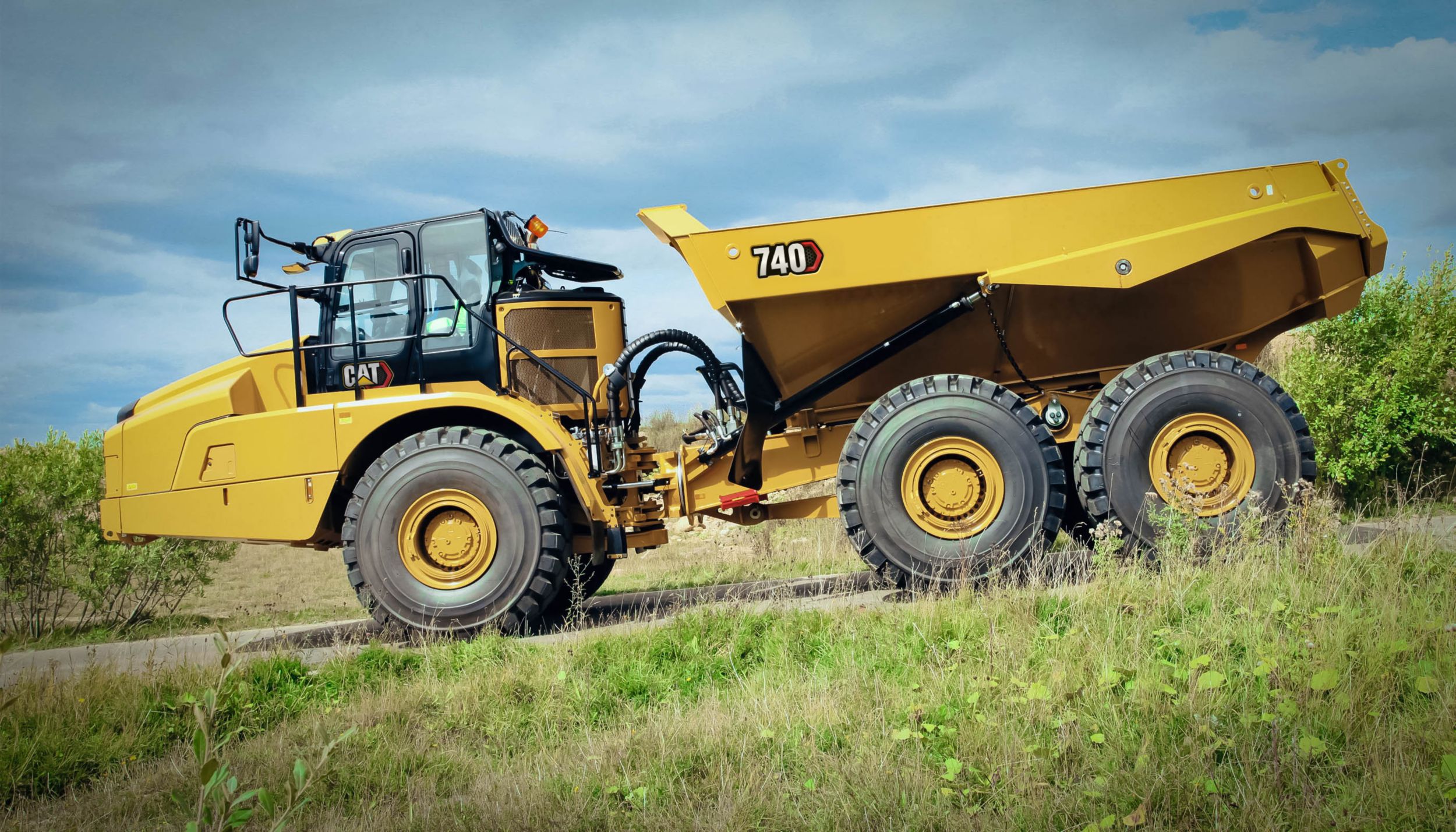

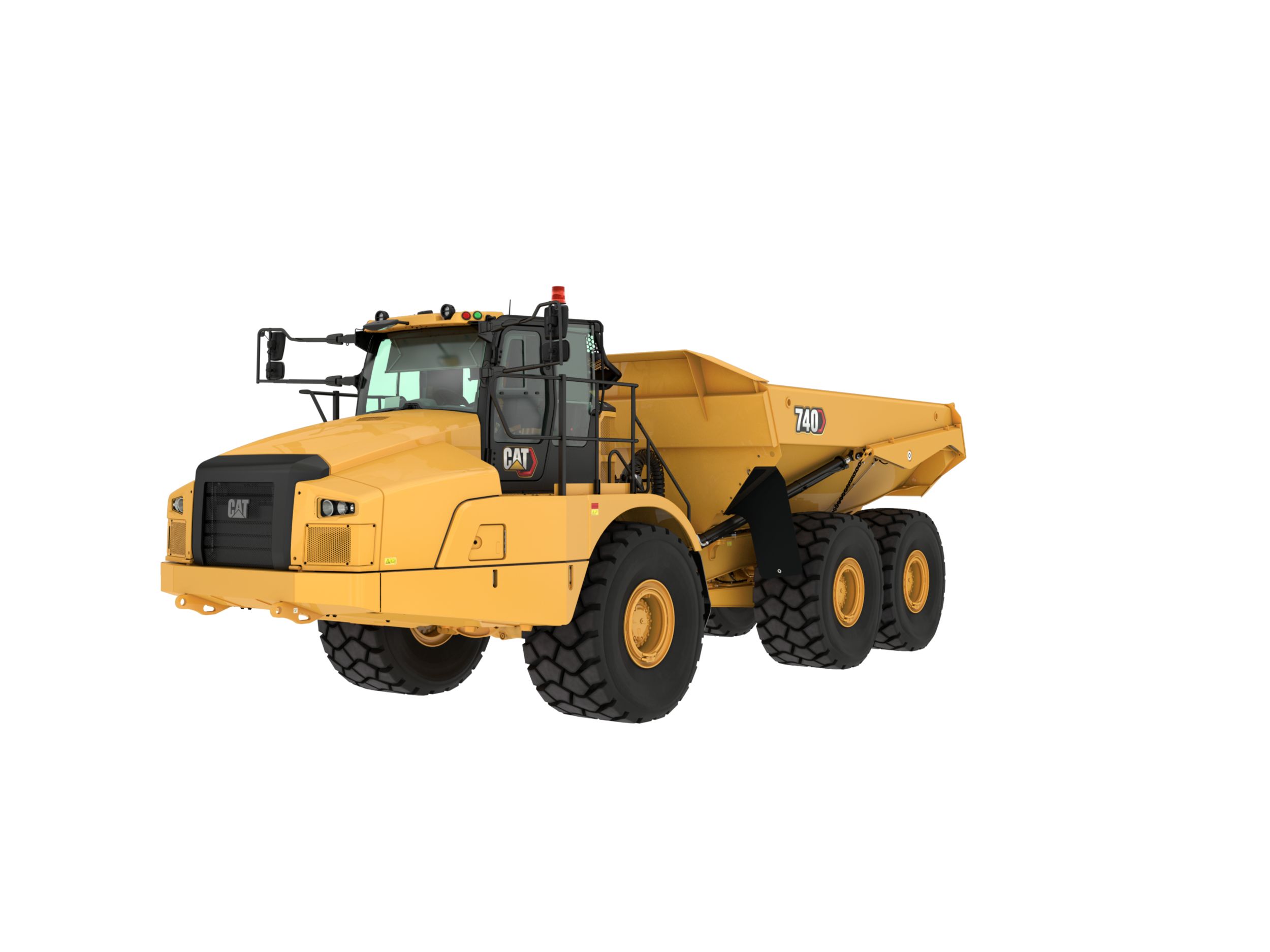

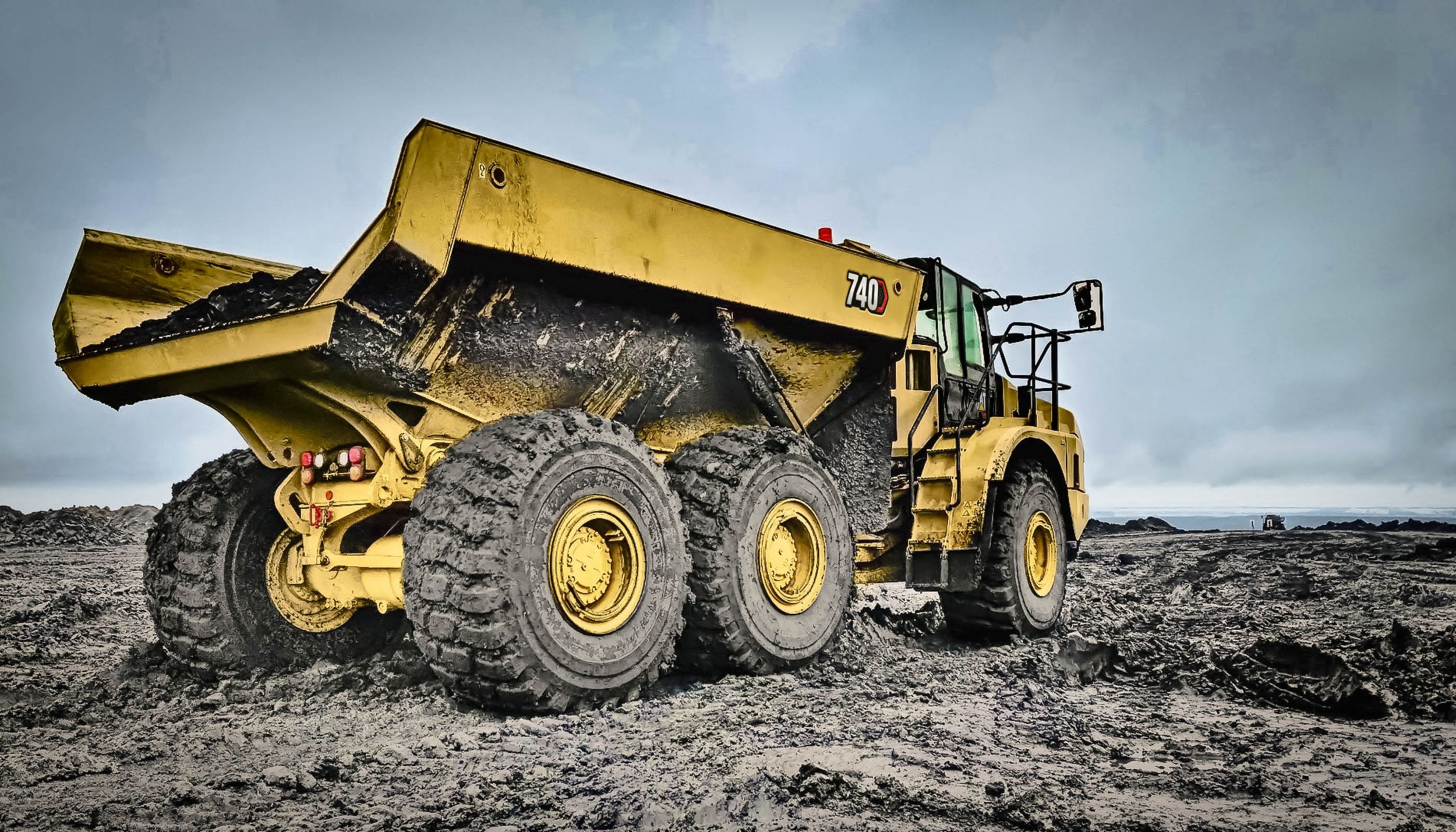

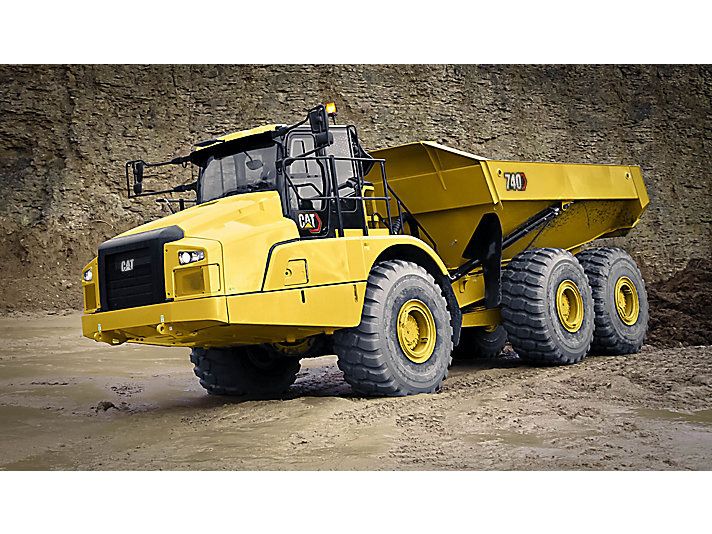

The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world‑class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built‑in transmission protection, hoist assist, advanced automatic traction control, stability‑assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low.

Engine

Engine Model
Cat® C15
Gross Power (SAE J1995)
452.00 hp
337.00 kW
Net Power (SAE J1349)
439.00 hp
327.00 kW
Engine Power (ISO 14396)
447.00 hp
333.00 kW
Bore
5.40 in
137.00 mm
Stroke
6.75 in
171.50 mm
Displacement
926.00 in³
15.20 l
Note (1)
Advertised power is tested at 1,700 rpm.
Note (2)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed.
Note (4)
Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions.
Note (5)
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6)
Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1711.00 lbf·ft
2320.00 N·m
Peak Engine Torque Net (SAE J1349)
1670.00 lbf·ft
2264.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min

Weights

Rated Payload
40.00 ton (US)
36.30 t

Body Capacities

Heaped (SAE 2:1)
29.70 yd³
22.70 m³
Struck
23.20 yd³
17.70 m³
Tailgate Heaped SAE 2:1
32.00 yd³
24.50 m³
Tailgate Struck
24.40 yd³
18.70 m³

Transmission

Forward - 1
4.00 mile/h
6.40 km/h
Forward - 2
5.30 mile/h
8.50 km/h
Forward - 3
7.30 mile/h
11.50 km/h
Forward - 4
9.20 mile/h
14.80 km/h
Forward - 5
12.20 mile/h
19.70 km/h
Forward - 6
14.90 mile/h
24.00 km/h
Forward - 7
20.60 mile/h
33.10 km/h
Forward - 8
24.70 mile/h
39.80 km/h
Forward - 9
35.70 mile/h
57.50 km/h
Reverse - 1
4.20 mile/h
6.80 km/h
Reverse - 2
9.80 mile/h
15.70 km/h

Sound Levels

Interior Cab
72.00 dB(A)
72.00 dB(A)
Note (1)
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty
43200.00 lb
19595.00 kg
Center Axle - Empty
14804.00 lb
6715.00 kg
Rear Axle - Empty
14562.00 lb
6605.00 kg
Total - Empty
72565.00 lb
32915.00 kg
Front Axle - Rated Load
7002.00 lb
3176.00 kg
Center Axle - Rated Load
36513.00 lb
16562.00 kg
Rear Axle - Rated Load
36513.00 lb
16562.00 kg
Total - Rated Load
80027.00 lb
36300.00 kg
Front Axle - Loaded
50201.00 lb
22771.00 kg
Center Axle - Loaded
51317.00 lb
23277.00 kg
Rear Axle - Loaded
51074.00 lb
23167.00 kg
Total - Loaded
152593.00 lb
69215.00 kg

Body Plate

Type
High strength Brinell HB450 wear resistant steel

Body Plate Thickness

Front Plate
0.28 in
7.00 mm
Base Plate
0.51 in
13.00 mm
Side Plates
0.43 in
11.00 mm

Service Refill Capacities

Fuel Tank
145.30 gal (US)
550.00 l
Cooling System
23.70 gal (US)
90.00 l
Brake Cooling Tank
17.70 gal (US)
67.00 l
Steering/Hoist Hydraulic System
36.90 gal (US)
140.00 l
Engine Crankcase
13.70 gal (US)
52.00 l
Transmission - OTG
19.80 gal (US)
75.00 l
Final Drive - Each
1.30 gal (US)
5.00 l
Axles - Each
15.80 gal (US)
60.00 l
DEF Tank
6.50 gal (US)
25.00 l

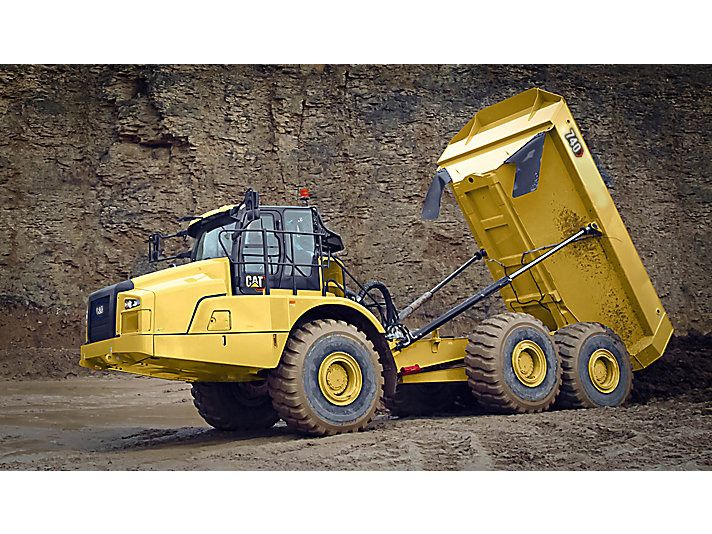

Body Hoist

Raise Time
12.00 s
12.00 s
Lower Time
12.00 s
12.00 s

Standards

Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right
45°
Turning Dimensions - SAE Turning Radius
303.00 in
7698.00 mm
Turning Dimensions - Clearance Radius
330.00 in
8395.00 mm
Turning Dimensions - Inside Radius
156.00 in
3960.00 mm
Turning Dimensions - Aisle Width
220.00 in
5595.00 mm
Note
Dimensions are for machines equipped with 29.5 R25 tires.

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavator: 374 - Passes
3-4
Hydraulic Excavator: 352 - Passes
5-6
Wheel Loader: 972 - Passes
3
Wheel Loader: 966 - Passes
4-5
Wheel Loader: 962 - Passes
5
Note
An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Features

PROVEN RELIABILITY

DURABILITY

ACHIEVE GREATER PRODUCTIVITY

BOOST FUEL EFFICIENCY

EASY, COMFORTABLE OPERATOR ENVIRONMENT

BUILT-IN SAFETY FEATURES

TECHNOLOGY THAT GETS WORK DONE

REDUCED MAINTENANCE COSTS

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Air conditioning
    • Secondary steering – electro hydraulic
    • Windshield wiper and washer, two speed, intermittent (front)
    • Seats:
      – Operator: fully adjustable, air suspension, retractable lap belt
      – Trainer: padded with retractable lap belt
    • Adjustable air vents
    • Touchscreen display incorporating the rearview camera video feed
    • Storage:
      – Cup holder
      – Flask receptacle (under the secondary seat)
      – Under seat storage
      – Door pocket
      – Behind seat storage
      – Coat hook
    • Combined gear selection and hoist control lever
    • Heater and defroster with four-speed fan
    • Sun visor
    • Windows (tinted) opening both sides
    • Liquid Crystal Display (LCD):
      – Alert indicator
      – Selected gear and direction
      – Speed or auto shift
      – Operation and Maintenance Manual (OMM)
      – Primary steering failure (warning)
      – Seat belt warning
      – Secondary steering failure
      – Diesel Particulate Filter (DPF) regeneration filter
      – Secondary steering energy source engaged
      – Hour meter
      – Retarder active
    • Mirrors: exterior
    • Glass windows:
      – Front, laminated and tinted
      – Sides and rear, toughened and tinted
    • Tilt and telescopic steering wheel
    • Machine operation monitoring system includes:
      – Action lamp
      – Engine oil pressure
      – Primary steering system
      – Left and right turn signal
      – High beam
      – Coolant temperature
      – Tachometer
      – Parking brake
      – Fuel level
      – Transmission oil temperature
      – Brake system
      – Transmission hold
      – Hoist control
      – Hydraulic system
      – Charging system
      – Transmission fault
      – Traction control system
      – Check engine lamp
  • TECHNOLOGY
    • Product Link Cellular PLE643
    • Cat Detect with Stability Assist
  • ELECTRICAL AND LIGHTING
    • Electrical system: 24-volt, 10A 24- to 12-volt converter
    • Horn
    • Batteries (two) maintenance free
    • Remote starting receptacle (cables not included)
    • Main disconnect switch
    • Lighting systems:
      – Cab interior
      – Two head lamps
      – Two width marker
      – Two reversing
      – Work light/cab access light
      – Two stop/tail lights
      – Front and rear direction indicators
  • POWERTRAIN
    • Automatic Retarder: engine compression brake
    • Three axle, six-wheel drive
    • Clean Emission Module (CEM) and exhaust aftertreatment package
    • CX38 Transmission
    • Auto shift nine-speed forward and two reverse transmission
    • Cat C15 engine
    • Dual circuit oil immersed, enclosed brakes – all wheels
    • Differentials: standard with automatic clutched inter- and cross-axle differential locks
  • SAFETY
    • ROPS/FOPS cab
    • Reverse alarm
    • Rearview camera
  • GUARDS
    • Front dump body spill guard, integral part of fabricated body
    • Radiator
    • Crankcase
    • Rear window
  • OTHER STANDARD EQUIPMENT
    • Vandalism protection: lockable caps
    • S·O·S sampling valves
    • Mud flaps: wheel arch and body mounted with transportation tiebacks
    • Tires, six 875/65 R29 wide tires
    • Sound suppression (standard in some countries*)
      -*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Windshield wiper and washer, two speed (rear)
    • Mirrors, heated motorized
    • Operator seat belt, four-point
    • Radio, Bluetooth® stereo system
    • Infrared glass – high ambient cab
    • Window blinds
    • Seat, heated/cooled
  • TECHNOLOGY
    • Product Link Dual PLE683
    • Cat® Payload monitoring system
    • Machine Security System (MSS)
  • ELECTRICAL AND LIGHTING
    • Cold weather start attachment
    • Flashing LED beacon
    • Ether start
    • Roof mounted LED work lights
    • Engine block heater
  • OPTIONAL EQUIPMENT
    • Wheel chocks
    • Exhaust heated body
    • Bare chassis (no body) standard wheel base
    • Scissor tailgate
    • Body liners
    • Fuel additive – anti-waxing
    • Auto lube installation for automatic greasing of bearings
    • Cold weather coolant –51° C (–60° F)
    • Fast fuel fill
    • Bare chassis (no body) long wheel base
