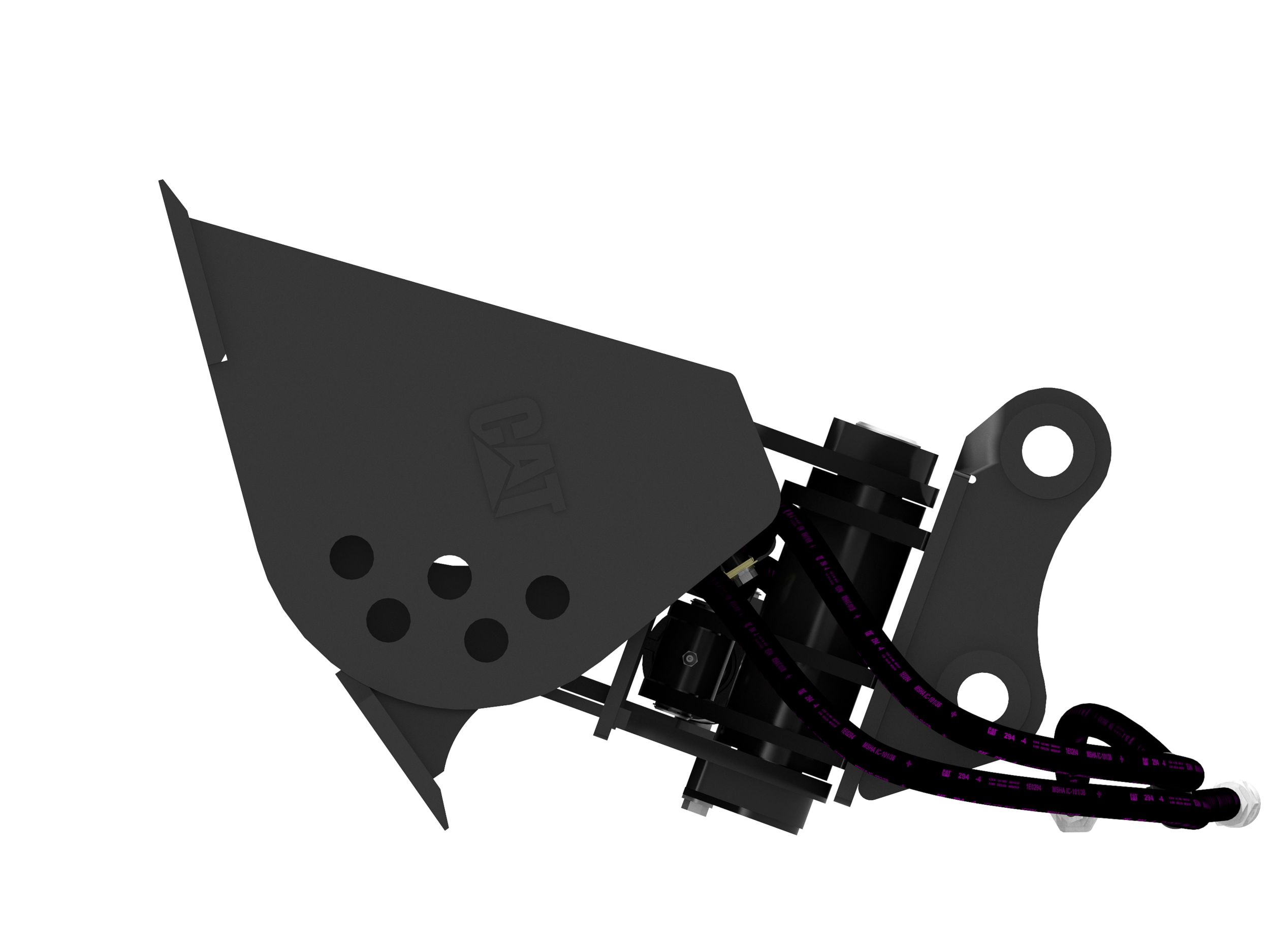

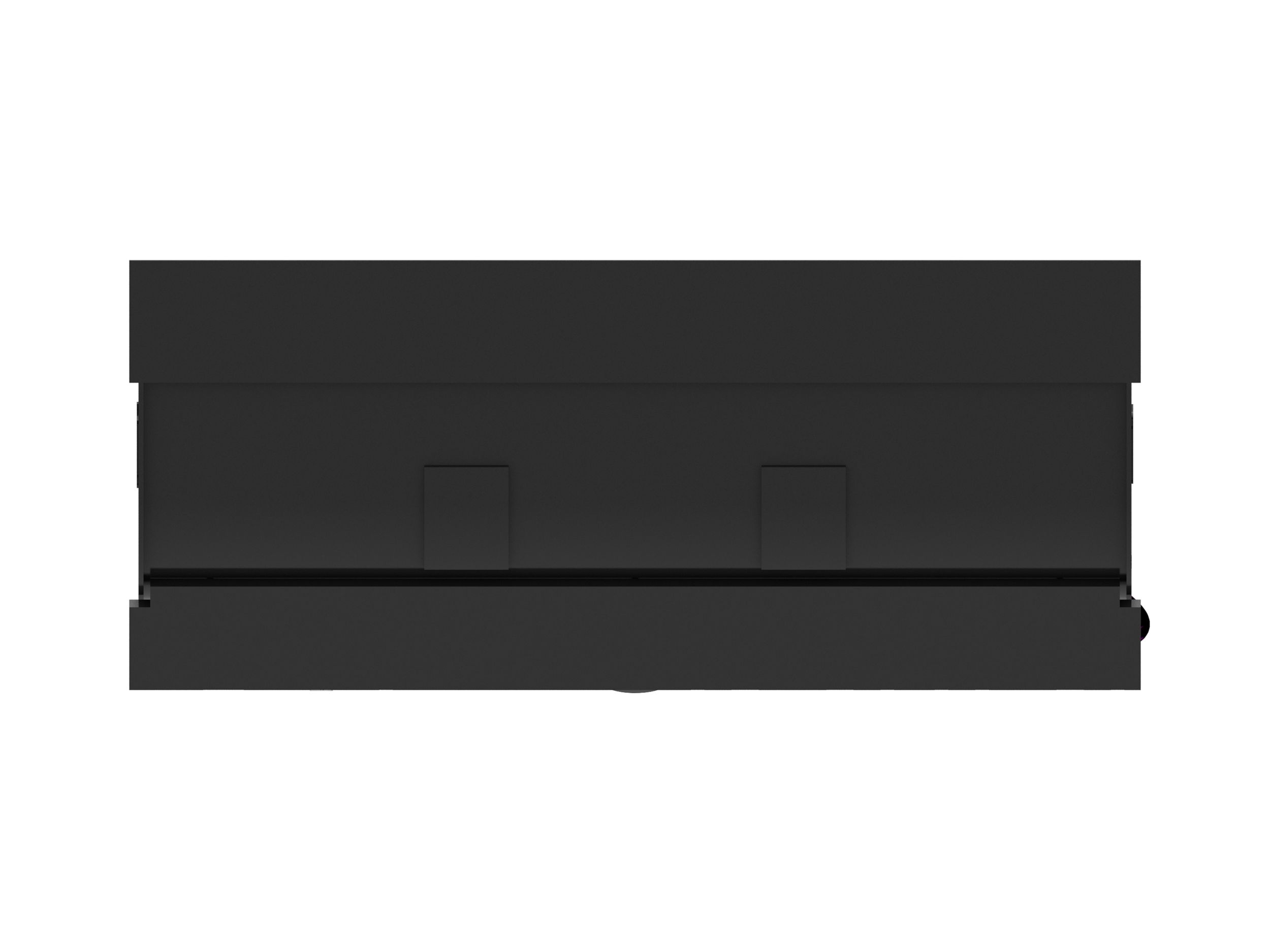

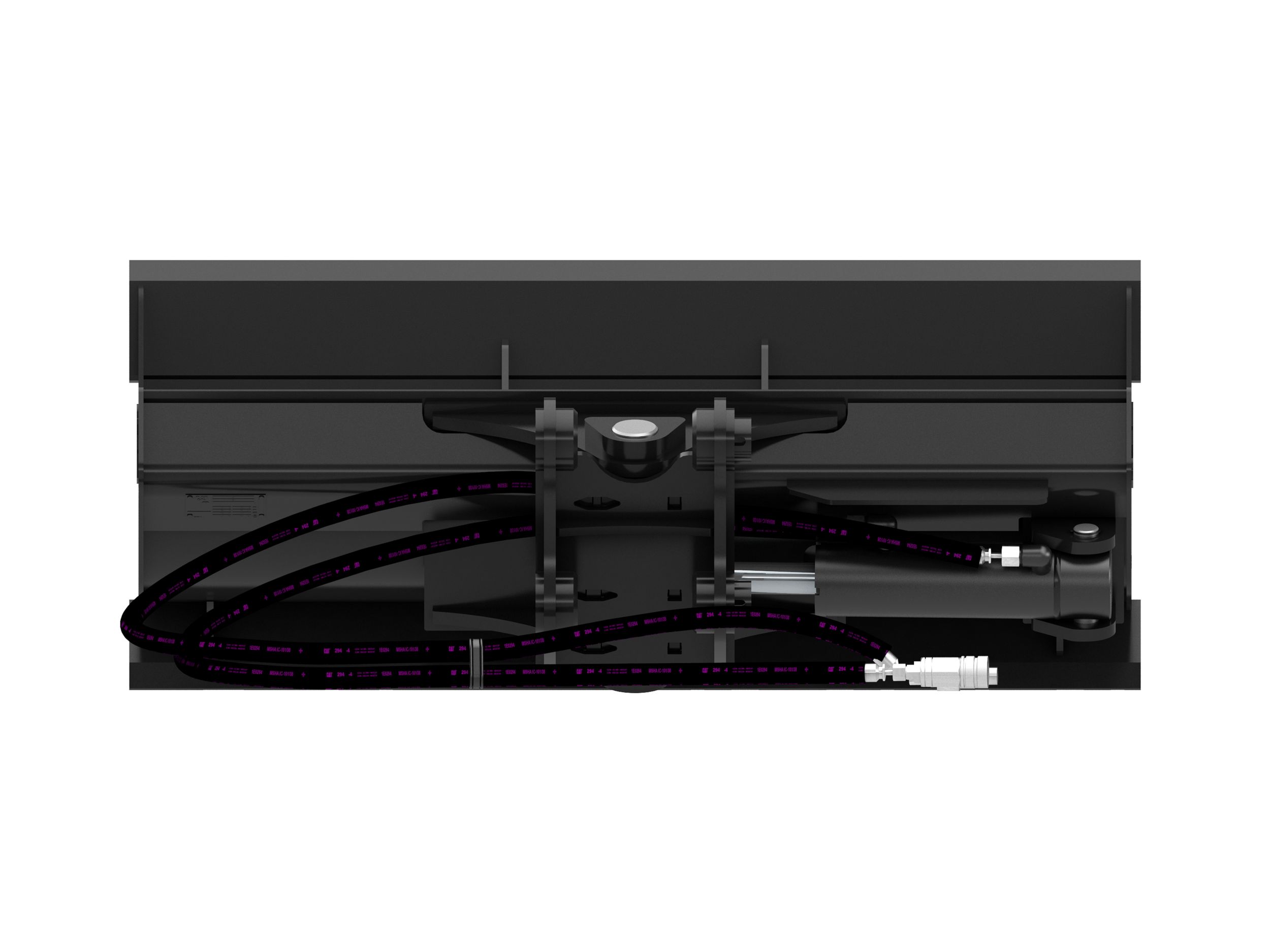

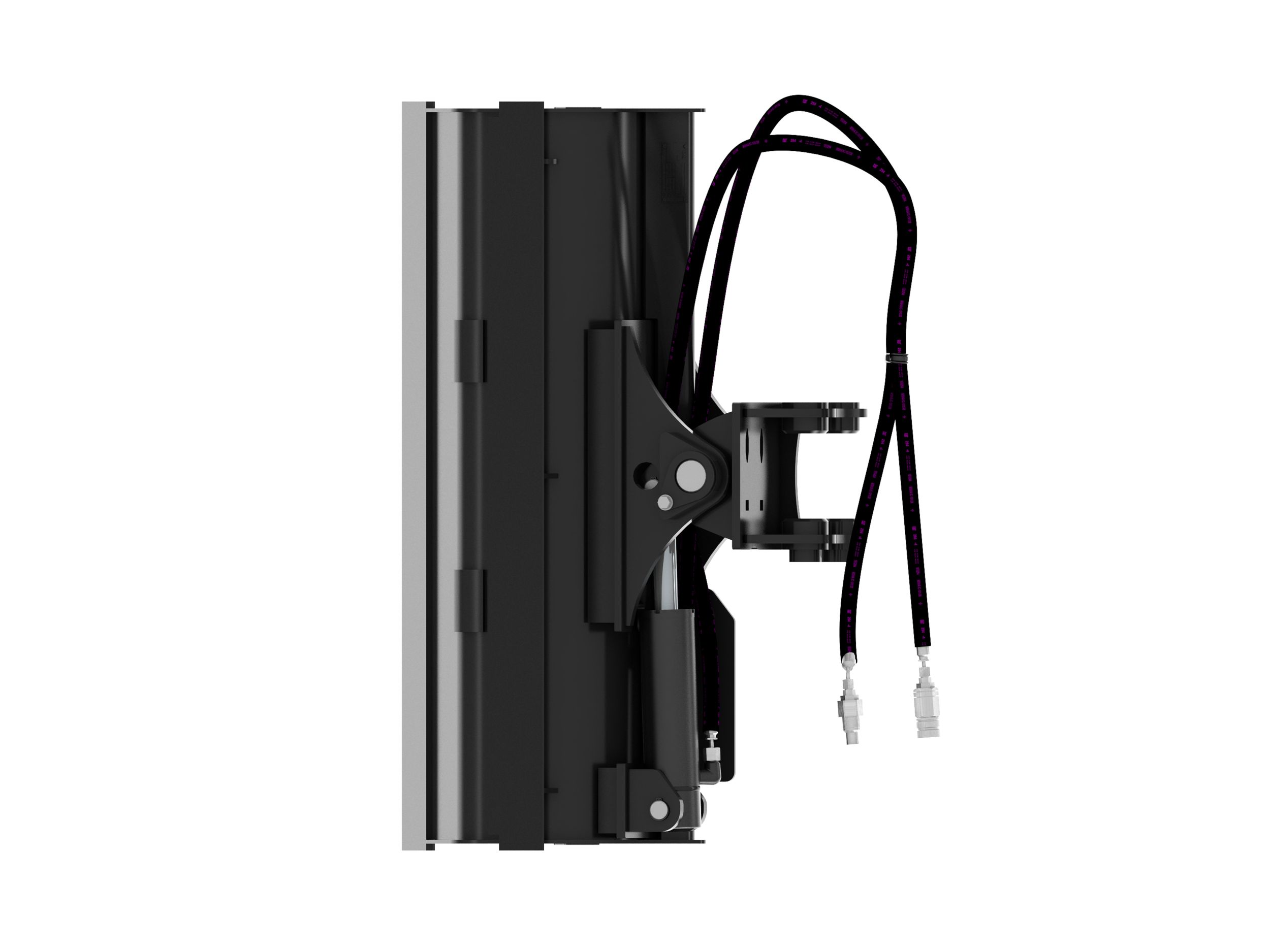

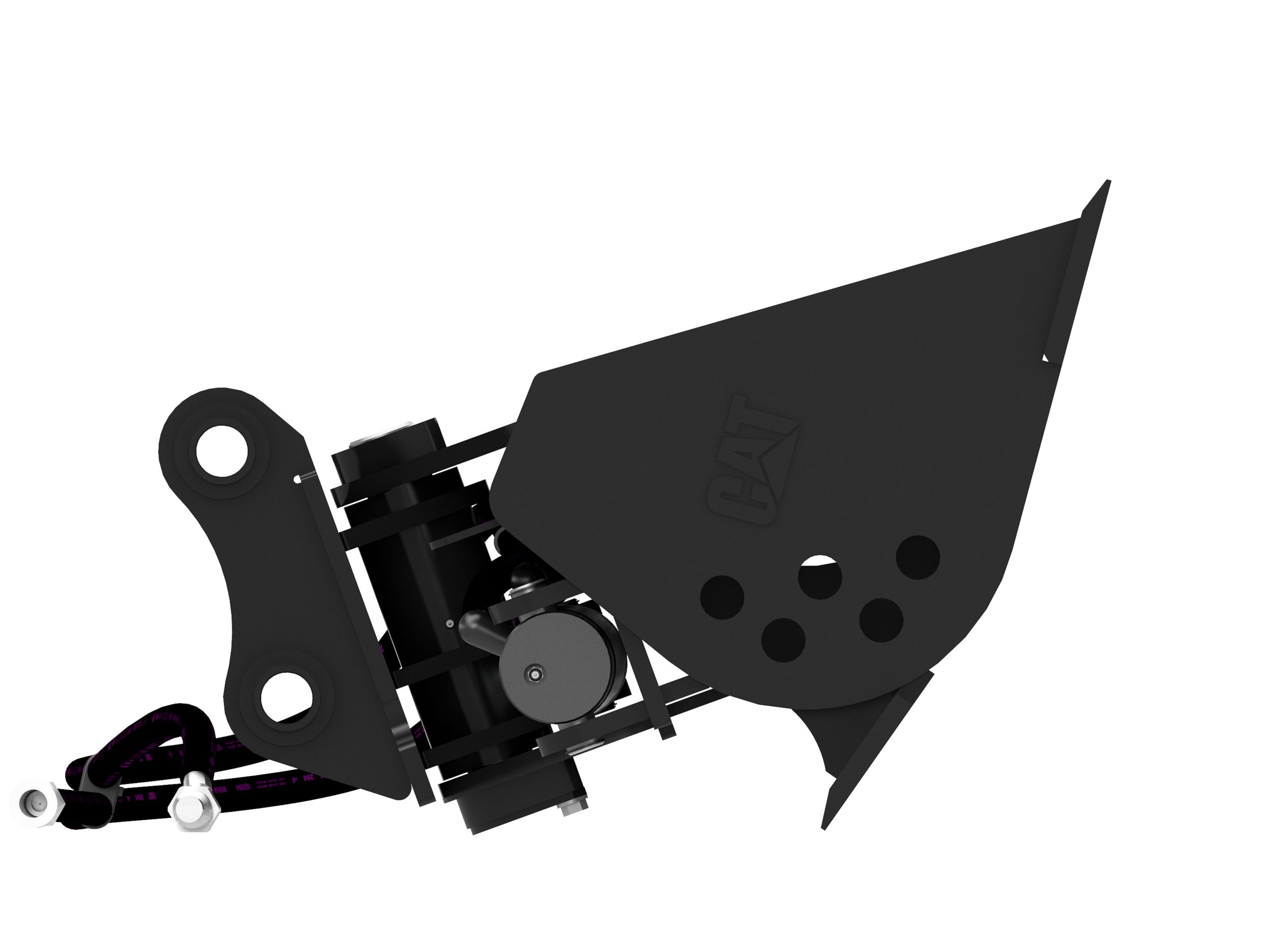

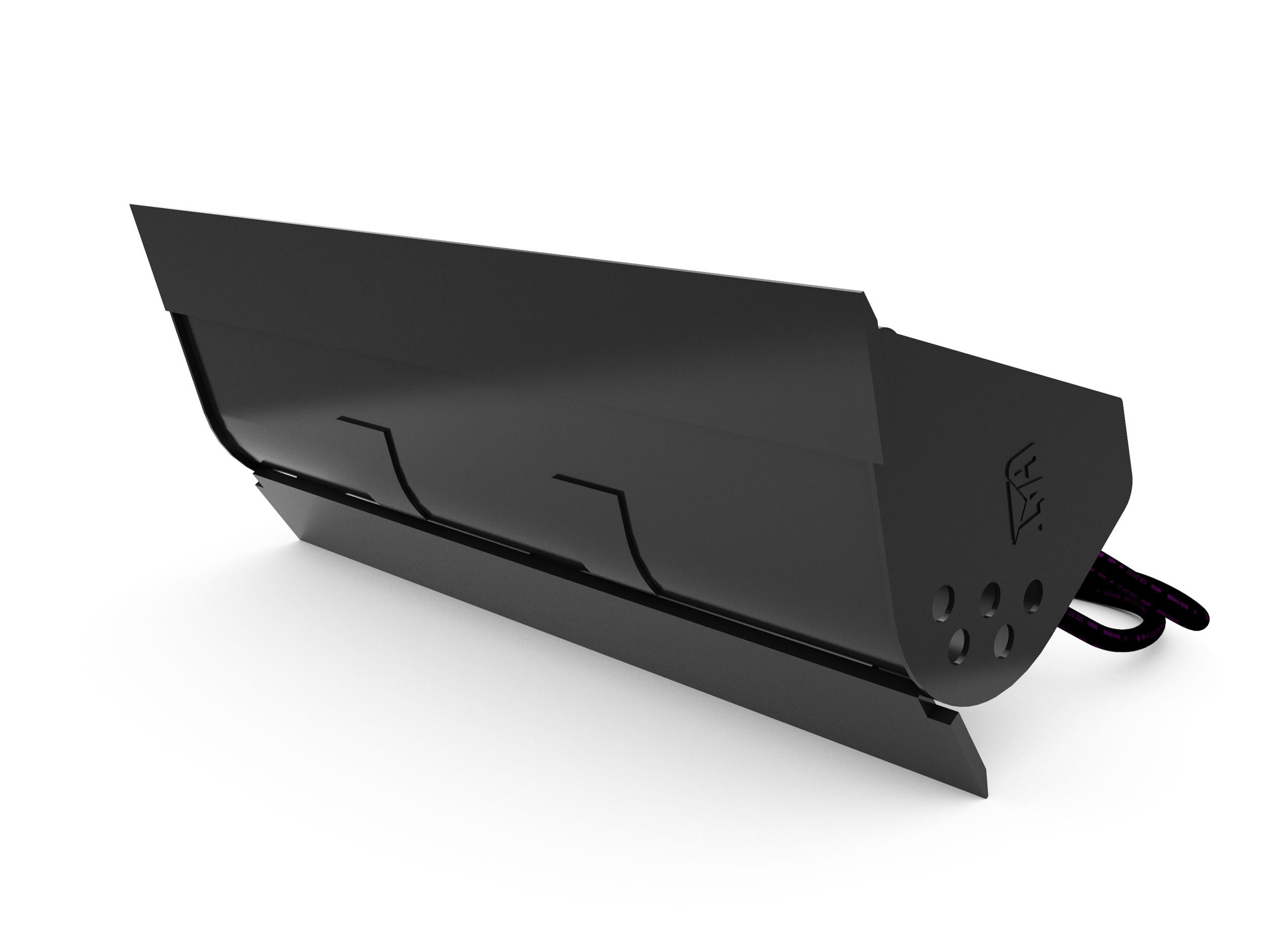

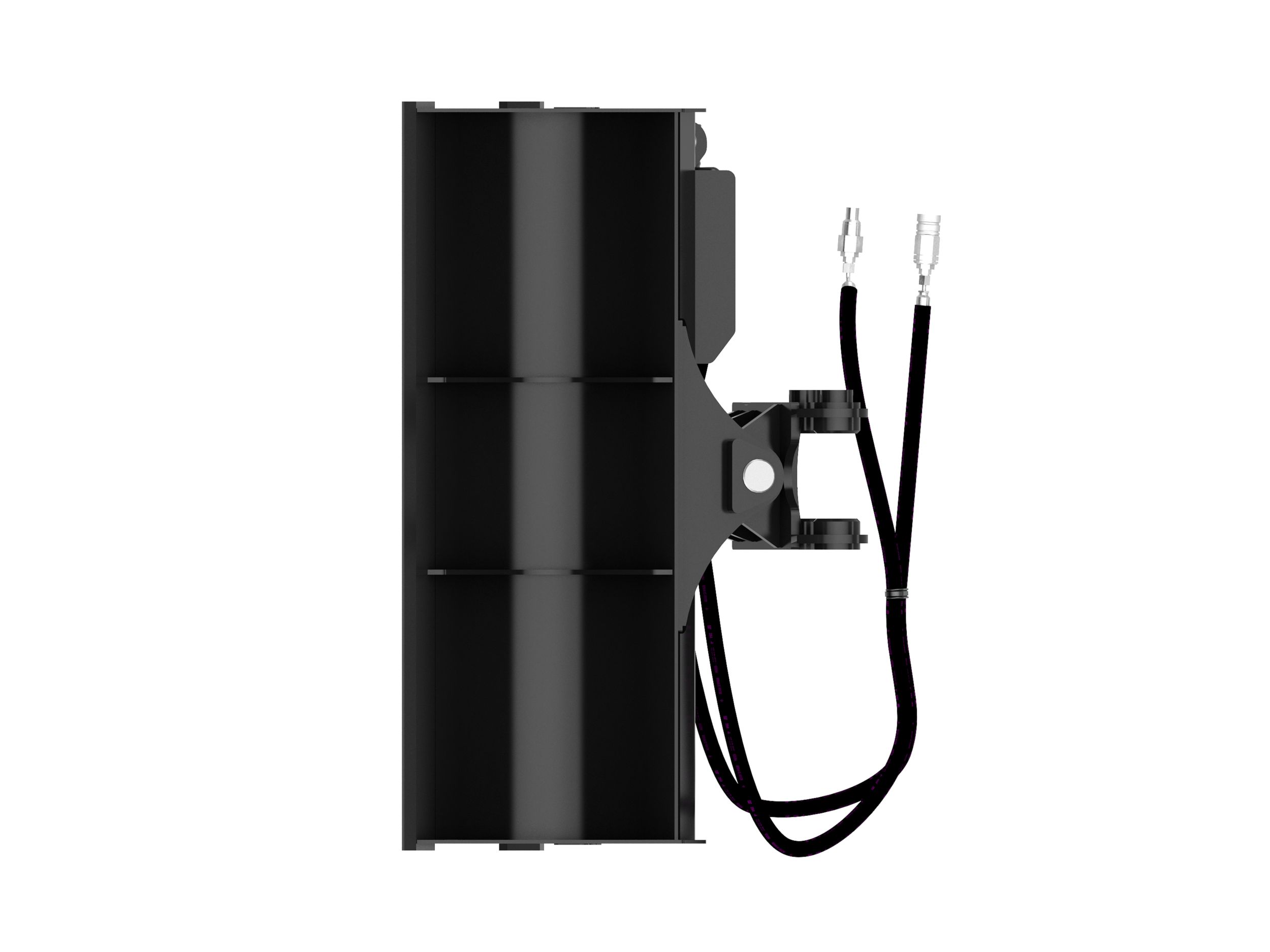

1200 mm (47 in) Tilting Ditch Cleaning Bucket

US
Metric

Overview

Tilting Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
Width
47.20 in
1200.00 mm
Rated Capacity
5.60 ft3
158.60 L
Weight
357.80 lb
162.30 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
28.70 in
728.00 mm
Width
47.20 in
1200.00 mm
Rated Capacity
5.60 yd³
158.60 m³
Weight
357.80 lb
162.30 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
28.70 in
728.00 mm
Capacity
5.60 ft³
158.60 l
Interface Type
Pin On
Features

Application

Ideal for cleaning wide trenches, loading materials, slope-cutting and profiling, grading and finishing work in construction, landscaping and road maintenance applications.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
