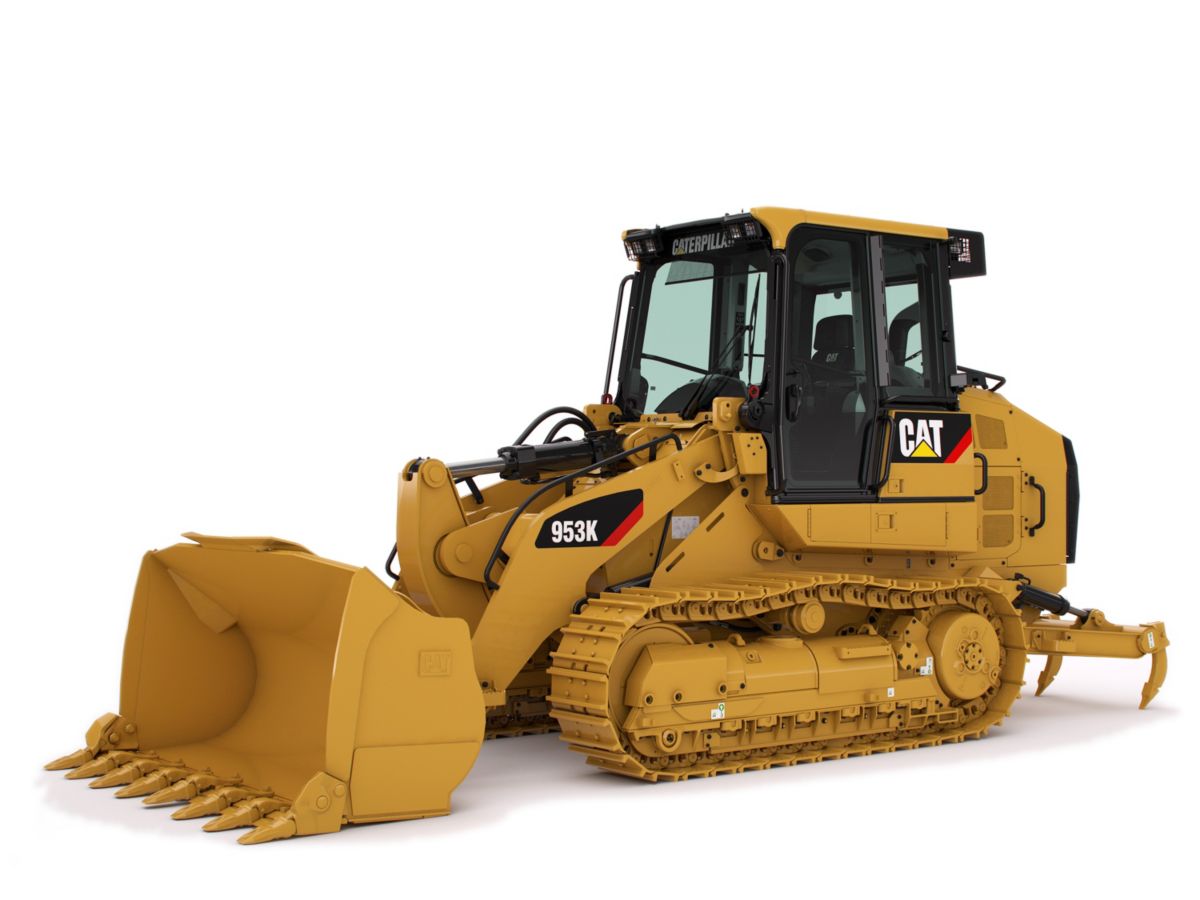

953K Track Loader

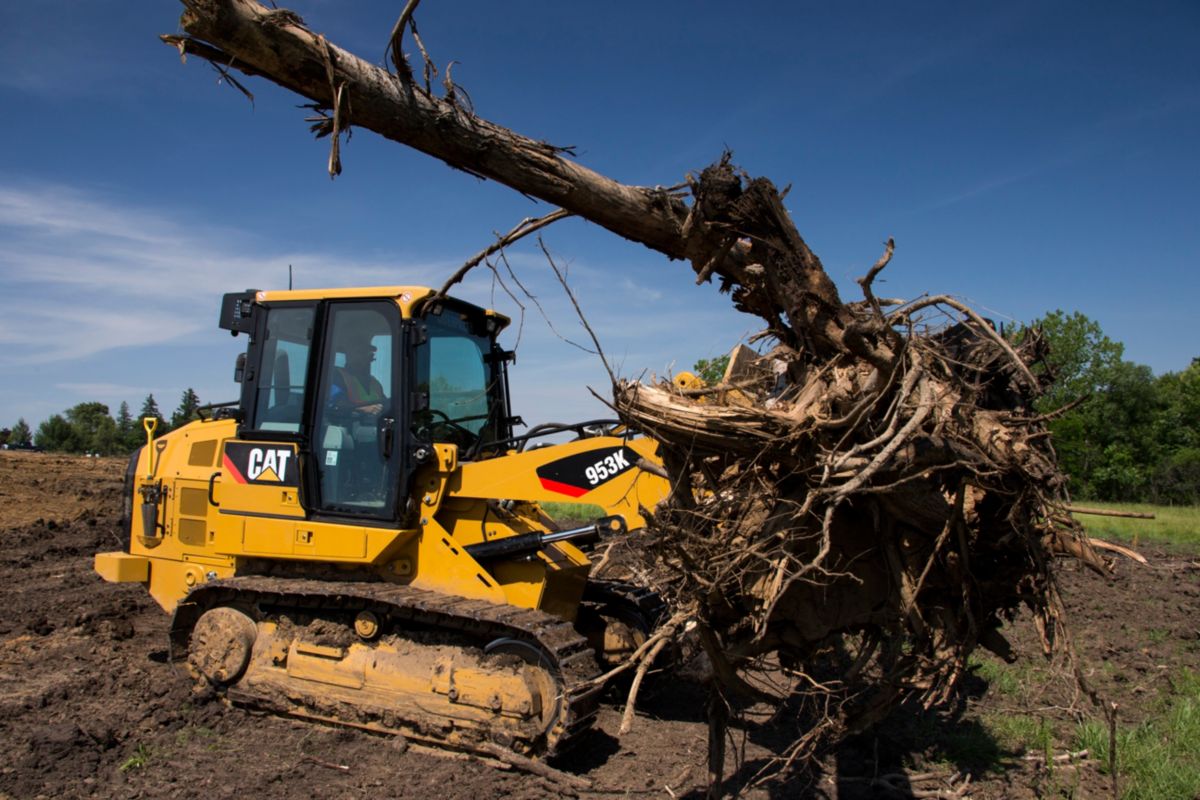

The Cat 953K Track Loader working in land clearing

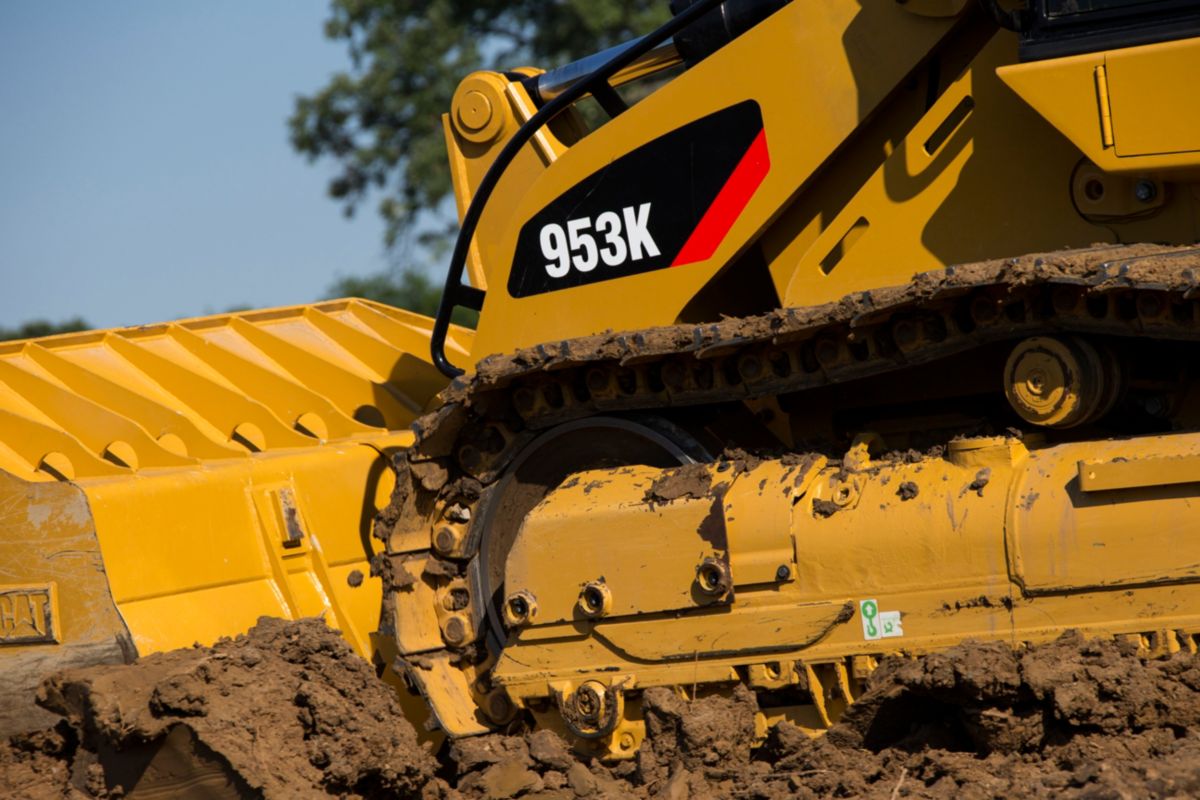

Crawler loader undercarriage getting traction

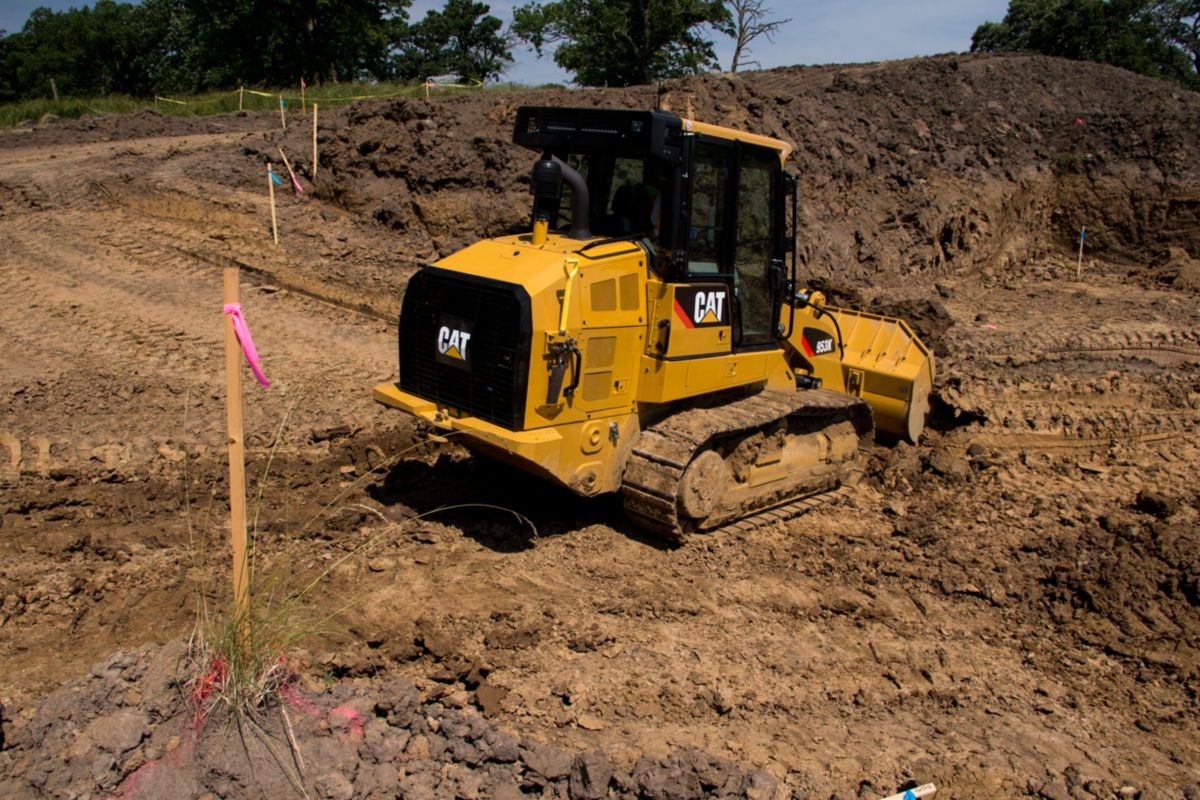

Cat 953K Track Loader working on a home building site

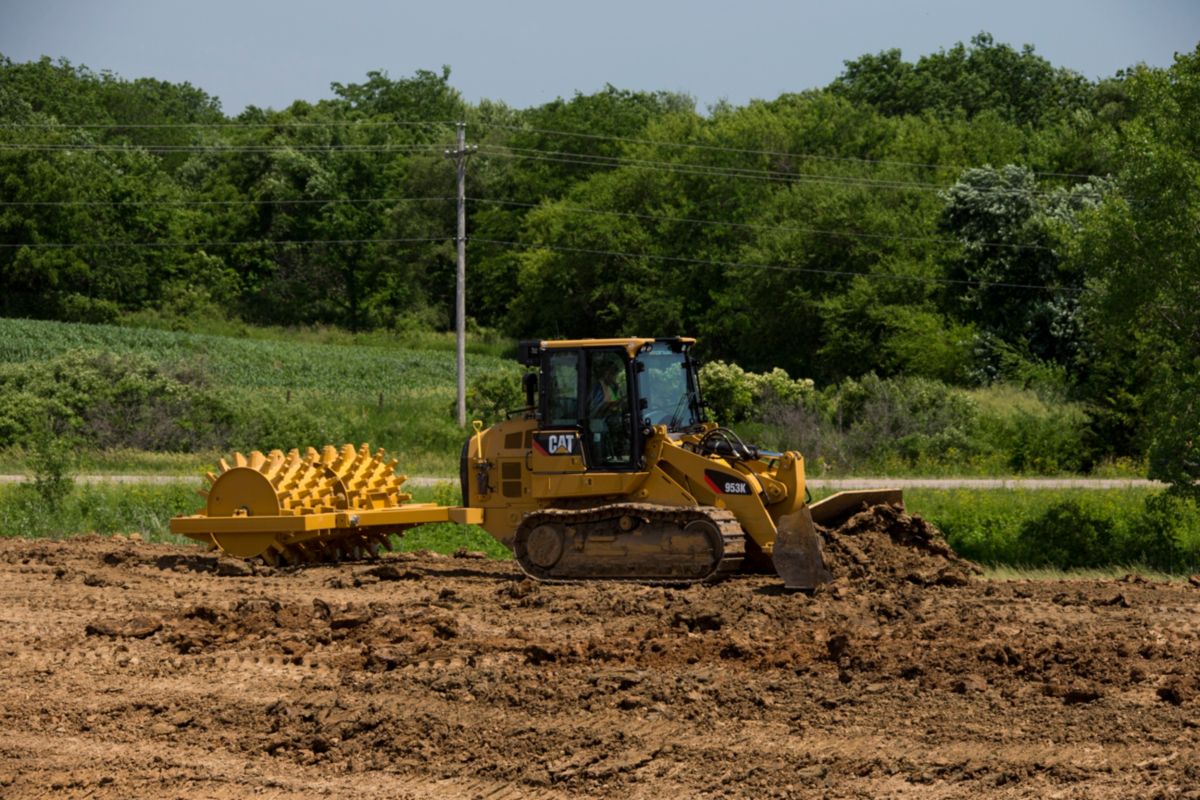

A 953K Track Loader has the versatility to push dirt and tow implements

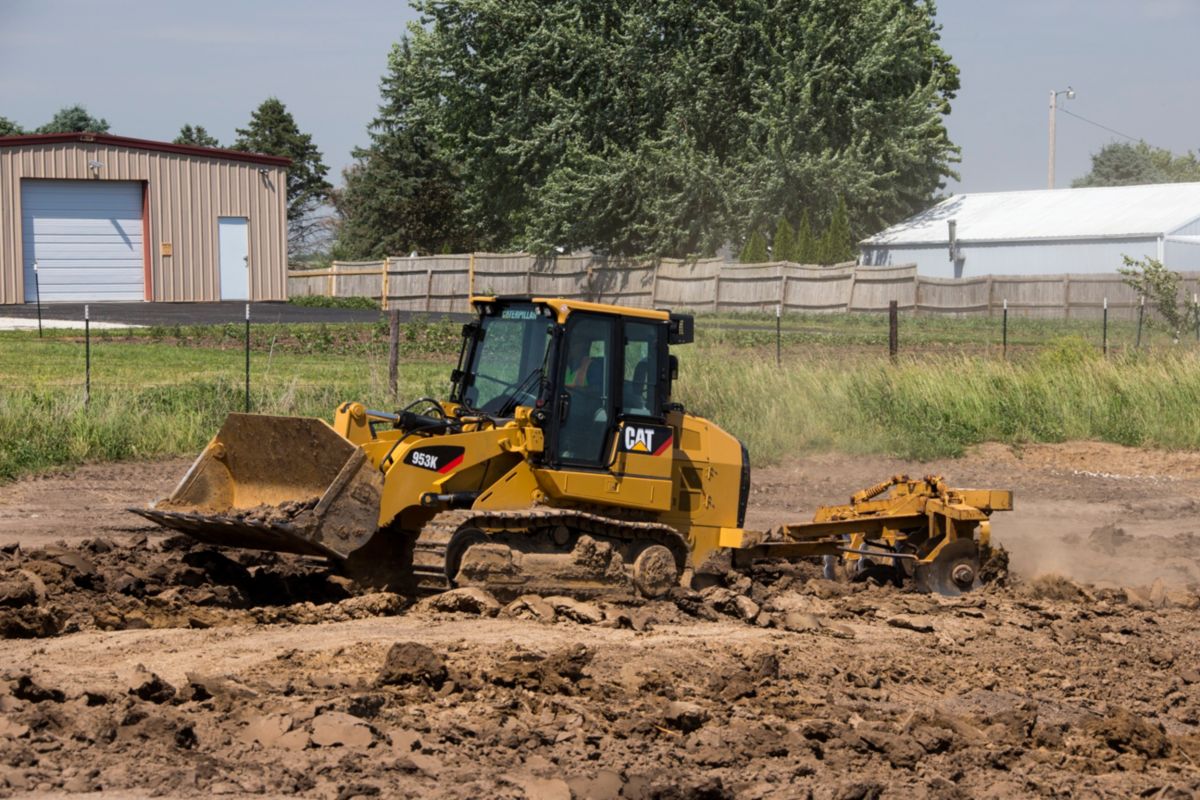

Cat 953K Track Loader pulling a disc

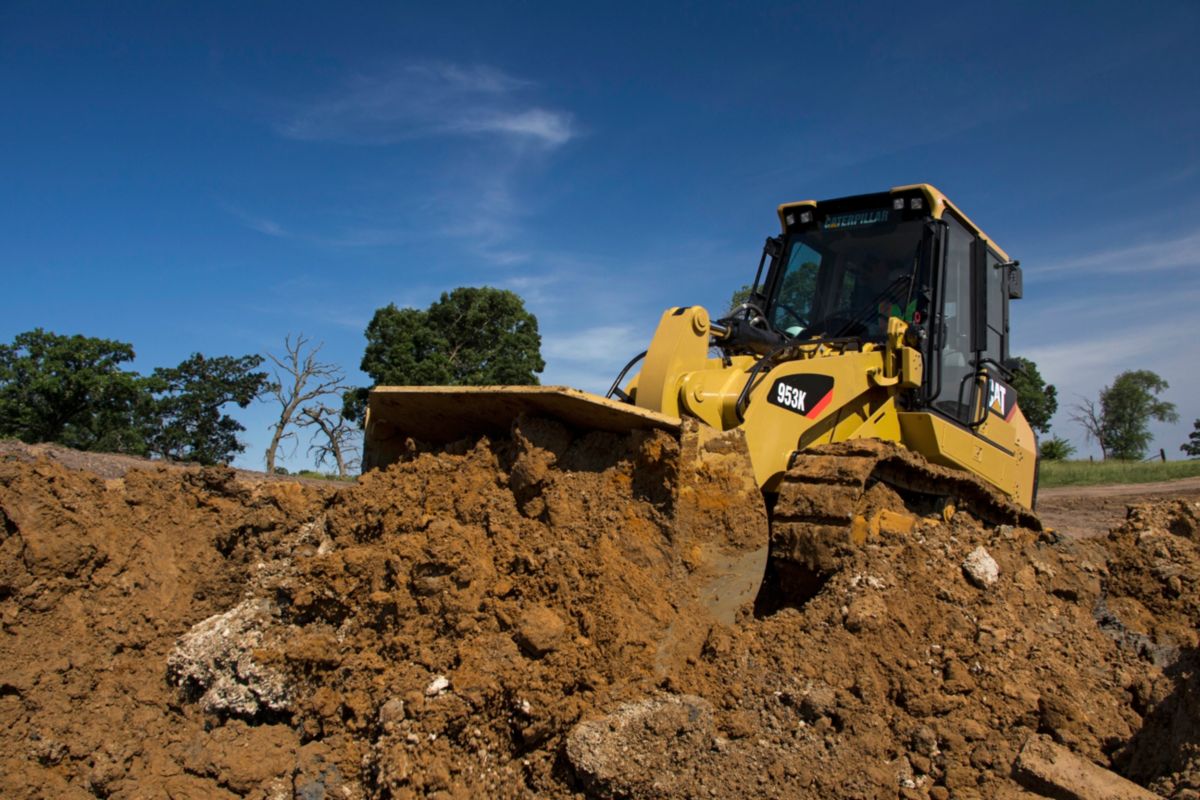

You can push dirt with a Cat 953K Track Loader

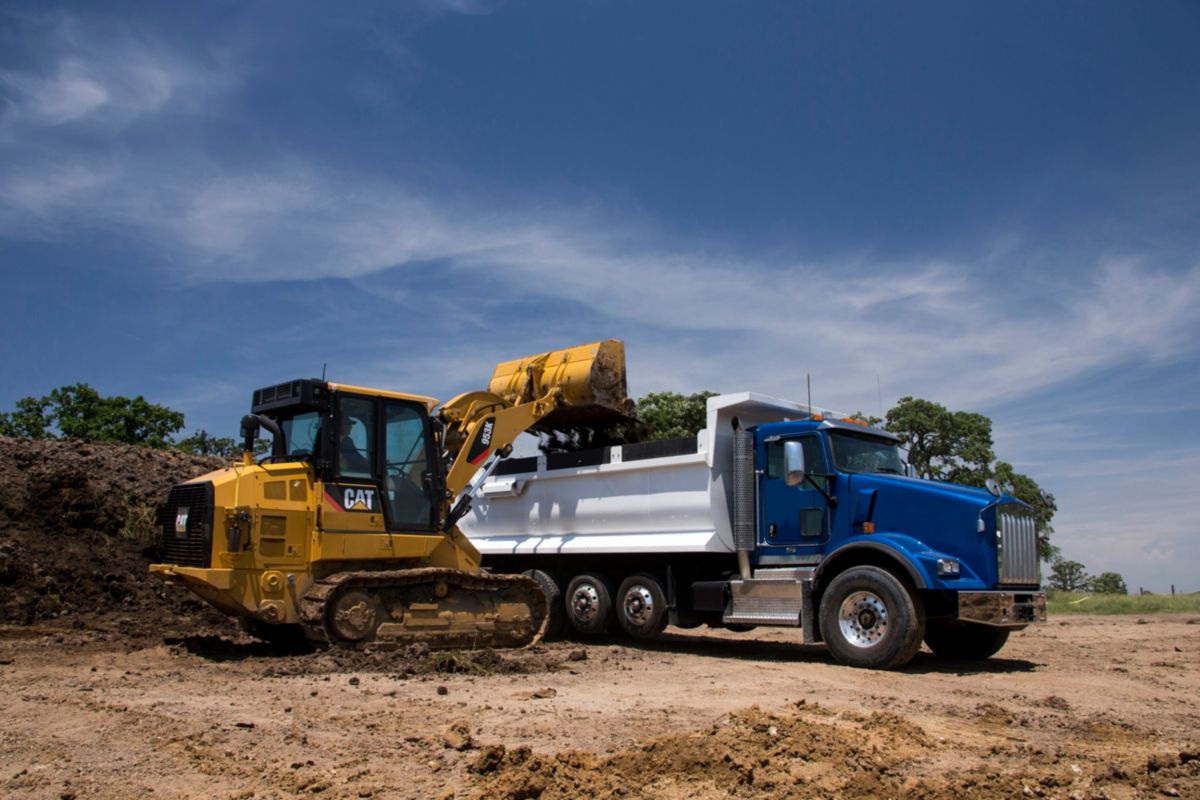

Truck Loading is easy with a 953K Track Loader
US
Metric

Overview

Save money and transport time with one rugged machine for land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you reduced ground pressure and better traction so you can start the job earlier and work longer in soft underfoot conditions. Purpose-built Waste Handler, Ship Hold and Partial Steel Mill configurations stand up to the toughest applications. This new generation of Cat® Track Loaders brings you all of this, plus improved performance and fuel efficiency.

Engine

Flywheel Power
154.00 hp
115.00 kW
Engine Model
Cat C7.1 ACERT
Engine Power (maximum) – SAE J1995
177.00 hp
132.00 kW
Engine Power (maximum) – ISO 14396
173.00 hp
129.00 kW
Engine Power (maximum) – ISO 14396 (DIN)
175.00 hp
129.00 kW
Net Power (rated) – SAE J1349/ISO 9249
154.00 hp
115.00 kW
Net Power - Rated - ISO 9249 (DIN)
156.00 HP
156.00 HP
Note
All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

Weights

Operating Weight
33852.00 lb
15355.00 kg

Buckets

Capacity - General Purpose
2.40 yd3
1.80 m3
Capacity - Performance Series
2.50 yd³
2.10 m³
Capacity – Multi-Purpose
2.10 yd3
1.60 m3
Width - General Purpose
97.80 in
2485.00 mm

Undercarriage

Track Shoe Width – Standard
18.90 in
480.00 mm
Track Rollers/Shoes - Each Side
14.90 in
380.00 mm
Jun-37
Track Rollers/Shoes – Each Side
6/37
Ground Contact Area - Optional Shoe
2790.00 in²
1.80 m²
Ground Pressure(1) - Standard Shoe
8.80 psi
60.70 kPa
Ground Pressure(1) - Optional Shoe
11.10 psi
76.70 kPa
Ground Pressure(1) – Standard Shoe
8.80 psi
60.70 kPa
Ground Pressure(1) – Optional Shoe
11.10 psi
76.70 kPa
Grouser Height – Double Grouser
1.40 in
35.00 mm
Track Gauge
72.30 in
1836.00 mm

Service Refill Capacities

Fuel Tank
70.00 gal
265.00 L
DEF Tank(1)
4.20 gal
16.00 L

Engine

Emissions
U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final or China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA

Buckets

Width - Performance Series
99.80 in
2536.00 mm
Width - Multi-Purpose
97.30 in
2471.00 mm

Dimensions

Overall Machine Width without Bucket: Standard Tracks – 480 mm (19.7 in) Shoes
91.20 in
2316.00 mm
Overall Machine Width without Bucket: Narrow Tracks - 380 mm (14.9 in) Shoes
87.20 in
2216.00 mm
Ground Clearance
16.40 in
417.00 mm
Machine Height - Top of Cab
124.20 in
3155.00 mm
Overall Machine Length*
251.50 in
6389.00 mm
Overall Machine Length*
251.50 in
6389.00 mm
15°
Carry Position Approach Angle
5.50 in
140.00 mm
15°
Digging Depth*
5.50 in
140.00 mm
43°/50°
Maximum Rollback - Ground/Carry Position
21.60 in
548.00 mm
43°/50°
Reach at Full Lift Height and 45° Dump*
47.00 in
1195.00 mm
Bucket Height - Carry Position
21.60 in
548.00 mm
Reach at Full Lift Height and 45° Dump*
47.00 in
1195.00 mm
52°/53°
Clearance at Full Lift Height and 45° Dump*
106.00 in
2694.00 mm
74°
Maximum Rollback/Dump - Fully Raised
142.10 in
3610.00 mm
52°/53°
Overall Machine Height, Bucket Fully Raised
183.70 in
4666.00 mm
Grading Angle
110.30 in
2804.00 mm
74°
Ramp Angle
29°

Buckets

Note
Buckets equipped with teeth and segments.

Dimensions

Note
*With general purpose bucket and extra duty teeth.

General

Note
For complete machine specifications and available configurations, please see your Cat dealer or look on this website.

Engine

Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.

Undercarriage

Ground Pressure – Standard Shoe
8.60 psi
59.60 kPa
Ground Pressure – Optional Shoe
10.90 psi
75.30 kPa
Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

Service Refill Capacities

Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

Weights

Operating Weight(1)
34484.00 lb
15642.00 kg
Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.

Engine

Flywheel Power
154.00 HP
115.00 kW
Engine Model
Cat C7.1
Net Power (Rated) - SAE J1349/ISO 9249
154.00 HP
115.00 kW
Note (1)
All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2)
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

Undercarriage

Track on Ground
91.30 in
2320.00 mm
Track Gauge
72.30 in
1836.00 mm
Ground Contact Area - Standard Shoe
3410.00 in²
2.20 m²
Grouser Height - Double Grouser
1.40 in
35.00 mm
Track Shoe Width - Optional
14.90 in
380.00 mm
Track Shoe Width - Standard
18.90 in
480.00 mm

Service Refill Capacities

Fuel Tank
70.00 gal (US)
265.00 l
DEF Tank(1)
4.20 gal (US)
16.00 l

Weights

Operating Weight
33852.00 lb
15355.00 kg

Buckets

Capacity - General Purpose
2.40 yd³
1.80 m³
Capacity - Multi-Purpose
2.10 yd³
1.60 m³

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.

Dimensions

Ground Clearance
16.40 in
417.00 mm
Height - Bucket Hinge Pin
142.10 in
3610.00 mm
Height - Top of Stack
110.30 in
2804.00 mm
Note
*With general purpose bucket and extra duty teeth.
Overall Machine Height - Bucket Fully Raised
183.70 in
4666.00 mm
Overall Machine Width without Bucket: Standard Tracks - 480 mm (19.7 in) Shoes
91.20 in
2316.00 mm
Ramp Angle
29°

Engine

Emissions
U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final or China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA

Service Refill Capacities

Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

Undercarriage

Ground Pressure - Optional Shoe
10.90 psi
75.30 kPa
Ground Pressure - Standard Shoe
8.60 psi
59.60 kPa
Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

Weights

Note
(1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.
Operating Weight(1)
34484.00 lb
15642.00 kg
Features

DO MORE WITH LESS FUEL

  • 953K uses 10-25 percent less fuel per hour than the previous model.
  • Optional Performance Series bucket helps you move up to 10 percent more material per hour.
  • Efficient use of Diesel Exhaust Fluid*– typically 2.5-3 percent of fuel consumption – provides excellent overall fluid efficiency.

    * Machine equipped with U.S. EPA Tier 4 Final/EU Stage IV emissions reduction technology.

BUILT TO PERFORM

  • Smoother implement and steering response, and improved steering performance over the previous model.
  • Features like load sensing hydraulics and position sensing cylinders offer precise, responsive performance.
  • Cat C7.1 engine delivers power and fast response when the machine is under load.
  • Reduced engine noise – quieter for the operator and others around the work site.

EXPAND YOUR CAPABILITIES

  • Steel track undercarriage allows you to work in wet, soft, or sensitive underfoot conditions.
  • Finish jobs in less time – track loaders can often start the job earlier and work longer than other machines due to their lower ground pressure and increased traction.
  • Quick Coupler Ready – Fusion™ Quick Coupler option allows easy use of forks, buckets, etc. from wheel loaders and other Fusion compatible machines.

EASY TO OPERATE

  • Choose either joystick or two-lever implement controls to match operator preference or application.
  • Speed/steering controls available as either a joystick or as v-lever and foot pedals.
  • Updated cab offers operator comforts like suspension seat, adjustable armrests and controls, and an improved air conditioning system.
  • Excellent visibility to the bucket and all around the machine enhances safety and helps operators work more confidently.
  • Handles and steps help operators climb on and off the machine more easily, from the front or the back of the tracks.
  • Set implement response – fine, normal, coarse – to match operator preference or application.
  • Emissions reduction technology is designed so regeneration runs automatically in the background while you work.

SAVE ON MAINTENANCE TIME

  • Integrated diagnostics show operators on-board pressure readings for faster service.
  • Tilt cab and convenient service access points for easier maintenance and repair.
  • Demand fan provides efficient cooling plus easy fold-down service access.
  • Remote monitoring with Product Link™/VisionLink® helps you manage your fleet more effectively and profitably.

TAKE ON THE TRASH

  • Waste Handler arrangements feature added guarding and seals to give you a purpose-built machine to take on the challenges of waste applications. A choice of buckets and track shoes allow you to further optimize the machine for greater performance and service life.
  • Versatile machine for loading, sorting, excavation and spreading cover, well suited to the landfill or transfer station.
  • Specialized guarding, striker bars and seals help protect the machine and components from impact and airborne debris.
  • Final Drive guarding helps prevent wrapping and damage.
  • Bars help protect windshield and operator from breakage and debris. Cab door guards offer added protection.
  • Cooling system is designed for high debris environments and easy cleanout access.
  • Specialized air handling features help deliver cleaner air to the machine and to the cab.
  • Laminated thermal shields and insulated clean emission module.
  • Landfill buckets, equipped with heavy-duty trash rack, offer increased capacity and reduced spillage.
  • Center-hole track helps reduce packing. Choose from a variety of shoe types and widths to optimize the loader for your application.
  • Optional rear vision camera enhances visibility behind the machine.
  • Enhanced Cleaning Package -
  1. Faster, easier cleanout.
  2. Wide gauge undercarriage equipped with a standard track shoe allows more space for debris to pass between the track roller frame, tracks and chassis.
  3. Design helps reduce damage caused by debris carried on the tracks.
  4. Heavier waste configuration combined with narrower track shoes increases ground pressure for greater compaction.

    Note: Features may vary by model and region. Please consult your Cat dealer for details and availability.

KEEP THINGS SHIPSHAPE

  • Specialized Ship Hold machines give you the optimal combination of traction, high reach and machine balance makes track loaders ideal for working in ship holds and port handling duties.
  • Specialized implements, like coal buckets and trim blades, help you sweep down walls and handle a variety of materials.
  • Fusion Quick Coupler option adds versatility with easy use of forks, buckets and other attachments from compatible machines.
  • Specialized sealing, guards and bumpers help protect key components.
  • Front and rear eyes widely spaced for stability during lifting.
  • Added lighting packages help illuminate the work area.
Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Power Train
    • Cat C7.1 diesel engine, turbo charged with Air-To-Air After Cooler (ATAAC)
    • Modular cooling system for engine air intake, oil and water
    • Radiator fan, electronically controlled, hydraulically driven, temperature sensing, on demand
    • Electro Hydrostatic Control (EHC) for transmission with travel and work modes
    • Engine idle shutdown
    • Auto engine speed control
    • Electric fuel pump
    • Water separator
    • Air cleaner dry-type, axial seal with integral precleaner and dust ejection system, electronic filter condition indicator
    • Starting aid, glow plug
    • Cat extended life coolant
  • Undercarriage
    • Cat heavy duty undercarriage: 953K (37 sections), 1836 mm (72.3 in) track gauge
    • Track guiding guards, end section
    • Track adjuster, hydraulic
    • Sprocket rims, with replaceable bolt-on tough steel segments
    • Guards, sprocket
    • Six track rollers per side with two upper carrier rollers, lifetime lubricated
    • Idlers, conventional type, lifetime lubricated
    • Oscillating track roller frames
  • Electrical
    • Alternator, 24V, heavy duty brushless
    • Backup alarm
    • Electric horn
    • Two heavy duty batteries, high output, maintenance free: 900 CCA
    • Switch, main disconnect
    • Starter, electric (heavy duty, 24V)
  • Operator Environment
    • Pressurized, sound suppressed, ROPS/FOPS cab with tinted glass and right side sliding window
    • Air conditioning and heating
    • Heater/defroster with automatic temperature control
    • Seat, fabric-covered, air suspended, adjustable
    • Adjustable armrests
    • Electro hydraulic, seat mounted control levers with faster processing
    • Seat belt, retractable, with buckling indicator on dash
    • Electronic Monitoring System with gauges for: Engine coolant temperature; Hydraulic oil temperature; Fuel level; Engine oil pressure; Diesel Exhaust Fluid level (when equipped)
    • Engine RPM and gear display
    • Hour meter, electronic
    • Throttle switch rotary with Eco Mode
    • Center brake pedal
    • Independent forward/reverse speed range settings
    • Travel speed limiter, electronic
    • Mirror, rearview, inside, adjustable
    • Radio ready, Includes 24V to 12V converter, speakers, antenna and 12V power outlet
    • Coat hook
    • Storage compartments under left armrest
    • Document holder on right console
    • Floor mat, rubber, heavy duty
    • Windshield washer and wipers, multiple speed front and rear
    • Durable metal roof
    • Parking brake switch and "brake-on" indicator light
    • Fender
  • Other Standard Equipment
    • Sound suppression, exterior
    • Z-bar loader linkage
    • Load sensing variable displacement implement pump
    • Implement cylinders with sensors
    • Operator programmable lift and tilt kickouts
    • Engine enclosure with lockable doors
    • Radiator core 6.5 fins-per-inch, debris resistant
    • Hinged radiator guard and swing out fan
    • Full bottom guards
    • Ecology drains on hydraulic oil tank
    • Product Link ready
    • Oil sampling valves
    • Cat XT hoses
    • HYDO Advanced 10
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Power Train
    • Cat C7.1 diesel engine with engine mounted aftertreatment to meet U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final emission standards OR Cat C7.1 diesel engine to meet China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA
    • Demand fan, reversing
    • Air inlet, precleaner, turbine
    • Transmission control, V-lever or joystick
  • Operator Environment
    • Standard cab with four halogen lights (two forward-facing roof mounted, two rear-facing integrated into air conditioning unit)
    • Deluxe cab with sliding windows, Bluetooth radio microphone, eight LED lights (four forward-facing, two sideways facing, two rear-facing integrated into air conditioning unit)
    • Seat, cloth, air suspension, no side-to-side isolator
    • Radio, AM/FM/AUX/USB/Bluetooth
    • Easy access package (grab irons and steps)
    • Cab air precleaner
    • Front light guards
    • Windshield protection
  • Hydraulics
    • Hydraulic oil, biodegradable
    • Hydraulics Packages: General Purpose - Two-valve, joystick Three-valve, joystick; Two-valve, two levers; Three-valve, two levers
    • Hydraulics Packages: Multi-Purpose - Three-valve, joystick; Four-valve, joystick
  • Fuel Systems
    • Fast fill fuel tank
    • Fuel tank refueling pump
  • Undercarriage
    • Idler guard
    • Idler guard, ship hold
    • Full length track roller guard
    • Full length track roller guard, heavy duty
    • Track Groups (37 sections) - Heavy Duty Track Groups: 380 mm double grouser, 380 mm double grouser, sealed; 480 mm double grouser, 480 mm double grouser, center hole, 800 mm double grouser
    • Track Groups (37 sections) - SystemOne Track Groups: 380 mm double grouser, 480 mm double grouser
  • Buckets
    • General Purpose: 1.7 m³, flush
    • General Purpose: 1.8 m³
    • General purpose: 1.8 m³, full edge
    • General Purpose: 1.8 m³, heavy duty
    • General Purpose: 2.1 m³, Performance Series
    • Multi-Purpose: 1.8 m³
    • Wide: 2.2 m³, flush
    • Landfill: 2.3 m³
    • Landfill: 2.1 m³, heavy duty
  • Starters, Batteries and Alternators
    • Cold weather package, 120V - two 12V batteries (1,400 CCA), 120V engine coolant heater, ether starting aid
    • Antifreeze -50 degrees Celcius
  • Other Attachments
    • Counterweight, light, 230 kg (507 lb)
    • Counterweight, additional, 220 kg (485 lb)
    • Ripper, multi-shank
    • Hitch, ripper
    • Striker bars, rear
    • Additional work tools: Fusion Quick Coupler, Blades, Forks, Material handling arms, Rakes, Trim blade or two-way dozer
  • Electrical
    • Rotating beacon
  • Maintenance and Related Attachments
    • Fuel tank sediment pump
    • High speed oil change system
    • Service package, extended: Manual hydraulic system enabling cab tilt and lock at 30 degrees safely in the field; Windshield, sealed; Shovel holder (shovel not included)
  • Technology Products
    • Product Link - Satellite
    • Product Link - Cellular
    • Grade Control receiver mast
  • Special Arrangements
    • Waste Package, Heavy Duty
    • Waste Package, Heavy Duty, Enhanced Cleaning
    • Ship Hold Package, Heavy Duty
    • Partial Steel Mill Package, Heavy Duty
    • Low Ground Pressure Package, Heavy Duty
