Trash Grapple, 315/316/318 Excavators

US
Metric

Overview

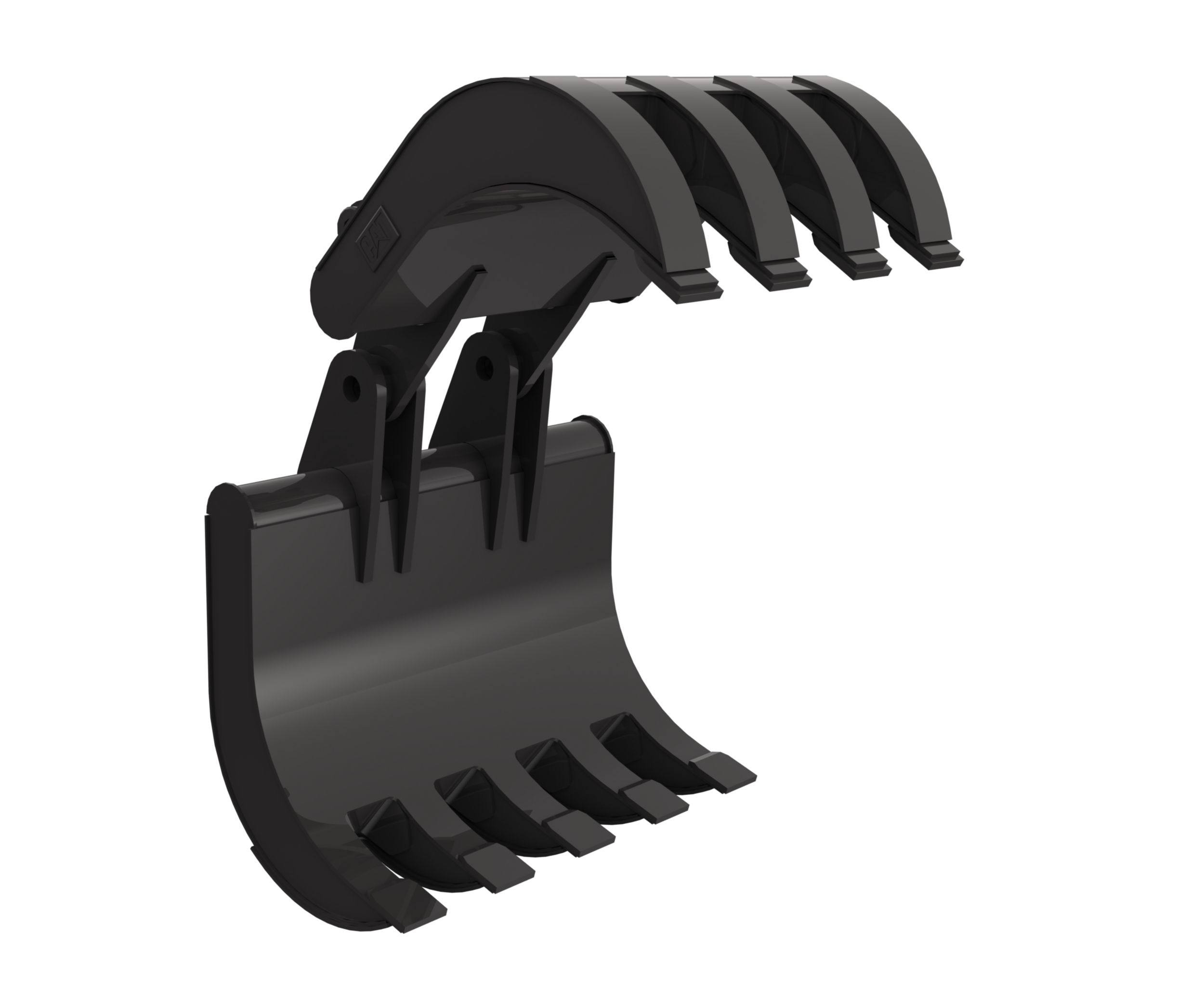

Pin on trash grapple, four tines over five, for 315B or 315C hydraulic excavator with 315 linkage.
Rated Capacity
2.40 yd3
1.83 m3
Weight
2000.00 lb
907.00 kg
Upper Jaw Width
44.00 in
1118.00 mm
Lower Jaw Width
58.00 in
1480.00 mm
Maximum Jaw Opening
87.00 in
2210.00 mm
Outside Jaw Dimension - Closed
26.00 in
665.00 mm
Outside Jaw Dimension - Open
88.00 in
2244.00 mm
Tip Radius
46.00 in
1165.00 mm
Jaw Depth
10.00 in
246.00 mm
Tip Thickness
0.51 in
13.00 mm
Wear Plate Thickness
0.51 in
13.00 mm
Wrapper Thickness
0.39 in
10.00 mm
Rated Capacity
2.40 yd³
1.83 m³
Weight
2000.00 lb
907.00 kg
Maximum Jaw Opening
87.00 in
2210.00 mm
Tip Radius
46.00 in
1165.00 mm
Jaw Depth
10.00 in
246.00 mm
Wear Plate Thickness
0.51 in
13.00 mm
