Trash Grapple, 319/320/321 Excavators

US
Metric

Overview

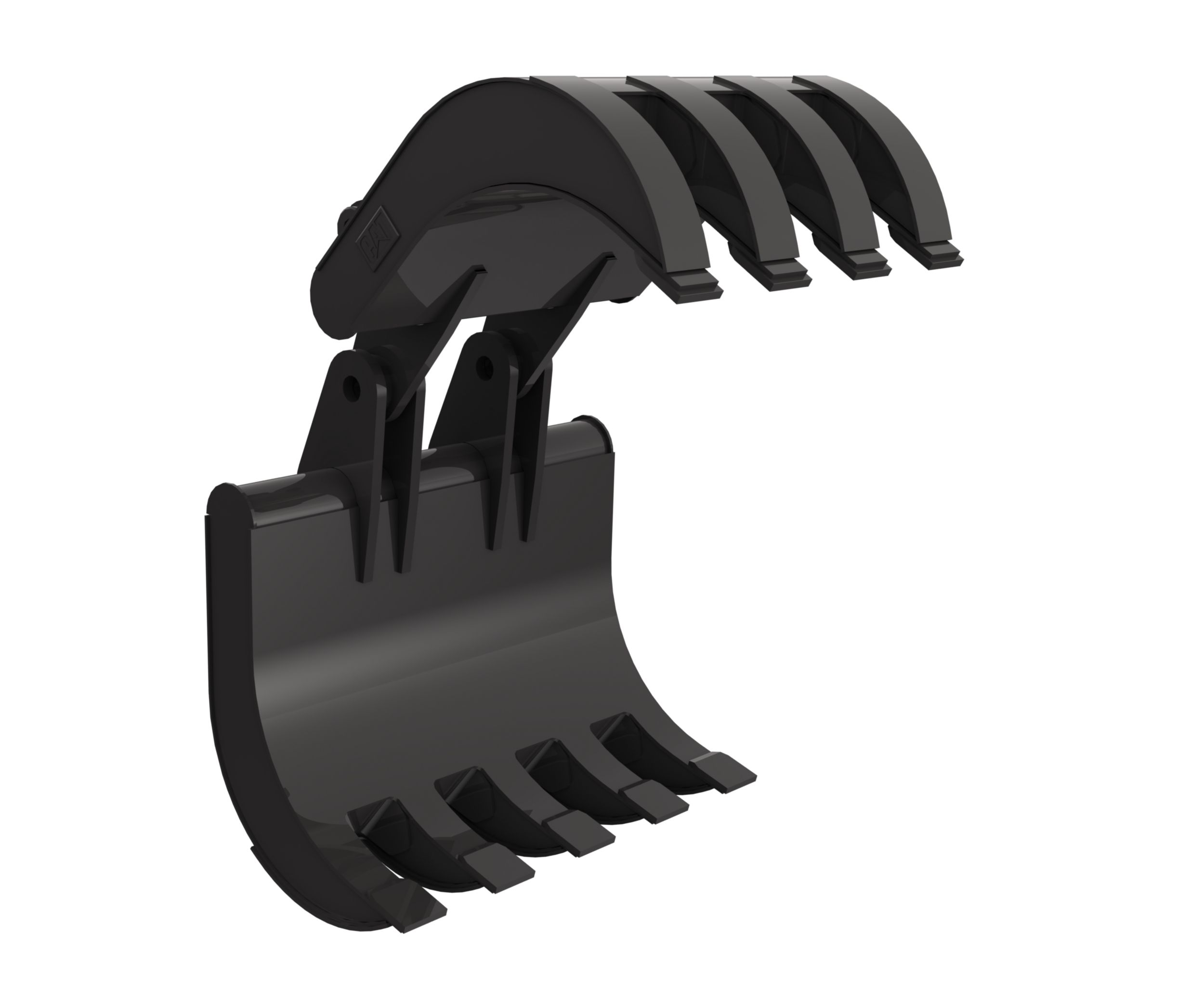

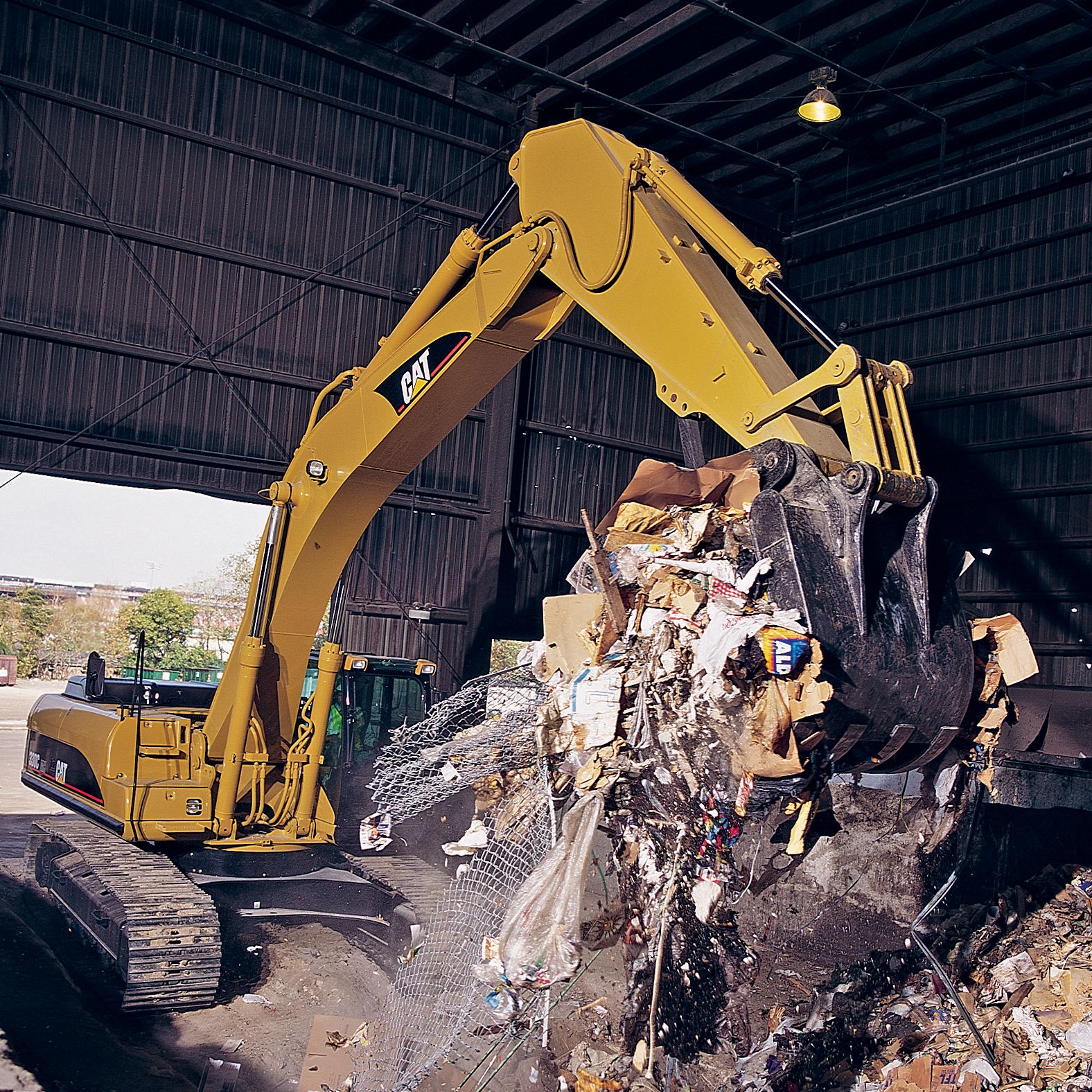

Pin on trash grapple, four tines over five, for 315C, 320C, 322CL, or M318 hydraulic excavator with B or S linkage.
Rated Capacity
3.60 yd3
2.70 m3
Weight
2840.00 lb
1288.00 kg
Upper Jaw Width
44.00 in
1118.00 mm
Lower Jaw Width
57.00 in
1450.00 mm
Maximum Jaw Opening
100.00 in
2540.00 mm
Outside Jaw Dimension - Closed
29.00 in
740.00 mm
Outside Jaw Dimension - Open
98.00 in
2500.00 mm
Tip Radius
55.00 in
1390.00 mm
Jaw Depth
11.00 in
285.00 mm
Tip Thickness
0.51 in
13.00 mm
Wear Plate Thickness
0.51 in
13.00 mm
Wrapper Thickness
0.39 in
10.00 mm
Rated Capacity
3.60 yd³
2.70 m³
Weight
2840.00 lb
1288.00 kg
Maximum Jaw Opening
100.00 in
2540.00 mm
Tip Radius
55.00 in
1390.00 mm
Jaw Depth
11.00 in
285.00 mm
Wear Plate Thickness
0.51 in
13.00 mm
