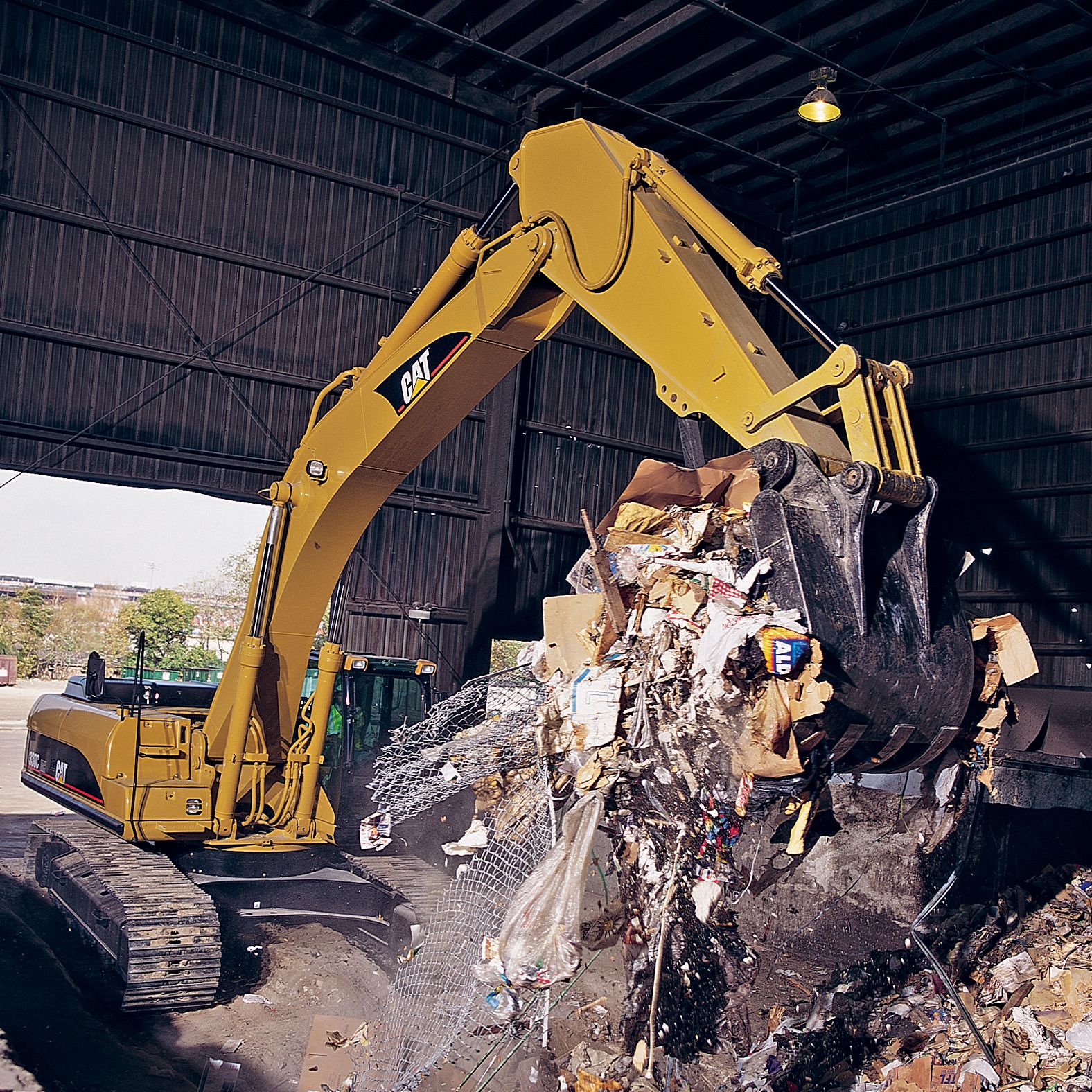

Trash Grapple, 324/328/329 Excavator

US
Metric

Overview

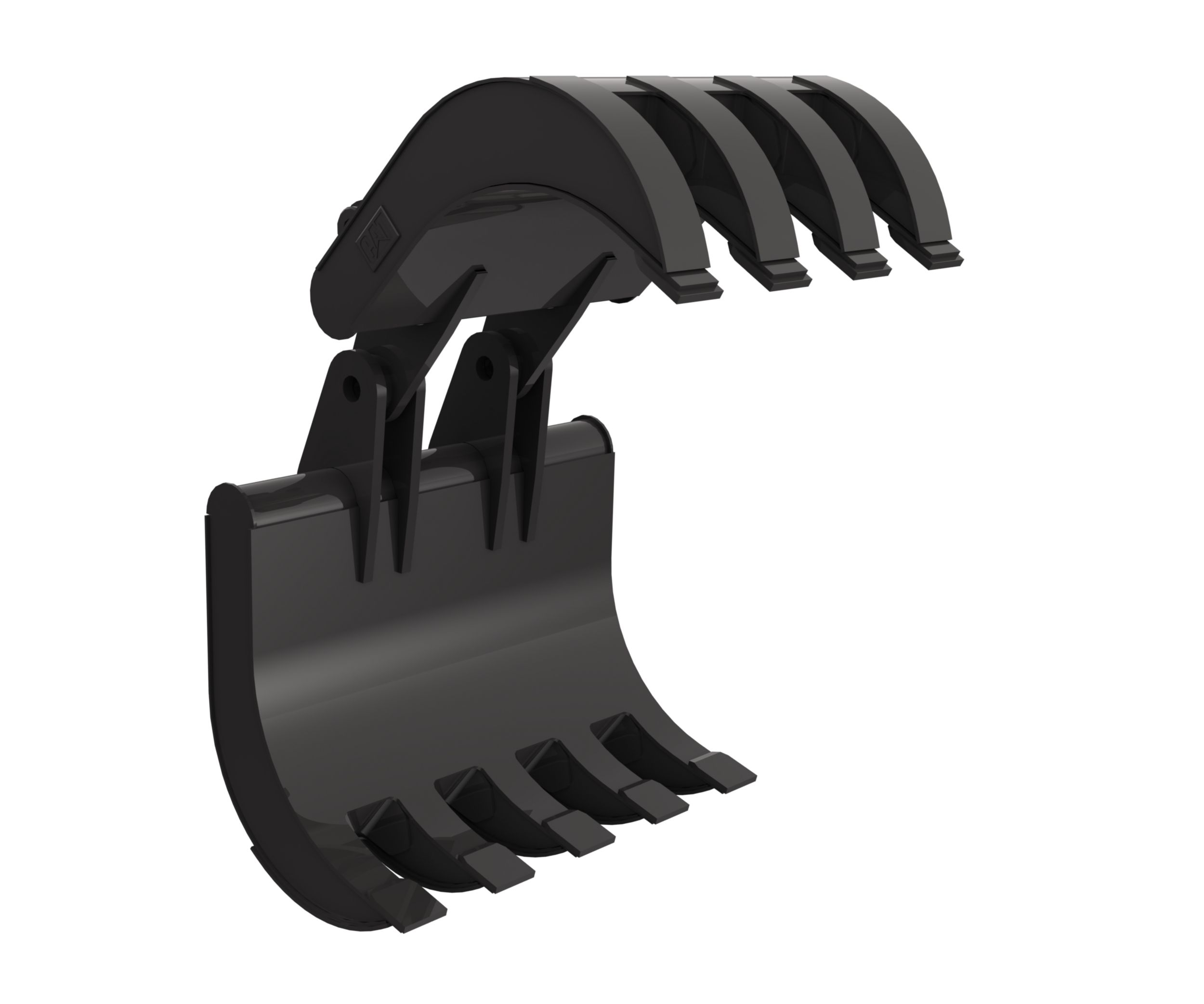

Pin on trash grapple, four tines over five, for C linkage.
Rated Capacity
5.00 yd3
3.80 m3
Weight
4569.00 lb
2077.00 kg
Upper Jaw Width
47.00 in
1196.00 mm
Lower Jaw Width
61.00 in
1545.00 mm
Maximum Jaw Opening
123.00 in
3129.00 mm
Outside Jaw Dimension - Closed
35.00 in
878.00 mm
Outside Jaw Dimension - Open
126.00 in
3205.00 mm
Tip Radius
64.00 in
1639.00 mm
Jaw Depth
16.00 in
403.00 mm
Tip Thickness
0.98 in
25.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
Wrapper Thickness
0.63 in
16.00 mm
Rated Capacity
5.00 yd³
3.80 m³
Weight
4569.00 lb
2077.00 kg
Maximum Jaw Opening
123.00 in
3129.00 mm
Tip Radius
64.00 in
1639.00 mm
Jaw Depth
16.00 in
403.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
