Overview

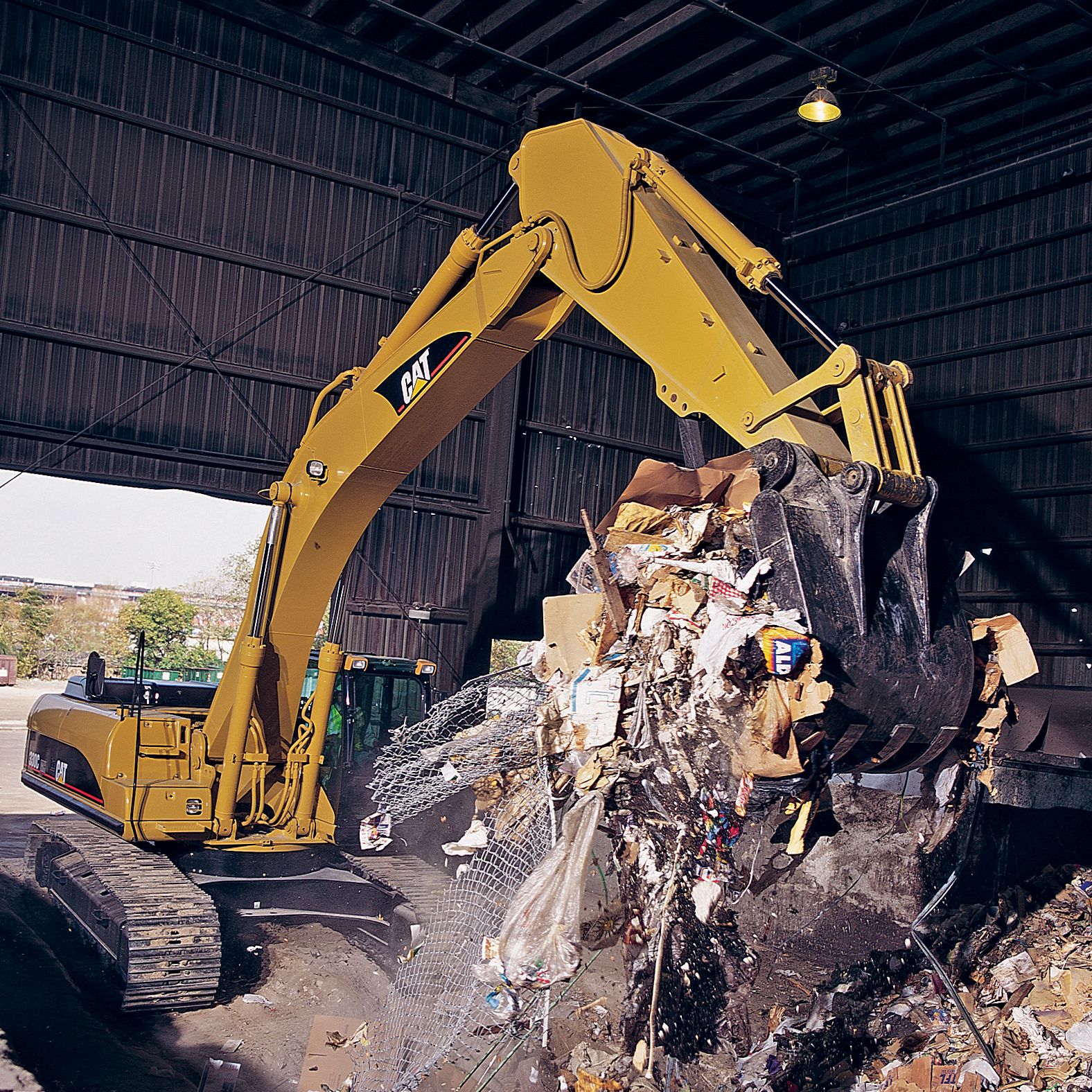

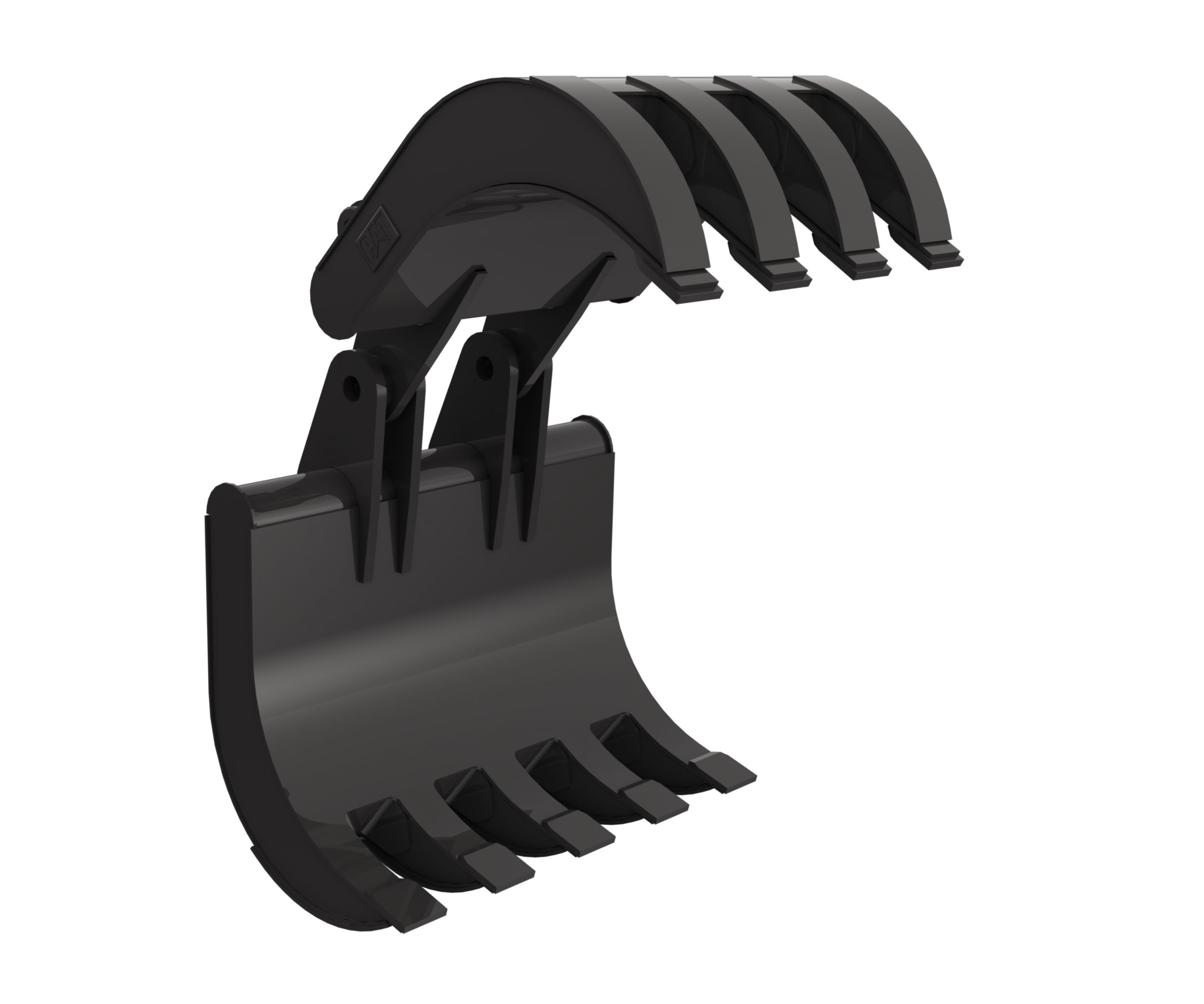

Pin on trash grapple, four tines over five, for 345B hydraulic excavator with F linkage.
Rated Capacity
6.58 yd3
5.03 m3
Weight
6174.00 lb
2800.00 kg
Upper Jaw Width
62.00 in
1581.00 mm
Lower Jaw Width
80.00 in
2038.00 mm
Maximum Jaw Opening
124.00 in
3161.00 mm
Outside Jaw Dimension - Closed
13.00 in
338.00 mm
Outside Jaw Dimension - Open
130.00 in
3290.00 mm
Tip Radius
66.00 in
1679.00 mm
Jaw Depth
17.00 in
430.00 mm
Tip Thickness
0.98 in
25.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
Wrapper Thickness
0.63 in
16.00 mm
Rated Capacity
6.58 yd³
5.03 m³
Weight
6174.00 lb
2800.00 kg
Maximum Jaw Opening
124.00 in
3161.00 mm
Tip Radius
66.00 in
1679.00 mm
Jaw Depth
17.00 in
430.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
