Overview

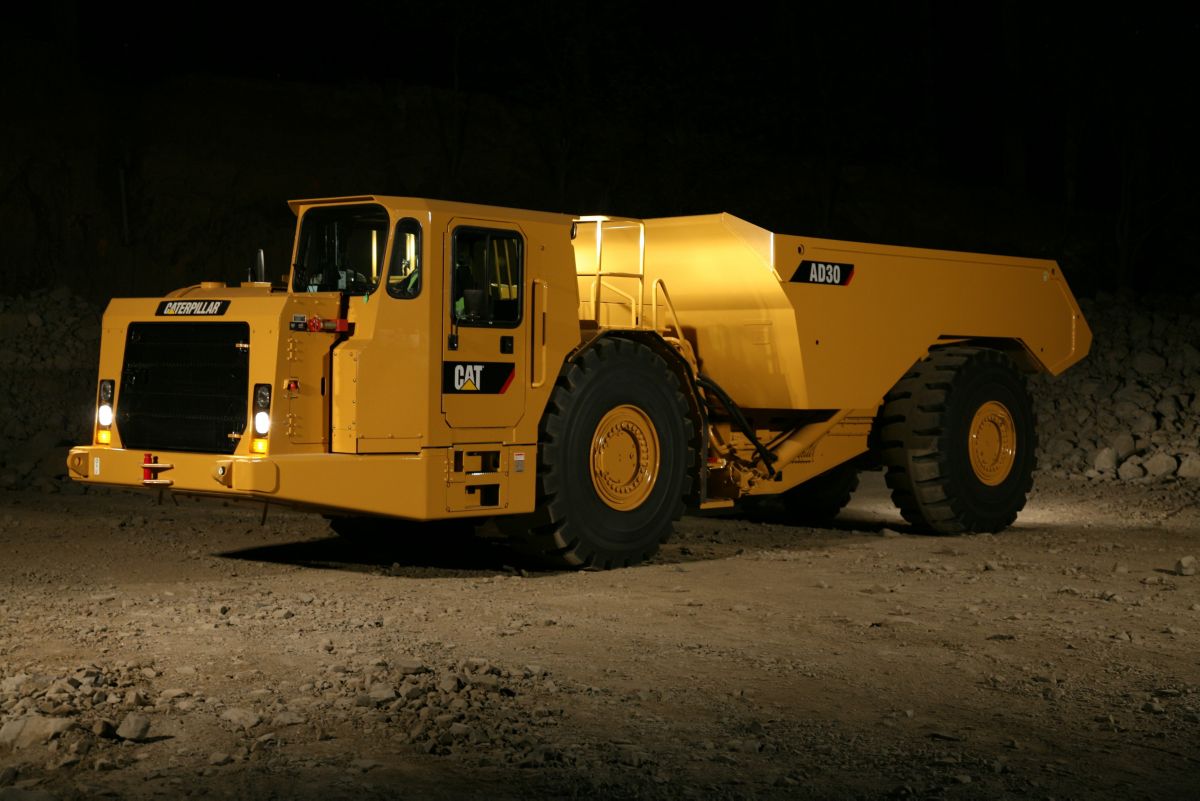

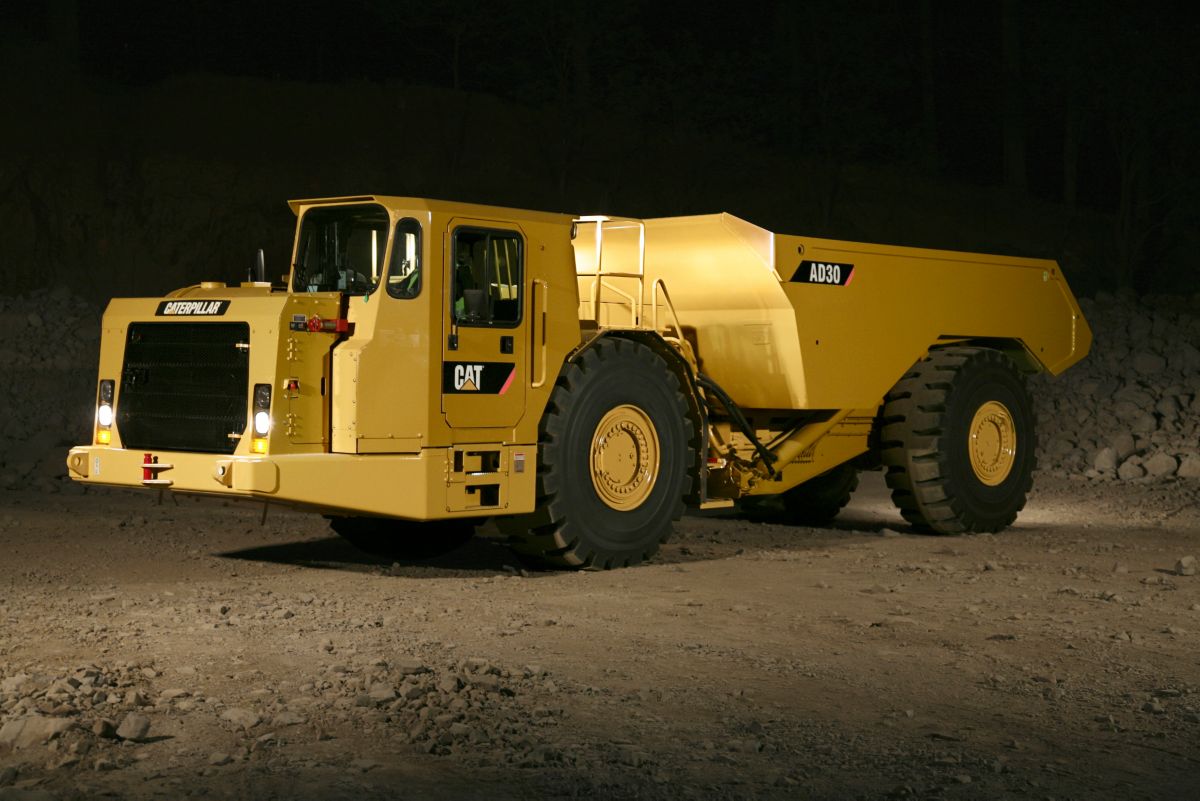

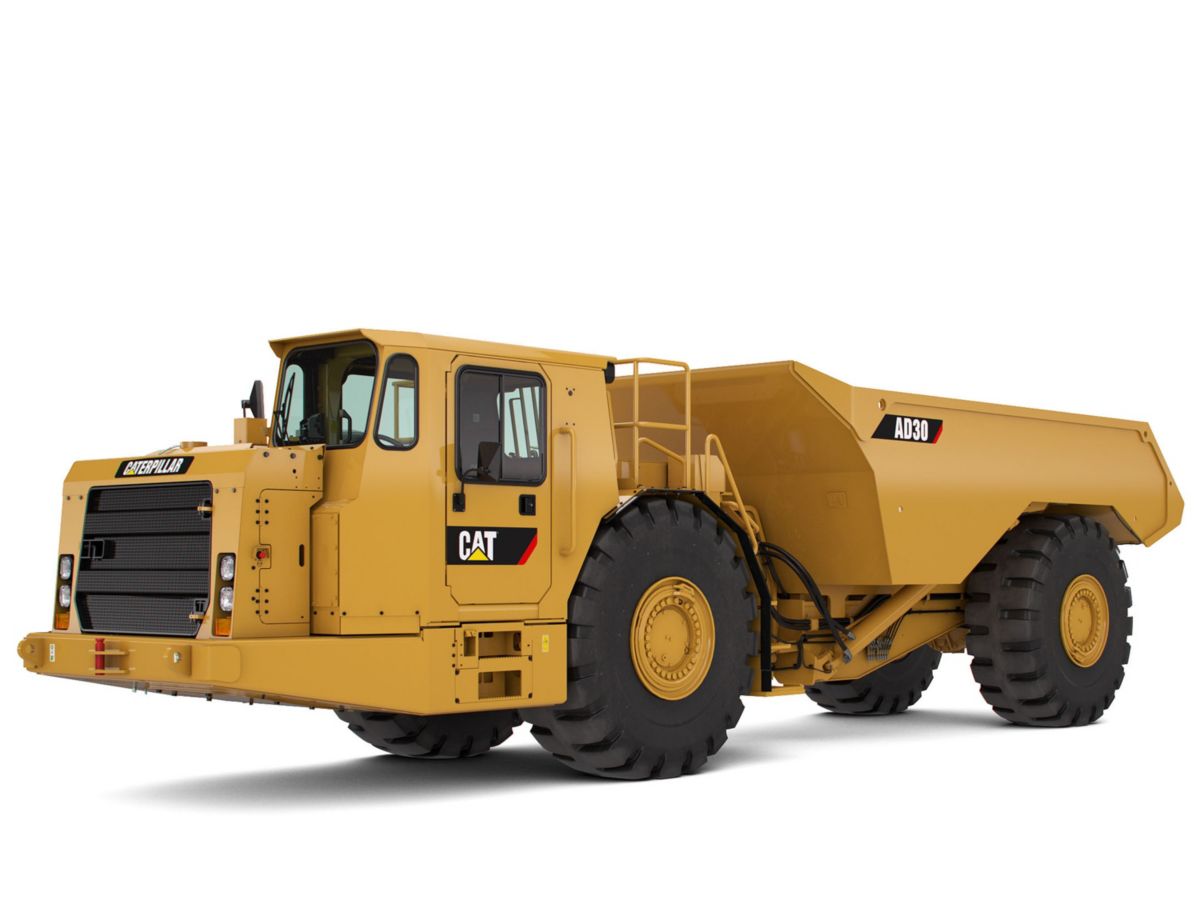

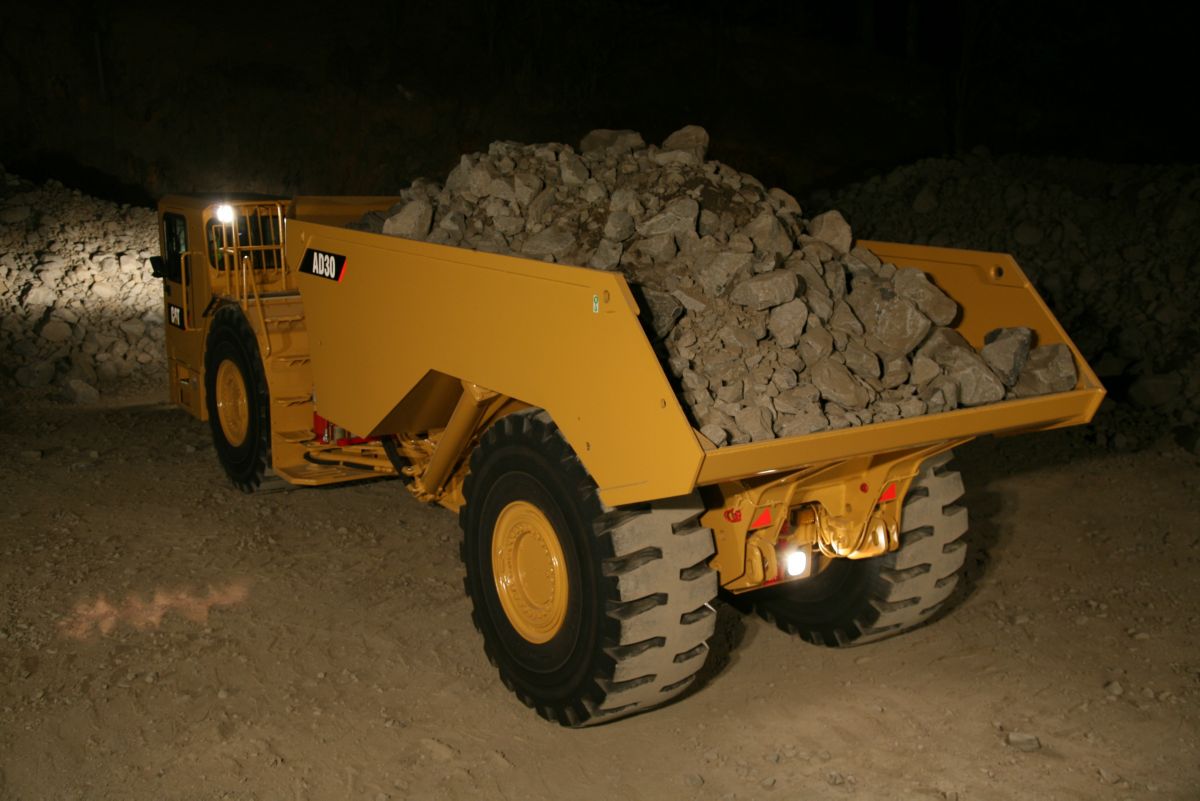

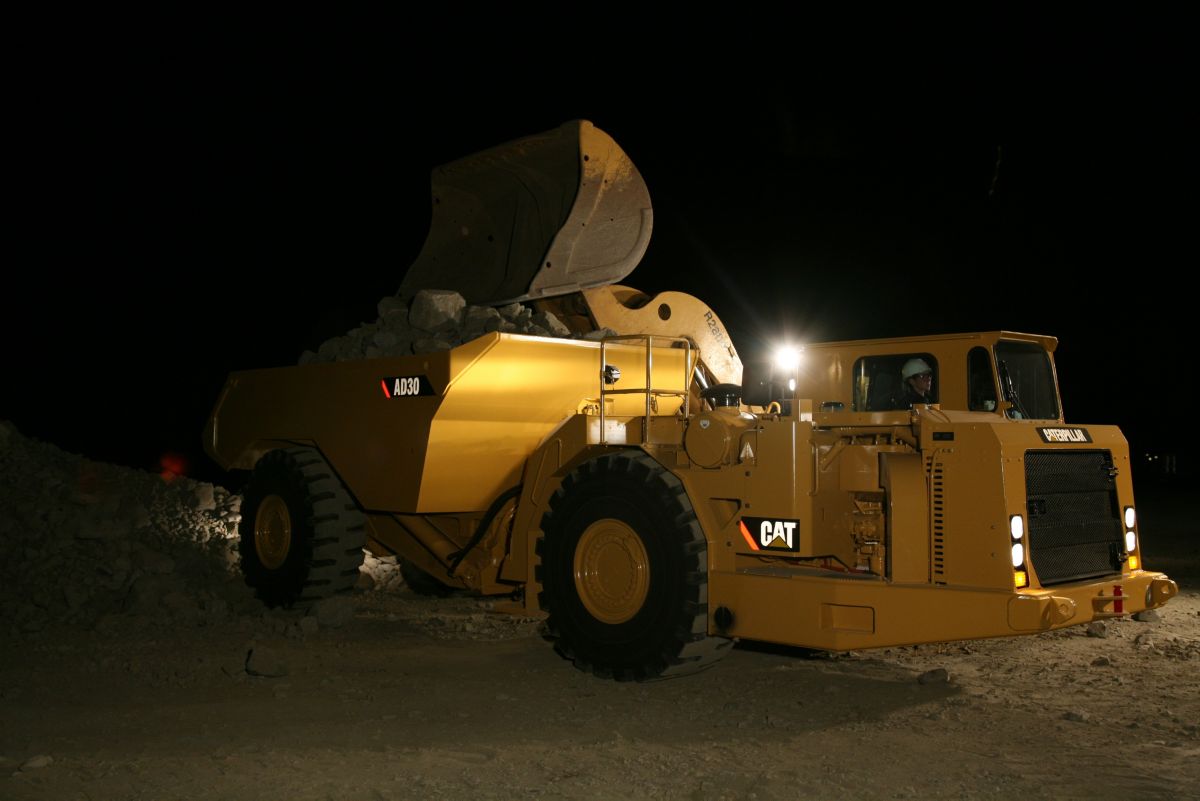

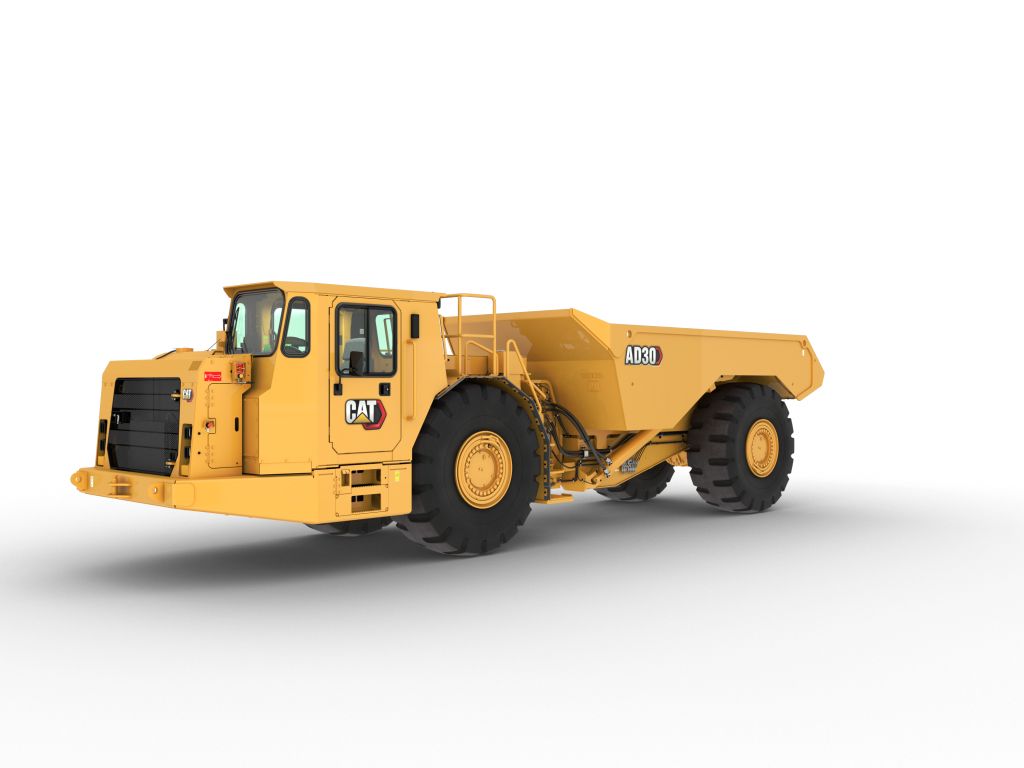

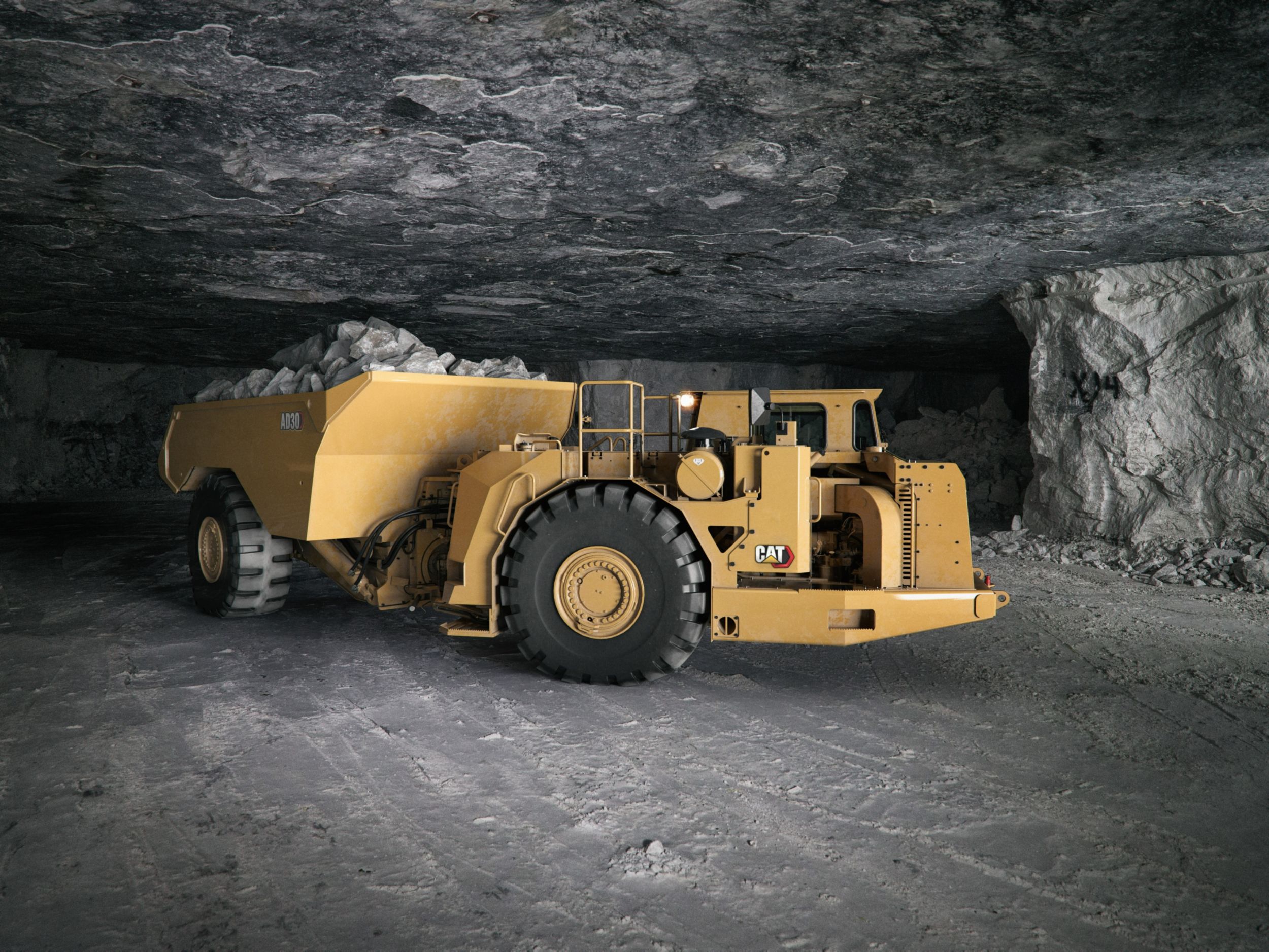

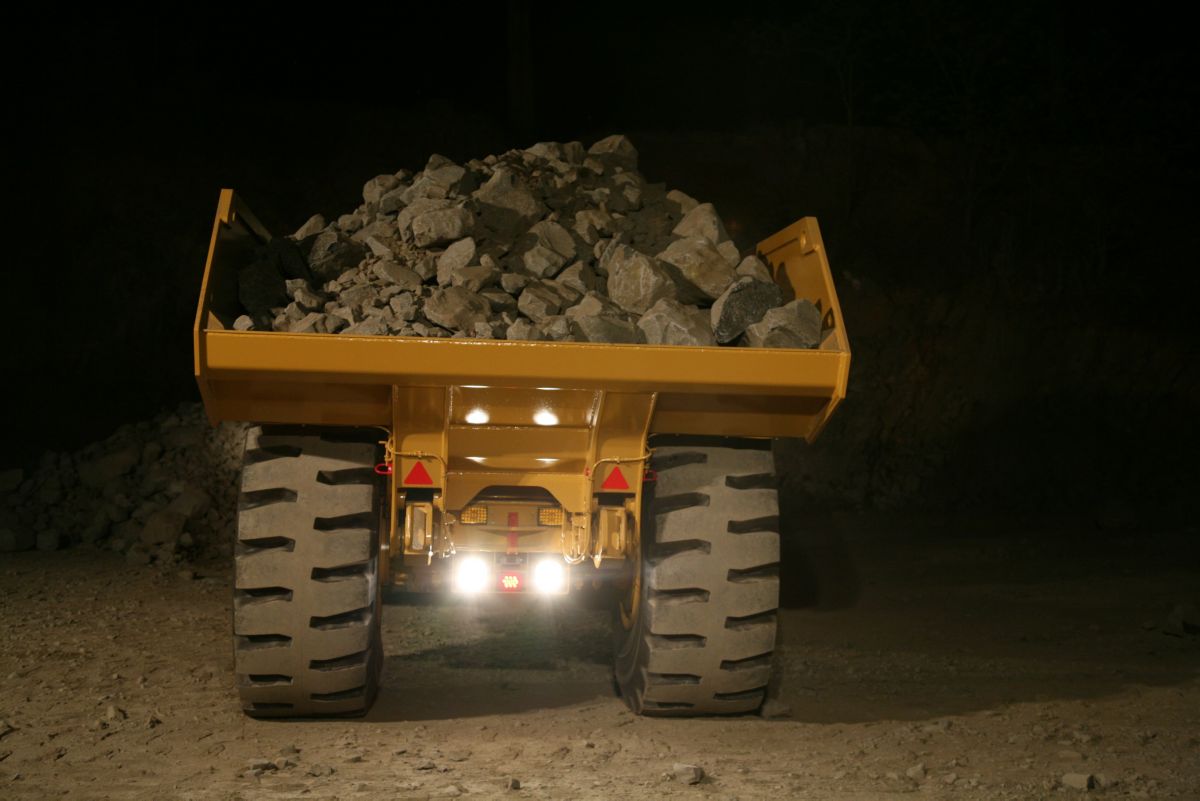

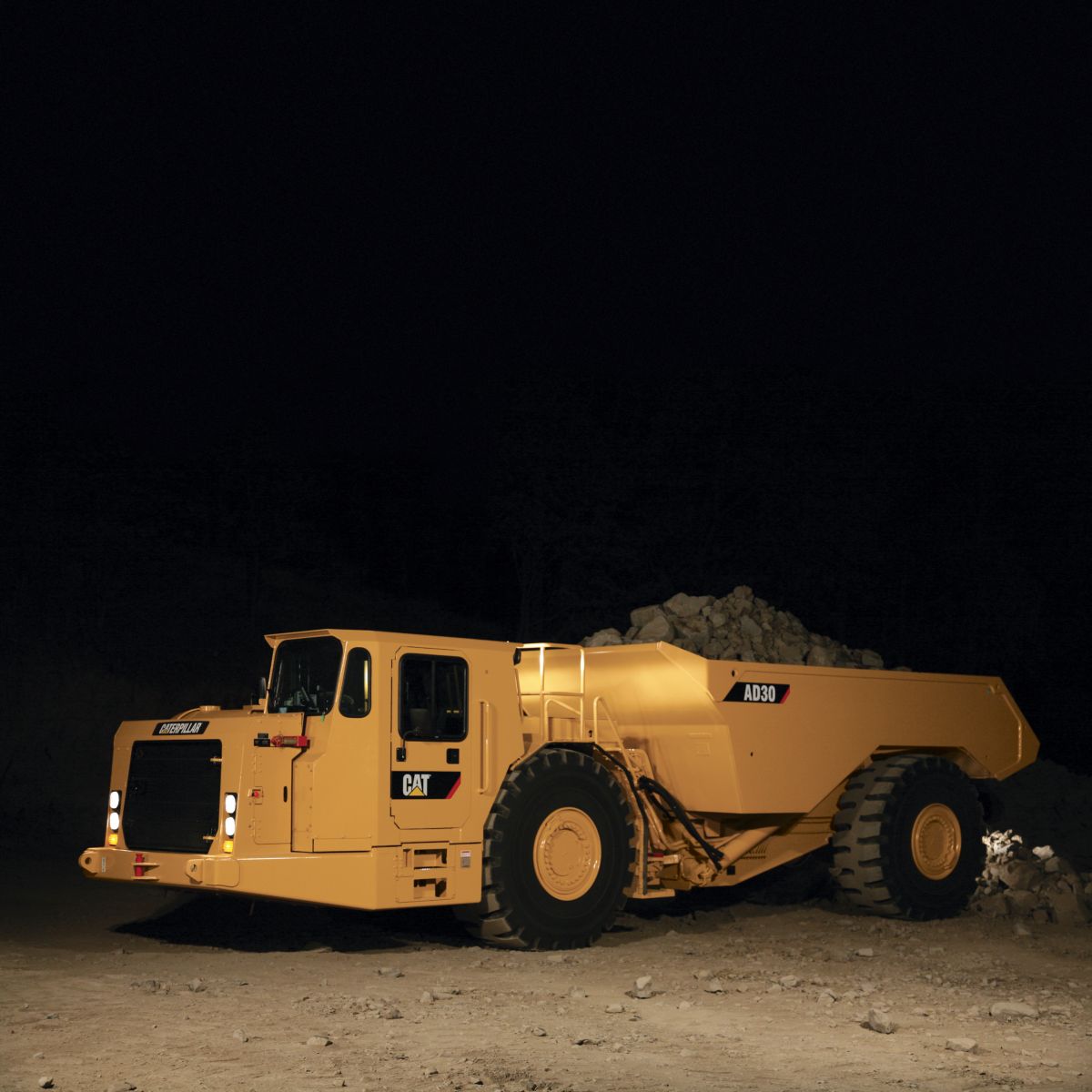

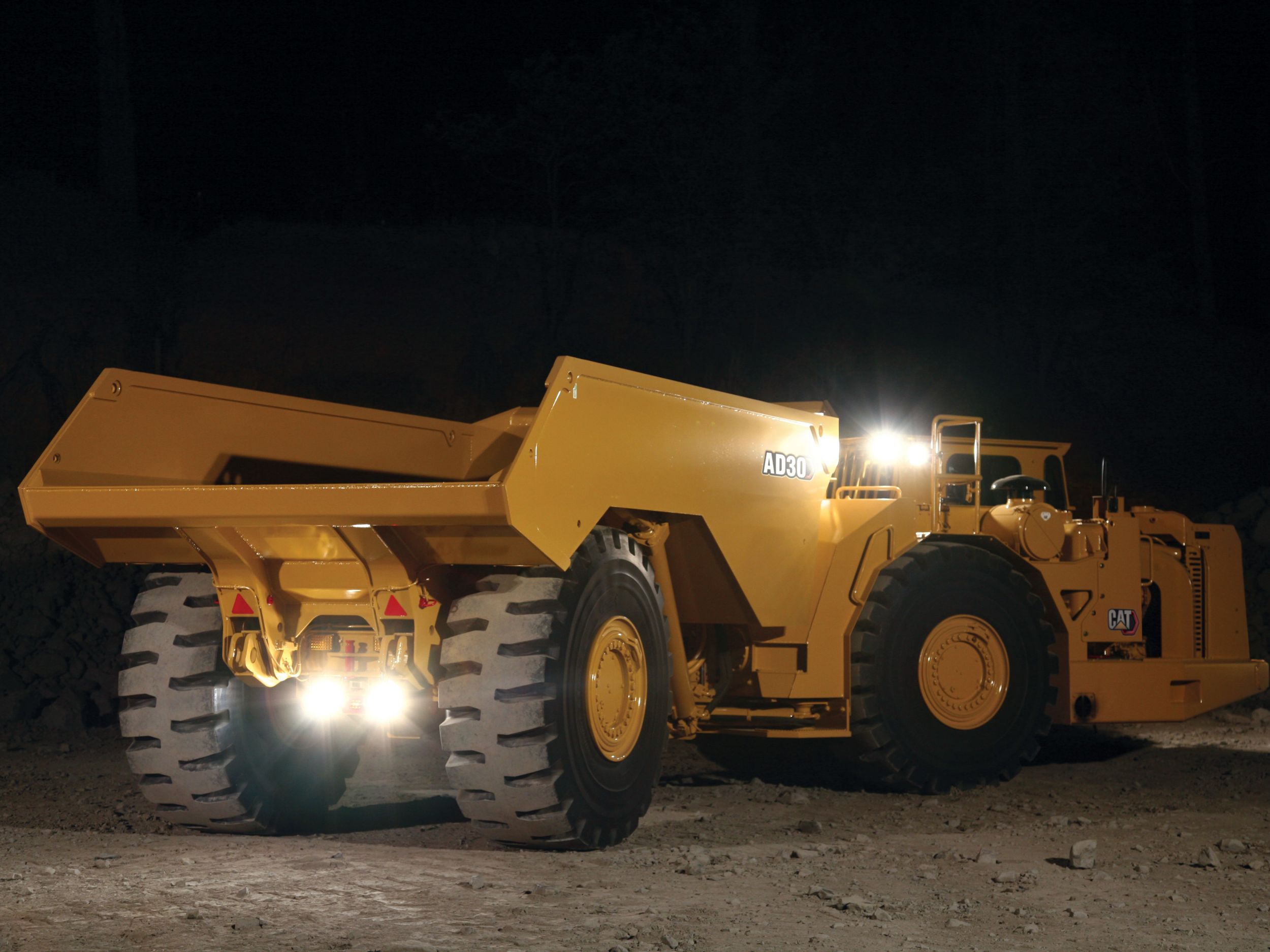

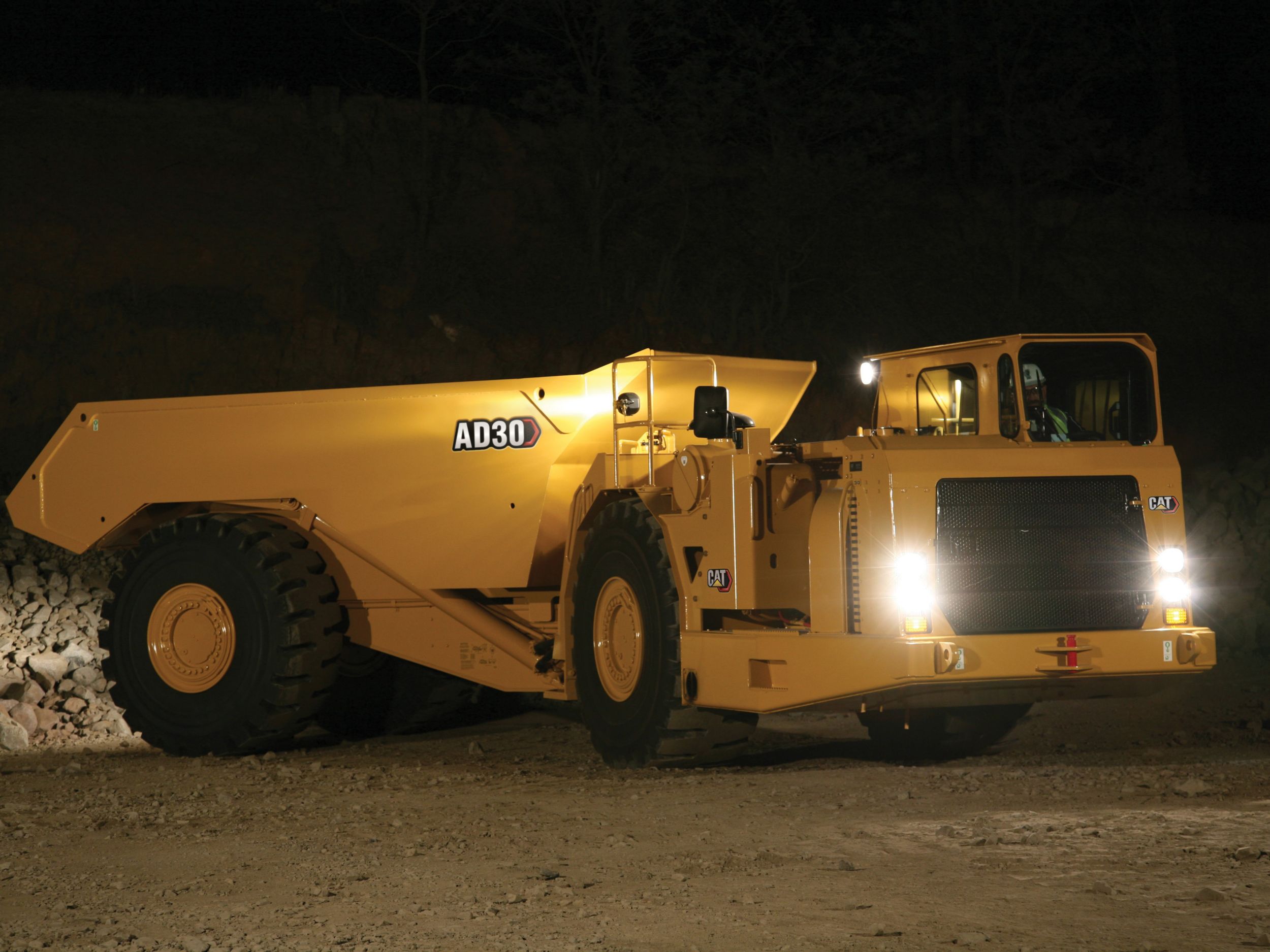

The AD30 underground mining truck is designed for high production, low cost-per-ton hauling in smaller underground mining applications. Rugged construction and easy maintenance guarantee long life with low operating costs.<br>Engineered for performance, designed for comfort, built to last.

Engine

Engine Model
Cat® C15 ACERT™
Rated Power
1800.00 r/min
1800.00 r/min
Gross Power - SAE J1995
409.00 hp
305.00 kW
Gross Power - VR Engine - SAE J1995
409.00 HP
305.00 kW
Gross Power - Tier 3 Engine - SAE J1995
409.00 HP
305.00 kW
Bore
5.40 in
137.20 mm
Stroke
6.80 in
171.50 mm
Displacement
928.00 in3
15.20 L

Operating Specifications

Nominal Payload Capacity
66139.00 lb
30000.00 kg
Gross Machine Mass
132300.00 lb
60000.00 kg
Body Capacities
11.3-17.5 m³ (14.8-22.9 yd³)

Body Capacities

Body 1
14.80 yd³
11.30 m³
Body 2 (Standard Body)
18.80 yd3
14.40 m3
Body 3
22.90 yd³
17.50 m³
Wide Body
21.90 yd³
16.80 m³
Ejector Body (1)
19.90 yd³
15.20 m³
Ejector Body (2)
21.90 yd³
16.80 m³

Weights

Empty
63647.00 lb
28870.00 kg
Front Axle (1)
42944.00 lb
19479.00 kg
Rear Axle (1)
20704.00 lb
9391.00 kg
Loaded
132277.00 lb
60000.00 kg
Front Axle (2)
58451.00 lb
26513.00 kg
Rear Axle (2)
73826.00 lb
33487.00 kg

Weight Distribution

Front Axle (1)
67.50 %
67.50 %
Rear Axle (1)
32.50 %
32.50 %
Front Axle (2)
44.20 %
44.20 %
Rear Axle (2)
55.80 %
55.80 %

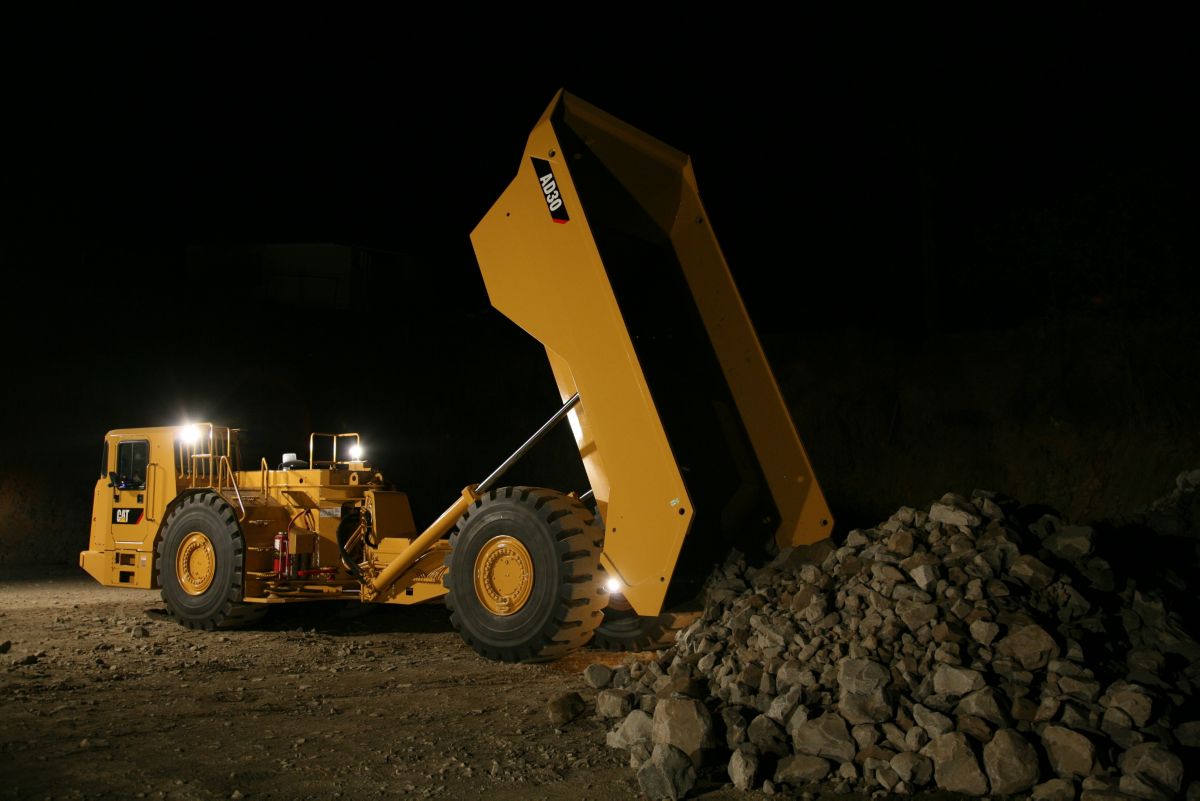

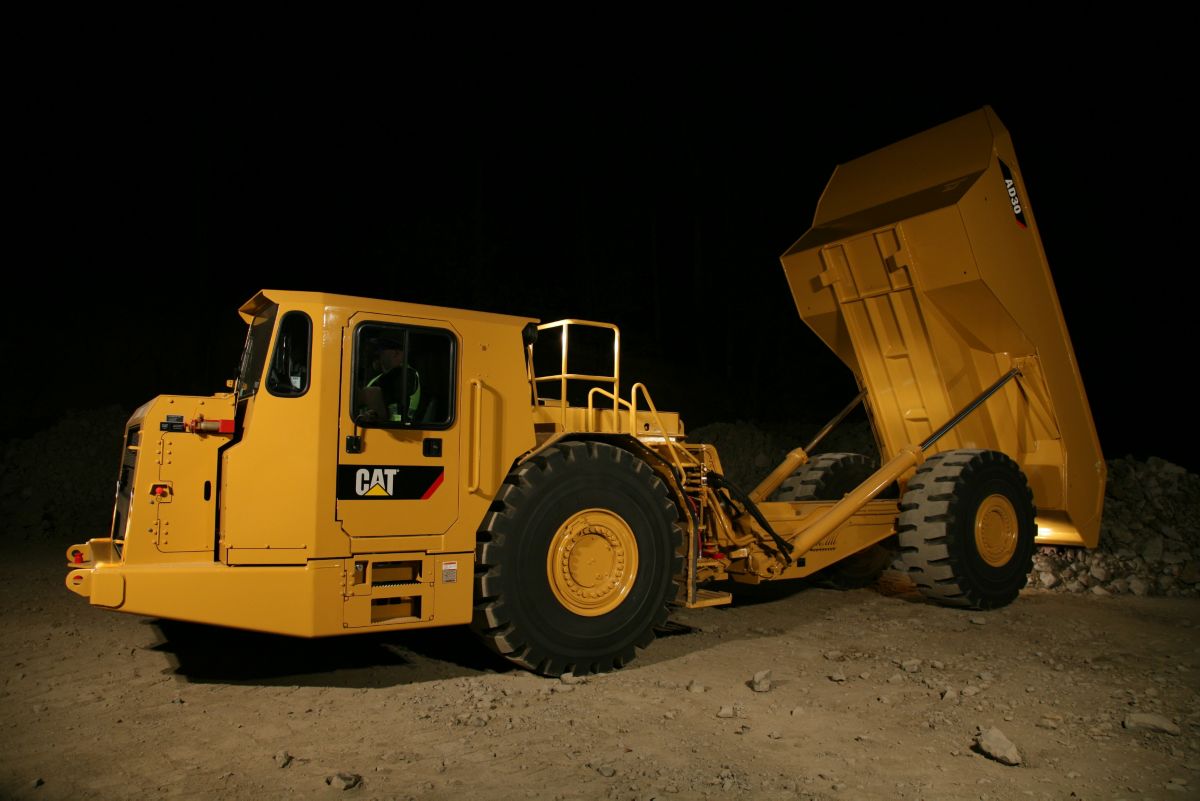

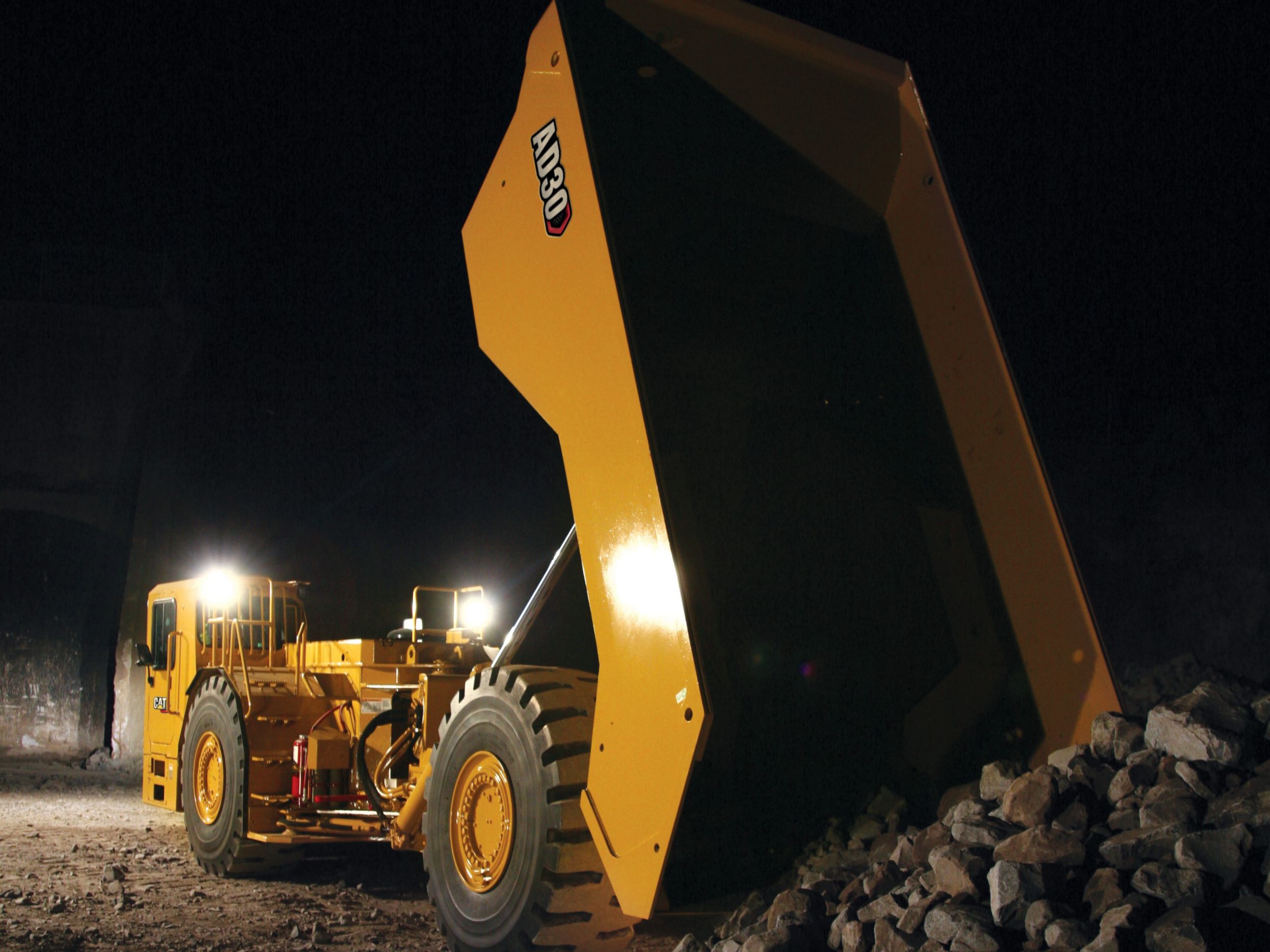

Body Hoist

Raise
10.50 s
10.50 s
Lower
11.20 s
11.20 s
Total Cycle Time
21.70 s
21.70 s

Turning Dimensions

Outside Clearance Radius
337.40 in
8571.00 mm
Inner Clearance Radius
198.00 in
5030.00 mm
Axle Oscillation
10.00 °
10.00 °
Articulation Angle
42.50 °
42.50 °

Transmission

Forward 1
4.20 mph
6.80 km/h
Forward 2
7.60 mph
12.30 km/h
Forward 3
13.90 mph
22.30 km/h
Forward 4
25.40 mph
40.80 km/h
Reverse 1
4.80 mph
7.80 km/h

Service Refill Capacities

Engine Crankcase - With Filter
9.00 gal (US)
34.00 l
Transmission
18.00 gal
67.00 L
Hydraulic Tank
87.00 gal
330.00 L
Cooling System
20.00 gal
74.00 L
Front Differential and Final Drives
15.00 gal (US)
56.00 l
Rear Differential and Final Drives
15.00 gal (US)
56.00 l
Fuel Tank
132.00 gal
500.00 L

Tires

Tire Size
26.5 × R25 VSNT

ROPS

ROPS Standards
ROPS (Roll Over Protection Structure) for cab offered by Caterpillar meets ISO 3471, SAE J1040, AS2294.2, EN13510 ROPS Criteria.
FOPS Standards
FOPS (Falling Objects Protection Structure) meets ISO 3449, SAE J231, AS2294.3, EN13627 FOPS Criteria.

Final Drives

Differential Ratio
3.38:1
Final Drive Ratio
4.76:1
Total Reduction Ratio
16.13:1

Engine

Engine Model
Cat® C15
Gross Power - SAE J1995
409.00 HP
305.00 kW
Bore
5.40 in
137.20 mm
Stroke
6.80 in
171.50 mm
Displacement
928.00 in³
15.20 l

Operating Specifications

Gross Machine Mass
132300.00 lb
60000.00 kg

Transmission

Forward - 1
3.90 mile/h
6.30 km/h
Forward - 2
7.00 mile/h
11.30 km/h
Forward - 3
12.90 mile/h
20.80 km/h
Forward - 4
22.80 mile/h
36.70 km/h
Reverse - 1
4.40 mile/h
7.10 km/h

Final Drives

Differential Ratio
3.38:1
Total Reduction Ratio
16.13:1

Body Capacities

Body 2 - Standard Body
18.80 yd³
14.40 m³

ROPS

ROPS Standards
ROPS (Roll Over Protection Structure) for cab offered by Caterpillar meets ISO 3471, SAE J1040, AS2294.2, EN13510 ROPS Criteria.
FOPS Standards
FOPS (Falling Objects Protection Structure) meets ISO 3449, SAE J231, AS2294.3, EN13627 FOPS Criteria.

Service Refill Capacities

Transmission
18.00 gal (US)
67.00 l
Hydraulic Tank
38.00 gal (US)
145.00 l
Cooling System
20.00 gal (US)
74.00 l
Fuel Tank
108.00 gal (US)
410.00 l

Engine

Gross Power - Equivalent to U.S. EPA Tier 3/EU Stage IIIA - SAE J1995
409.00 HP
305.00 kW
Note (1)
Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.
Note (2)
Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Note (3)
Engine derate will commence at an altitude of 2743 m (8,999 ft).
Note (4)
Optional Ventilation Reduction package available.
Note (5)
Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available.

Weights

Empty - Front Axle
42944.00 lb
19479.00 kg
Empty - Rear Axle
20704.00 lb
9391.00 kg
Loaded - Front Axle
58451.00 lb
26513.00 kg
Loaded - Rear Axle
73826.00 lb
33487.00 kg

Weight Distribution

Empty - Front Axle
67.50%
Empty - Rear Axle
32.50%
Loaded - Front Axle
44.20%
Loaded - Rear Axle
55.80%

Transmission

Note
Maximum travel speeds with standard 26.5 × R25 tires.

Final Drives

Note
Fully floating axles.

Body Capacities

Note
Heaped SAE 2:1.

Turning Dimensions

Frame Oscillation
10 Degrees

Standards

Standards
ROPS/FOPS Certified Cab
Features

Power Train – Engine – The Cat C15 engine is designed for power, reliability and efficiency.

Power Train – Transmission – More power to the ground for greater productivity.

Engine/Power Train Integration – Intelligent electronics for overall optimal performance.

Cat Brake System – Superior control for operator confidence.

Operator Comfort – Ergonomically designed for all-day comfort, control and productivity.

Truck Body Systems – Rugged performance and reliability in tough underground mining applications.

Structures – Rugged Cat structures – the backbone of the AD30’s durability.

Serviceability – More time for production.

Customer Support – Cat dealer services keep underground mining equipment productive.

Safety – Designed with safety as the first priority.

Sales Features

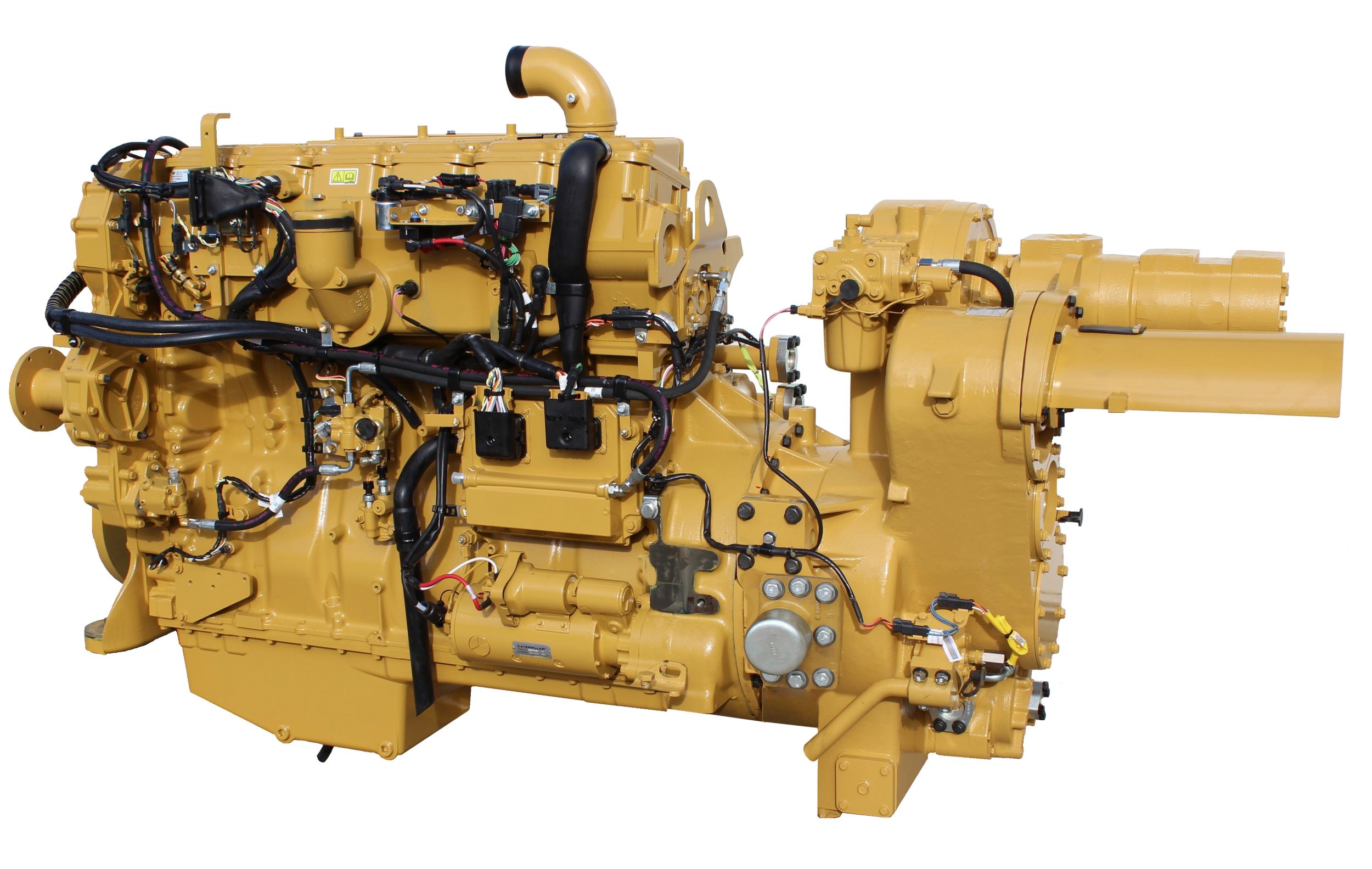

Power Train – Engine

The Cat C15 Engine is built for power, reliability and efficiency.

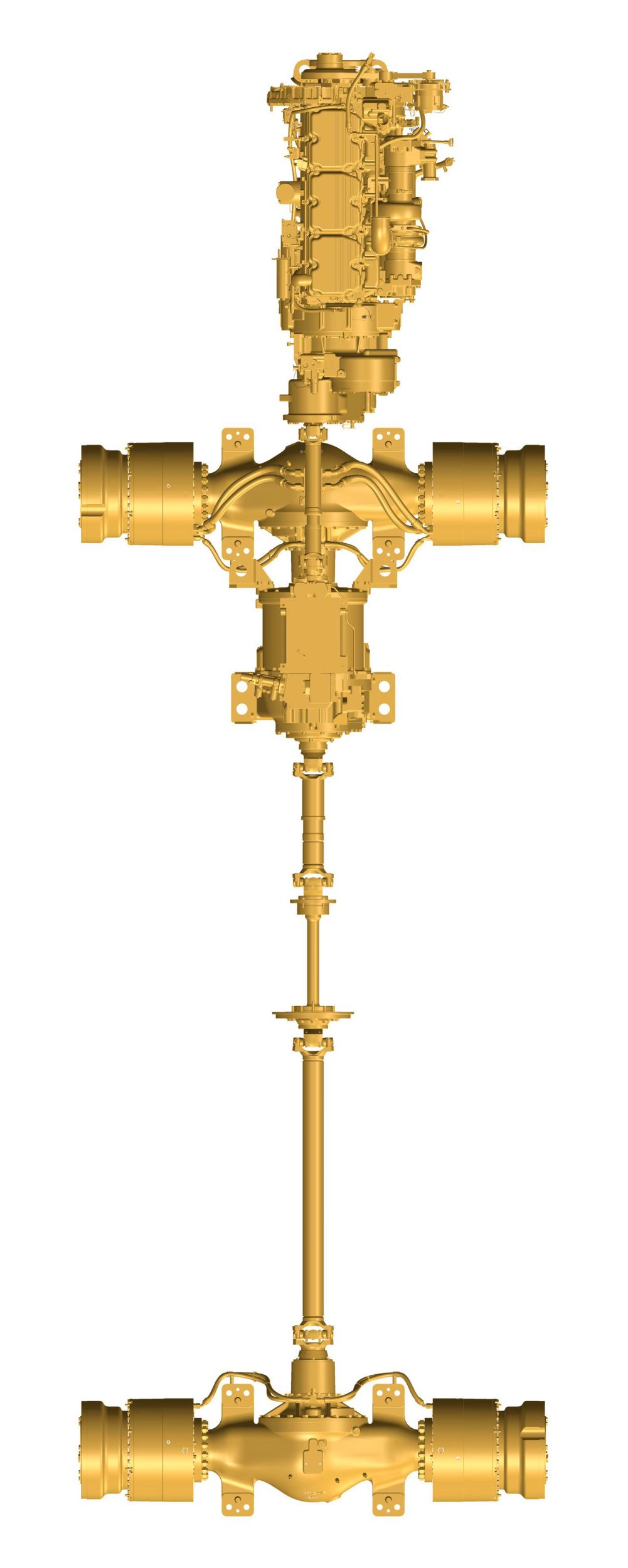

Power Train – Transmission

More power to the ground for greater productivity.

Engine/Power Train Integration

Intelligent electronics for overall optimal performance.

Cat Brake System

Superior control for operator confidence.

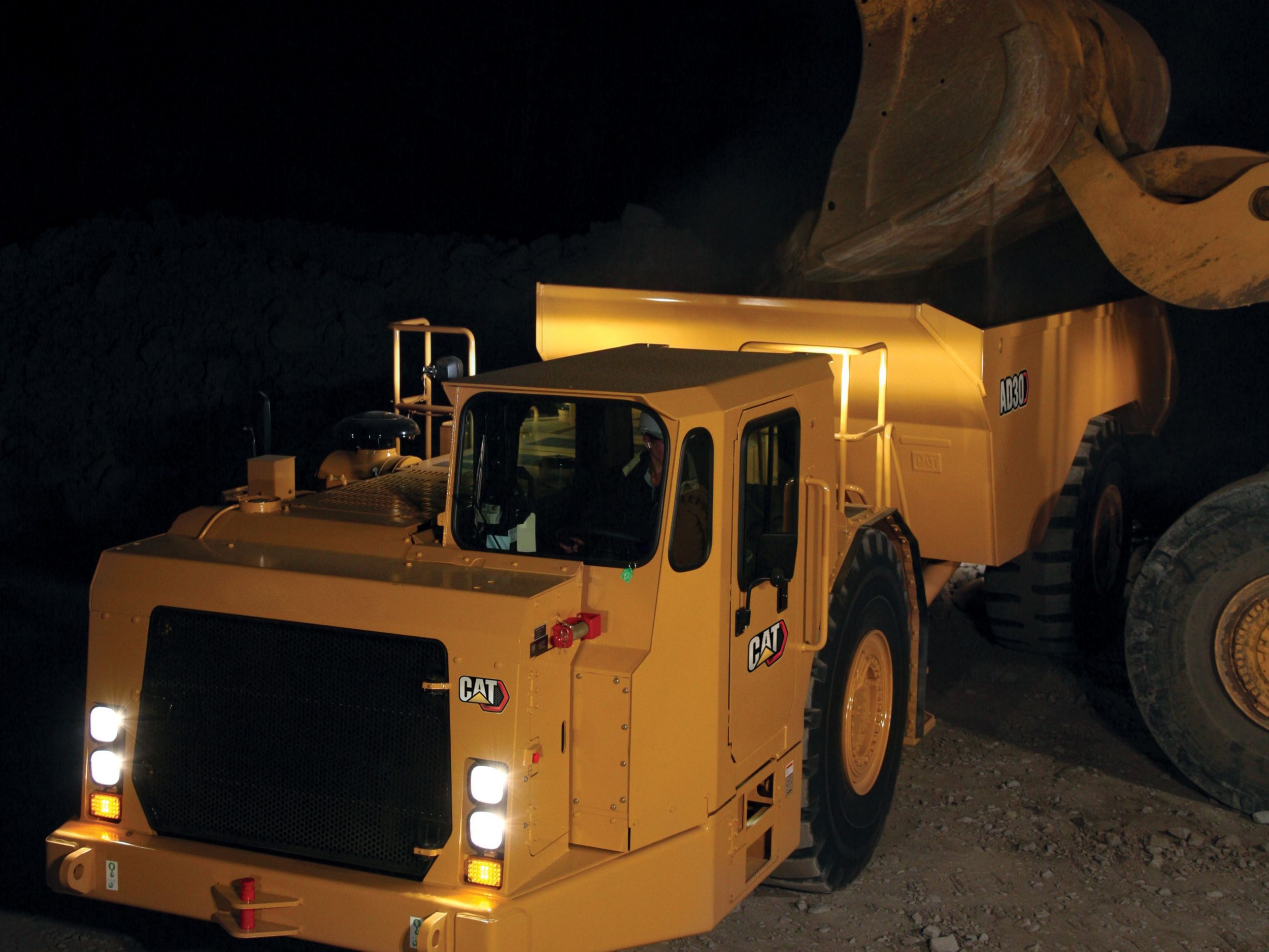

Operator Comfort

Ergonomically designed for all-day comfort, control and productivity.

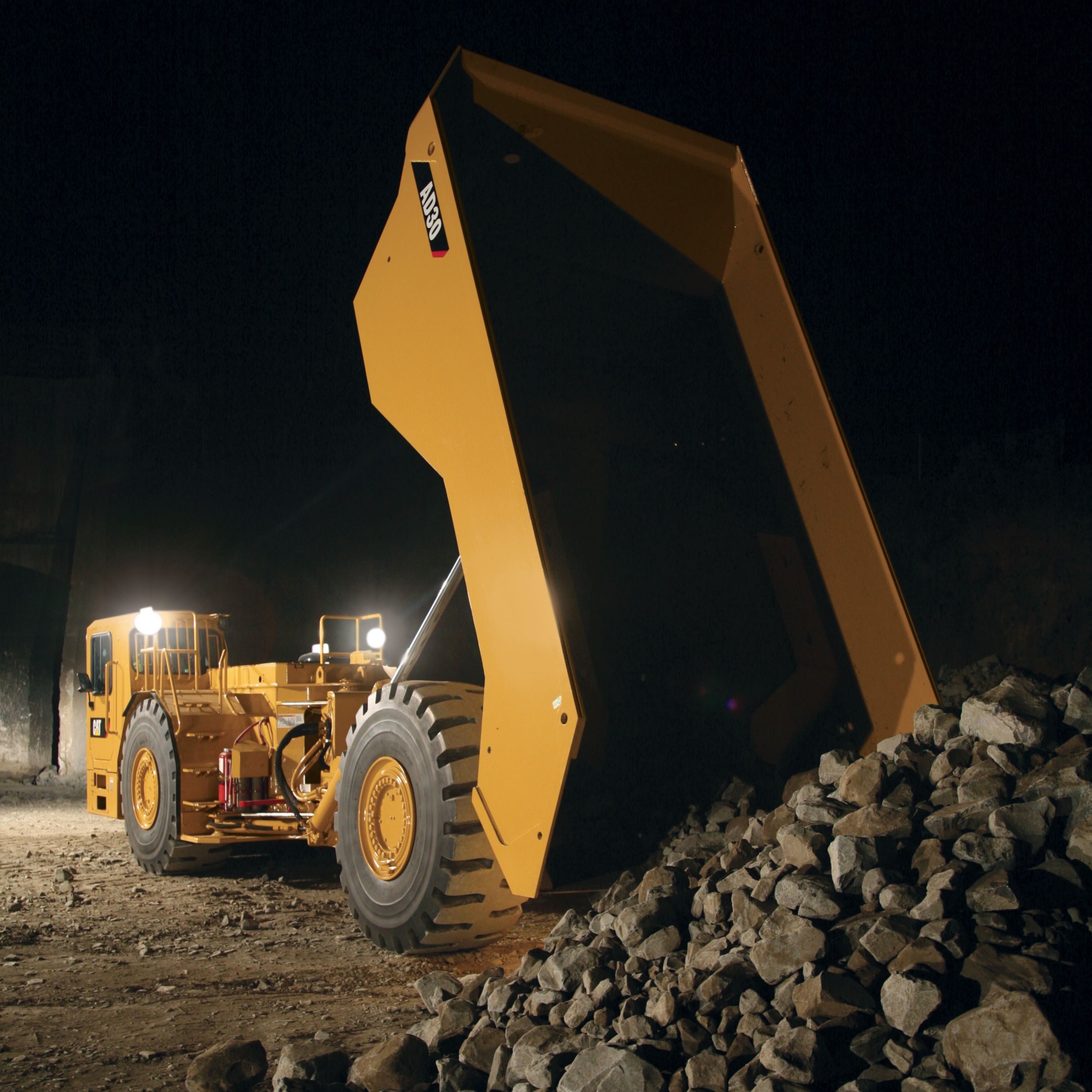

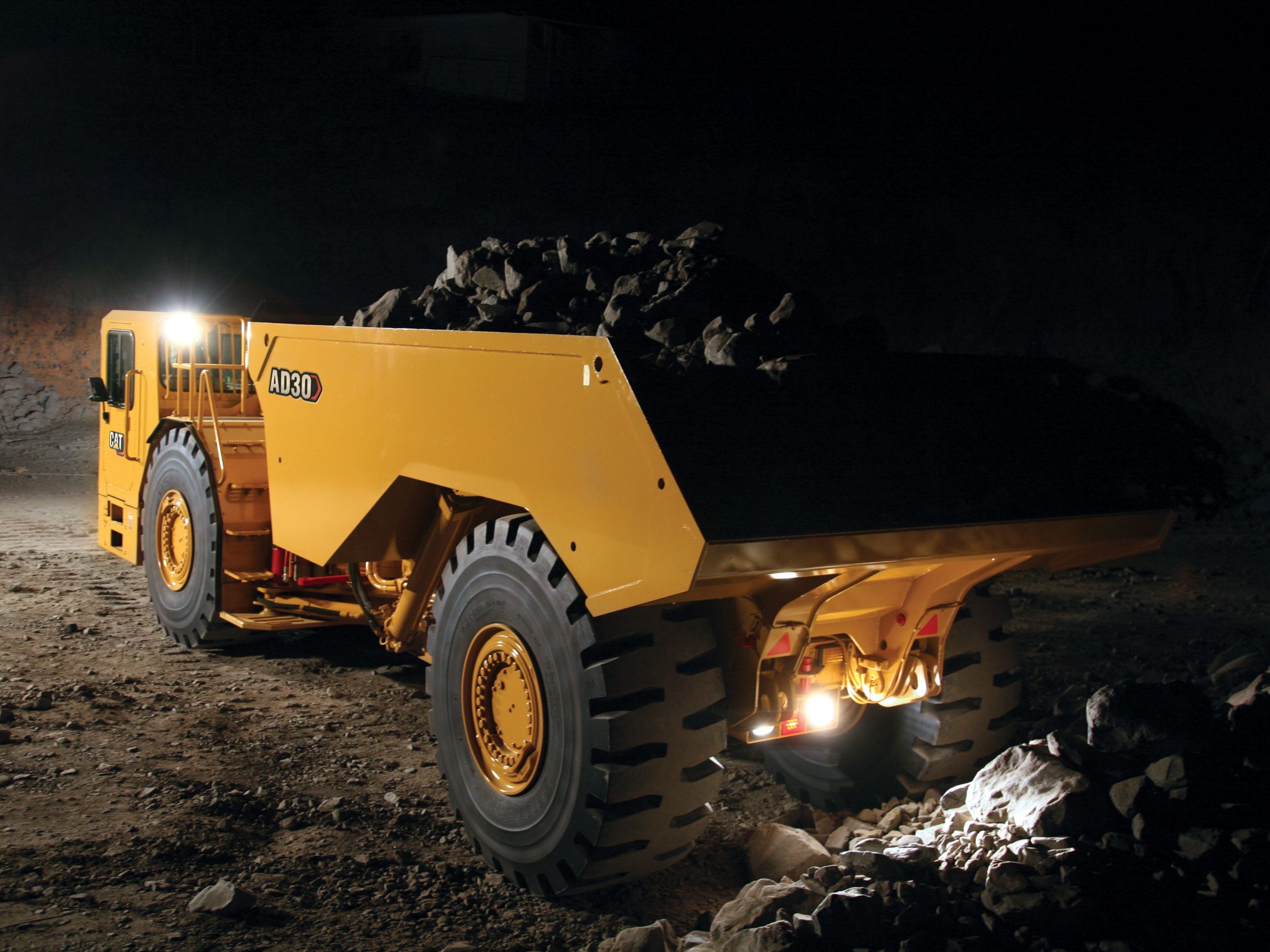

Truck Body Systems

Rugged performance and reliability in tough underground mining applications.

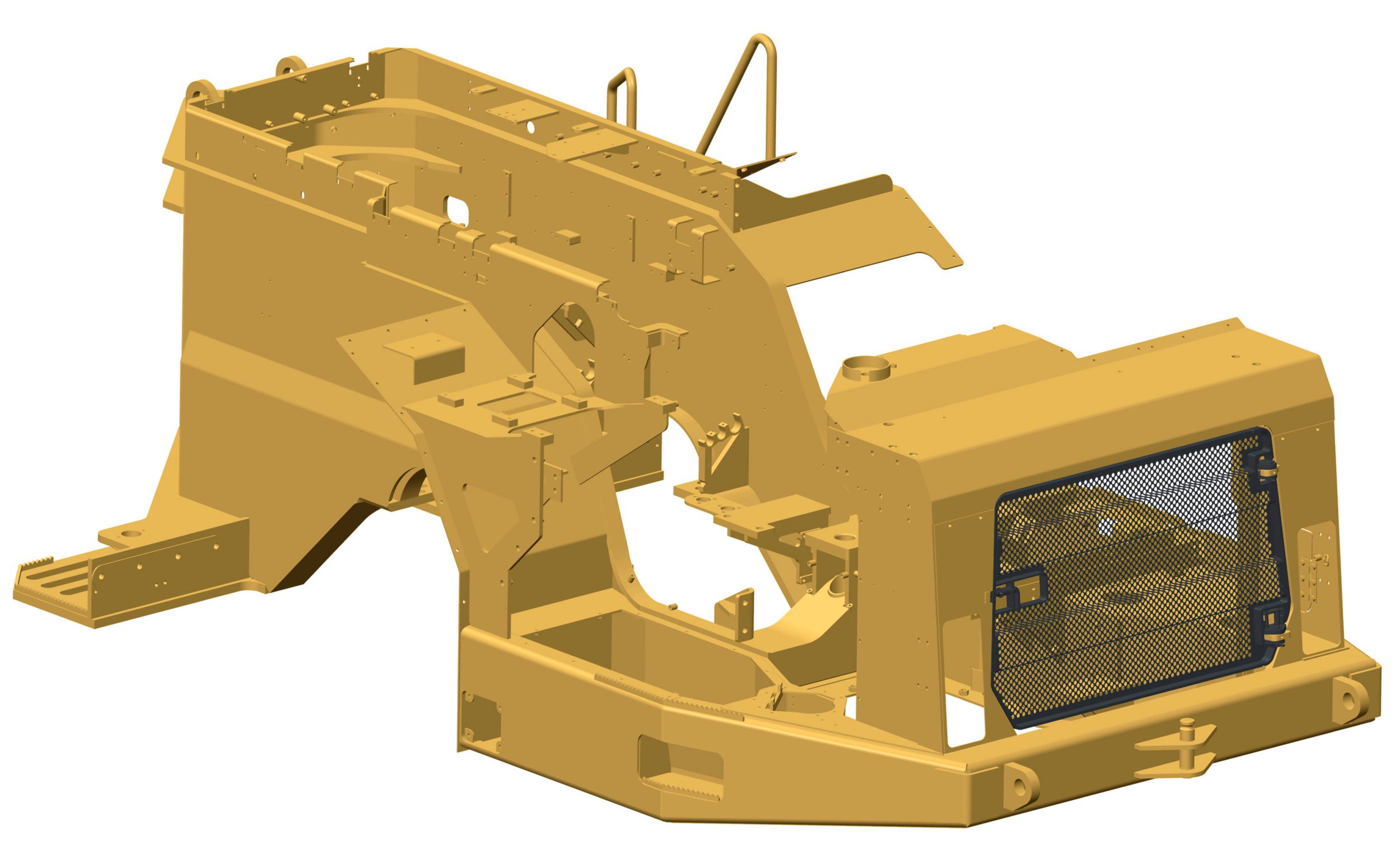

Structures

Rugged Cat structures – the backbone of the AD30’s durability.

Serviceability

More time for production.

Customer Support

Cat dealer services keep underground mining equipment productive.

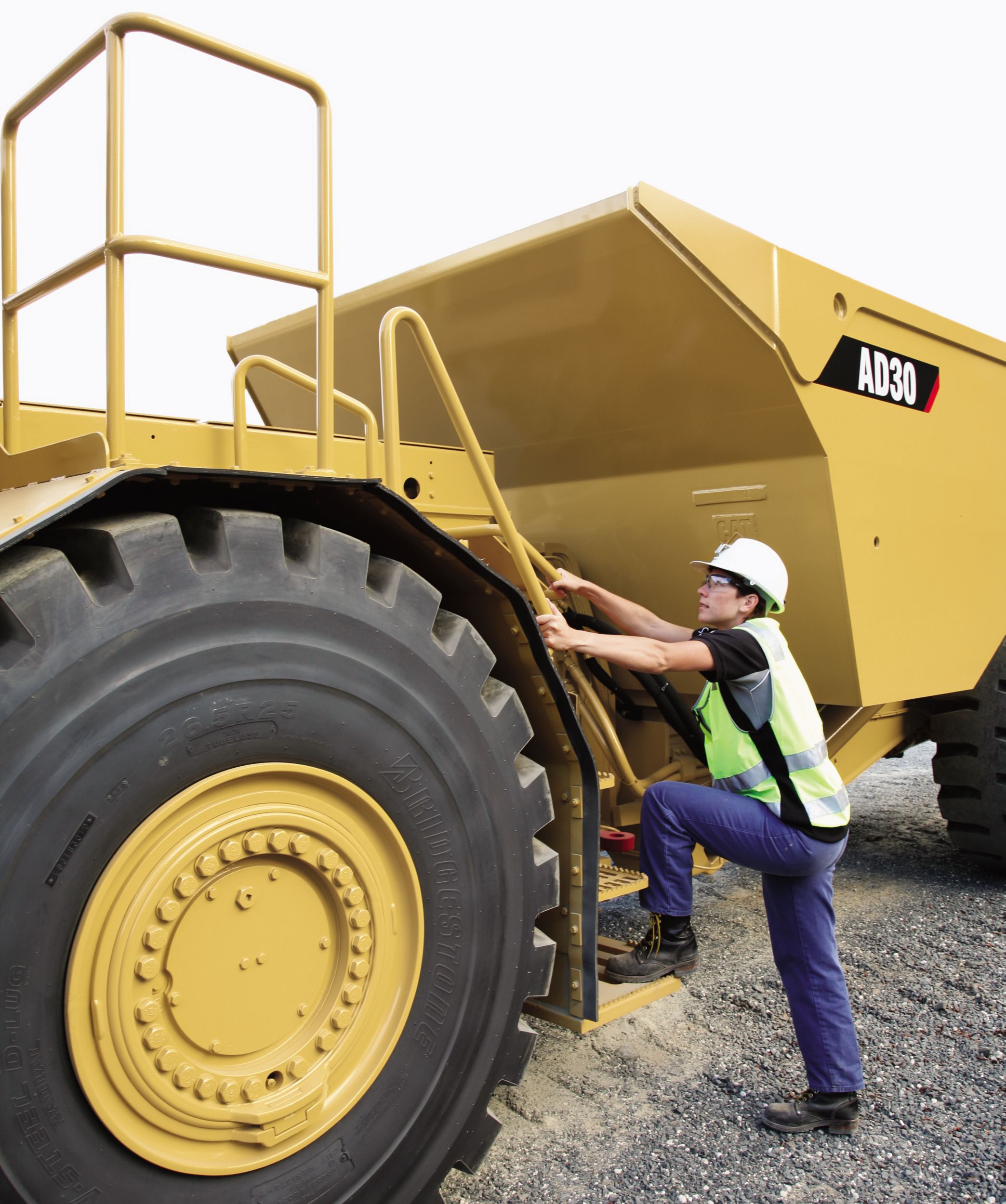

Safety

Designed with safety as the first priority.
Standard Equipment
  • ELECTRICAL
    • 12V power supply in cab
    • Alternator, 95-amp
    • Auxiliary start receptacle
    • Battery disconnect switch, ground level
    • Circuit breaker, 80-amp
    • Corrosive protection spray
    • Diagnostic connector
    • Electric starting, 24V
    • Engine shutdown switch, ground level
      – Front left hand side
    • Lighting
      – Brake and tail light, LED
      – Headlights with dimmer switch, halogen
      – Rear work light (cab mounted), halogen
      – Reversing lights, halogen
    • Low maintenance batteries
    • Reversing alarm
    • Starting and charging system
  • OPERATOR ENVIRONMENT
    • Cat Electronic Monitoring System (Cat EMS)
    • Electric horns
    • Gauges
      – Engine coolant temperature
      – Transmission coolant temperature
      – Hydraulic oil temperature
      – Fuel level
      – Speedometer
      – Tachometer
    • Indicator lights
      – Alert warning light
      – Body up position warning
      – High beam
      – Residual brake pressure warning
      – Retarder application
      – Turn signal
    • Low hydraulic level warning
    • Open operator station ROPS/FOPS structure
    • Operator presence system (auto park brake)
    • Rearview mirrors
    • Suspension seat Cat Comfort TLV2 with retractable seat belt
    • Trainer/passenger seat and seat belt
    • Tilt/telescopic steering wheel
  • POWER TRAIN
    • Cat C15 ATAAC diesel engine, 6-cylinder
    • Automatic brake retarder control
    • Auto shift transmission 4 speed forward/1 speed reverse
    • Axle, arrangement standard width, front – rear
    • Control throttle shifting
    • Engine air intake precleaner
    • Electric fuel priming pump
    • Exhaust, turbo compartment shielding
    • Four wheel drive
    • Long life coolant
    • Programmable ground speed limiting
    • Programmable gear block out with tray up
    • Radiator cap manual release
    • Radiator, cross flow
    • Rims, 5-piece, tubeless
    • SAFR™ full hydraulic enclosed wet, multiple-disc brakes, oil cooled
    • Torque converter with automatic lockup
  • OTHER STANDARD EQUIPMENT
    • Body, dump, (14.4 m³/18.8 yd³)
    • Catalytic exhaust purifier/muffler group
    • Centralized lubrication points
    • Decals, international picto graphics
    • Engine and transmission belly guards
    • Fenders, standard with, front, rear flaps
    • Fire wall
    • Fuel system manual shut off tap
    • Frame lifting lugs
    • Front and rear tow pin
    • Hand hold (access on/off top deck)
    • Hitch, articulated and oscillated
    • Operation and Maintenance Manual – English and other applicable local languages to select
    • S·O·S port
      – Coolant
      – Engine oil
      – Hydraulic oil
      – Transmission oil
    • Swing out radiator grill
    • Tires and rims: A tire must be selected from the mandatory attachments section of the machine price list. Base machine price includes a standard tubeless rim allowance only.
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Axle, arrangement wide body, front – rear
    • Battery shutdown
      – Ground level isolation, in cab isolation switch
      – Ground level isolation, engine shutdown switch
      – Ground level isolation, in cab isolation, engine shutdown switch
    • Body dump
      – Body, (11.3 m³/14.8 yd³)
      – Body, (16.8 m³/21.9 yd³) wide body configuration
      – Body, (17.5 m³/22.9 yd³)

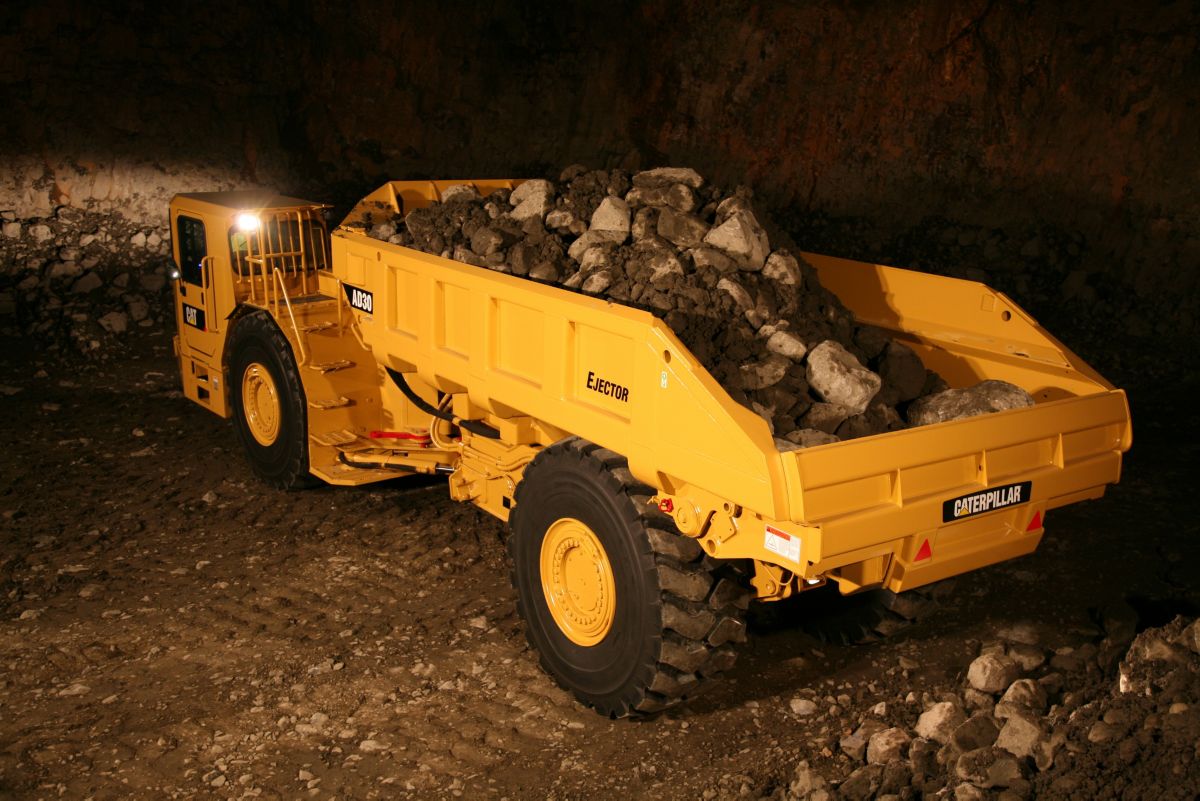

    • Body ejector
      – Ejector, (15.2 m³/19.9 yd³)
      – Ejector, (16.8 m³/21.9 yd³)
    • Body liners, impact and wear
      – 10 mm (0.4"), body, dump (11.3 m³/14.8 yd³)
      – 10 mm (0.4"), body, dump (14.4 m³/18.8 yd³)
      – 10 mm (0.4"), dump (16.8 m³/21.9 yd³) for wide body configuration
      – 10 mm (0.4"), body, dump (17.5 m³/22.9 yd³)
    • Brake pressure gauges
    • Camera, color rear facing
    • Cover, anti vandalism for shipping
    • Engine options
      – Engine, Ventilation Reduction (VR)
      – Equivalent to Tier 3
      – After-treatment options (for use with VR Engine only)
      • DPF (Flow Through) Filter
    • Fast fill system
      – Coolant
      – Engine oil
      – Fuel (single tank)
      – Hydraulic oil
      – Transmission oil
    • Fenders, wide body, front, rear flaps
    • Fire suppression system
      – Ansul, dry powder
      – Foam, water based
    • Fluids
      – Arctic fuel
      – Arctic coolant
    • Lighting
      – Headlights with dimmer switch, LED
      – Rear work light (cab mounted), LED
      – Reversing lights, LED
    • Lubrication system
      – Automatic, dump or ejector body
      – Centralized, ejector body
    • Mine transfer
      – Mine transfer ready front frame (tack welded)
      – Mine transfer ready dump body (tack welded)
      – Mine transfer ready ejector body (tack welded)
    • Operators station ROPS/FOPS enclosed
      – Air conditioning
      – Cab pressurizer and filter
      – Dome light
      – Heater
      – Radio ready compartment for radio and speakers
      – Sun visor
      – Window, sliding cab door
    • Park brake switch engagement
      – Push to apply
      – Pull to apply
    • Payload
      – Truck Payload Measurement System (TPMS)
      – Remote display for TPMS
    • Reflective tape
    • Rims
      – Rim identification numbering
      – Spare, tubeless
    • Seat
      – Suspension seat Cat Comfort TLV2, vinyl
      – Suspension seat tee, mechanical
    • Seat cover
      – Tee and Cat Comfort TLV2
      – Seat cover, companion
    • Secondary steering system
    • Service tools
      – Collet jacking bolts, dump and ejector
      – Diagnostics box
      – Hoist cylinder supports (for body removal)
      – Brake wear gauge
      – Reference parts manual for additional tooling available
    • Switches
      – Engine shutdown, fire suppression activation
      – Idle timer
      – Engine shutdown, fire suppression activation/idle timer
    • Technology
      – Vital Information Management System (VIMS) Gen 3
    • Tire arrangements
      – Tire, 26.5 × 25 VSNT Bridgestone
      – Tire, 26.5 × 25 VSDL Bridgestone
    • NOTE: Not all features are available in all regions. See your Cat dealer for more information.
