Overview

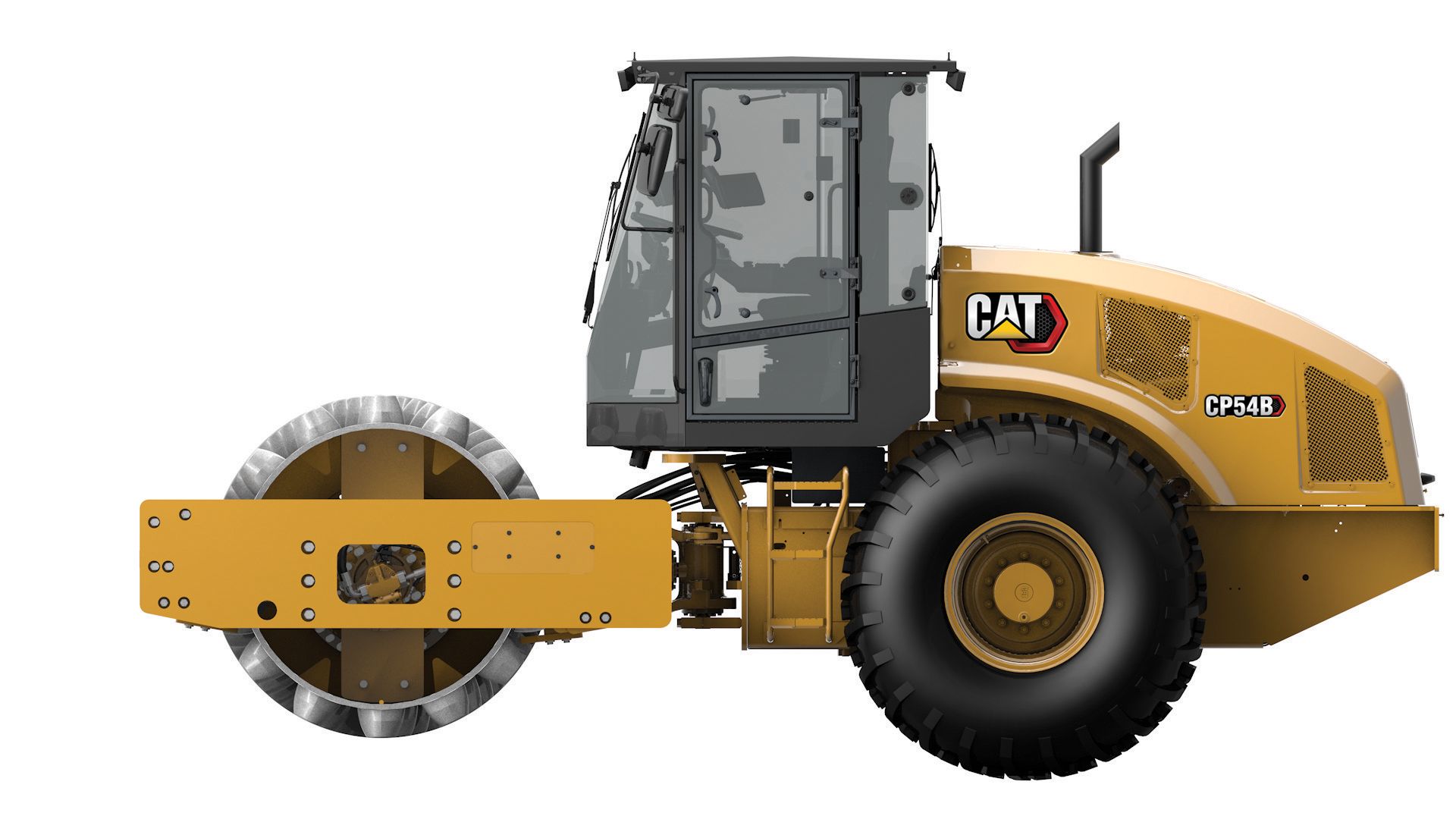

The CP54B provides exceptional performance for cohesive and semi-cohesive soil compaction applications.

Weights

Operating Weight with Cab
24539.00 lb
11135.00 kg
Operating Weight with ROPS/FOPS
24096.00 lb
10935.00 kg
Weight - Drum with Cab
14092.00 lb
6395.00 kg
Weight at Drum with ROPS/FOPS
13887.00 lb
6300.00 kg

Operating Specifications

Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.70 in
450.00 mm
Travel Speed - Maximum
6.80 mph
11.00 km/h
Turning Radius - Inside Drum Edge
12.08 ft
3.68 m

Engine

Gross Power
131.00 hp
98.00 kW
Engine Model
Cat C4.4 with ACERT

Dimensions

Drum Diameter
51.00 in
1295.00 mm
Drum Diameter - Over Pads
61.00 in
1549.00 mm
Drum Width
84.00 in
2134.00 mm
Height - With ROPS/FOPS or Cab
10.25 ft
3.11 m
Overall Length
19.17 ft
5.85 m
Overall Width
7.58 ft
2.30 m
Wheelbase
9.58 ft
2.90 m

Tires

Tires
23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
64.00 gal
242.00 L

Vibratory System

Centrifugal Force - Maximum
59800.00 lb
266.00 kN
Centrifugal Force - Minimum
29900.00 lb
133.00 kN
Nominal Amplitude - High
0.08 in
1.90 mm
Nominal Amplitude - Low
0.04 in
0.88 mm
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)

Weights

Operating Weight - With Cab
24539.00 lb
11135.00 kg
Operating Weight - With ROPS/FOPS
24096.00 lb
10935.00 kg
Weight - Drum with ROPS/FOPS
13887.00 lb
6300.00 kg

Operating Specifications

Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.70 in
450.00 mm
Travel Speed - Maximum
6.80 mile/h
11.00 km/h

Engine

Gross Power
131.00 hp
98.00 kW
Engine Model
Cat C4.4 with ACERT

Dimensions

Drum Diameter
51.00 in
1295.00 mm
Drum Width
84.00 in
2134.00 mm
Overall Length
19.17 ft
5.85 m
Overall Width
7.58 ft
2.30 m
Wheel Base
9.58 ft
2.90 m

Vibratory System

Nominal Amplitude - High
0.08 in
1.90 mm
Nominal Amplitude - Low
0.04 in
0.88 mm
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)

Tires

Tires
23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
64.00 gal (US)
242.00 l
Features

Enhanced Vibratory System

Reliable Power Train

Comfortable Operator's Environment

Cat Compaction Control Option

Easy to Service

Sales Features

Enhanced Vibratory System

An optimized drum yoke design, more amplitude and the proven Cat® pod-style vibratory system provides enhanced compaction force.

Reliable Power Train

Equipped with a powerful Cat C4.4 engine and the proven Cat dual-pump propel system, B-Series Vibratory Soil Compactors have the power and traction to provide exceptional performance even in challenging job conditions.

Comfortable Operator’s Environment

The operator’s station on the B-Series vibratory soil compactors has been enhanced to provide greater operator comfort and convenience. The CP54B can be configured with a ROPS/FOPS or a ROPS/FOPS Cab. Standard configurations vary by market.

Cat Compaction Control Option

Cat Compaction Control is a compaction measurement solution that improves quality and efficiency by providing information that allows the operator to determine when compaction meets specifications, which eliminates guesswork, reduces the risk of rework and allows the operator to quickly move on to the next job. Cat Compaction Control is factory integrated with the machine, providing greater protection for components. On padfoot machines, the system utilizes Machine Drive Power (MDP) for measurement, an exclusive Cat technology that provides more consistent performance in cohesive soils than accelerometer based technologies.

Easy to Service

Service access is simple and convenient on the B-Series vibratory soil compactors. All routine service is conducted from the right side of the machine. The durable one-piece hood tilts forward quickly and easily for exceptional access to the engine and cooling system.
Optional Equipment
  • Cat Compaction Control, Machine Drive Power (MDP)
  • GNSS Mapping for Cat Compaction Control, SBAS or RTK
  • ROPS/FOPS Cab
  • Deluxe Operator's Seat for Cab
  • Product Link
  • Upgraded Halogen Light Package
  • Transmission Guard
  • Rotating Beacon
  • Bio-oil Factory Fill
  • Additional Rear View Mirrors
  • Italian Road Homologation (IRH)
