Overview

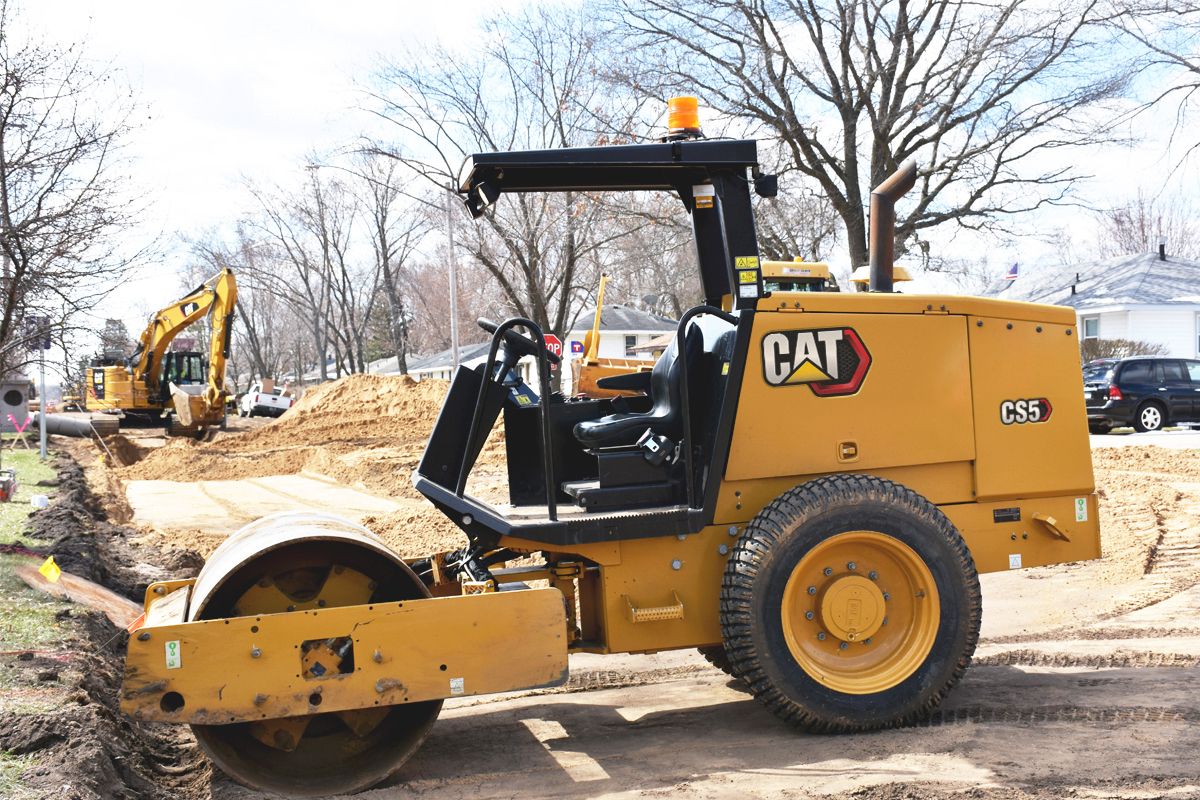

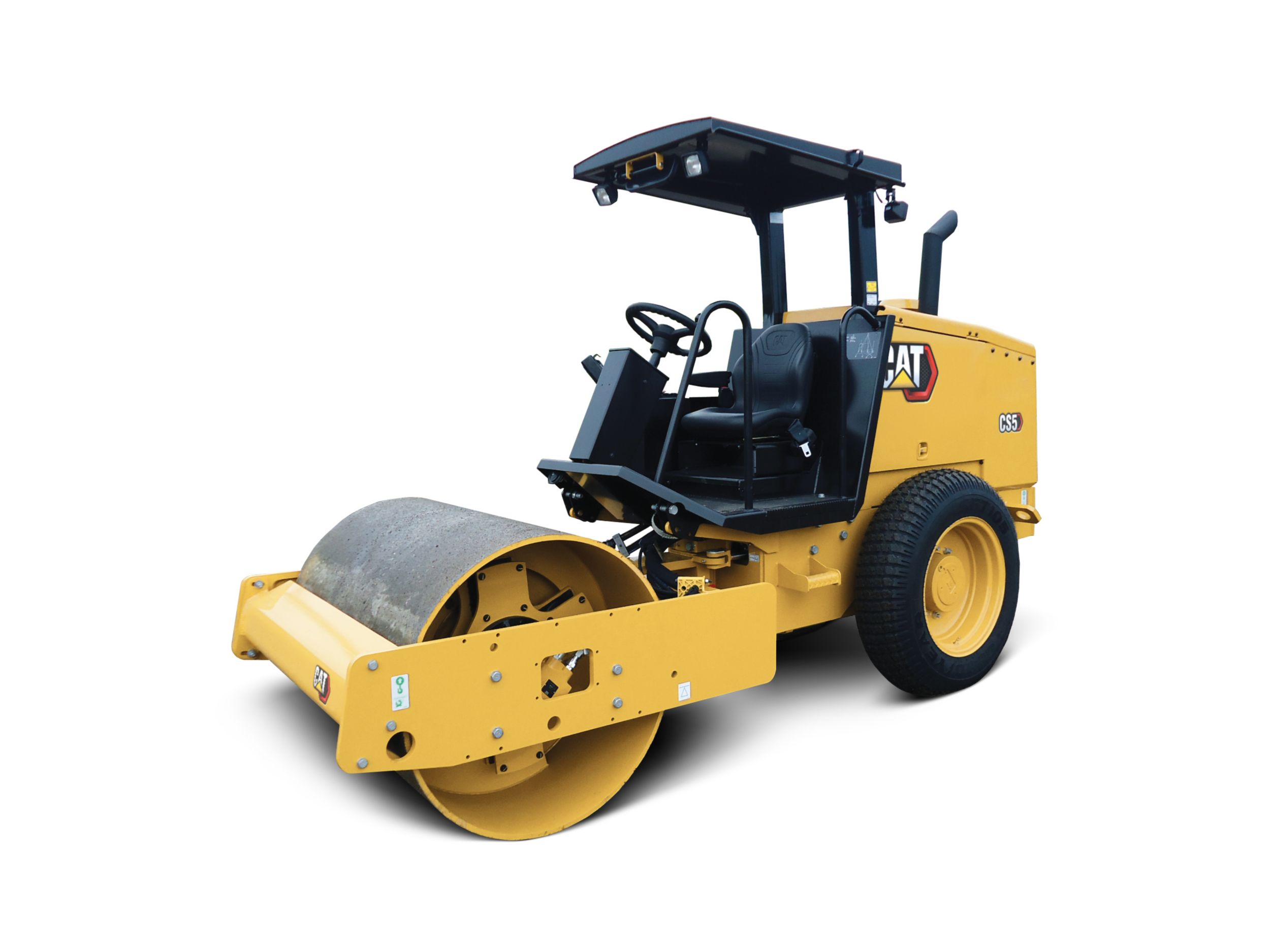

The Cat® CS5 Vibratory Soil Compactors are ideally suited for granular soil applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.

Engine

Gross Power
74.60 hp
55.60 kW
Engine Power - ISO 14396
74.40 hp
55.50 kW
Net Power - ISO 9249
68.30 hp
50.90 kW
Net Power - SAE J1349:2011
67.50 hp
50.30 kW
Note (1)
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model
Cat® C3.4B
Emissions
U.S. EPA Tier 4 Final
Stroke
4.30 in
110.00 mm
Bore
3.90 in
99.00 mm

Weights

Operating Weight - With ROPS/FOPS Canopy
9800.00 lb
4445.00 kg
Weight - Drum with ROPS/FOPS Canopy
4497.00 lb
2040.00 kg
Note (1)
Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.

Vibratory System

Nominal Amplitude - High
0.05 in
1.30 mm
Centrifugal Force - Maximum
17535.00 lb
78.00 kN
Static Linear Load - With ROPS/FOPS Canopy
90.20 lb/in
16.10 kg/cm

Dimensions

Compaction Width
50.00 in
1270.00 mm
Overall Length
13.60 ft
4.20 m
Overall Width
4.60 ft
1.40 m
Maximum Height
8.30 ft
2.50 m
Drum Diameter
40.00 in
1016.00 mm
Wheel Base
7.30 ft
2.20 m

Operating Specifications

Ground Clearance
13.70 in
348.00 mm
Curb Clearance
13.50 in
344.00 mm
Turning Radius - Inside Drum Edge
8.60 ft
2.60 m
Travel Speed - Maximum
5.50 mile/h
8.80 km/h

Service Refill Capacities

Fuel Tank Capacity
29.90 gal (US)
113.00 l
Cooling System
4.80 gal (US)
18.30 l
Engine Oil - With Filter
2.40 gal (US)
9.00 l
Eccentric Weight Housings (combined)
14.00 gal (US)
53.00 l
Axle and Final Drives
1.90 gal (US)
7.10 l
Hydraulic Tank
10.60 gal (US)
40.00 l

Sustainability

Recyclability
97%
Features

Propel System

Vibratory System

Comfortable and Ergonomic Operator Station

Compact Size for Specific Applications

Reliability and Serviceability

Sustainability

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat
    • Adjustable Seat with Integrated Console
    • LCD Display with Lockable Vandalism Guard
    • Rear Vision Camera System with Color Touchscreen Display
    • High Visibility 76 mm (3 in) Seat Belt
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • VIBRATORY SYSTEM
    • Smooth Drum
    • Single Amplitude, Single Frequency
    • Single Adjustable Steel Scraper
  • POWERTRAIN
    • Cat® C3.4B Engine
    • Air Cleaner, Dual Element
    • Two-Speed Throttle Switch
    • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Radiator / Hydraulic Oil Cooler
    • Dual Braking System
    • Single-Speed Hydrostatic Transmission
    • Limited Slip Differential
  • ELECTRICAL
    • 12 volt Electrical System
    • 120 ampere Alternator
    • 600 Cold-cranking Amps Battery Capacity
  • OTHER
    • Lockable Engine Enclosure, Hydraulic and Fuel Tanks
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
    • Halogen Working Lights (4)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OTHER
    • Amber Rotating Beacon
