Overview

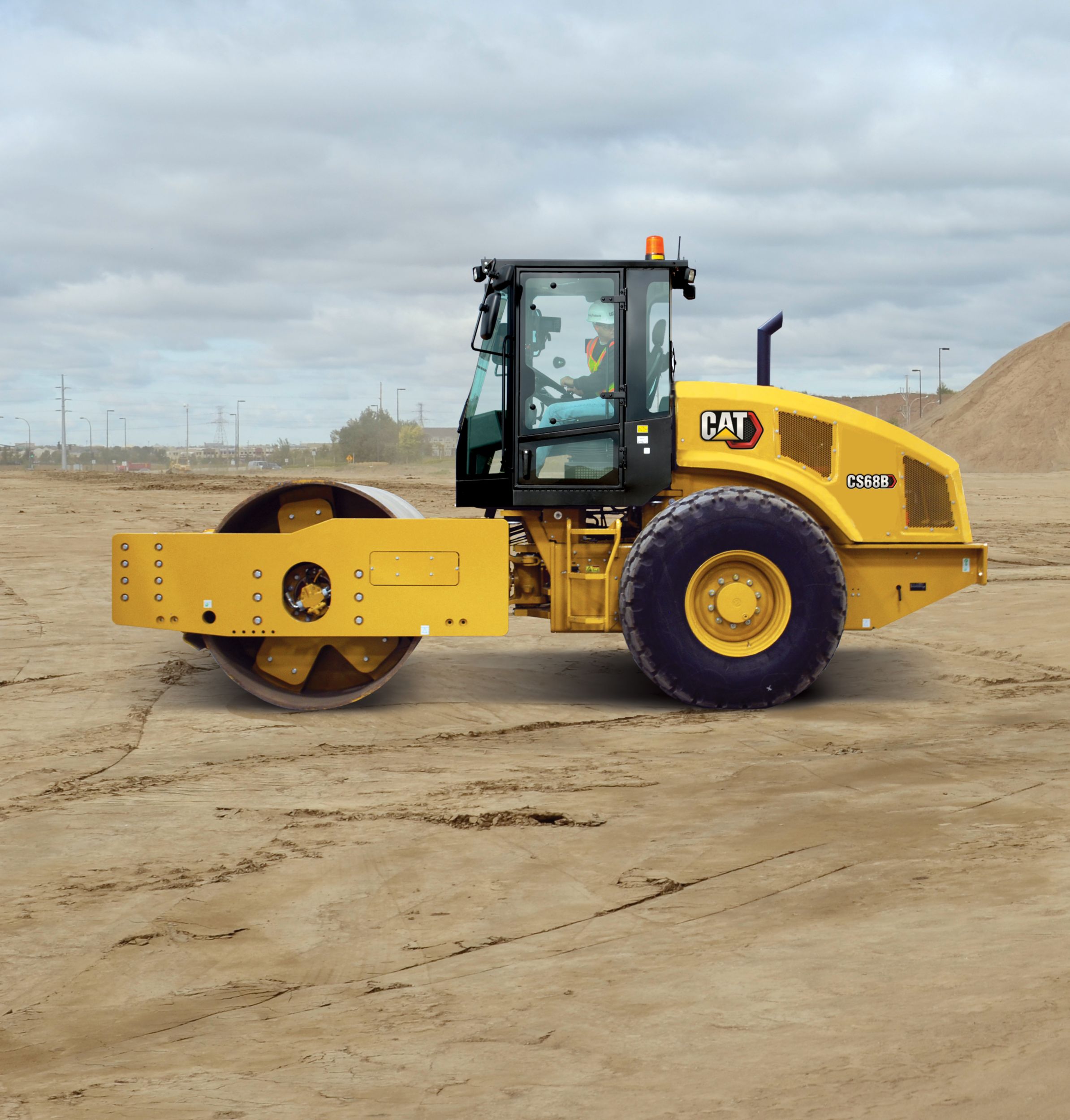

The CS68B provides exceptional performance for granular soil compaction applications.

Weights

Operating Weight with Cab
31572.00 lb
14325.00 kg
Weight - Drum with Cab
20164.00 lb
9150.00 kg

Operating Specifications

Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.20 in
437.00 mm
Static Linear Load - With Cab
240.10 lb/in
42.90 kg/cm
Travel Speed - Maximum
7.00 mph
11.40 km/h
Turning Radius - Inside Drum Edge
12.08 ft
3.68 m

Engine

Gross Power
157.00 hp
117.00 kW
Engine Model
Cat C4.4 with ACERT

Dimensions

Drum Diameter
60.40 in
1534.00 mm
Drum Width
84.00 in
2134.00 mm
Height - With ROPS/FOPS or Cab
10.25 ft
3.11 m
Optional Blade Height
27.10 in
688.00 mm
Overall Length
19.83 ft
6.05 m
Overall Length - With Blade Option
21.50 ft
6.55 m
Overall Width
7.67 ft
2.33 m
Overall Width - With Blade Option
8.25 ft
2.50 m
Wheelbase
9.58 ft
2.90 m

Tires

Tires
23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
64.00 gal
242.00 L

Vibratory System

Centrifugal Force - Maximum
67600.00 lb
301.00 kN
Centrifugal Force - Minimum
31670.00 lb
141.00 kN
Nominal Amplitude - High
0.08 in
2.10 mm
Nominal Amplitude - Low
0.04 in
0.98 mm
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)

Weights

Operating Weight - With Cab
31572.00 lb
14325.00 kg

Operating Specifications

Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.20 in
437.00 mm
Travel Speed - Maximum
7.00 mile/h
11.40 km/h

Engine

Gross Power
157.00 HP
117.00 kW
Engine Model
Cat C4.4 with ACERT

Dimensions

Drum Diameter
60.40 in
1534.00 mm
Drum Width
84.00 in
2134.00 mm
Overall Length
19.83 ft
6.05 m
Overall Width
7.67 ft
2.33 m
Wheel Base
9.58 ft
2.90 m

Vibratory System

Nominal Amplitude - High
0.08 in
2.10 mm
Nominal Amplitude - Low
0.04 in
0.98 mm
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)

Tires

Tires
23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
64.00 gal (US)
242.00 l
Features

Enhanced Vibratory System

Reliable Power Train

Comfortable Operator's Environment

Cat Compaction Control Option

Easy to Service

Sales Features

Enhanced Vibratory System

An optimized drum yoke design, more amplitude and the proven Cat® pod-style vibratory system provides enhanced compaction force.

Reliable Power Train

Equipped with a powerful Cat engine and the proven Cat dual-pump propel system, B-Series Vibratory Soil Compactors have the power and traction to provide exceptional performance even in challenging job conditions.

Comfortable Operator’s Environment

The operator’s station on the B-Series vibratory soil compactors has been enhanced to provide greater operator comfort and convenience.

Cat Compaction Control Option

Cat Compaction Control is a compaction measurement solution that improves quality and efficiency by providing information that allows the operator to determine when compaction meets specifications, which eliminates guesswork, reduces the risk of rework and allows the operator to quickly move on to the next job. Cat Compaction Control is factory integrated with the machine, providing greater protection for components. Two separate compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP). Smooth drum machines can be equipped with either technology or both technologies on the same machine. Having CMV and MDP on a single machine maximizes the compaction measurement capabilities to the widest range of applications and soil types.

Easy to Service

Service access is simple and convenient on the B-Series vibratory soil compactors. All routine service is conducted from the right side of the machine. The durable one-piece hood tilts forward quickly and easily for exceptional access to the engine and cooling system.
Optional Equipment
  • Padfoot Shell Kit

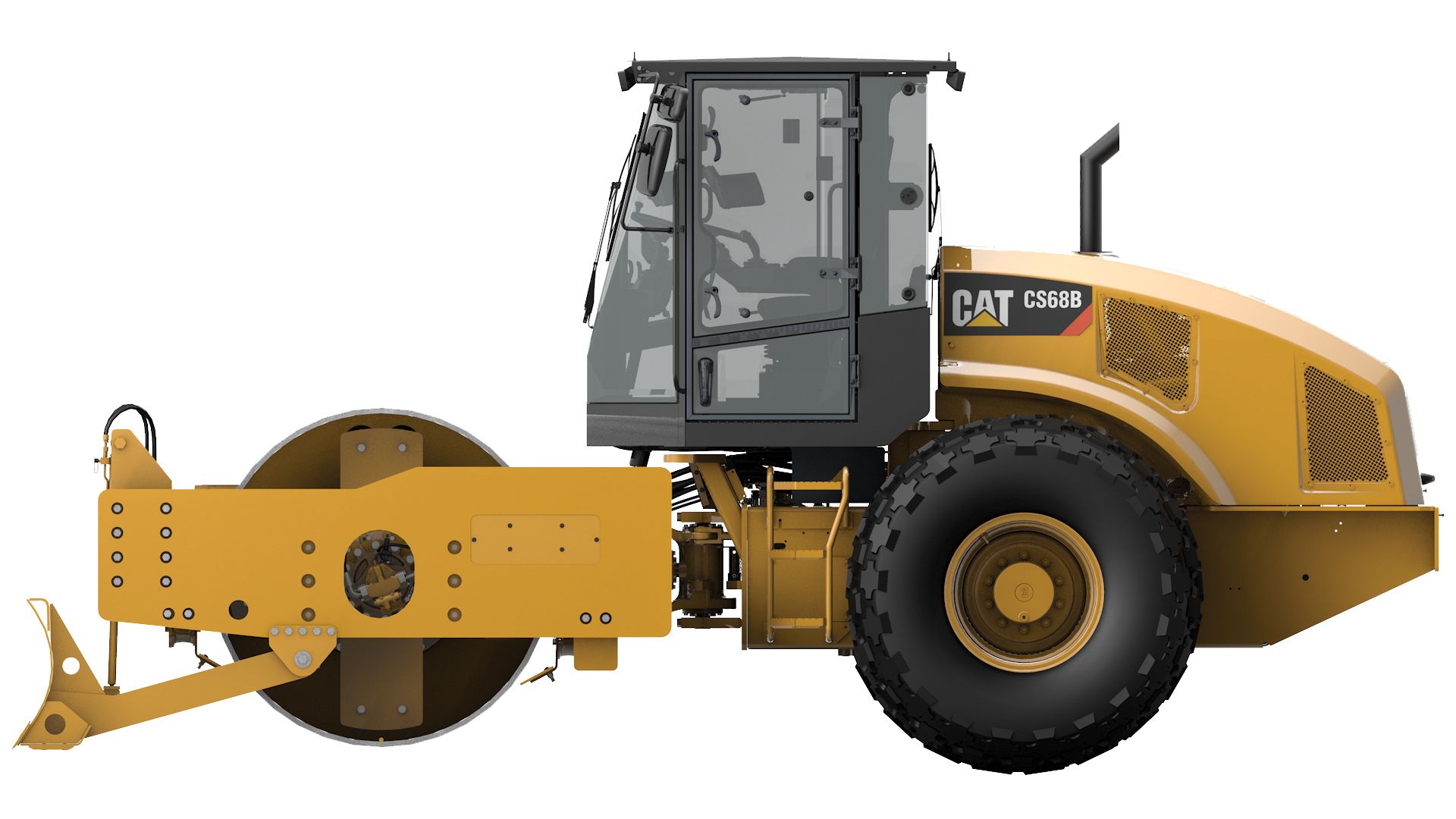

  • Leveling Blade
  • Cat Compaction Control, Compaction Meter Value (CMV)
  • Cat Compaction Control, Machine Drive Power (MDP)
  • Cat Compaction Control, both CMV and MDP technology
  • GNSS Mapping for Cat Compaction Control, SBAS or RTK
  • Deluxe Operator's Seat for Cab
  • Product Link
  • Upgraded Halogen Light Package
  • Transmission Guard
  • Rear-side Steel Scraper
  • Front and Rear Polyurethane Scrapers
  • Rotating Beacon
  • Bio-oil Factory Fill
  • Additional Rear View Mirrors
  • Italian Road Homologation (IRH)
