Overview

Working hard has never been easier with Cat® F Series Wheeled Excavators. Enjoy the versatility offered by integrated solutions and technologies that do repetitive tasks for you. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Engine

Engine Model
Cat C4.4 ACERT
Net Power
141.00 hp
105.00 kW
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Ratings
2000.00 rpm
2000.00 rpm
Engine Power: Maximum Gross (ISO 14396)
110 kW (148 hp [150 hp]*)
Engine Power: Maximum Net (ISO 9249/SAE J1349)
105 kW (141 hp [143 hp]*)
Note
*Metric values.
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in3
4.40 L
Maximum Torque at 1,400 rpm
413.00 lbf-ft
560.00 N·m
Number of Cylinders – In Line
4

Drive

Maximum Travel Speed
23.00 mph
37.00 km/h

Transmission

Maximum Forward/Reverse – 2nd Gear
23.00 mph
37.00 km/h
Drawbar Pull
16411.00 lbf
73.00 kN
Maximum Gradeability at 15 000 kg (33,070 lb)
52.50%

Swing Mechanism

Swing Speed
9.80 rpm
9.80 rpm
Maximum Swing Torque
35402.00 ft·lbf
36.00 kN·m

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Service Refill Capacities

Fuel Tank (total capacity)
74.00 gal
280.00 L
Diesel Exhaust Fluid Tank
5.00 gal
19.00 L

Weights

Operating Weights*
14 360 to 15 950 kg (31,658 to 35,164 lb)
VA Boom: Rear Dozer Only
32430.00 lb
14710.00 kg
VA Boom: Rear Dozer, Front Outriggers
34546.00 lb
15670.00 kg
VA Boom: Front and Rear Outriggers
35164.00 lb
15950.00 kg
One-Piece Boom: Front Dozer, Rear Outriggers
33775.00 lb
15320.00 kg
One-Piece Boom: Front and Rear Outriggers
34392.00 lb
15600.00 kg

Hydraulic System

System
58.10 gal (US)
220.00 l
Maximum Pressure – Implement Circuit: Normal and Travel Circuits
5076.00 psi
35000.00 kPa
Maximum Pressure - Implement Circuit - Heavy Lift
5439.00 psi
37500.00 kPa
Maximum Pressure - Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683.00 psi
18500.00 kPa
Swing Mechanism
5076.00 psi
35000.00 kPa
Maximum Flow - Implement/Travel Circuit
47.60 gal/min
180.00 l/min
Maximum Flow – Auxiliary Circuit: High Pressure
47.60 gal/min
180.00 L/min
Maximum Flow – Auxiliary Circuit: Medium Pressure
13.20 gal/min
50.00 L/min
Maximum Flow - Swing Mechanism
20.60 gal/min
78.00 l/min

Working Ranges

VA Boom – 2300 mm (7'7") Stick Length: Digging Height
32.42 ft
9870.00 mm
VA Boom – 2300 mm (7'7") Stick Length: Dump Height
23.00 ft
7000.00 mm
VA Boom – 2300 mm (7'7") Stick Length: Digging Depth
18.00 ft
5490.00 mm
VA Boom – 2300 mm (7'7") Stick Length: Reach at Ground Level
28.83 ft
8780.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Height
33.17 ft
10110.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Dump Height
23.75 ft
7240.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Depth
19.00 ft
5790.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
29.75 ft
9080.00 mm
One-Piece Boom – 2300 mm (7'7") Stick Length: Digging Height
28.58 ft
8700.00 mm
One-Piece Boom – 2300 mm (7'7") Stick Length: Dump Height
19.42 ft
5920.00 mm
One-Piece Boom – 2300 mm (7'7") Stick Length: Digging Depth
17.50 ft
5330.00 mm
One-Piece Boom – 2300 mm (7'7") Stick Length: Reach at Ground Level
27.92 ft
8520.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Height
29.08 ft
8870.00 mm
Note
Range values are calculated with GD bucket 900 mm (35.5"), 0.53 m3 (0.7 yd3) with tips J250 and quick coupler with a tip radius of 1437 mm (56.6").

Weights

Counterweights
2800/3300 kg (6,173/7,275 lb)
Note
*Includes medium stick, 2800 kg (6,173 lb) counterweight, full fuel tank, operator, quick coupler (225 kg/496 lb), bucket (490 kg/1,080 lb), dual pneumatic tires. Weight varies depending on configuration.

Working Ranges

One-Piece Boom – 2600 mm (8'6") Stick Length: Dump Height
20.00 ft
6090.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Depth
18.50 ft
5630.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
28.92 ft
8810.00 mm

Undercarriage

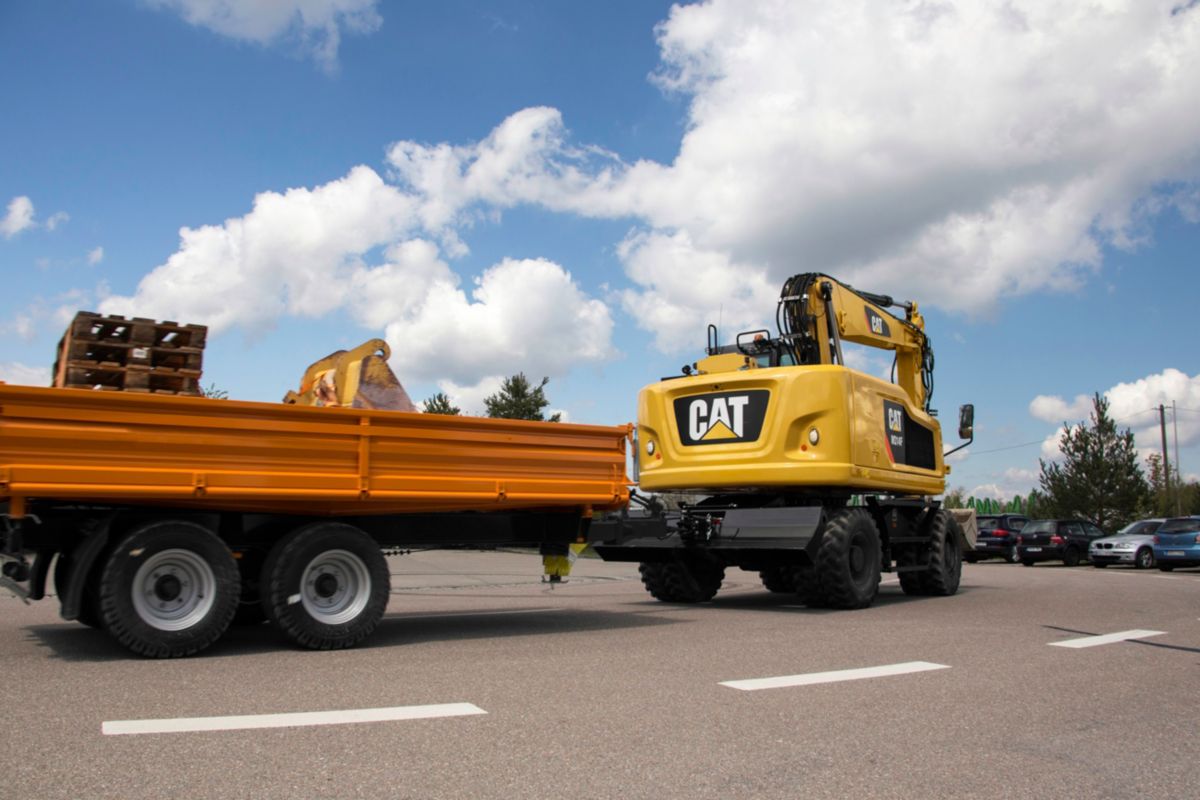

Maximum Towable Trailer Mass*
17637.00 lb
8.00 t
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Engine

Engine Model
Cat C4.4
Net Power
141.00 HP
105.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in³
4.40 l
Maximum Torque - 1,400 rpm
413.00 ft·lbf
560.00 N·m
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
110 kW (148 hp [150 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
105 kW (141 hp [143 hp]*)
Note
*Metric values.
Number of Cylinders - In Line
4
Ratings
2000.00 r/min
2000.00 r/min

Weights

One-Piece Boom - Front Dozer, Rear Outriggers
33775.00 lb
15320.00 kg
One-Piece Boom - Front and Rear Outriggers
34392.00 lb
15600.00 kg
Operating Weight*
14 360 to 15 950 kg (31,658 to 35,164 lb)
VA Boom - Front and Rear Outriggers
35164.00 lb
15950.00 kg
VA Boom - Rear Dozer Only
32430.00 lb
14710.00 kg
VA Boom - Rear Dozer, Front Outriggers
34546.00 lb
15670.00 kg

Swing Mechanism

Swing Speed
9.80 r/min
9.80 r/min

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
47.60 gal/min
180.00 l/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
13.20 gal/min
50.00 l/min
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076.00 psi
35000.00 kPa
Swing Mechanism
5076.00 psi
35000.00 kPa

Drive

Maximum Travel Speed
23.00 mile/h
37.00 km/h

Transmission

Maximum Forward/Reverse - 2nd Gear
23.00 mile/h
37.00 km/h
Maximum Gradeability (15 000 kg/33,070 lb)
52.50%

Service Refill Capacities

Diesel Exhaust Fluid Tank
5.00 gal (US)
19.00 l
Fuel Tank - Total Capacity
74.00 gal (US)
280.00 l

Undercarriage

Ground Clearance
14.60 in
370.00 mm
Maximum Towable Trailer Mass*
17637.00 lb
8.00 ton (US)
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Weights

Counterweights
2800/3300 kg (6,173/7,275 lb)
Note
*Includes medium stick, 2800 kg (6,173 lb) counterweight, full fuel tank, operator, quick coupler (225 kg/496 lb), bucket (490 kg/1,080 lb), dual pneumatic tires. Weight varies depending on configuration.

Working Ranges

One-Piece Boom - 2300 mm (7'7") Stick Length: Digging Depth
17.50 ft
5330.00 mm
One-Piece Boom - 2300 mm (7'7") Stick Length: Digging Height
28.58 ft
8700.00 mm
One-Piece Boom - 2300 mm (7'7") Stick Length: Dump Height
19.42 ft
5920.00 mm
One-Piece Boom - 2300 mm (7'7") Stick Length: Reach at Ground Level
27.92 ft
8520.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Depth
18.50 ft
5630.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Height
29.08 ft
8870.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Dump Height
20.00 ft
6090.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
28.92 ft
8810.00 mm
VA Boom - 2300 mm (7'7") Stick Length: Digging Depth
18.00 ft
5490.00 mm
VA Boom - 2300 mm (7'7") Stick Length: Digging Height
32.42 ft
9870.00 mm
VA Boom - 2300 mm (7'7") Stick Length: Dump Height
23.00 ft
7000.00 mm
VA Boom - 2300 mm (7'7") Stick Length: Reach at Ground Level
28.83 ft
8780.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth
19.00 ft
5790.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Height
33.17 ft
10110.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Dump Height
23.75 ft
7240.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
29.75 ft
9080.00 mm
Features

PERFORMANCE AND PRODUCTIVITY

  • Cat C4.4 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Dedicated swing pump, allowing faster, smoother combined movements.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.

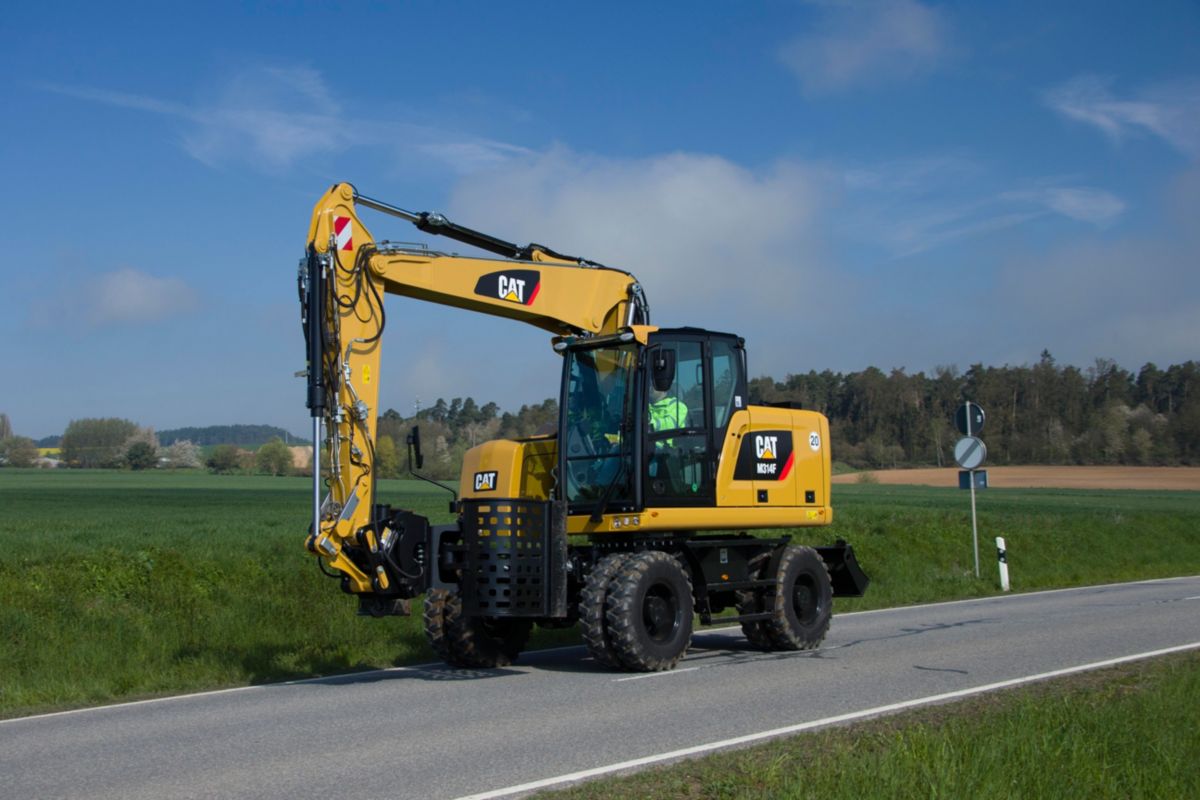

  • Highly mobile, the M314F can travel up to 37 km/h (23 mph).

EXPAND YOUR CAPABILITIES

  • Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.
  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure. – Readiness for Cat Pin Grabber quick coupler (with lines and circuits). – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Trailer-ready package option*. Just add your hitch and go.
  • Joystick buttons/sliders can be set up per tool as desired.

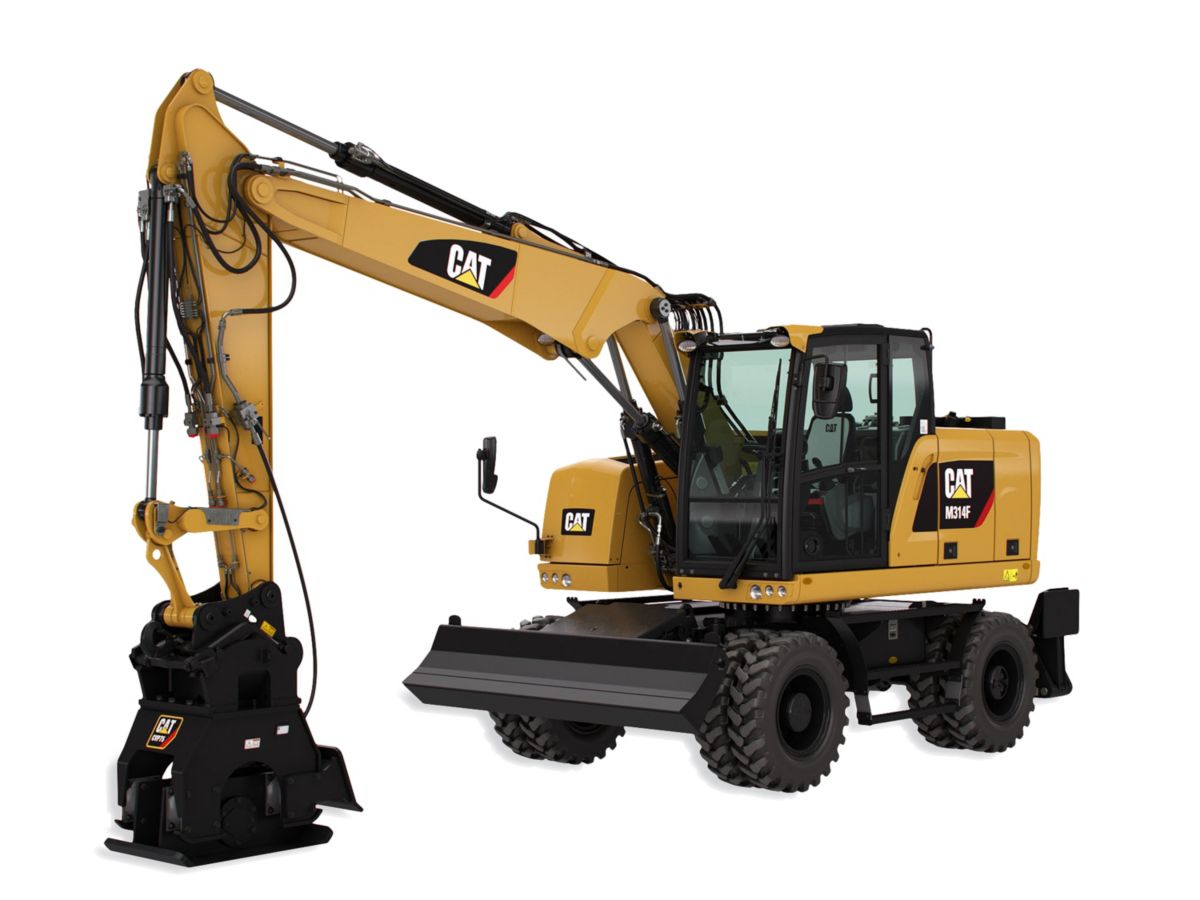

  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.

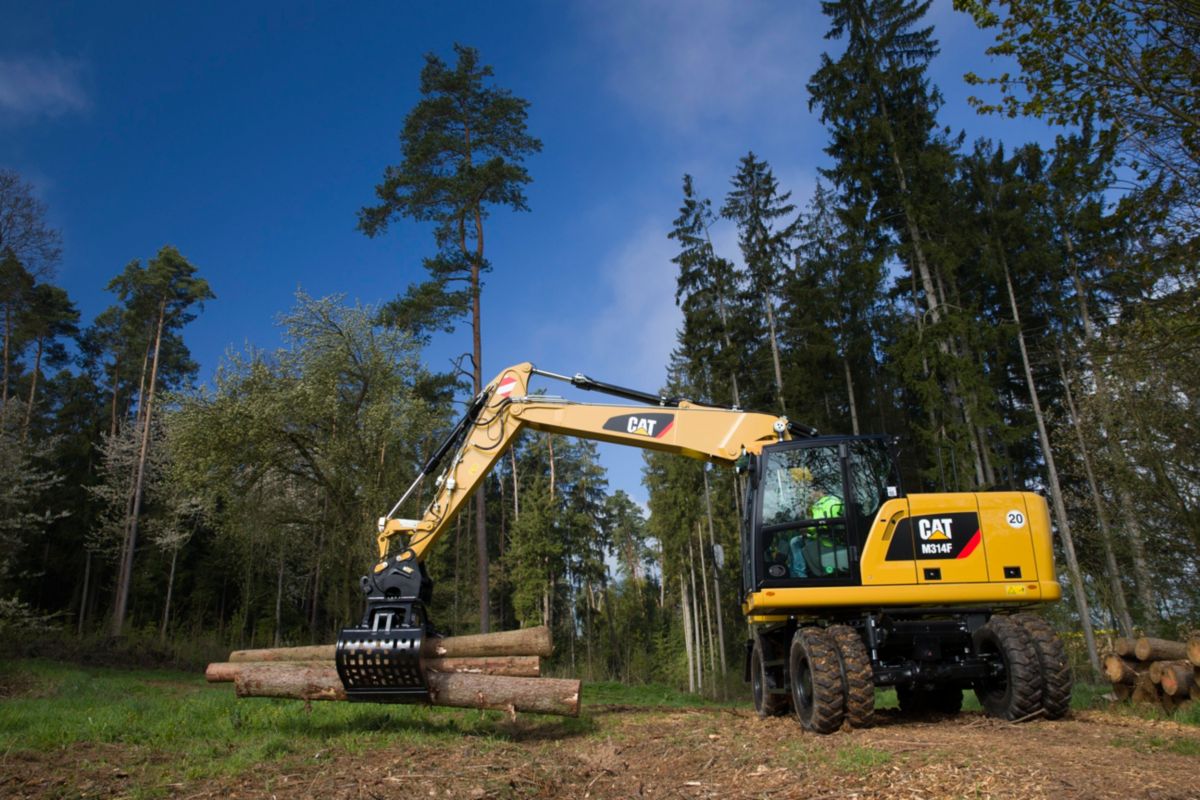

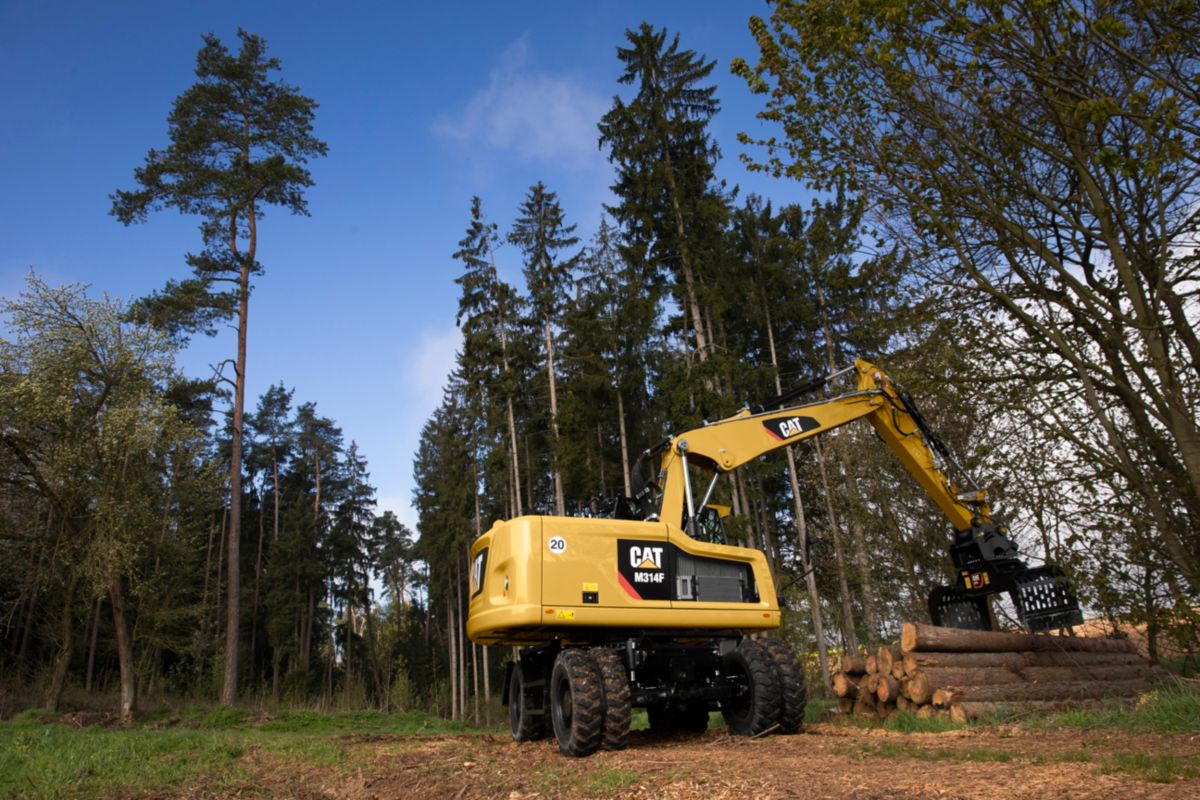

  • Dealing with debris and waste is easy with a Cat hammer and grapple.
  • Couplers let you swap between attachments in seconds without leaving the cab.

    * Not available in Australia/New Zealand.

EASY TO OPERATE

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.
  • Split-screen monitor to allow quick view of both cameras on the same display.

SAFELY HOME EVERY DAY

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

LOWER MAINTENANCE COSTS

  • Ground level access to all routine maintenance (like fuel and engine oil filters).
  • Easy access: clean, simple design. Radiators are all gathered together.
  • Reduced maintenance: automatic features (like lubrication system) along with long greasing intervals. No Diesel Particulate Filter.

INTEGRATED CAT TECHNOLOGIES

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time, events, and diagnostic codes.
