M316F Wheeled Excavator
M316F Wheeled Excavator
M316F Wheeled Excavator
M316F Wheeled Excavator
M316F Wheeled Excavator
M316F Wheeled Excavator
M316F Wheeled Excavator
US
Metric

Overview

Working hard has never been easier with Cat® F Series Wheeled Excavators. Enjoy the versatility offered by integrated solutions and technologies that do repetitive tasks for you. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Engine

Engine Model
Cat C4.4 ACERT
Net Power
141.00 hp
105.00 kW
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Ratings
2000.00 rpm
2000.00 rpm
Engine Power: Maximum Gross (ISO 14396)
110 kW (148 hp [150 hp]*)
Engine Power: Maximum Net (ISO 9249/SAE J1349)
105 kW (141 hp [143 hp]*)
Note
*Metric values.
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in3
4.40 L
Maximum Torque at 1,400 rpm
413.00 lbf-ft
560.00 N·m
Number of Cylinders – In line
4

Drive

Maximum Travel Speed
22.00 mph
35.00 km/h

Transmission

Maximum Forward/Reverse – 2nd Gear
22.00 mph
35.00 km/h
Drawbar Pull
23380.00 lbf
104.00 kN
Maximum Gradeability at 16 500 kg (36,380 lb)
78%

Swing Mechanism

Swing Speed
9.00 rpm
9.00 rpm
Maximum Swing Torque
30977.00 ft·lbf
42.00 kN·m

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Service Refill Capacities

Fuel Tank (total capacity)
87.20 gal
330.00 L
Diesel Exhaust Fluid Tank
5.00 gal
19.00 L

Weights

Operating Weights*
15 410 to 17 490 kg (33,973 to 38,559 lb)
VA Boom: Rear Dozer, Front Outriggers
36068.00 lb
16360.00 kg
VA Boom: Front and Rear Outriggers
36663.00 lb
16630.00 kg
One-Piece Boom: Front Dozer, Rear Outriggers
35009.00 lb
15880.00 kg
One-Piece Boom: Front and Rear Outriggers
35605.00 lb
16150.00 kg

Hydraulic System

System
63.40 gal (US)
240.00 l
Maximum Pressure – Implement Circuit: Normal and Travel Circuits
5076.00 psi
35000.00 kPa
Maximum Pressure - Implement Circuit - Heavy Lift
5439.00 psi
37500.00 kPa
Maximum Pressure - Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683.00 psi
18500.00 kPa
Swing Mechanism
5366.00 psi
37000.00 kPa
Maximum Flow - Implement/Travel Circuit
63.00 gal/min
240.00 l/min
Maximum Flow – Auxiliary Circuit: High Pressure
63.00 gal/min
240.00 L/min
Maximum Flow – Auxiliary Circuit: Medium Pressure
13.20 gal/min
50.00 L/min
Maximum Flow - Swing Mechanism
20.60 gal/min
78.00 l/min

Working Ranges

VA Boom – 2400 mm (7'10") Stick Length: Digging Height
33.67 ft
10250.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Dump Height
23.33 ft
7110.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Digging Depth
19.33 ft
5900.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Reach at Ground Level
30.25 ft
9210.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Height
34.17 ft
10410.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Dump Height
23.83 ft
7270.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Depth
20.00 ft
6100.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
30.83 ft
9400.00 mm
VA Boom – 3100 mm (10'2") Stick Length*: Digging Height
29.33 ft
8950.00 mm
VA Boom – 3100 mm (10'2") Stick Length*: Digging Depth
16.58 ft
5050.00 mm
VA Boom – 3100 mm (10'2") Stick Length*: Reach at Ground Level
26.83 ft
8170.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Digging Height
29.92 ft
9120.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Dump Height
19.92 ft
6080.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Digging Depth
18.75 ft
5710.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Reach at Ground Level
29.50 ft
8990.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Height
30.25 ft
9230.00 mm
Note
Range values are calculated with GD bucket 1100 mm (3'7"), 0.80 m3 (1.05 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").

Weights

Counterweights
3200/3700 kg (7,055/8,157 lb)
Note
*Includes long stick, 3200 kg (7,055 lb) counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.

Working Ranges

Note
*Industrial stick (no bucket linkage). Not available in Australia and New Zealand.
One-Piece Boom – 2600 mm (8'6") Stick Length: Dump Height
20.33 ft
6200.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Depth
19.42 ft
5910.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
30.17 ft
9190.00 mm
One-Piece Boom - 3100 mm (10'2") Stick Length*: Digging Height
25.25 ft
7700.00 mm
One-Piece Boom - 3100 mm (10'2") Stick Length*: Digging Depth
15.92 ft
4840.00 mm
One-Piece Boom - 3100 mm (10'2") Stick Length*: Reach at Ground Level
26.00 ft
7920.00 mm

Undercarriage

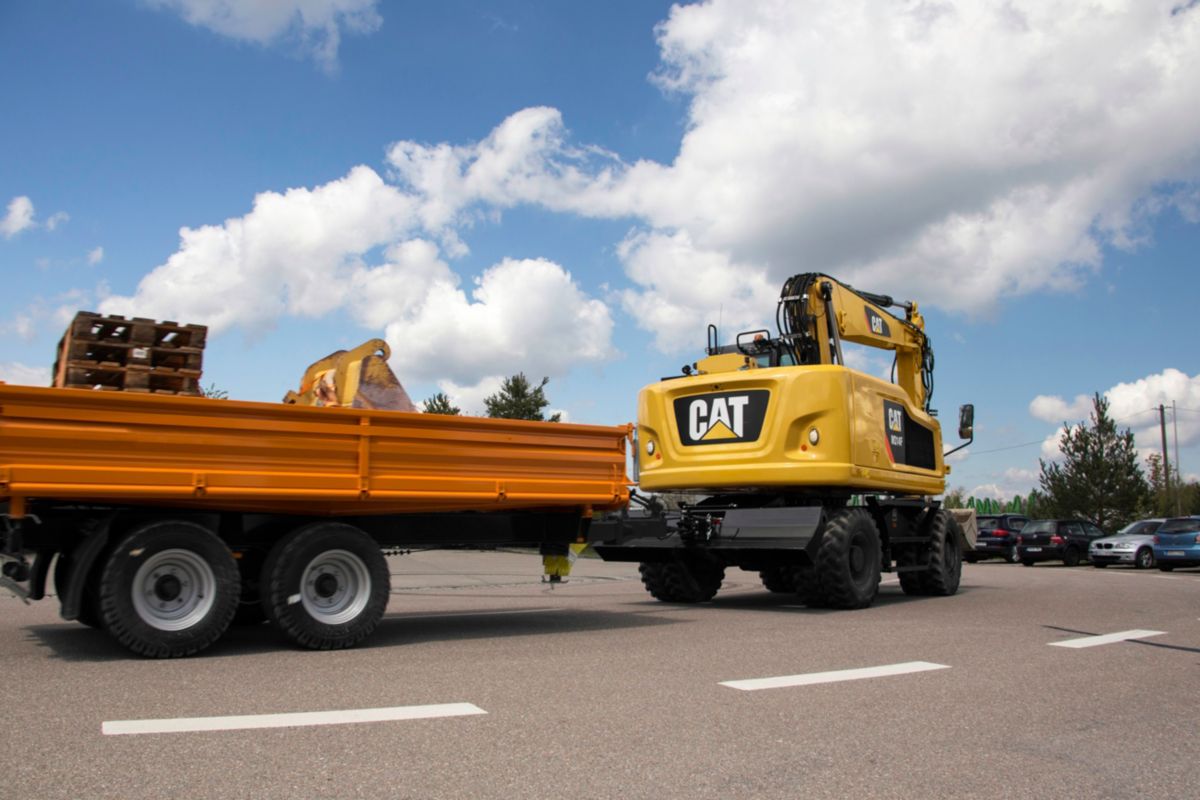

Maximum Towable Trailer Mass*
17637.00 lb
8.00 t
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Engine

Engine Model
Cat C4.4
Net Power
141.00 HP
105.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in³
4.40 l
Maximum Torque - 1,400 rpm
413.00 ft·lbf
560.00 N·m
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
110 kW (148 hp [150 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
105 kW (141 hp [143 hp]*)
Note
*Metric values.
Number of Cylinders - In Line
4
Ratings
2000.00 r/min
2000.00 r/min

Weights

One-Piece Boom - Front Dozer, Rear Outriggers
35009.00 lb
15880.00 kg
One-Piece Boom - Front and Rear Outriggers
35605.00 lb
16150.00 kg
Operating Weight*
15 410 to 17 490 kg (33,973 to 38,559 lb)
VA Boom - Front and Rear Outriggers
36663.00 lb
16630.00 kg
VA Boom - Rear Dozer, Front Outriggers
36068.00 lb
16360.00 kg

Swing Mechanism

Swing Speed
9.00 r/min
9.00 r/min

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
63.00 gal/min
240.00 l/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
13.20 gal/min
50.00 l/min
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076.00 psi
35000.00 kPa
Swing Mechanism
5366.00 psi
37000.00 kPa

Drive

Maximum Travel Speed
22.00 mile/h
35.00 km/h

Transmission

Maximum Forward/Reverse - 2nd Gear
22.00 mile/h
35.00 km/h
Maximum Gradeability (16 500 kg/36,380 lb)
78%

Service Refill Capacities

Diesel Exhaust Fluid Tank
5.00 gal (US)
19.00 l
Fuel Tank - Total Capacity
87.20 gal (US)
330.00 l

Undercarriage

Ground Clearance
14.60 in
370.00 mm
Maximum Towable Trailer Mass*
17637.00 lb
8.00 ton (US)
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Weights

Counterweights
3200/3700 kg (7,055/8,157 lb)
Note
*Includes long stick, 3200 kg (7,055 lb) counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.

Working Ranges

Note (1)
Range values are calculated with GD bucket 1100 mm (3'7"), 0.80 m3 (1.05 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").
Note (2)
*Industrial stick (no bucket linkage). Not available in Australia and New Zealand.
One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Depth
18.75 ft
5710.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Height
29.92 ft
9120.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Dump Height
19.92 ft
6080.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
29.50 ft
8990.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Depth
19.42 ft
5910.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Height
30.25 ft
9230.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Dump Height
20.33 ft
6200.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.17 ft
9190.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Digging Depth
19.33 ft
5900.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Digging Height
33.67 ft
10250.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Dump Height
23.33 ft
7110.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
30.25 ft
9210.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth
20.00 ft
6100.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Height
34.17 ft
10410.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Dump Height
23.83 ft
7270.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.83 ft
9400.00 mm
VA Boom - 3100 mm (10'2") Stick Length*: Digging Depth
16.58 ft
5050.00 mm
VA Boom - 3100 mm (10'2") Stick Length*: Digging Height
29.33 ft
8950.00 mm
VA Boom - 3100 mm (10'2") Stick Length*: Reach at Ground Level
26.83 ft
8170.00 mm
Features

PERFORMANCE AND PRODUCTIVITY

  • Cat C4.4 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Dedicated swing pump, allowing faster, smoother combined movements.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.
  • Highly mobile, the M316F can travel up to 35 km/h (22 mph).

EXPAND YOUR CAPABILITIES

  • Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.
  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure. – Readiness for Cat Pin Grabber quick coupler (with lines and circuits). – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Trailer-ready package option*. Just add your hitch and go.
  • Joystick buttons/sliders can be set up per tool as desired.

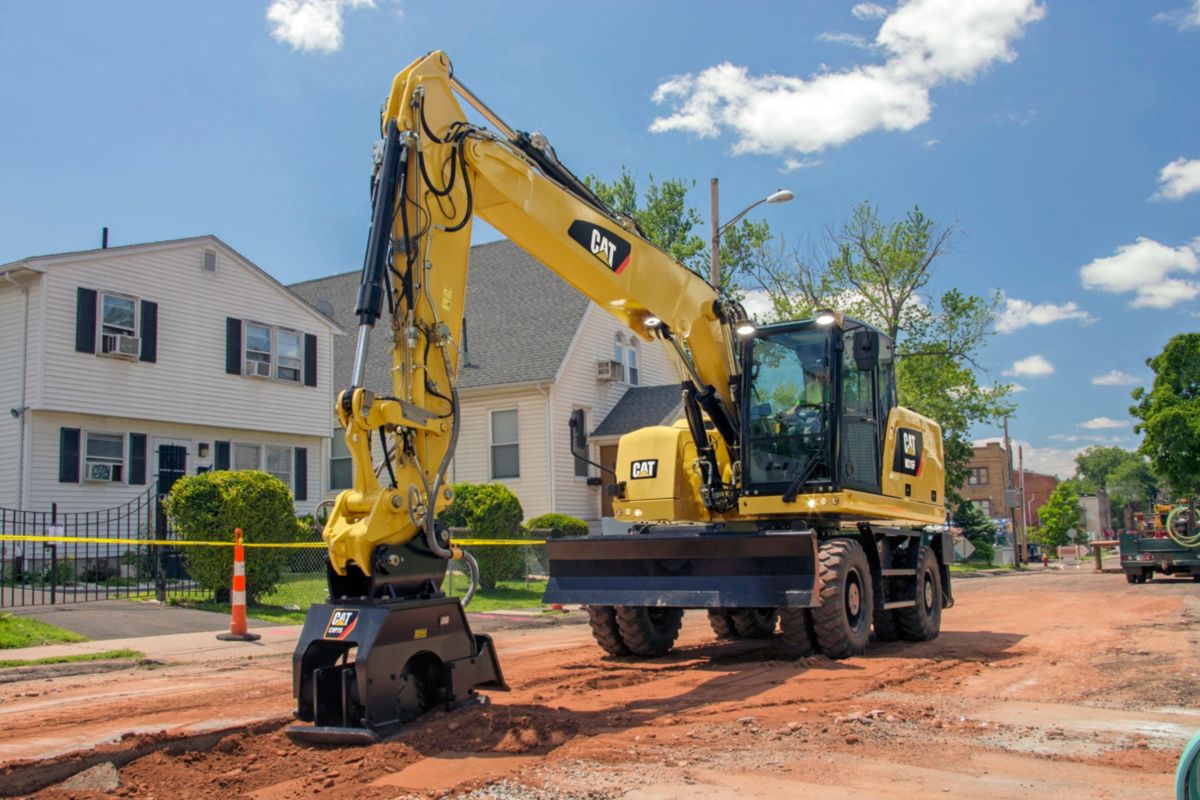

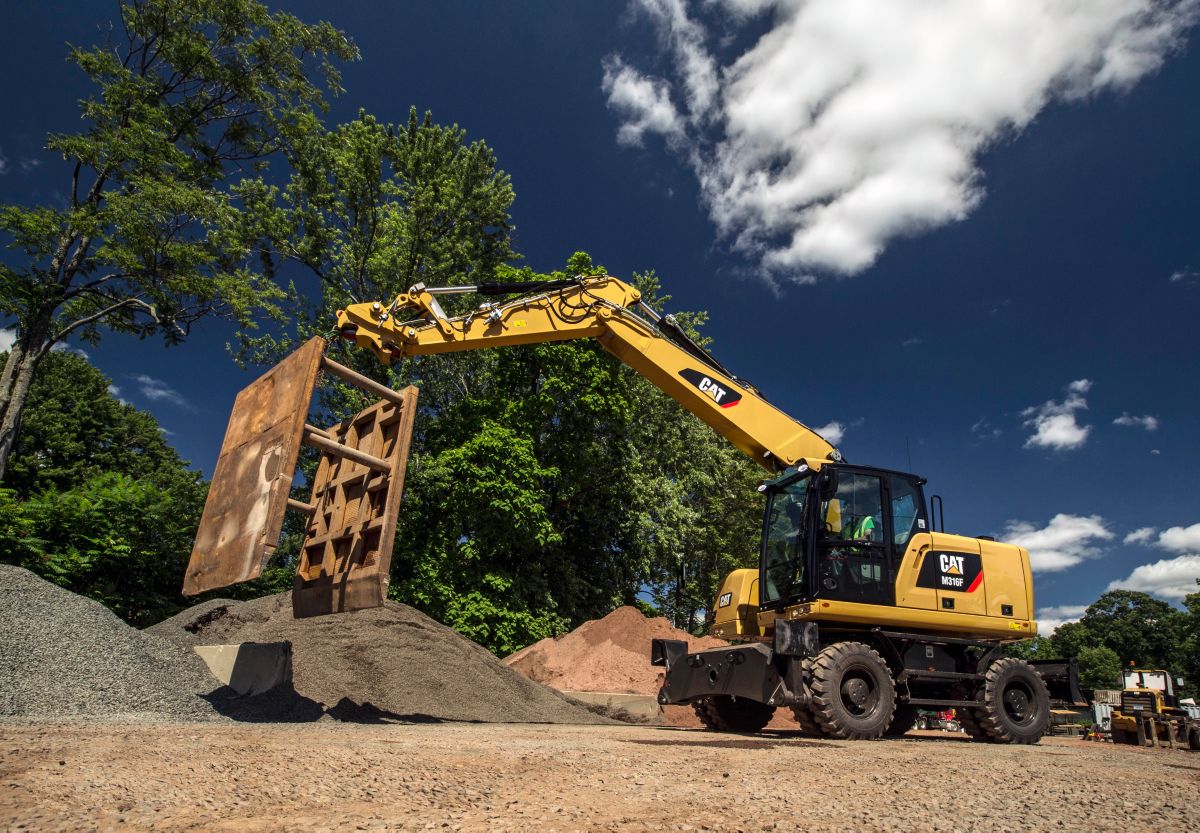

  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.

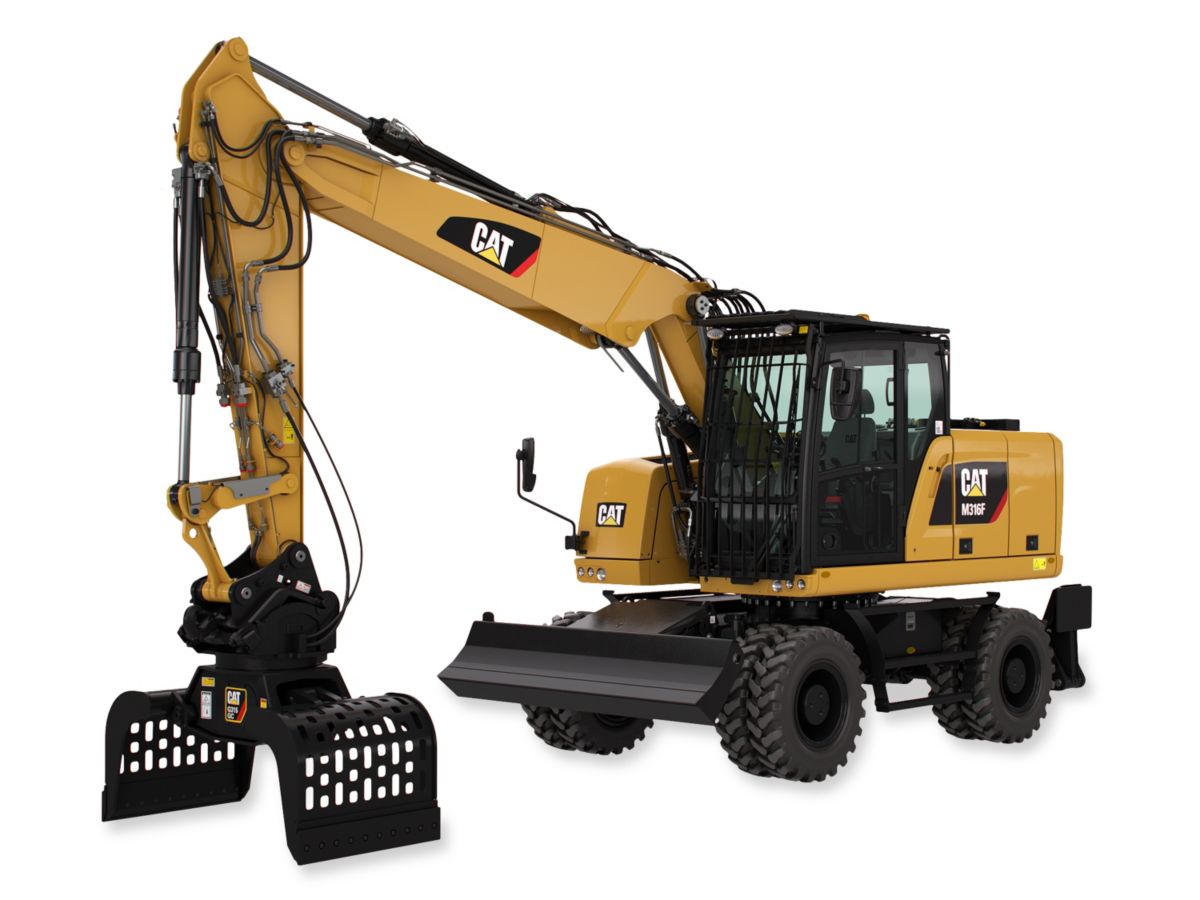

  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
  • Couplers let you swap between attachments in seconds without leaving the cab.

    * Not available in Australia/New Zealand.

OPERATOR COMFORT AND CONTROL

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.
  • Split-screen monitor to allow quick view of both cameras on the same display.

BUILT-IN SAFETY FEATURES

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

LOWER MAINTENANCE COSTS

  • Ground level access to all routine maintenance (like fuel and engine oil filters).
  • Easy access: clean, simple design. Radiators are all gathered together.
  • Reduced maintenance: automatic features (like lubrication system) along with long greasing intervals. No Diesel Particulate Filter.

TECHNOLOGY THAT PUSHES PROFITS

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time, events, and diagnostic codes.
