Overview

Working hard has never been easier with Cat® F Series Wheeled Excavators. Enjoy the versatility offered by integrated solutions and technologies that do repetitive tasks for you. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Engine

Engine Model
Cat C7.1 ACERT
Net Power
169.00 hp
126.00 kW
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Ratings
1750.00 rpm
1750.00 rpm
Engine Power: Maximum Gross (ISO 14396)
129.4 kW (174 hp [176 hp]*)
Engine Power: Maximum Net (ISO 9249/SAE J1349)
126 kW (169 hp [171 hp]*)
Note
*Metric values.
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in3
7.01 L
Maximum Torque at 1,400 rpm
578.00 lbf-ft
783.00 N·m
Number of Cylinders – In line
6

Drive

Maximum Travel Speed
22.00 mph
35.00 km/h

Transmission

Maximum Forward/Reverse – 2nd Gear
22.00 mph
35.00 km/h
Drawbar Pull
23155.00 lbf
103.00 kN
Maximum Gradeability (17 500 kg/38,580 lb)
75%

Swing Mechanism

Swing Speed
10.00 rpm
10.00 rpm
Maximum Swing Torque
30977.00 ft-lb
42.00 kN·m

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Service Refill Capacities

Fuel Tank (total capacity)
87.20 gal
330.00 L
Diesel Exhaust Fluid Tank
9.10 gal
34.50 L

Weights

Operating Weights*
17 200 to 19 700 kg (37,919 to 43,431 lb)
VA Boom: Front and Rear Outriggers
41160.00 lb
18670.00 kg
One-Piece Boom: Rear Dozer, Front Outriggers
39507.00 lb
17920.00 kg
One-Piece Boom: Front and Rear Outriggers
40080.00 lb
18180.00 kg
Counterweights
3400/3900 kg (7,496/8,598 lb)
Note
*Includes medium stick, 3400 kg (7,496 lb) counterweight, full fuel tank, operator, quick coupler (250 kg/551 lb), bucket (600 kg/1,323 lb), dual pneumatic tires. Weight varies depending on configuration.

Hydraulic System

System
55.50 gal (US)
210.00 B
Maximum Pressure – Implement Circuit: Normal and Travel Circuits
5076.00 psi
35000.00 kPa
Maximum Pressure - Implement Circuit - Heavy Lift
5366.00 psi
37000.00 kPa
Maximum Pressure - Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683.00 psi
18500.00 kPa
Swing Mechanism
5366.00 psi
37000.00 kPa
Maximum Flow - Implement/Travel Circuit
67.00 gal/min
252.00 l/min
Maximum Flow – Auxiliary Circuit: High Pressure
67.00 gal/min
252.00 L/min
Maximum Flow – Auxiliary Circuit: Medium Pressure
12.90 gal/min
49.00 L/min
Maximum Flow - Swing Mechanism
22.20 gal/min
84.00 l/min

Working Ranges

VA Boom – 2400 mm (7'10") Stick Length: Digging Height
33.75 ft
10275.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Dump Height
23.42 ft
7135.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Digging Depth
19.33 ft
5890.00 mm
VA Boom – 2400 mm (7'10") Stick Length: Reach at Ground Level
30.25 ft
9210.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Height
34.25 ft
10435.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Dump Height
23.83 ft
7265.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Depth
20.00 ft
6090.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
30.83 ft
9405.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Digging Height
30.00 ft
9140.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Dump Height
20.08 ft
6110.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Digging Depth
18.67 ft
5690.00 mm
One-Piece Boom – 2400 mm (7'10") Stick Length: Reach at Ground Level
29.50 ft
8995.00 mm
Note
Range values are calculated with GD bucket 1200 mm (48 in), 0.91 m3 (1.19 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").

Weights

VA Boom: Rear Dozer, Front Outriggers
40587.00 lb
18410.00 kg

Working Ranges

One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Height
30.33 ft
9255.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Dump Height
20.42 ft
6225.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Digging Depth
19.33 ft
5890.00 mm
One-Piece Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
30.17 ft
9190.00 mm

Undercarriage

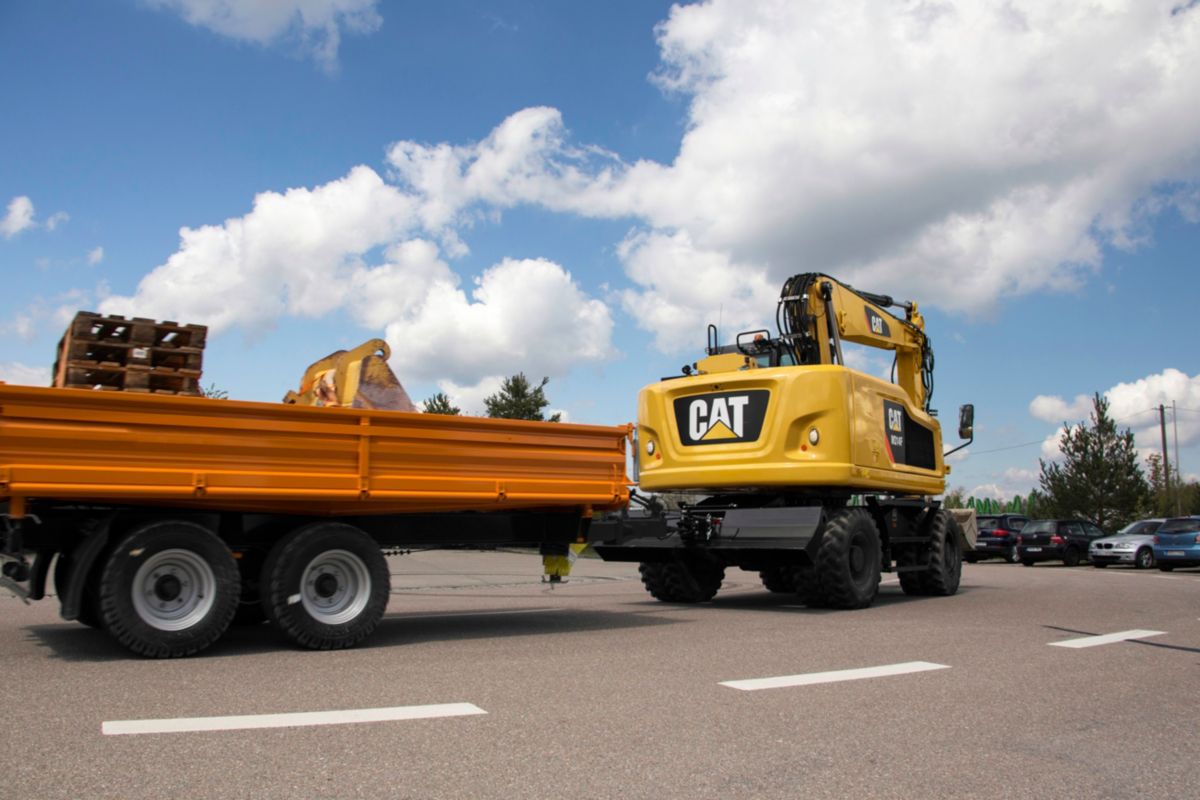

Maximum Towable Trailer Mass*
17637.00 lb
8.00 t
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Engine

Engine Model
Cat C7.1
Net Power
169.00 HP
126.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.01 B
Maximum Torque - 1,400 rpm
578.00 ft-lb
783.00 N·m
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
129.4 kW (174 hp [176 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
126 kW (169 hp [171 hp]*)
Note
*Metric values.
Number of Cylinders - In Line
6
Ratings
1750.00 r/min
1750.00 r/min

Weights

Counterweights
3400/3900 kg (7,496/8,598 lb)
Note
*Includes medium stick, 3400 kg (7,496 lb) counterweight, full fuel tank, operator, quick coupler (250 kg/551 lb), bucket (600 kg/1,323 lb), dual pneumatic tires. Weight varies depending on configuration.
One-Piece Boom - Front and Rear Outriggers
40080.00 lb
18180.00 kg
One-Piece Boom - Rear Dozer, Front Outriggers
39507.00 lb
17920.00 kg
Operating Weight*
17 200 to 19 700 kg (37,919 to 43,431 lb)
VA Boom - Front and Rear Outriggers
41160.00 lb
18670.00 kg

Swing Mechanism

Swing Speed
10.00 r/min
10.00 r/min

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
67.00 gal/min
252.00 l/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
12.90 gal/min
49.00 l/min
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076.00 psi
35000.00 kPa
Swing Mechanism
5366.00 psi
37000.00 kPa

Drive

Maximum Travel Speed
22.00 mile/h
35.00 km/h

Transmission

Maximum Forward/Reverse - 2nd Gear
22.00 mile/h
35.00 km/h

Service Refill Capacities

Diesel Exhaust Fluid Tank
9.10 gal (US)
34.50 B
Fuel Tank - Total Capacity
87.20 gal (US)
330.00 B

Undercarriage

Ground Clearance
14.60 in
370.00 mm
Maximum Towable Trailer Mass*
17637.00 lb
8.00 ton (US)
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Weights

VA Boom - Rear Dozer, Front Outriggers
40587.00 lb
18410.00 kg

Working Ranges

One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Depth
18.67 ft
5690.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Height
30.00 ft
9140.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Dump Height
20.08 ft
6110.00 mm
One-Piece Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
29.50 ft
8995.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Depth
19.33 ft
5890.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Height
30.33 ft
9255.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Dump Height
20.42 ft
6225.00 mm
One-Piece Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.17 ft
9190.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Digging Depth
19.33 ft
5890.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Digging Height
33.75 ft
10275.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Dump Height
23.42 ft
7135.00 mm
VA Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
30.25 ft
9210.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth
20.00 ft
6090.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Height
34.25 ft
10435.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Dump Height
23.83 ft
7265.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.83 ft
9405.00 mm
Features

PERFORMANCE AND PRODUCTIVITY

  • Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Up to a 10% fuel consumption reduction vs. previous model with the same productivity.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.
  • Dedicated swing pump, allowing faster, smoother combined movements.

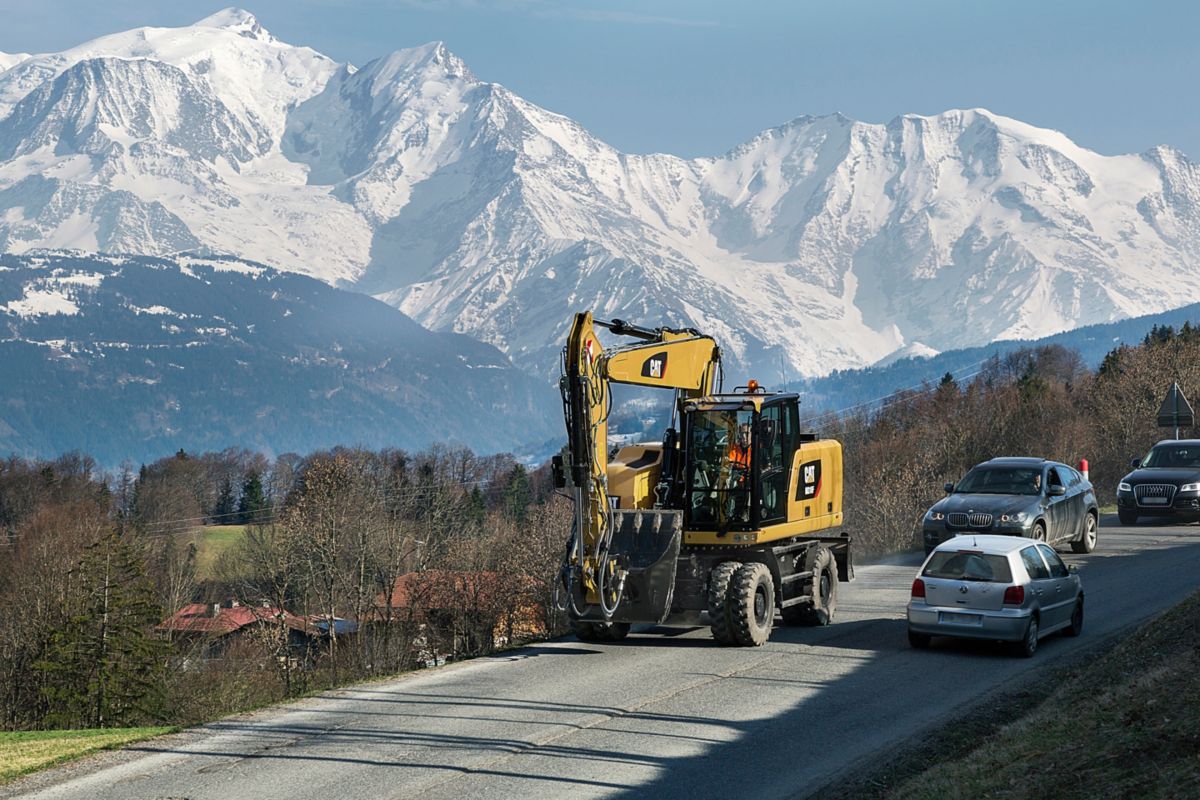

  • Highly mobile, the M318F can travel up to 35 km/h (22 mph).

EXPAND YOUR CAPABILITIES

  • Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.
  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure. – Readiness for Cat Pin Grabber quick coupler (with lines and circuits). – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Trailer-ready package option*. Just add your hitch and go.
  • Joystick buttons/sliders can be set up per tool as desired.

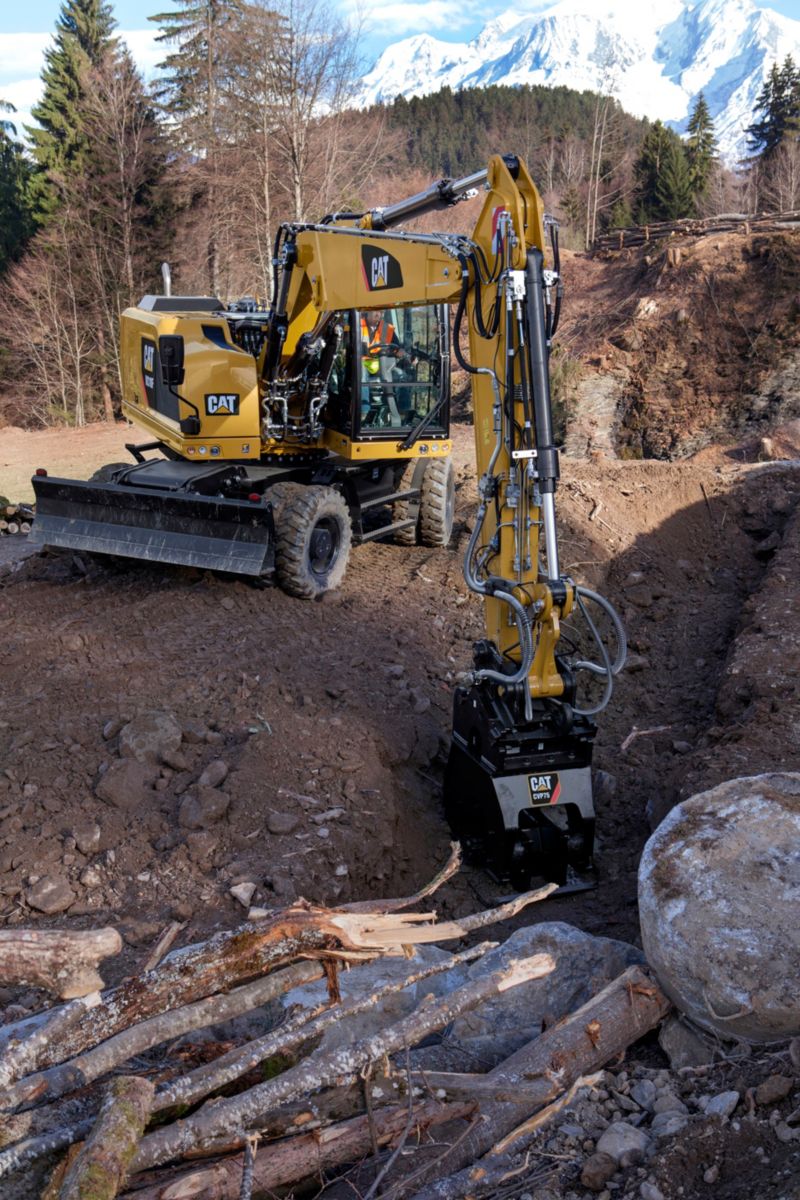

  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.
  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
  • Couplers let you swap between attachments in seconds without leaving the cab.

    * Not available in Australia/New Zealand.

EASY TO OPERATE

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.
  • Split-screen monitor to allow quick view of both cameras on the same display.

SAFELY HOME EVERY DAY

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Blue Angel certified machine, with low sound levels and vibrations.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

LOWER MAINTENANCE COSTS

  • Ground level access to all routine maintenance (like fuel and engine oil filters).
  • Easy access: clean, simple design. Radiators are all gathered together.
  • Reduced maintenance: automatic features (like lubrication system) along with long greasing intervals. Fit for life Diesel Particulate Filter.

TECHNOLOGY THAT PUSHES PROFITS

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
