Overview

Working hard has never been easier with Cat® F Series Wheeled Excavators. Enjoy the versatility offered by integrated solutions and technologies that do repetitive tasks for you. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Engine

Engine Model
Cat C7.1 ACERT
Net Power
169.00 hp
126.00 kW
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Ratings
1550.00 rpm
1550.00 rpm
Engine Power: Maximum Gross (ISO 14396)
129.4 kW (174 hp [176 hp]*)
Engine Power: Maximum Net (ISO 9249/SAE J1349)
126 kW (169 hp [171 hp]*)
Note
*Metric values.
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in3
7.01 L
Maximum Torque at 1,400 rpm
612.00 lbf-ft
830.00 N·m
Number of Cylinders – In line
6

Drive

Maximum Travel Speed
22.00 mph
35.00 km/h

Transmission

Maximum Forward/Reverse – 2nd Gear
22.00 mph
35.00 km/h
Drawbar Pull
23380.00 lbf
104.00 kN
Maximum Gradeability at 18 500 kg (40,785 lb)
70%

Swing Mechanism

Swing Speed
10.00 rpm
10.00 rpm
Maximum Swing Torque
35403.00 ft-lb
48.00 kN·m

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Service Refill Capacities

Fuel Tank (total capacity)
109.60 gal
415.00 L
Diesel Exhaust Fluid Tank
9.10 gal
34.50 L

Weights

Operating Weights*
18 750 to 20 650 kg (41,337 to 45,525 lb)
VA Boom: Rear Dozer, Front Outriggers
43982.00 lb
19950.00 kg
VA Boom: Front and Rear Outriggers
44423.00 lb
20150.00 kg
One-Piece Boom: Rear Dozer, Front Outriggers
42880.00 lb
19450.00 kg
One-Piece Boom: Front and Rear Outriggers
43321.00 lb
19650.00 kg
Counterweights
3700/4200 kg (8,157/9,259 lb)
Note
*Includes medium stick, 3700 kg (8,157 lb) counterweight, full fuel tank, operator, quick coupler (250 kg/551 lb), bucket (635 kg/1,400 lb), dual pneumatic tires. Weight varies depending on configuration.

Hydraulic System

System
71.30 gal (US)
270.00 B
Maximum Pressure – Implement Circuit: Normal and Travel Circuits
5076.00 psi
35000.00 kPa
Maximum Pressure - Implement Circuit - Heavy Lift
5366.00 psi
37000.00 kPa
Maximum Pressure - Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683.00 psi
18500.00 kPa
Swing Mechanism
4496.00 psi
31000.00 kPa
Maximum Flow - Implement/Travel Circuit
76.00 gal/min
288.00 l/min
Maximum Flow – Auxiliary Circuit: High Pressure
76.00 gal/min
288.00 L/min
Maximum Flow – Auxiliary Circuit: Medium Pressure
12.90 gal/min
49.00 L/min
Maximum Flow - Swing Mechanism
28.50 gal/min
108.00 l/min

Working Ranges

VA Boom – 2500 mm (8'2") Stick Length: Digging Height
32.67 ft
9950.00 mm
VA Boom – 2500 mm (8'2") Stick Length: Dump Height
22.83 ft
6970.00 mm
VA Boom – 2500 mm (8'2") Stick Length: Digging Depth
19.83 ft
6035.00 mm
VA Boom – 2500 mm (8'2") Stick Length: Reach at Ground Level
30.42 ft
9270.00 mm
VA Boom – 2800 mm (9'2") Stick Length: Digging Height
33.33 ft
10165.00 mm
VA Boom – 2800 mm (9'2") Stick Length: Dump Height
23.58 ft
7180.00 mm
VA Boom – 2800 mm (9'2") Stick Length: Digging Depth
20.75 ft
6330.00 mm
VA Boom – 2800 mm (9'2") Stick Length: Reach at Ground Level
31.42 ft
9565.00 mm
One-Piece Boom - 2500 mm (8'2") Stick Length: Digging Height
29.33 ft
8940.00 mm
One-Piece Boom - 2500 mm (8'2") Stick Length: Dump Height
20.17 ft
6140.00 mm
One-Piece Boom - 2500 mm (8'2") Stick Length: Digging Depth
19.58 ft
5980.00 mm
One-Piece Boom - 2500 mm (8'2") Stick Length: Reach at Ground Level
30.50 ft
9295.00 mm
One-Piece Boom – 2800 mm (9'2") Stick Length: Digging Height
29.83 ft
9095.00 mm
One-Piece Boom – 2800 mm (9'2") Stick Length: Dump Height
20.67 ft
6290.00 mm
One-Piece Boom - 2800 mm (9'2") Stick Length: Digging Depth
20.58 ft
6280.00 mm
One-Piece Boom – 2800 mm (9'2") Stick Length: Reach at Ground Level
31.42 ft
9580.00 mm
Note
Range values are calculated with GD bucket 1200 mm (48 in), 0.98 m3 (1.28 yd3) with tips K080 and quick coupler with a tip radius of 1535 mm (5'0").

Undercarriage

Maximum Towable Trailer Mass*
17637.00 lb
8.00 ton (US)
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.

Engine

Engine Model
Cat C7.1
Net Power
169.00 HP
126.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.01 B
Maximum Torque - 1,400 rpm
612.00 ft-lb
830.00 N·m
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
129.4 kW (174 hp [176 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
126 kW (169 hp [171 hp]*)
Number of Cylinders - In Line
6
Ratings
1550.00 r/min
1550.00 r/min

Weights

Counterweights
3700/4200 kg (8,157/9,259 lb)
Note
*Includes medium stick, 3700 kg (8,157 lb) counterweight, full fuel tank, operator, quick coupler (250 kg/551 lb), bucket (635 kg/1,400 lb), dual pneumatic tires. Weight varies depending on configuration.
One-Piece Boom - Front and Rear Outriggers
43321.00 lb
19650.00 kg
One-Piece Boom - Rear Dozer, Front Outriggers
42880.00 lb
19450.00 kg
Operating Weight*
18 750 to 20 650 kg (41,337 to 45,525 lb)
VA Boom - Front and Rear Outriggers
44423.00 lb
20150.00 kg
VA Boom - Rear Dozer, Front Outriggers
43982.00 lb
19950.00 kg

Swing Mechanism

Swing Speed
10.00 r/min
10.00 r/min

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
76.00 gal/min
288.00 l/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
12.90 gal/min
49.00 l/min
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076.00 psi
35000.00 kPa
Swing Mechanism
4496.00 psi
31000.00 kPa

Drive

Maximum Travel Speed
22.00 mile/h
35.00 km/h

Transmission

Maximum Forward/Reverse - 2nd Gear
22.00 mile/h
35.00 km/h
Maximum Gradeability (18 500 kg/40,785 lb)
70%

Service Refill Capacities

Diesel Exhaust Fluid Tank
9.10 gal (US)
34.50 B
Fuel Tank - Total Capacity
109.60 gal (US)
415.00 B

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Working Ranges

VA Boom - 2500 mm (8'2") Stick Length: Digging Height
32.67 ft
9950.00 mm
VA Boom - 2500 mm (8'2") Stick Length: Dump Height
22.83 ft
6970.00 mm

Engine

Note
*Metric values.

Working Ranges

One-Piece Boom - 2800 mm (9'2") Stick Length: Digging Height
29.83 ft
9095.00 mm
One-Piece Boom - 2800 mm (9'2") Stick Length: Dump Height
20.67 ft
6290.00 mm
One-Piece Boom - 2800 mm (9'2") Stick Length: Reach at Ground Level
31.42 ft
9580.00 mm
VA Boom - 2500 mm (8'2") Stick Length: Digging Depth
19.83 ft
6035.00 mm
VA Boom - 2500 mm (8'2") Stick Length: Reach at Ground Level
30.42 ft
9270.00 mm
VA Boom - 2800 mm (9'2") Stick Length: Digging Depth
20.75 ft
6330.00 mm
VA Boom - 2800 mm (9'2") Stick Length: Digging Height
33.33 ft
10165.00 mm
VA Boom - 2800 mm (9'2") Stick Length: Dump Height
23.58 ft
7180.00 mm
VA Boom - 2800 mm (9'2") Stick Length: Reach at Ground Level
31.42 ft
9565.00 mm
Features

BUILT TO PERFORM

  • Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Up to a 10% fuel consumption reduction vs. previous model with the same productivity.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.
  • Dedicated swing pump, allowing faster, smoother combined movements.

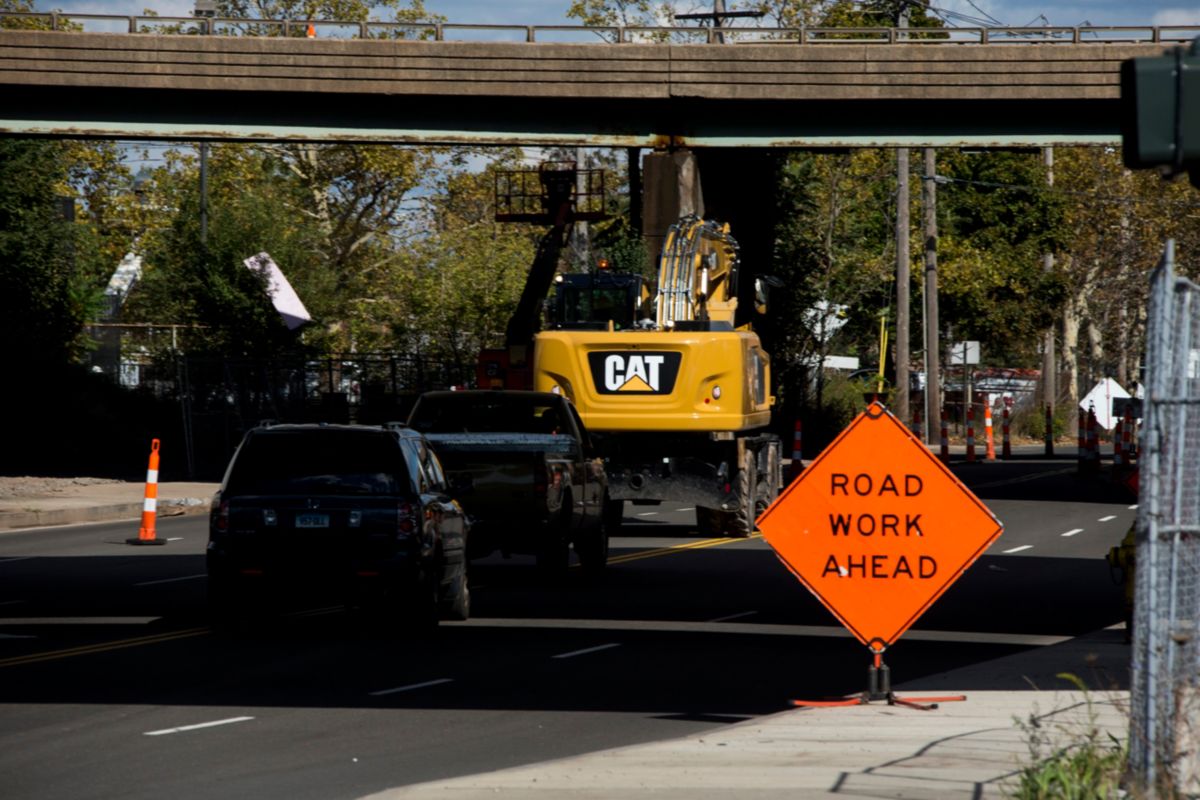

  • Highly mobile, the M320F can travel up to 35 km/h (22 mph).

EXPAND YOUR CAPABILITIES

  • Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.

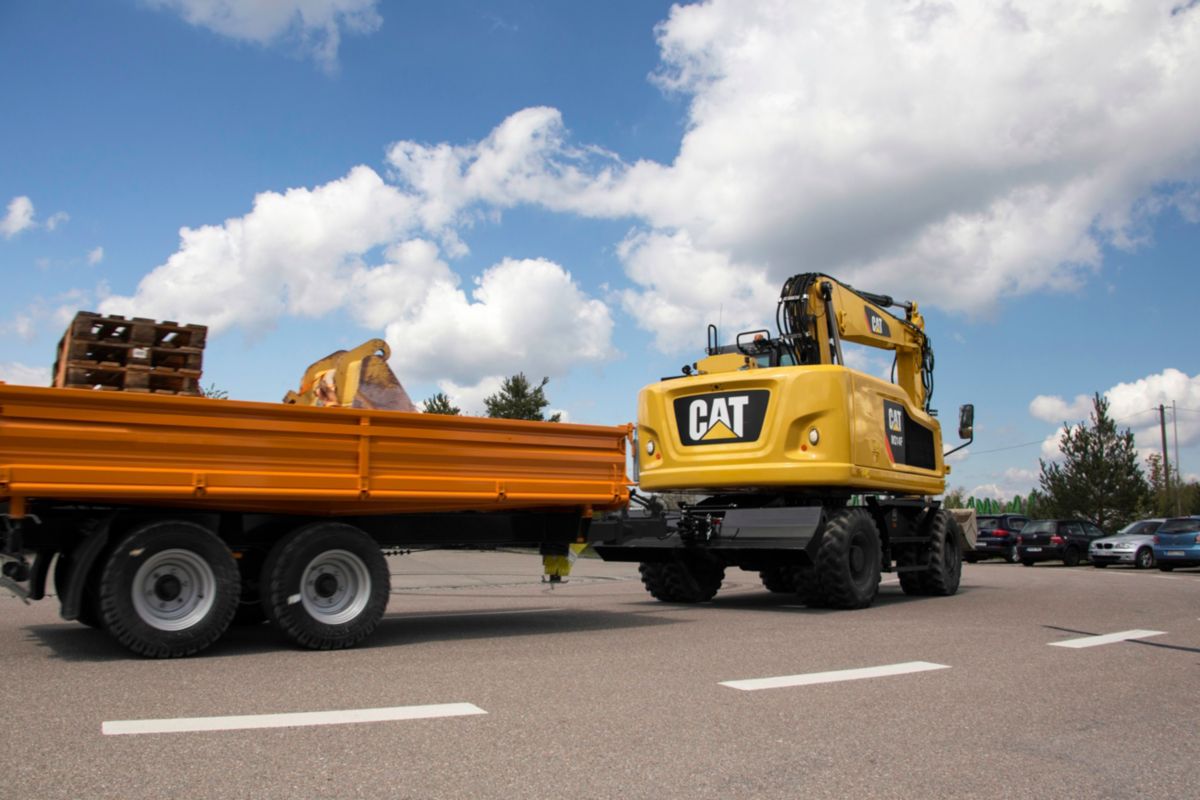

  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure. – Readiness for Cat Pin Grabber quick coupler (with lines and circuits). – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Trailer-ready package option*. Just add your hitch and go.
  • Joystick buttons/sliders can be set up per tool as desired.
  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.

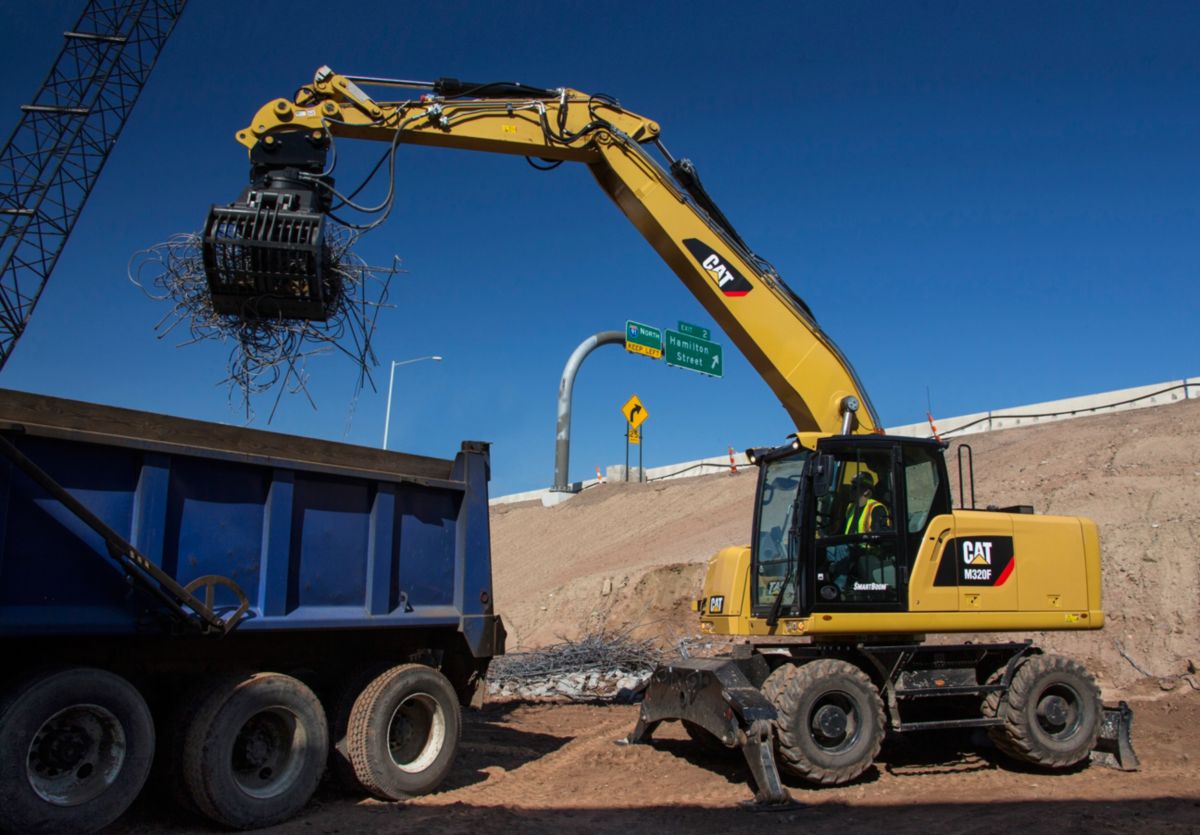

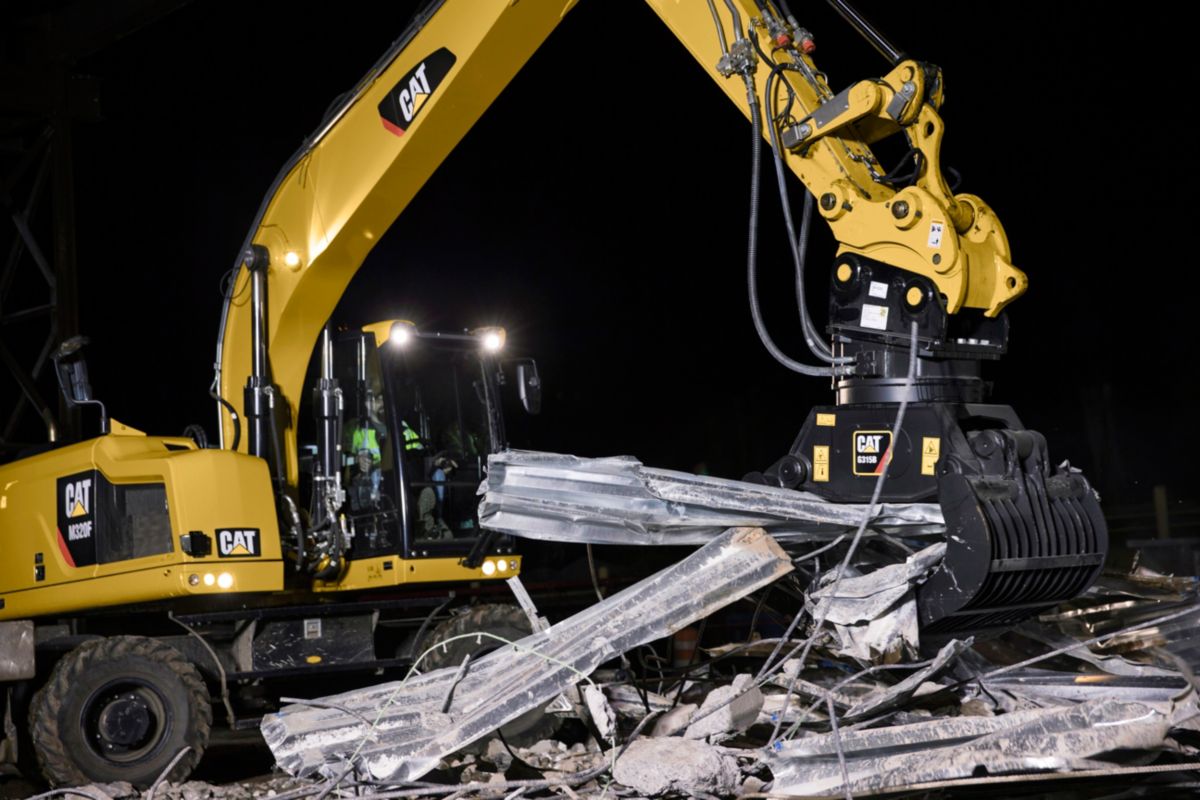

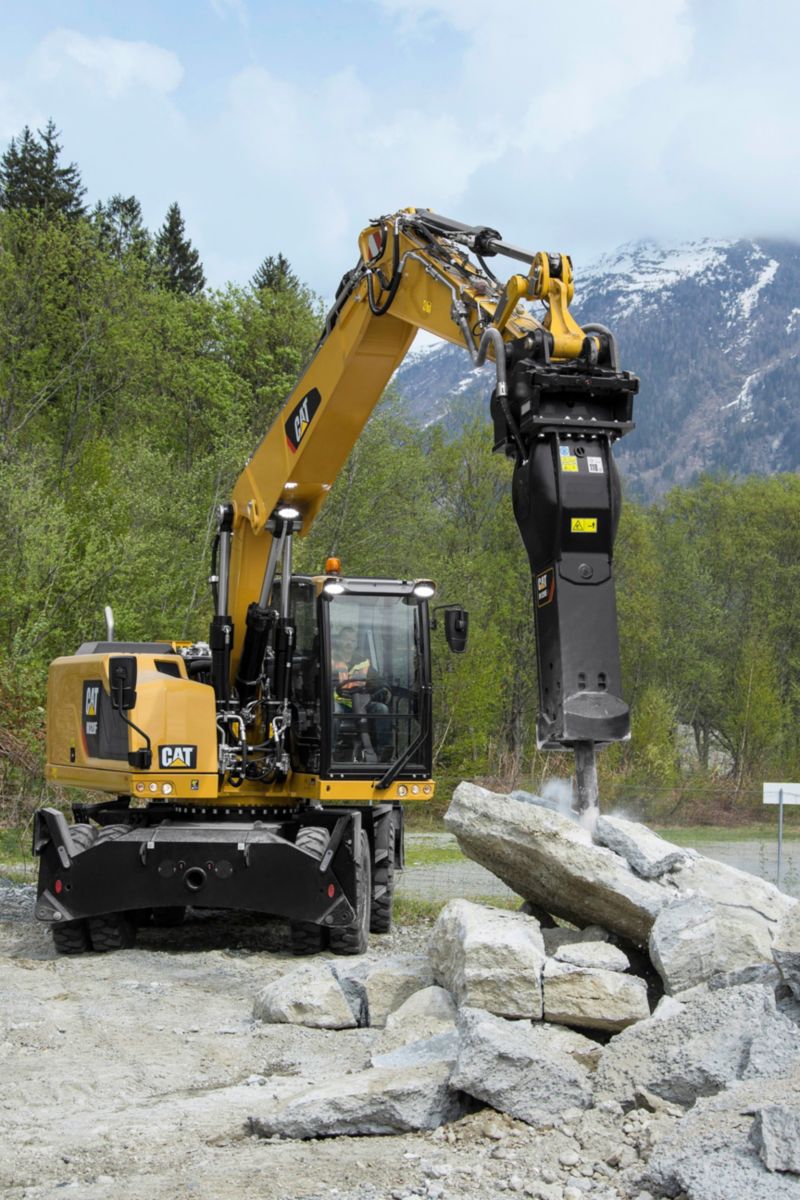

  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
  • Couplers let you swap between attachments in seconds without leaving the cab.

    * Not available in Australia/New Zealand.

OPERATOR COMFORT AND CONTROL

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.
  • Split-screen monitor to allow quick view of both cameras on the same display.

BUILT-IN SAFETY FEATURES

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Blue Angel certified machine, with low sound levels and vibrations.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

LOWER MAINTENANCE COSTS

  • Ground level access to all routine maintenance (like fuel and engine oil filters).
  • Easy access: clean, simple design. Radiators are all gathered together.
  • Reduced maintenance: automatic features (like lubrication system) along with long greasing intervals. Fit for life Diesel Particulate Filter.

INTEGRATED CAT TECHNOLOGIES

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
