Overview

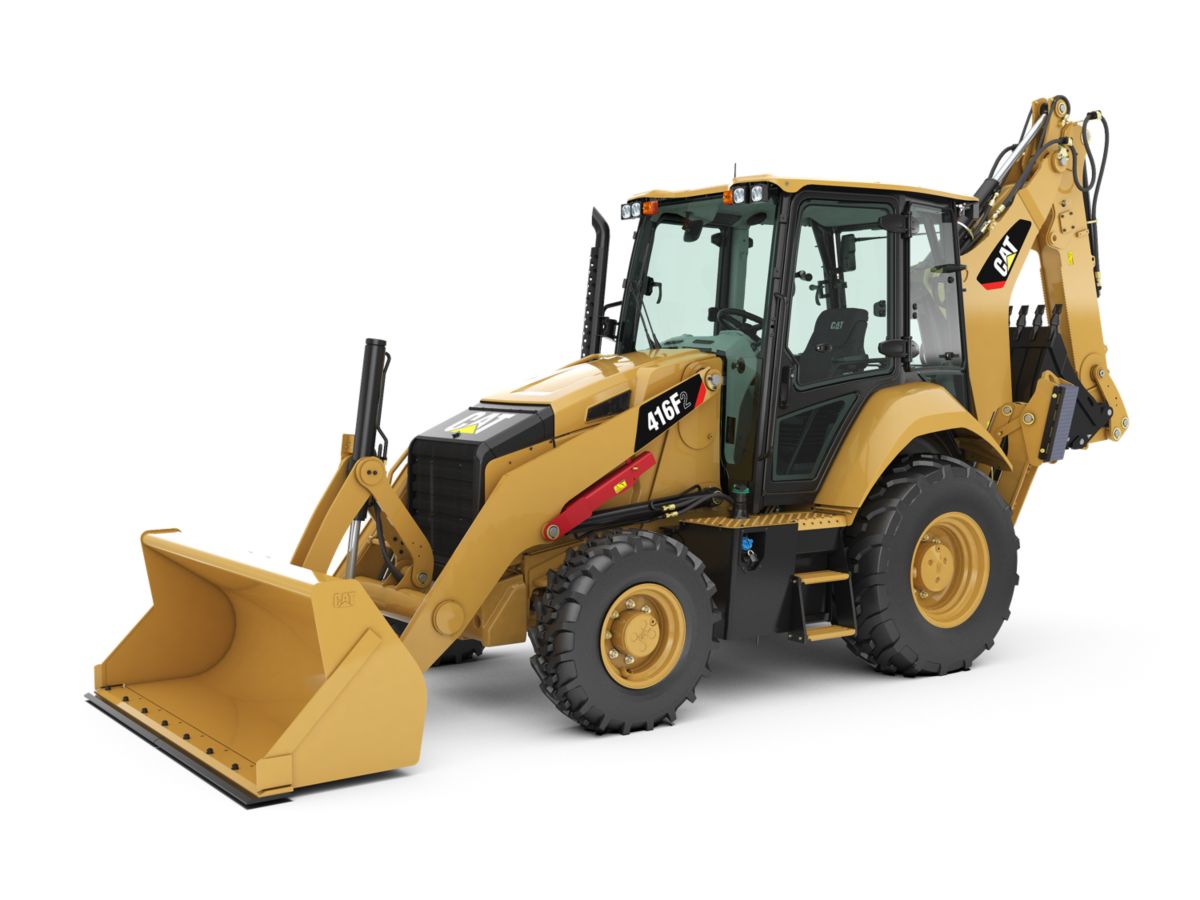

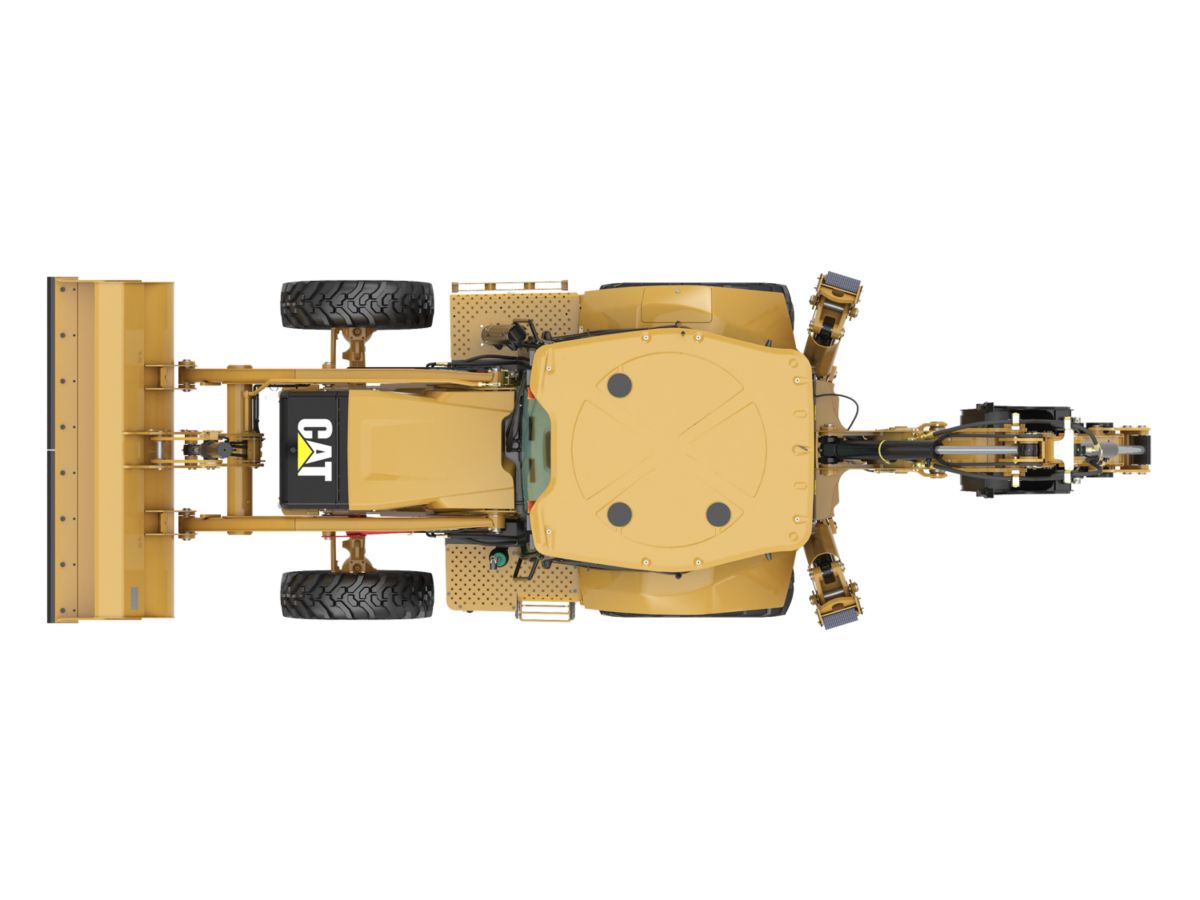

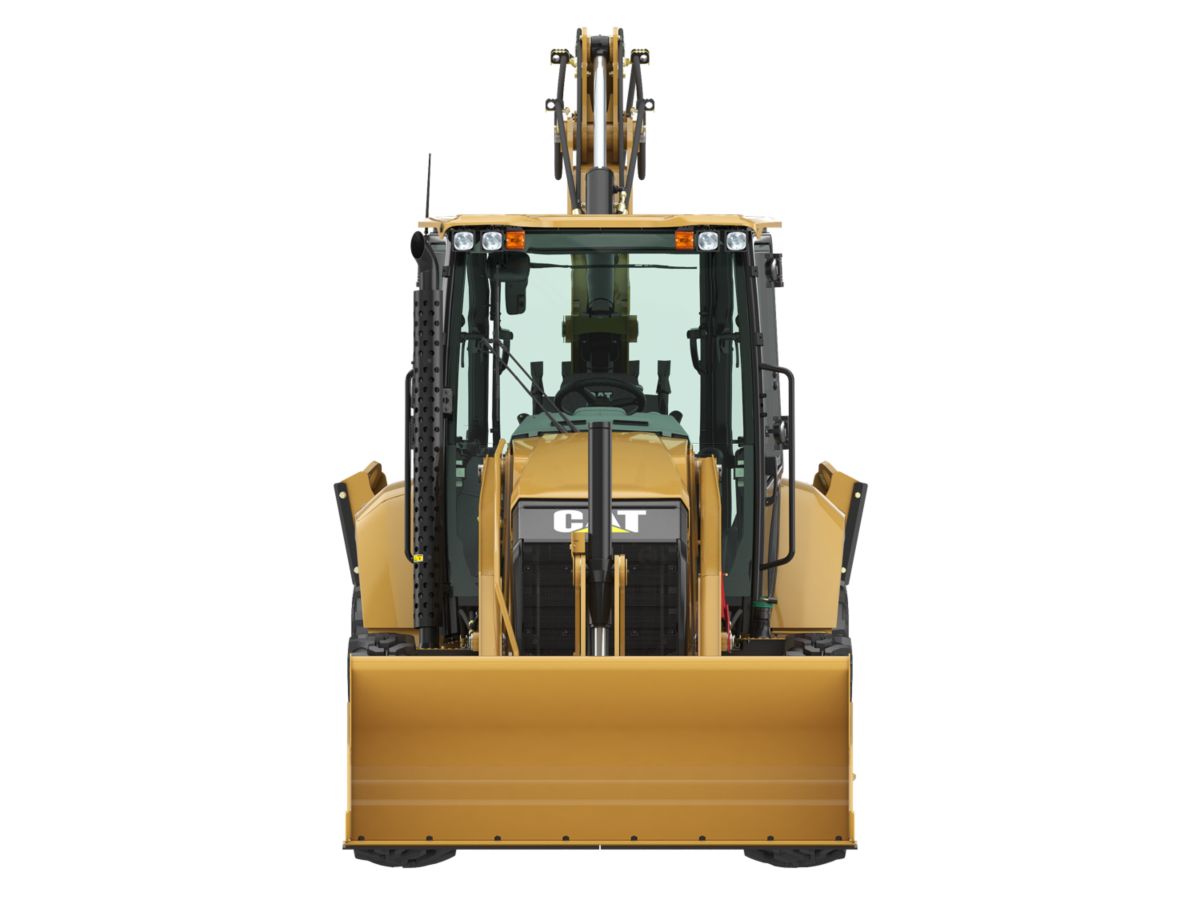

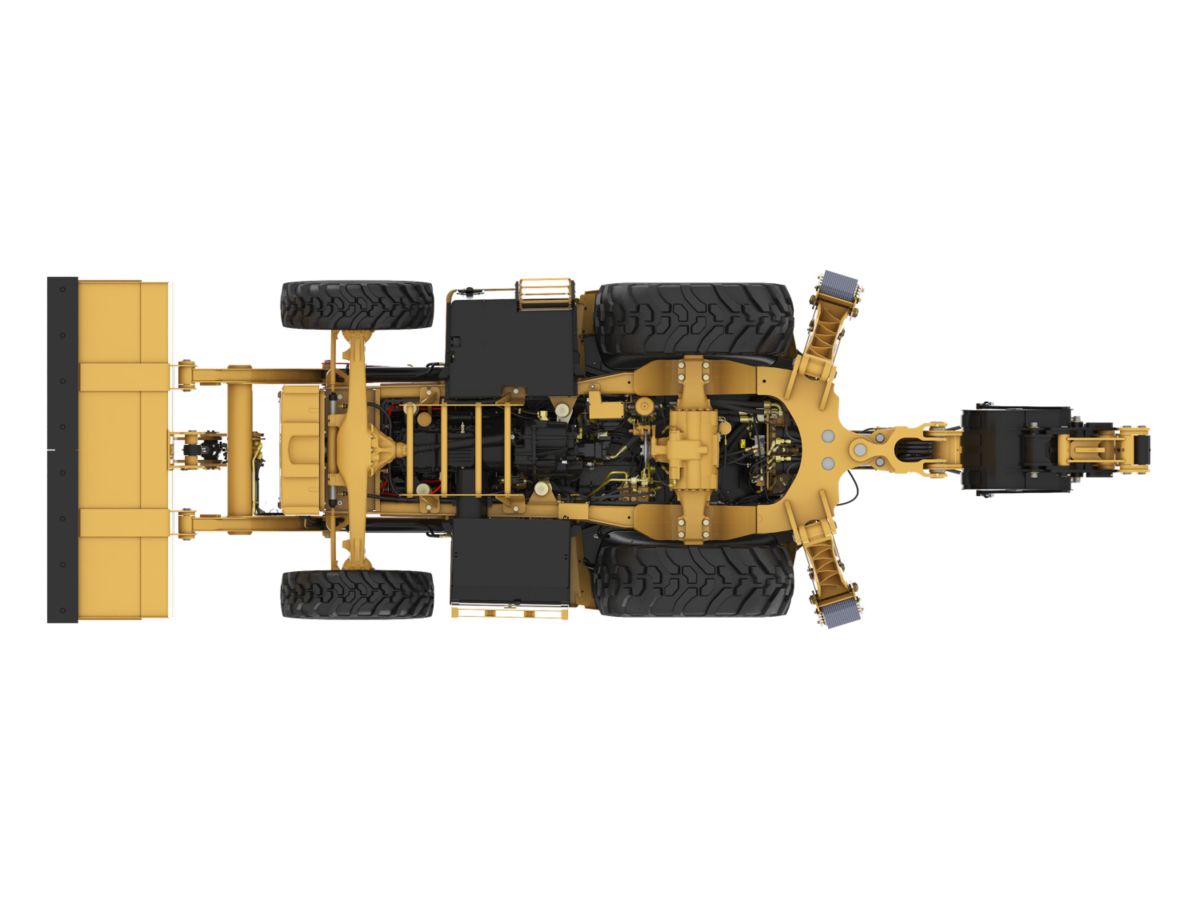

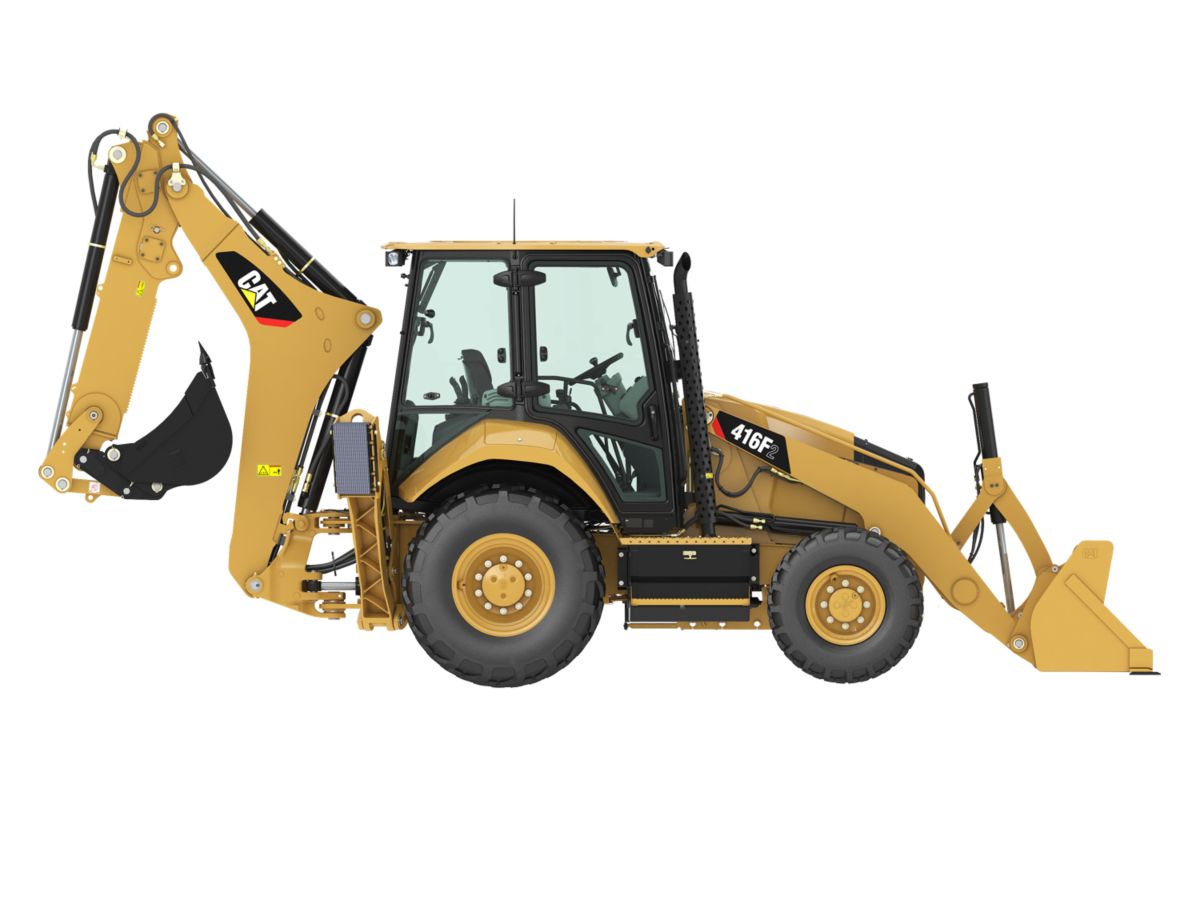

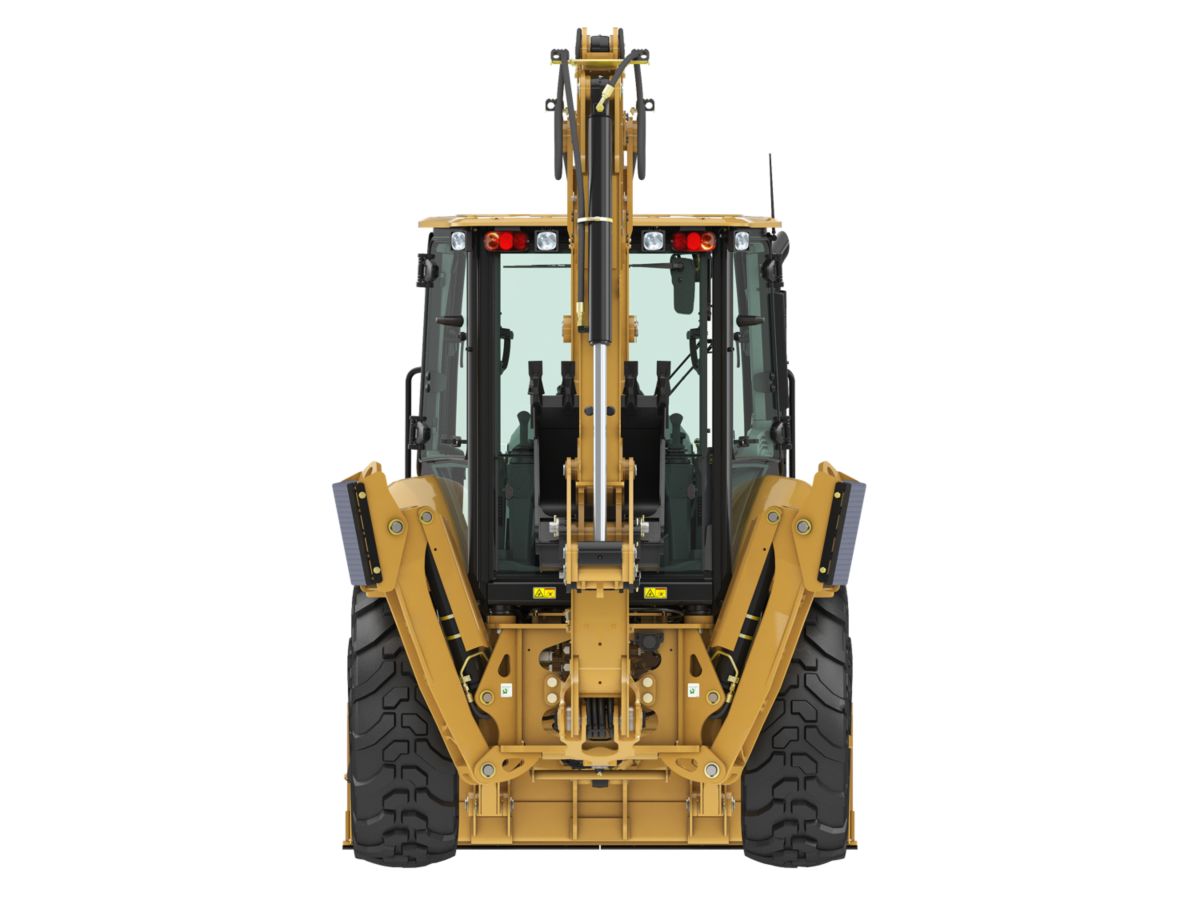

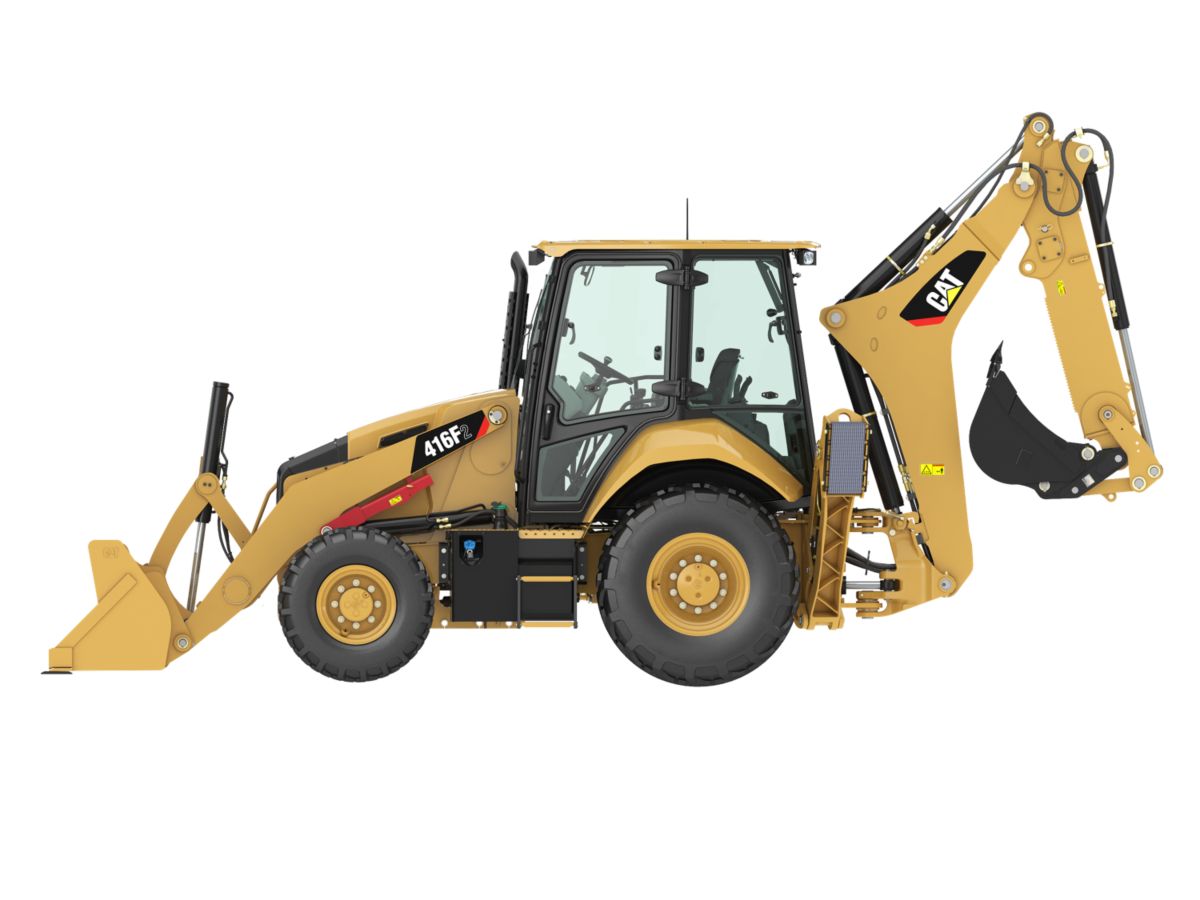

Experience the new Cat 416F2 Backhoe Loader with features including spacious operator station, optional pilot controls, superior durability and outstanding performance. Safely operate on the job site with quieter hydraulics, increased visibility, and the ability to have four wheel braking engaged without wearing on tires or drive train.

Engine

Net Power – SAE J1349
87.00 hp
65.00 kW
Engine Model
Cat® C4.4 ACERT™
Gross Power – SAE J1995
95.00 hp
71.00 kW
Gross Power – ISO 14396
94.00 hp
70.00 kW
Rated Net Power @ 2,200 rpm – SAE J1349
87.00 hp
65.00 kW
Rated Net Power @ 2,200 rpm – ISO 9249
88.00 hp
66.00 kW
Rated Net Power - 2,200 rpm - EEC 80/1269
88.00 HP
66.00 kW
Net Peak Power - 1,800 rpm - SAE J1349
106.00 HP
79.00 kW
Net Peak Power - 1,800 rpm - ISO 9249
107.00 HP
80.00 kW
Net Peak Power - 1,800 rpm - EEC 80/1269
107.00 HP
80.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.00 in3
4.40 L
Net Torque Rise - 1,400 rpm - SAE J1349
56%
Net Peak Torque - 1,400 rpm
323.00 ft-lb
438.00 N·m
Note
Engine meets U.S. EPA Tier 4 Final emission standards.

Backhoe

Dig Depth - Standard
14.30 ft
4348.00 mm

Weights

Operating Weight – Minimum
15904.00 lb
7214.00 kg
Operating Weight – Maximum
24251.00 lb
11000.00 kg
Operating Weight - Maximum - ROPS Capacity
24251.00 lb
11000.00 kg
Cab, ROPS/FOPS
359.00 lb
163.00 kg
Air Conditioning
101.00 lb
46.00 kg
Four Wheel Drive
392.00 lb
178.00 kg
MP Bucket (0.96 m3/1.25 yd3) - No Forks or Teeth
1642.00 lb
745.00 kg
Extendible Stick
659.00 lb
299.00 kg
Counterweights (Option 1)
255.00 lb
115.00 kg

Hydraulic System

Type
Closed Center
Pump Type
Variable Flow, Axial Piston
Pump Capacity @ 2,200 rpm
35.00 gal/min
132.00 L/min
System Pressure - Backhoe
3336.00 psi
23000.00 kPa
System Pressure - Loader
3336.00 psi
23000.00 kPa

Transmission

Power Shuttle Transmission - Forward 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Forward 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Forward 3rd
12.00 mile/h
20.00 km/h
Power Shuttle Transmission - Forward 4th
23.00 mile/h
36.00 km/h
Power Shuttle Transmission - Reverse 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Reverse 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Reverse 3rd
12.00 mile/h
20.00 km/h
Power Shuttle Transmission - Reverse 4th
23.00 mile/h
36.00 km/h

Axle Ratings

Front Axle (2WD) - Static
50582.00 lb
22964.00 kg
Front Axle (2WD) - Dynamic
20233.00 lb
9186.00 kg
Front Axle, 4WD – Static
50582.00 lb
22964.00 kg
Front Axle (4WD) - Dynamic
20233.00 lb
9186.00 kg
Rear Axle – Static
50582.00 lb
22964.00 kg
Rear Axle - Dynamic
20233.00 lb
9186.00 kg

Service Refill Capacities

Cooling System with Air Conditioning
5.80 gal (US)
22.00 B
Fuel Tank
42.00 gal
160.00 L
Diesel Exhaust Fluid (DEF)*
5.00 gal (US)
19.00 B
Engine Oil with Filter
2.30 gal
8.80 L
Transmission - Power Shuttle - 2WD
4.00 gal (US)
15.00 B
Transmission - Power Shuttle - 4WD
4.00 gal (US)
15.00 B
Rear Axle
4.40 gal (US)
16.50 B
Rear Axle - Planetaries
0.40 gal (US)
1.70 B
Front Axle (4WD)
2.90 gal (US)
11.00 B
Front Axle (4WD) - Planetaries
0.20 gal (US)
0.70 B
Hydraulic System
23.80 gal
90.00 L

Weights

Counterweights (Option 2)
530.00 lb
240.00 kg
Counterweights (Option 3)
1015.00 lb
460.00 kg

Steering

Type
Front Wheel
Power Steering
Hydrostatic
Bore
2.60 in
65.00 mm
Stroke
4.70 in
120.00 mm
Rod Diameter
1.40 in
36.00 mm
Axle Oscillation
11°
Turning Circle - (inner wheel not braked) - Outside Front Wheels
26.80 ft
8.18 m
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket
36.00 ft
10.97 m

Service Refill Capacities

Hydraulic Tank
10.60 gal
40.00 L
Note (1)
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur.

Tires

Choice 1
Front: 11L-16 (12 ply) F-3; Rear: 19.5L-24 (12 ply) R4 ATU
Choice 2
Front: 12.5/80-18 (12 ply) 1-3; Rear: 19.5L-24 (12 ply) ATU
Choice 3
Front: 12.5/80-18 NHS (12 ply) 1-3; Rear: 21L-24 (16 ply) R4 ATU
Choice 4
Front: 340/80R18; Rear: 19.5L-24 (12 ply) R4 ATU

Engine

Rated Net Power – SAE J1349
87.00 hp
65.00 kW
Rated Net Power – ISO 9249
88.00 hp
66.00 kW

Backhoe

Dig Depth - E-Stick Extended
17.90 ft
5441.00 mm

Service Refill Capacities

Note (2)
* Must meet the requirements outlined in ISO 22241.

Standards

Brakes
SAE J/ISO 3450; ISO 3450 1996
Cab – ROPS
SAE J1040 MAY94; ISO 3741 1994
Cab – FOPS
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Cab – Sound
ANSI/SAE J1166 OCT98 is 79 dB(A)
Exterior Sound
SAE J188 JUN86 is 76 dB(A)

Engine Features

Feature (1)
Regeneration is passive and does not require any input from the operator or disrupt work.
Feature (2)
Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity.
Feature (3)
Forged chrome/molybdenum-steel crankshaft with salt bath nitrocarburized pins and journals.
Feature (4)
Front and rear crankshaft oil seals are “lip” type Viton and PTFE designs featuring an integral dust lip.
Feature (5)
For durability, inlet valves are nitrided, martensitic chrome silicon steel.
Feature (6)
For durability, exhaust valves are nitrided, austenitic chrome manganese-nickel steel.
Feature (7)
Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life.
Feature (8)
Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness.
Feature (9)
Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow.
Feature (10)
Direct injection fuel system provides accurate fuel delivery and efficiency.
Feature (11)
Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator.
Feature (12)
Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery.
Feature (13)
Standard glow plug starting aid system for efficient cold weather starting.
Feature (14)
High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise.
Feature (15)
Higher low end torque for better engine/machine performance.
Feature (16)
Engine is equipped with electric fuel priming pump.

Brakes

Feature (1)
Brakes meet the following standards: SAE J1473 and ISO 3450 requirements.
Feature (2)
Self-adjusting, completely enclosed and sealed.
Feature (3)
Foot operated brake pedals can be interlocked for roading.
Feature (4)
Parking/secondary brakes are independent of the service brake system.
Feature (5)
Parking brake is mechanically applied through an adjustable hand lever located on the right console.

Engine

Net Power - SAE J1349
87.00 HP
65.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.00 in³
4.40 B
Engine Model
Cat® C4.4 ACERT™
Gross Power - ISO 14396
94.00 HP
70.00 kW
Gross Power - SAE J1995
95.00 HP
71.00 kW
Rated Net Power - 2,200 rpm - ISO 9249
88.00 HP
66.00 kW
Net Power - 2,200 rpm - SAE J1349
87.00 HP
65.00 kW

Weights

Operating Weight - Maximum
24251.00 lb
11000.00 kg
Cab - ROPS/FOPS
359.00 lb
163.00 kg
Counterweights - Option 1
255.00 lb
115.00 kg
Operating Weight - Minimum
15904.00 lb
7214.00 kg

Engine

Note
Engine meets U.S. EPA Tier 4 Final emission standards.

Hydraulic System

Pump Type
Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm
35.00 gal/min
132.00 l/min
Type
Closed Center

Service Refill Capacities

Engine Oil - With Filter
2.30 gal (US)
8.80 B
Fuel Tank
42.00 gal (US)
160.00 B
Hydraulic System
23.80 gal (US)
90.00 B

Axle Ratings

Front Axle (4WD) - Static
50582.00 lb
22964.00 kg
Rear Axle - Static
50582.00 lb
22964.00 kg

Weights

Counterweights - Option 2
530.00 lb
240.00 kg
Counterweights - Option 3
1015.00 lb
460.00 kg

Engine

Rated Net Power - ISO 9249
88.00 HP
66.00 kW
Rated Net Power - SAE J1349
87.00 HP
65.00 kW

Service Refill Capacities

Hydraulic Tank
10.60 gal (US)
40.00 B

Standards

Cab - FOPS
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Cab - ROPS
SAE J1040 MAY94; ISO 3741 1994
Cab - Sound
ANSI/SAE J1166 OCT98 is 79 dB(A)

Steering

Type
Front Wheel

Standards

Brakes
SAE J/ISO 3450; ISO 3450 1996
Exterior Sound
SAE J188 JUN86 is 76 dB(A)
Features

Operator Station



Power Train



Advanced Hydraulics



Backhoe Performance



Loader Performance



Work Tools



Serviceability



Customer Support



Sales Features

Operator Station

A cab designed for maximum comfort and productivity.

Power Train

Always built for performance, power and efficiency.

Advanced Hydraulics

Matching system power to job site demands.

Backhoe Performance

Superior digging forces.

Loader Performance

Powerful front loader.

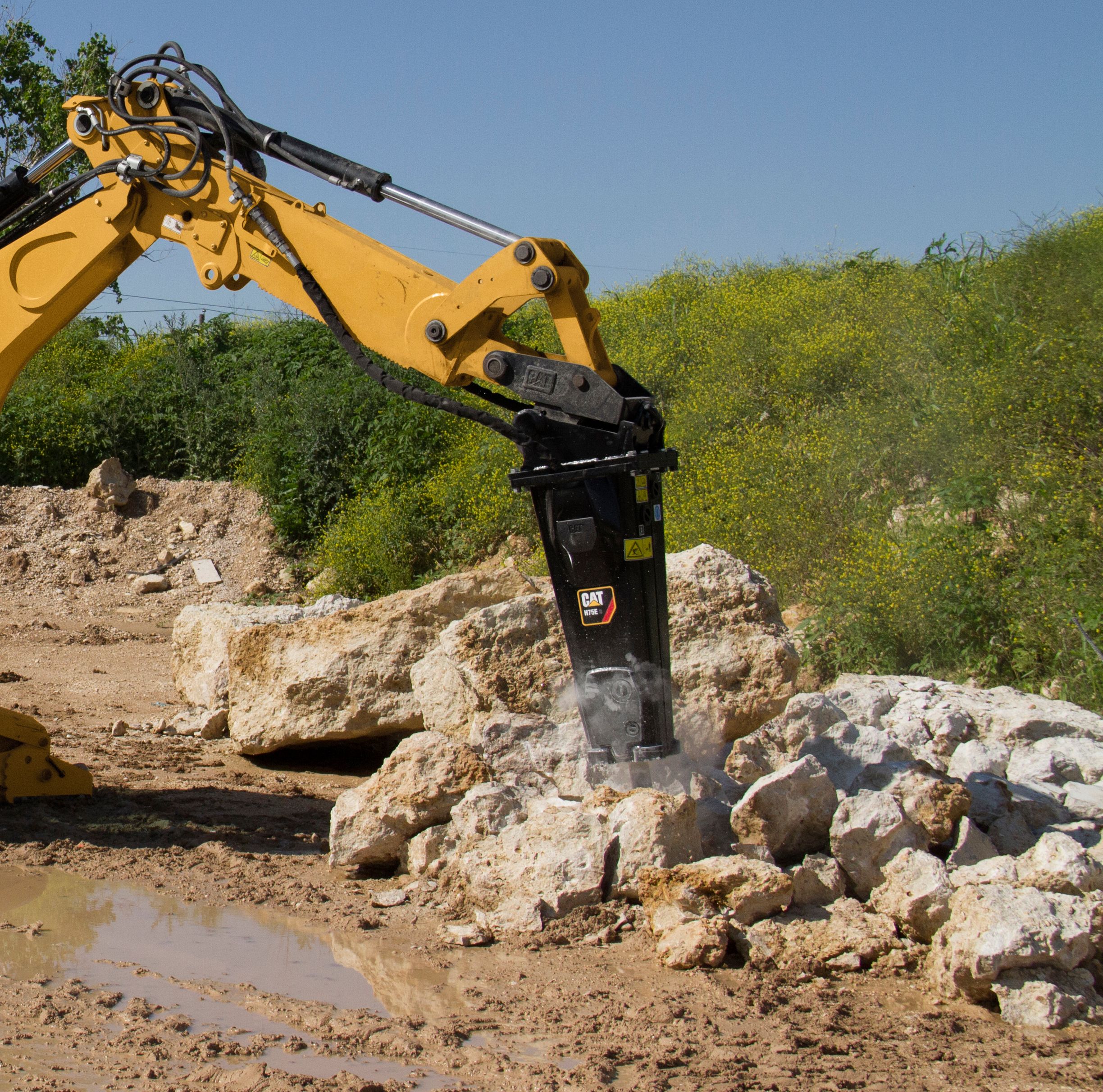

Work Tools

Do more jobs with one machine.

Serviceability

Easy maintenance helps keep your machine working.

Customer Support

Unmatched support makes the difference.
Standard Equipment
  • Air cleaner
  • Alarm, back-up
  • Alternator, 150 amp
  • Audible system fault alarm
  • Backhoe controls, mechanical two lever
  • Battery, maintenance-free, 880 CCA
  • Battery disconnect switch
  • Battery remote jumpstart
  • Boom transport lock
  • Brace, lift cylinder
  • Brake, secondary parking
  • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
  • Bucket level indicator
  • Canopy, ROPS/FOPS
  • Coat restraint
  • Coolant/antifreeze, extended life
  • Counterweight, bumper
  • Dome light (cab only)
  • Diagnostic port for engine
  • Differential lock, loader joystick
  • Drink holders, two
  • Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets U.S. EPA Tier 4 Final emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
  • Engine enclosure, sound suppression removal panels
  • Face seals, O-ring
  • Fan, suction and guard
  • Fast reversing shuttle, all gears
  • Fenders, rear
  • Filters, spin-on: fuel, engine oil, transmission oil, water separator
  • Filters, bowl and cartridge: hydraulic fluid
  • Flashing hazards/signal lights
  • Floor mat
  • Fully hinged front grill for cooling package cleaning access
  • Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
  • Ground level fuel fill and DEF fill
  • High ambient cooling package
  • Hood lock, inside cab
  • Hydraulic hose, XT™
  • Hydraulic oil cooler
  • Hydraulic oil level sight gauge
  • Hydraulic valve, hydrostatic steering
  • Hydraulic valves, loader 2 function
  • Hydraulic valves, backhoe 4 function
  • Hydraulics, load sensing with variable displacement piston pump
  • Indicator lights: Eco mode active, water in fuel, remote dial throttle active, engine warning, warning lamp, emissions module malfunction, AESC active, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, machine locked (if equipped), service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
  • Instrument panel lights
  • Key start/stop system
  • LCD screen: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, oil life reset, DPF force regeneration, maintenance intervals, ECM/system info
  • Lights, working (2 front, 2 rear)
  • Loader, self-leveling, return-to-dig and transmission disconnect switch
  • Loader, single tilt
  • Mechanical two lever controls
  • Mirror, rearview
  • Open circuit breather
  • Power receptacle, 12 volt, 2 internal, 1 external
  • Power steering, hydrostatic
  • Seat belt, retractable, 51 mm (2 in)
  • Socket, two roof
  • Stabilizer shoes, street
  • Steering knob
  • Seat, air suspension, fabric or vinyl cover, with armrest
  • Starting system, glow plugs
  • Steering, hydrostatic
  • Storage compartment, lockable
  • Storage tray
  • Stop and tail lights
  • Swing transport lock
  • Tilt steering column
  • Tires
  • Toolbox, external, lockable
  • Torque converter
  • Throttle, hand and foot, electronic
  • Transmission, four speed, syncromesh
  • Transmission neutralizer switch
  • Transport tie-downs
  • Two Wheel Drive
  • Vandalism locks
  • Warning horn, electric
Optional Equipment
  • Backhoe controls, pilot joysticks
  • Battery, additional, 880 CCA
  • Cab, standard
  • Cold weather fuel (–30° C/–22° F)
  • Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
  • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
  • Fenders, front with integral steps
  • Four Wheel Drive
  • Guard, boom protection plate
  • Guard, stabilizer, rock
  • Hydraulic valves, loader (3rd valve for GP, MP or Quick Coupler)
  • Hydraulic valves, backhoe (5th and 6th function)
  • Hydraulic lines, combined function auxiliary
  • Product Link, satellite, PL631E
  • Product Link, cellular, PL641I
  • Quick Coupler, hydraulic, dual lock
  • Quick Coupler, manual, dual lock
  • Quick Coupler, pin lock
  • Radio and CD player
  • Radio and CD player, Bluetooth
  • Ride Control
  • Rotating beacon, magnetic mount
  • Seat belt, 75 mm (3 in)
  • Security system keypad
  • Stabilizer pads, grouser type
  • Stabilizer pads, reversible
  • Stick, extendible
  • Storage box
  • Vandalism protection, gauge cover
  • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
