Overview

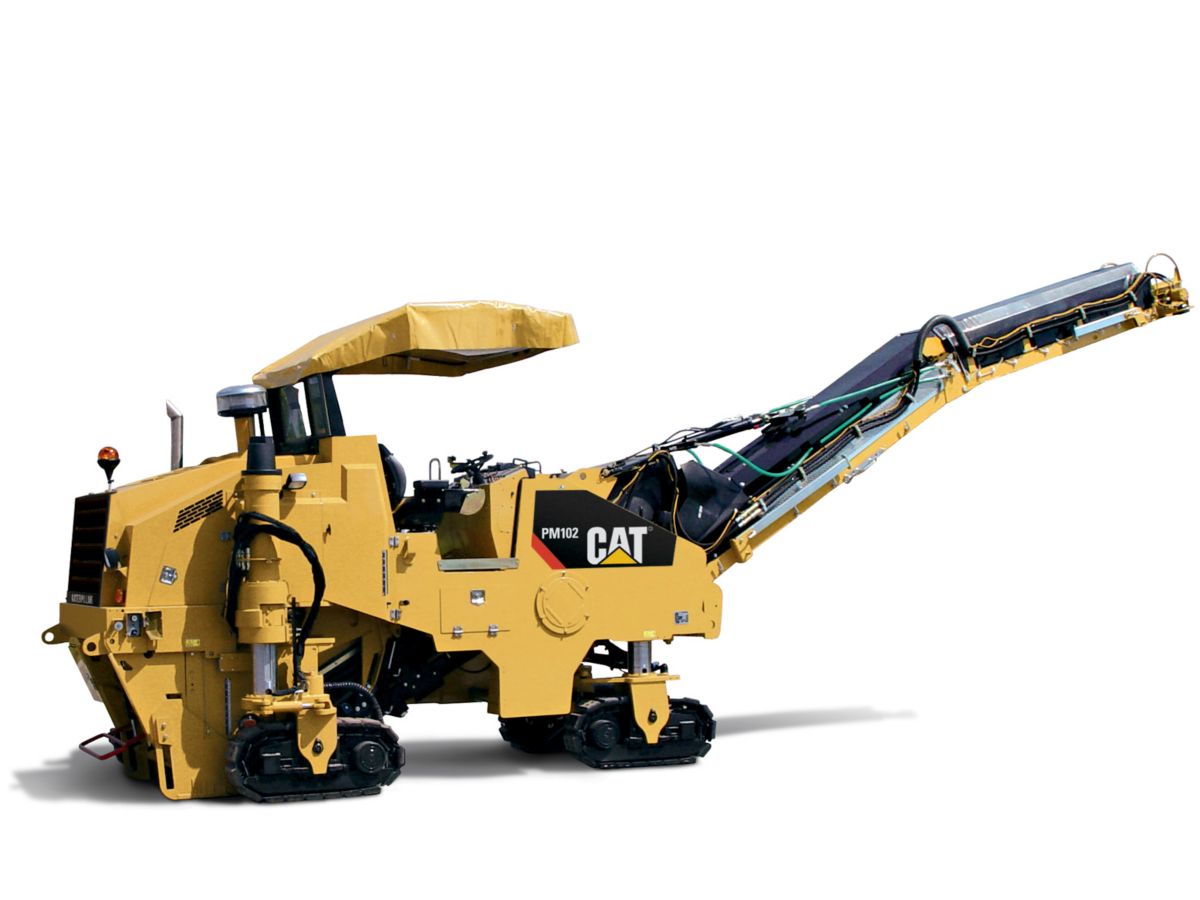

The new PM102 with a track undercarriage combines enhanced production capabilities, optimized performance and simplified service to complete tough milling applications with productive results. The Cat® C7 Engine with ACERT Technology provides ample power while meeting U.S. EPA Tier 3 and European EU Stage IIIa compliancy. Designed for high production and long life, the PM102 rotor has quick release conical tool holders for quick and easy tool replacement. And the conveyor can be folded to reduce machine dimensions during transport.

Rotor Assembly

Cutting Width
40.00 in
1000.00 mm
Maximum Cutting Depth
12.00 in
305.00 mm
Number of Cutting Tools
97

Engine

Engine Model
C7 with ACERT
Gross Power
225.00 hp
168.00 kW

Service Refill Capacities

Fuel Tank Capacity
105.00 gal
400.00 L
Water Spray System
280.00 gal (US)
1060.00 l

Weights

Operating Weight - With Full Water Tank
38810.00 lb
17600.00 kg
Shipping Weight - With Empty Water Tank
37705.00 lb
17100.00 kg

Conveyor System

Collecting Conveyor Speed
827.00 ft/min
252.00 m/min
Collecting Conveyor Width
21.60 in
550.00 mm
Discharge Conveyor Length
20.50 ft
6.30 m
Discharge Conveyor Width
23.60 in
600.00 mm
Discharge Conveyor Maximum Speed
827.00 ft/min
252.00 m/min
Discharge Conveyor Swing - From Center
41.00 °
41.00 °

Dimensions

Operating Length (conveyor up)
35.08 ft
10.70 m
Operating Width
6.42 ft
1.98 m
Maximum Operating Height
11.17 ft
3.40 m
Minimum Operating Height
7.67 ft
2.38 m
Maximum Truck Clearance
15.58 ft
4.80 m
Shipping Length - Base Machine
17.42 ft
5.33 m
Shipping Maximum Height
10.08 ft
3.10 m
Shipping Width
8.17 ft
2.50 m
Shipping Length - With Conveyor Folded
27.67 ft
8.50 m

Operating Specifications

Inside Turning Radius
11.25 ft
3.45 m
Maximum Travel Speed
2.50 mph
4.10 km/h
Operating Speed
89.00 ft/min
27.00 m/min
Inside Turn Radius
11.25 ft
3.45 m
Maximum Travel Speed
2.50 mile/h
4.10 km/h
Operating Speed
89.00 ft/min
27.00 m/min

Engine

Engine Model
C7 with ACERT
Gross Power
225.00 HP
168.00 kW

Dimensions

Operating Length - Conveyor Up
35.08 ft
10.70 m
Operating Width
6.42 ft
1.98 m
Maximum Truck Clearance
15.58 ft
4.80 m
Shipping Width
8.17 ft
2.50 m

Service Refill Capacities

Fuel Tank Capacity
105.00 gal (US)
400.00 l
Features

Cat® C7 Engine with ACERT Technology

Propel System

Rotor Drive

Rotor

Primary Collecting Conveyor

Folding Front Loading Conveyor

Operator's Station

Flush Cutting Feature

Steering Right Rear Track

Automatic Grade and Slope Control Option

Reliability and Serviceability

Sales Features

Cat® C7 Engine with ACERT Technology

The Cat® C7 Engine with ACERT Technology combines proven systems with innovative new technologies to precisely deliver fuel to the combustion chamber. Powerful and efficient, the C7 is US Tier 3 and EU Stage IIIa emissions compliant.

Propel System

Hydrostatic drive with hydraulic flow provided by a variable displacement axial piston pump. Dual displacement drive motors on each track provides balanced tractive effort.

Rotor Drive

Delivers maximum available horsepower to each cutting tool.

Rotor

Designed for high production and long service life. Quick release conical tool holders for quick and easy tool replacement.

Primary Collecting Conveyor

The collecting conveyor belt efficiently clears out the cutter box fast. Water spray system for lubrication, cooling and dust reduction.

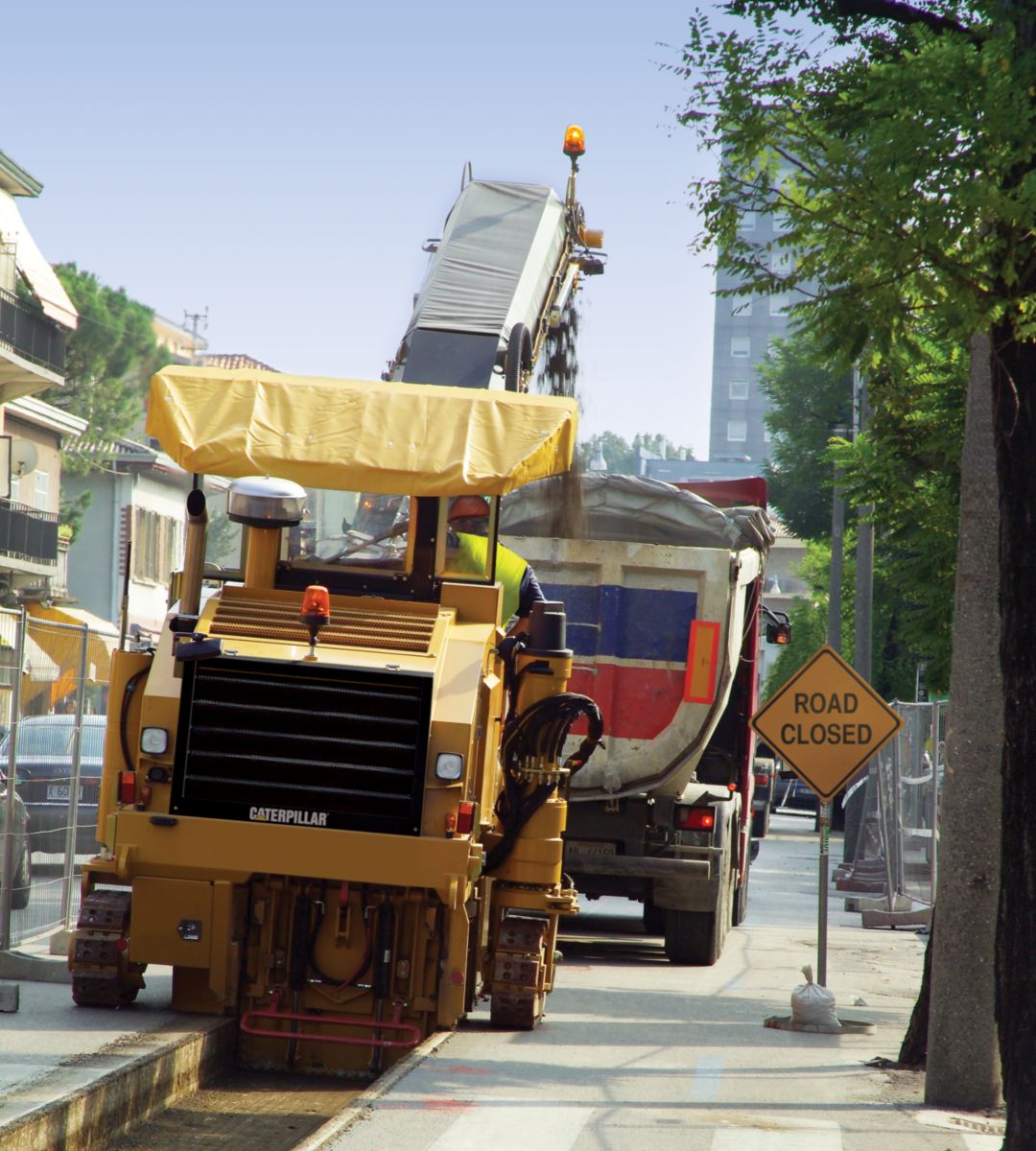

Folding Front Loading Conveyor

High capacity and versatility add to increased job site productivity. Conveyor can be folded to reduce machine dimensions during transport.

Operator’s Station

Designed for efficiency, productivity and simple operation. Easy to reach controls minimize operator fatigue.

Flush Cutting Feature

Full flush cutting operation with hydraulic control of the right rear leg, allows the PM102 to be used up close to a curb, wall or guard rail.

Steering Right Rear Track

Optimum machine handling for precise control and production.

Automatic Grade and Slope Control Option

The optional grade controls provide precise control of rotor to a preset cutting depth. System can be configured to control grade or cross slope.

Reliability and Serviceability

Reliability and serviceability are integrated into every Cat machine. These important features keep your machine investment profitable.
Optional Equipment
  • Automatic Grade and Slope System
  • Hydraulically Operated Canopy
  • High Pressure Washdown System
  • Water Tank High Capacity Refilling Pump
  • Roading Light Package
