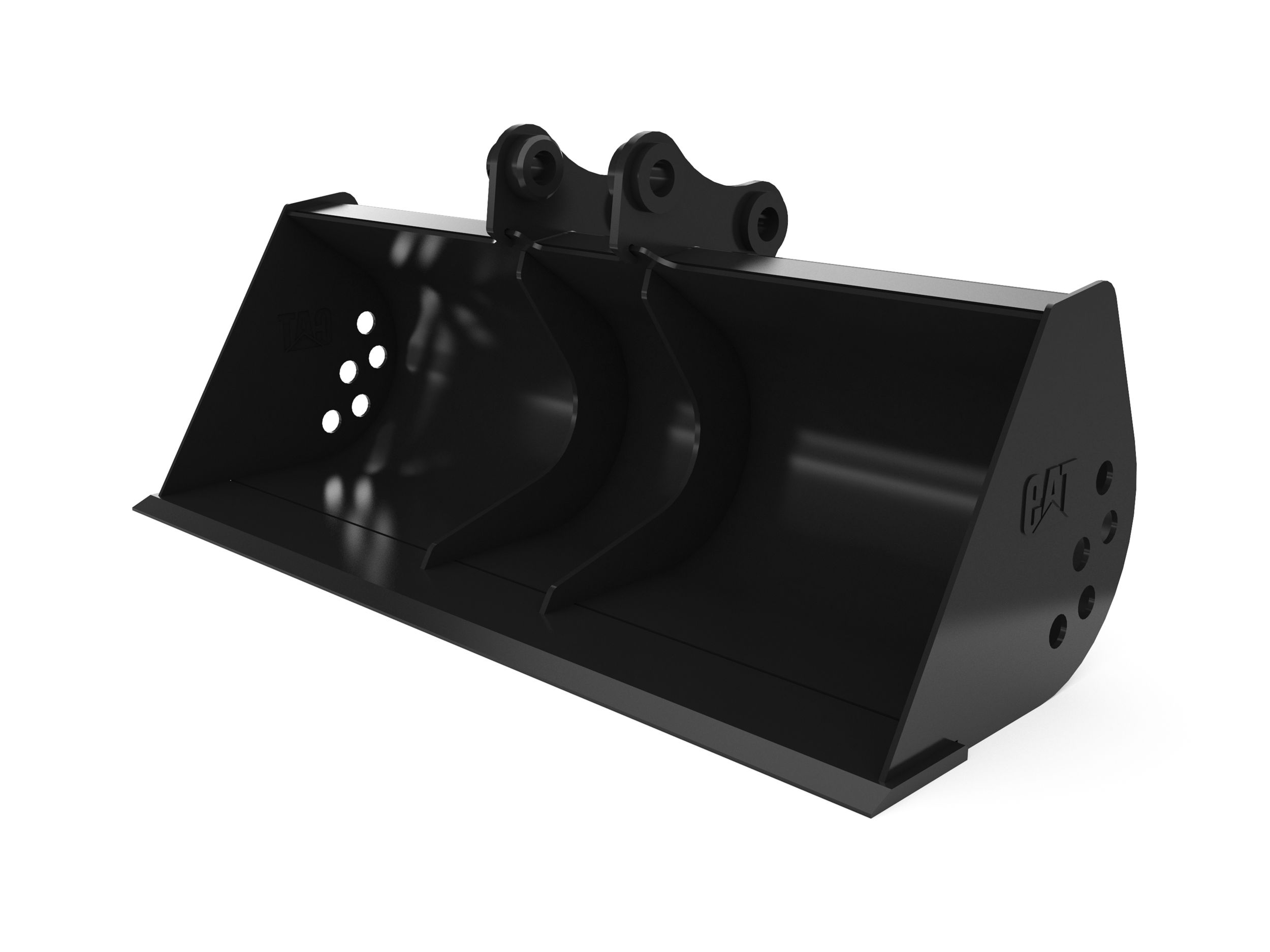

1200 mm (47 in) Ditch Cleaning Bucket

US
Metric

Overview

Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
Width
47.20 in
1200.00 mm
Rated Capacity
4.10 ft3
116.10 L
Weight
193.30 lbs
87.70 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
19.00 in
481.60 mm
Width
47.20 in
1200.00 mm
Rated Capacity
4.10 ft³
116.10 l
Weight
193.30 lb
87.70 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
19.00 in
481.60 mm

Specifications

Capacity
4.10 ft³
116.10 l

Interface Type
Pin On
Capacity
4.10 ft³
116.10 l
Features

Application

Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.

Bucket Design

Formed back wrapper design enhances bucket loading and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
