Overview

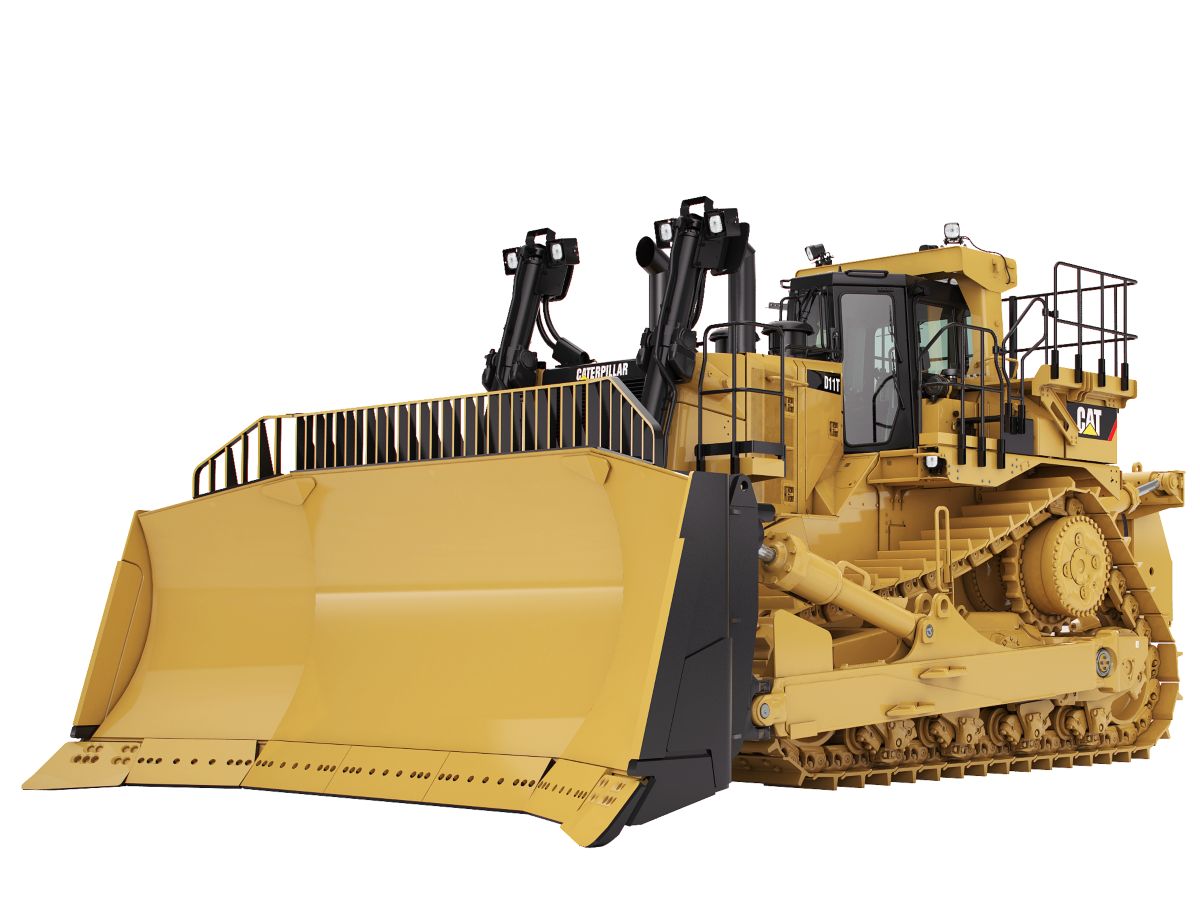

Cat® large dozers are designed with durability built in, ensuring maximum availability through multiple life cycles. By optimizing performance and simplifying serviceability with our modular design, our machines move more material efficiently and safely at a lower cost per ton. These models include safety enhancements, improved operator comfort, and productivity increasing electronic features to keep your business strong for generations to come.

Engine

Engine Model
Cat® C32 ACERT™
Flywheel Power
850.00 HP
634.00 kW
Net SAE J1349/ISO 9249
850.00 hp
634.00 kW
Bore
5.70 in
145.00 mm
Stroke
6.40 in
162.00 mm
Displacement
1959.00 in3
32.10 L
Engine Power – Gross SAE J1995*
913.00 hp
681.00 kW
Engine Power – ISO 14396
908.00 hp
677.00 kW
Engine Power – Net SAE J1349/ISO 9249
850.00 hp
634.00 kW
Emissions
U.S. EPA Tier 4 Final

Weights

Operating Weight
229800.00 lb
104236.00 kg
Shipping Weight
82640.00 lb
37485.00 kg
Operating Weight - CD
248500.00 lb
112718.00 kg
Shipping Weight - CD
83340.00 lb
37802.00 kg

Undercarriage

Shoe Type
Extreme Service
Width - Shoe
28.00 in
710.00 mm
Width - Shoe - CD
36.00 in
915.00 mm
Shoes/Side
41
Grouser Height
4.00 in
102.00 mm
Pitch
12.50 in
318.00 mm
Ground Clearance*
30.60 in
777.00 mm
Track Gauge
114.00 in
2896.00 mm
Ground Contact Area
9781.00 in²
6.30 m²
Ground Contact Area - CD
12605.00 in²
8.10 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
Length of Track on Ground
175.00 in
4444.00 mm

Transmission

1 Forward
2.40 mile/h
3.90 km/h
2 Forward
4.20 mile/h
6.80 km/h
3 Forward
7.30 mile/h
11.80 km/h
1 Reverse
2.90 mile/h
4.70 km/h
2 Reverse
5.10 mile/h
8.20 km/h
3 Reverse
8.70 mile/h
14.00 km/h
Type
Planetary powershift
Transmission Clutch Diameter
21.00 in
533.00 mm

Service Refill Capacities

Fuel Tank
425.00 gal
1609.00 L
Fuel Tank - High Capacity
505.00 gal (US)
1911.00 l
Cooling System
71.10 gal
269.00 L
Engine Crankcase*
27.20 gal (US)
103.00 l
Final Drive - Each
12.40 gal (US)
47.00 l
Roller Frames - Each
24.80 gal (US)
94.00 l
Pivot Shaft Compartment
18.80 gal (US)
71.00 l
Implement Hydraulic System - Tank Only
58.90 gal (US)
223.00 l
Power Train
90.90 gal
344.00 L

Hydraulic Controls

D11T CD - Carrydozer Relief Valve Setting
3500.00 psi
24135.00 kPa
D11T CD – Pump Output (Implement)
177.00 gal/min
670.00 L/min
D11T CD – Pump Type
Gear-type pump
D11T CD – Ripper (Lift) Relief Valve Setting
3500.00 psi
24135.00 kPa
D11T CD – Ripper (Pitch) Relief Valve Setting
3500.00 psi
24135.00 kPa
D11T CD – Tilt Cylinder Flow
66.00 gal/min
250.00 L/min
D11T CD – Tilt Cylinder Relief Valve Setting
3600.00 psi
24825.00 kPa
D11T - Bulldozer Relief Valve Setting
3300.00 psi
22750.00 kPa
D11T - Combined Pump Output - Implement
164.00 gal/min
620.00 l/min
D11T - Pump Type
Gear-type pump
D11T - Ripper (Lift) Relief Valve Setting
3300.00 psi
22750.00 kPa
D11T - Ripper (Pitch) Relief Valve Setting
3300.00 psi
22750.00 kPa
D11T - Tilt Cylinder Relief Valve Setting
3525.00 psi
24300.00 kPa
D11T - Tilt Pump Flow
41.00 gal/min
155.00 l/min

Standards

ROPS
Rollover Protective Structure (ROPS) meets the following criteria: SAE J1040 MAY94, ISO 3471:1994.
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.

Steering and Brakes

Hydraulically Applied Multiple-disc Steering Clutch
17.30 in
440.00 mm
Spring Applied Multiple-disc Brake
24.10 in
612.00 mm

Track Roller Frame

Oscillation
13.80 in
351.00 mm

Engine

Note
* Excludes all fan losses.
Note
Engine ratings apply at 1,800 rpm.
Note
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Note
No derating required up to 3658 m (12,000 ft) altitude. High altitude attachment available for greater than 3658 m (12,000 ft).

Weights

Note
D11T Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note
D11T Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn’t include ROPS, ripper, blade, track, or roller frames.
Note
D11T CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, single-shank ripper, and operator.
Note
D11T CD Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn’t include ROPS, ripper, blade, track, or roller frames.

Dimensions (Approximate) - D11T

Ground Clearance*
31.40 in
798.00 mm
Track Gauge
114.00 in
2896.00 mm
Width - Without Trunnions - Standard Shoe
148.90 in
3782.00 mm
Width - Over Trunnions
172.40 in
4379.00 mm
Height - FOPS Cab*
173.40 in
4405.00 mm
Height - Top of Stack*
179.10 in
4549.00 mm
Height - ROPS/Canopy*
185.90 in
4723.00 mm
Drawbar Height (Center of Clevis)*
37.10 in
942.00 mm
Length - Track on Ground
175.00 in
4444.00 mm
Overall Length - Basic Tractor
242.50 in
6160.00 mm
Length - Basic Tractor - With Drawbar
242.50 in
6160.00 mm
Length - With SU-Blade
337.80 in
8579.00 mm
Length - With U-Blade
340.20 in
8641.00 mm
Length - With Single-Shank Ripper
319.20 in
8107.00 mm
Length - With Multi-Shank Ripper
331.80 in
8427.00 mm
Overall Length - SU-Blade/SS Ripper
414.40 in
10525.00 mm
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
D11T shown equipped with 710 mm (28 in) shoes.

Dimensions (Approximate) - D11T CD

Ground Clearance*
31.40 in
798.00 mm
Track Gauge
114.00 in
2896.00 mm
Width - Without Trunnions - Standard Shoe
149.80 in
3806.00 mm
Width - Over Trunnions
172.40 in
4379.00 mm
Height - FOPS Cab*
173.40 in
4405.00 mm
Height - Top of Stack*
179.10 in
4549.00 mm
Height - ROPS/Canopy*
185.90 in
4723.00 mm
Drawbar Height (Center of Clevis)*
37.10 in
942.00 mm
Length - Track on Ground
175.00 in
4444.00 mm
Overall Length - Basic Tractor
242.50 in
6160.00 mm
Length - Basic Tractor - With Drawbar
242.50 in
6160.00 mm
Length - With SU-Blade**
345.10 in
8765.00 mm
Length - With Single-Shank Ripper
319.20 in
8107.00 mm
Length - With Multi-Shank Ripper
331.80 in
8427.00 mm
Overall Length - SU-Blade/SS Ripper**
421.70 in
10712.00 mm
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
**CD Blade on D11T CD.
Note (3)
D11T shown equipped with 710 mm (28 in) shoes.

Hydraulic Controls

Note
Pump output measured at 1,800 engine rpm and 6895 kPa (1,000 psi).
Note
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Note
Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Undercarriage

Note
* Includes grouser height for total dimensions on hard surface.
Note
Sleeve Bearing Track with Positive Pin Retention.

Service Refill Capacities

Fuel Tank - Platform Ready
470.00 gal (US)
1778.00 l
Note
* With oil filters.

Standards

Sound
The operator Equivalent Sound Pressure Level (Leq) is 79 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. This is a dynamic cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound
The exterior sound pressure level for the standard machine measured at a distance of 15 m (49.2 ft) according to the test procedures specified in SAE J88 APR95, mid-gear-moving operation, is 87 dB(A).

Engine

Engine Model
Cat® C32
Bore
5.70 in
145.00 mm
Stroke
6.40 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Emissions
U.S. EPA Tier 4 Final
Engine Power - Gross SAE J1995*
913.00 HP
681.00 kW
Engine Power - ISO 14396
908.00 HP
677.00 kW
Engine Power - Net SAE J1349/ISO 9249
850.00 HP
634.00 kW
Net SAE J1349/ISO 9249
850.00 HP
634.00 kW

Transmission

Type
Planetary powershift

Hydraulic Controls

D11T CD - Pump Output - Implement
177.00 gal/min
670.00 l/min
D11T CD - Pump Type
Gear-type pump
D11T CD - Ripper (Lift) Relief Valve Setting
3500.00 psi
24135.00 kPa
D11T CD - Ripper (Pitch) Relief Valve Setting
3500.00 psi
24135.00 kPa
D11T CD - Tilt Cylinder Flow
66.00 gal/min
250.00 l/min
D11T CD - Tilt Cylinder Relief Valve Setting
3600.00 psi
24825.00 kPa

Undercarriage

Length - Track on Ground
175.00 in
4444.00 mm
Number of Carrier Rollers
1 per side (optional)
Ground Clearance*
30.60 in
777.00 mm

Service Refill Capacities

Fuel Tank
425.00 gal (US)
1609.00 l
Cooling System
71.10 gal (US)
269.00 l
Power Train
90.90 gal (US)
344.00 l

Standards

FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: SAE J1040 MAY94, ISO 3471:1994.

Engine

Note (1)
* Excludes all fan losses.
Note (2)
Engine ratings apply at 1,800 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Note (4)
No derating required up to 3658 m (12,000 ft) altitude. High altitude attachment available for greater than 3658 m (12,000 ft).

Hydraulic Controls

Note (1)
Pump output measured at 1,800 engine rpm and 6895 kPa (1,000 psi).
Note (2)
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Note (3)
Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Service Refill Capacities

Note
* With oil filters.

Standards

Sound (1)
The operator Equivalent Sound Pressure Level (Leq) is 79 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. This is a dynamic cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound (2)
The exterior sound pressure level for the standard machine measured at a distance of 15 m (49.2 ft) according to the test procedures specified in SAE J88 APR95, mid-gear-moving operation, is 87 dB(A).

Undercarriage

Note (1)
* Includes grouser height for total dimensions on hard surface.
Note (2)
Sleeve Bearing Track with Positive Pin Retention.

Weights

Note (1)
D11T Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note (2)
D11T Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
Note (3)
D11T CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, single-shank ripper, and operator.
Note (4)
D11T CD Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
Features

Structures

Engine

Emissions Technology

Cooling System

Power Train

Undercarriage

Operator Station

Integrated Technologies

Cat MineStar

Safety

Work Tools

Serviceability

Customer Support

Sustainability

Sales Features

Structures

Engineered for maximum production and service life.

Engine

Power and reliability to help you move more.

Emissions Technology

Providing you reliable, integrated solutions.

Cooling System

Superior cooling keeps you moving in the most demanding work conditions.

Power Train

Power and control to efficiently move your material.

Undercarriage

Designed for optimized machine balance and performance at your site.

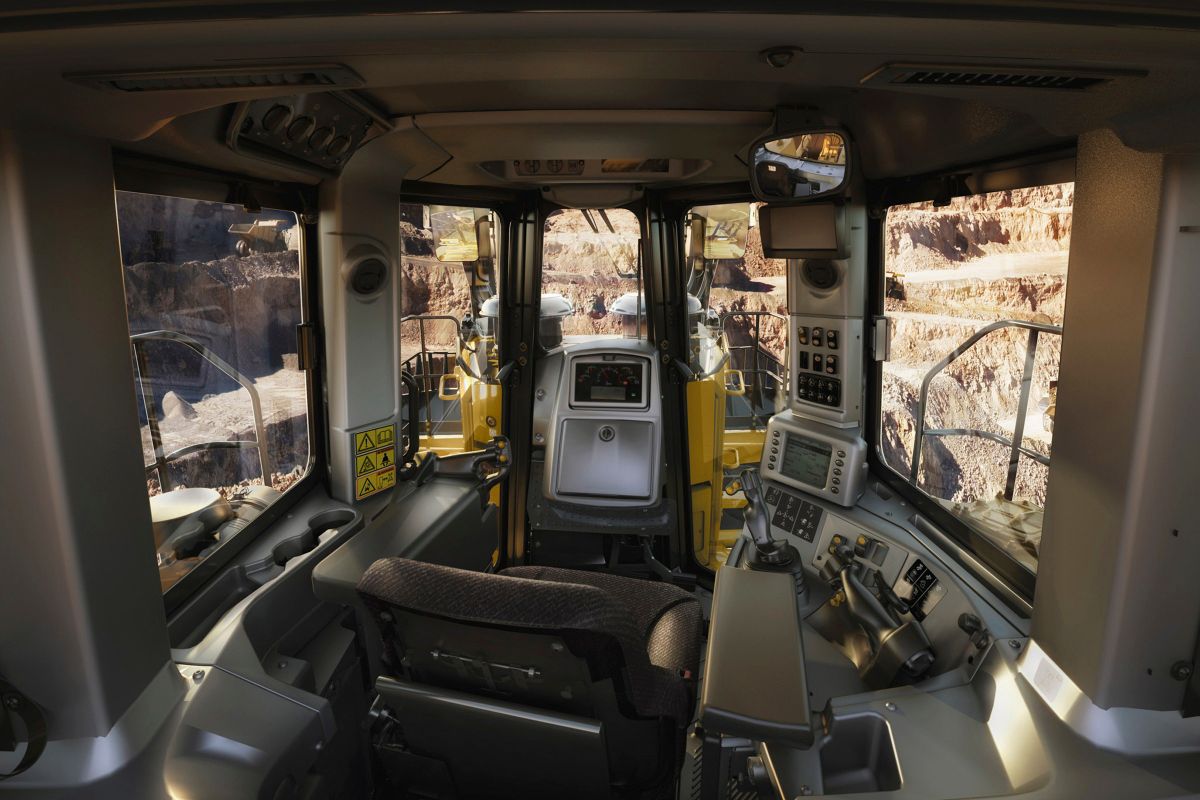

Operator Station

Designed for your comfort, convenience, and productivity.

Integrated Technologies

Monitor, manage, and enhance job site operations.

Cat MineStar

Configurable to suit your operation’s needs.

Safety

Focused on keeping you safe.

Work Tools

Provide flexibility to match the machine to your job.

Serviceability

Reduce your service time to increase your uptime.

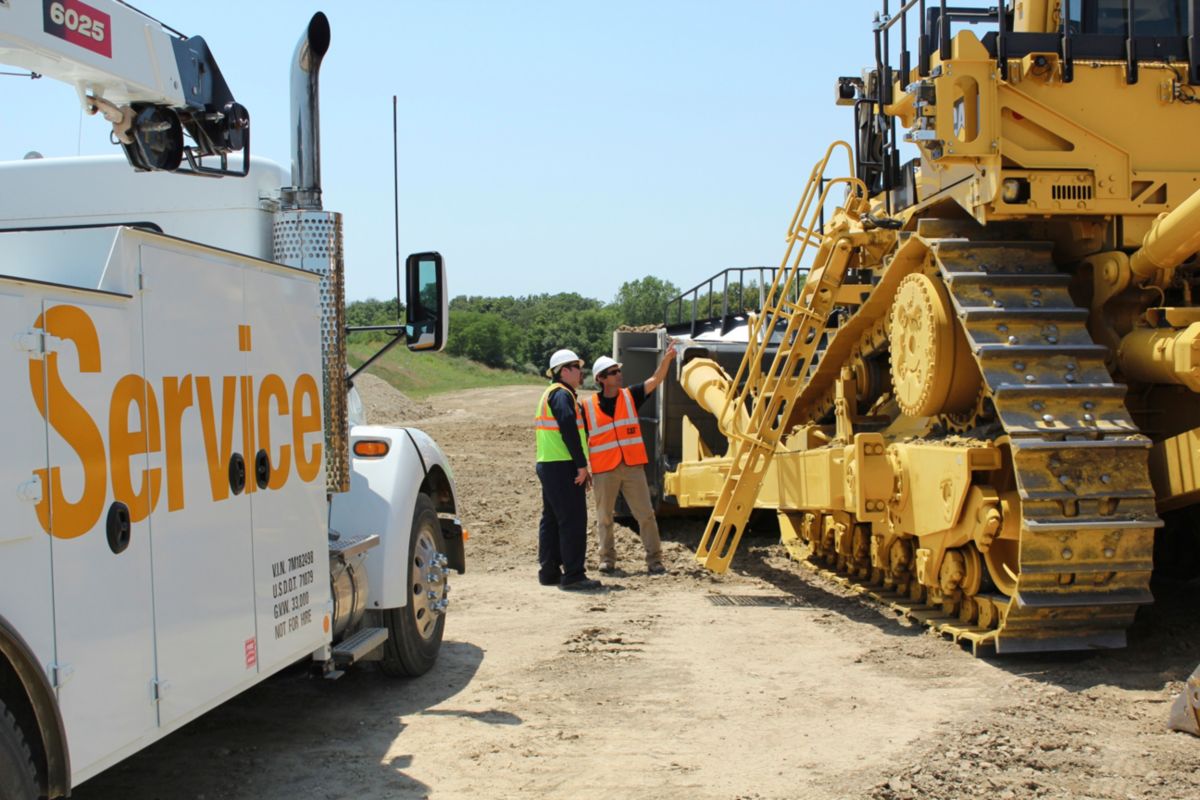

Customer Support

Your Cat dealer knows how to keep your mining machines producing.

Sustainability

Thinking about your legacy for future generations.
Standard Equipment
  • ELECTRICAL
    • Alternator, 150 amp
    • Back up alarm
    • Batteries, 12-volt (4), 200 amp-hour
    • Converters, 12-volt, 10 amp and 20 amp
    • Diagnostic connector
    • Horn, forward warning
    • Lights, engine compartment
    • Lighting system, five (5) HID/seven (7) Halogen
    • Starting receptacle
  • OPERATOR ENVIRONMENT
    • Advisor-electronic monitoring system
    • Air conditioner and heater
    • Armrest, adjustable
    • Cab, FOPS
    • Deactivation switch, hydraulic controls
    • Decelerator, pedal
    • Finger Tip Control (FTC) steering
    • Governor switch, electronic
    • Hydraulic system: – Electronically controlled for bulldozer and ripper control
    • Mirror, rearview
    • Radio ready, entertainment
    • ROPS rollbar
    • Seat belt, retractable 76 mm (3 in)
    • Seat, cloth, air suspension
    • Wipers, intermittent, low and high speeds
  • POWER TRAIN
    • Cat C32
    • Aftercoolers, air-to-air
    • Air filters, dual with precleaner
    • Aluminum bar plate cooling system: – Serial number prefix: AMA and MDG
    • Controlled throttle shifting
    • Coolant, extended life
    • Shift management
    • Engine Idle Shutdown Timer
    • Engine precleaner
    • Ether starting aid, automatic
    • Four planet, double-reduction planetary final drives
    • Fuel priming pump, electric
    • High speed oil changing system
    • Hydraulic demand fan
    • Copper Grommetted Tube Radiator - Serial number prefix JEL and JNS
    • Mufflers, dual
    • Parking brake, electronic
    • Prescreener
    • Separator, water/fuel
    • Thermal shields
    • Torque divider
    • Transmission, powershift: – (3F/3R speeds)
  • TECHNOLOGY
    • Auto blade assist
    • Enhanced auto shift
    • Product Link (satellite)
    • VIMS 3G
  • UNDERCARRIAGE
    • Equalizer bar end pin grease fittings, remote
    • Rollers and idlers, lifetime lubricated
    • Sprocket rim segments, replaceable
    • Suspension-type undercarriage, eight-roller tubular track roller frame
    • Three bolt idler and roller caps
    • Track adjusters, hydraulic
    • Track guides
    • Two-piece master links
  • SAFETY AND SECURITY
    • Anchorage points
    • Fender guard rails
    • Heavy duty steps and handles
    • Operator not present monitoring system
    • Slope and side-slope monitor
  • OTHER STANDARD EQUIPMENT
    • Bottom guards
    • CD ROM parts book
    • Dual-tilt blade control
    • Ecology drains
    • Engine enclosure
    • Fluid sampling ports
    • Grade control ready
    • Ground level service center
    • Ripper Hydraulics
    • Vandalism, protection (8 caplocks)
Optional Equipment
  • GUARDS
    • Bottom guards, sealed
    • Bottom guards, partial
    • Guard, undercarriage idlers
    • Screens, grill door
  • OPERATOR STATION
    • Air conditioner: – Fender – ROPS
    • Cab glass: – 276 kPa (40 psi) – Dual pane impact resistant
    • Heated and ventilated seat
    • Operator arrangement: – 5th percentile arrangement – Quick opening
    • Powered precleaner
    • Visibility arrangements (camera and mirrors): – Single camera – Dual camera – Mirrors
    • Window shades
  • POWER TRAIN
    • Engine coolant, arctic
    • Engine precleaner, turbine
    • Engine prelube
    • Fan arrangements: – Hydraulic screens – Reversing (Not available on D11T Carrydozer.) – Reversing with screens (Not available on D11T Carrydozer.)
    • Final drives: – Clamshell guard
    • High altitude arrangement (Not available on D11T Carrydozer.)
    • Copper Grommetted Tube Radiator - Serial number prefix AMA and MDG
    • Remote power train and engine high speed oil change system located at the ground level service center
  • UNDERCARRIAGE
    • Carrier rollers
    • Carrier rollers – cold weather
    • Tracks, PPR, sealed and lubricated: – 710 mm (28 in) Extreme Service (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service abrasion resistant material (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service trapezoidal hole (Not available on D11T Carrydozer.) – 810 mm (32 in) Extreme Service – 810 mm (32 in) Extreme Service abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole – 810 mm (32 in) Extreme Service tall links – 810 mm (32 in) Extreme Service tall links abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole tall links – 915 mm (36 in) Extreme Service clipped – 915 mm (36 in) Extreme Service clipped abrasion resistant material – 915 mm (36 in) Extreme Service clipped trapezoidal hole – 915 mm (36 in) Extreme Service clipped tall links
    • Undercarriage arrangements: – Abrasion – Cold abrasion – Cold weather – Sound
  • BULLDOZER ATTACHMENTS
    • 11CD Abrasion resistant blade
    • 11CD No wear plate
    • 11SU Abrasion resistant blade (Not available on D11T Carrydozer.)
    • 11SU Abrasion resistant blade, black (Not available on D11T Carrydozer.)
    • 11SU No wear plate (Not available on D11T Carrydozer.)
    • 11U Abrasion resistant blade (Not available on D11T Carrydozer.)
    • 11U Abrasion resistant blade, black (Not available on D11T Carrydozer.)
    • 11U No wear plate (Not available on D11T Carrydozer.)
  • REAR ATTACHMENTS
    • Counterweight, rear
    • CapSure hammerless installation and positive retention system: – Single shank – Multi shank – Single shank deep
    • Drawbar, rear (Not available on D11T Carrydozer.)

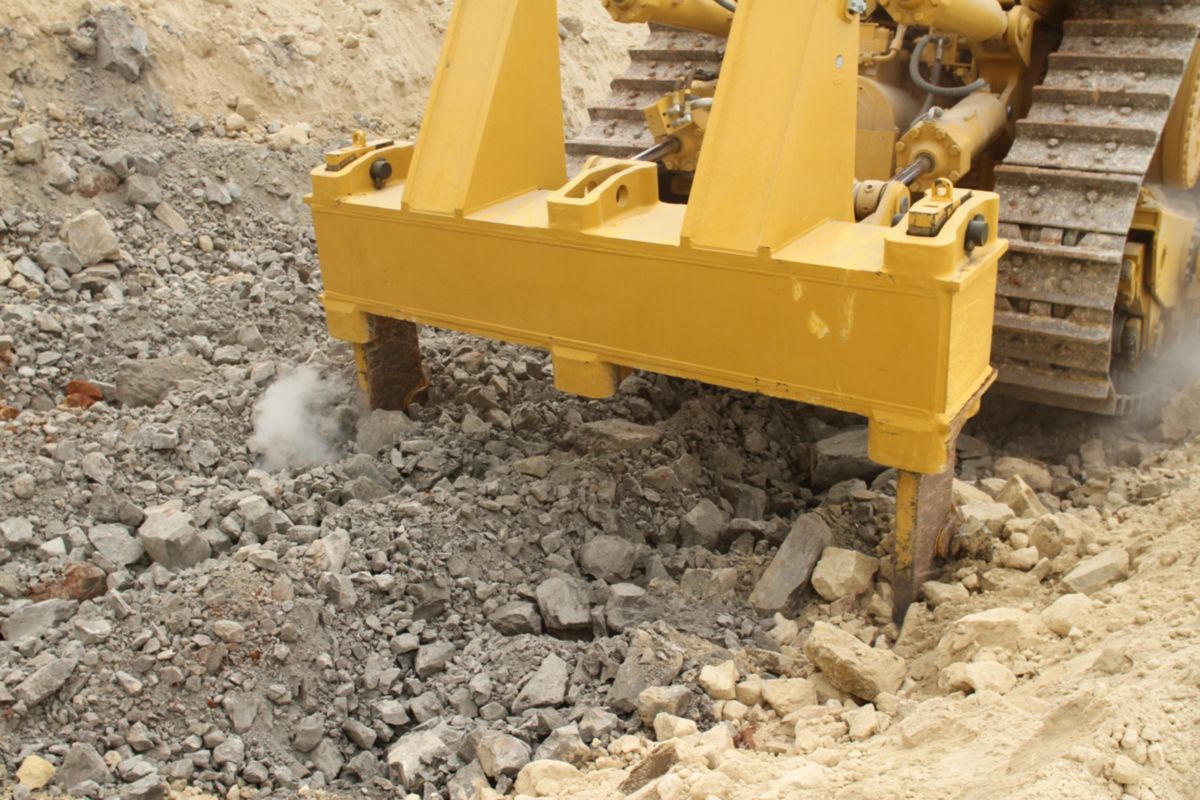

    • Multi shank ripper: – Carrydozer – Leach Pad (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
    • Ripper lube
    • Single shank ripper: – Carrydozer/heavy – Push block (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
  • TECHNOLOGY
    • Command for Dozing (Installed by dealer.)
    • Machine control, performance: – AutoCarry – Automatic ripper control
    • Terrain for Grading: – With blade control
  • SAFETY AND SECURITY

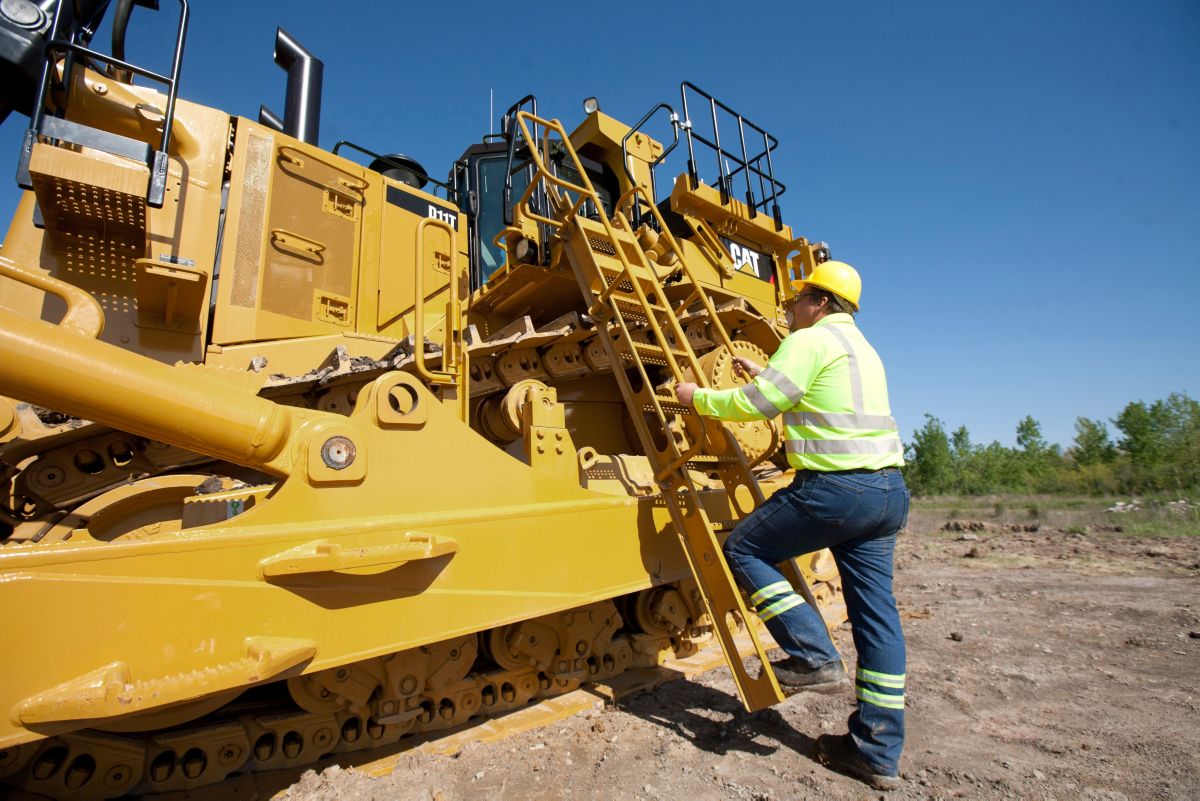

    • Access arrangement (ladder and platform)
    • Fuel tank: – Platform ready – Extra capacity
    • Lights: – LED – LED, high intensity – Warning, strobe
    • Powered access ladder
    • Rear access platform
  • OTHER ATTACHMENTS
    • Automatic lubrication system
    • Grease points, grouped
    • Heater, engine coolant
    • Heater, fuel
    • Hydraulic lines, AutoCarry
    • Hydraulic lines, screens
    • Hydraulic lines, screens and AutoCarry
