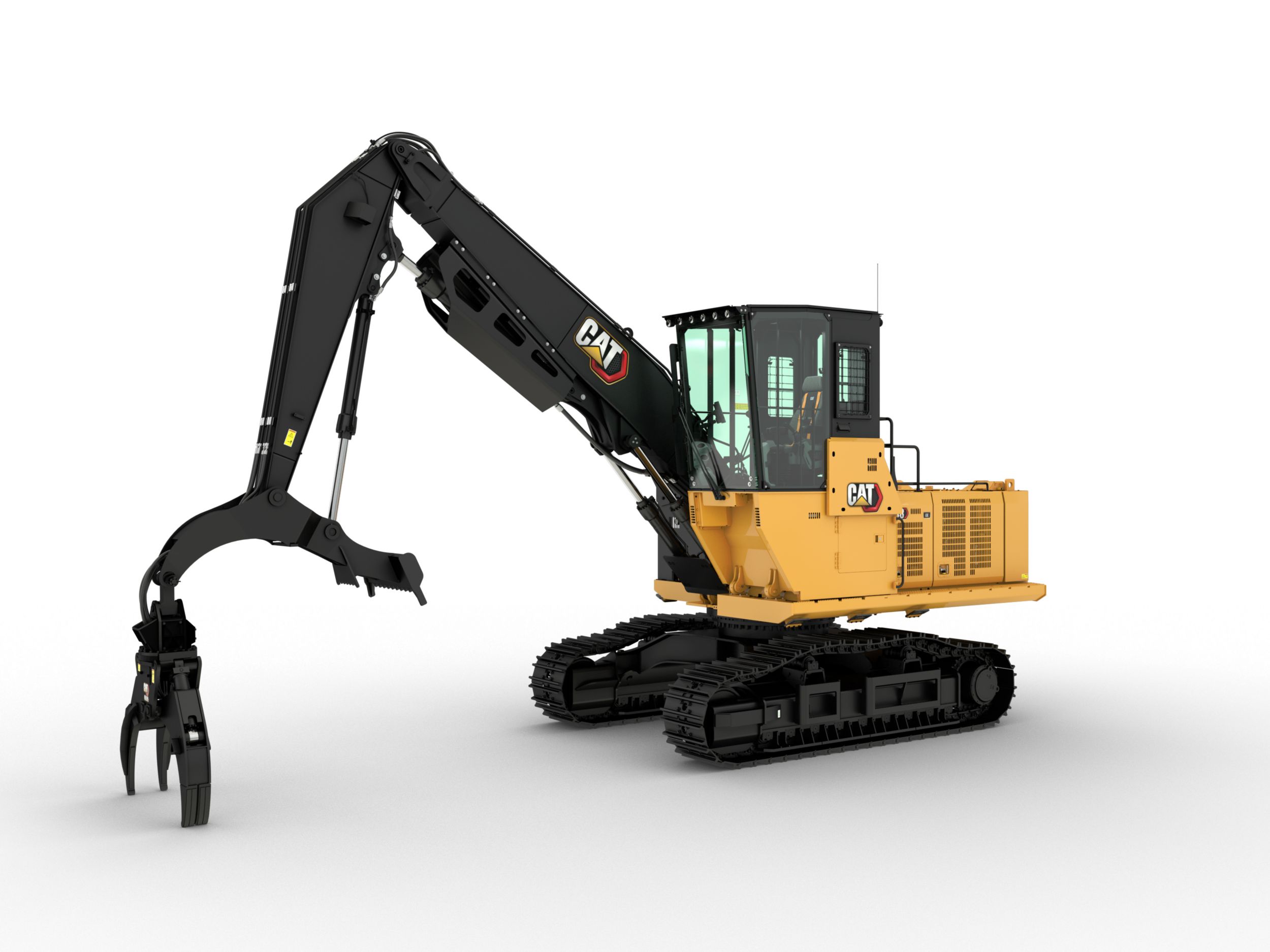

The Cat® FM548 is simply the best choice in its size class for doing roadbuilding, processing, and log-loading work. With 275 HP and significant hydraulic flow and swing torque increases, the superior performance and exceptional operator comfort and safety of the FM548 will help you produce day in and day out.


Engine Model
Cat C7.1
Net Power - ISO 9249
271.00 HP
202.40 kW
Engine Power - ISO 14396
275.00 HP
205.00 kW
Net Power - ISO 9249 (DIN)
275.00 hp (metric)
275.00 hp (metric)
Engine Power - ISO 14396 (DIN)
279.00 hp (metric)
279.00 hp (metric)
4.13 in
105.00 mm
5.31 in
135.00 mm
433.30 r/min
7.10 r/min
Biodiesel Capability
Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.


Maximum Travel Speed
3.00 mile/h
4.80 km/h
Maximum Drawbar Pull
66319.00 lbf
295.00 kN

Hydraulic System

Main System - Maximum Flow
132.60 gal/min
502.00 l/min
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa
Maximum Pressure - Equipment - Lift Mode
5511.00 psi
38000.00 kPa
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
4061.00 psi
28000.00 kPa

Swing Mechanism

Swing Speed
8.10 r/min
8.10 r/min
Maximum Swing Torque
100308.00 lb/ft
136.00 kN·m


General Forestry
83300.00 lb
37800.00 kg
Log Loader (U/U)
89290.00 lb
40500.00 kg

Service Refill Capacities

Fuel Tank
262.00 gal (US)
990.00 l
Cooling System
10.00 gal (US)
38.00 l
Engine Oil
7.00 gal (US)
25.00 l
Swing Drive
4.00 gal (US)
13.50 l
Final Drive - Each
3.00 gal (US)
9.50 l
Hydraulic System - Including Tank
92.00 gal (US)
348.00 l
Hydraulic Tank
49.00 gal (US)
185.00 l
DEF Tank
11.00 gal (US)
41.00 l


Note (1)
General Forestry
Shipping Height - Tilted Cab
138.00 in
3500.00 mm
Handrail Height
138.00 in
3500.00 mm
Length: General Forestry - Boom Stretched Out
469.00 in
11920.00 mm
Length: Log Loader - Boom Stretched Out
595.00 in
15120.00 mm
Tail Swing Radius
139.00 in
3530.00 mm
Counterweight Clearance
59.00 in
1500.00 mm
Ground Clearance
31.00 in
800.00 mm
Track Length
199.00 in
5050.00 mm
Track Length to Center of Rollers
158.00 in
4020.00 mm
Track Gauge
110.00 in
2790.00 mm
Transport Width
139.00 in
3530.00 mm

Working Ranges

Max Reach at Stick Nose at Ground Level - General Forestry Road Builder
395.00 in
10040.00 mm
Max Reach at Grapple Mount on Heel at Ground Level - Log Loader Under/Under
450.00 in
11440.00 mm

Air Conditioning System

Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22" Riser CAB)/2.2 (48"/72" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 3.003/3.146 metric tonnes.

Latest Features

Cab Monitor Improvements

  • Continuously improved user interface allows intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
  1. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
  3. A notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
  5. Color-coded notifications set critical messages apart from the rest.
  7. Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
  9. Enhance visibility to make service work easier and safer with optional inspection lighting.
  • Standard integrated vehicle health management system alerts operators with service guidance and parts needed to enhance uptime.

Build Number: 07B

Take the Guesswork Out of Managing Your Equipment

  • VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. * Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
  • VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture. * View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
  • Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.
  • Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help resolve issues quickly and with less downtime.
  • Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
  • The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.

Superior Performance

  • The Cat® C7.1 TTA engine offers up to 30% more power* and can run on biodiesel and renewable fuels.
  • Smart mode helps reduce fuel consumption by automatically matching engine and hydraulic power to working conditions.
  • Pick and place logs with precision and power with the electrohydraulic control system.
  • Heavy lift mode with up to 30% greater swing torque* helps you confidently move big logs.
  • Bigger boom cylinders boost Log Loader lift capability by up to 7%.*
  • Get to work faster with an up to 10% increase in travel speed*.
  • Auxiliary hydraulic options let you use Cat grapples and various other attachments.
  • Work in extreme environments with standard high-ambient capability of 52° C (126° F) and cold start capability of -32° C (-25° F).

*All percentages are compared to the 2021 model year 548.

Unmatched Operator Comfort

  • Operators can choose the rear or side cab entry with up to 25% mores space with a tilt-up console.*
  • The dual HVAC system keeps operators comfortable in cold and warm weather.
  • A wider heated and cooled air-suspension seat makes year-round work more pleasant.
  • All controls are within easy reach to reduce twisting and turning and keep you focused on the work area.
  • Cab risers — 165 mm (6’1/2”) fixed or 1219 mm (48”) hydraulic tilt — are available to meet your work needs.
  • Special roof lining and window and door sealing reduce noise, making the interior as quiet as today’s top work trucks.
  • Stow your gear with in-cab storage beneath, behind the seat, and in the consoles.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.
*All percentages compared to 2021 model year 548.

Simple Operation

  • Cat® continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
  • The Cat PL161 attachment locator is a Bluetooth device designed to let users know where their attachments are across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The PL161 integrates easily into VisionLink® for full fleet management of machines and attachments from one smartphone or tablet dashboard to view location and tracking details.
  • Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor.
  • Make moving the excavator much easier with optional Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
  • Not sure how a function works or how to maintain the machine? Always have the operator’s manual at your fingertips in the touchscreen monitor.
  • Optional auxiliary relay powers on and turns off CB radios and other attachments without you taking your hands off the joysticks.

Versatile Configurations

General Forestry

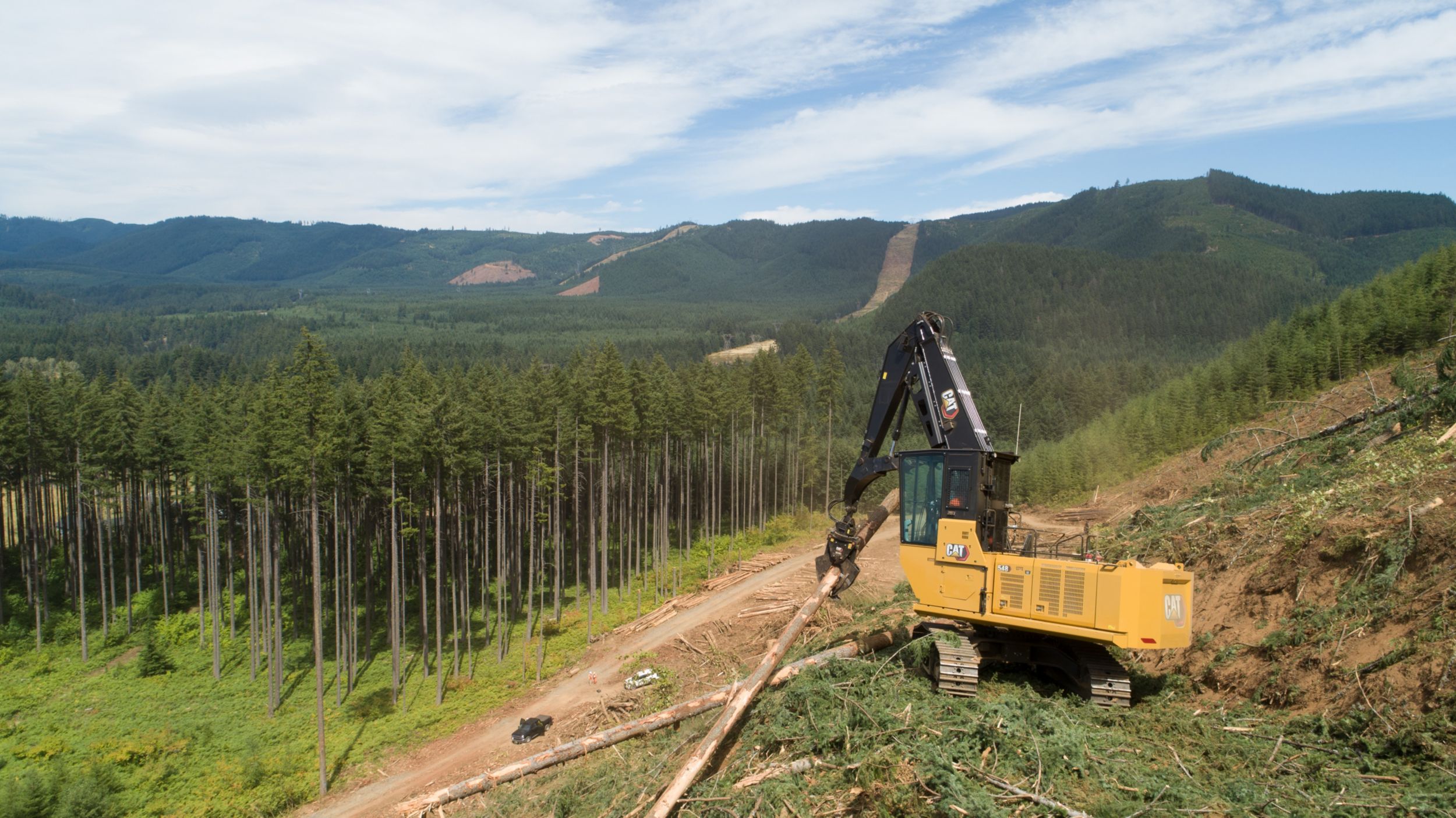

  1. The General Forestry model is ideal for road work, grappling, processing, and delimbing.
  3. With a reach boom and quick coupler, you can equip the FM548 with a processor, bucket, thumb, mulcher, and other attachments to get work done quickly and efficiently.
  5. A frontless option allows you to customize the machine to fit your applications.

Log Loader

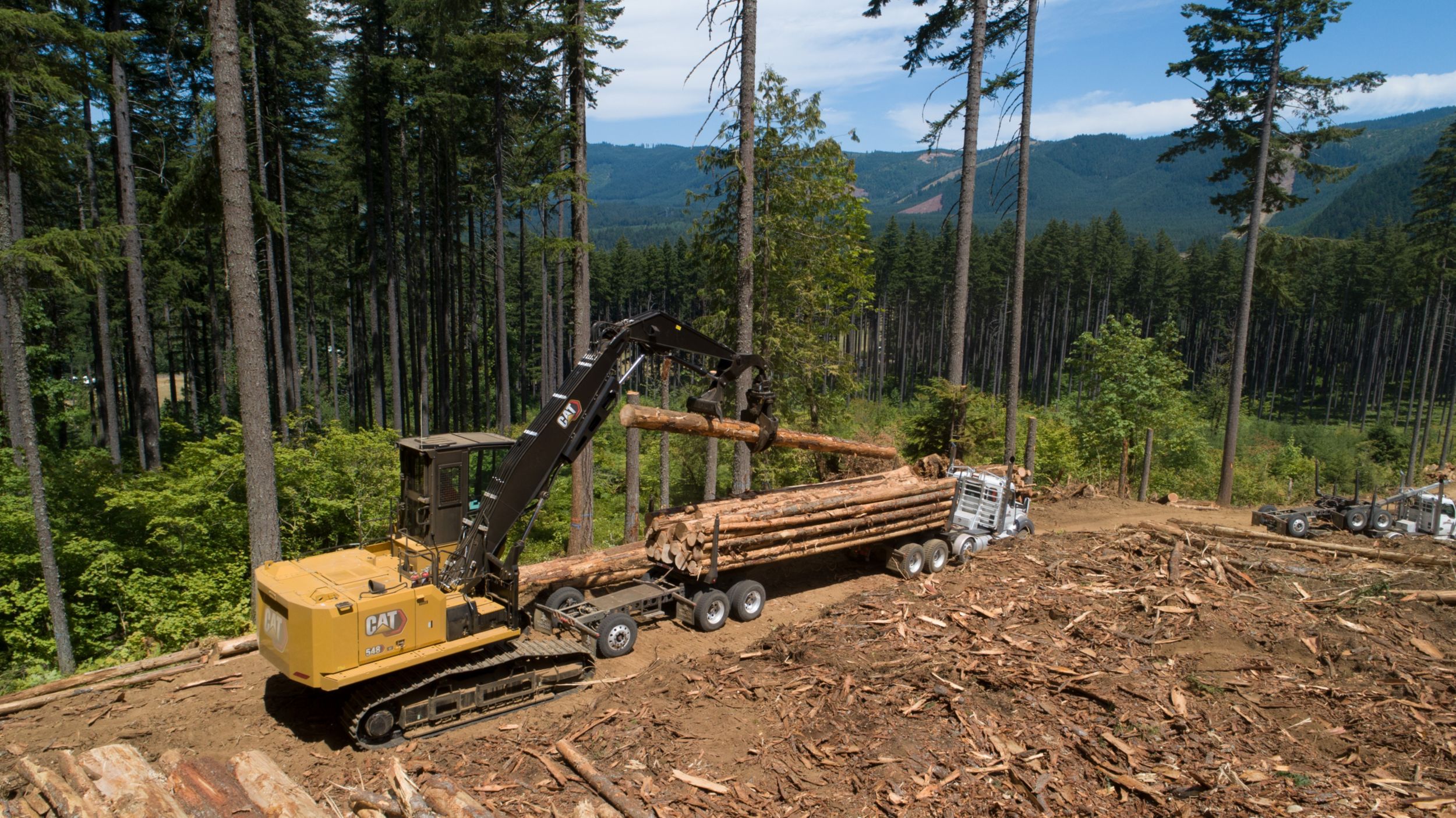

  1. The log loader configuration is ideal for truck loading, Butt-n-Top loading, power clam applications and millyard work.
  3. An under-mounted heel cylinder provides maximum force for shovel logging with a Cat grapple. A variable displacement pump delivers high-flow rotating capability for heel and log grapples and Power Clam and Butt-n-Top grapples.
  5. An overmounted heel cylinder provides maximum clearance to load trucks and increases lift height for millyard applications.
  • Rugged, reliable, simple-to-service Cat forestry grapples range in size from 1322 mm (52") to 1524 mm (60").

Easy Maintenance

  • Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and the parts needed so you don't experience unnecessary downtime.
  • Expect up to 15% less maintenance cost than the previous model. (Savings calculated over 12,000 machine hours.)
  • The engine’s regeneration system functions automatically with no operator input or interruption to work.
  • Using Cat® genuine oil and filters and doing typical S∙O∙S monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
  • S·O·S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
  • The diesel particulate filter requires no maintenance.
  • Replace fuel filters at 1,000 hours – twice the interval from the previous filters.
  • The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000-hour replacement interval – 50% longer than previous filter designs.
  • The high-efficiency cooling fan runs only when needed; program intervals so the fan automatically reverses to keep cores clean without interrupting your work.
  • Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve jobsite efficiency with lower operating costs.
  • Remote Troubleshoot** connects you to a dealer service pro to help solve your problem and quickly get you to work.
  • Remote Flash** works around your schedule to ensure your machine's software is up to date for optimal performance.
  • *All percentages compared to 2021 model year 548.
        **Requires cell coverage.

Enhanced Safety

  • The cab meets applicable industry standards for ROPS/FOPS/OPG and protects the operator inside the cab.
  • Access most routine maintenance points at ground level.
  • The right-hand service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use an anti-skid punch plate to prevent slipping. The handrails are provided for easy access.
  • Larger 32 mm (11/4”) polycarbonate front window, smaller cab pillars, and a flat engine hood improve visibility by up to 50%.
  • Standard rearview camera enhances jobsite visibility; right-hand-sideview cameras are optional.
  • The monitor’s slope and grade indicator tell you the machine's position to help optimize its performance.
  • A signaling/warning horn and travel alarm enhance jobsite safety.
  • Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.


  • The Cat® C7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
  • Cat® VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running at maximum efficiency. Alerts for machine updates are sent virtually from your Cat® dealer, and updates can be deployed without a dealer technician needing to be onsite.
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat® dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Standard Equipment
  • CAB
    • ROPS Forestry cab with polycarbonate windows
    • 4-point harness seat belt
    • Heated and cooled seat with air-adjustable suspension
    • Integrated joysticks
    • Tilt-up left-side console (side-entry cab only)
    • High-resolution touchscreen monitor
    • Bluetooth integrated radio (including USB, aux port and microphone)
    • 12V DC outlets
    • Keyless push-to-start engine control
    • Automatic bi-level air conditioner
    • LED dome and floor lights
    • Windshield wiper and washer
    • Behind seat storage
    • Retractable sunshade
    • VisionLink
    • Remote Services Capability
    • Maintenance-free 1000 CCA batteries (x4)
    • Centralized electrical disconnect switch
    • LED chassis, boom (GF), stick (LL) and cab lights
    • 115-amp alternator
    • 24-volt electric starting
    • Horn and travel alarm
    • Pre-start monitoring system
    • Tool control software
    • Secondary engine shutoff switch
    • Cold start package with block heaters
    • Electric fuel priming pump
    • Three selectable modes: Power, Smart, Eco
    • Automatic engine speed control
    • Automatic engine idle shutdown
    • Up to 4600 m (15,092 ft) altitude capability
    • 52° C (126° F) high-ambient cooling capacity
    • -32° C (-25° F) cold start capability
    • Hydraulic reverse fan
    • Two-stage fuel filter system
    • Double element air filter with integrated pre-cleaner
    • Boom and stick regeneration circuits
    • Boom and stick drift reduction valve
    • Electronic main control valve
    • Automatic hydraulic oil warmup
    • Automatic swing parking brake
    • High performance hydraulic return filter
    • Automatic two speed travel
    • Bio hydraulic oil capability
    • High torque swing drive
    • Swing cushion valve
    • Tool control software
    • Caterpillar One Key security system
    • Lockable service doors
    • Lockable external tool/storage box
    • Lockable disconnect switch
    • Lockable fuel cap and hydraulic tank
    • Service platforms with anti-skid plate and countersunk bolts
    • Right-hand rail and hand hold
    • Signaling/warning horn
    • Ground-level secondary engine shutoff switch
    • Rearview camera
    • Travel alarm
    • Side-entry to service platforms
    • Grouped location for engine oil and fuel filters
    • Scheduled Oil Sampling (S·O·S) ports
    • Integrated vehicle health management system
    • High Wide undercarriage
    • 8.5" pitch Cat grease lubricated track chain with pressed fit pin
    • Catwalks
    • Tie down points
    • Counterweight fuel tank
    • Heavy-duty track rollers and frames
    • Heavy-duty travel motor guards
    • Heavy-duty bottom guards
    • Track guiding guards
    • High drawbar final drives
    • Heavy-duty recoil springs
    • Heavy-duty hydraulic swivel
    • Heavy-duty hydraulic swivel guard
Optional Equipment
    • 5.9 m (19'6") Reach boom - General Forestry
    • 6.55 m (21'6") boom - Log Loader
    • 2.95 m (9'6") Reach stick
    • 3.71 m (12'2") Goose Neck stick
    • 3.76 m (12'4") Under/Under stick
    • 4.05 m (13'3") Over/Under stick
    • 4.05 m (13'3") Power Clam stick
    • CB2 family bucket linkage
  • CAB
    • Side entry with 559 mm (22") tilting riser
    • Rear entry with 1219 mm (48") tilting riser
    • Rear entry with 1829 mm (72") tilting riser
    • Premium General Forestry lighting package
    • Premium Log Loader lighting package
    • Cold start package with block heaters and ether assist
    • Medium pressure circuit
    • Right-hand-sideview cameras
    • Inspection lighting
    • 900 mm (36") triple grouser Tri Link shoes
    • 850 mm (33") triple grouser shoes
    • 700 mm (28") double or single grouser shoes
