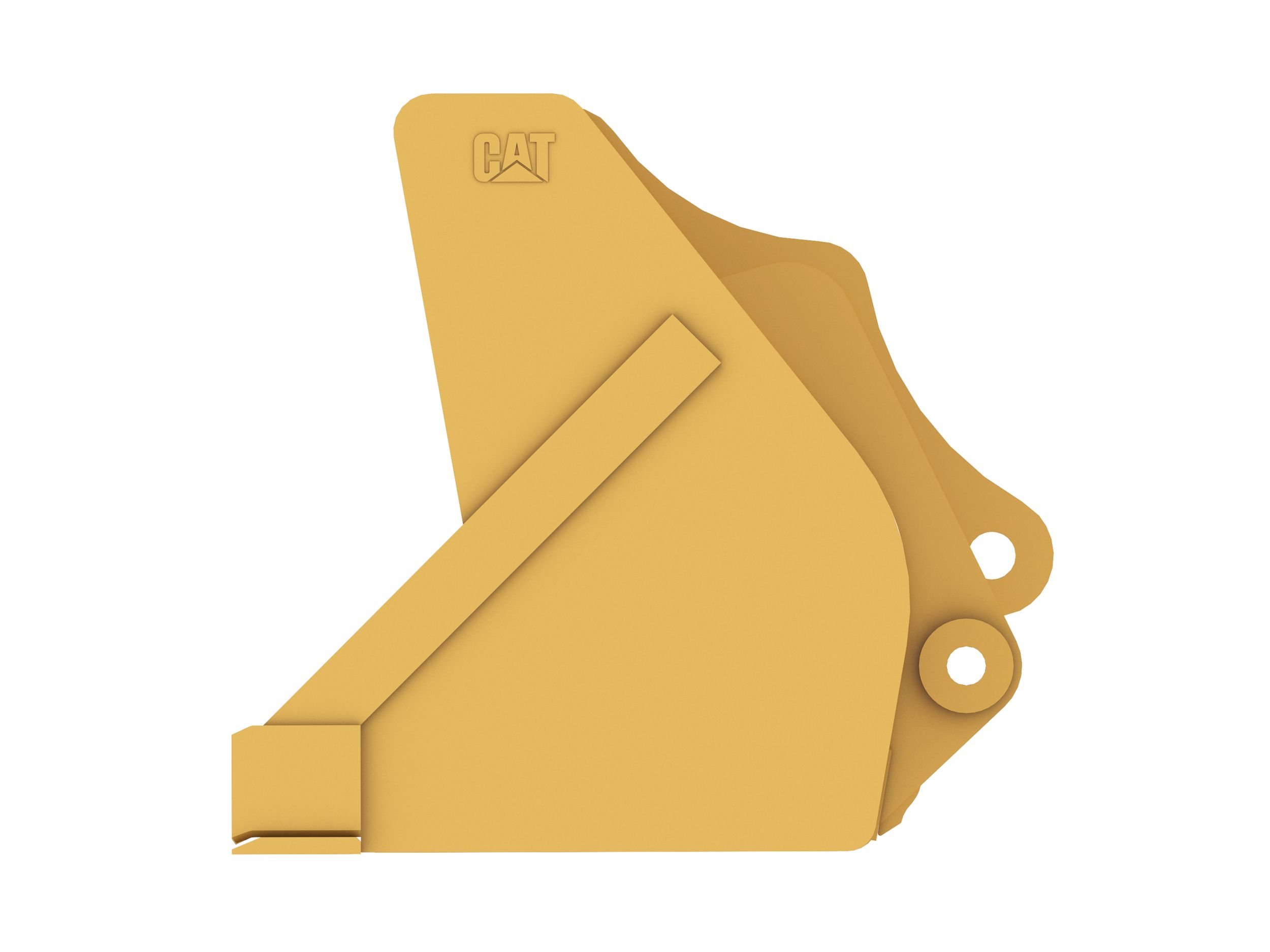

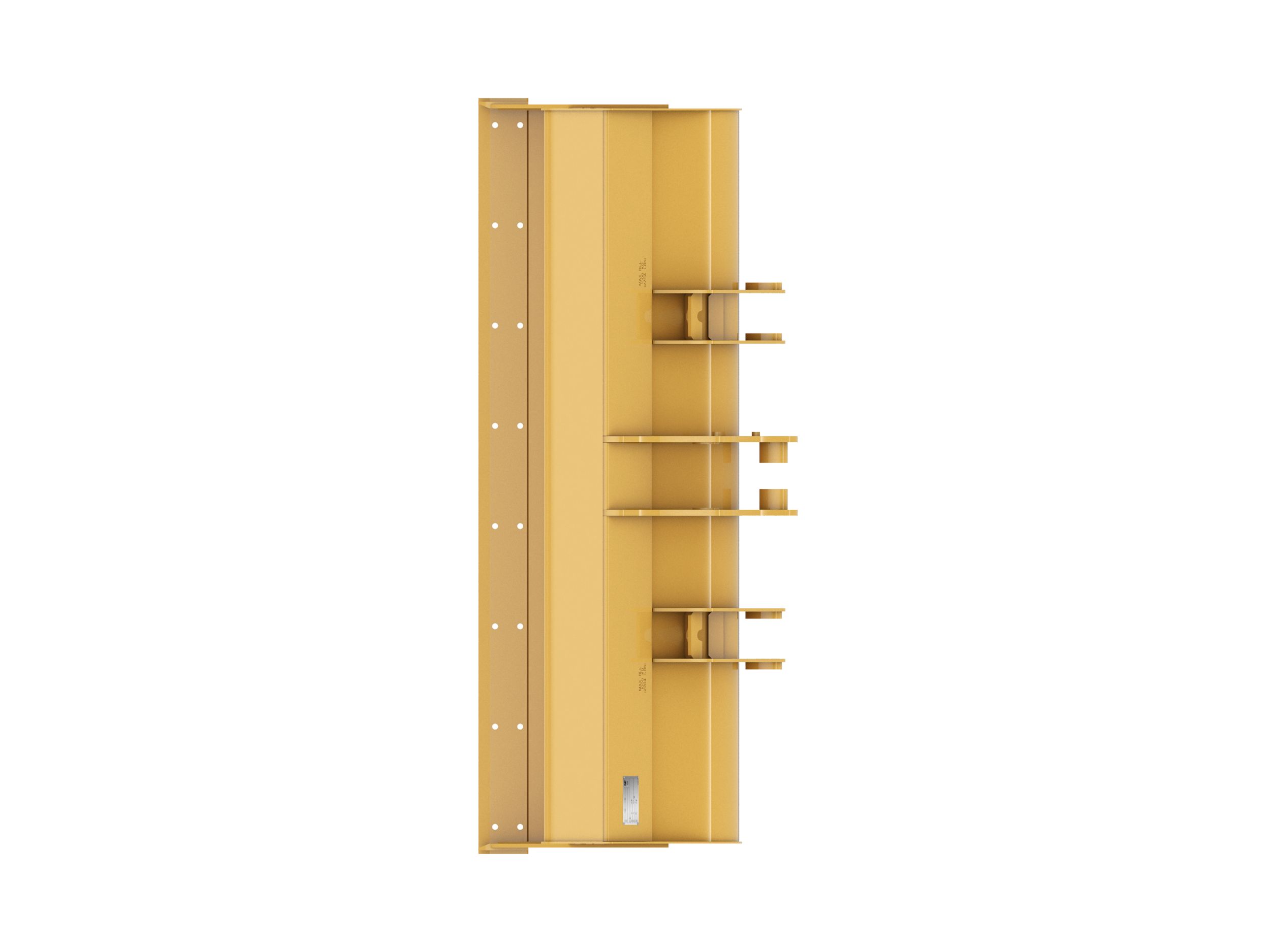

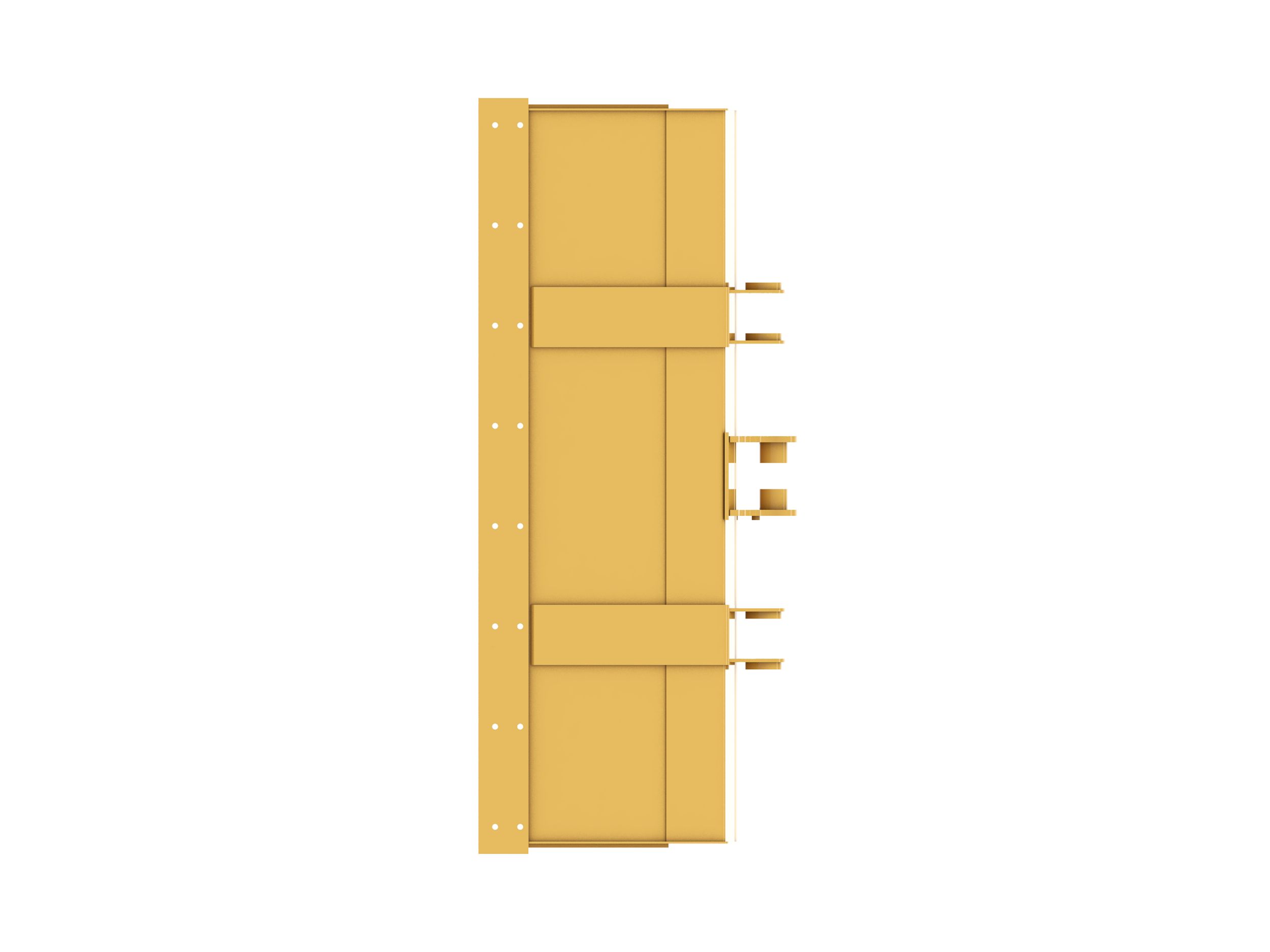

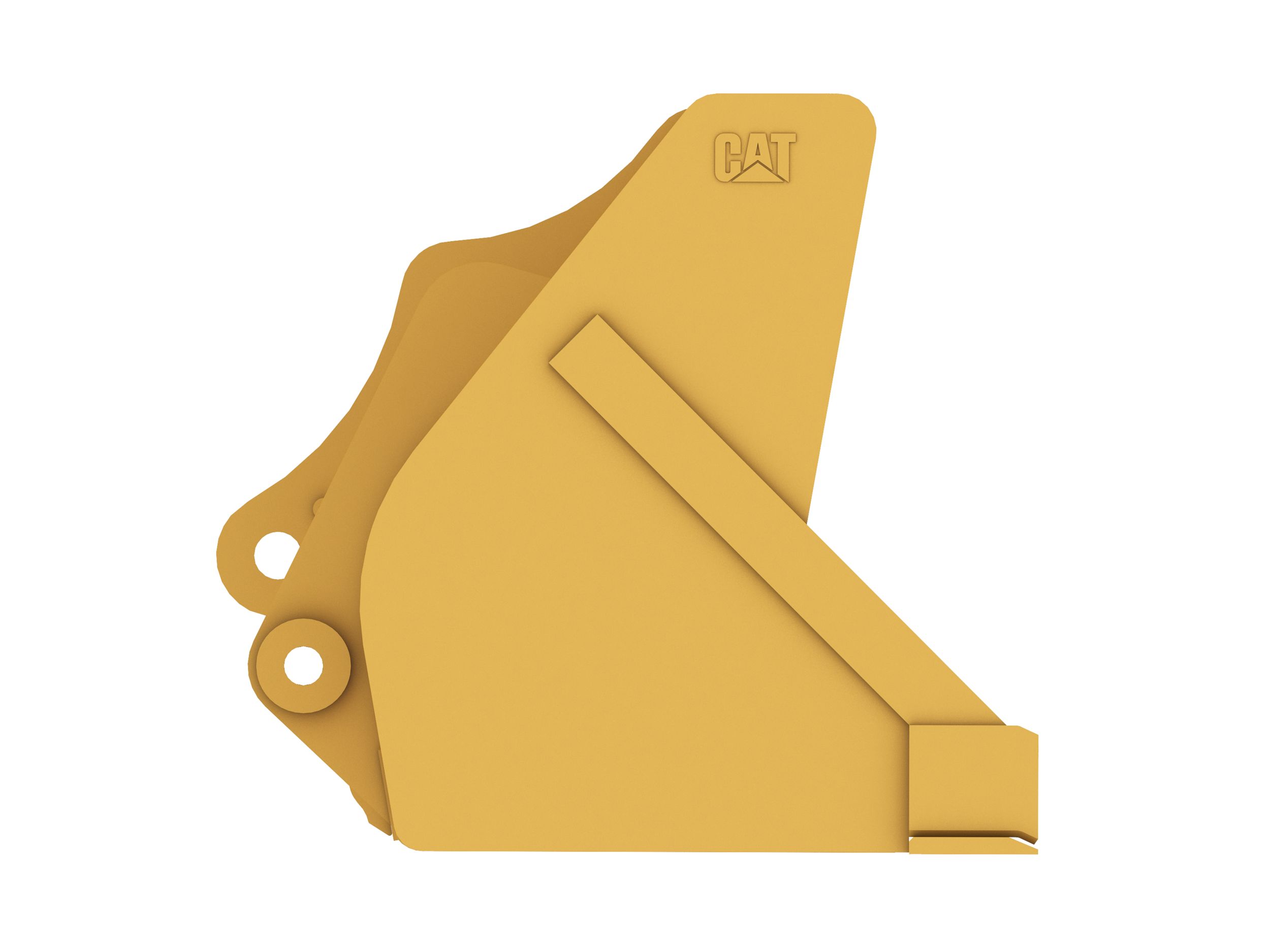

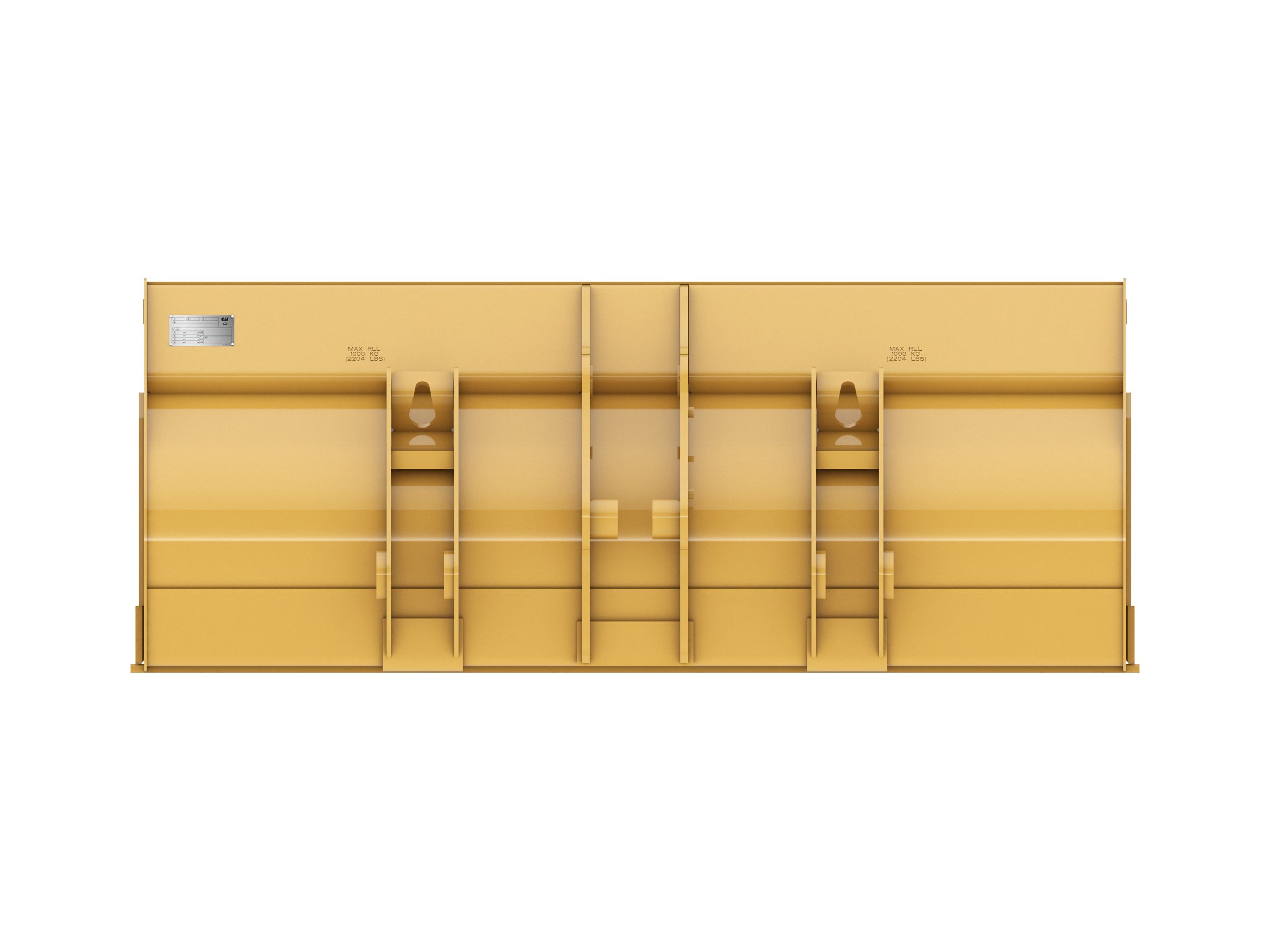

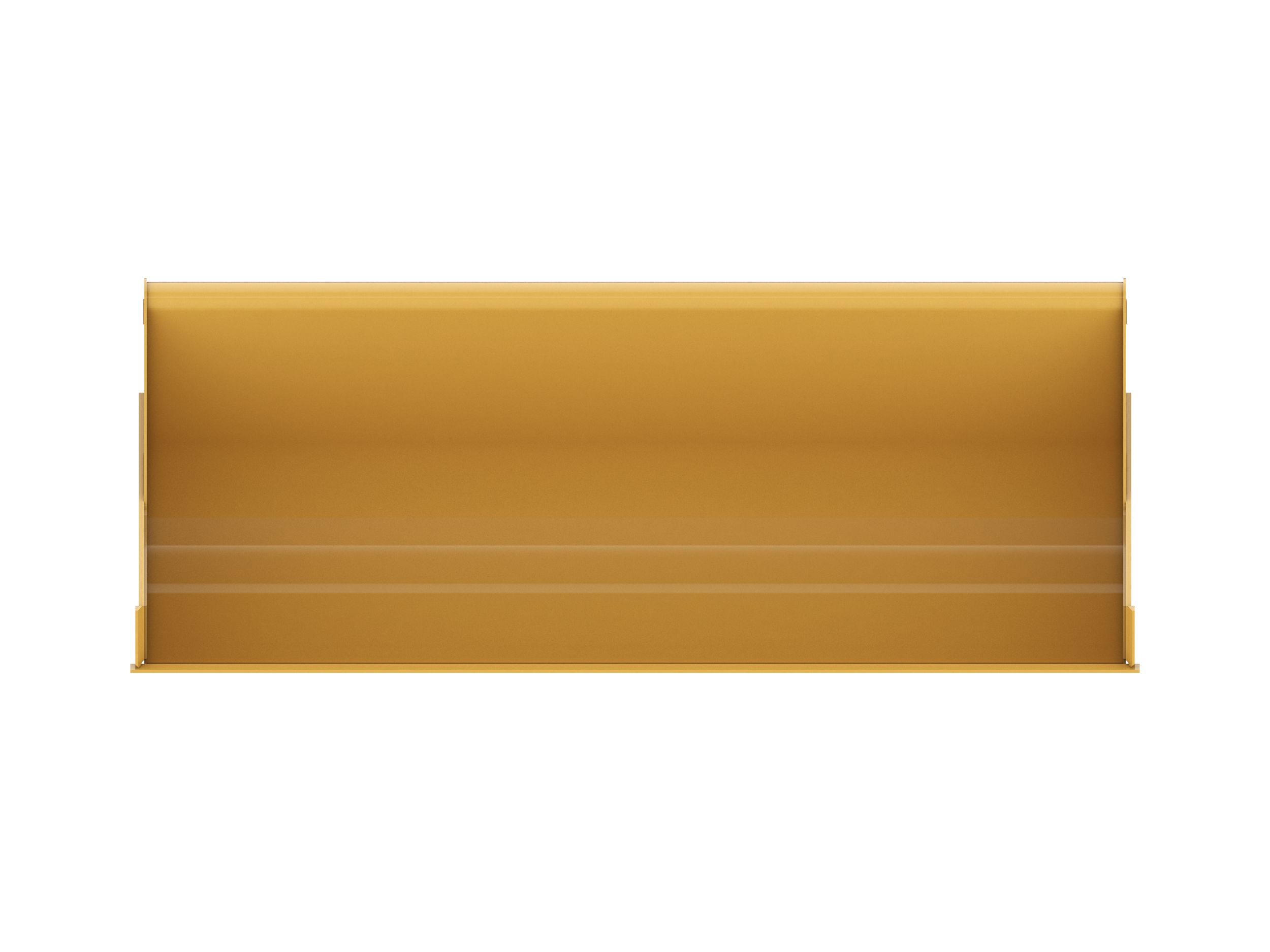

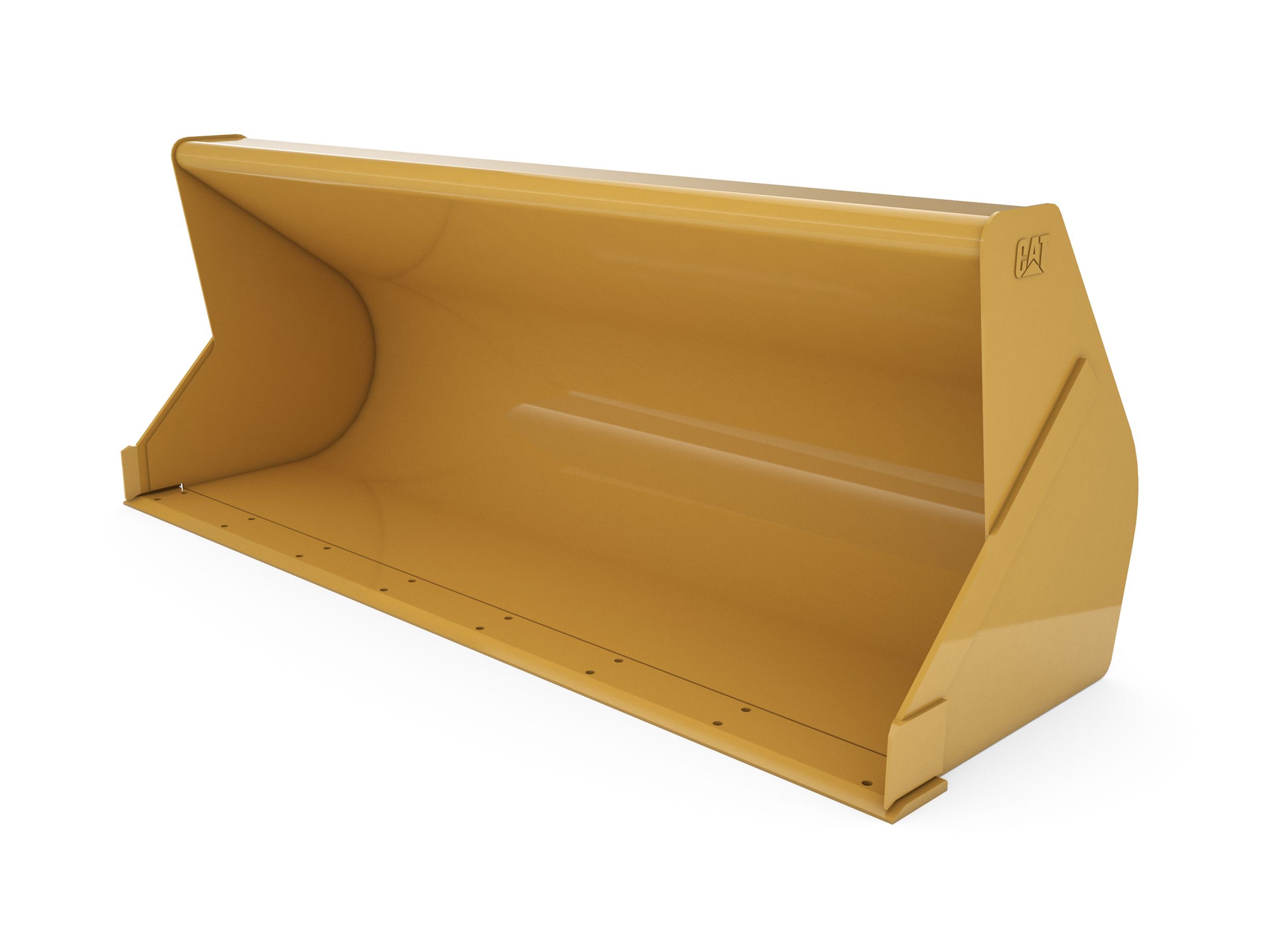

1.1 m3 (1.4 yd3) Pin On General Purpose Bucket

US
Metric

Overview

General Purpose Buckets for Cat® Backhoe Loaders are the all-around choice for loading, carrying, dumping and performing general clean-up work.
Width
89.10 in
2262.00 mm
Height
34.80 in
884.00 mm
Weight
1011.90 lb
459.00 kg
Length
37.60 in
956.00 mm
Capacity
1.40 yd³
1.10 m³
Base Edge Thickness
0.80 in
20.00 mm
Interface Type
Pin On
Features

Application

Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loading and production in a wide variety of applications.

Superior Bucket Fill

Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.

Ground Engaging Tools

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
