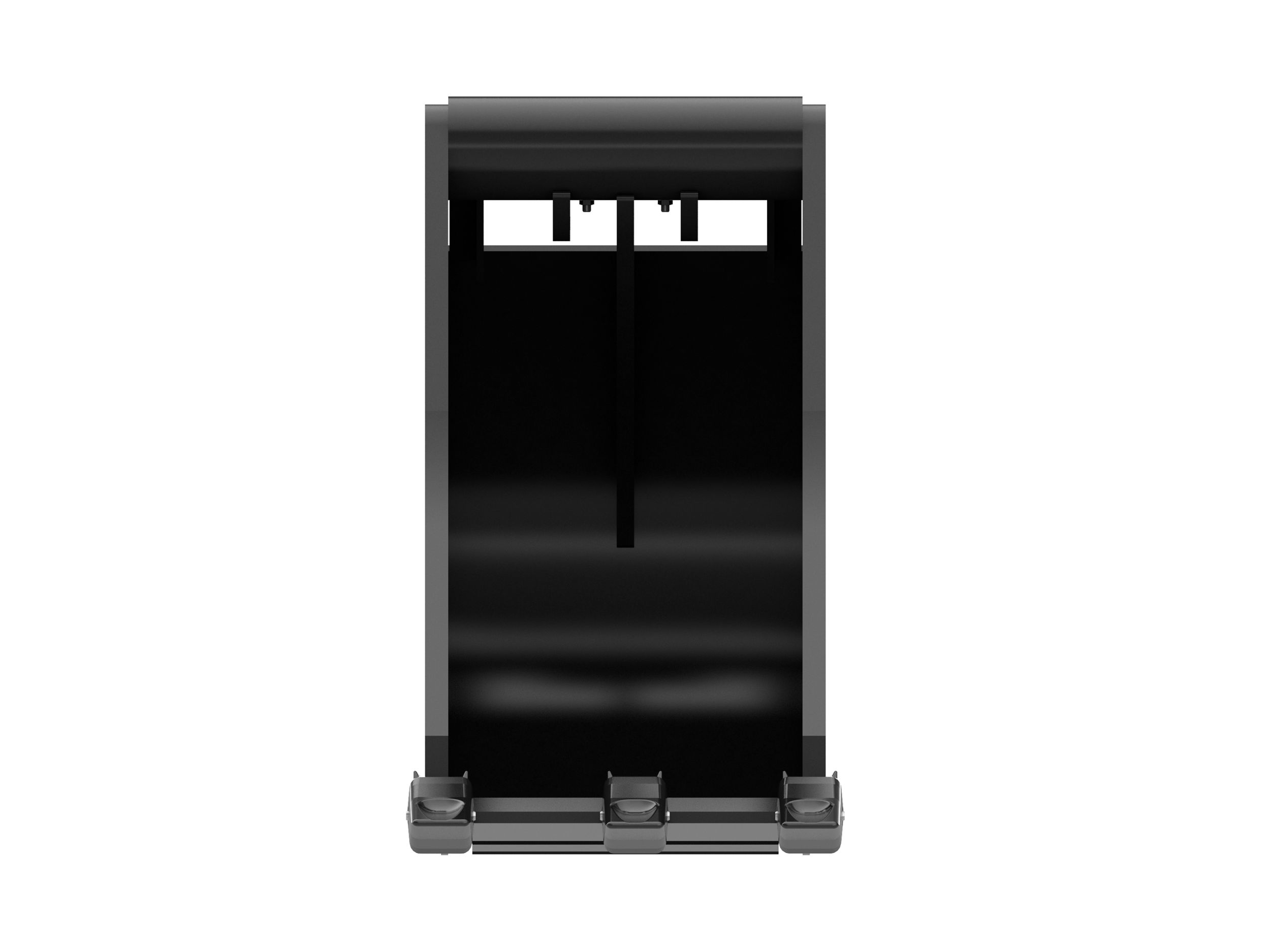

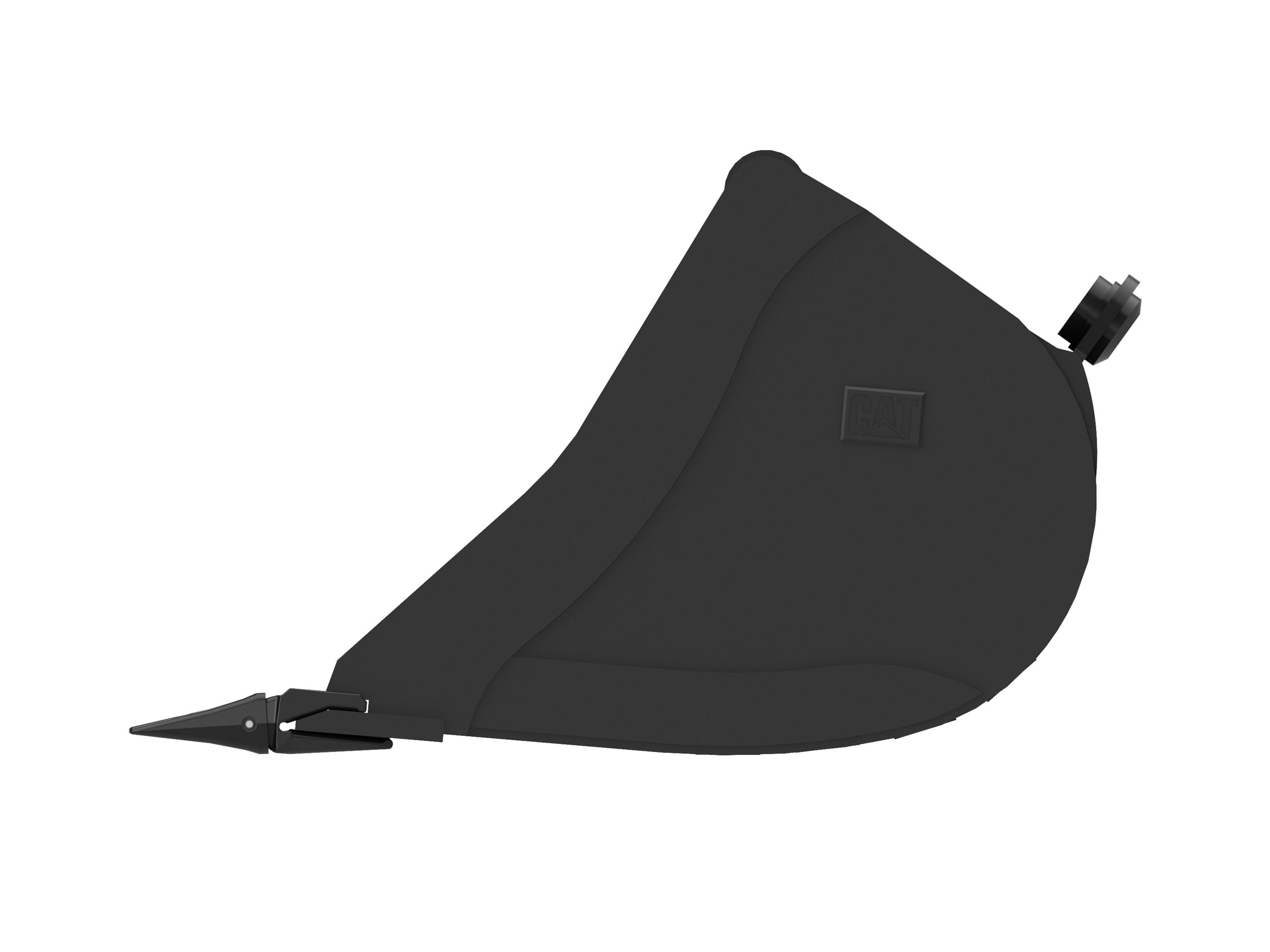

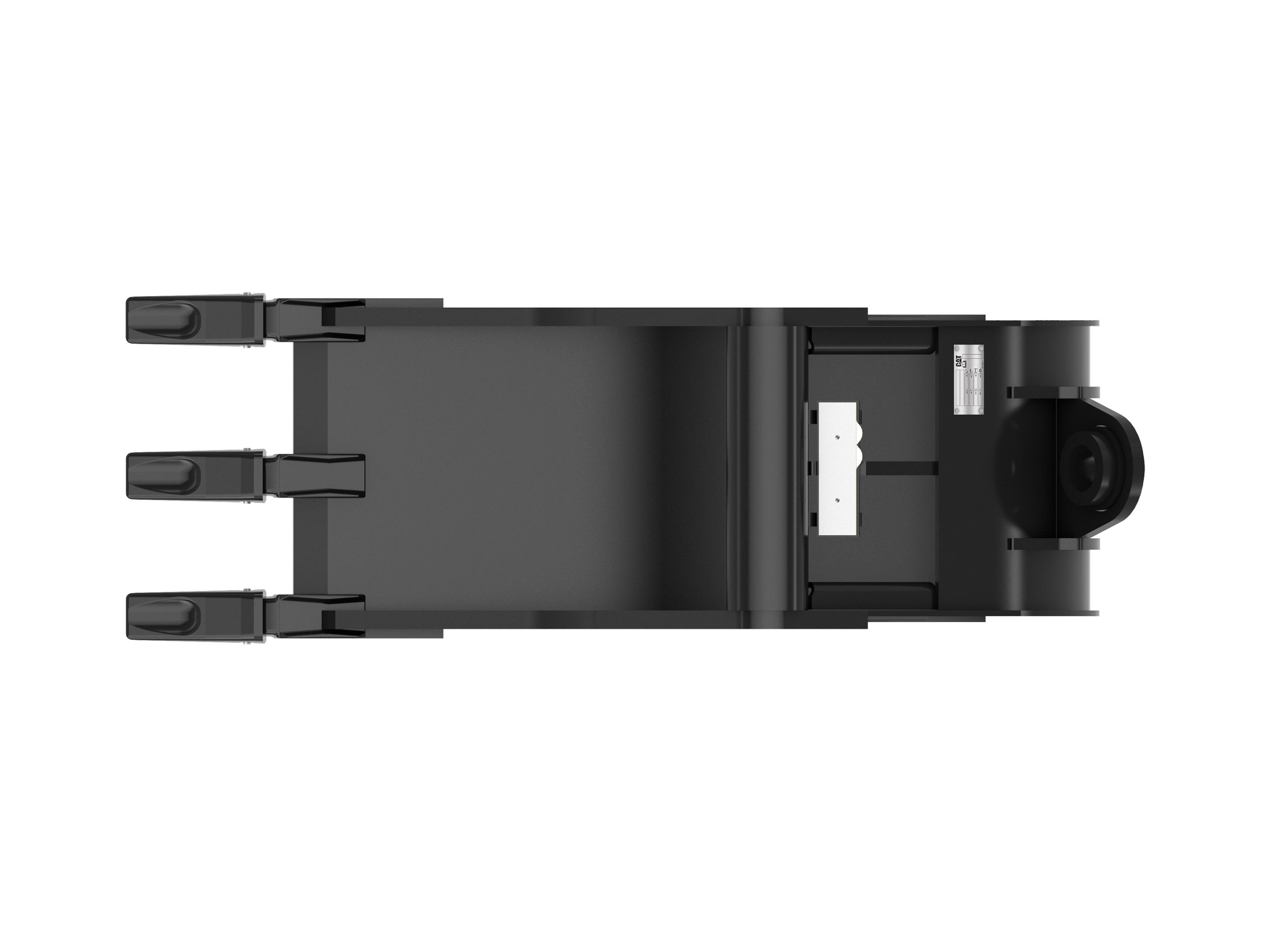

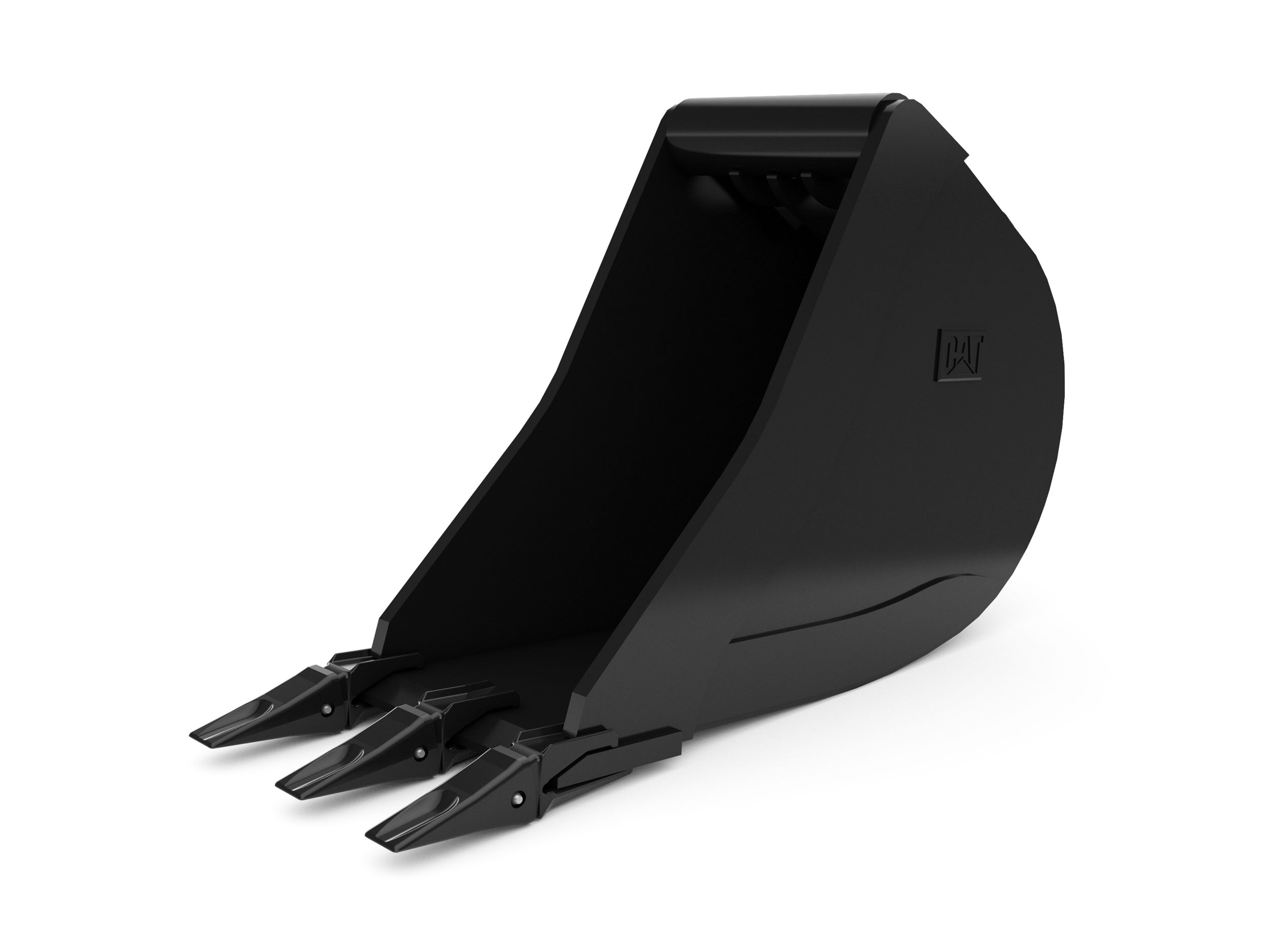

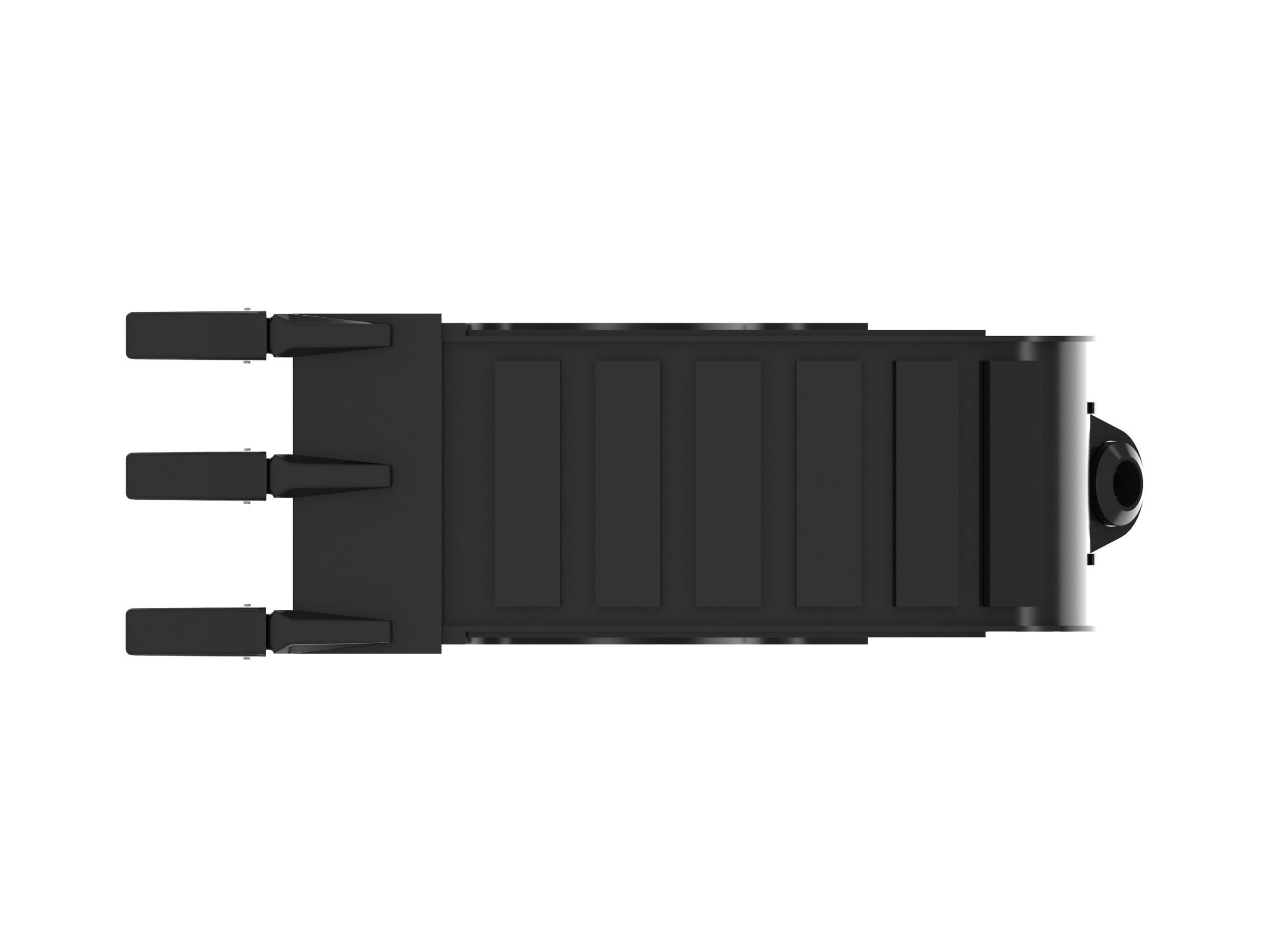

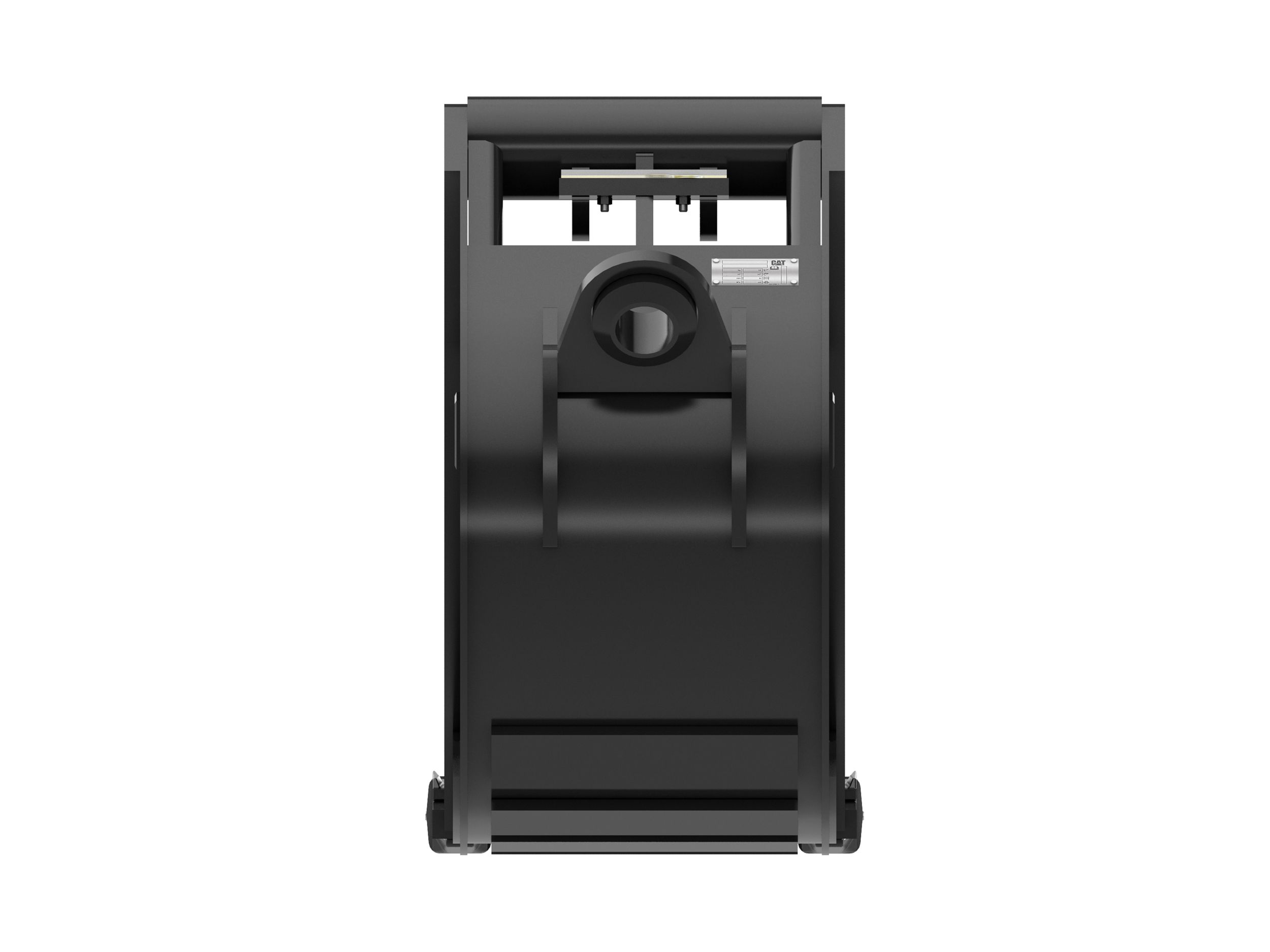

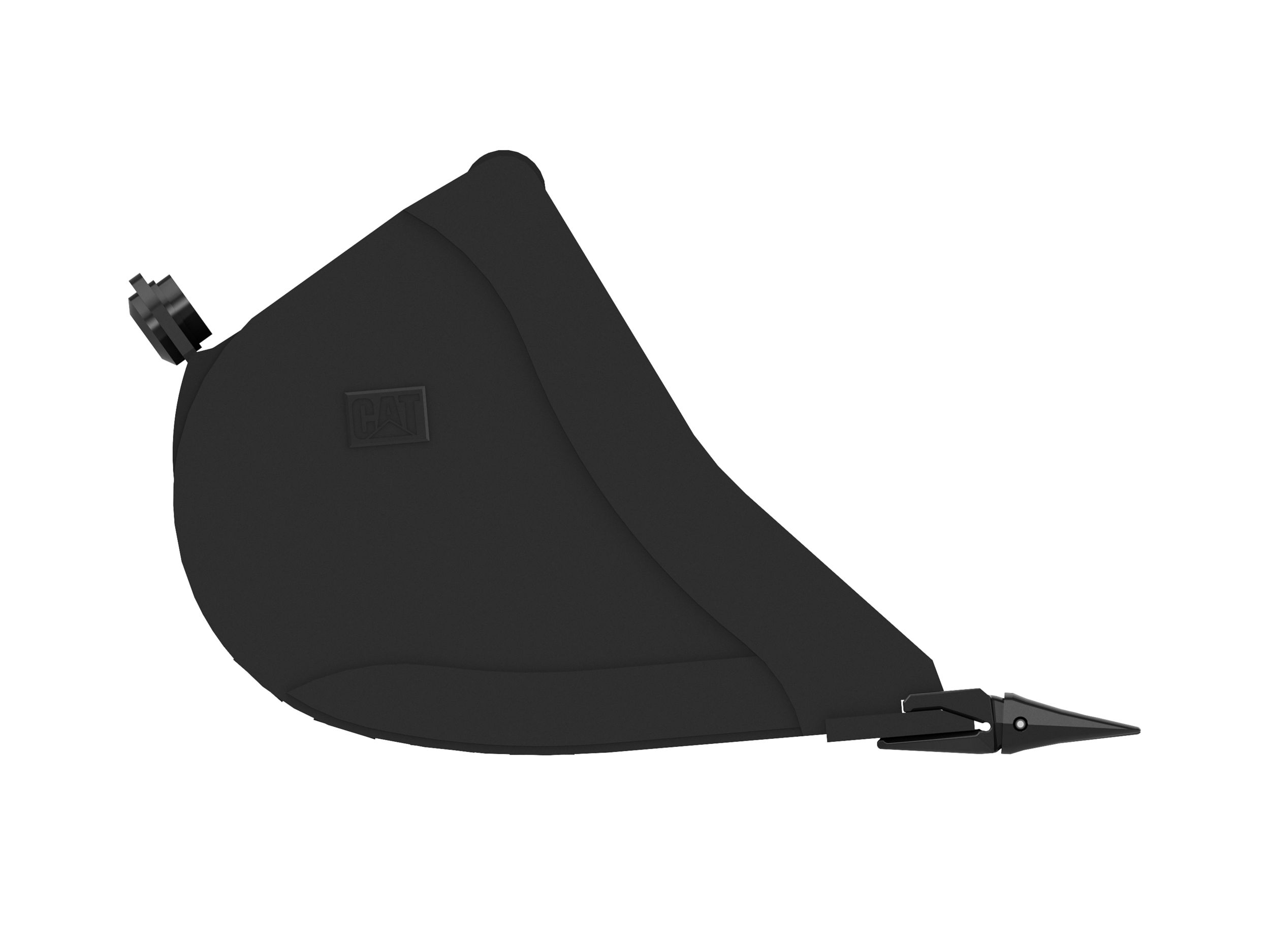

463 mm (18 in) Pin Lock Heavy Duty Bucket

US
Metric

Overview

Cat® Heavy Duty Buckets for Backhoe Loaders are well suited for semi-rocky soil or where hard bank material must be broken out and removed.

Specifications

Capacity
7.00 ft³
200.00 l

Tip Radius
45.00 in
1144.00 mm

Interface Type

Interface Type
Pin lock

Width
18.20 in
463.00 mm
Weight
551.20 lb
250.00 kg

Power Rating

Minimum Power
11.00 HP
8.20 kW
Maximum Power
13.70 HP
10.20 kW

Base Edge Thickness
1.30 in
32.00 mm

General

Bore
2.64 in
67.00 mm
Stroke
2.83 in
72.00 mm
Displacement
31.00 in³
0.50 l
Aspiration
Naturally aspirated
Rotation from Flywheel End
Anti-clockwise

Engine Dimensions*

Dry Weight
126.00 lb
57.00 kg
Height
20.60 in
523.00 mm
Length
16.00 in
407.00 mm
Width
14.60 in
371.00 mm

General

Combustion System
Indirect injection
Compression Ratio
23.5:1
Cooling System
Liquid
Cycle
4 stroke
Number of Cylinders
2 inline
Total Coolant Capacity
0.30 gal (US)
1.10 l
Total Lubricating Capacity
0.50 gal (US)
2.00 l

Power Rating

Maximum Torque
21.90 lb-ft @ 2400 rpm
29.70 Nm @ 2200 rpm
Rated Speed
2800-3600 rpm

Capacity
7.10 ft³
200.00 l
Interface Type
Pin Lock Coupler
Features

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat Buckets are designed for superior productivity, reliability and long life.

Standard Equipment
  • Air inlet system
    • Cast iron exhaust manifold - side outlet
    • Inlet manifold
  • Control system
    • 12 volt alternator
    • 12 volt starter motor
    • Electronic Shut Off Solenoid (ESOS)
  • Cooling system
    • Coolant pump belt driven
    • Coolant temperature switch
    • Cooling fan
  • Fuel system
    • Fuel injection pump
    • Spin on fuel filter
  • General
    • Cast iron engine block
    • Closed circuit breather
    • Glow plug starting aid
    • Cold start capability to –20°C (-4°F) (aided)
    • Gradeability 35° continuous
  • Oil system
    • Lubricating oil pressure switch
    • Lubricating oil sump
    • Spin on lubricating oil filter
