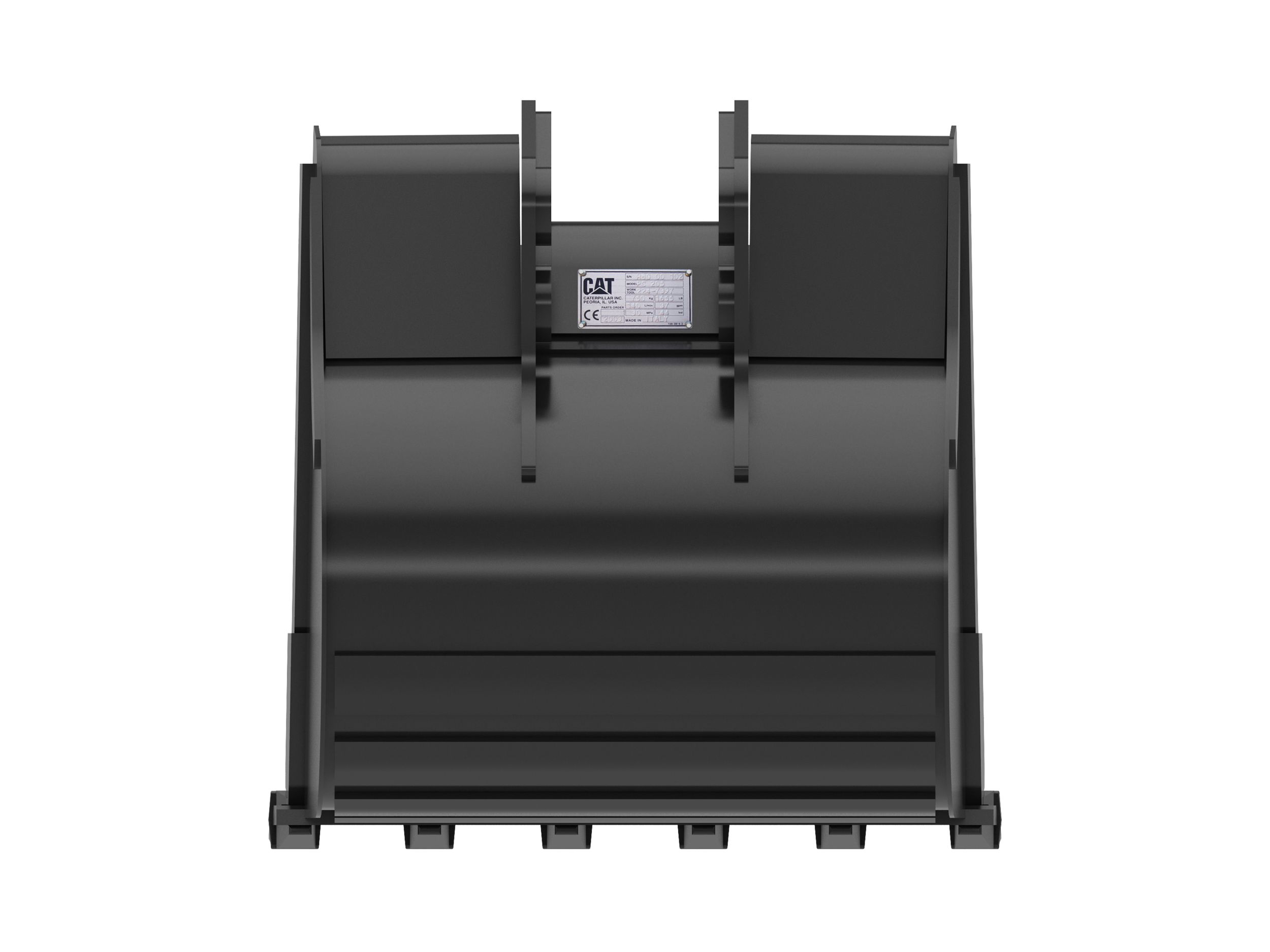

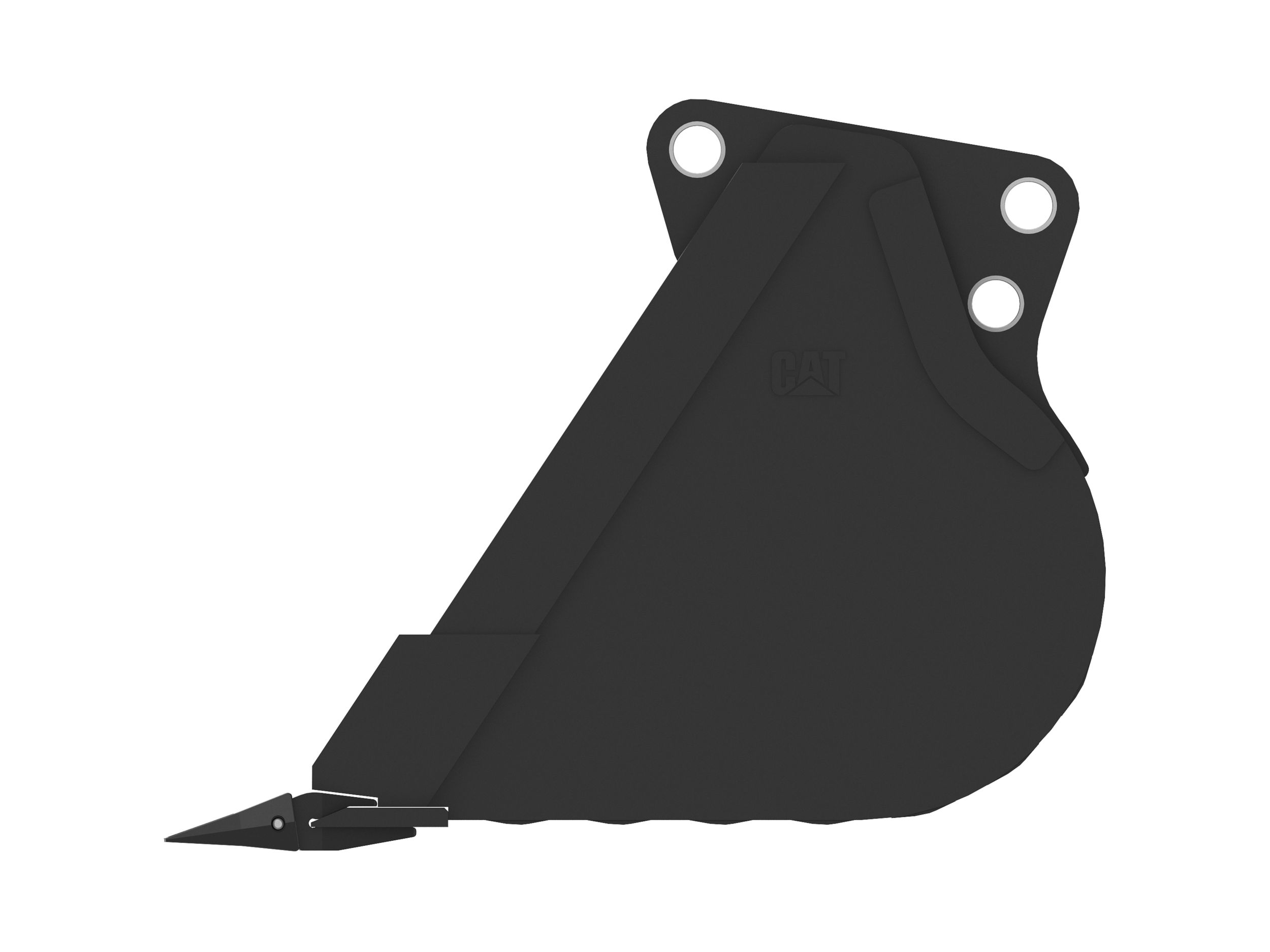

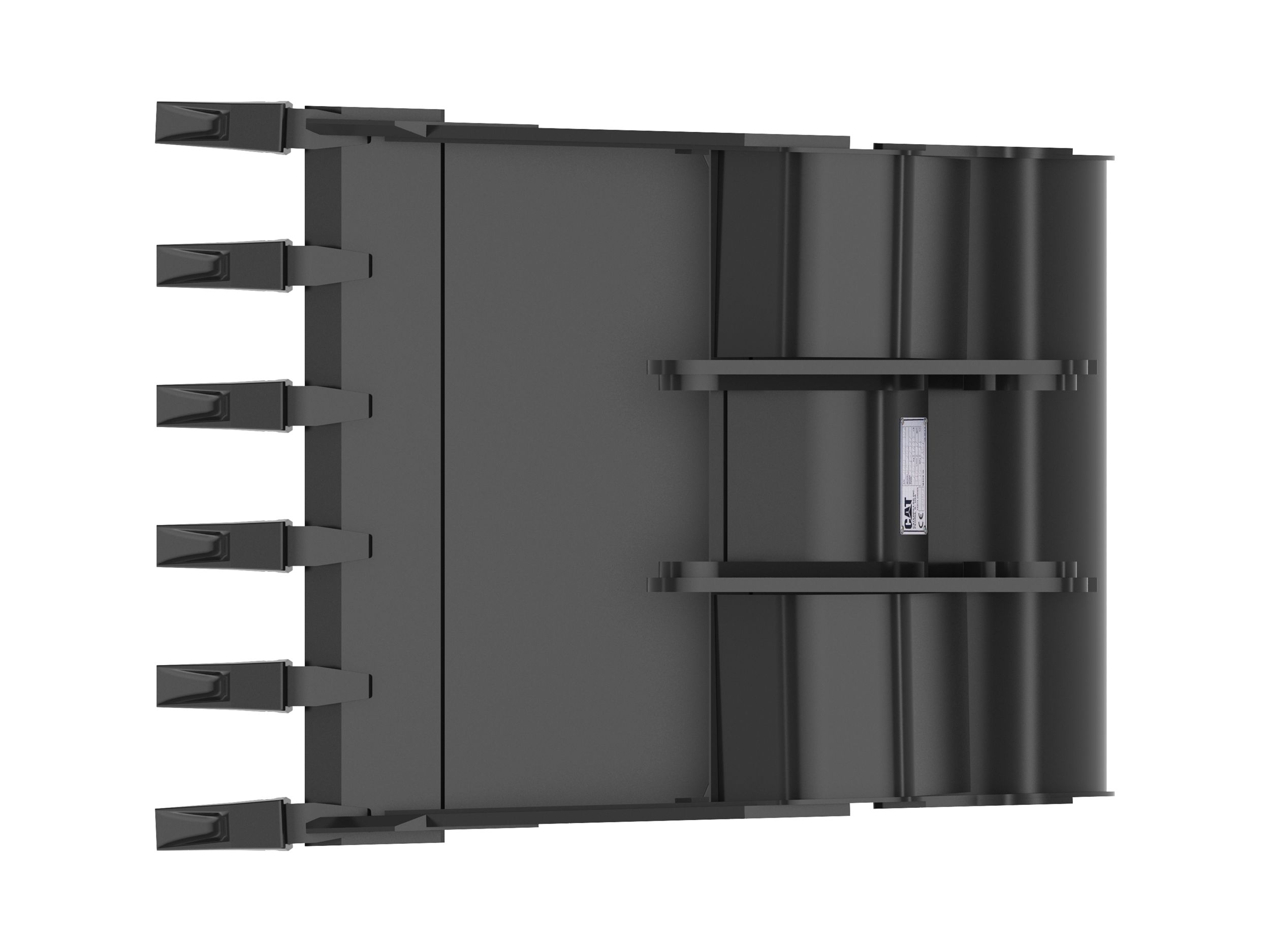

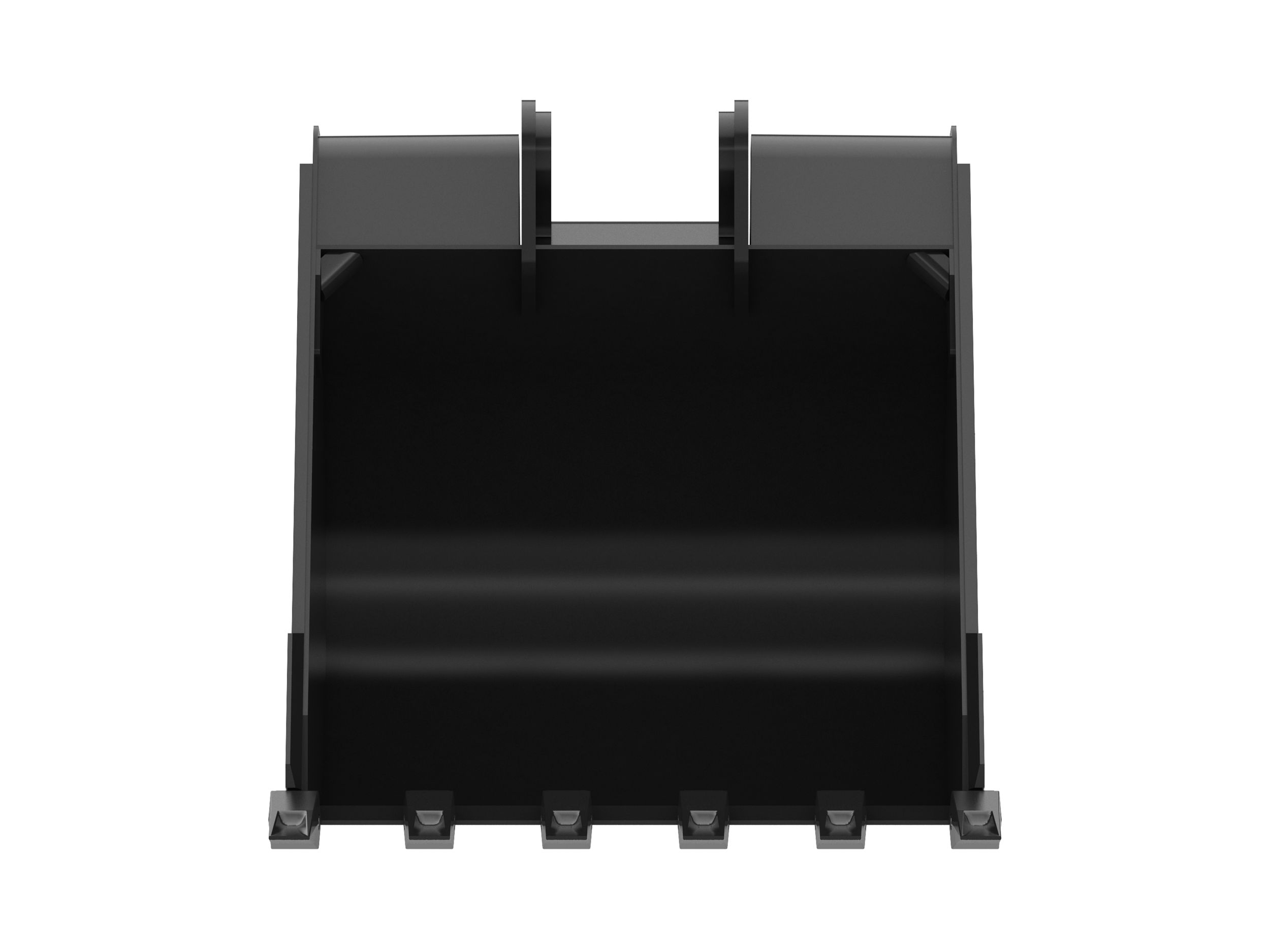

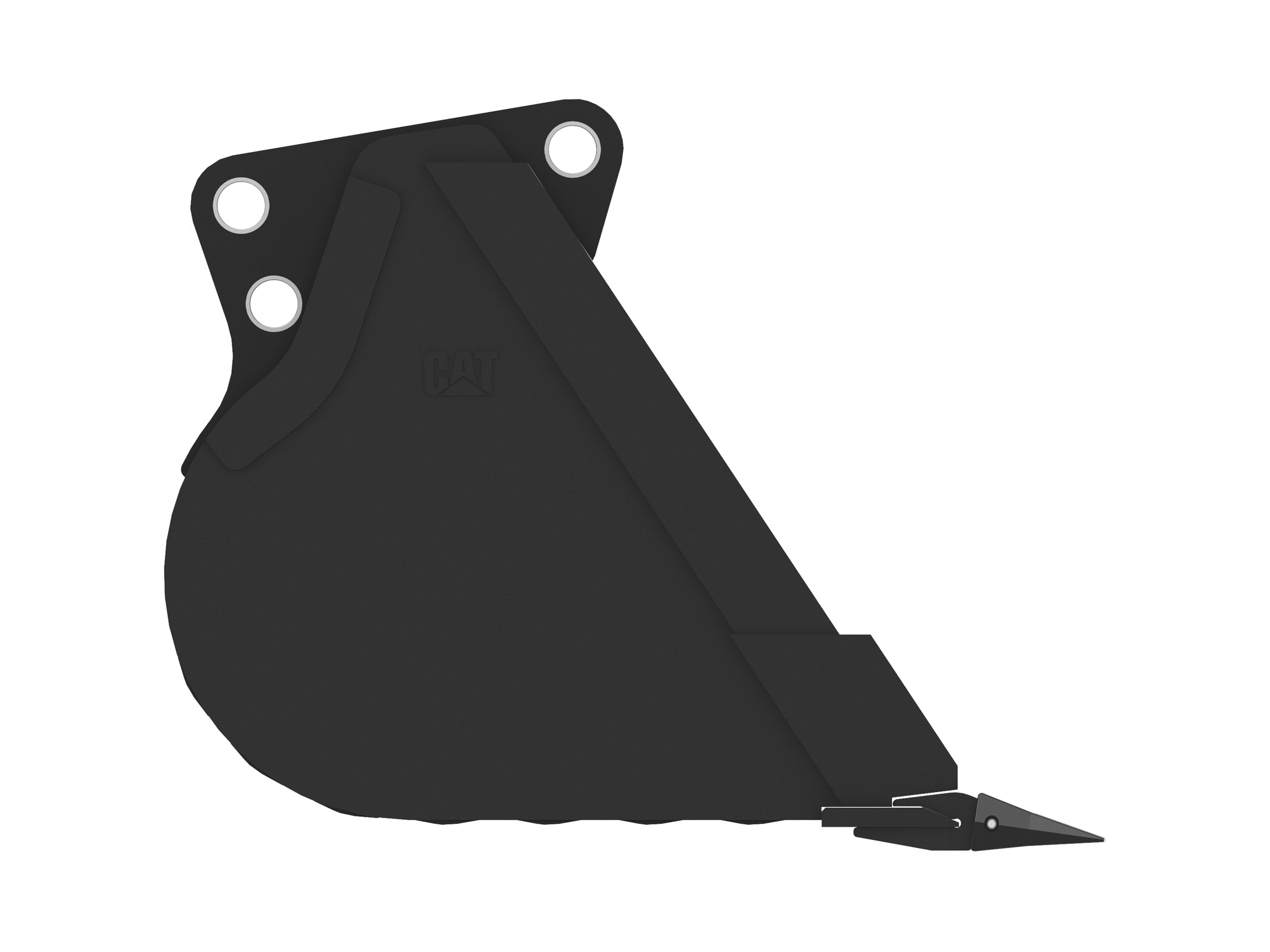

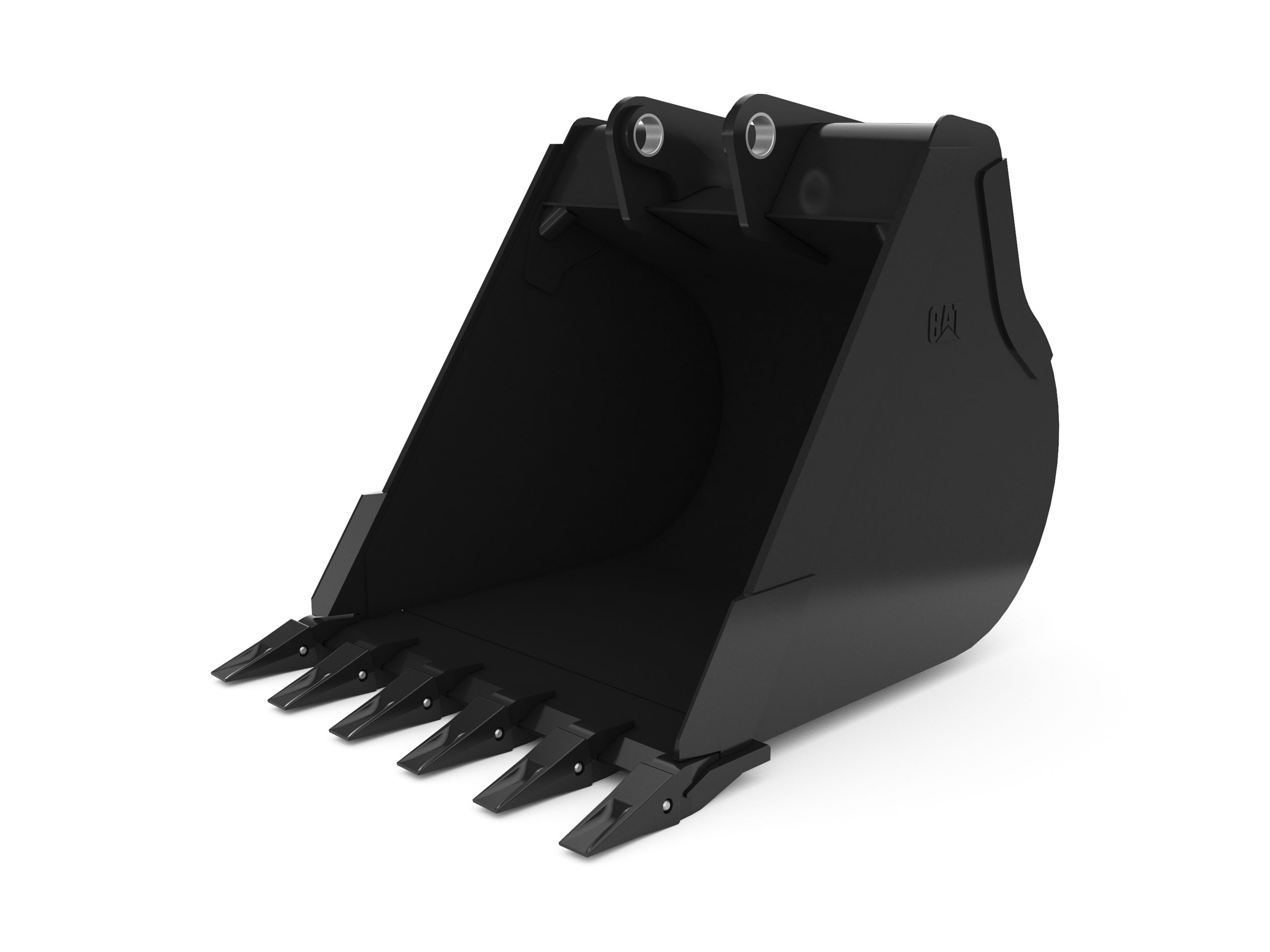

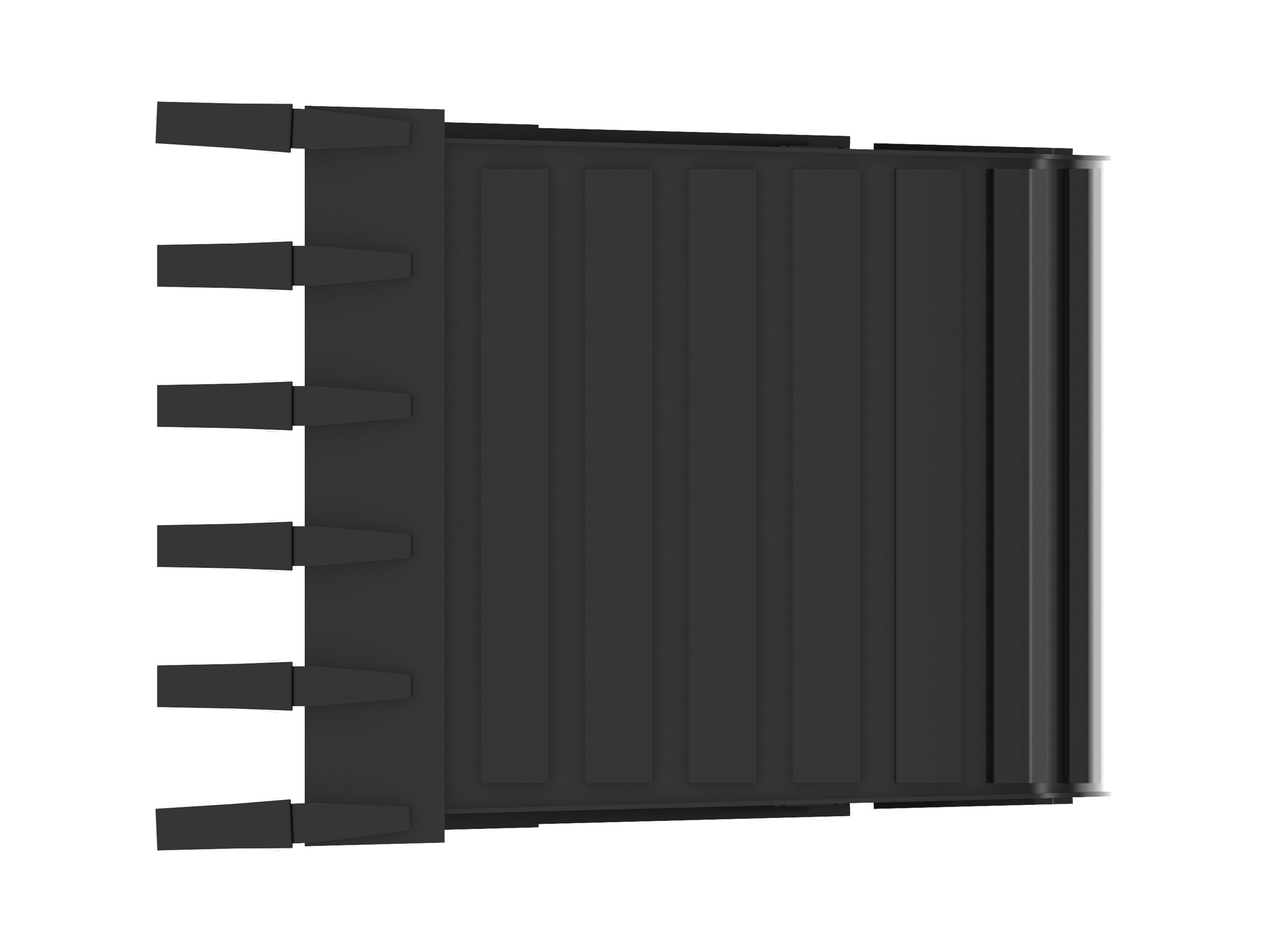

914 mm (36 in) Pin On Heavy Duty Bucket

US
Metric

Overview

Cat® Heavy Duty Buckets for Backhoe Loaders are well suited for semi-rocky soil or where hard bank material must be broken out and removed.
Width
36.00 in
914.00 mm
Rated Capacity
15.50 ft3
439.00 L
Weight
703.30 lb
319.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
35.80 in
909.00 mm
Width
36.00 in
914.00 mm
Rated Capacity
15.50 ft³
439.00 l
Weight
703.30 lb
319.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
35.80 in
909.00 mm

Specifications

Capacity
15.50 ft³
439.00 l

Interface Type

Interface Type
Pin on

Capacity
15.50 ft³
439.00 l
Interface Type
Pin On
Features

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat Buckets are designed for superior productivity, reliability and long life.
