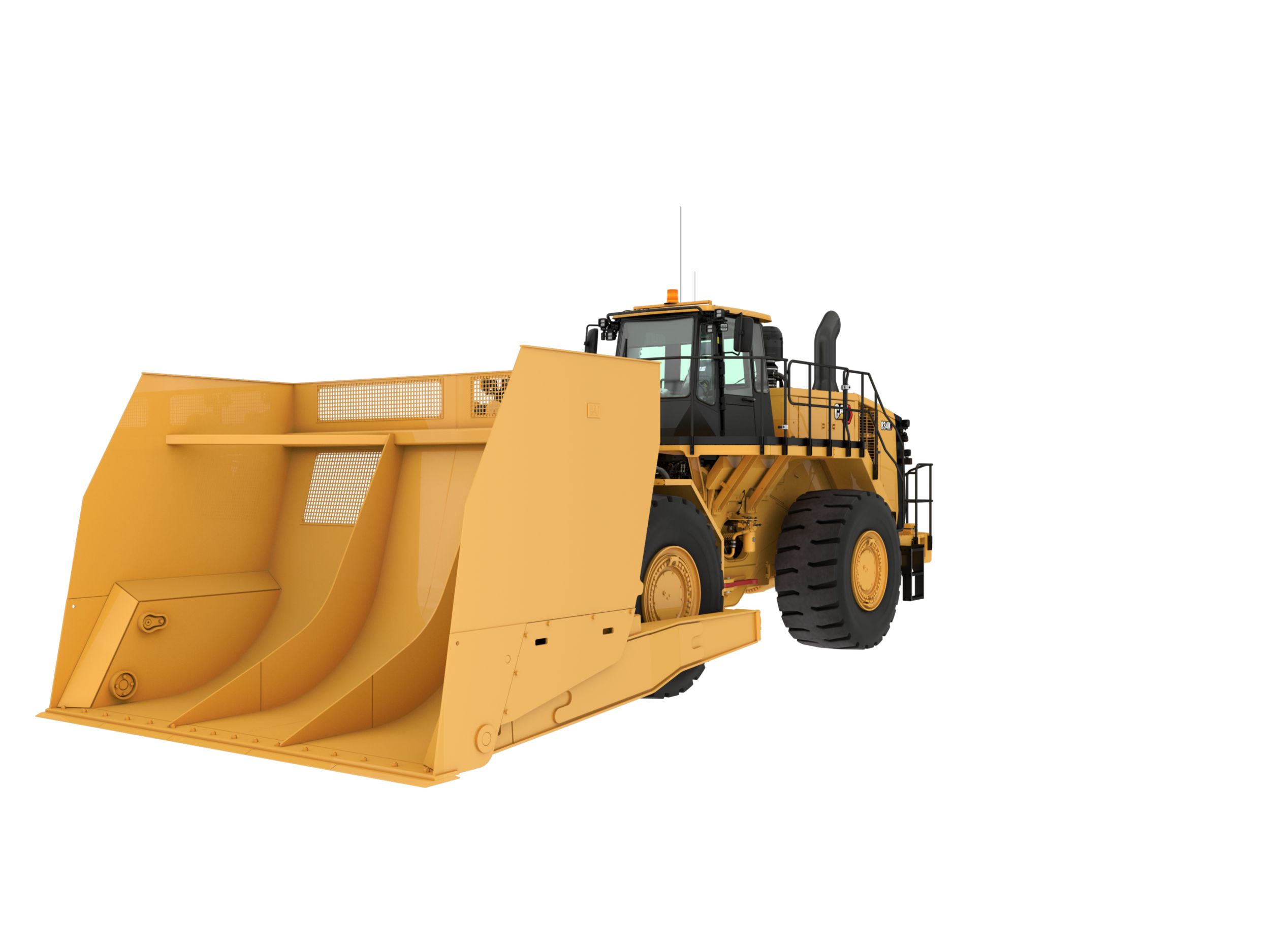

834K Scoop Wheel Dozer

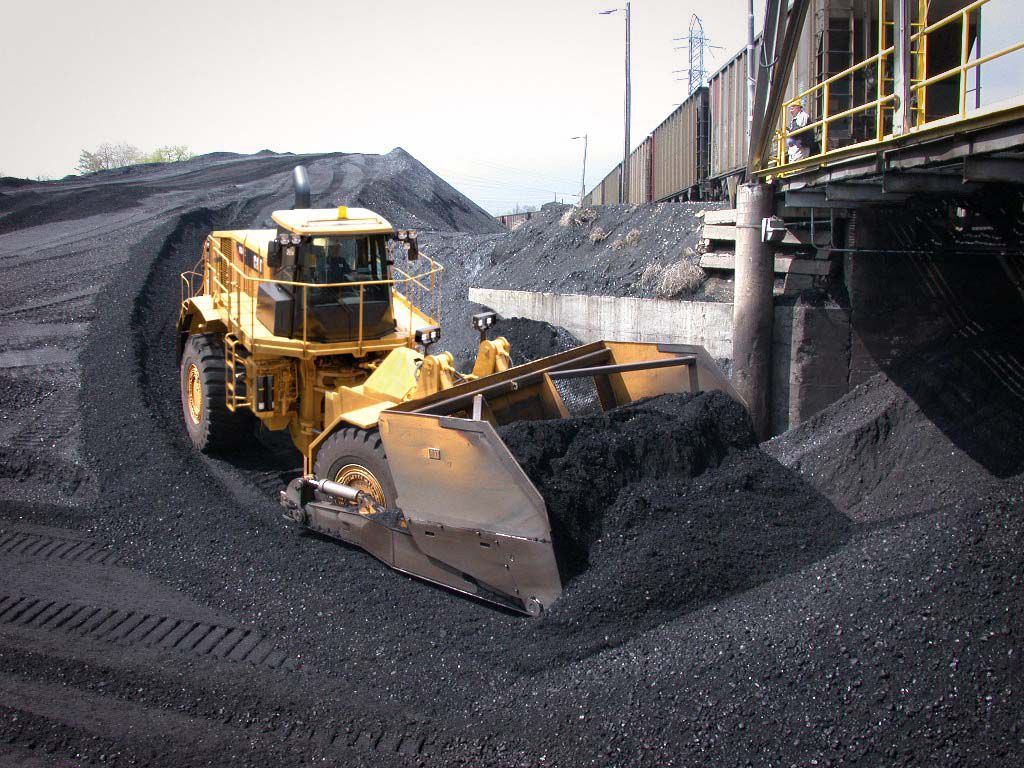

834K Coal Scoop Wheel Dozer

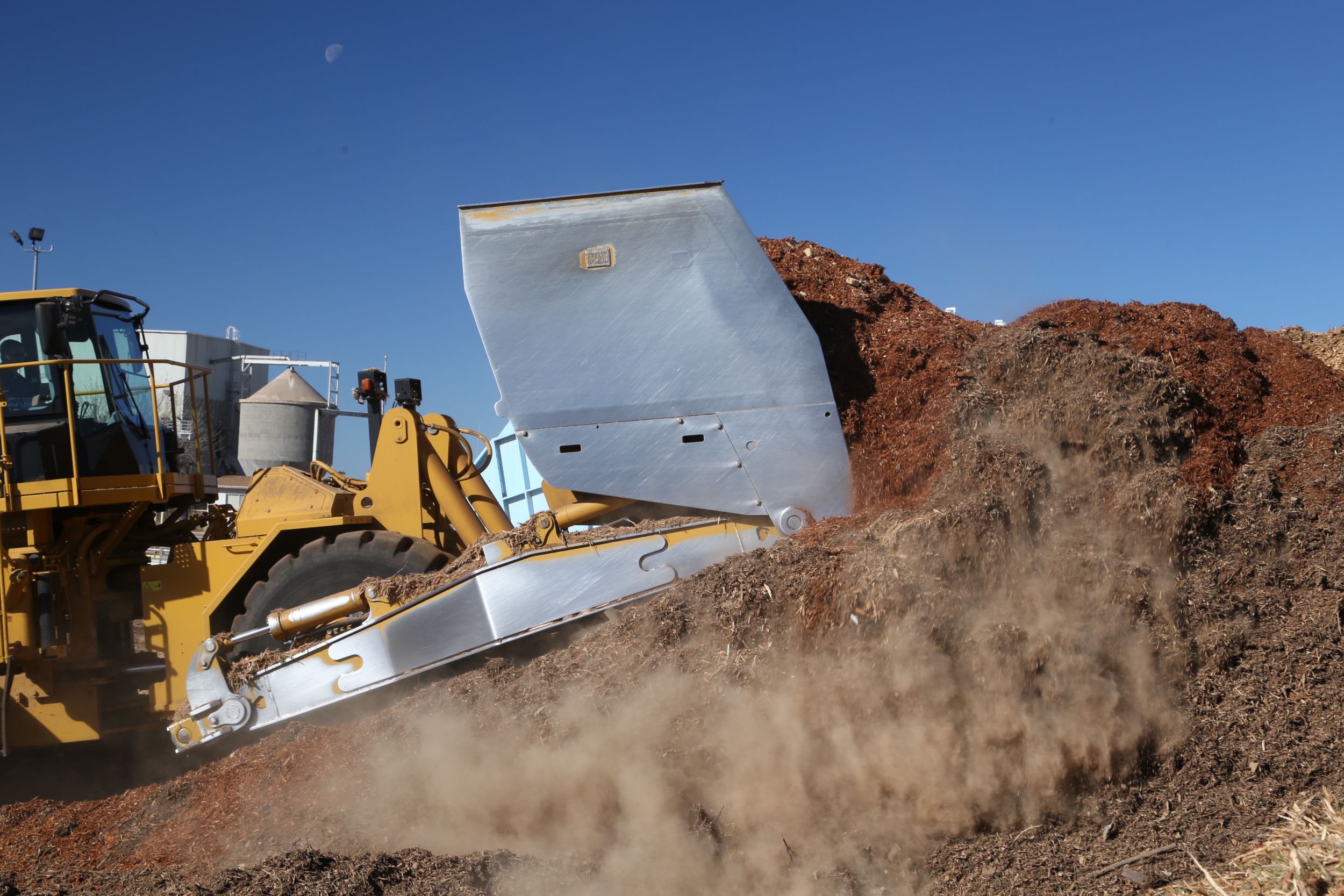

834K Chip Scoop Wheel Dozer

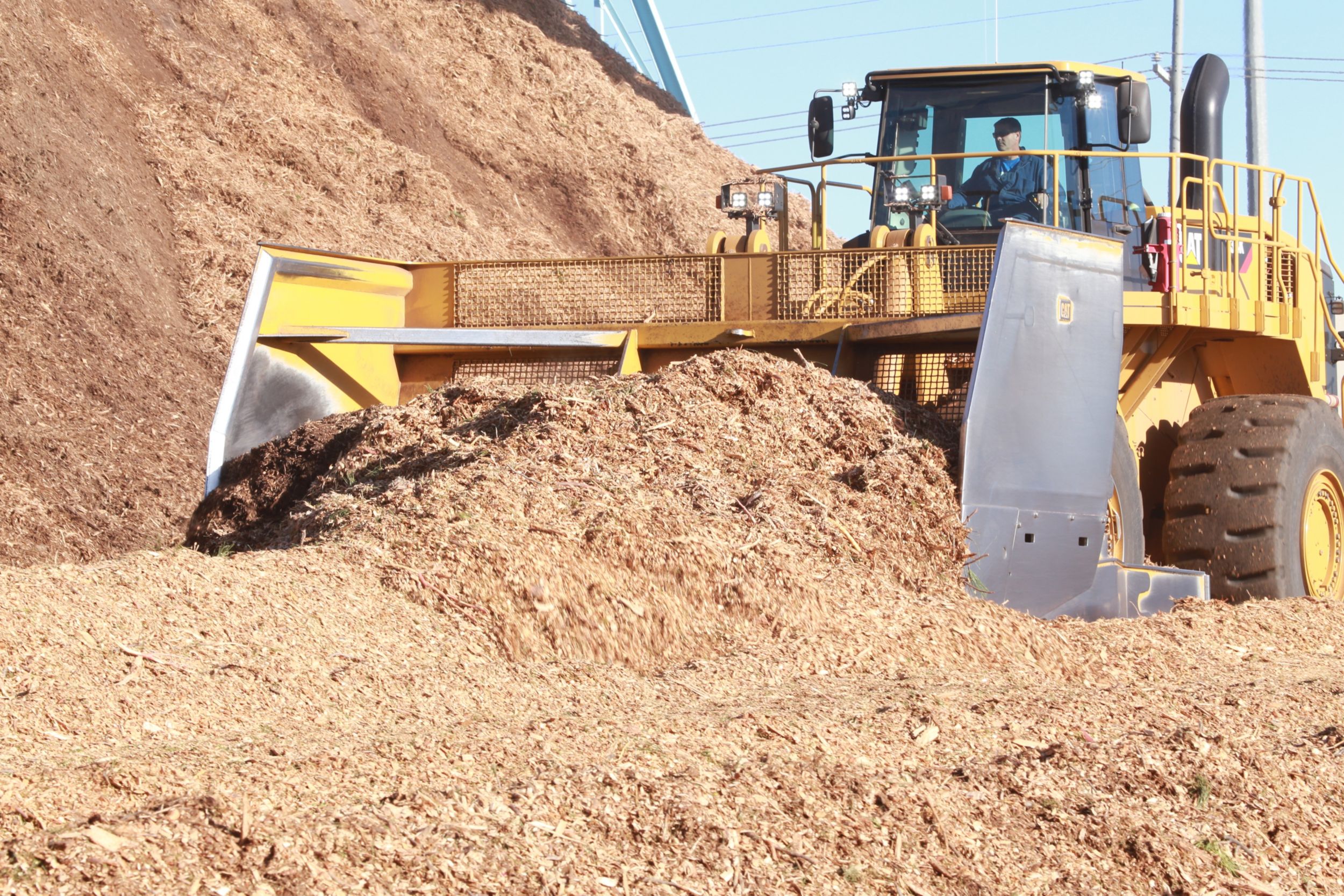

834K Chip Scoop Wheel Dozer
US
Metric

Overview

Cat Wheel Dozers are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to support your job site efficiently and safely while lowering owning and operating costs. Introduced in the mid-1960's, the 834 has been the industry leader for almost 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 834K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

Engine

Engine Model
C18 Cat®
Net Power
496.00 HP
370.00 kW
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1105.00 in³
18.10 l
Rated Speed
1,900/min
Emissions
U.S. EPA Tier 4 Final/EU Stage IV, Tier 3 Equivalent, or Tier 2 Equivalent
Torque Rise
52%
Net - SAE J1349
496.00 HP
370.00 kW
Peak Power Speed
1500/min
Peak Torque - 1,300 rpm
2092.00 ft·lbf
2836.00 N·m
Gross - SAE J1349
562.00 HP
419.00 kW

Transmission

Direct Drive - Reverse 3
14.30 mile/h
23.00 km/h
Forward - 3
12.60 mile/h
20.30 km/h
Direct Drive - Reverse 1
4.50 mile/h
7.20 km/h
Forward - 2
7.20 mile/h
11.60 km/h
Direct Drive - Forward 2
7.70 mile/h
12.40 km/h
Forward - 1
4.20 mile/h
6.80 km/h
Direct Drive - Reverse 2
8.10 mile/h
13.00 km/h
Reverse - 2
7.60 mile/h
12.20 km/h
Direct Drive - Forward 3
13.70 mile/h
22.10 km/h
Reverse - 1
4.20 mile/h
6.80 km/h
Reverse - 3
13.30 mile/h
21.40 km/h
Forward - 4
22.00 mile/h
35.40 km/h
Direct Drive - Forward 1
Lock-up disabled
Direct Drive - Forward 4
23.90 mile/h
38.50 km/h
Transmission Type
Cat planetary power shift

Brakes

Brakes
ISO 3450: 2011

Axles

Front
Fixed
Rear
Trunnion
Oscillation Angle
±13°

Weights

Operating Weight
112838.00 lb
51290.00 kg

Service Refill Capacities

Cooling System
31.70 gal (US)
120.00 l
Crankcase
15.90 gal (US)
60.00 l
Transmission
31.70 gal (US)
120.00 l
Hydraulic System - Tank Only
37.00 gal (US)
140.00 l
Differential - Final Drives - Rear
49.10 gal (US)
186.00 l
Differential - Final Drives - Front
49.10 gal (US)
186.00 l
Hydraulic System Factory Fill
63.40 gal (US)
240.00 l
Diesel Exhaust Fluid Tank*
8.70 gal (US)
33.00 l
Fuel Tank
209.50 gal (US)
793.00 l

Operating Specifications

Coal Scoop Operating Weight
112428.00 lb
51103.00 kg
Chip Scoop Operating Weight
112838.00 lb
51290.00 kg

Sound Performance - Tier 4 Final/Stage IV: Suppression

Operator Sound Level (ISO 6396)
72.00 dB(A)
72.00 dB(A)
Machine Sound Level (ISO 6395)
109.00 dB(A)
109.00 dB(A)

Sound Performance - Tier 4 Final/Stage IV - Standard

Operator Sound Level (ISO 6396)
73.00 dB(A)
73.00 dB(A)
Machine Sound Level (ISO 6395)
111.00 dB(A)
111.00 dB(A)

Dimensions (Approximate)

Height - Top of Exhaust Stack
14.80 ft
4498.00 mm
Centerline of Front Axle to Hitch
7.50 ft
2275.00 mm
Length - With Chip Scoop on Ground
39.30 ft
11974.00 mm
Ground to Center of Front Axle
3.20 ft
978.00 mm
Length - With Coal Scoop on Ground
39.30 ft
11971.00 mm
Height - Top of Cab
13.70 ft
4184.00 mm
Length - Front of Tire
28.40 ft
8715.00 mm
Centerline of Rear Axle to Edge of Bumper
10.50 ft
3187.00 mm
Height - Top of Air Cleaner
12.80 ft
3895.00 mm
Height - Top of Hood
10.90 ft
3334.00 mm
Ground Clearance
1.70 ft
531.00 mm
Wheel Base
14.90 ft
4550.00 mm

Scoops

Coal Scoop Carry Capacity
30.00 yd³
22.90 m³

Hydraulic System - Lift/Dump/Tilt

Pilot Maximum Flow
13.70 gal/min
52.00 l/min
Pilot Relief Valve Setting
580.00 psi
4000.00 kPa
Maximum Flow at 1,900 rpm
153.00 gal/min
582.00 l/min
Lift/Tilt System
Variable displacement piston
Cylinders, Double Acting - Left and Right Dump, Bore and Stroke
127 mm × 838 mm (5.0 in × 33.0 in)
Lift/Tilt System - Circuit
Pilot operated LS valve with EH
Relief Valve Setting - Lift/Tilt
4206.00 psi
29000.00 kPa
Cylinders, Double Acting - Lift, Bore and Stroke
170.0 mm × 1107 mm (6.7 in × 43.6 in)
Pilot System
Variable displacement piston

Hydraulic System - Steering

Maximum Flow
65.80 gal/min
250.00 l/min
Total Steering Angle
86°
Steering Cycle Times - Low Idle
5.70 s
5.70 s
Steering Cycle Times - High Idle
3.10 s
3.10 s
Relief Valve Setting - Steering
3495.00 psi
24100.00 kPa
Steering System - Pump
Piston, variable displacement
Steering System - Circuit
Pilot, load sensing

Service Refill Capacities

Note (1)
All non-road Tier 4 Final/Stage IV Technology diesel engines are required to use:
– Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications.
– Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required.

Sound Performance - Tier 4 Final/Stage IV: Suppression

Note (1)
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Scoops

Type
Large capacity scoops for both wood chip and coal applications. A mesh screen integrated into the back of the scoop maintains visibility to the cutting edge. The chip scoop version has extra screens at the top due to higher capacity.
Components
Both scoops come with dual lift cylinders for increased lift capacity. Integrated stabilizer system makes sure that the scoop stays stable and centralized on the machine. Scoop tilt function is standard and provides ±15 degrees of tilt to maintain grade conditions and keep your operation safe.
Coal Scoop Doze Capacity
60.00 yd³
45.90 m³

Sound Performance - Tier 2 Equivalent/Stage II: Standard

Note (1)
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Transmission

Note
Travel speeds based on 35/65-R33 tire.

Sound Performance - Tier 2 Equivalent/Stage II: Suppression

Note (1)
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (2)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Tier 2 Equivalent/Stage II: Standard

Machine Sound Level (ISO 6395)
112.00 dB(A)
112.00 dB(A)

Sound Performance - Tier 2 Equivalent/Stage II: Suppression

Machine Sound Level (ISO 6395)
109.00 dB(A)
109.00 dB(A)

Sound Performance - Tier 2 Equivalent/Stage II: Standard

Operator Sound Level (ISO 6396)
81.00 dB(A)
81.00 dB(A)

Dimensions (Approximate)

Height - Edge of Dumped Scoop
5.00 ft
1520.00 mm
Height - Edge of Retracted Scoop
7.40 ft
2250.00 mm

Sound Performance - Tier 4 Final/Stage IV - Standard

Note (2)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Tier 2 Equivalent/Stage II: Suppression

Operator Sound Level (ISO 6396)
81.00 dB(A)
81.00 dB(A)

Sound Performance - Tier 2 Equivalent/Stage II: Standard

Note (3)
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Hydraulic System - Lift/Dump/Tilt

Cylinders, Double Acting - Tilt, Bore and Stroke
152.4 mm × 953 mm (6.0 in × 37.5 in)

Sound Performance - Tier 4 Final/Stage IV - Standard

Note (1)
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Service Refill Capacities

Note (2)
*Only applicable to Tier 4 Final/Stage IV equipped machines.

Scoops

Chip Scoop Carry Capacity
35.00 yd³
26.80 m³

Sound Performance - Tier 2 Equivalent/Stage II: Suppression

Note (3)
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Scoops

Chip Scoop Doze Capacity
70.00 yd³
53.50 m³

Sound Performance - Tier 4 Final/Stage IV: Suppression

Note (2)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Tier 4 Final/Stage IV - Standard

Note (3)
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Dimensions (Approximate)

Dump Angle at Full Lift Height
64 deg

Sound Performance - Tier 4 Final/Stage IV: Suppression

Note (3)
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Sound Performance - Tier 2 Equivalent/Stage II: Standard

Note (2)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Features

Move More with Less Fuel

Long Term Value and Durability

Built to Perform

Work in Comfort

Integrated Cat® Technologies

Technology that Gets Work Done

Safety First

Reduce Environmental Impact

Achieve Greater Productivity

Save on Fuel Costs

Save on Service and Maintenance

Top-Tier Service and Support

Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • ELECTRICAL
    • Alarm, back-up
    • Alternator (100 amp)
    • Batteries, maintenance-free
    • Deutsch terminal connectors
    • Electrical system (24V)
    • Lighting system, halogen (front and rear), access stairway
    • Starter, electric (heavy-duty)
    • Starting receptacle for emergency starts
  • OPERATOR ENVIRONMENT
    • Air conditioner
    • Cab, sound suppressed and pressurized
    • Internal four-post rollover protective structure (ROPS/FOPS), radio ready (entertainment) includes antenna, speakers and converter (12V, 15 amp), 12V power port, tinted glass
    • Cigar lighter (12V, 15 amp) and ashtray
    • Coat hook
    • Electro-Hydraulic tilt, tip controls
    • Heater and defroster
    • Horn, electric
    • Light, cab (dome)
    • Lock-up clutch disable switch
    • Lunchbox and beverage holders
    • Monitoring system (VIMS 3G)
    • Action alert system, three category
    • Instrumentation, gauges:
      – Engine coolant temperature
      – Fuel level
      – Hydraulic oil temperature
      – Speedometer/tachometer
      – Transmission oil temperature
      – Instrumentation, warning indicators
      – Axle/brake oil temperature (front/rear)
      – Brake oil pressure
      – Electrical system, low voltage
      – Engine intake/combustion air temperature
      – Engine oil pressure
      – Engine overspeed
      – Fuel pressure
      – Hydraulic oil filter status
      – Parking brake status
      – Transmission filter status
      – Cat Vision (rear vision camera)
    • Mirrors, rearview (externally mounted)
    • Rimpull select switch
    • Seat, Comfort Series (cloth), air suspension
    • Seat belt, retractable, 76 mm (3 in) wide
    • STIC control system with steering lock
    • Tilt and lift control system lock
    • Transmission gear indicator
    • Wet-arm wipers/washers (front and rear)
    • Intermittent front wiper
  • POWER TRAIN
    • Brakes, full hydraulic, enclosed, wet-disc
    • Multiple disc service brakes
    • Case drain filters
    • Demand fan
    • Engine, Cat C18 MEUI, ATAAC, ADEM™ IV controller
    • Fuel priming pump (electric)
    • Parking brake
    • Precleaner, engine air intake
    • Radiator, Next Generation Modular
    • Radiator (NGMR)
    • Separated cooling system
    • Starting aid (ether) automatic
    • Throttle lock
    • Torque converter, impeller clutch with lock-up control system and rimpull control system (switch and dial in cab)
    • Transmission, planetary, autoshift (4F/3R)
  • OTHER STANDARD EQUIPMENT
    • Doors, service access (locking)
    • Engine, crankcase, 500 hour interval with CH-4 oil
    • Grouped Electronic Clutch Pressure
    • Control, remote mounted pressure taps
    • Hitch, drawbar with pin
    • Hood, metallic with lockable service doors
    • Hydraulic oil cooler
    • Muffler (under hood)
    • Oil sampling valves
    • Stairway, left side (rear access)
    • Steering, load sensing
    • Vandalism protection caplocks
    • Venturi stack
    • ±15 degree scoop tilt
  • TIRES, RIMS AND WHEELS
    • A tire must be selected from the mandatory attachments section – base machine price includes a tire allowance
  • ANTIFREEZE
    • Premixed 50 percent concentration of Extended Life Coolant with freeze protection to –34° C (–29° F)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWER TRAIN
    • –50° C (–58° F) antifreeze
    • Engine oil change system, high speed, Wiggins
    • Engine block heater 120V or 240V
    • Engine compression brake
    • Automatic retarding control (with engine compression brake)
    • Axle oil cooler
    • Second starter
    • Jacket water heater
    • Crankcase guards
  • OPERATOR ENVIRONMENT
    • Cab precleaner
    • AM/FM/CD/MP3 radio
    • Satellite Sirius radio with Bluetooth
    • LED warning strobe
    • CB radio ready
    • Window pull down visor
    • Sound suppression
    • Visor group – cab pull-down shade
    • Cat Detect (rear object detection)
  • MISCELLANEOUS ATTACHMENTS
    • Front and rear roading fenders
    • Fast fill fuel system (Shaw-Aero)
    • Cat Detect
    • Halogen and HID lights
