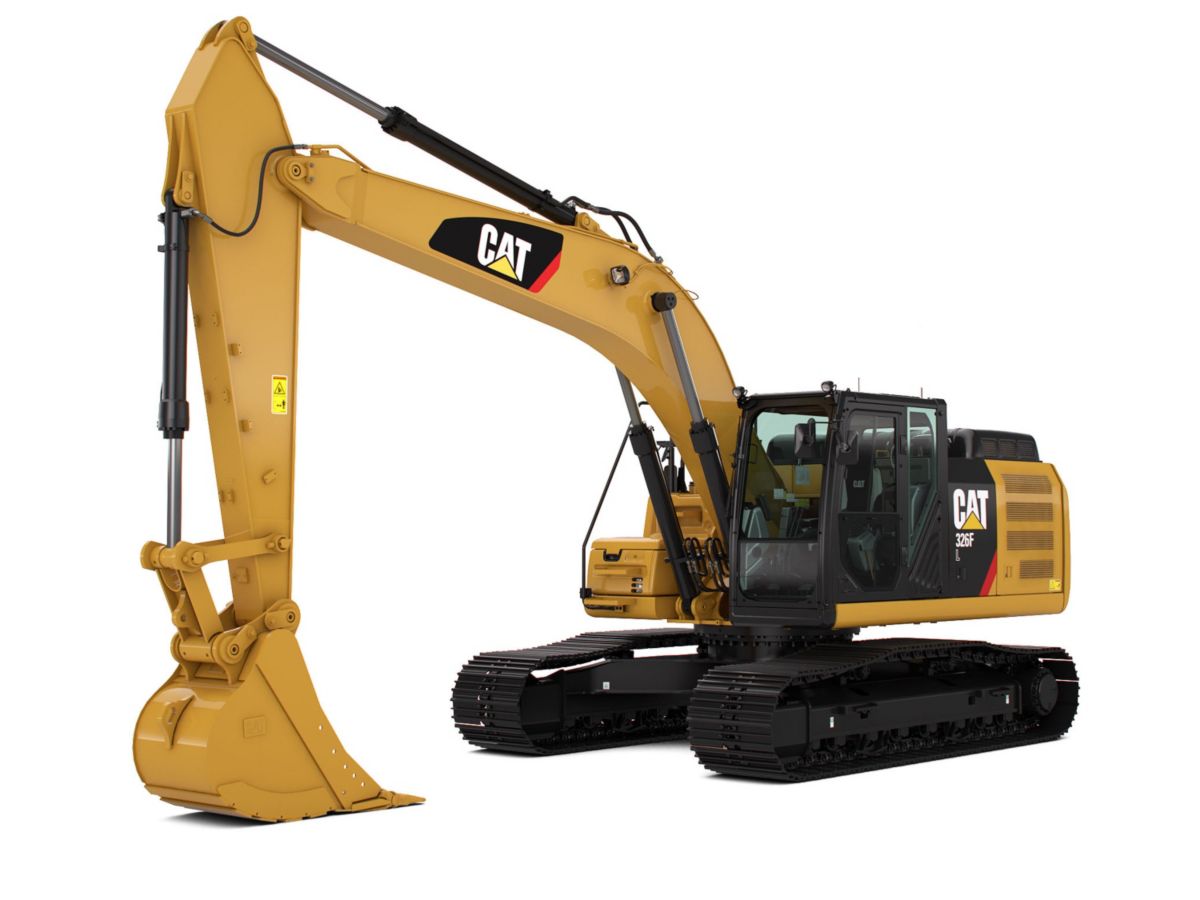

326F L Medium Hydraulic Excavator
326F L Medium Hydraulic Excavator
326F L Medium Hydraulic Excavator
US
Metric

Overview

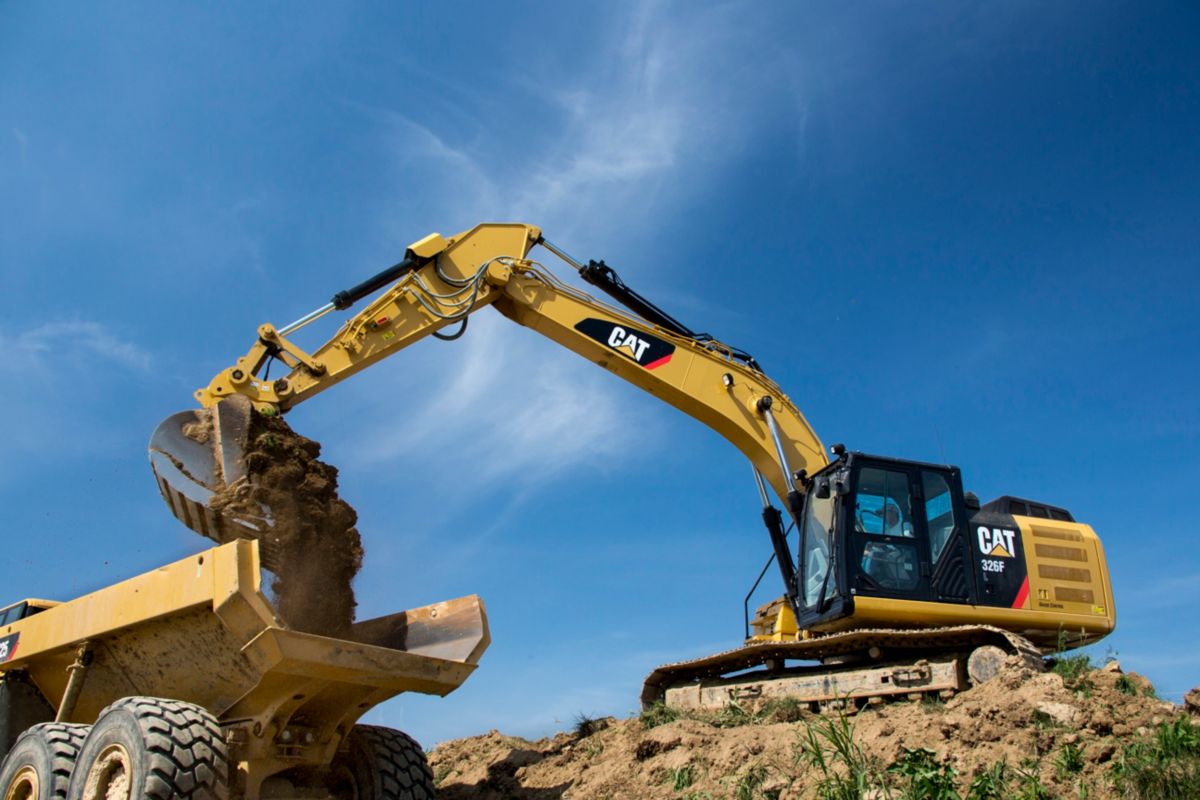

The 326F L is built to keep your production numbers high and your owning and operating costs low. The machine's C7.1 ACERTâ„¢ engine and state-of-the-art hydraulic system seamlessly work together so you can move tons of material all day long with tremendous speed, precision, and efficiency.

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
200.00 HP
149.00 kW
Gross Power – SAE J1995
204.00 hp
152.00 kW
Net Power – SAE J1349
200.00 hp
149.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in3
7.01 L

Weights

Operating Weight
66250.00 lb
30050.00 kg

Hydraulic System

Main System - Maximum Flow - Total
134.00 gal/min
508.00 l/min
Maximum Pressure – Equipment: Heavy Lift
5511.00 psi
38000.00 kPa
Maximum Pressure - Equipment - Lift Mode
5511.00 psi
38000.00 kPa
Maximum Pressure - Travel
595.00 psi
4100.00 kPa
Maximum Pressure - Swing
3973.00 psi
27400.00 kPa
Pilot System - Maximum Flow
5.40 gal/min
20.50 l/min
Pilot System - Maximum Pressure
595.00 psi
4100.00 kPa

Drive

Maximum Travel Speed
3.30 mile/h
5.30 km/h
Maximum Drawbar Pull
50807.00 lbf
226.00 kN

Machine Weights

Minimum Operating Weight*
56770.00 lb
25750.00 kg
Maximum Operating Weight**
66250.00 lb
30050.00 kg

Swing Mechanism

Swing Speed
9.00 r/min
9.00 r/min

Swing

Swing Torque
54137.00 lbf-ft
73.40 kN·m

Service Refill Capacities

Fuel Tank Capacity
137.40 gal
520.00 L
DEF Tank
10.80 gal
41.00 L
Cooling System
7.90 gal
30.00 L
Engine Oil - With Filter
6.30 gal (US)
24.00 l
Swing Drive - Each
2.30 gal (US)
9.00 l
Final Drive (each)
1.60 gal
6.00 L
Hydraulic System (including tank)
75.30 gal
285.00 L
Hydraulic Tank
46.20 gal
175.00 L

Sound Performance

ISO 6396 – Operator Noise (closed)
71.00 dB(A)
71.00 dB(A)
ISO 6395 – Spectator Noise
103.00 dB(A)
103.00 dB(A)

Dimensions: Reach Boom 5.9 m (19'4"); R2.95CB1 (9'8") Stick

Shipping Height*
10.58 ft
3220.00 mm
Shipping Length
33.00 ft
10060.00 mm
Tail Swing Radius
9.83 ft
3000.00 mm
Length to Center of Rollers
12.58 ft
3830.00 mm
Track Length
15.25 ft
4640.00 mm
Ground Clearance
1.42 ft
440.00 mm
Track Gauge
8.50 ft
2590.00 mm
Transport Width: 600 mm (24 in) Shoes
10.50 ft
3190.00 mm
Transport Width: 790 mm (31 in) Shoes
11.08 ft
3380.00 mm
Cab Height with Top Guard
10.50 ft
3190.00 mm
Counterweight Clearance**
3.50 ft
1060.00 mm
Note
*Including shoe lug height.
Note
**Without shoe lug height.

Working Ranges: Reach Boom 5.9 m (19'4"); R2.95CB1 (9'8") Stick

Maximum Digging Depth
22.33 ft
6810.00 mm
Maximum Reach at Ground Level
33.17 ft
10110.00 mm
Maximum Cutting Height
31.75 ft
9690.00 mm
Maximum Loading Height
24.42 ft
7450.00 mm
Minimum Loading Height
7.92 ft
2410.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.75 ft
6640.00 mm
Maximum Vertical Wall Digging Depth
17.42 ft
5300.00 mm

Engine

Engine RPM - Rating
1800.00 r/min
1800.00 r/min
Engine (operation) RPM
1600.00 rpm
1600.00 rpm

Machine Weights

Note
*5.9 m (19'4") Reach Boom, R2.5CB1 (8'2") Stick, 600 mm (24") TG Shoes, 4.0 mt (4.4 t) Counterweight, 1.76 m3 (2.30 yd3) Bucket.
Note
**10.2 m (33'6") SLR Boom, 7.85 m (25'9") Stick, 790 mm (31") TG Shoes, 6.75 mt (7.4 t) Counterweight, 0.53 m3 (0.70 yd3) Bucket.

Engine

Engine Model
Cat C7.1
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in³
7.01 l
Gross Power - SAE J1995
204.00 HP
152.00 kW
Net Power - SAE J1349
200.00 HP
149.00 kW

Weights

Operating Weight
66250.00 lb
30050.00 kg

Machine Weight

Minimum Operating Weight*
56770.00 lb
25750.00 kg

Dimensions - Reach Boom - 5.9 m (19'4

Shipping Height*
10.58 ft
3220.00 mm
Shipping Length
33.00 ft
10060.00 mm
Tail Swing Radius
9.83 ft
3000.00 mm

Swing

Swing Speed
9.00 r/min
9.00 r/min
Swing Torque
54137.00 ft·lbf
73.40 kN·m

Hydraulic System

Maximum Pressure - Equipment - Heavy Lift
5511.00 psi
38000.00 kPa
Maximum Pressure - Equipment - Normal
5076.00 psi
35000.00 kPa

Service Refill Capacities

Fuel Tank Capacity
137.40 gal (US)
520.00 l
Cooling System
7.90 gal (US)
30.00 l
Final Drive - Each
1.60 gal (US)
6.00 l
Hydraulic System - Including Tank
75.30 gal (US)
285.00 l
Hydraulic Tank
46.20 gal (US)
175.00 l

Sound Performance

ISO 6395 - Spectator Noise
103.00 dB(A)
103.00 dB(A)
ISO 6396 - Operator Noise (Closed)
71.00 dB(A)
71.00 dB(A)

Dimensions - Reach Boom - 5.9 m (19'4

Cab Height - With Top Guard
10.50 ft
3190.00 mm
Counterweight Clearance**
3.50 ft
1060.00 mm
Ground Clearance
1.42 ft
440.00 mm
Length - Center of Rollers
12.58 ft
3830.00 mm
Note (1)
*Including shoe lug height.
Note (2)
**Without shoe lug height.
Track Gauge
8.50 ft
2590.00 mm
Track Length
15.25 ft
4640.00 mm
Transport Width - 600 mm (24 in) Shoes
10.50 ft
3190.00 mm
Transport Width - 790 mm (31 in) Shoes
11.08 ft
3380.00 mm

Engine

Engine RPM - Operation
1600.00 r/min
1600.00 r/min

Machine Weight

Maximum Operating Weight**
66250.00 lb
30050.00 kg
Note (1)
*5.9 m (19'4") Reach Boom, R2.5CB1 (8'2") Stick, 600 mm (24") TG Shoes, 4.0 mt (4.4 t) Counterweight, 1.76 m3 (2.30 yd3) Bucket.
Note (2)
**10.2 m (33'6") SLR Boom, 7.85 m (25'9") Stick, 790 mm (31") TG Shoes, 6.75 mt (7.4 t) Counterweight, 0.53 m3 (0.70 yd3) Bucket.

Service Refill Capacities

DEF Tank
10.80 gal (US)
41.00 l

Working Ranges - Reach Boom - 5.9 m (19'4

Maximum Cutting Height
31.75 ft
9690.00 mm

Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.75 ft
6640.00 mm

Working Ranges - Reach Boom - 5.9 m (19'4

Maximum Digging Depth
22.33 ft
6810.00 mm
Maximum Loading Height
24.42 ft
7450.00 mm
Maximum Reach - Ground Level
33.17 ft
10110.00 mm
Maximum Vertical Wall Digging Depth
17.42 ft
5300.00 mm
Minimum Loading Height
7.92 ft
2410.00 mm

Engine

Engine Power - ISO 9249
204.00 HP
152.00 kW
Engine Power - ISO 14396
200.00 HP
149.00 kW

Hydraulic System

Main System - Maximum Flow
508 l/min (134 gal/min)
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa

Swing Mechanism

Maximum Swing Torque
54137.00 ft·lbf
73.40 kN·m

Service Refill Capacities

Engine Oil
6.30 gal (US)
24.00 l

Dimensions

Boom
5.9 m (19'4")
Stick
R2.95CB1 (9'8")
Bucket
1650 mm (5'5")
Shipping Height - Top of Cab
10.58 ft
3220.00 mm
Shipping Length
33.00 ft
10060.00 mm
Tail Swing Radius
9.83 ft
3000.00 mm
Counterweight Clearance
3.50 ft
1060.00 mm
Ground Clearance
1.42 ft
440.00 mm
Track Length
15.25 ft
4640.00 mm
Length to Center of Rollers
12.58 ft
3830.00 mm
Track Gauge
8.50 ft
2590.00 mm
Transport Width
11.08 ft
3.38 m

Working Ranges & Forces

Maximum Digging Depth
22.33 ft
6810.00 mm
Boom
5.9 m (19'4")
Stick
R2.95CB1 (9'8")
Bucket
1650 mm (5'5")
Maximum Reach at Ground Level
33.17 ft
10110.00 mm
Maximum Cutting Height
31.75 ft
9690.00 mm
Maximum Loading Height
24.42 ft
7450.00 mm
Minimum Loading Height
7.92 ft
2410.00 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
21.75 ft
6640.00 mm
Maximum Vertical Wall Digging Depth
17.42 ft
5300.00 mm
Bucket Digging Force - ISO
37320.00 lbf
166.00 kN
Stick Digging Force - ISO
27200.00 lbf
121.00 kN
Features

BUILT TO PERFORM

  • The C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage IV emission standards, and the diesel particulate filter requires no maintenance.
  • Integrated electronics, fuel, air, and aftertreatment reduce fuel consumption and emissions and extend service intervals.
  • The machine can run on up to B20 biodiesel fuel when blended with ultra-low-sulfur diesel for fuel-saving flexibility.
  • Three power modes – high, standard, and eco – help manage fuel consumption.
  • Automatic engine speed control lowers rpm based on load for reduced fuel consumption.
  • Smooth multi-function control is built in for easy operation.
  • The Heavy Lift mode increases maximum pressure, reducing engine speed and pump flow to improve controllability.
  • The emissions package works behind the scenes and won't interrupt the job process.

ONE MACHINE MANY JOBS

  • Utility and finishing work are fast and flawless with a Cat® compactor, thumb, finishing bucket or tilt bucket.
  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.

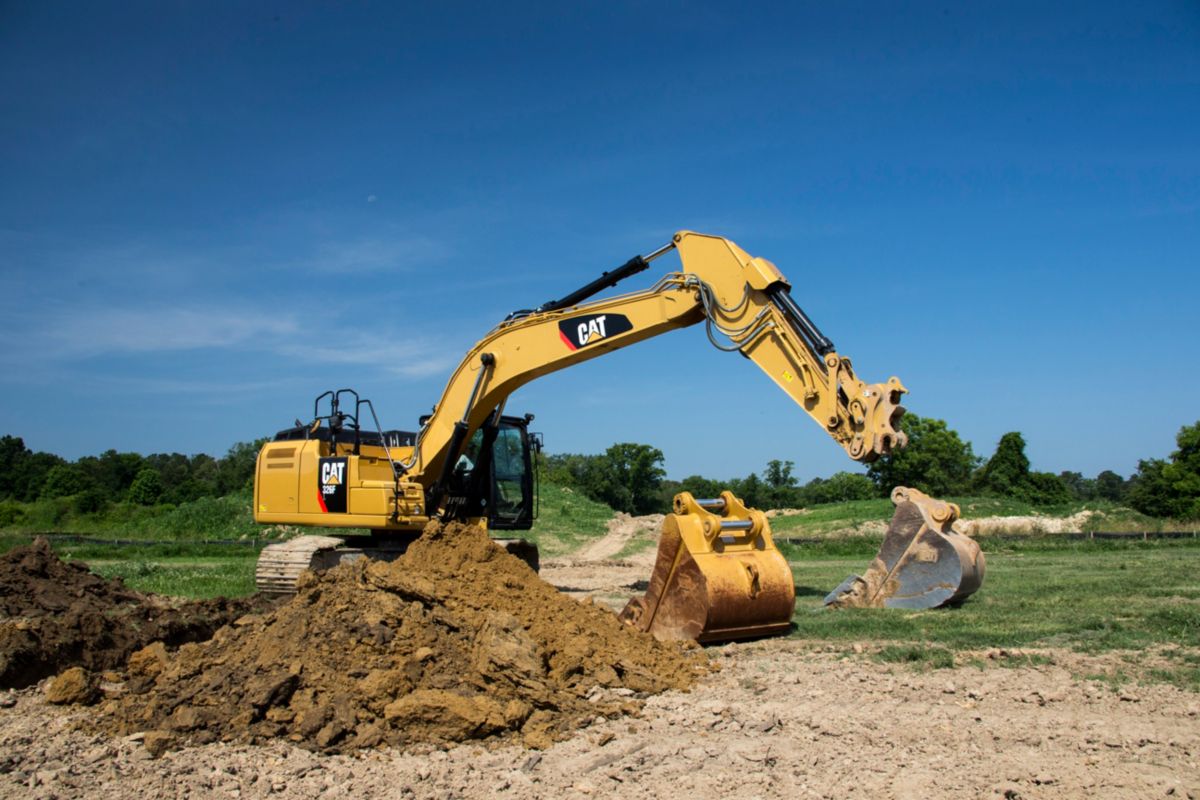

  • Couplers let you swap between attachments in seconds without leaving the cab.

EFFICIENCY THROUGH TECHNOLOGY

  • Product Link™/VisionLink® connects owners to their equipment, providing access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes.
  • Cat Grade Control Depth and Slope helps operators work more productively and accurately with less rework.

SAVE MAINTENANCE TIME

  • Routine maintenance items like grease points and fluid taps are reachable at ground level.
  • The service door design helps prevent debris entry, and doors latch in place to enhance ease of service.
  • The cooling system adjusts to make maintenance easy.

WORK IN COMFORT

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Automatic climate control helps maintain consistent cab temperature.
  • Joystick consoles and armrests are adjustable.
  • Seats are adjustable and feature air suspension and heated and cooled options.
  • LED monitor is easy to navigate and programmable in 44 languages.
  • Drink holders, storage areas, and auxiliary power outlets offer added convenience.

HEAVY DUTY CONSTRUCTION

  • The large swing bearing is secured with elongated bolts to help handle the most swing-intensive work.
  • Abrasion-resistant Cat XT™-6 hose can stand up to high pressures over the long haul.
  • Booms and sticks are built for long service.
  • Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.
