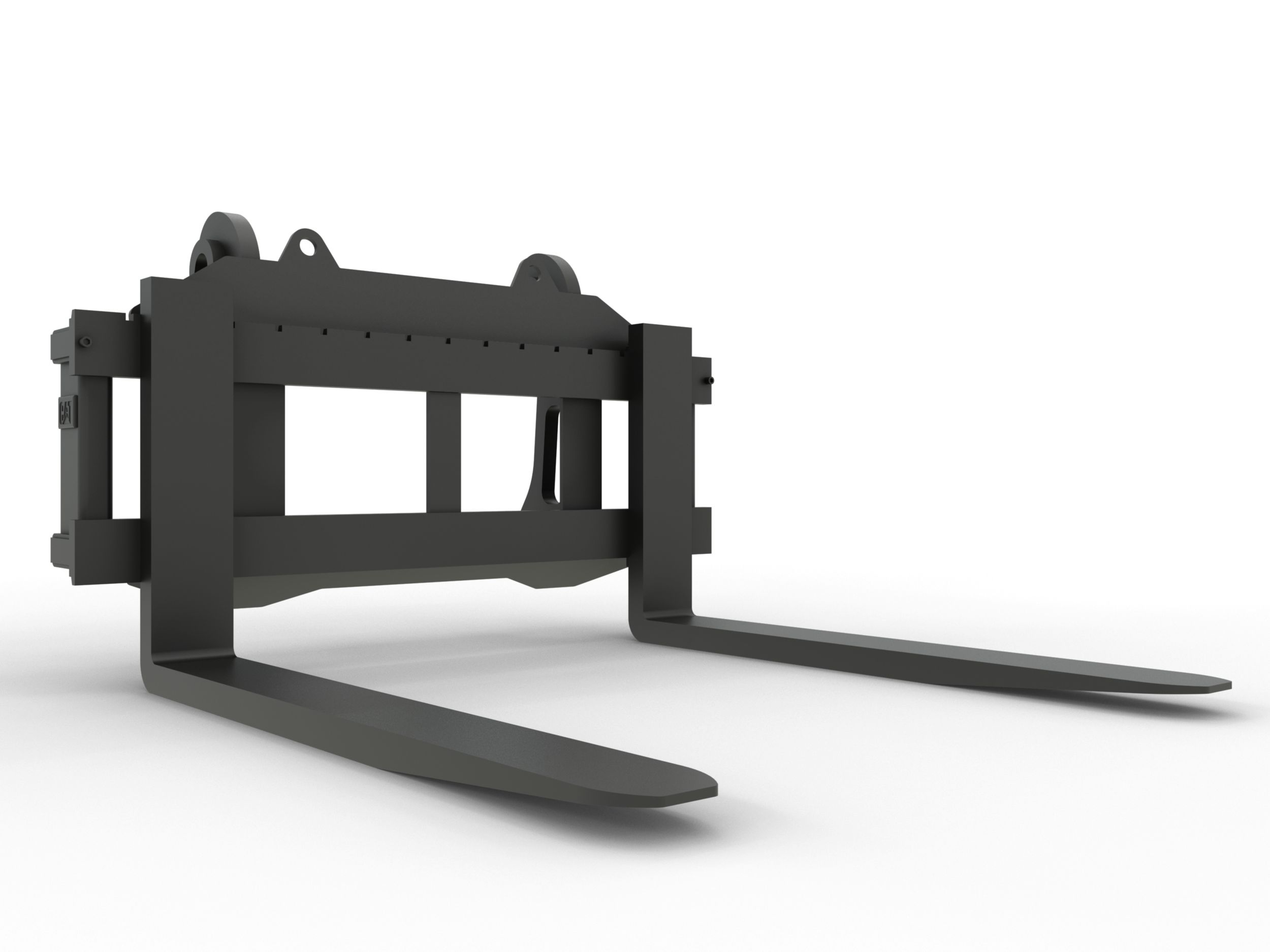

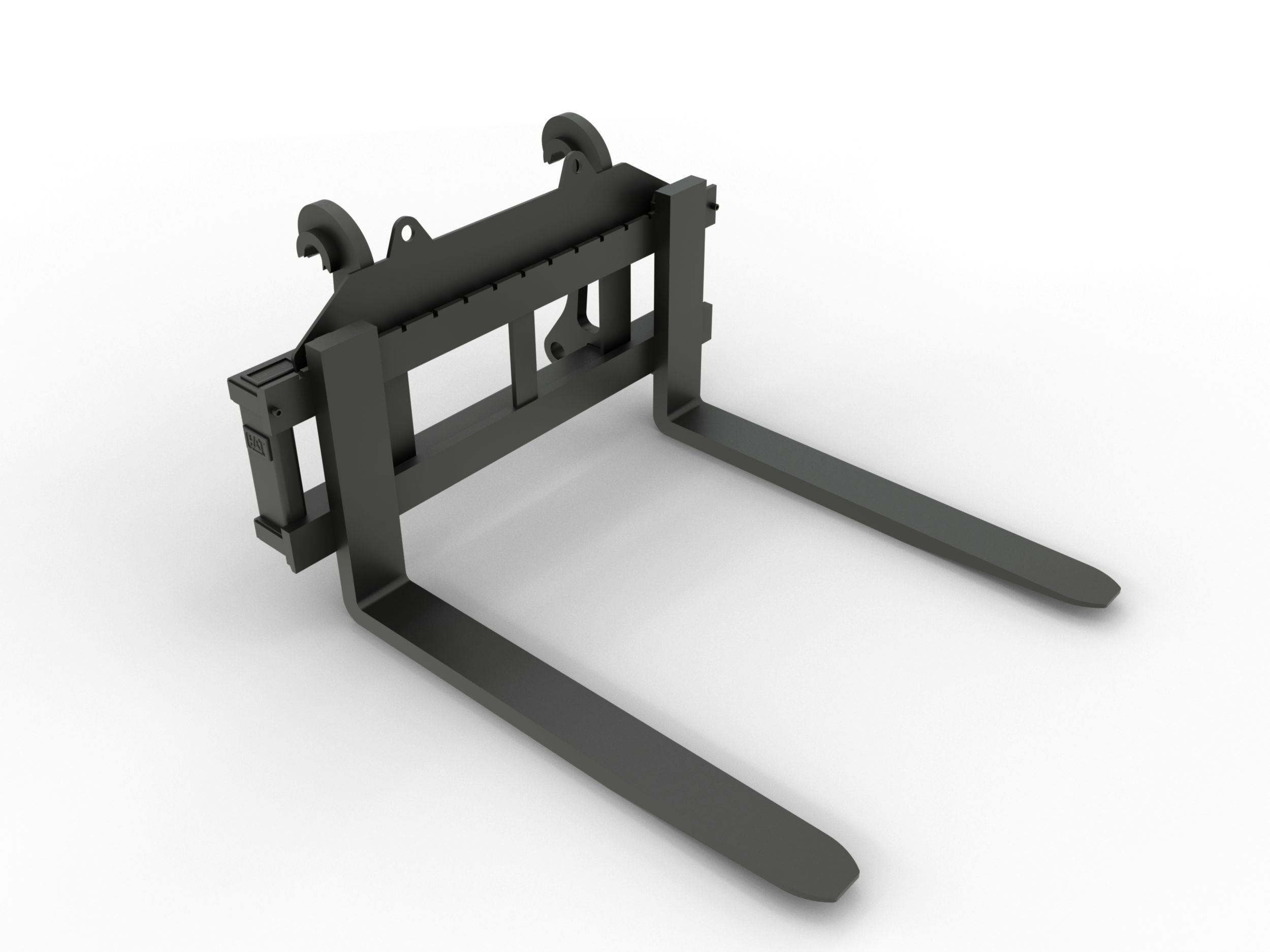

1500mm (59in) Pallet Fork on 2000mm (79in) Carriage, VCE Coupler Interface



Designed for the Cat VCE coupler and compatible third-party couplers. Move material quickly and efficiently.
Fork Tine Length
59.00 in
1500.00 mm
Tine Thickness
2.00 in
60.00 mm
Tine Width
8.00 in
200.00 mm
38.00 in
965.00 mm
79.00 in
2000.00 mm
Outside Tine Width - Maximum Spread
61.00 in
1550.00 mm
Operating Weight
1815.00 lb
825.00 kg
Tine Length
59.00 in
1500.00 mm

100% Compatibility

  • Use your Cat loader with commonly available work tools that you may already have.
  • Simplify tool management in mixed fleets.
  • Meet the ISO237727:2009 standard for loader couplers.

More Breakout Force, Better Performance

  • No need to compromise on performance – this coupler system is designed and built for your Cat Wheel Loader.
  • Static tipping load is 2% better, breakout force 4% better than third party or OEM couplers.
  • Coupler weight and offset are also reduced.

Complete One-Source Solution

  • Select the complete OEM solution for job site productivity.
  • You’ll have one point of everything – from tooth tip to radiator – from your local Cat dealer.
  • The coupler is backed by a line of VCE-compatible buckets and attachments optimized for Cat loaders.
