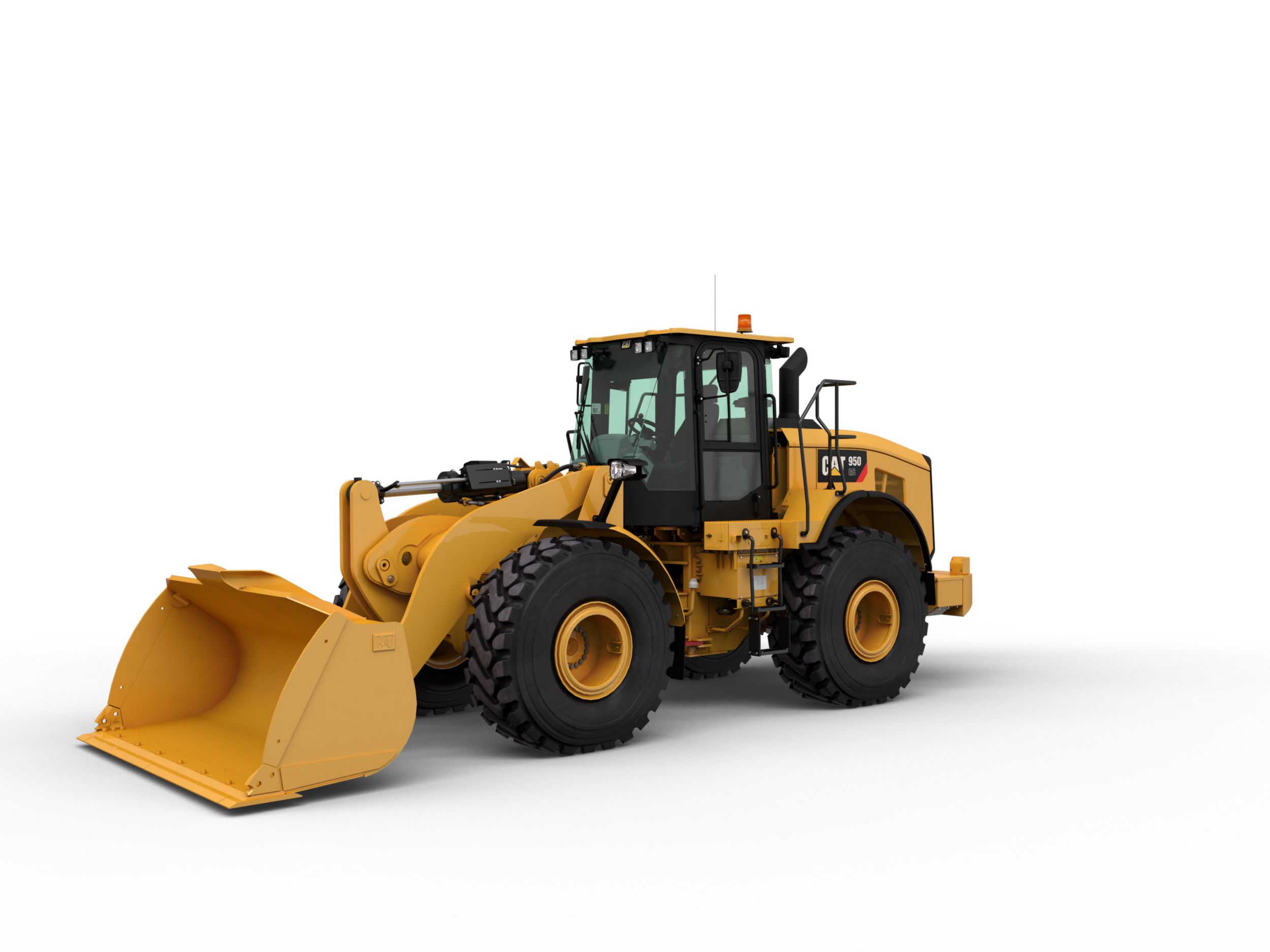

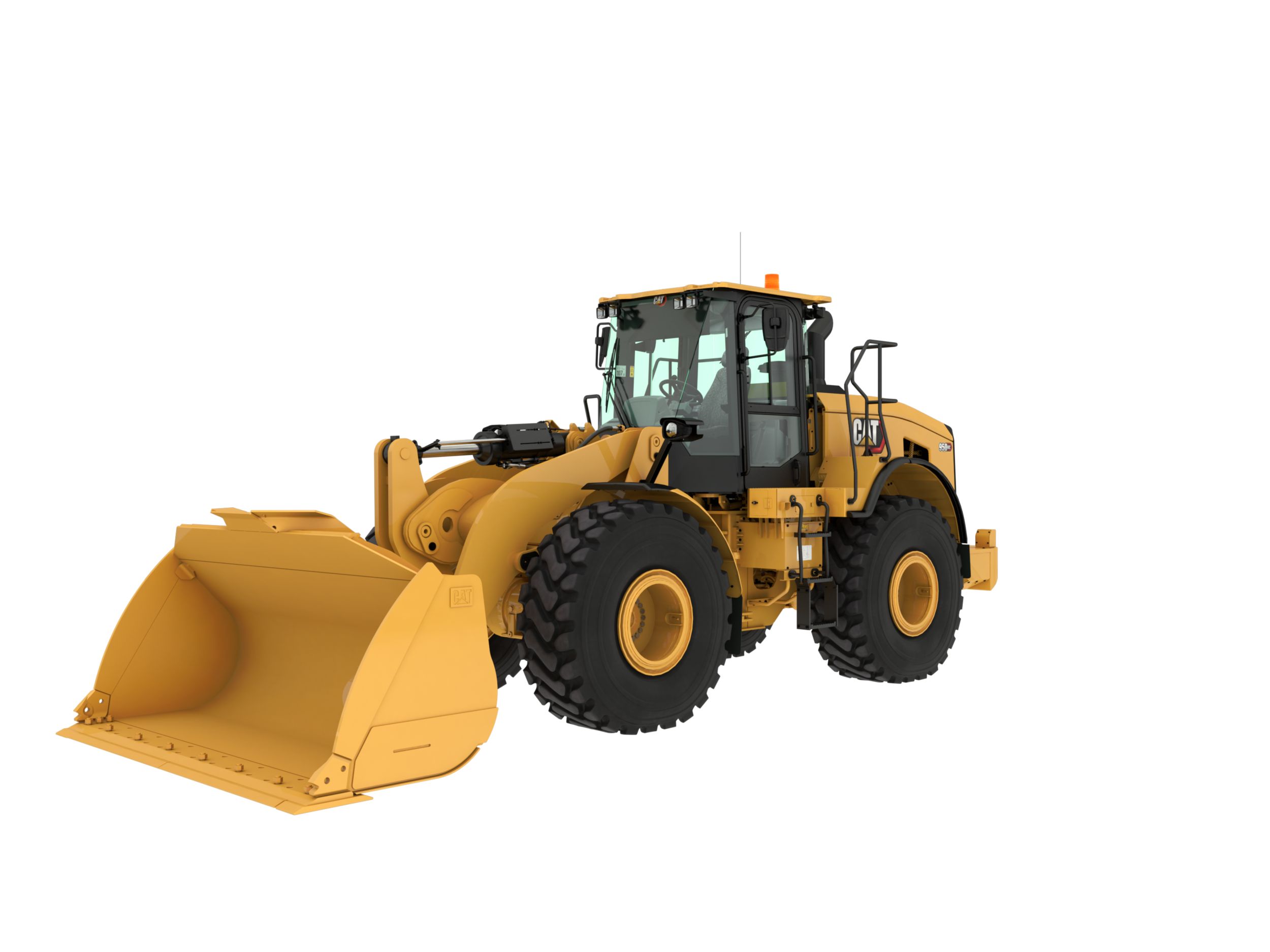

Overview

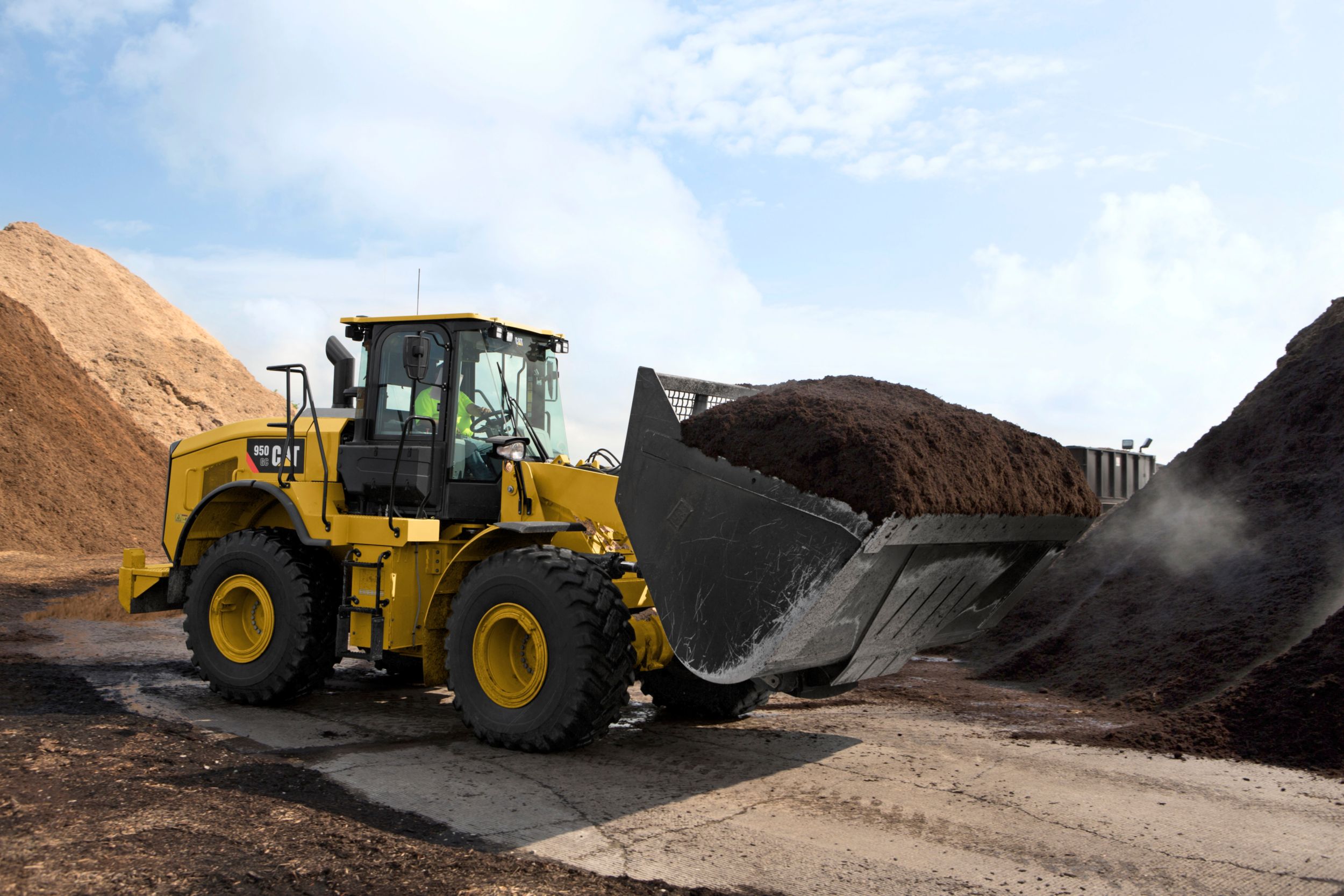

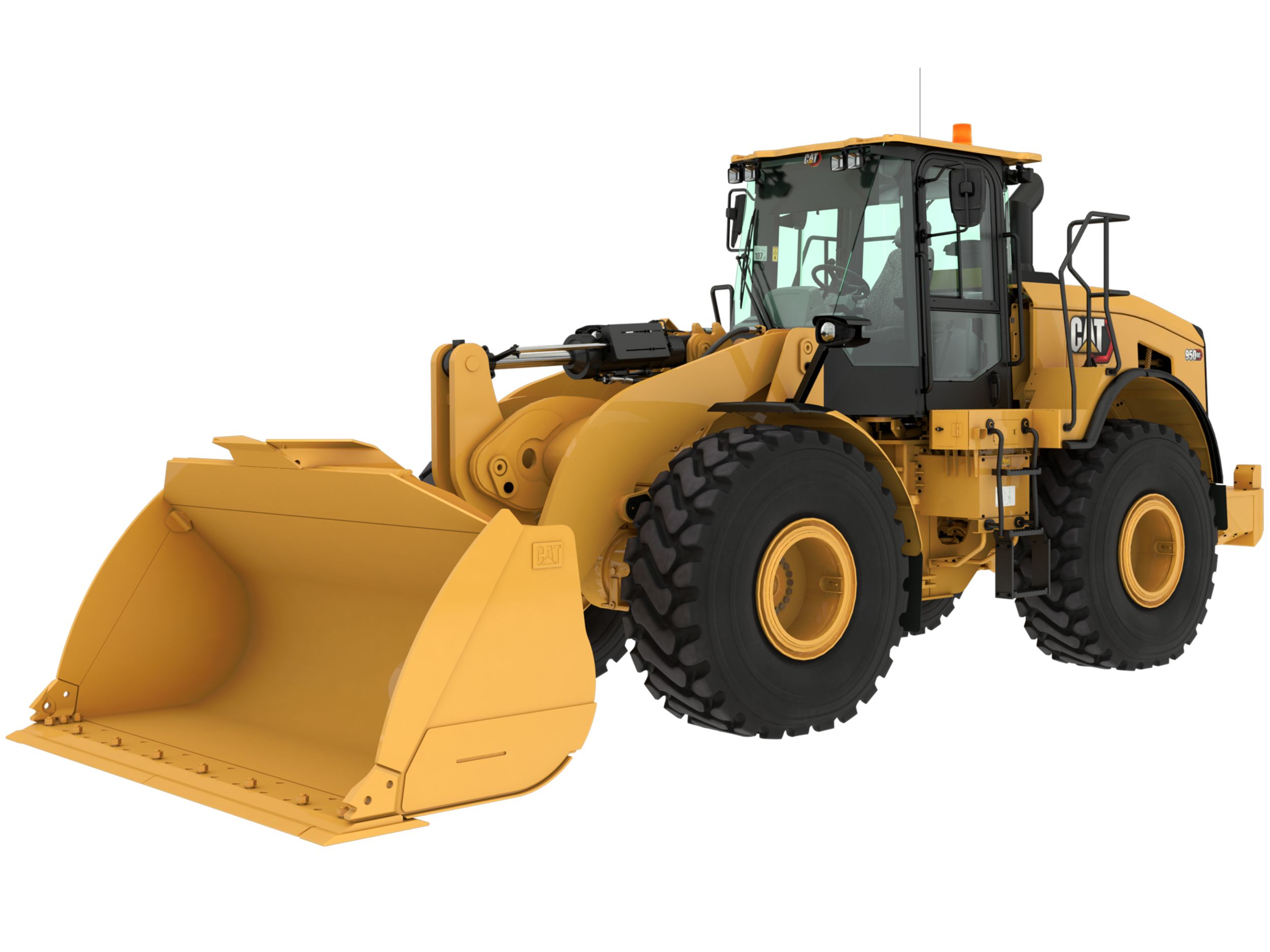

The purpose-built, easy to operate, reliable Cat 950 GC wheel loader is right-sized to get your everyday jobs done. With low fuel consumption, low owning and operating costs, the 950 GC is the perfect wheel loader to handle your loose material handling, truck loading, general construction, and stockpiling jobs.

Engine

Net Power - ISO 9249
225.00 hp
168.00 kW
Engine Model
Cat C7.1 ACERT
Max Power @ 1,700 rpm – SAE J1995
241.00 hp
180.00 kW
Max Power @ 1,700 rpm – ISO 14396
240.00 hp
179.00 kW
Displacement
428.00 in3
7.01 L
Max Power @ 1,700 rpm – ISO 14396 (metric)
243.00 hp
179.00 kW
Max Net Power @ 1,700 rpm – SAE J1349
225.00 hp
168.00 kW
Max Net Power @ 1,700 rpm – ISO 9249
225.00 hp
168.00 kW
Max Net Power @ 1,700 rpm – ISO 9249 (metric)
228.00 hp
168.00 kW
Peak Gross Torque (1,400 rpm) – SAE J1995
811.00 lbf-ft
1099.00 N·m
Peak Gross Torque (1,400 rpm) – ISO 14396
805.00 lbf-ft
1092.00 N·m

Weights

Operating Weight
41554.00 lb
18849.00 kg

Buckets

Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)

Hydraulic System

Steering System Pump Type
Piston
Implement System: Maximum Pump Output @ 2,390 rpm
68.00 gal/min
256.00 L/min
Implement System: Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)
4047.00 psi
27900.00 kPa
Hydraulic Cycle Time – Total Cycle Time
9.40 Seconds
9.40 Seconds

Service Refill Capacities

Cooling System
13.20 gal
50.00 L
Crankcase
4.80 gal
18.00 L
Transmission
11.90 gal
45.00 L
Differentials and Final Drives – Front
10.60 gal
40.00 L
Differentials and Final Drives – Rear
10.00 gal
38.00 L
Hydraulic Tank
29.60 gal
112.00 L
DEF Tank
4.20 gal
16.00 L
Fuel Tank Size
76.60 gal (US)
290.00 l

Transmission

Forward 1
4.50 mph
7.30 km/h
Forward 2
8.00 mph
12.80 km/h
Forward 3
14.20 mph
22.80 km/h
Forward 4
22.40 mph
36.00 km/h
Reverse 1
4.50 mph
7.30 km/h
Reverse 2
8.00 mph
12.80 km/h
Reverse 3
14.20 mph
22.80 km/h

Sound

With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
73.00 dB(A)
73.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
109.00 dB(A)
109.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
76 dB(A)*

Engine

Bore
4.13 in
105.00 mm

Transmission

Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.

Sound

Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)**
73.00 dB(A)
73.00 dB(A)
With Cooling Fan Speed at 70% of Maximum Value: Exterior Sound Power Level (ISO 6395:2008)**
107 LWA***
Note
**For machines in European Union countries and in countries that adopt the “EU Directives.”

Dimensions

Height to Top of Hood
8.75 ft
2673.00 mm
Height to Top of Exhaust Pipe
11.17 ft
3416.00 mm
Height to Top of ROPS
11.33 ft
3458.00 mm
Ground Clearance
1.50 ft
460.00 mm
B-Pin Height
13.75 ft
4188.00 mm
Center Line of Rear Axle to Edge of Counterweight
6.75 ft
2055.00 mm
Wheelbase
10.83 ft
3300.00 mm
Center Line of Rear Axle to Hitch
5.42 ft
1650.00 mm
Rack Back - Maximum Lift
60 degrees
Rack Back - Carry
45 degrees
Rack Back - Ground
40 degrees
Lift Arm Clearance
12.00 ft
3649.00 mm
Note
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.

Engine

Stroke
5.31 in
135.00 mm

Sound

Note
***European Union Directive “2000/14/EC” as amended by “2005/88/EC.”

Engine

Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).

Weights and Operating Specifications

Operating Weight
41554.00 lb
18849.00 kg
Tipping Load - Full Turn - ISO 14397-1*
24264.00 lb
11006.00 kg
Tipping Load - Full Turn - Rigid Tires**
25875.00 lb
11737.00 kg
Breakout Force
34638.00 lbf
154.00 kN
Note (1)
For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression.
Note (2)
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note (3)
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.

Engine

Net Power - ISO 9249
225.00 HP
168.00 kW
Engine Model
Cat C7.1
Displacement
428.00 in³
7.01 l
Maximum Net Power - 1,700 rpm - ISO 9249
225.00 HP
168.00 kW
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric
228.00 HP
168.00 kW
Maximum Net Power - 1,700 rpm - SAE J1349
225.00 HP
168.00 kW
Maximum Power - 1,700 rpm - ISO 14396
240.00 HP
179.00 kW
Maximum Power - 1,700 rpm - ISO 14396 - Metric
243.00 HP
179.00 kW
Maximum Power - 1,700 rpm - SAE J1995
241.00 HP
180.00 kW
Peak Gross Torque - 1,400 rpm - ISO 14396
805.00 ft·lbf
1092.00 N·m
Peak Gross Torque - 1,400 rpm - SAE J1995
811.00 ft·lbf
1099.00 N·m

Weights

Operating Weight
41554.00 lb
18849.00 kg

Buckets

Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)

Transmission

Forward - 1
4.50 mile/h
7.30 km/h
Forward - 2
8.00 mile/h
12.80 km/h
Forward - 3
14.20 mile/h
22.80 km/h
Forward - 4
22.40 mile/h
36.00 km/h
Reverse - 1
4.50 mile/h
7.30 km/h
Reverse - 2
8.00 mile/h
12.80 km/h
Reverse - 3
14.20 mile/h
22.80 km/h

Hydraulic System

Steering System - Pump Type
Piston
Hydraulic Cycle Time - Total Cycle Time
9.40 s
9.40 s
Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)
4047.00 psi
27900.00 kPa
Implement System - Maximum Pump Output at 2,390 rpm
68.00 gal/min
256.00 l/min

Service Refill Capacities

Cooling System
13.20 gal (US)
50.00 l
Crankcase
4.80 gal (US)
18.00 l
DEF Tank
4.20 gal (US)
16.00 l
Differential - Final Drives - Front
10.60 gal (US)
40.00 l
Differential - Final Drives - Rear
10.00 gal (US)
38.00 l
Hydraulic Tank
29.60 gal (US)
112.00 l
Transmission
11.90 gal (US)
45.00 l

Sound

With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)
109.00 dB(A)
109.00 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)
76 dB(A)*
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
73.00 dB(A)
73.00 dB(A)

Engine

Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm

Dimensions

Centerline of Rear Axle to Edge of Counterweight
6.75 ft
2055.00 mm
Note
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.

Engine

Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).

Sound

Note (1)
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2)
**For machines in European Union countries and in countries that adopt the "EU Directives."
Note (3)
***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**
107 LWA***
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**
73.00 dB(A)
73.00 dB(A)

Transmission

Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.

Dimensions

Height - Top of ROPS
11.33 ft
3458.00 mm
Height - Top of Exhaust Pipe
11.17 ft
3416.00 mm
Height - Top of Hood
8.75 ft
2673.00 mm
Ground Clearance
1.50 ft
460.00 mm
Wheel Base
10.83 ft
3300.00 mm
Centerline of Rear Axle to Hitch
5.42 ft
1650.00 mm

Engine - Tier 4 Final/Stage IV

Emissions
Tier 4/Stage IV

Sound

With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
73.00 dB(A)
0.00
With Cooling Fan Speed at 70% of Maximum Value: Note (1)
For machines in European Union countries and in countries that adopt the EU Directives
With Cooling Fan Speed at 70% of Maximum Value: Note (2)
European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at Maximum Value – Note
Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Features

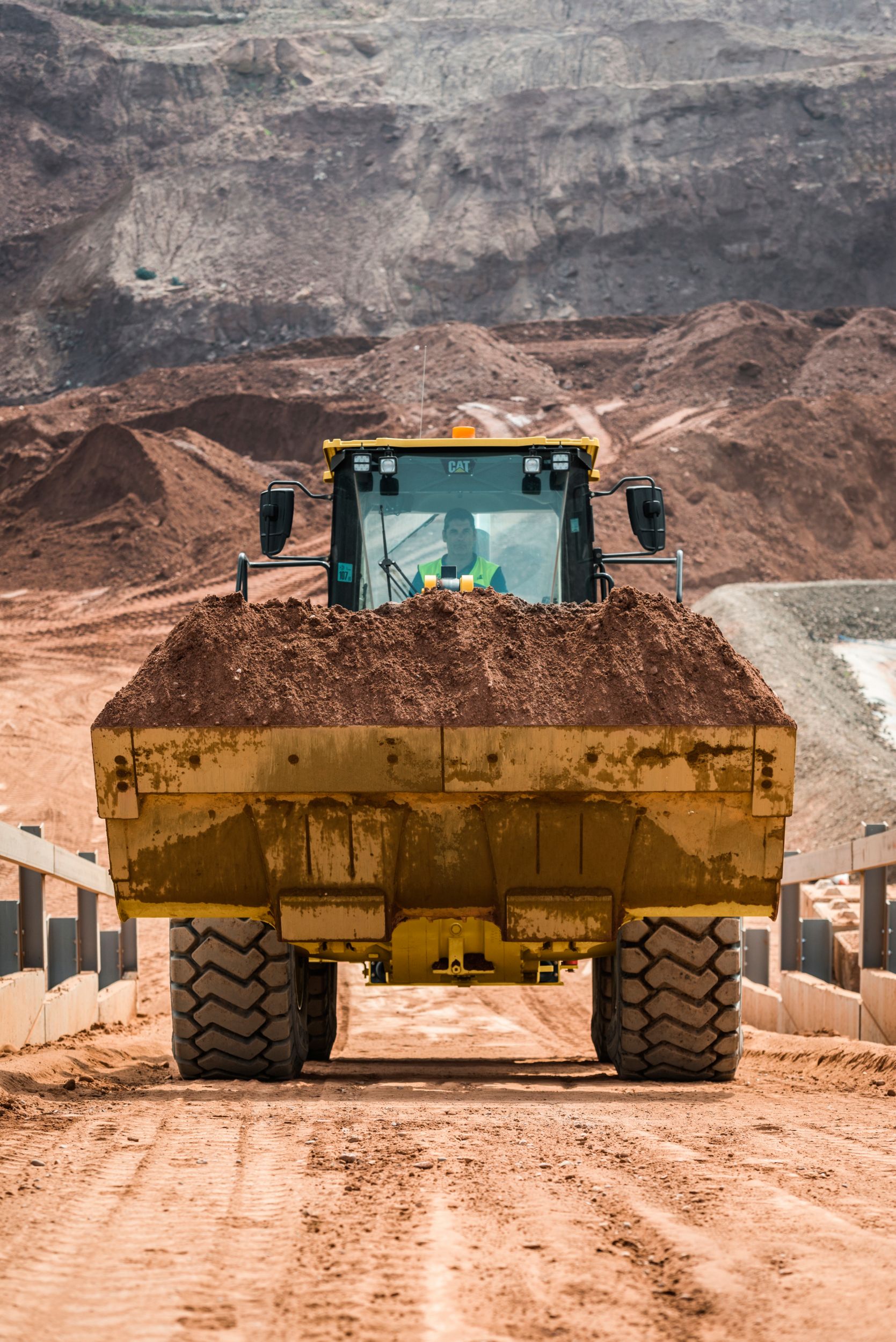

RELIABILITY YOU CAN COUNT ON

  • Cat® C7.1 engine offers increased power density with a combination of proven electronic, fuel, and air systems.
  • Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
  • Thorough component design and machine validation processes result in unmatched reliability and uptime.

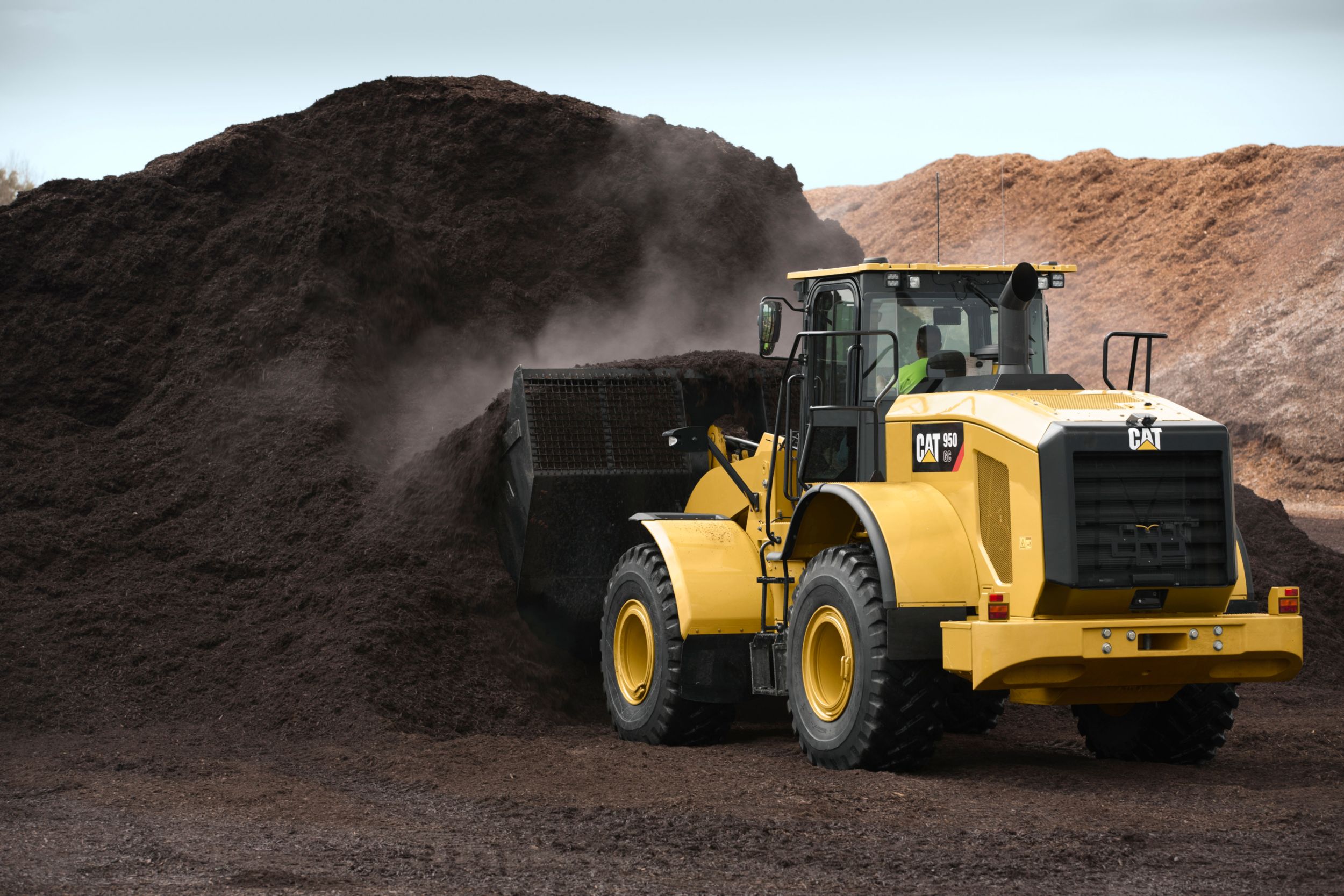

ACHIEVE GREATER PRODUCTIVITY

  • The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
  • Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
  • Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

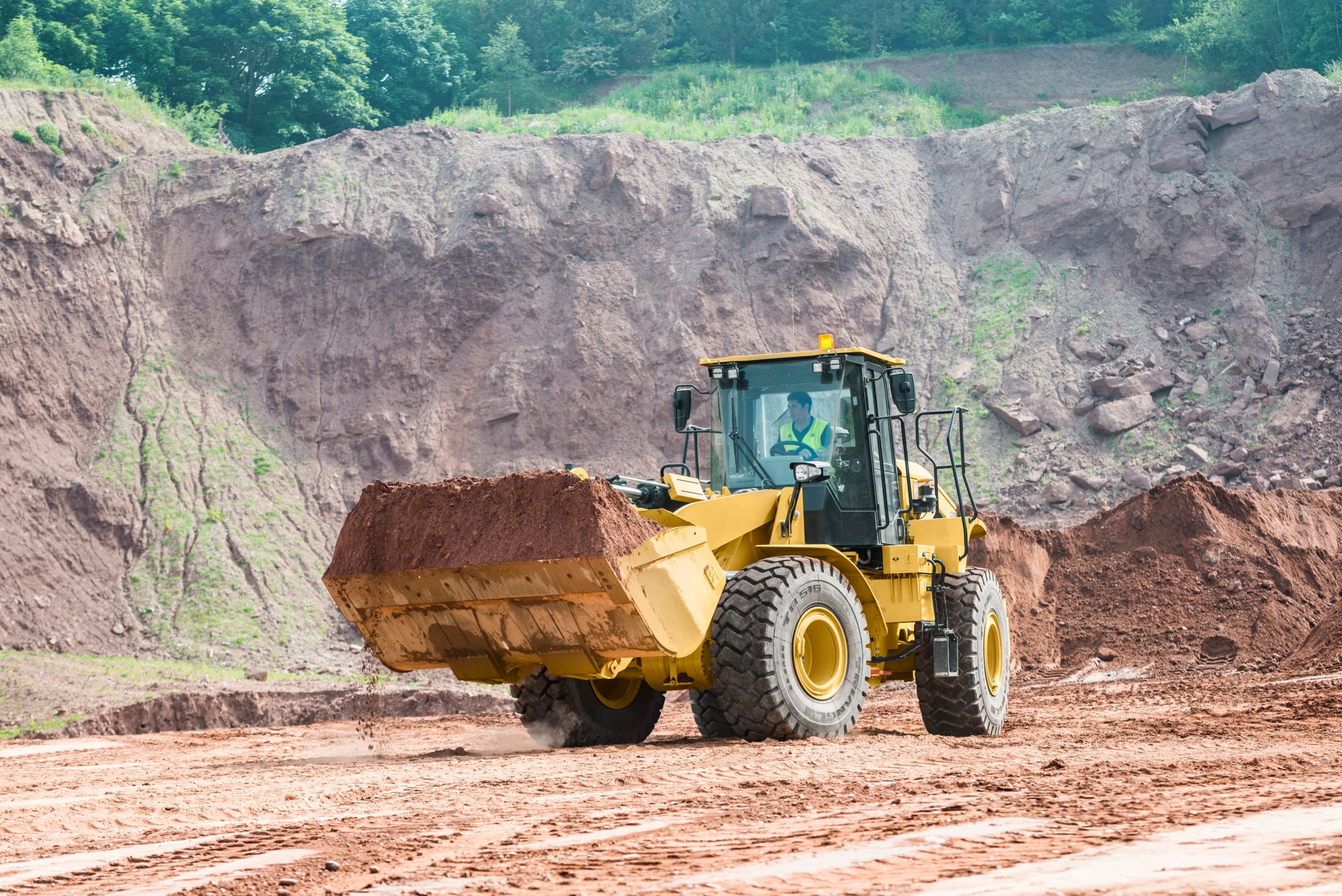

DO MORE WITH LESS FUEL

  • Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
  • Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
  • Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

DESIGNED FOR OPERATORS

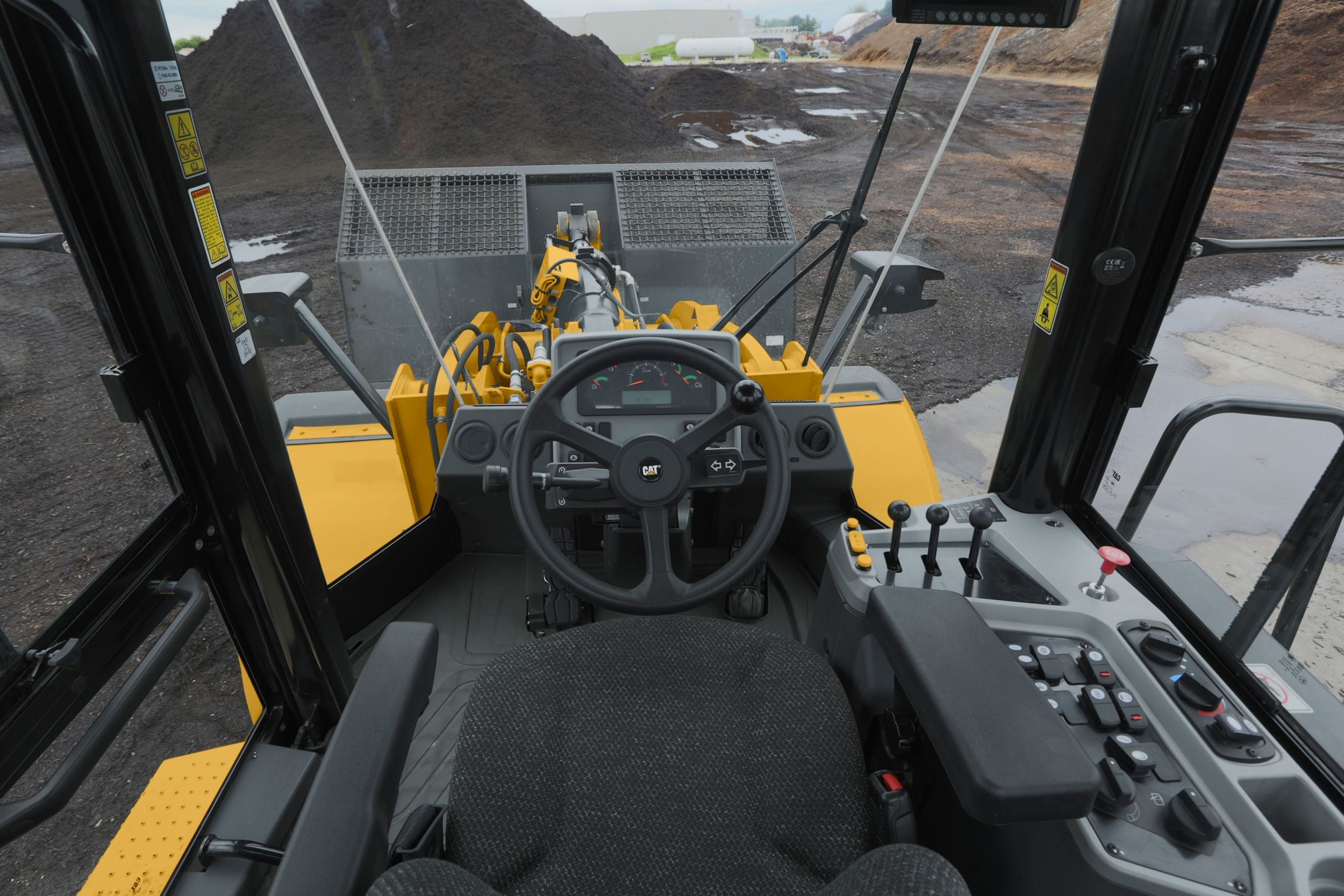

  • The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
  • Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
  • The adjustable steering column includes the F-N-R shifter and turn signal control lever.
  • Unmatched viewing area with a wide, flat, and distortion-free front windshield.
  • The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
  • The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
  • Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

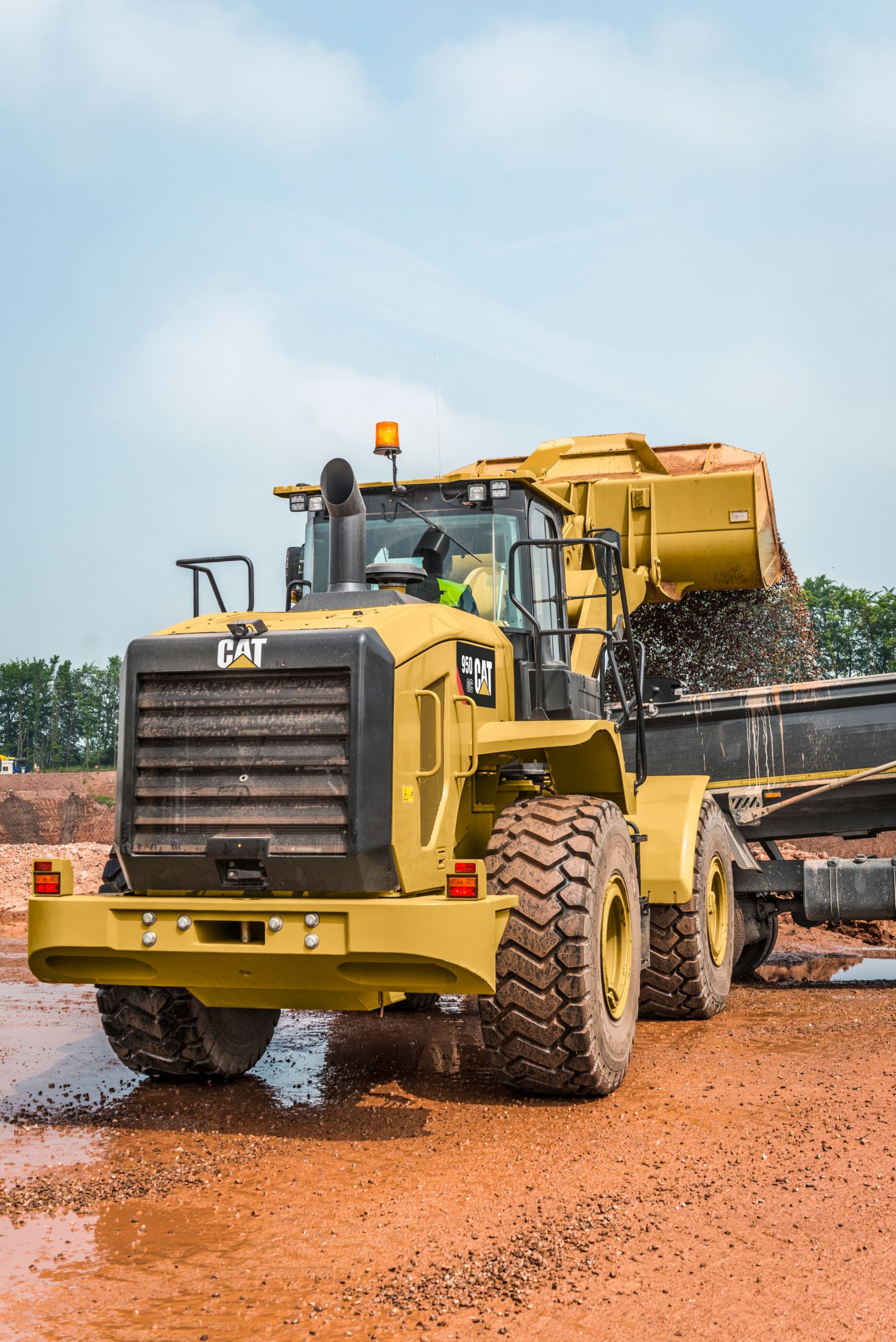

SAFELY HOME EVERY DAY

  • Ladders are standard on both sides of the machine to easily access the platforms.
  • Platforms are equipped with guard- and handrails for safe access to the cab.
  • The main cab door opens to the front and provides wide access to the operator environment.
  • Front and back wipers ensure that a clear view is maintained.
  • External rearview mirrors with integrated spot mirrors arestandard.
  • A rear vision camera is standard to clearly monitor movement behind the machine.
  • Hinged wheel guards, easy removal/re-install.
  • Optional windshield and power train guards.

SAVE ON SERVICE AND MAINTENANCE

  • Grouped service points and sight gauges allow for easy daily maintenance.
  • Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
  • Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
  • A rear swing-up grill gives easy cleaning access to thecooling cores.
  • Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
  • Caterpillar design and manufacturing techniques assureoutstanding service life.

CAT PRODUCTION MEASURMENT KIT

  • This optional kit is simple to install compared to other 3rd party payload systems*.
  • On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
  • Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
  • Increases productivity, weighing while lifting with no interruptions in loading cycle.
  • High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
  • Improve efficiency with less rework; save time, labor, fuel,and costs.

    * Not available in all markets
    ** Not legal for trade
Standard Equipment
  • POWER TRAIN
    • Engine - Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
    • Torque converter
    • Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
    • Brakes, full hydraulic enclosed wet-disc
    • EIMS (Engine Idle Management System)
    • EIS (Auto Idle Shutdown)
    • Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
    • Filter, fuel primary-water separator/secondary
    • Radiator, unit core (9.5 fpi) with ATAAC
    • Starting aid, glow plugs
    • Switch, transmission neutralizer lockout
  • HYDRAULICS
    • Load sensing implement system pilot operated
    • Dedicated load sensing steering pump
    • Dedicated brake and fan gear pump
  • ELECTRICAL
    • Alarm, back-up/main disconnect switch
    • Alternator (145-amp, brush type)
    • Batteries (2), maintenance free
    • Ignition key; start/stop switch
    • Lighting system, halogen (6 total) - Four (4) halogen work lights; Two (2) halogen road lights
    • Starting and charging system (24-volt)
    • Starter, electric (heavy duty)
  • OPERATOR ENVIRONMENT
    • Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
    • Bucket/work tool function lockout
    • Cab, pressurized and sound suppressed
    • Hydroformed (ROPS/FOPS) structure
    • 12V power port (10A)
    • Coat hook
    • Radio ready
    • Rear vision camera and display
    • Pilot hydraulic controls, lift and tilt function
    • Computerized monitoring system
    • Gauges - Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
    • Digital indicators - Gear indicator; Speedometer; Service meter units; Fault codes
    • Warning indicators - Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
    • Heater and defroster
    • Horn
    • Cup holders and personal tray on right console
    • Storage tray behind seat
    • Mirrors, rearview external
    • Seat, Cat Comfort (clotch) suspension
    • Seat belt
    • Steering column, adjustable angle
    • Wipers/washers (front and rear)
    • Window, sliding (left and right side)
  • TIRES, RIMS, AND WHEELS
    • Tires are available from Triangle, Maxam and Bridgestone
    • Offerings vary by region. Consult your local Cat dealer for further details
  • FLUIDS
    • Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)
  • OTHER STANDARD EQUIPMENT
    • Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
    • Couplings, Cat O-ring face seal
    • Doors, service access (locking)
    • Front fender, steel
    • Grill, airborne debris
    • Hitch, drawbar with pin
    • Hood, wing doors
    • Hoses, Cat XT
    • Counterweight
    • Linkage, Z-bar, fabricated crosstube/tilt lever
    • S•O•S oil sampling valves
    • Sight gauges - Engine coolant, hydraulic oil; Transmission oil level
    • Diagnostic pressure taps
    • Product Link Ready
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Cold weather starting (jacket water heater, electric and ether starting aid)
    • Third hydraulic function, additional dedicated single axis level
    • Quick coupler control
    • Limited slip differentials
    • Ride control
    • Air suspended seat
    • Secondary steering, electrical
    • Reversing cooling fan (auto/manual controlled)
    • Toolbox
    • Sun visor, rear
    • High capacity converted 12V/15A
    • Warning beacon
    • Extra working lights (4), Halogen or LED
    • Radio
    • Fender extensions/roading
