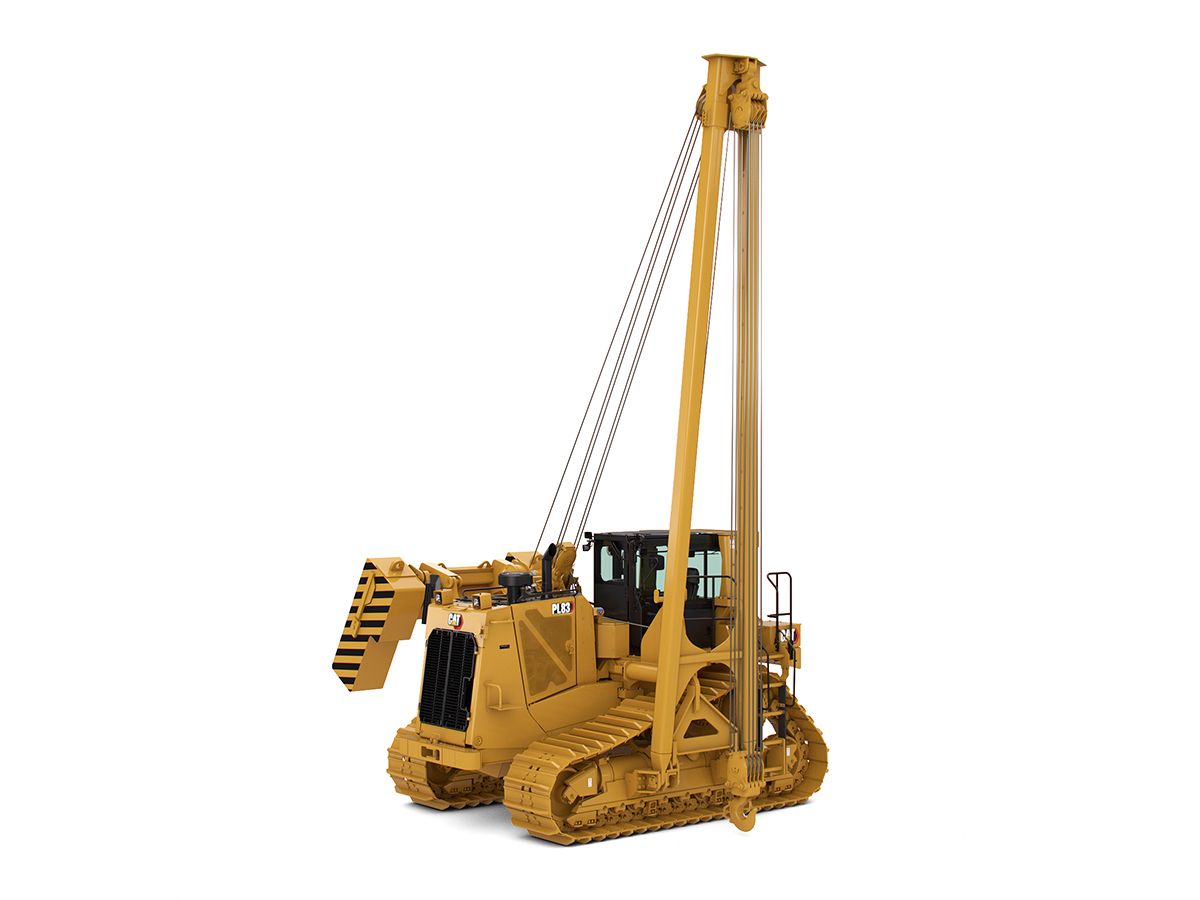

PL83 Pipelayer

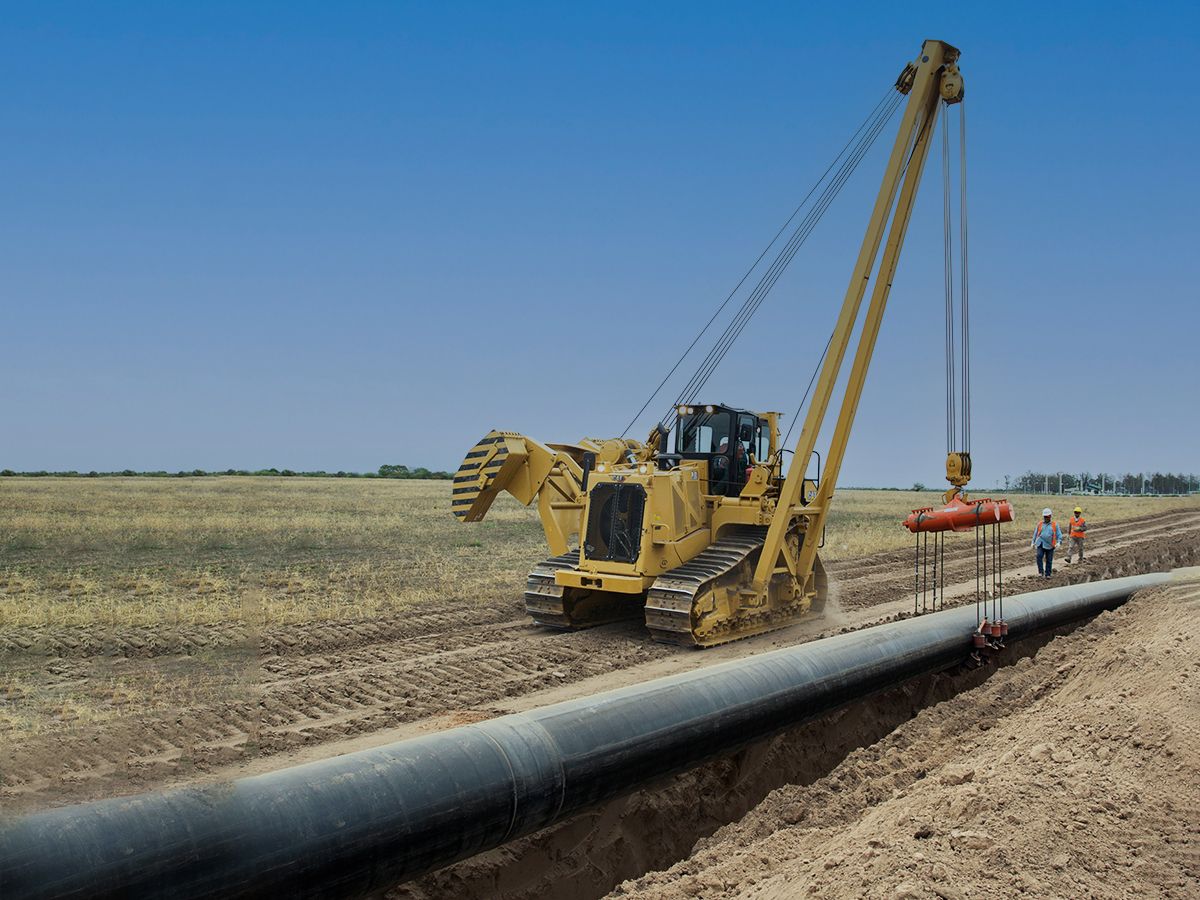

PL83 Pipelayer in the pipe line right of way

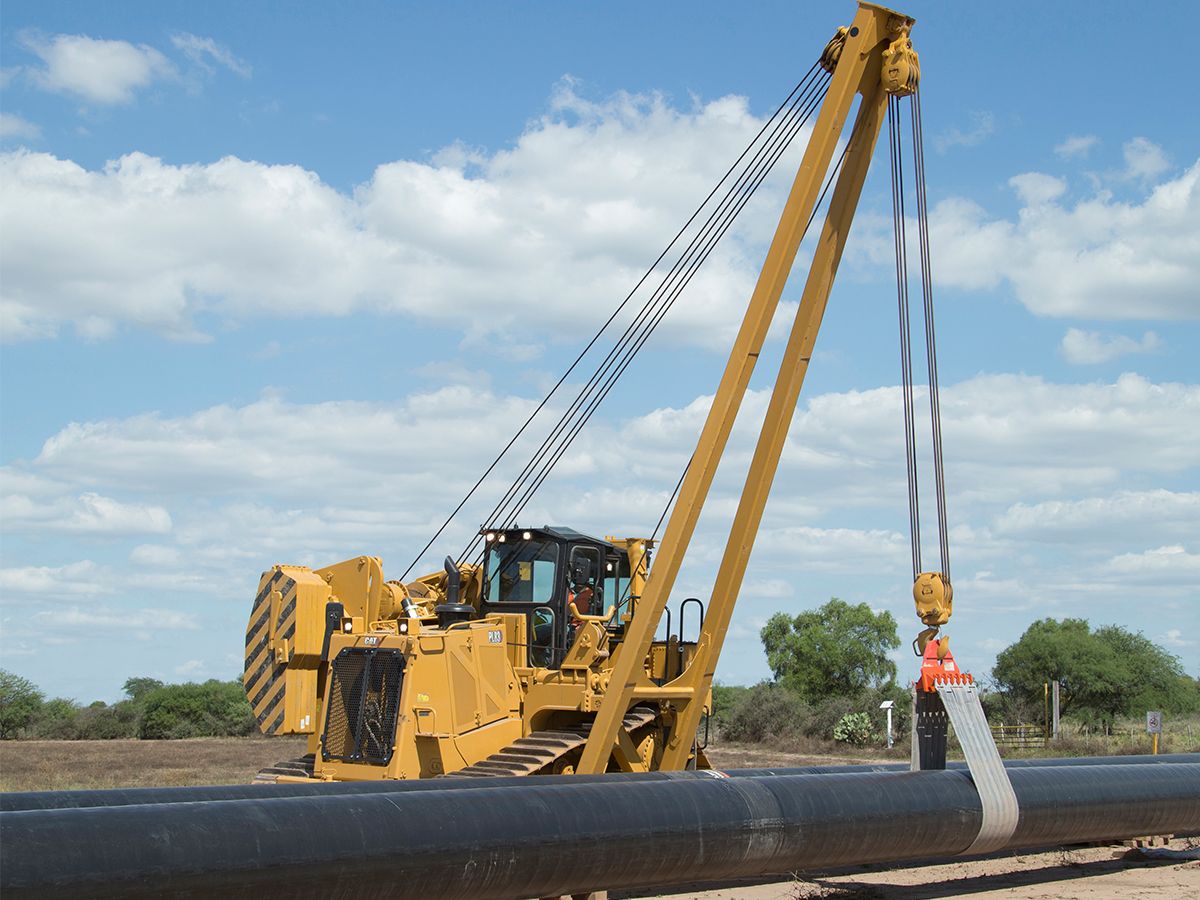

PL83 Pipelayer carrying pipe

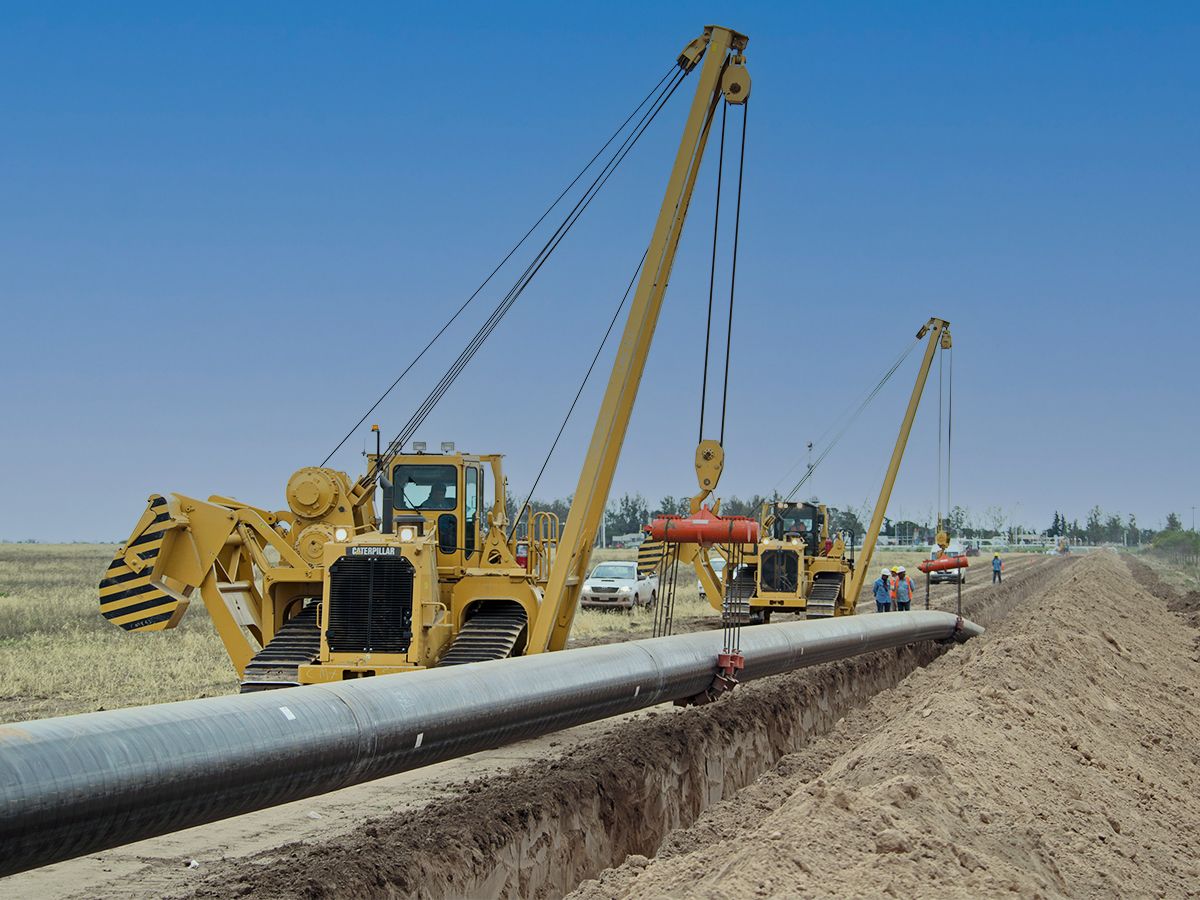

PL83 Pipelayer works in a line to install pipe

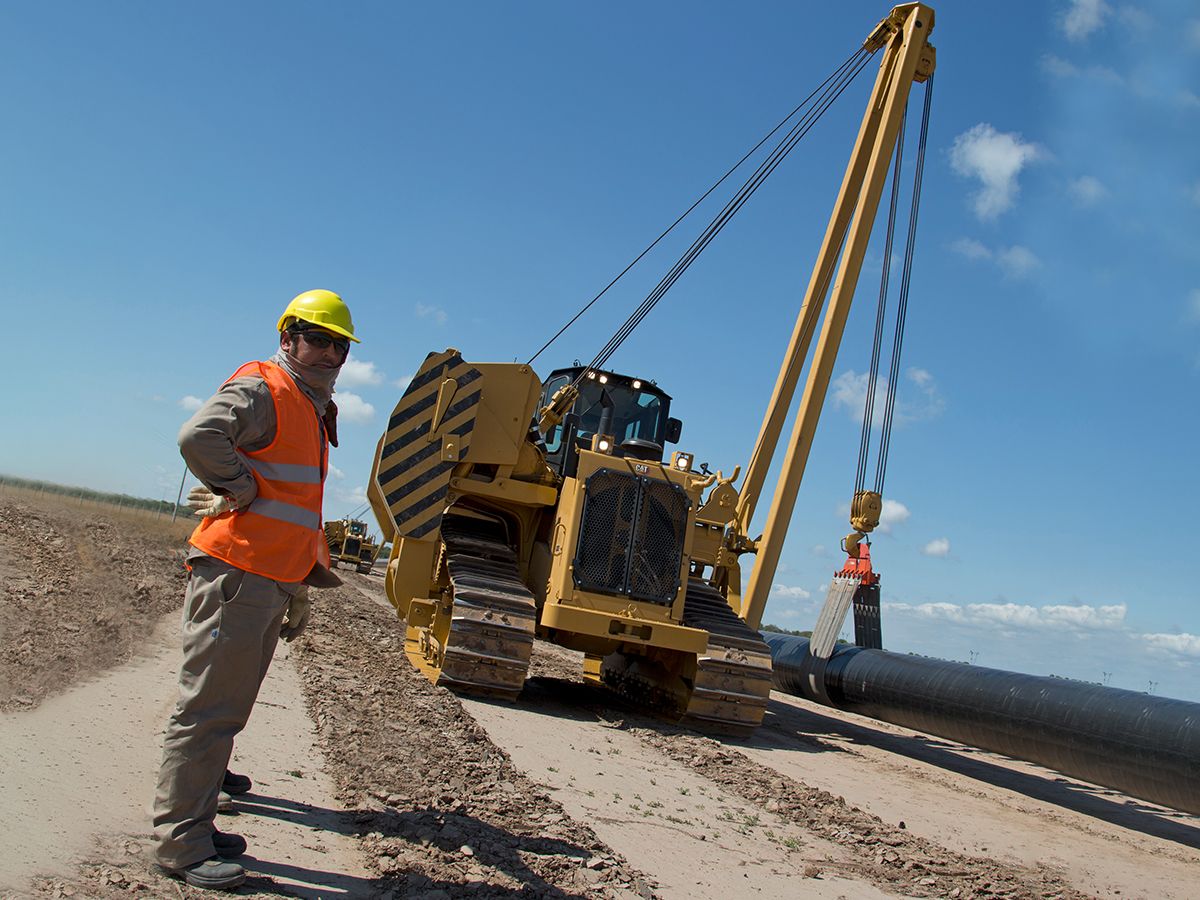

PL83 Pipelayer carrying pipe in Argentina

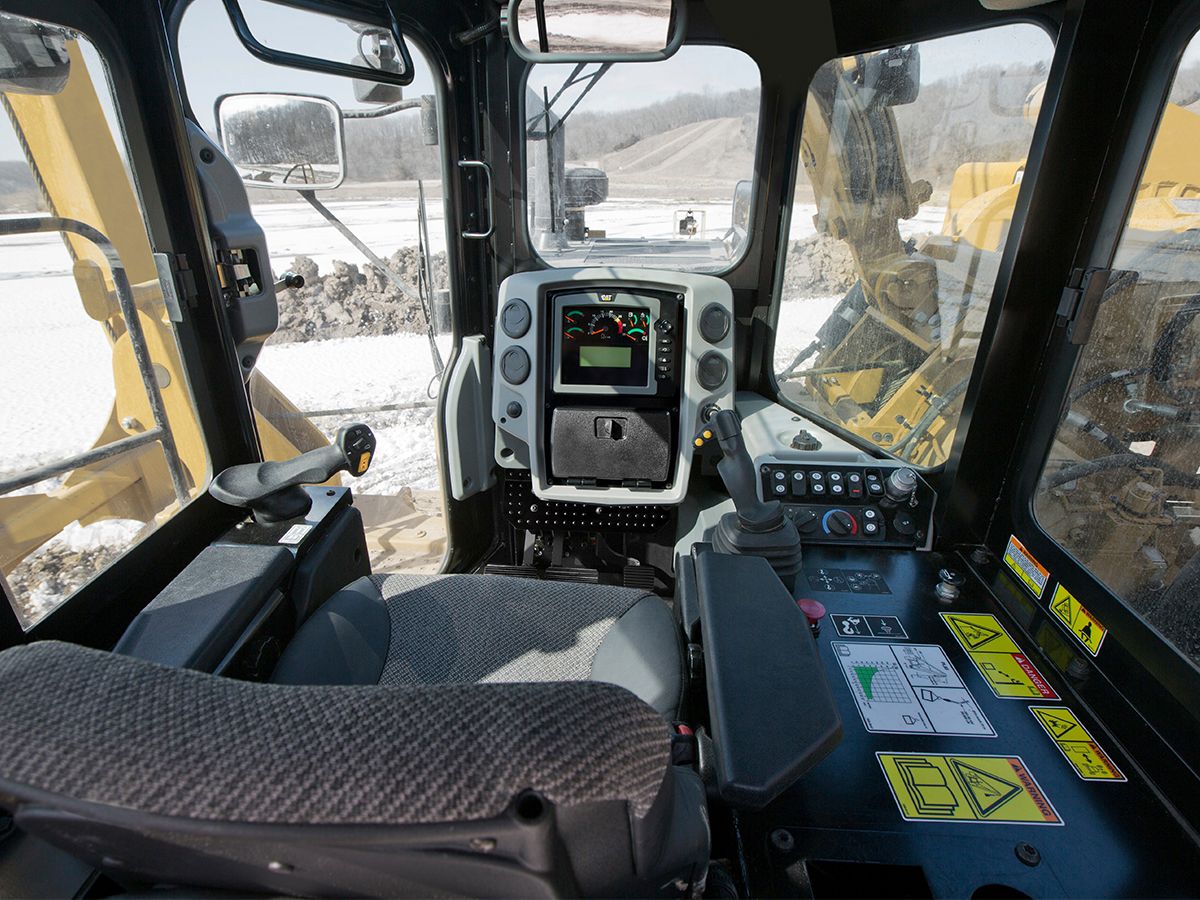

PL83 Pipelayer has a comfortable, spacious cab with great visibility

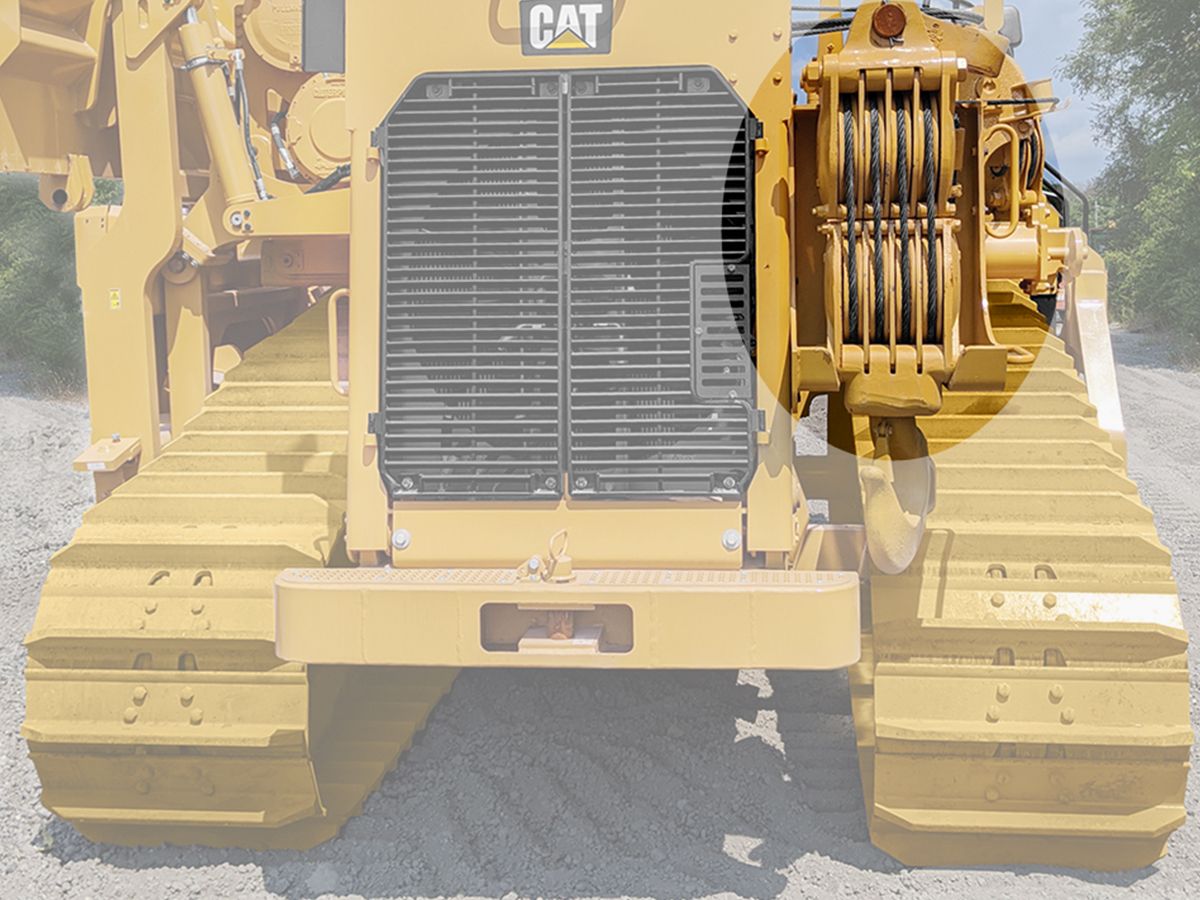

Pipe layer block holder gives you convenient storage of the block set during transport.

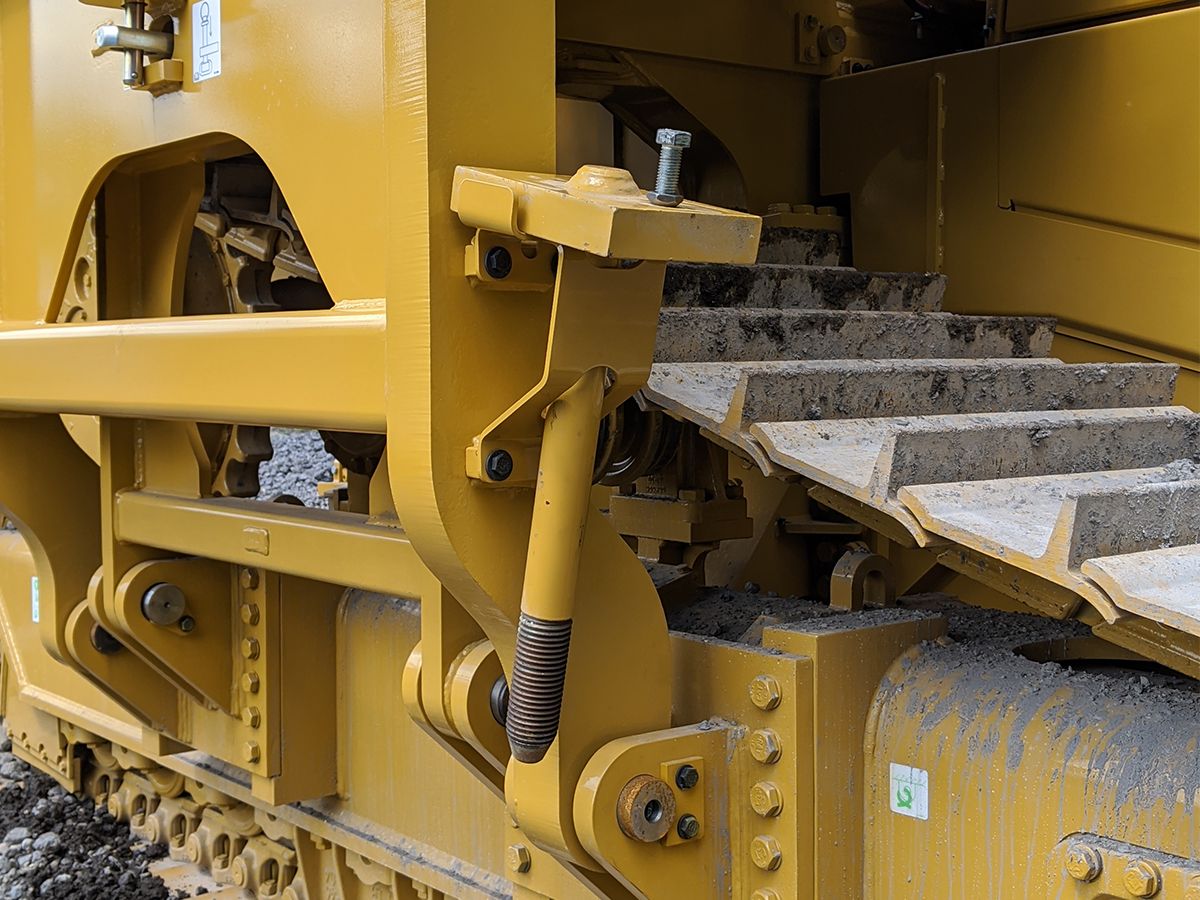

Pipe layer counterweight rod holder provides convenient storage when counterweights are removed for transport.
US
Metric

Overview

Cat Pipelayers have been the standard of the pipeline industry for decades. A worldwide network of Cat dealers, in tune with the special high production needs of pipeliners, supports these durable and dependable machines. Cat Pipelayers are purpose-built to meet the unique demands of pipeline customers. And like every Cat machine, Pipelayers are designed for long life, serviceability and rebuild capability to help keep owning and operating costs low. The PL83 answers customer needs for increased lift capacity, enhanced slope capability, ease of operation, performance and transportability.

Engine

Engine Model
Cat® C15 ACERT™
Flywheel Power
319.00 hp
238.00 kW
U.S. EPA Tier 4 Final/EU Stage IV - Net Power - ISO 9249
319.00 HP
238.00 kW
U.S. EPA Tier 4 Final/EU Stage IV: Net Power – ISO 9249
323.00 hp
238.00 kW
U.S. EPA Tier 3/EU Stage IIIA Equivalent - Net Power - ISO 9249
329.00 HP
245.00 kW
U.S. EPA Tier 3/EU Stage IIIA Equivalent: Net Power – ISO 9249
333.00 hp
245.00 kW
Emissions
U.S. EPA Tier 4 Final/EU Stage IV
Tier 4 Final/Stage IV: Engine Power (Maximum*) - SAE J1995
363.00 HP
271.00 kW
Tier 4 Final/Stage IV: Engine Power (Maximum*) - ISO 14396
359.00 HP
268.00 kW
Tier 4 Final/Stage IV: Engine Power (Maximum*) - ISO 14396 (DIN)
364.00 HP
268.00 kW
Tier 4 Final/Stage IV: Net Power (Rated**) - ISO 9249/SAE J1349
319.00 HP
238.00 kW
Tier 4 Final/Stage IV: Net Power (Rated**) - ISO 9249/SAE J1349 (DIN)
323.00 HP
323.00 HP
Tier 4 Final/Stage IV: Net Power (Maximum*) - ISO 9249/SAE J1349
345.00 HP
258.00 kW
Tier 4 Final/Stage IV: Net Power (Maximum*) - ISO 9249/SAE J1349 DIN
350.00 HP
258.00 kW
Tier 4 Final/Stage IV: Bore
5.40 in
137.00 mm
Tier 4 Final/Stage IV: Stroke
6.75 in
172.00 mm
Tier 4 Final/Stage IV: Displacement
15.20 l
0.00

Pipelaying Equipment

Lift Capacity
170000.00 lb
77111.00 kg

Pipelayer Equipment

Pullmaster Hydraulic Winches - Hook: Drum Diameter
10.00 in
254.00 mm
Pullmaster Hydraulic Winches - Hook: Flange Diameter
20.00 in
508.00 mm
Pullmaster Hydraulic Winches - Hook: Drum Length
14.00 in
355.60 mm
Pullmaster Hydraulic Winches - Hook: Wire Rope Diameter
0.75 in
19.00 mm
Pullmaster Hydraulic Winches - Hook: Boom and Cables, 7.3 m (24 ft)
242.80 ft
74.00 m
Pullmaster Hydraulic Winches - Hook: Boom and Cables, 7.3 m (24 ft) Extended
242.80 ft
74.00 m
Pullmaster Hydraulic Winches - Hook: Boom and Cables, 8.53 m (28 ft)
282.80 ft
86.20 m
Pullmaster Hydraulic Winches - Hook: Boom and Cables, 8.53 m (28 ft) Extended
282.80 ft
86.20 m
Pullmaster Hydraulic Winches – Hook: Hook Speed – Raise (6 part line)
72.00 ft/min
22.00 m/min
Pullmaster Hydraulic Winches - Boom: Drum Diameter
10.00 in
254.00 mm
Pullmaster Hydraulic Winches - Boom: Flange Diameter
20.00 in
508.00 mm
Pullmaster Hydraulic Winches - Boom: Drum Length
14.00 in
355.60 mm
Pullmaster Hydraulic Winches - Boom: Wire Rope Diameter
0.75 in
19.00 mm
Pullmaster Hydraulic Winches - Boom: Boom and Cables, 7.3 m (24 ft)
180.50 ft
55.00 m
Pullmaster Hydraulic Winches - Boom: Boom and Cables, 7.3 m (24 ft) Extended
242.80 ft
74.00 m
Pullmaster Hydraulic Winches – Boom: Boom and Cables, 8.53 m (28 ft)
205.00 ft
62.50 m
Pullmaster Hydraulic Winches - Boom: Boom and Cables, 8.53 m (28 ft) Extended
282.80 ft
86.20 m

Weights

Shipping Weight
85880.00 lb
38954.50 kg
Operating Weight
111316.00 lb
50492.00 kg

Transmission

1 Forward
2.10 mph
3.40 km/h
2 Forward
3.80 mph
6.10 km/h
3 Forward
6.60 mph
10.60 km/h
1 Reverse
2.80 mph
4.50 km/h
2 Reverse
5.00 mph
8.00 km/h
3 Reverse
8.80 mph
14.20 km/h
Drawbar Pull - 1 Forward
148.00 lbf
661.10 kN
Drawbar Pull - 2 Forward
81.00 lbf
363.10 kN
Drawbar Pull - 3 Forward
44.00 lbf
197.50 kN

Undercarriage

Track Gauge
92.00 in
2337.00 mm
Ground Contact Area
8215.00 in2
5.30 m2
Grouser Height
3.00 in
78.00 mm
Length of Track on Ground
12.20 ft
3715.00 mm
Number of Carrier Rollers (each side)
1
Number of Rollers (each side)
9
Number of Shoes (each side)
48
Shoe Type
Moderate Service
Width - Standard Shoes
30.00 in
710.00 mm

Service Capacities

Fuel Tank
109.60 gal
415.00 L
Cooling System
20.30 gal (US)
76.80 l
Hydraulic Tank Oil
26.40 gal (US)
100.00 l
Engine Crankcase - With Filter
11.40 gal (US)
43.00 l
Final Drive - Each
3.40 gal (US)
13.00 l
Power Train Oil System
50.20 gal (US)
190.00 l

Standards

Brakes
Brakes meet the International Standard ISO 10265:2008
ROPS
ROPS (Rollover Protection Structure) meets the International Standard ISO 3471:2008

Lift Capacity

Lift Capacity at Tipping Point - ISO 8813
170000.00 lb
77111.00 kg

Hydraulic System

Counterweights - Gear
34.30 gal/min
130.00 l/min
Implement Pump Output - Maximum - Closed Loop
83.80 gal/min
317.00 l/min
Steering Pump Output - Closed Loop
86.70 gal/min
328.00 l/min
Steering Pump Output (closed loop)
86.70 gal/min
328.00 L/min
Variable Charge Pump Output - Maximum - Open Loop
62.60 gal/min
237.00 l/min

Operating Specifications

Lift Capacity at Tipping Point - ISO 8813
170000.00 lb
77111.00 kg

Engine

Tier 3/Stage IIIA equivalent: Engine Power (maximum***) – SAE J1995
366.00 hp
273.00 kW
Tier 3/Stage IIIA equivalent: Engine Power (maximum***) – ISO 14396
361.00 hp
269.00 kW
Tier 3/Stage IIIA equivalent: Engine Power (maximum***) – ISO 14396 (DIN)
366.00 hp
269.00 kW
Tier 3/Stage IIIA equivalent: Net Power (rated****) – ISO 9249/SAE J1349
329.00 hp
245.00 kW
Tier 3/Stage IIIA equivalent: Net Power (rated****) – ISO 9249/SAE J1349 (DIN)
333.00 hp
245.00 kW
Tier 3/Stage IIIA equivalent: Net Power (maximum***) – ISO 9249/SAE J1349
343.00 hp
256.00 kW
Tier 3/Stage IIIA equivalent: Net Power (maximum***) – ISO 9249/SAE J1349 DIN
347.00 hp
256.00 kW
Tier 3/Stage IIIA equivalent: Bore
5.40 in
137.00 mm
Tier 3/Stage IIIA equivalent: Stroke
6.75 in
172.00 mm
Tier 3/Stage IIIA equivalent: Displacement
928.00 in3
15.20 L
Note
*Maximum speed 1,700 rpm
Note
**Rated speed 1,900 rpm
Note
***Maximum speed 1,600 rpm
Note
****Rated speed 1,850 rpm

Service Capacities

Diesel Engine Fluid (DEF)*
4.50 gal
17.00 L
Recoil Spring Compartment
19.50 gal
74.00 L
Winch Case (boom)
3.00 gal
11.30 L
Winch Case (hook)
4.00 gal
15.10 L
Note
*Tier 4 Final/Stage IV models only

Components

Total Removable Counterweight*
19233.00 lb
8724.00 kg
Removable Counterweight (12 plates) Single Plate
1603.00 lb
727.00 kg
Upper Boom Block
246.00 lb
112.00 kg
Lower Boom Block
246.00 lb
112.00 kg
Load Block
350.00 lb
159.00 kg
Hook Block
387.00 lb
176.00 kg
Standard Boom
3148.00 lb
1431.00 kg
Extended Boom
3458.00 lb
1572.00 kg
Note
*Calculated with extended boom

Dimensions (Approximate)

Track Gauge
7.70 ft
2.34 m
Width of Tractor (standard shoes)
10.70 ft
3.25 m
Width of Tractor (counterweight/boom removed)
12.70 ft
3.86 m
Width of Tractor (counterweight retracted)
13.50 ft
4.11 m
Width of Tractor (counterweight extended)
19.90 ft
6.06 m
Machine Height (top of counterweight)
11.20 ft
3.40 m
Length of Track on Ground
12.20 ft
3.72 m
Operating Length
17.90 ft
5.45 m
Height of Machine (Cab and ROPS)
11.60 ft
3.53 m
Grouser Height
3.10 in
0.08 m
Ground Clearance (per SAE J1234)
1.60 ft
0.47 m
Boom Height (at SAE 1.22 m [4 ft] overhang) 7.31 m (24 ft) boom
26.30 ft
8.02 m
Boom Height (at SAE 1.22 m [4 ft] overhang) 8.53 m (28 ft) boom
30.30 ft
9.25 m
Drawbar Height
1.40 ft
0.43 m

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.

Engine

Engine Model
Cat C15
Flywheel Power
319.00 hp
238.00 kW
Emissions
U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA

Transmission

1 Forward
2.10 mile/h
3.40 km/h
2 Forward
3.80 mile/h
6.10 km/h
3 Forward
6.60 mile/h
10.60 km/h
1 Reverse
2.80 mile/h
4.50 km/h
2 Reverse
5.00 mile/h
8.00 km/h
3 Reverse
8.80 mile/h
14.20 km/h

Undercarriage

Track Gauge
7.70 ft
2.34 m
Ground Contact Area
8215.00 in²
5.30 m²
Grouser Height
3.00 in
78.00 mm
Length - Track on Ground
12.20 ft
3.72 m
Number of Carrier Rollers - Each Side
1
Number of Rollers - Each Side
9
Number of Shoes - Each Side
48
Shoe Type
Moderate Service

Weights

Shipping Weight
85880.00 lb
38955.00 kg
Operating Weight
109000.00 lb
49442.00 kg

Pipelayer Equipment

Pullmaster Hydraulic Winches - Boom: Boom and Cables, 8.53 m (28 ft)
205.00 ft
62.50 m
Pullmaster Hydraulic Winches - Hook: Hook Speed - Raise (6 part line)
72.00 ft/min
22.00 m/min

Service Capacities

Fuel Tank
109.60 gal (US)
415.00 l

Standards

Brakes
Brakes meet the International Standard ISO 10265:2008
ROPS
ROPS (Rollover Protection Structure) meets the International Standard ISO 3471:2008

Hydraulic System

Fan Pump
35.70 gal/min
135.00 l/min

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.

Components

Extended Boom
3458.00 lb
1572.00 kg
Hook Block
387.00 lb
176.00 kg
Load Block
350.00 lb
159.00 kg
Lower Boom Block
246.00 lb
112.00 kg
Note
*Calculated with extended boom
Standard Boom
3148.00 lb
1431.00 kg
Total Removable Counterweight*
17077.00 lb
7746.00 kg
Upper Boom Block
246.00 lb
112.00 kg

Dimensions (Approximate)

Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom
26.30 ft
8.02 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 8.5 m (28 ft) Boom
30.30 ft
9.25 m
Drawbar - Height
1.40 ft
0.43 m
Ground Clearance - SAE J1234
1.60 ft
0.47 m
Grouser Height
3.10 in
0.08 m
Height - Machine - Cab and ROPS
11.60 ft
3.53 m
Length - Track on Ground
12.20 ft
3.72 m
Machine Height - Top of Counterweight
11.20 ft
3.40 m
Operating Length
17.90 ft
5.45 m
Track Gauge
7.70 ft
2.34 m
Width - Tractor - Counterweight Extended
19.90 ft
6.07 m
Width - Tractor - Counterweight Retracted
13.50 ft
4.11 m
Width - Tractor - Counterweight/Boom Removed
12.70 ft
3.86 m
Width - Tractor - Standard Shoes
10.70 ft
3.25 m

Engine

Note (1)
*Maximum speed 1,700 rpm
Note (2)
**Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Note (3)
***Maximum speed 1,600 rpm
Note (4)
****Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Tier 3/Stage IIIA Equivalent: Bore
5.40 in
137.00 mm
Tier 3/Stage IIIA Equivalent: Displacement
928.00 in³
15.20 l
Tier 3/Stage IIIA Equivalent: Engine Power (Maximum***) - ISO 14396
361.00 HP
269.00 kW
Tier 3/Stage IIIA Equivalent: Engine Power (Maximum***) - ISO 14396 (DIN)
366.00 HP
269.00 kW
Tier 3/Stage IIIA Equivalent: Engine Power (Maximum***) - SAE J1995
366.00 HP
273.00 kW
Tier 3/Stage IIIA Equivalent: Net Power (Maximum***) - ISO 9249/SAE J1349
343.00 HP
256.00 kW
Tier 3/Stage IIIA Equivalent: Net Power (Maximum***) - ISO 9249/SAE J1349 DIN
347.00 HP
256.00 kW
Tier 3/Stage IIIA Equivalent: Net Power (Rated****) - ISO 9249/SAE J1349
329.00 HP
245.00 kW
Tier 3/Stage IIIA Equivalent: Net Power (Rated****) - ISO 9249/SAE J1349 (DIN)
333.00 HP
245.00 HP
Tier 3/Stage IIIA Equivalent: Stroke
6.75 in
172.00 mm

Service Capacities

Diesel Engine Fluid (DEF)*
4.50 gal (US)
17.00 l
Note
*Tier 4 Final/Stage IV models only
Recoil Spring Compartment
19.50 gal (US)
74.00 l
Winch Case - Boom
3.00 gal (US)
11.30 l
Winch Case - Hook
4.00 gal (US)
15.10 l

Engine

Fuel Tank
109.60 gal (US)
415.00 l
DEF Tank(1)
4.50 gal (US)
17.00 l
Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349
319.00 hp
238.00 kW
Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349 (DIN)
323.00 mhp
323.00 mhp
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349
333.00 mhp
245.00 kW
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349 (DIN)
329.00 hp
333.00 mhp

Components

Removable Counterweight (10 plates) Single Plate
1707.70 lb
774.60 kg

Dimensions (Approximate)

Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom
22.30 ft
6.78 m

Dimensions

Width - Tractor - Standard Shoes
10.70 ft
3.25 m
Features

Built to Perform

  • Integrated power train with differential steering and updated hydraulic system work together to provide power and improved machine maneuverability for any pipelayer application.
  • Electro-hydraulics offer greater response and precise control to variable speed motors of the heavy duty winch for greater machine productivity.
  • Counterweight profile improves lift capacity.
  • Differential steering maintains full power to both tracks for best-in class turning even with a loaded boom, increasing maneuverability in tight locations.
  • Improved machine center of gravity and lengthened track-roller frame with repositioned rear idler places more track on the ground, enhancing slope capability.

Because Uptime Counts

  • Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.
  • Full left-side engine serviceability, including fill tube, dipstick, air cleaner, fuel filters, oil filter and coolant level check allows for quick and efficient routine service.
  • High speed oil change is standard and makes servicing even faster.
  • Hydraulic and powertrain filters and fuel tank drain are located at rear of machine and are conveniently serviceable from ground level.
  • Pressure taps are placed within hydraulic system to allow for quick monitoring.
  • Major components like the engine, transmission, and final drives are modular for quicker removal during service, saving cost and downtime.

Designed for Operators

  • Implement joystick places all Pipelayer implement controls and functionality in one hand.
  • Low-effort, ergonomically designed and positioned control handle allows simultaneous, precise positioning of load line, boom, and extendible counterweight.
  • Dual brake pedal controls provide enhanced maneuverability and steering control.
  • Planetary differential steering contributes to superior maneuverability in tight areas of operation as well as enhanced slope capability.

Work in Comfort

  • Quieter, pressurized cab with heated/ventilated seat option improves operator comfort and productivity.
  • Ergonomically designed seat is positioned for greater visibility to work area and convenient access to machine control lever, switches and pedals.

Built-In Safety Features

  • Load Moment Indicator (LMI) is standard.
  • Convenient steps, handles and guardrail provide safe access/egress.
  • Enlarged roof top window with retractable shade, additional mirrors, and angled door improves visibility to the trench, boom and blocks.
  • Standard operator presence detection system allows machine to idle when operator is not seated, but locks out power train to avoid unintentional movement.
  • Rear vision camera is standard, and two additional cameras can be added as an option to further enhance visibility around the machine.
Sales Features

Pipelayer

Purpose-built, robust components

Operator Station

Designed for productive comfort

Enclosed and Pressurized Cab

Designed with pipeline productivity in mind

Implement and Steering Controls

Ergonomically designed for ease of operation

Structure

Underlying strength

Undercarriage

Engineered for performance

Engine and Power Train

Powerful efficiency

Integrated Technologies

Solutions to make work easier and more efficient

Sustainability

Generations ahead in every way

Serviceability and Customer Support

More productivity, less cost

Renowned Cat Dealer Support

When uptime counts

Safety

Designed with protection in mind
Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWER TRAIN
    • Cat C15 diesel engine: Electronic Unit Injection (EUI) Aftertreatment Meets Tier 4 Final/Stage V or Tier 3/Stage IIIA equivalent emission standards, depending on region of sale
    • 24V electric start
    • Aftercooler, air-to-air (ATAAC)
    • Coolant, extended life with protection to -37 C (-34 F)
    • Filter, air with electronic service indicator
    • Final drives: Four double reduction planetary
    • Fuel priming pump, electric
    • High performance single plane cooling system
    • Parking brake, electronic
    • Precleaner, strata-tube dust ejector
    • Prescreener
    • Starting aid, ether
    • Torque divider
    • Transmission, electronically controlled 3-speed Powershift
    • Turbocharger, wastegate
    • Water separator
    • Zero speed hydraulic fan, reversing and hydraulically driven, electronically controlled
  • OPERATOR ENVIRONMENT
    • Rear Vision Camera
    • Load Moment Indicator (LMI)
    • Advisor operator interface: Electronic monitoring system, Diagnostic service information, Operator preferences
    • Armrest, adjustable
    • Deactivation switch, hydraulic controls
    • Decelerator pedal
    • Differential steering control, with touch shift
    • Dual brake pedal
    • Heater and ventilation
    • ROPS
    • Seat belt, retractable
    • Storage compartment
  • PIPELAYING EQUIPMENT
    • Block and hook with latch
    • Counterweights, extendible segmented
    • Winches, hydraulic actuated and electronically controlled
  • UNDERCARRIAGE
    • Carrier roller
    • Hydraulic track adjusters
    • Master links, two piece
    • Medium service grouser 760 mm (30 in): Sealed and lubricated track (48 section)
    • Non-suspended undercarriage
    • Rollers and idlers, lifetime lubricated
    • Sprocket rim segments, replaceable
    • Track guiding guards
    • Track roller frames
  • ELECTRICAL
    • Alarm, backup
    • Batteries, four maintenance free heavy duty
    • Boom and counterweight limit switch
    • Converter, 12V, 10 amp with one outlet
    • Horn, forward warning
    • Lights, two front, two rear
    • Machine diagnostic connector
    • Machine disconnect switch
    • Starting receptacle
  • OTHER STANDARD EQUIPMENT
    • Bottom guards, hinged
    • Bumper, front with towing device
    • Ecology drains: Engine oil, Coolant, Hydraulic oil, Torque converter, Fuel tank, Power train case and transmission
    • Enclosures, perforated engine
    • Guard, hinged radiator
    • Hood, perforated
    • Hydraulic system, electronically activated for hook, boom and counterweight control
    • Hydraulics, independent steering and work tool pumps
    • Oil cooler, hydraulic
    • Product Link ready
    • S-O-S sampling ports
    • Steering, electronically controlled power differential
    • Vandalism protection for fluid compartments
    • ROPS
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Cab with air conditioning, heat and 150 amp alternator
    • OROPS with heat and 150 amp alternator
    • Cloth air seat
    • Deluxe seat
    • Vinyl seat
    • Heated seat
  • UNDERCARRIAGE
    • Arctic rollers
    • Standard rollers
  • TECHNOLOGY PRODUCTS
    • Product Link
  • PIPELAYING EQUIPMENT
    • Boom and cables 6.1 m (20 ft)
    • Boom and cables 7.3 m (24 ft)
    • Boom and cables 8.5 m (28 ft)
  • OTHER OPTIONAL EQUIPMENT
    • CE Certification
    • ROPS
