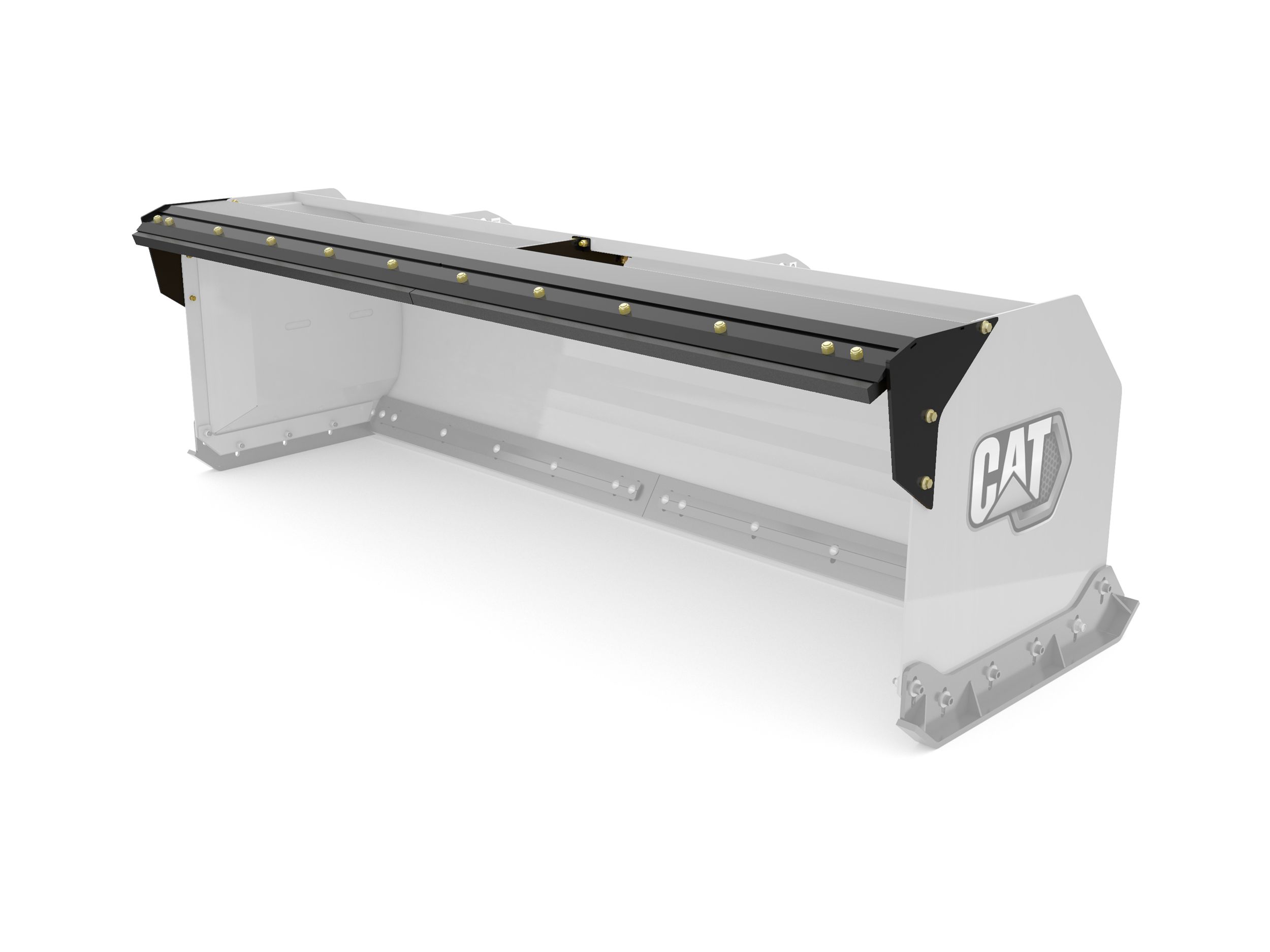

3.05 m (10 ft) Back Drag Bar with rubber trip edge

US
Metric

Overview

Cat® Straight Snow Pushes are designed for optimal snow removal or any material pushing application. Removing applications can range from parking lots, driveways, airport runways and storage lots. Designed to roll and fold snow with a profiled mold board, the Straight Snow Push maximizes the amount of snow being pushed. Once material is contained and displaced, streamlined box supports ensure that snow does not cling to the tool, increasing productivity. The Cat Straight Snow push features a standard trip edge system which protects your machine and tool from unseen obstacles.
Type
Back Drag Bar
Overall Width
122.40 in
3109.00 mm
Working Width
120.00 in
3048.00 mm
Weight
425.10 lb
192.80 kg
Length
33.20 in
844.00 mm
Overall Height
16.00 in
406.00 mm
Interface Type
Skid Steer Coupler
Trip Edge Type
Rubber With Trip Edge
Trip Edge Height
6.00 in
153.00 mm
Trip Edge Quantity
2
Features

Cutting Edge Options

Rubber or steel, bolt-on replaceable cutting edges are available for all size back drags. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.

Large Torque Tube

Large torque tube ensures a long working life and large capacity of snow removed.

Center Structural Support

Center structural support provides rigidity and support throughout the front edge.
