Overview

Operating Specifications

Rated Load Capacity
5500.00 lb
2500.00 kg
Maximum Lift Height
18.37 ft
5600.00 mm
Maximum Forward Reach
10.83 ft
3300.00 mm
Capacity at Maximum Height
3000.00 lb
1360.00 kg
Capacity at Maximum Reach
1700.00 lb
771.00 kg
Top Travel Speed - 12 × 16.5 Tires
15.00 mph
24.00 km/h
Top Travel Speed - 14 × 17.5 Tires
17.00 mph
27.00 km/h
Turning Radius over Tires - 12 × 16.5 Tires
127.00 in
3200.00 mm
Turning Radius over Tires - 14 × 17.5 Tires
125.00 in
3100.00 mm

Engine

Engine Model
TD 2.9L L4*
Gross Power
74.00 hp
55.00 kW
Displacement
177.00 in3
2.90 L
Maximum Torque - 1,800 rpm
193.00 lb/ft
260.00 N·m

Weights

Operating Weight with Carriage and Forks
11000.00 lb
4999.00 kg

Tires

Standard
12.00 × 16.5
Optional
14.00 × 17.5; 10.5 × 18; 33 × 12-20 non-marking

Service Refill Capacities

Fuel Tank
24.00 gal
91.00 L
Hydraulic System
24.00 gal
91.00 L

Boom Performance

Boom Up
6.80 s
6.80 s
Boom Down
4.60 s
4.60 s
Tele In
3.80 s
3.80 s
Tele Out
6.70 s
6.70 s
Bucket Crowd
2.00 s
2.00 s
Bucket Dump
2.50 s
2.50 s
Drawbar Pull - Loaded
8700.00 lb
38.70 kN

Brakes

Feature
Light on dash indicates when brake is on.
Parking Brakes
Wet disc spring-applied hydraulic release
Service Brakes
Inboard wet disc brakes on front axle

Axles

Types
High bias limited slip differential on front axle.
Types
Planetary on front and rear axles.

Hydraulic System - Implement

Note
Auxiliary Hydraulic Circuit used for all attachments equipped with cylinders or other hydraulic components. Consists of valves, controls, and hydraulic lines.
Maximum Auxiliary Flow
19.00 gal/min
72.30 l/min
Maximum System Pressure
3500.00 psi
241.00 bar
Pump Type
Gear pump

Instruments

Types
Indicators for machine hours, fuel-level, steer mode, steering pressure, battery charge, coolant temperature, parking brake and engine pre-heat.
Types (2)
Reverse motion alarm.
Types (3)
Panel and switches are illuminated for night operation.
Types
Indicators for battery charge, coolant temperature, parking brake and engine pre-heat.

Transmission

Forward
Variable Speed
Reverse
Variable Speed
Transmission
Hydrostatic

Engine

Note
*U.S. EPA Tier 4 Final emission standards

Operating Specifications - Standard Coupler

Rated Load Capacity
5500.00 lb
2500.00 kg
Maximum Lift Height
18.37 ft
5600.00 mm
Maximum Forward Reach
10.83 ft
3300.00 mm
Capacity at Maximum Height
4400.00 lb
1996.00 kg
Capacity at Maximum Reach
1850.00 lb
839.00 kg
Turning Radius - Over Tires - 12 × 16.5 Tires
127.00 in
3200.00 mm
Turning Radius - Over Tires - 14 × 17.5 Tires
125.00 in
3100.00 mm
Top Travel Speed - 12 × 16.5 Tires
15.00 mile/h
24.00 km/h
Top Travel Speed - 14 × 17.5 Tires
17.00 mile/h
27.00 km/h

Operating Specifications - Universal Quick Coupler

Rated Load Capacity
5500.00 lb
2500.00 kg
Maximum Lift Height
18.37 ft
5600.00 mm
Maximum Forward Reach
10.83 ft
3300.00 mm
Capacity at Maximum Height
3000.00 lb
1360.00 kg
Capacity at Maximum Reach
1700.00 lb
771.00 kg
Turning Radius - Over Tires - 12 × 16.5 Tires
127.00 in
3200.00 mm
Turning Radius - Over Tires - 14 × 17.5 Tires
125.00 in
3100.00 mm
Top Travel Speed - 12 × 16.5 Tires
15.00 mile/h
24.00 km/h
Top Travel Speed - 14 × 17.5 Tires
17.00 mile/h
27.00 km/h

Engine

Engine Model
TD 2.9L L4*
Gross Power
74.00 HP
55.00 kW
Displacement
177.00 in³
2.90 l

Weights

Operating Weight - With Carriage and Forks
11000.00 lb
4999.00 kg

Tires

Standard
12.00 × 16.5
Optional
14.00 × 17.5; 10.5 × 18; 33 × 12-20 non-marking

Service Refill Capacities

Fuel Tank
24.00 gal (US)
91.00 l
Hydraulic System
24.00 gal (US)
91.00 l

Brakes

Feature
Light on dash indicates when brake is on.

Braking System

Parking Brakes
Wet disc spring-applied hydraulic release
Service Brakes
Inboard wet disc brakes on front axle

Axles

Types (1)
Planetary on front and rear axles.
Types (2)
High bias limited slip differential on front axle.

Instruments

Types (1)
Indicators for machine hours, fuel-level, steer mode, steering pressure, battery charge, coolant temperature, parking brake and engine pre-heat.

Engine

Note
*Emits equivalent to U.S. EPA Tier 4 Interim
Features

Compact Dimensions

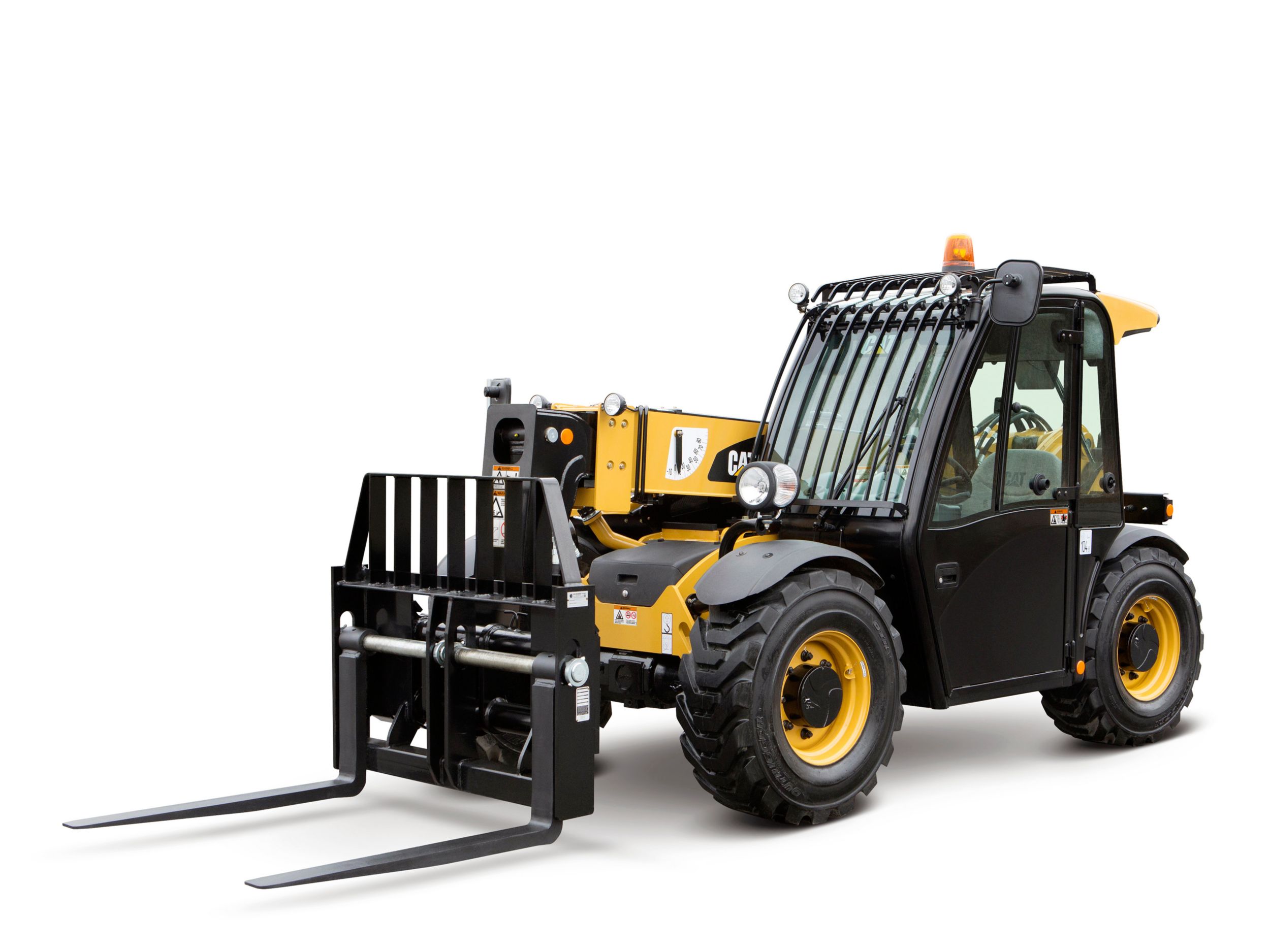

The TH255C is purpose built to be able to gain entrance to narrow spaces and navigate space constrained sites. The super compact telehandler is perfect for working in small spaces and low buildings.

Power Train

Designed for a range of construction and agricultural applications, the Cat® TH255C features an efficient 55 kW (74 hp) engine coupled to a hydrostatic transmission.

Versatility

In order to help you get the most out of your machine, the Cat TH255C is exceptionally versatile and can use a range of attachments, including those fitting a universal quick coupler.

Sales Features

Features

Standard Equipment
  • Cab ROPS and FOPS
    • Canopy, Fixed Steering Column
    • Sunscreen
    • Mechanical Suspension Seat with Seat Belt
    • Mechanical Parking Brake
  • Electrical
    • 1 × 12V 1,000 CCA Battery
    • Reverse Alarm
  • Other Equipment
    • Boom Brushes
    • Single Auxiliary Service to Boom Head
  • Tires
    • Mitas 12 × 16.5, Pneumatic
  • Quick Couplers
    • Manual Quick Coupler
    • Note: Standard Coupler or Universal Quick Coupler options are available, and must be selected, please consult your Cat dealer for details.
Optional Equipment
  • Cab ROPS and FOPS
    • Canopy, Tilt Steering Column
    • Cab Enclosed with Heat
    • Cab Enclosed with Heat and Air Conditioning
    • Screen Guard
    • Roof Guard
    • Heater/De-mister
    • Air Conditioning
    • Seatbelt, 76 mm (3 in)
    • Column Mounted FNR Lever
    • Front, Rear, and Roof Wipers
  • Electrical
    • Block Heater 110 Volt
    • Work Lights, 4 × Cab Mounted (2 front, 2 rear) 2 × Boom Mounted
    • Product Link™ Ready, Version 641
    • Seven (7) Pin Trailer Service
    • Rotating Beacon
    • Radio Ready
    • Battery Disconnect
  • Other Equipment
    • Auxiliary Service to Rear
    • Rear Hitch Mirror, Flat
    • Rear Hitch Mirror, Convex
    • Tool Box
    • Boom Safety Brace
    • Wheel Chocks
    • Remote Grease System
  • Tires
    • 14 × 17.5, Pneumatic
    • 12 × 16.5, Foam
    • 14 × 17.5, Foam
    • 10.5-18, Pneumatic
    • 33 × 22, Solid Non-Marking
  • Tow Hitches
    • Retrieval Hitch
    • Manual Hitch
    • Automatic Adjustable Hitch
  • Quick Couplers
    • Hydraulic Quick Coupler
    • Note: Standard Coupler or Universal Quick Coupler options are available, and must be selected, please consult your Cat dealer for details.
  • Work Tools
    • Floating Fork Carriage
    • Side Shift Carriage
    • Side Tilt/Rotate Carriage
    • 0.36 m3 (0.48 yd3) Multi Purpose Bucket
    • 0.76 m3 (1.0 yd3) General Purpose Bucket
    • 0.76 m3 (1.0 yd3) Grapple Bucket
    • 1.0 m3 (1.3 yd3) Multi Purpose Bucket
    • 1.5 m3 (1.95 yd3) Light Material Bucket
    • 1225 mm (48 in) Bale Fork
    • Grapple Bucket
    • Muck Fork and Grapple
    • Material Handling Arm for Universal Quick Coupler
