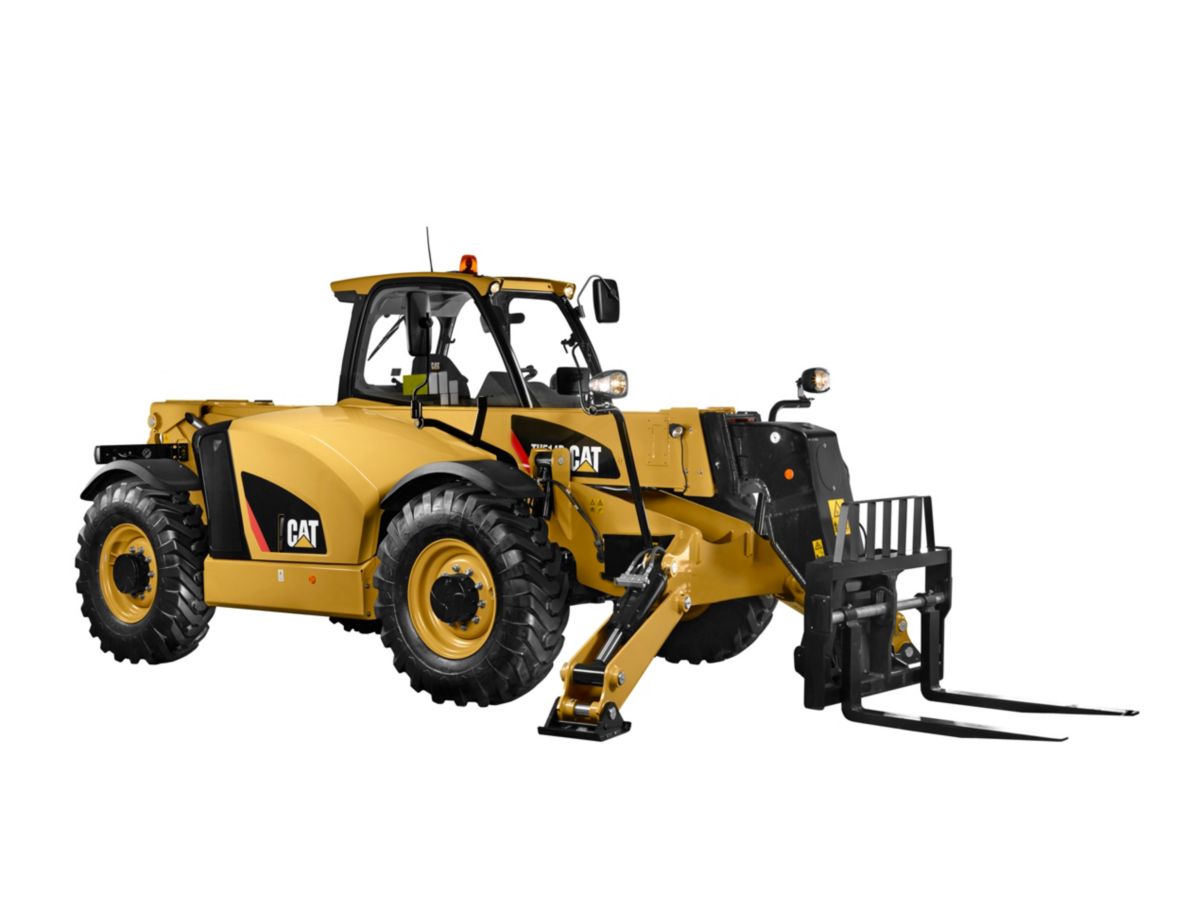

The Cat TH514D Telehandler features a three-section boom, maximum lift height of 13.88 m (45.6 ft) and rated load capacity of 4990 kg (11,000 lb). It is ideal for material handling in construction applications.

Engine

Engine Model
Cat C3.4B

Weights

Operating Weight - With Carriage and Forks*
26211.00 lb
11889.00 kg

Operating Specifications

Rated Load Capacity
11000.00 lb
4990.00 kg
Maximum Lift Height
45.60 ft
13.88 m
Maximum Forward Reach
32.10 ft
10.00 m
Capacity at Maximum Lift Height
4400.00 lb
1996.00 kg
Capacity at Maximum Forward Reach
600.00 lb
272.00 kg
Outside Turning Radius over Tires
12.90 ft
3.90 m
Capacity at Maximum Lift Height (stabilizers down)
7000.00 lb
3175.00 kg

Tires

Standard
Mitas 14.00-24 16PR Air
Option
Goodyear 14.00-24 16PR Air
Option
Goodyear 14.00-24 16PR Foam

Service Refill Capacities

Fuel Tank
40.00 gal
148.00 L
Diesel Exhaust Fluid
5.40 gal
20.30 L

Boom Performance

Boom Up
13.20 s
13.20 s
Boom Down
11.80 s
11.80 s
Tele In
12.80 s
12.80 s
Tele Out
16.60 s
16.60 s

Brakes

Service Brakes
Boost assisted oil immersed multi disc on both axles

Braking System

Parking Brake
Spring actuated hydraulic release park brake on front axle

Hydraulic System

System Type
Load Sensing, Closed Center
Pump Type
Variable Flow, Axial Piston
Maximum Pump Capacity
39.80 gal/min
150.80 l/min
System Pressure
3770.00 psi
260.00 bar
Auxiliary Hydraulic Pressure
3481.00 psi
240.00 bar

Axles

Front Axle
High bias, planetary reduction hubs with limited slip differential
Rear Axle
Open differential with planetary reduction hubs

Weights

Note
*Represents machine configuration of 75 kW (100 hp/bhp) engine on standard 15.5/80-24 16 ply tires.

Service Refill Capacities

Hydraulic Tank
42.00 gal
160.00 L

Transmission

Type
Four (4) speed power shift
Forward – 1
3.40 mph
5.50 km/h
Forward – 2
6.50 mph
10.60 km/h
Forward – 3
15.60 mph
25.20 km/h
Forward – 4
19.20 mph
30.90 km/h
Reverse – 1
3.40 mph
5.50 km/h
Reverse – 2
6.50 mph
10.60 km/h
Reverse – 3
15.60 mph
25.20 km/h

Electrical

Battery
1 × 12V 1,000 CCA Battery
Alternator Output
12V/120A

Hydraulic System

Auxiliary Hydraulic Flow: Boom Head – Intermittent
25.00 gal/min
95.00 L/min
Auxiliary Hydraulic Flow: Boom Head – Continuous
25.00 gal/min
95.00 L/min

Boom Performance

Crowd Forward (Dump)
4.00 sec
4.00 sec
Crowd Backward
3.90 sec
3.90 sec
Combined – Up and Out
29.80 sec
29.80 sec
Combined – Down and In
24.60 sec
24.60 sec

Performance

Drawbar Pull
20075.00 lbf
89.30 kN
Frame Leveling
±10
Noise Levels – In Cab
86.00 dB(A)
86.00 dB(A)
Noise Levels – External
106.00 dB(A)
106.00 dB(A)
Off Road Towing Only
11000.00 lb
4990.00 kg

Dimensions (Approximate)

Overall Length to Front of Carriage
21.30 ft
6465.00 mm
Overall Width (standard tires)
8.20 ft
2498.00 mm
Overall Width - Stabilizers Down
10.20 ft
3104.00 mm
Overall Height (standard tires)*
8.80 ft
2700.00 mm
Wheelbase
10.50 ft
3200.00 mm
Ground Clearance
1.50 ft
450.00 mm
Track
6.80 ft
2078.00 mm
Overhang
3.60 ft
1091.00 mm
Cab Width
2.70 ft
825.00 mm
Machine Length
21.30 ft
6465.00 mm
Departure Angle
32.8°
Maximum Fork Crowd Angle
11°
Maximum Fork Dump Angle
112°
Note
*Add 200 mm (7.9 in) for beacon. Add 40 mm (1.6 in) for top guard.

Engine

Gross power
75 kW (100 hp/bhp)
Max torque
310.00 lbf-ft
420.00 N∙m
Bore
3.80 in
99.00 mm
Stroke
4.30 in
110.00 mm
Displacement
207.00 in3
3.40 L
Emissions
*Meets U.S. EPA Tier 4 Final emission standards.

Operating Specifications

Capacity at Maximum Forward Reach (Stabilizers Down)
3750.00 lb
1701.00 kg

Dimensions (Approximate)

Note
TBD = To Be Determined

Engine

Engine Model
Cat C3.4B

Operating Specifications

Maximum Forward Reach
32.10 ft
10.00 m
Capacity at Maximum Lift Height
4400.00 lb
1996.00 kg
Outside Turning Radius - Over Tires
12.90 ft
3.90 m

Tires

Standard
Mitas 14.00-24 16PR Air
Option (1)
Goodyear 14.00-24 16PR Air

Hydraulic System

System Type
Load Sensing, Closed Center

Service Refill Capacities

Fuel Tank
40.00 gal (US)
148.00 l
Diesel Exhaust Fluid
5.40 gal (US)
20.30 l

Braking System

Service Brakes
Boost assisted oil immersed multi disc on both axles

Axles

Front Axle
High bias, planetary reduction hubs with limited slip differential

Engine

Bore
3.80 in
99.00 mm
Stroke
4.30 in
110.00 mm
Displacement
207.00 in³
3.40 l

Service Refill Capacities

Hydraulic Tank
42.00 gal (US)
160.00 l

Hydraulic System

Pump Type
Variable Flow, Axial Piston

Boom Performance

Crowd Backward
3.90 s
3.90 s

Axles

Rear Axle
Open differential with planetary reduction hubs

Boom Performance

Combined - Down and In
24.60 s
24.60 s
Combined - Up and Out
29.80 s
29.80 s
Crowd Forward - Dump
4.00 s
4.00 s

Dimensions (Approximate)

Cab Width
2.70 ft
825.00 mm
Departure Angle
32.8°
Ground Clearance
1.50 ft
450.00 mm
Machine Length
21.30 ft
6465.00 mm
Maximum Fork Crowd Angle
11°
Maximum Fork Dump Angle
112°
Note
*Add 200 mm (7.9 in) for beacon. Add 40 mm (1.6 in) for top guard.
Overall Height - Standard Tires*
8.80 ft
2700.00 mm
Overall Length to Front of Carriage
21.30 ft
6465.00 mm
Overall Width - Standard Tires
8.20 ft
2498.00 mm
Overhang
3.60 ft
1091.00 mm
Track
6.80 ft
2078.00 mm
Wheel Base
10.50 ft
3200.00 mm

Electrical

Alternator Output
12V/120A
Battery
1 × 12V 1,000 CCA Battery

Engine

Emissions
*Meets U.S. EPA Tier 4 Final emission standards.
Gross Power
75 kW (100 hp/bhp)
Maximum Torque
310.00 ft·lbf
420.00 N·m

Hydraulic System

Auxiliary Hydraulic Flow - Boom Head - Continuous
25.00 gal/min
95.00 l/min
Auxiliary Hydraulic Flow - Boom Head - Intermittent
25.00 gal/min
95.00 l/min
Auxiliary Hydraulic Pressure
3481.00 psi
240.00 bar
System Pressure
3770.00 psi
260.00 bar

Operating Specifications

Capacity at Maximum Lift Height (Stabilizers Down)
7000.00 lb
3175.00 kg

Performance

Drawbar Pull
20075.00 lbf
89.30 kN
Noise Levels - External
106.00 dB(A)
106.00 dB(A)
Noise Levels - In Cab
86.00 dB(A)
86.00 dB(A)

Tires

Option (2)
Goodyear 14.00-24 16PR Foam

Transmission

Forward - 1
3.40 mile/h
5.50 km/h
Forward - 2
6.50 mile/h
10.60 km/h
Forward - 3
15.60 mile/h
25.20 km/h
Forward - 4
19.20 mile/h
30.90 km/h
Reverse - 1
3.40 mile/h
5.50 km/h
Reverse - 2
6.50 mile/h
10.60 km/h
Reverse - 3
15.60 mile/h
25.20 km/h
Type
Four (4) speed power shift

Weights

Note
*Represents machine configuration of 75 kW (100 hp/bhp) engine on standard 15.5/80-24 16 ply tires.
Features

Simple Maintenance

Due to the engine layout parallel to the machine frame, Cat® Telehandlers feature class leading access to the engine, filters and service fluids, making servicing easier and quick from ground level. Our excellent dealer and parts network ensures rapid availability around the clock.

Handle Tough Terrain

High ground clearance and limited slip differential locks ensure that the TH514D can handle even the most difficult environments. Dual axle braking also provides the security you need when traveling around the job site and our long wheelbase ensures load stability on uneven ground.

Powerful Hydraulics

A variable flow axial pump matched to a high performance flow sharing valve allows smooth multi-function boom performance. The load sensing system means excellent fuel economy, as the pump only works when required.

Cab

A well laid out cab with a multi-function joystick gives the operator a comfortable working environment. The unique “Operator Preferences” feature allows the machine to be tuned to suit individual operators. Options include an air suspension seat, large display screen with pre-loaded load charts, rearview camera, reversing sensors and air conditioning.

Sales Features

Simple Maintenance

Due to the engine layout parallel to the machine frame, Cat® Telehandlers feature class leading access to the engine, filters and service fluids, making servicing easier and quick from ground level. Our excellent dealer and parts network ensures rapid availability around the clock.

Handle Tough Terrain

High ground clearance and limited slip differential locks ensure that the TH514D can handle even the most difficult environments. Dual axle braking also provides the security you need when traveling around the job site and our long wheelbase ensures load stability on uneven ground.

Powerful Hydraulics

A variable flow axial pump matched to a high performance flow sharing valve allows smooth multi-function boom performance. The load sensing system means excellent fuel economy, as the pump only works when required.

Cab

A well laid out cab with a multi-function joystick gives the operator a comfortable working environment. The unique “Operator Preferences” feature allows the machine to be tuned to suit individual operators. Options include an air suspension seat, large display screen with pre-loaded load charts, rearview camera, reversing sensors and air conditioning.
Standard Equipment
  • Operator Environment
    • Canopy, Open
    • Mechanical Suspension Seat with Seat Belt
    • Multi Function Joystick Controller with FNR
    • SAHR Parking Brake
  • Electrical
    • 1 × 12V 1,000 CCA Battery
    • Reverse Alarm
  • Other Equipment
    • Single Auxiliary Service to Boom Head
  • Tires
    • Mitas 14.00-24 16PR Air
  • Tow Hitches
    • Off Road Tow Hitch
  • Quick Couplers
    • Manual Cat “IT” Interface
Optional Equipment
  • Operator Environment
    • Cab, Enclosed
    • Reversing Camera
    • Reversing Sensors
    • Large Electronic Display Screen
    • Sunscreen
    • Air Suspension Seat with Seat Belt
    • Seat Belt 76 mm (3 in)
    • Screen Guard
    • Roof Guard
    • Heater/De-mister
    • Air Conditioning
    • Column Mounted FNR Lever
    • Front and Rear Windscreen Wipers
    • Roof Wiper
  • Electrical
    • 2 × 12V 1,000 CCA Batteries
    • Block Heater 110 Volt
    • Work Lights, 4 × Cab Mounted (2 front, 2 rear) 2 × Boom Mounted
    • Fog Lights
    • Product Link™ Ready, Version 641
    • Rotating Beacon
  • Other Equipment
    • Boom Brushes
    • Ride Control
    • 2nd Auxiliary Service to Boom Head
    • Tool Box
  • Tires
    • Goodyear 14.00-24 16PR Air
    • Goodyear 14.00-24 16PR Foam
  • Quick Couplers
    • Hydraulic Cat “IT” Interface
  • Work Tools
    • Floating Fork Carriage
    • Dual Positioning Fork Carriage
    • Side Shift Carriage
    • 1 m3 (1.3 yd3) General Purpose Bucket
    • 1.5 m3 (1.95 yd3) Rehandling Bucket
    • Fork Rotator Carriage
    • Auger
    • Concrete Mixer Bucket
    • Truss Boom (with winch)
    • Trash Hopper
    • Pipe Grapple
    • Sweeper Collector
    • Side Tilt Carriage
    • Swing Carriage
    • Fork Mounted Platform
