Trash Grapple, 324/329/336 Excavator

US
Metric

Overview

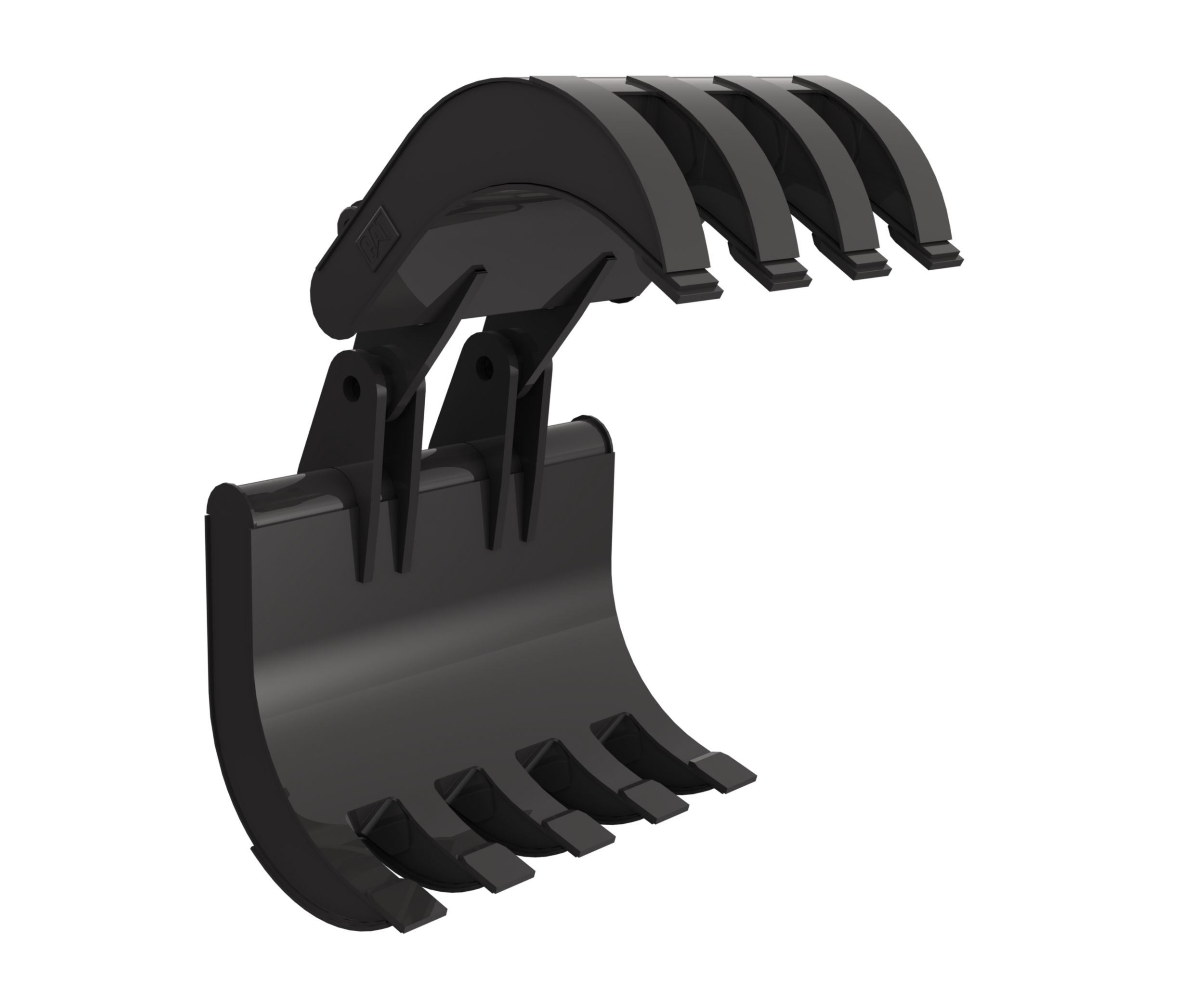

Pin on trash grapple, four tines over five, for C linkage.
Rated Capacity
6.00 yd3
4.60 m3
Weight
5001.00 lb
2268.00 kg
Upper Jaw Width
51.00 in
1295.00 mm
Lower Jaw Width
66.00 in
1676.00 mm
Maximum Jaw Opening
122.00 in
3086.00 mm
Outside Jaw Dimension - Closed
44.00 in
1126.00 mm
Outside Jaw Dimension - Open
128.00 in
3248.00 mm
Tip Radius
65.00 in
1658.00 mm
Jaw Depth
16.00 in
417.00 mm
Tip Thickness
0.98 in
25.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
Wrapper Thickness
0.63 in
16.00 mm
Rated Capacity
6.00 yd³
4.60 m³
Weight
5001.00 lb
2268.00 kg
Maximum Jaw Opening
122.00 in
3086.00 mm
Tip Radius
65.00 in
1658.00 mm
Jaw Depth
16.00 in
417.00 mm
Wear Plate Thickness
0.47 in
12.00 mm
